key YAMAHA YFM90R 2009 Owners Manual

WARNING
N O T I C ETIPThis is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
damage to the vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
A WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury. A NOTICE indicates special precautions that must be taken to avoid

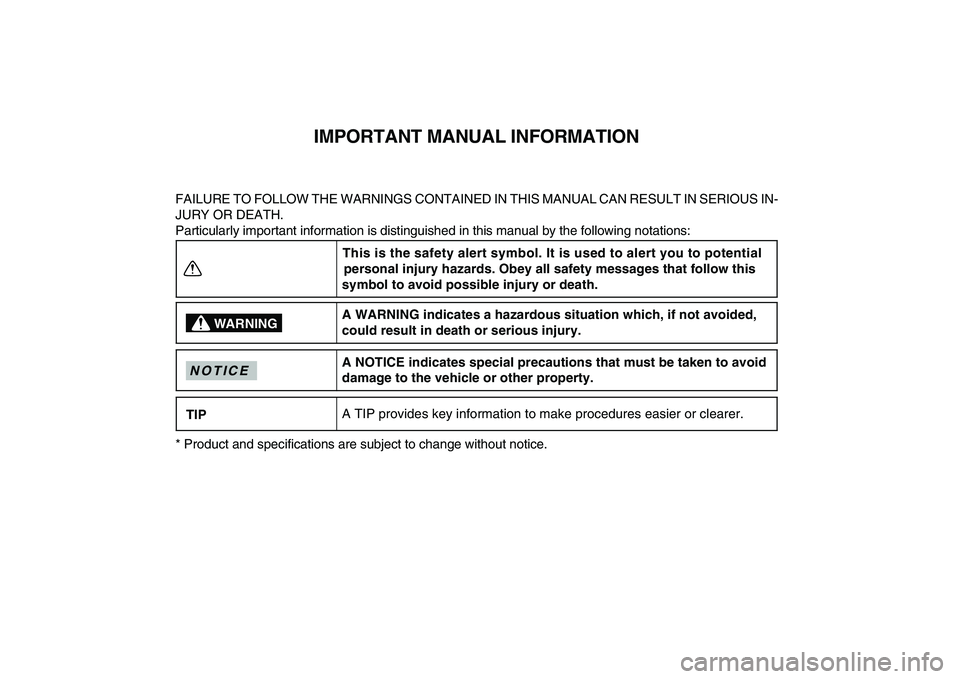

IMPORTANT MANUAL INFORMATION
FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS IN-
JURY OR DEATH.
Particularly important information is distinguished in this manual by the following notations:
* Product and specifications are subject to change without notice.

4-1
4
INSTRUMENT AND CONTROL FUNCTIONS
Main switch The positions of the main switch are as follows:
ON
All electrical systems are supplied with power, and
the engine can be started. The key cannot be re-
moved.
OFF
All electrical systems are off. The key can be re-
moved.
1. Main switch
O F F
O
I
ITI
NG
N
1
ON
OFF

8-30
1. Turn the key to “OFF” and turn off all electricalcircuits.N O T I C E To prevent accidental short-circuiting, turn off
the main switch when checking or replacing afuse.
2. Remove the blown fuse, and then install a new fuse of the specified amperage.
Specified fuse: 10 A
The fuse holder is located under the seat.
8
(See page 4-9.)
If the fuse is blown, replace it as follows.
1. Fuse
2. Spare fuseN O T I C EAlways keep the battery charged. Storing a
discharged battery can cause permanent
battery damage.To charge a VRLA (Valve Regulated Lead Acid)
battery, a special (constant-voltage) battery
charger is required. Using a conventional
battery charger will damage the battery. If you
do not have access to a constant-voltage
battery charger, have a Yamaha dealer charge
your battery.
1
2
Replacing the fuse
WARNING
Always use a fuse of the specified rating, and
never use a substitute object in place of the
proper fuse. An improper fuse or a substitute
object can cause damage to the electrical sys-tem, which could lead to a fire.

8-31

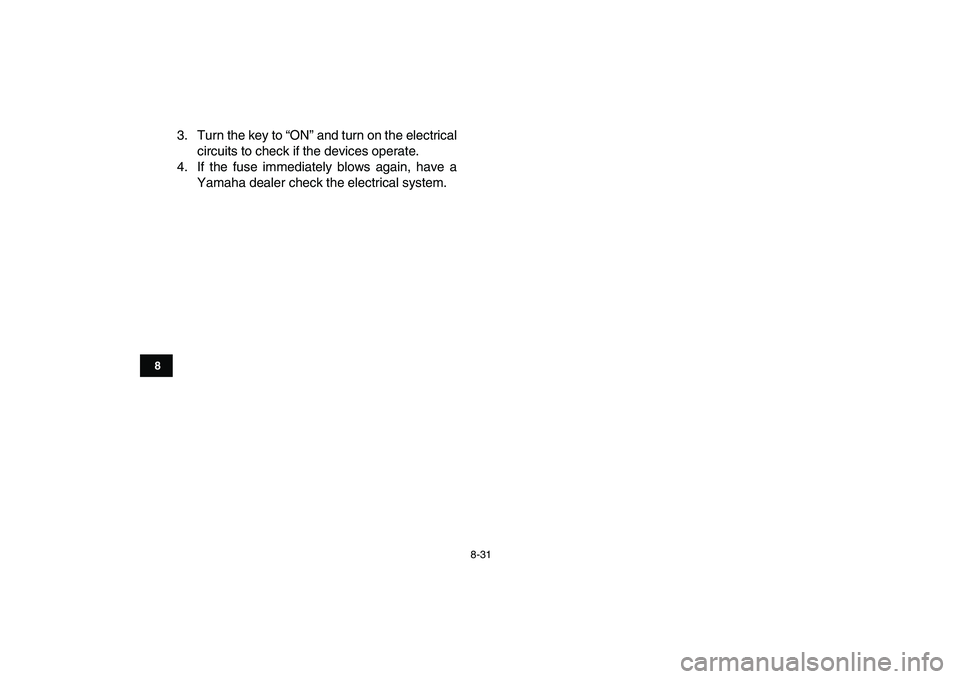

3. Turn the key to “ON” and turn on the electricalcircuits to check if the devices operate.
4. If the fuse immediately blows again, have a Yamaha dealer check the electrical system.
8

11-1
11

CONSUMER INFORMATION
Identification numbers Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided below for assistance when or-
dering spare parts from a Yamaha dealer or for ref-
erence in case the ATV is stolen.KEY IDENTIFICATION NUMBER:VEHICLE IDENTIFICATION NUMBER:MODEL LABEL INFORMATION:Key identification number
The key identification number is stamped into the
key. Record this number in the space provided and
use it for reference when ordering a new key.
Vehicle identification number
The vehicle identification number is stamped into
the frame.1. Key identification number
1

INDEX
AAccessories and loading ................................................ 6-6
Air filter element, cleaning ............................................ 8-15BBattery ........................................................................\
...8-28
Brake lever, front.............................................................4-6Brake lever, rear............................................................4-6
Brake lever free play, checking the rear........................8-26
Brake levers, checking and lubricating .............. .......... 8-27
Brakes, front and rear....................................................5-3
Brake pads, checking the rear.......................................8-25
Brake fluid level, checking the rear...............................8-25
Brake fluid level, changing the rear..............................8-26 Brake lever free play, adjusting the front......................8-23CCables, checking and lubricating ................................. 8-27
Carburetor, adjusting.................................................... 8-20
Chassis fasteners........................................................... 5-7
Cleaning..........................................................................9-1EEngine break-in .............................................................. 6-4
Engine, cold start...........................................................6-1
Engine idling speed ...................................................... 8-20 Engine oil............................................................5-3, 8-11
Engine, starting a warm................................................6-3
Engine stop switch.......................................................4-2
Fuel........................................................................4-8, 5-3
Fuel cock......................................................................4-10
Fuel tank cap..................................................................4-8
Fuse, replacing.............................................................8-30
F
KKey identification number ............................................. 11-1LLabel locations...............................................................2-1HHandlebar switches ........................................................ 4-2IIdentification numbers .................................................. 11-1
Instruments and switches.............................................5-7MMain switch .................................................................... 4-1
Maintenance and lubrication chart.................................8-5
Maintenance chart, emission control system.................8-3
Model label...................................................................11-2
Choke ............................................................................ 4-11 Brake shoes, checking the front .................................. 8-22
Final transmission oil ........................................... 5-3, 8-14
Engine speed limiter plate............................................ 4-5
Kick starter ................................................................. 4-12
