YAMAHA YFZ450 2005 Manuale de Empleo (in Spanish)
Manufacturer: YAMAHA, Model Year: 2005, Model line: YFZ450, Model: YAMAHA YFZ450 2005Pages: 452, tamaño PDF: 17.81 MB
Page 1 of 452
PRINTED IN JAPAN
2004.04-0.8×1 CR
(E,F,S) PRINTED ON RECYCLED PAPER
IMPRIMÉ SUR PAPIER RECYCLÉ
IMPRESO EN PAPEL RECICLADO
YAMAHA MOTOR CO., LTD.
5TG-28199-61
YFZ450T
OWNER’S MANUAL
MANUEL DU PROPRIÉTAIRE
MANUAL DEL PROPIETARIO
Page 2 of 452
B6.fm Page 1 Monday, June 18, 2001 11:18 AM
Page 3 of 452
U5TG61.book Page 1 Friday, April 2, 2004 11:28 AM
Page 4 of 452

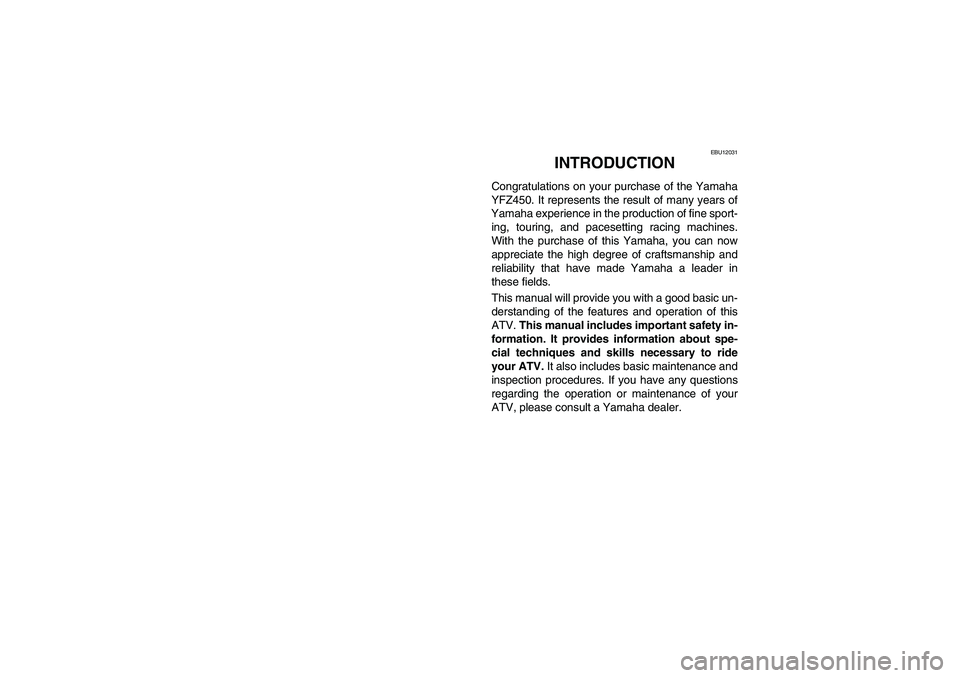

EBU12031
1-INTRODUCTION
Congratulations on your purchase of the Yamaha
YFZ450. It represents the result of many years of
Yamaha experience in the production of fine sport-
ing, touring, and pacesetting racing machines.
With the purchase of this Yamaha, you can now
appreciate the high degree of craftsmanship and
reliability that have made Yamaha a leader in
these fields.
This manual will provide you with a good basic un-
derstanding of the features and operation of this
ATV.
This manual includes important safety in-
formation. It provides information about spe-
cial techniques and skills necessary to ride
your ATV. It also includes basic maintenance and
inspection procedures. If you have any questions
regarding the operation or maintenance of your
ATV, please consult a Yamaha dealer.
U5TG61.book Page 2 Friday, April 2, 2004 11:28 AM
Page 5 of 452

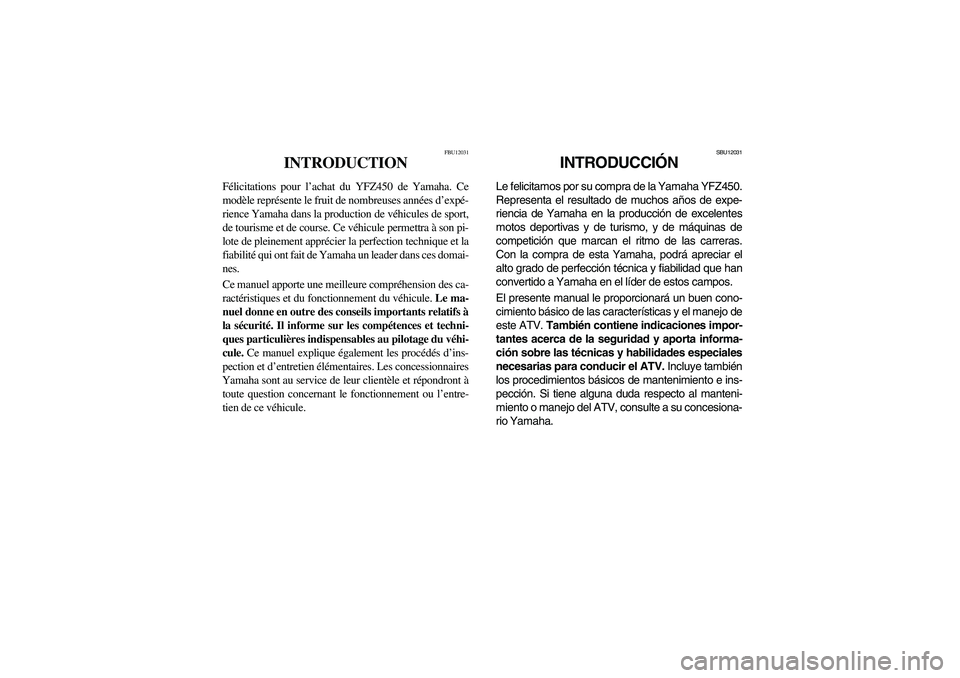

FBU12031
INTRODUCTION
Félicitations pour l’achat du YFZ450 de Yamaha. Ce
modèle représente le fruit de nombreuses années d’expé-
rience Yamaha dans la production de véhicules de sport,
de tourisme et de course. Ce véhicule permettra à son pi-
lote de pleinement apprécier la perfection technique et la
fiabilité qui ont fait de Yamaha un leader dans ces domai-
nes.
Ce manuel apporte une meilleure compréhension des ca-
ractéristiques et du fonctionnement du véhicule. Le ma-
nuel donne en outre des conseils importants relatifs à
la sécurité. Il informe sur les compétences et techni-
ques particulières indispensables au pilotage du véhi-
cule.
Ce manuel explique également les procédés d’ins-
pection et d’entretien élémentaires. Les concessionnaires
Yamaha sont au service de leur clientèle et répondront à
toute question concernant le fonctionnement ou l’entre-
tien de ce véhicule.
SBU12031
INTRODUCCIÓN
Le felicitamos por su compra de la Yamaha YFZ450.
Representa el resultado de muchos años de expe-
riencia de Yamaha en la producción de excelentes
motos deportivas y de turismo, y de máquinas de
competición que marcan el ritmo de las carreras.
Con la compra de esta Yamaha, podrá apreciar el
alto grado de perfección técnica y fiabilidad que han
convertido a Yamaha en el líder de estos campos.
El presente manual le proporcionará un buen cono-
cimiento básico de las características y el manejo de
este ATV.
También contiene indicaciones impor-
tantes acerca de la seguridad y aporta informa-
ción sobre las técnicas y habilidades especiales
necesarias para conducir el ATV. Incluye también
los procedimientos básicos de mantenimiento e ins-
pección. Si tiene alguna duda respecto al manteni-
miento o manejo del ATV, consulte a su concesiona-
rio Yamaha.
U5TG61.book Page 3 Friday, April 2, 2004 11:28 AM
Page 6 of 452

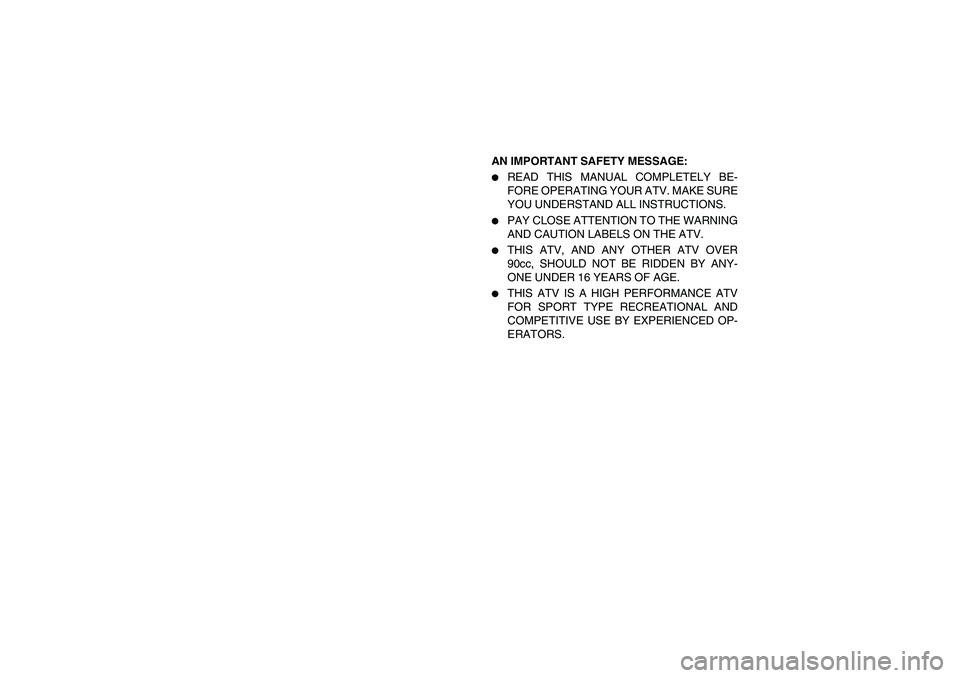

AN IMPORTANT SAFETY MESSAGE:
READ THIS MANUAL COMPLETELY BE-
FORE OPERATING YOUR ATV. MAKE SURE
YOU UNDERSTAND ALL INSTRUCTIONS.
PAY CLOSE ATTENTION TO THE WARNING
AND CAUTION LABELS ON THE ATV.
THIS ATV, AND ANY OTHER ATV OVER
90cc, SHOULD NOT BE RIDDEN BY ANY-
ONE UNDER 16 YEARS OF AGE.
THIS ATV IS A HIGH PERFORMANCE ATV
FOR SPORT TYPE RECREATIONAL AND
COMPETITIVE USE BY EXPERIENCED OP-
ERATORS.
U5TG61.book Page 4 Friday, April 2, 2004 11:28 AM
Page 7 of 452

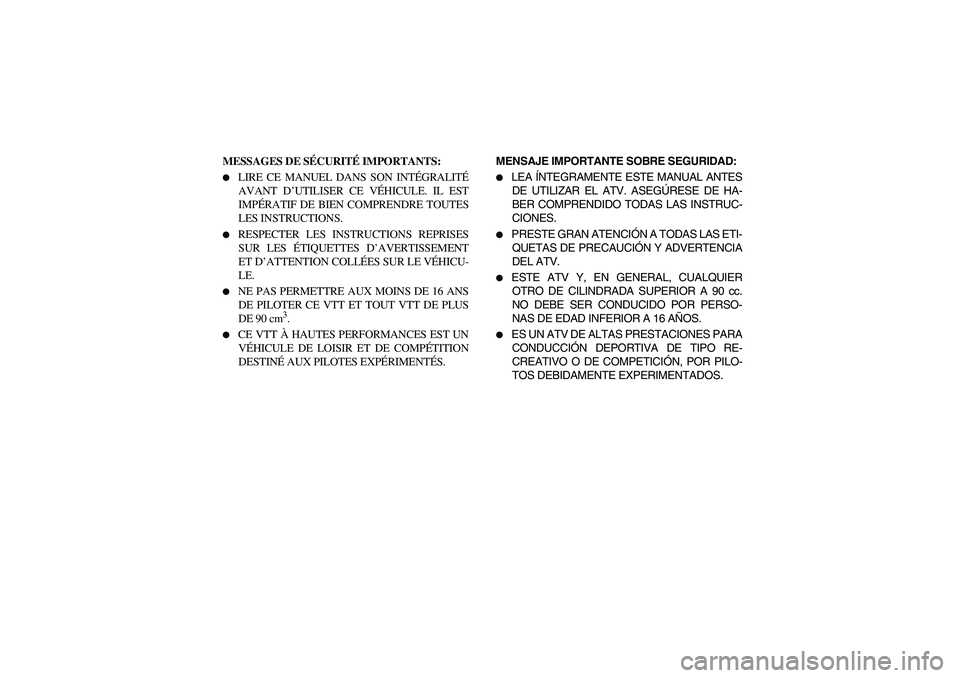

MESSAGES DE SÉCURITÉ IMPORTANTS:
LIRE CE MANUEL DANS SON INTÉGRALITÉ
AVANT D’UTILISER CE VÉHICULE. IL EST
IMPÉRATIF DE BIEN COMPRENDRE TOUTES
LES INSTRUCTIONS.
RESPECTER LES INSTRUCTIONS REPRISES
SUR LES ÉTIQUETTES D’AVERTISSEMENT
ET D’ATTENTION COLLÉES SUR LE VÉHICU-
LE.
NE PAS PERMETTRE AUX MOINS DE 16 ANS
DE PILOTER CE VTT ET TOUT VTT DE PLUS
DE 90 cm
3.
CE VTT À HAUTES PERFORMANCES EST UN
VÉHICULE DE LOISIR ET DE COMPÉTITION
DESTINÉ AUX PILOTES EXPÉRIMENTÉS. MENSAJE IMPORTANTE SOBRE SEGURIDAD:
LEA ÍNTEGRAMENTE ESTE MANUAL ANTES
DE UTILIZAR EL ATV. ASEGÚRESE DE HA-
BER COMPRENDIDO TODAS LAS INSTRUC-
CIONES.
PRESTE GRAN ATENCIÓN A TODAS LAS ETI-
QUETAS DE PRECAUCIÓN Y ADVERTENCIA
DEL ATV.
ESTE ATV Y, EN GENERAL, CUALQUIER
OTRO DE CILINDRADA SUPERIOR A 90 cc.
NO DEBE SER CONDUCIDO POR PERSO-
NAS DE EDAD INFERIOR A 16 AÑOS.
ES UN ATV DE ALTAS PRESTACIONES PARA
CONDUCCIÓN DEPORTIVA DE TIPO RE-
CREATIVO O DE COMPETICIÓN, POR PILO-
TOS DEBIDAMENTE EXPERIMENTADOS.
U5TG61.book Page 5 Friday, April 2, 2004 11:28 AM
Page 8 of 452

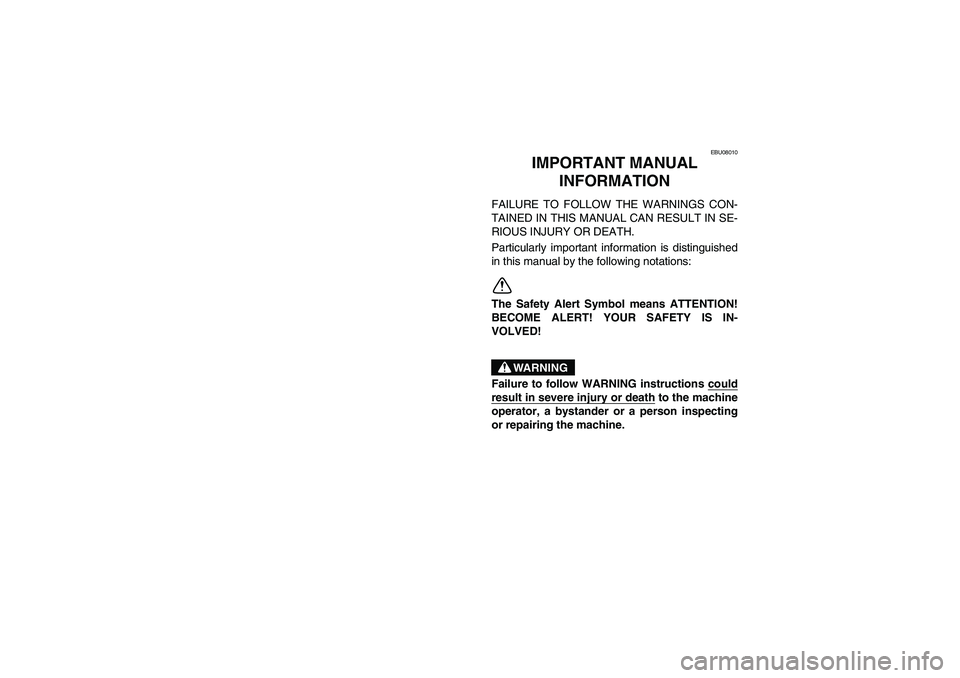

EBU08010
2-IMPORTANT MANUAL
INFORMATION
FAILURE TO FOLLOW THE WARNINGS CON-
TAINED IN THIS MANUAL CAN RESULT IN SE-
RIOUS INJURY OR DEATH.
Particularly important information is distinguished
in this manual by the following notations:_ The Safety Alert Symbol means ATTENTION!
BECOME ALERT! YOUR SAFETY IS IN-
VOLVED!
WARNING
_ Failure to follow WARNING instructions couldresult in severe injury or death
to the machine
operator, a bystander or a person inspecting
or repairing the machine.
U5TG61.book Page 1 Friday, April 2, 2004 11:28 AM
Page 9 of 452

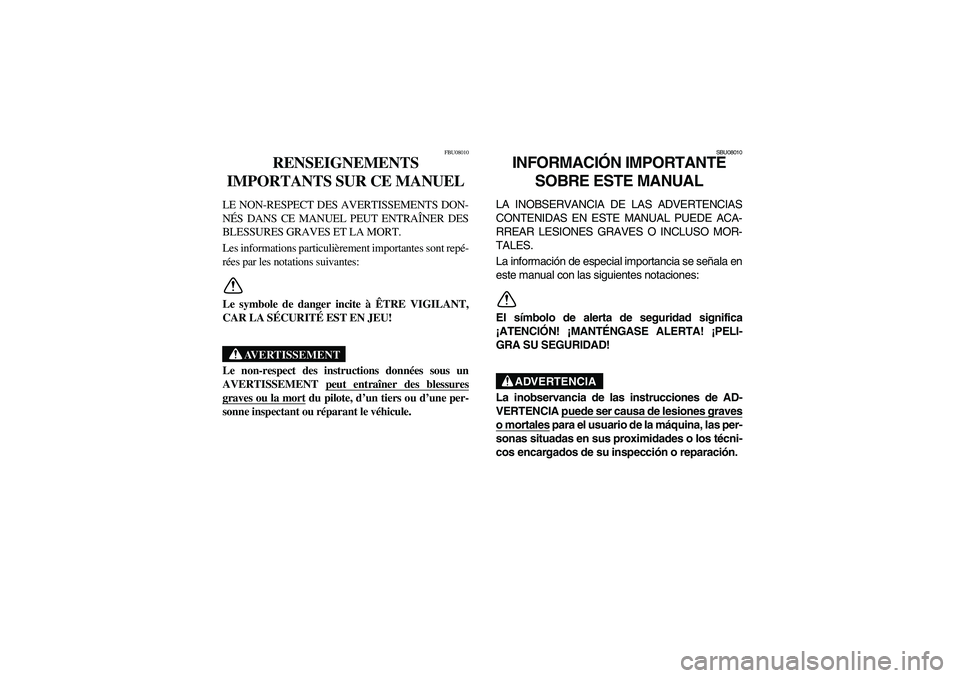

FBU08010
RENSEIGNEMENTS
IMPORTANTS SUR CE MANUEL
LE NON-RESPECT DES AVERTISSEMENTS DON-
NÉS DANS CE MANUEL PEUT ENTRAÎNER DES
BLESSURES GRAVES ET LA MORT.
Les informations particulièrement importantes sont repé-
rées par les notations suivantes:_ Le symbole de danger incite à ÊTRE VIGILANT,
CAR LA SÉCURITÉ EST EN JEU!
AVERTISSEMENT
_ Le non-respect des instructions données sous un
AVERTISSEMENT peut entraîner des blessuresgraves ou la mort
du pilote, d’un tiers ou d’une per-
sonne inspectant ou réparant le véhicule.
SBU08010
INFORMACIÓN IMPORTANTE
SOBRE ESTE MANUAL
LA INOBSERVANCIA DE LAS ADVERTENCIAS
CONTENIDAS EN ESTE MANUAL PUEDE ACA-
RREAR LESIONES GRAVES O INCLUSO MOR-
TALES.
La información de especial importancia se señala en
este manual con las siguientes notaciones:_ El símbolo de alerta de seguridad significa
¡ATENCIÓN! ¡MANTÉNGASE ALERTA! ¡PELI-
GRA SU SEGURIDAD!
ADVERTENCIA
_ La inobservancia de las instrucciones de AD-
VERTENCIA puede ser causa de lesiones graveso mortales
para el usuario de la máquina, las per-
sonas situadas en sus proximidades o los técni-
cos encargados de su inspección o reparación.
U5TG61.book Page 2 Friday, April 2, 2004 11:28 AM
Page 10 of 452

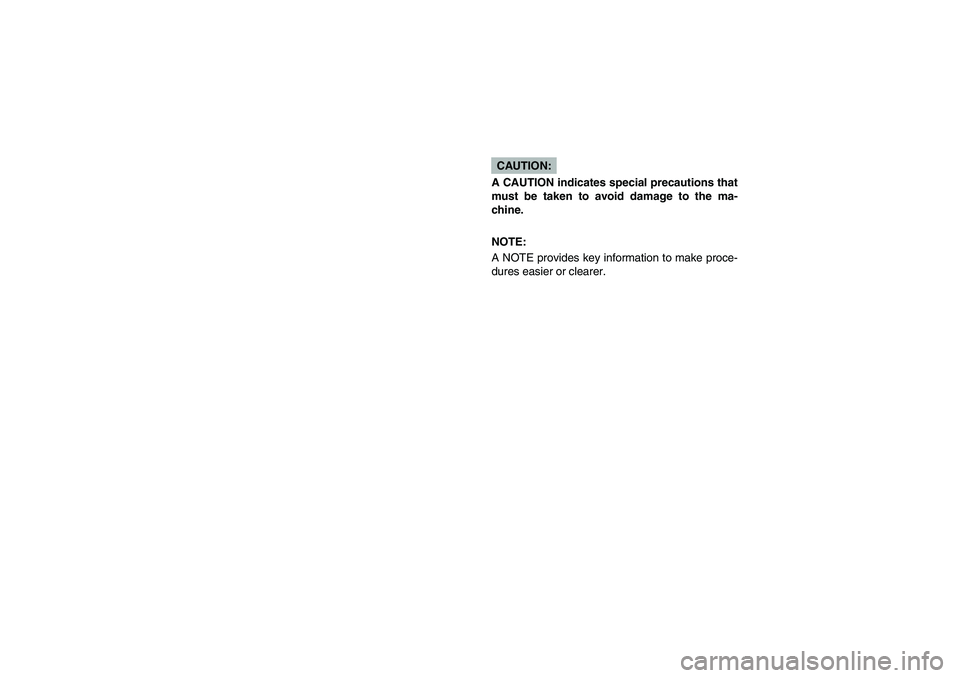

CAUTION:_ A CAUTION indicates special precautions that
must be taken to avoid damage to the ma-
chine.
NOTE:
A NOTE provides key information to make proce-
dures easier or clearer.
