YAMAHA YFZ450 2007 Owners Manual

This A
MANUAL DEL PROPIETARIO
5D3-28199-60
YFZ450W
MANUEL DU PROPRIÉTAIREOWNER’S MANUAL

PRINTED IN JAPAN
2006.04-0.8x2 !
(E,F,S)
YAMAHA MOTOR CO., LTD.

This A
5D3-28199-60-E0
YFZ450W
OWNER’S MANUAL

EBU17170

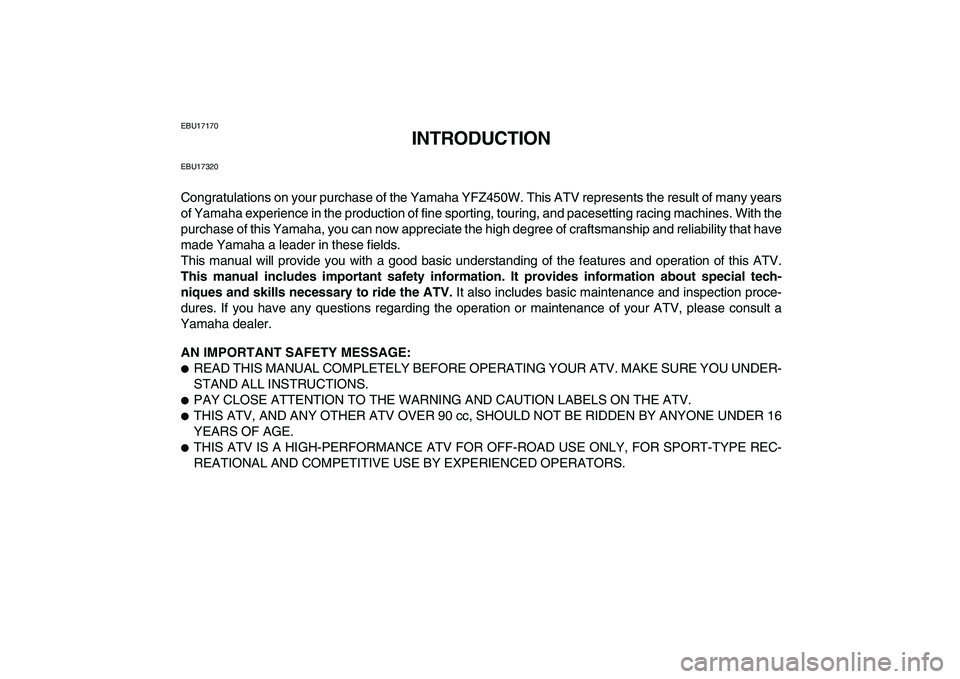

INTRODUCTION
EBU17320
Congratulations on your purchase of the Yamaha YFZ450W. This ATV represents the result of many years
of Yamaha experience in the production of fine sporting, touring, and pacesetting racing machines. With the
purchase of this Yamaha, you can now appreciate the high degree of craftsmanship and reliability that have
made Yamaha a leader in these fields.
This manual will provide you with a good basic understanding of the features and operation of this ATV.
This manual includes important safety information. It provides information about special tech-
niques and skills necessary to ride the ATV.
It also includes basic maintenance and inspection proce-
dures. If you have any questions regarding the operation or maintenance of your ATV, please consult a
Yamaha dealer.
AN IMPORTANT SAFETY MESSAGE:


READ THIS MANUAL COMPLETELY BEFORE OPERATING YOUR ATV. MAKE SURE YOU UNDER-
STAND ALL INSTRUCTIONS.

PAY CLOSE ATTENTION TO THE WARNING AND CAUTION LABELS ON THE ATV.

THIS ATV, AND ANY OTHER ATV OVER 90 cc, SHOULD NOT BE RIDDEN BY ANYONE UNDER 16
YEARS OF AGE.

THIS ATV IS A HIGH-PERFORMANCE ATV FOR OFF-ROAD USE ONLY, FOR SPORT-TYPE REC-
REATIONAL AND COMPETITIVE USE BY EXPERIENCED OPERATORS.

EBU17330

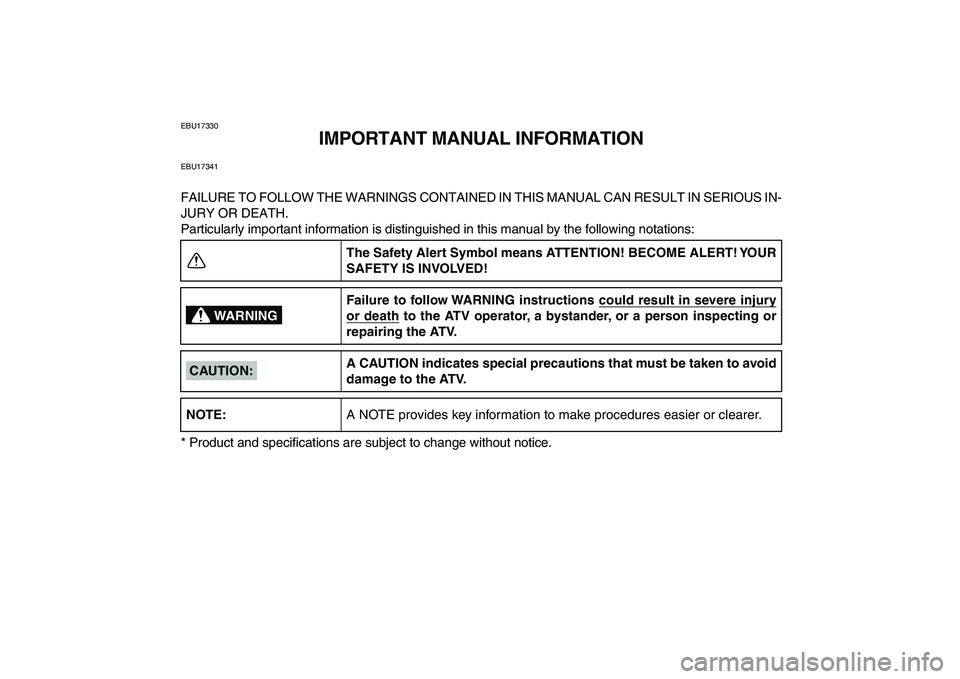

IMPORTANT MANUAL INFORMATION
EBU17341
FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS IN-
JURY OR DEATH.
Particularly important information is distinguished in this manual by the following notations:
* Product and specifications are subject to change without notice.
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR
SAFETY IS INVOLVED!
Failure to follow WARNING instructions could result in se
vere injur
y
or death
to the ATV operator, a bystander, or a person inspecting or
repairing the ATV.
A CAUTION indicates special precautions that must be taken to avoid
damage to the ATV.
A NOTE provides key information to make procedures easier or clearer.
WARNING
CAUTION:NOTE:

EBU17350

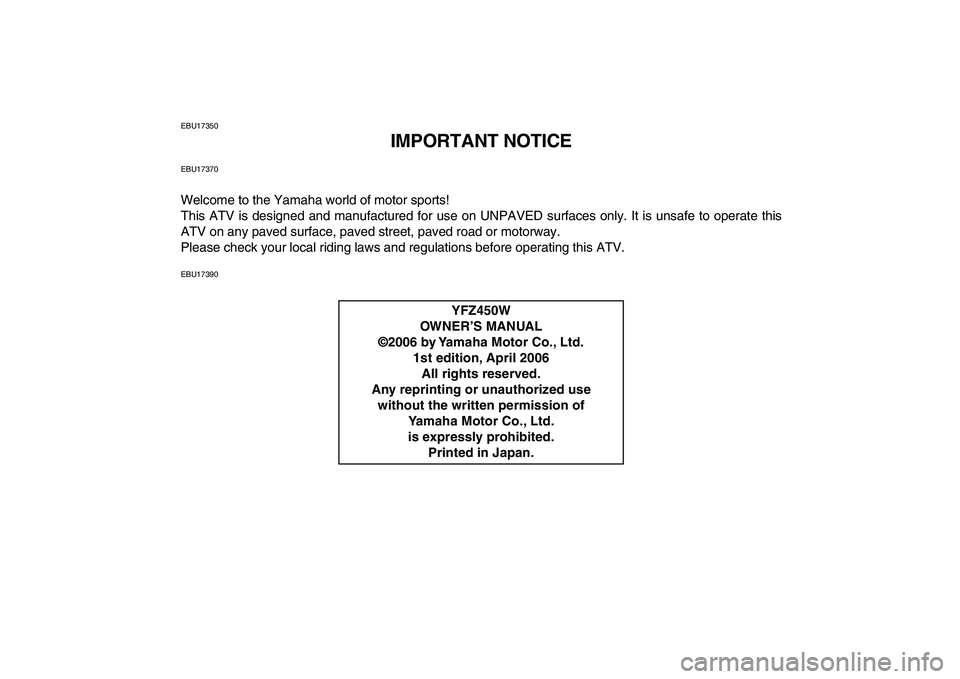

IMPORTANT NOTICE
EBU17370
Welcome to the Yamaha world of motor sports!
This ATV is designed and manufactured for use on UNPAVED surfaces only. It is unsafe to operate this
ATV on any paved surface, paved street, paved road or motorway.
Please check your local riding laws and regulations before operating this ATV.
EBU17390
YFZ450W
OWNER’S MANUAL
©2006 by Yamaha Motor Co., Ltd.
1st edition, April 2006
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan.

EBU17420

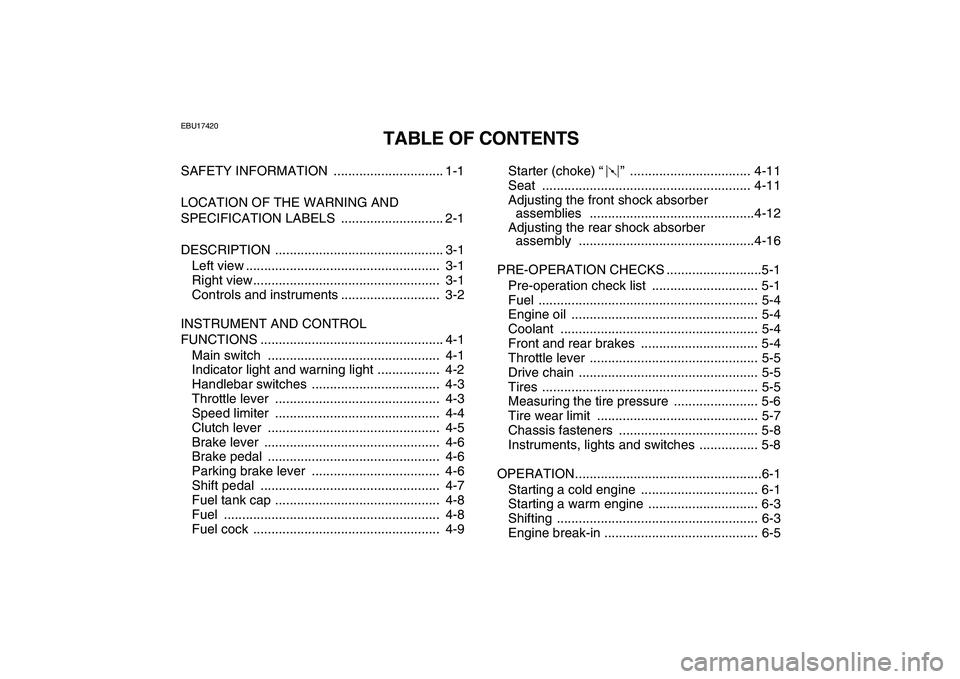

TABLE OF CONTENTS
SAFETY INFORMATION .............................. 1-1
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 2-1
DESCRIPTION .............................................. 3-1
Left view ..................................................... 3-1
Right view................................................... 3-1
Controls and instruments ........................... 3-2
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1
Main switch ............................................... 4-1
Indicator light and warning light ................. 4-2
Handlebar switches ................................... 4-3
Throttle lever ............................................. 4-3
Speed limiter ............................................. 4-4
Clutch lever ............................................... 4-5
Brake lever ................................................ 4-6
Brake pedal ............................................... 4-6
Parking brake lever ................................... 4-6
Shift pedal ................................................. 4-7
Fuel tank cap ............................................. 4-8
Fuel ........................................................... 4-8
Fuel cock ................................................... 4-9Starter (choke) “ ” ................................. 4-11
Seat ......................................................... 4-11
Adjusting the front shock absorber
assemblies .............................................4-12
Adjusting the rear shock absorber
assembly ................................................4-16
PRE-OPERATION CHECKS ..........................5-1
Pre-operation check list ............................. 5-1
Fuel ............................................................ 5-4
Engine oil ................................................... 5-4
Coolant ...................................................... 5-4
Front and rear brakes ................................ 5-4
Throttle lever .............................................. 5-5
Drive chain ................................................. 5-5
Tires ........................................................... 5-5
Measuring the tire pressure ....................... 5-6
Tire wear limit ............................................ 5-7
Chassis fasteners ...................................... 5-8
Instruments, lights and switches ................ 5-8
OPERATION...................................................6-1
Starting a cold engine ................................ 6-1
Starting a warm engine .............................. 6-3
Shifting ....................................................... 6-3
Engine break-in .......................................... 6-5

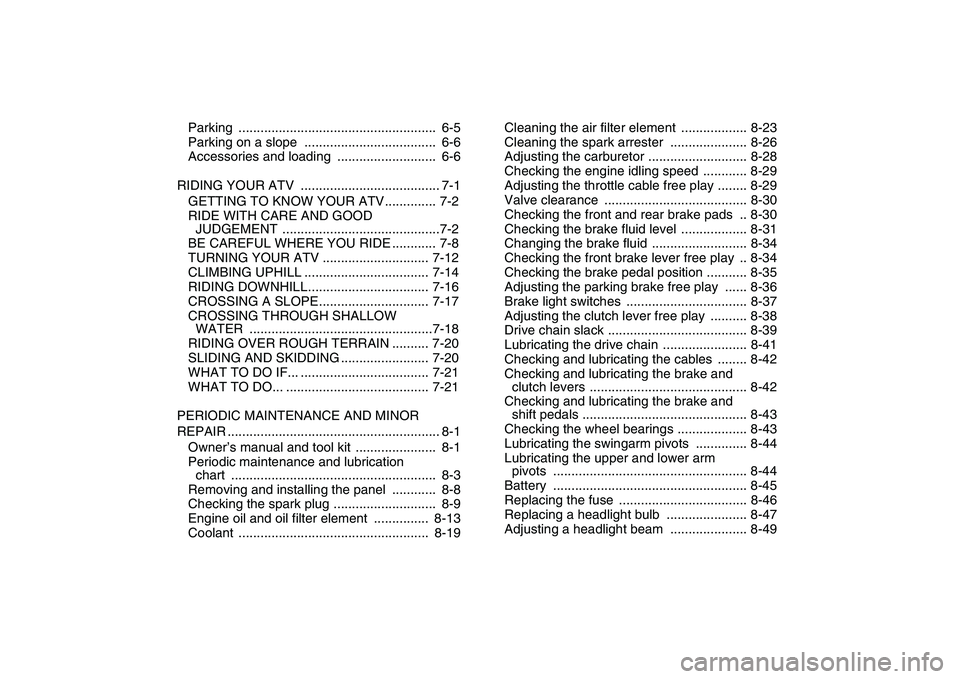

Parking ...................................................... 6-5
Parking on a slope .................................... 6-6
Accessories and loading ........................... 6-6
RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV.............. 7-2
RIDE WITH CARE AND GOOD
JUDGEMENT ...........................................7-2
BE CAREFUL WHERE YOU RIDE ............ 7-8
TURNING YOUR ATV ............................. 7-12
CLIMBING UPHILL .................................. 7-14
RIDING DOWNHILL................................. 7-16
CROSSING A SLOPE.............................. 7-17
CROSSING THROUGH SHALLOW
WATER ..................................................7-18
RIDING OVER ROUGH TERRAIN .......... 7-20
SLIDING AND SKIDDING ........................ 7-20
WHAT TO DO IF... ................................... 7-21
WHAT TO DO... ....................................... 7-21
PERIODIC MAINTENANCE AND MINOR
REPAIR .......................................................... 8-1
Owner’s manual and tool kit ...................... 8-1
Periodic maintenance and lubrication
chart ........................................................ 8-3
Removing and installing the panel ............ 8-8
Checking the spark plug ............................ 8-9
Engine oil and oil filter element ............... 8-13
Coolant .................................................... 8-19Cleaning the air filter element .................. 8-23
Cleaning the spark arrester ..................... 8-26
Adjusting the carburetor ........................... 8-28
Checking the engine idling speed ............ 8-29
Adjusting the throttle cable free play ........ 8-29
Valve clearance ....................................... 8-30
Checking the front and rear brake pads .. 8-30
Checking the brake fluid level .................. 8-31
Changing the brake fluid .......................... 8-34
Checking the front brake lever free play .. 8-34
Checking the brake pedal position ........... 8-35
Adjusting the parking brake free play ...... 8-36
Brake light switches ................................. 8-37
Adjusting the clutch lever free play .......... 8-38
Drive chain slack ...................................... 8-39
Lubricating the drive chain ....................... 8-41
Checking and lubricating the cables ........ 8-42
Checking and lubricating the brake and
clutch levers ........................................... 8-42
Checking and lubricating the brake and
shift pedals ............................................. 8-43
Checking the wheel bearings ................... 8-43
Lubricating the swingarm pivots .............. 8-44
Lubricating the upper and lower arm
pivots ..................................................... 8-44
Battery ..................................................... 8-45
Replacing the fuse ................................... 8-46
Replacing a headlight bulb ...................... 8-47
Adjusting a headlight beam ..................... 8-49

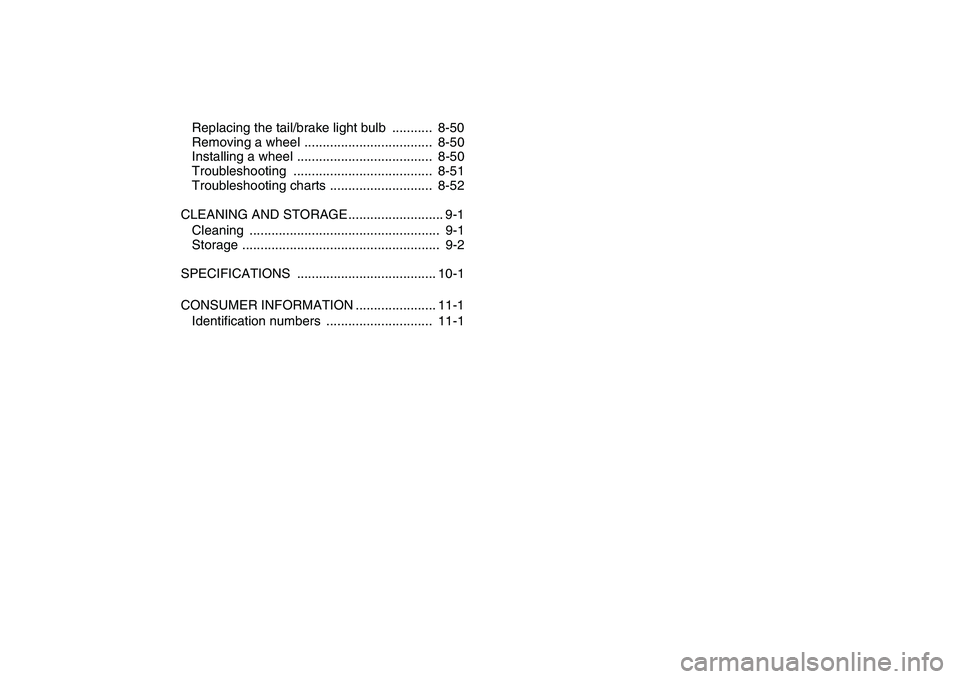

Replacing the tail/brake light bulb ........... 8-50
Removing a wheel ................................... 8-50
Installing a wheel ..................................... 8-50
Troubleshooting ...................................... 8-51
Troubleshooting charts ............................ 8-52
CLEANING AND STORAGE .......................... 9-1
Cleaning .................................................... 9-1
Storage ...................................................... 9-2
SPECIFICATIONS ...................................... 10-1
CONSUMER INFORMATION ...................... 11-1
Identification numbers ............................. 11-1
