Page 101 of 150

8-18
8
8. Remove the oil filter element and the O-rings.
9. Install a new oil filter element and new O-
rings.
TIPMake sure that the O-rings are properly seated. 10. Install the oil filter element cover by installing the bolts, and then tighten them to the speci-
fied torque.

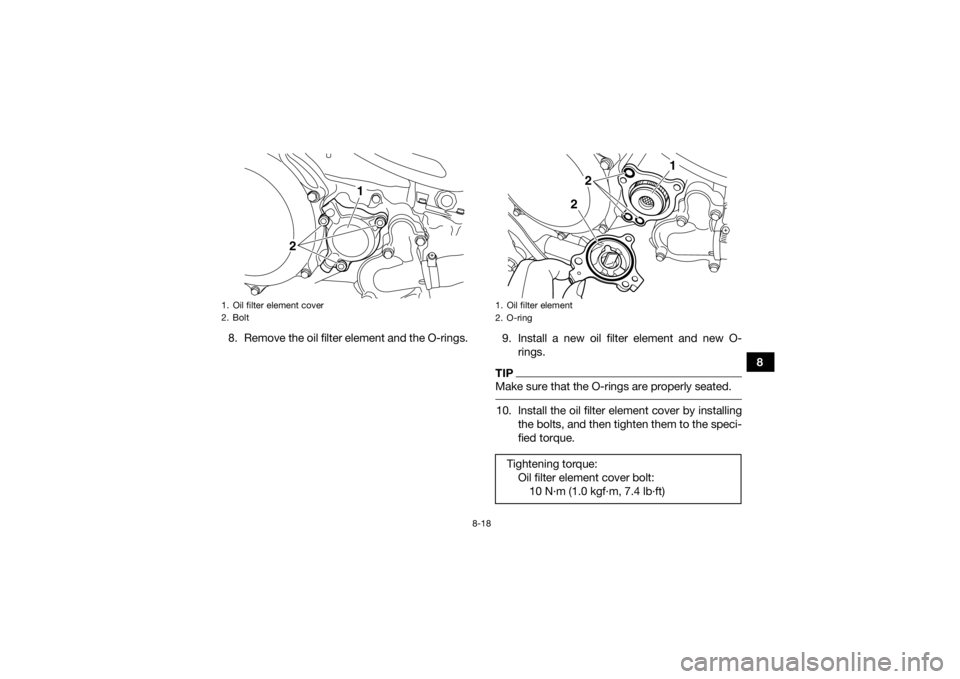

1. Oil filter element cover
2. Bolt
1
2
1. Oil filter element
2. O-ringTightening torque:Oil filter element cover bolt:10 N·m (1.0 kgf·m, 7.4 lb·ft)
1
2
2
UBW262E0.book Page 18 Tuesday, April 3, 2018 10:59 AM
Page 102 of 150

8-19
811. Install the crankcase engine oil drain bolt, the
engine oil tank drain bolt and their new gas-
ket, and then tighten the bolts to their speci-
fied torques.
12. Refill with the specified amount of the recom- mended engine oil through the engine oil tank
filler hole.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down.
NOTICEECB00301In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.
Make sure that no foreign material enters the
crankcase. 13. Check the engine oil tank filler cap O-ring for
damage, and replace it if necessary.
14. Install and tighten the engine oil tank filler cap.
15. Start the engine, and then let it idle for several minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
16. Turn the engine off, and then check the oil level and correct it if necessary.
17. Install the engine guard by installing the bolts, and then tighten them to the specified torque.
NOTICE: Be sure to apply LOCTITE
® to the
engine guard bolts before installing them.
[ECB00372]
Tightening torques: Crankcase engine oil drain bolt:20 N·m (2.0 kgf·m, 15 lb·ft)
Engine oil tank drain bolt: 20 N·m (2.0 kgf·m, 15 lb·ft)
Recommended oil: See page 10-1.
Oil quantity: Without oil filter element replacement:1.40 L (1.48 US qt, 1.23 Imp.qt)
With oil filter element replacement: 1.45 L (1.53 US qt, 1.28 Imp.qt)
UBW262E0.book Page 19 Tuesday, April 3, 2018 10:59 AM
Page 103 of 150

8-20
8
EBU23472CoolantThe coolant level should be checked regularly. In
addition, the coolant must be changed at the in-
tervals specified in the periodic maintenance and
lubrication chart.TIPIf genuine Yamaha coolant is not available, use an
ethylene glycol antifreeze containing corrosion in-
hibitors for aluminum engines and mix with dis-
tilled water at a 1:1 ratio.
NOTICEECB02190Mix antifreeze with distilled water only. Howev-
er, if distilled water is not available, soft water
may be used for refilling. Do not use hard water
or salt water since they are harmful to the en-
gine. EBU27946To check the coolant level1. Park the ATV on a level surface.TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture. 2. Check the coolant level in the coolant reser- voir.TIPThe coolant should be between the minimum and
maximum level marks.
Tightening torque:Engine guard bolt:7 N·m (0.7 kgf·m, 5.2 lb·ft)
Recommended coolant: YAMALUBE coolant
Coolant quantity: Coolant reservoir (up to full level):0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes): 1.25 L (1.32 US qt, 1.10 Imp.qt)
UBW262E0.book Page 20 Tuesday, April 3, 2018 10:59 AM
Page 104 of 150

8-21
83. If the coolant is at or below the minimum level
mark, remove the coolant reservoir cap.
WARNING! Remove only the coolant res-
ervoir cap. Never attempt to remove the
radiator cap when the engine is hot.
[EWB02672] EBU29863
Changing the coolant
The coolant must be changed at the intervals
specified in the periodic maintenance chart. Have
a Yamaha dealer change the coolant.
WARNING!
Never attempt to remove the radiator cap
when the engine is hot.
[EWB04300]
EBU2680A
Cleaning the air filter elementThe air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are rid-
ing in unusually wet or dusty areas.TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case.

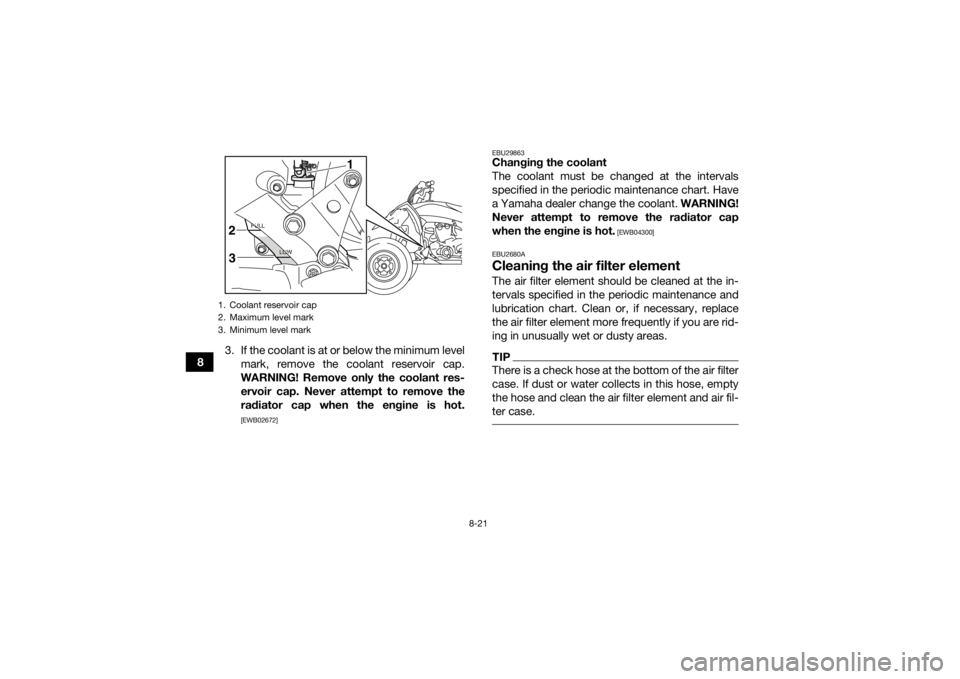

1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level mark
1
2
3
UBW262E0.book Page 21 Tuesday, April 3, 2018 10:59 AM
Page 105 of 150

8-22
8
1. Park the ATV on a level surface.
2. Remove the seat. (See page 4-10.)
3. Remove the air filter case cover by unhooking
the holders. 4. Fully loosen the wing bolt.
5. Remove the air filter element together with
the wing bolt and washer.

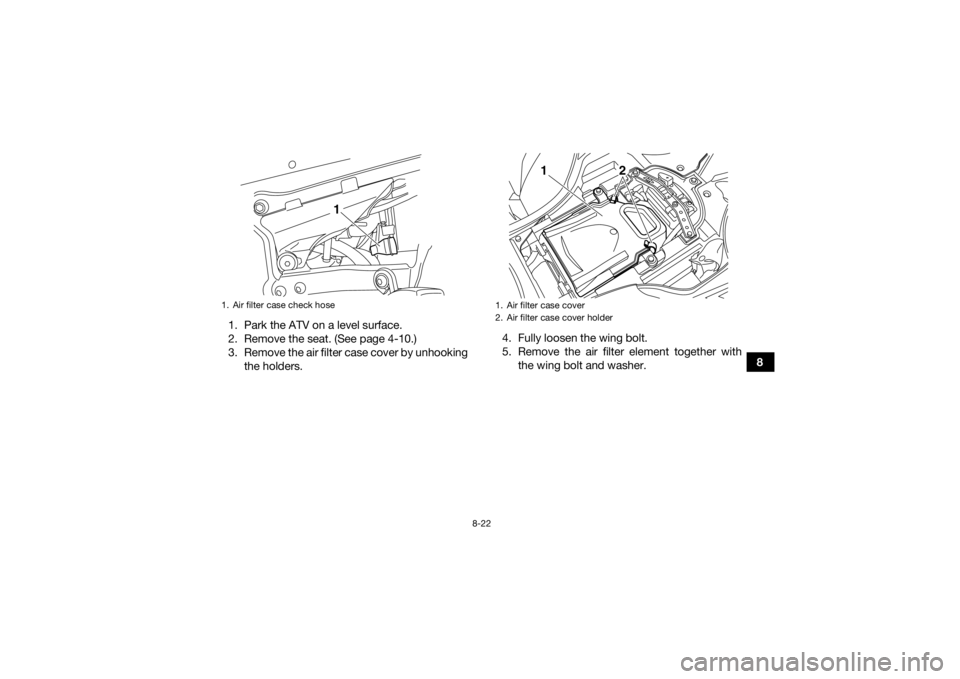

1. Air filter case check hose
1
1. Air filter case cover
2. Air filter case cover holder
1
2
UBW262E0.book Page 22 Tuesday, April 3, 2018 10:59 AM
Page 106 of 150

8-23
86. Remove the wing bolt and washer from the air
filter element.
7. Remove the sponge material from the air filter element frame. 8. Wash the sponge material gently but thor-
oughly in solvent. WARNING! Always use
parts cleaning solvent. Never use low-
flash-point solvents or gasoline because
the engine could catch fire or explode.
[EWB01943]

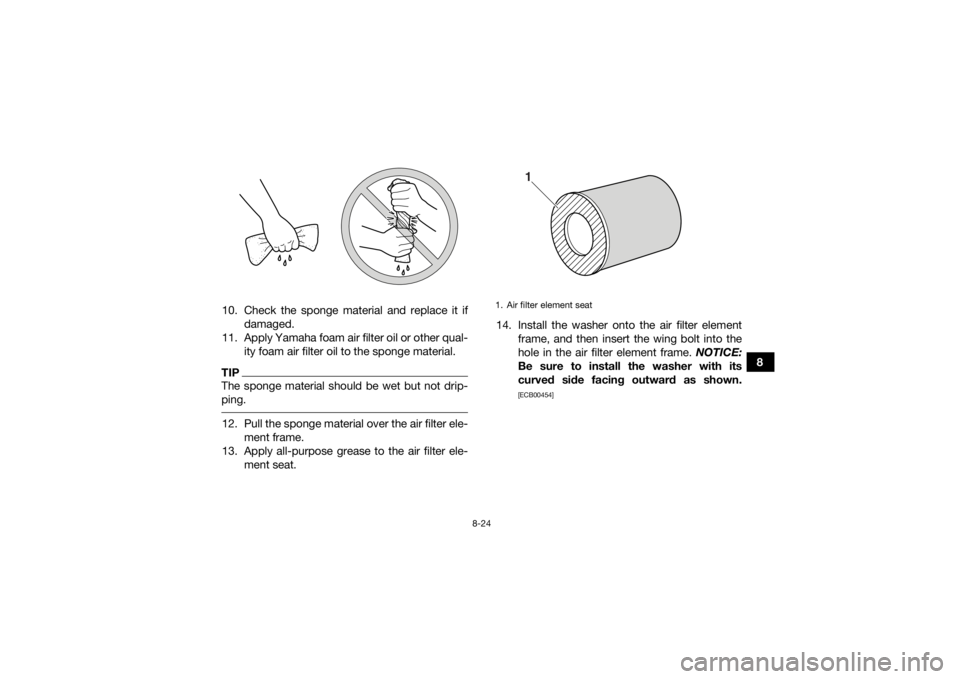

9. Squeeze the excess solvent out of the sponge material and let it dry. NOTICE: Do
not twist the sponge material when
squeezing it.
[ECB00442]

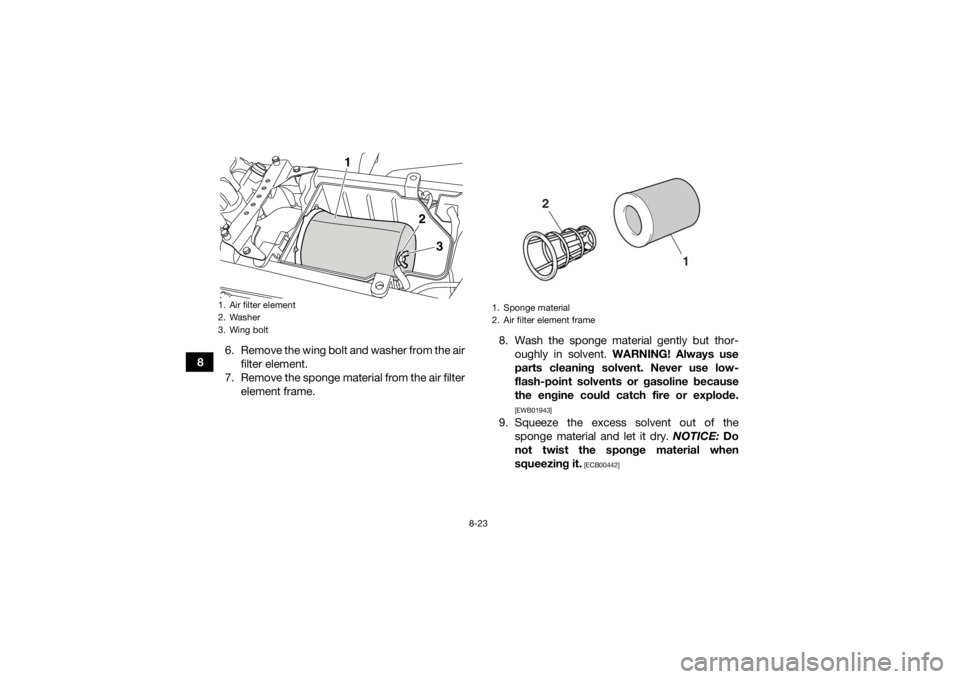

1. Air filter element
2. Washer
3. Wing bolt
3
2
1
1. Sponge material
2. Air filter element frame
1
2
UBW262E0.book Page 23 Tuesday, April 3, 2018 10:59 AM
Page 107 of 150

8-24
8
10. Check the sponge material and replace it if
damaged.
11. Apply Yamaha foam air filter oil or other qual- ity foam air filter oil to the sponge material.
TIPThe sponge material should be wet but not drip-
ping. 12. Pull the sponge material over the air filter ele-ment frame.
13. Apply all-purpose grease to the air filter ele- ment seat. 14. Install the washer onto the air filter element
frame, and then insert the wing bolt into the
hole in the air filter element frame. NOTICE:
Be sure to install the washer with its
curved side facing outward as shown.
[ECB00454]
1. Air filter element seat
1
UBW262E0.book Page 24 Tuesday, April 3, 2018 10:59 AM
Page 108 of 150

8-25
815. Insert the air filter element into the air filter
case, and then tighten the wing bolt.
NOTICE: Make sure that the air filter ele-
ment is properly seated in the air filter
case. Never operate the engine with the air
filter element removed. Doing so would al-
low unfiltered air to enter the engine, caus-
ing rapid engine wear and possible engine
damage. Additionally, the fuel injection
system would be affected resulting in poor
engine performance and possible over-
heating.
[ECB00763]
16. Install the air filter case cover by hooking the holders onto the air filter case. 17. Install the seat.
TIPThe air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated
more often if the ATV is operated in extremely
dusty areas. Each time the air filter element main-
tenance is performed, check the air inlet of the air
filter case for obstructions. Check the air filter
case rubber joint to the throttle body and the rub-
ber joint manifold fittings for an air-tight seal.
Tighten all fittings securely to avoid the possibility
of unfiltered air entering the engine. EBU30862Cleaning the spark arresterSelect a well-ventilated area free of combustible
materials and make sure the exhaust and muffler
are cool.
1. Remove the tailpipe cover by removing the bolts.
1. Washer
1
UBW262E0.book Page 25 Tuesday, April 3, 2018 10:59 AM
Page 109 of 150

8-26
8
2. Remove the retainer by removing the bolts,
and then remove the tailpipe and gasket from
the muffler. 3. Tap the tailpipe lightly, and then use a wire
brush to remove any carbon deposits from
the spark arrester portion of the tailpipe and
inside of the tailpipe housing.

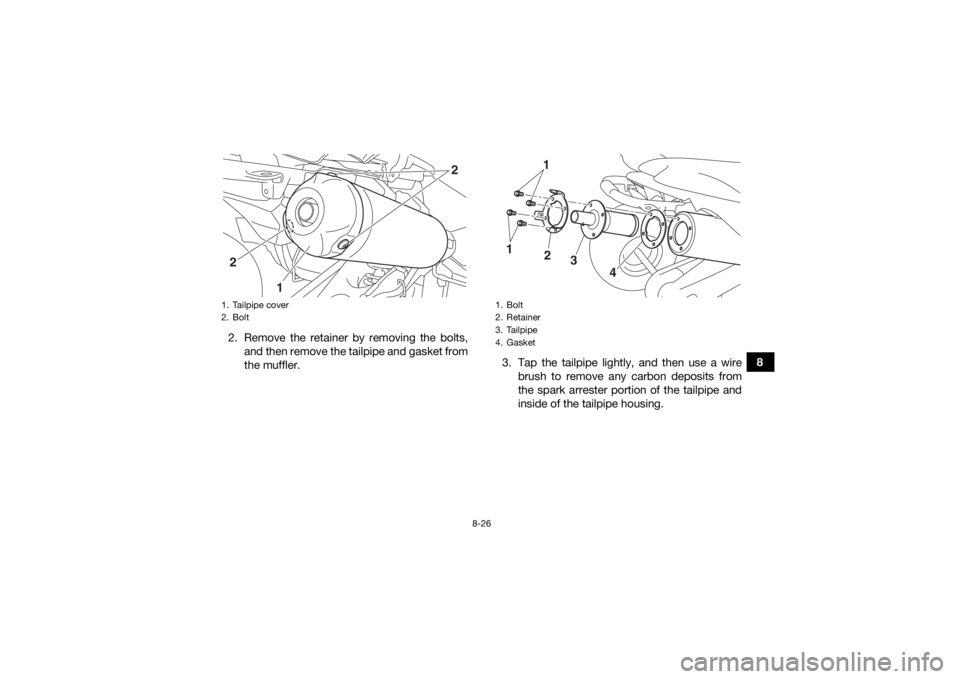

1. Tailpipe cover
2. Bolt2
1 2
1. Bolt
2. Retainer
3. Tailpipe
4. Gasket1
2
3
4
1
UBW262E0.book Page 26 Tuesday, April 3, 2018 10:59 AM
Page 110 of 150

8-27
84. Install the gasket, tailpipe, and retainer and
align the bolt holes.
5. Install the bolts and tighten them to the spec- ified torque.
6. Install the tailpipe cover and align the bolt holes.
7. Install the bolts and tighten them to the spec- ified torque.
WARNING
EWB02342Always let the exhaust system cool prior to
touching exhaust components.
Do not start the engine with the spark arrester
removed. Sparks or exhaust particulate can
cause eye injury, burns, or start a fire.
1. Tailpipe
2. Spark arresterTightening torque:Retainer bolt:10 N·m (1.0 kgf·m, 7.4 lb·ft)
1
2
Tightening torque:Tailpipe cover bolt:8 N·m (0.8 kgf·m, 5.9 lb·ft)
UBW262E0.book Page 27 Tuesday, April 3, 2018 10:59 AM
