EBU24883Lubricating the drive chainThe drive chain must be cleaned and lubricated at
the intervals specified in the periodic maintenance
and lubrication chart, otherwise it will quickly wear
out, especially when riding in dusty or wet areas.
Service the drive chain as follows.NOTICEECB00562The drive chain must be lubricated after wash-
ing the ATV or riding in the rain or wet areas. 1. Clean the drive chain with kerosene and asmall soft brush. NOTICE: To prevent dam-
aging the O-rings, do not clean the drive
chain with steam cleaners, high-pressure
washers or inappropriate solvents.
[ECB00572]
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a special O-ring chain lubricant. NOTICE: Do
not use engine oil or any other lubricants
for the drive chain, as they may contain
substances that could damage the O-
rings.
[ECB00582]
EBU24905
Checking and lubricating the cablesThe operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-1. O-rings
1
1
UBW262E0.book Page 38 Tuesday, April 3, 2018 10:59 AM

8-39
8essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02582
Inspect cables frequently and replace if
damaged. Corrosion can result when the ca-
ble sheaths become damaged, and cables
can also become frayed or kinked, which
could restrict the operation of controls and
lead to an accident or injury.
 Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or
do not work smoothly, you could be unable
to control the ATV, which could lead to an
accident or collision.
EBU24923Checking and lubricating the brake
and clutch leversThe operation of the brake and clutch levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
Brake lever
Recommended lubricant:
Yamaha cable lubricant or other suitable cable lubricantRecommended lubricants: Brake lever:Silicone grease
Clutch lever: Lithium-soap-based grease
UBW262E0.book Page 39 Tuesday, April 3, 2018 10:59 AM

8-40
8
Clutch lever
EBUM0171Checking the shift pedalThe operation of the shift pedal should be
checked before each ride. If operation is not
smooth, have a Yamaha dealer check the vehicle.EBU28872Checking and lubricating the brake
pedalThe operation of the brake pedal should be
checked before each ride, and the pedal pivot
should be lubricated if necessary.
EBU24964Checking the wheel hub bearingsThe front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smooth-
ly, have a Yamaha dealer check the wheel hub
bearings.Recommended lubricant:
Lithium-soap-based grease
UBW262E0.book Page 40 Tuesday, April 3, 2018 10:59 AM

8-41
8
EBU24996Lubricating the swingarm pivotsThe swingarm pivots must be lubricated by a
Yamaha dealer at the intervals specified in the pe- riodic maintenance and lubrication chart.
EBU25035Lubricating the upper and lower arm
pivotsThe upper and lower arm pivots must be lubricat-
ed at the intervals specified in the periodic main-
tenance and lubrication chart.
Recommended lubricant:
Lithium-soap-based greaseRecommended lubricant:Lithium-soap-based grease
UBW262E0.book Page 41 Tuesday, April 3, 2018 10:59 AM

8-42
8
Left side Right side
TIPFor parts equipped with a grease nipple, use a
grease gun. EBU25095Lubricating the steering shaftThe steering shaft must be lubricated by a
Yamaha dealer at the intervals specified in the pe- riodic maintenance and lubrication chart.
1. Upper grease nipple
2. Lower grease nipple
21
2
1. Upper grease nipple
2. Lower grease nippleRecommended lubricant: Lithium-soap-based grease
1
2
2
UBW262E0.book Page 42 Tuesday, April 3, 2018 10:59 AM

8-43
8
TIPFor parts equipped with a grease nipple, use a
grease gun. EBU2918BBatteryThis model is equipped with a 12-volt VRLA
(valve-regulated lead-acid) battery. There is no
need to check the electrolyte or to add distilled
water. However, the battery lead connections
need to be checked and tightened, and the bat-
tery terminals cleaned if corroded. If the battery
seems to have discharged, recharge it as soon as
possible.TIPWear gloves and eye protection in a ventilated
area away from sparks and open flames. Wash
hands after handling.
 It is recommended to have the battery serviced
by a Yamaha dealer.
WARNING
EWB02161Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can cau-
se severe burns. Avoid contact with skin, eyes
or clothing. Always shield your eyes when
working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of
ignition away. Ventilate when charging or using
in an enclosed space.
KEEP OUT OF REACH OF CHILDREN. To remove the battery
1. Remove the seat. (See page 4-10.)
2. Remove the battery holding plate by remov- ing the bolts.
UBW262E0.book Page 43 Tuesday, April 3, 2018 10:59 AM

8-44
8
3. Disconnect the negative battery lead first,
then the positive battery lead by removing
their bolt. NOTICE: When removing the bat-
tery, the main switch must be off, and the
negative lead must be disconnected be-
fore the positive lead.
[ECB01002]
4. Pull the battery out of its compartment.
NOTICEECB00622Never attempt to open the battery or remove
the battery cell seals, as this would permanent-
ly damage the battery. To charge the battery
 Confirm the recommended charging rate as
specified on the battery itself.
 Select a suitable charger and follow the manu-
facturer’s instructions.NOTICEECB00933To charge a VRLA (valve-regulated lead-acid)
battery, a special battery charger is required.
Using a conventional battery charger will dam-
age the battery. To store the battery
If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
 If the battery will be stored for more than two
months, check it at least once a month and fully
charge it if necessary.

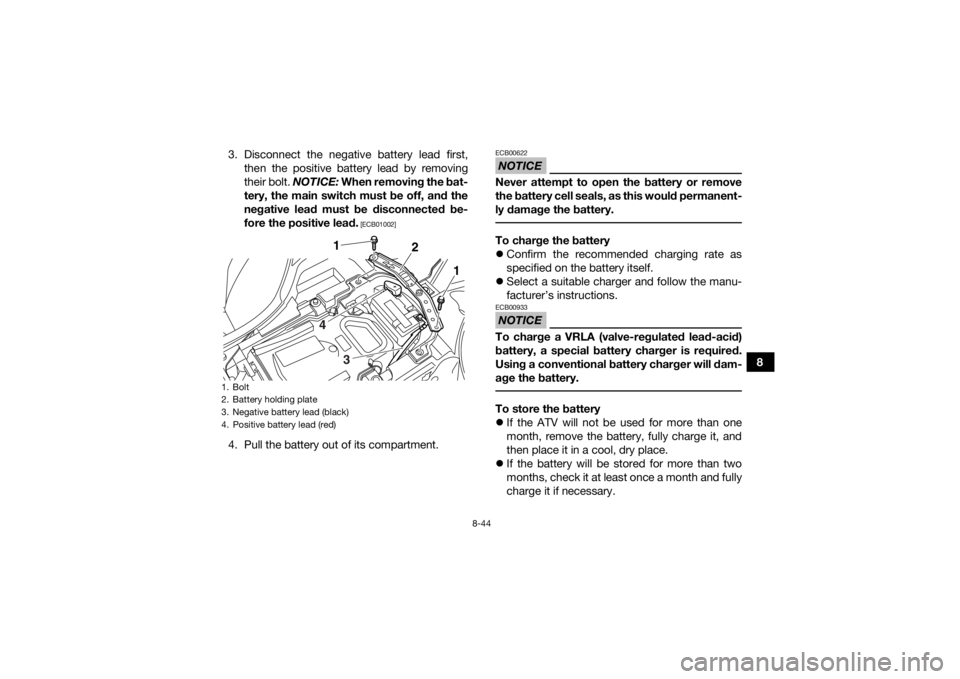

1. Bolt
2. Battery holding plate
3. Negative battery lead (black)
4. Positive battery lead (red)
1
1
2
3
4
UBW262E0.book Page 44 Tuesday, April 3, 2018 10:59 AM

8-45
8
NOTICEECB00942Always keep the battery charged. Storing the
battery in a discharged state for an extended
period of time will cause permanent battery
damage.
 Do not store the battery in an excessively
cold or warm place [below freezing or above
30 °C (90 °F)]. To install the battery
1. Place the battery in its compartment.
2. Connect the positive battery lead first, then connect the negative battery lead by installing
their bolt. NOTICE: When installing the bat-
tery, the main switch must be off, and the
positive lead must be connected before
the negative lead.
[ECB01111]
3. Install the battery holding plate by installing the bolts.
4. Install the seat. (See page 4-10.)TIP Make sure the positive and negative battery
leads are installed as shown.

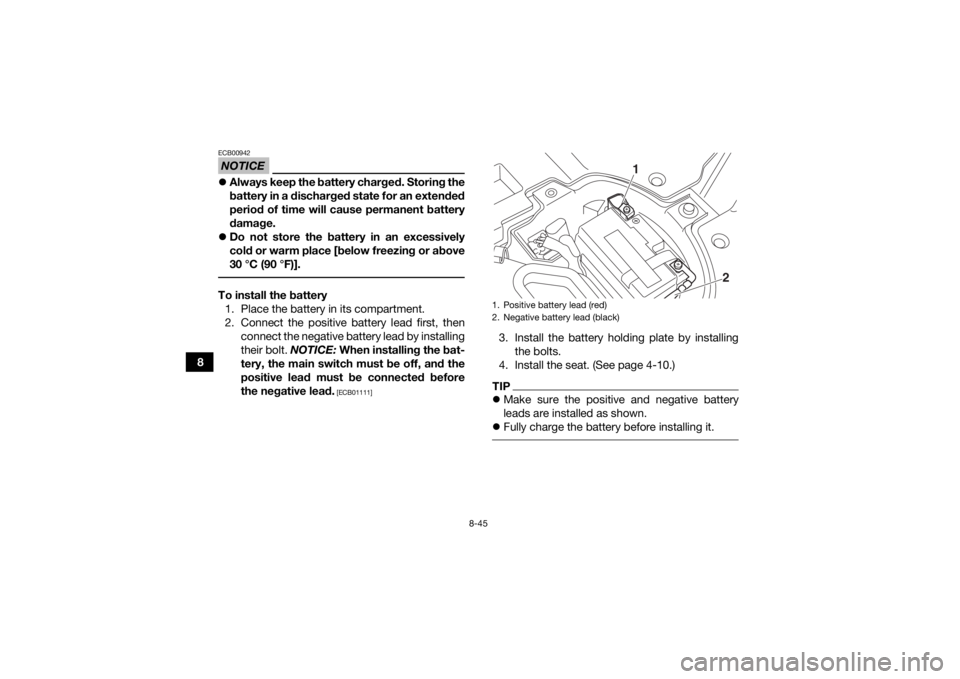

 Fully charge the battery before installing it. 1. Positive battery lead (red)
2. Negative battery lead (black)
2
1
UBW262E0.book Page 45 Tuesday, April 3, 2018 10:59 AM

8-46
8
EBU29963Replacing the fuseThe fuse holder is located under the seat. (See
page 4-10.)
If the fuse is blown, replace it as follows.1. Turn the key to “ ” (off) and turn off all elec- trical circuits.NOTICEECB00641To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.
2. Remove the blown fuse, and then install anew fuse of the specified amperage.
WARNING! Always use a fuse of the spec- ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02173]
3. Turn the key to “ ” (on) and turn on the elec- trical circuits to check if the devices operate.
4. If the fuse immediately blows again, have a Yamaha dealer check the electrical system.EBU30873Replacing a headlight bulbIf a headlight bulb burns out, replace it with the
specified bulb as follows.1. Remove the headlight unit by removing the bolt and pulling the headlight unit outward as
shown.
1. Fuse
2. Spare fuse
1
2
Specified fuse:20.0 A
UBW262E0.book Page 46 Tuesday, April 3, 2018 10:59 AM

8-47
82. Remove the bulb cover. 3. Remove the socket by pushing it in and turn-
ing it counterclockwise, and then remove the
burnt-out bulb.
4. Place a new headlight bulb into position. NOTICE: Do not touch the glass part of the
bulb. Oil from your fingers or other con-
tamination will adversely affect the trans-
parency of the glass, luminosity of the
bulb, and bulb life. Thoroughly clean off
any dirt and fingerprints using a cloth
moistened with alcohol or thinner.
[ECB00653]

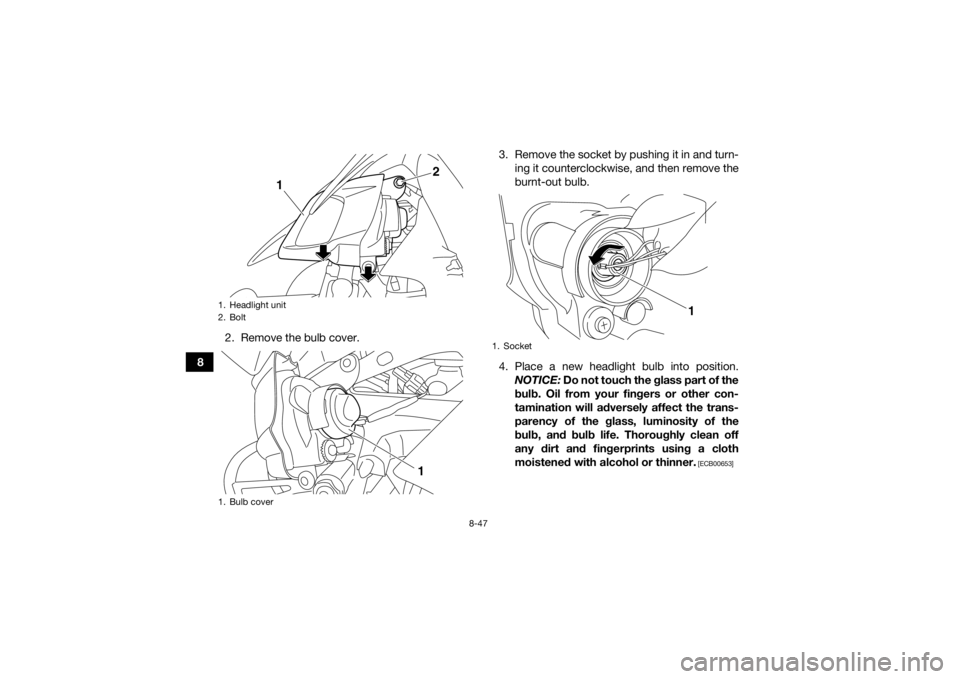

1. Headlight unit
2. Bolt
1. Bulb cover
1
2
1
1. Socket
1
