warning light YAMAHA YXZ1000R 2017 User Guide

6-2
6
10–20 hours:
Avoid prolonged operation above 6300 r/min.
After break-in:
The vehicle may now be operated normally.EBU36560Starting the engine1. Turn the key to “ ” (on).NOTICEECB03340The coolant temperature warning light,
YCC-S system warning light, and engine
trouble warning light should come on, then
go off.
The EPS warning light should come on,
then go off when the engine is started.
To avoid possible damage, do not operate
the vehicle if a warning light does not work
as described above. 2. Press the brake pedal.
3. Shift the transmission into neutral.
When the transmission is in the neutral
position, the transmission gear display
shows “N” and the neutral indicator
light should come on.
 The engine can be started in any gear if
the brake pedal is applied. However, it
is recommended to shift into neutral
before starting the engine.
4. With your foot off the accelerator pedal, start the engine by turning the key to “ ”
(start).
If the engine fails to start, release the key, and
then try starting it again. Wait a few seconds
before the next attempt. Each attempt should
be as short as possible, to preserve battery
energy. NOTICE: Do not crank the engine
more than 5 seconds on each attempt, or
starter damage could occur. Wait at least
5 seconds between each operation of the
electric starter to let it cool.
[ECB02140]
Do not turn the key to the “ ” (start) position
with the engine running; otherwise, damage
to the electric starter may result.
UB577AE0.book Page 2 Wednesday, June 8, 2016 9:35 AM

6-6
6
To drive in reverse
WARNING
EWB03300Before you shift into reverse, make sure
there are no obstacles or people behind
you. When it is safe to proceed, go slowly.
Hitting an obstacle or person could result
in serious injury or death. 1. Stop the vehicle and continue to applythe brake pedal.
2. Check behind you.
3. Shift the transmission into reverse.
TIP To shift into reverse, the engine must be
running and at idle speed.
 When in reverse, the transmission gear dis-
play should show “R” and the reverse indi-
cator light should come on.
 The reverse buzzer will sound while the
transmission is in reverse. 4. Release the parking brake (if applied).1. Drive select lever
2. Reverse gear
1
2
UB577AE0.book Page 6 Wednesday, June 8, 2016 9:35 AM

6-7
6
5. Check behind you, then release the brakepedal and press the accelerator pedal
gradually.
6. Continue to watch to the rear while driv- ing in reverse.EBU36733Launch system operationThe launch system allows you to start off at a
higher engine speed, and thus have a higher
initial acceleration rate than normal operation.
Only use the launch system on level ground
with a clear and safe path ahead of you.TIPThe launch system will be prevented from op-
erating if any of the following conditions are
present:
the engine is not warmed up or is overheat-
ing.
 the driver seat belt is not latched.
 the differential gear is locked (“DIFF LOCK”
is selected) or the differential gear lock indi-
cator is flashing. 
the parking brake is applied.
 an engine or system malfunction is detect-
ed (a warning light is on).
To activate the launch system1. Confirm that the front wheels and steer-
ing wheel are pointed straight ahead.
2. Shift the transmission into first gear.
3. While pressing the brake pedal, pull both
shift paddles toward you and hold them
in that position. The launch system indi-
cator light will come on, and the launch
system enters standby mode.
UB577AE0.book Page 7 Wednesday, June 8, 2016 9:35 AM

8-50
8
7. Turn the adjusting nut in direction (a) toincrease the free play or in direction (b) to
decrease the free play.
8. Tighten the locknut, and then slide the
rubber cover to its original position.
9. Install the panel.
EBU36620Brake light switchThe brake light, which is activated by the
brake pedal, should come on just before
braking takes effect. Since the brake light
switch is a component of the YCC-S system,
it must be adjusted by a Yamaha dealer, who
has the necessary professional knowledge
and experience.EBU35930Cable inspection and lubrication
WARNING
EWB03380Damaged cables could restrict operation,
which may cause an accident or injury. In-
spect control cables frequently and re-
place damaged cables. Corrosion can
result when the outer covering of control
cables becomes damaged. Cables can
also become frayed or kinked.

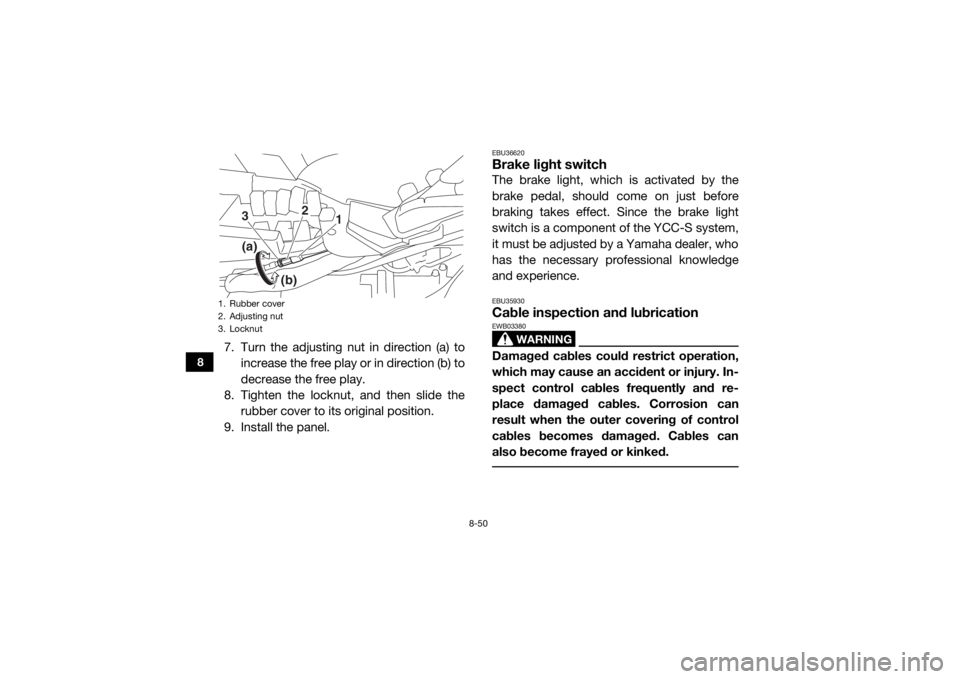

1. Rubber cover
2. Adjusting nut
3. Locknut
1
(b)
(a)
3
2
UB577AE0.book Page 50 Wednesday, June 8, 2016 9:35 AM

8-62
8
NOTICEECB00641To prevent accidental short-circuiting,
turn off the main switch when checking or
replacing a fuse. 2. Remove panel A. (See page 8-10.)
3. Remove the blown fuse, and then install anew fuse of the specified amperage.
WARNING! Always use a fuse of the specified amperage. Never use any
material in place of the proper fuse.
Using an improper fuse can cause
damage to the electrical system and
may lead to a fire.
[EWB03440]
Specified fuses: Main fuse:50.0 A
Fuel injection system fuse: 15.0 A
Headlight fuse: 15.0 A
Ignition fuse: 15.0 A
Auxiliary DC jack fuse: 10.0 A
Signaling system fuse: 10.0 A
Four-wheel-drive motor fuse: 10.0 A
Radiator fan motor fuse: 30.0 A
Backup fuse: 10.0 A
EPS fuse: 40.0 A
Accessory fuse: 10.0 A
YCC-S motor control fuse: 30.0 A
UB577AE0.book Page 62 Wednesday, June 8, 2016 9:35 AM

8-64
8
EBU35271Tail/brake lightThis model is equipped with an LED tail/brake
light, there are no replaceable bulbs.
If the tail/brake light does not come on, check
the fuses, and then have a Yamaha dealer
check the vehicle.EBU32700TroubleshootingAlthough Yamaha vehicles receive an inspec-
tion before shipment from the factory, trouble
may occur during operation. Any problem inthe fuel, compression, or ignition systems can
cause poor starting and loss of power. The
troubleshooting chart describes a quick, easy
procedure for making checks. If your vehicle
requires any repair, take it to a Yamaha deal-
er.
The skilled technicians at a Yamaha dealer-
ship have the tools, experience, and know-
how to properly service your vehicle. Use only
genuine Yamaha parts on your vehicle. Imita-
tion parts may look like Yamaha parts, but
they are often inferior. Consequently, they
have a shorter service life and can lead to ex-
pensive repair bills.
WARNING
EWB03450When checking the fuel system, do not
smoke and make sure there are no open
flames or sparks in the area, including pilot
lights from water heaters or furnaces.
1. Headlight beam adjusting screw
(b)
(a)
1
UB577AE0.book Page 64 Wednesday, June 8, 2016 9:35 AM

10-5
10
Electrical system:Ignition system:TCI
Charging system:
AC magnetoBattery:Model:U1-H11L
Voltage, capacity:
12 V, 28.0 AhBulb voltage, wattage × quantity:Headlight:
LED
Tail/brake light:
LED
Neutral indicator light: LED
High beam indicator light: LED
Reverse indicator light:
LED
Coolant temperature warning light: LED
Engine trouble warning light: LED
Parking brake indicator light:
LED
Differential gear lock indicator light: LED
EPS warning light: LED Helmet/Seat belt indicator light:
14 V, 0.85 W × 2
Shift timing indicator light: LED
Half clutch indicator light:
LED
Launch system indicator light: LED
YCC-S system warning light: LED
Fuses:Main fuse:50.0 A
Fuel injection system fuse: 15.0 A
EPS fuse:
40.0 A
Headlight fuse: 15.0 A
Signaling system fuse: 10.0 A
Ignition fuse:
15.0 A
Auxiliary DC jack fuse: 10.0 A
Accessory fuse: 10.0 A
YCC-S motor control fuse:
30.0 A
Backup fuse: 10.0 A
UB577AE0.book Page 5 Wednesday, June 8, 2016 9:35 AM

12-1
12
INDEX
AAccelerator pedal ......................................................... 4-20
Accelerator pedal, checking ........................................ 8-48
Accelerator pedal, Pre-operation check ........................ 5-6
Air filter ......................................................................... 8-37
Air filter case hoses, cleaning ...................................... 8-41
Auxiliary DC jack .......................................................... 4-54
Axle boots .................................................................... 8-35BBasic guide for safe use ................................................ 7-1
Battery, Periodic maintenance .................................... 8-56
Bead lock, checking and tightening (YXZ10YESH) ..... 8-54
Brake and YCC-S clutch fluid levels, checking ........... 8-45
Brake fluid, replacing ................................................... 8-47
Brake light switch ........................................................ 8-50
Brake pedal .................................................................. 4-21
Brake pedal, checking ................................................. 8-48
Brakes, Periodic maintenance ..................................... 8-44
Brakes, Pre-operation check ......................................... 5-3CCable, inspecting and lubrication ................................ 8-50
Cargo bed .................................................................... 4-32
Cleaning ......................................................................... 9-1
Control cables, Pre-operation check ............................. 5-8
Coolant, Periodic maintenance ................................... 8-33
Coolant, Pre-operation check ........................................ 5-6
Coolant temperature warning light ................................ 4-4
Cup holders ................................................................. 4-31
DDifferential gear lock indicator light ............................... 4-3
Differential gear oil, Periodic maintenance .................. 8-31
Differential gear, Pre-operation check ........................... 5-6
Doors ........................................................................... 4-25
Drive mode, selecting .................................................... 6-9
Driver seat position ...................................................... 4-27
Drive select lever and shift paddles, Pre-operation check ........................................................................... 5-7
Drive shaft universal joint, lubrication .......................... 8-53
Drivetrain icon ................................................................ 4-3EEngine break-in .............................................................. 6-1
Engine oil and oil filter, Periodic maintenance ............. 8-15
Engine oil, Pre-operation check .................................... 5-5
Engine trouble warning light .......................................... 4-5
EPS warning light .......................................................... 4-5FFinal gear oil, Periodic maintenance ............................ 8-29
Final gear, Pre-operation check .................................... 5-6
Fittings and fasteners, Pre-operation check ................. 5-8
Flag pole bracket ......................................................... 4-33
Front and rear brake pads, checking .......................... 8-44
Fuel, Pre-operation check ............................................. 5-3
Fuel tank cap ............................................................... 4-24
Fuse, replacing ............................................................ 8-61GGlove compartment ..................................................... 4-28HHalf clutch indicator light ............................................... 4-6
Headlight beam, adjusting ........................................... 8-63
UB577AE0.book Page 1 Wednesday, June 8, 2016 9:35 AM

12-2
12
Headlights .................................................................... 8-63
Helmet indicator light .....................................................4-9
High beam indicator light ............................................... 4-3
Hood ............................................................................ 8-10IIdentification number records ...................................... 11-1
Indicator lights and warning lights ................................. 4-2
Instruments, lights and switches, Pre-operation check ........................................................................... 5-8JJump-starting ............................................................... 8-59LLabel locations ............................................................... 1-1
Launch system indicator light ........................................ 4-6
Launch system operation ............................................... 6-7
Light switch .................................................................. 4-19
Loading ........................................................................6-11MMain switch .................................................................... 4-1
Maintenance and lubrication chart ................................8-6
Maintenance chart, emission control system ................ 8-4
Model label ................................................................... 11-1
Multi-function meter unit ................................................ 4-9NNeutral indicator light .....................................................4-2OOn-Command drive knob ............................................ 4-20
Owner’s manual and tool kit .......................................... 8-2PPanels .......................................................................... 8-10
Parking ......................................................................... 6-11 Parking brake indicator light .......................................... 4-3
Parking brake lever ...................................................... 4-21
Parking brake lever free play, adjusting ....................... 8-49
Parking brake pads, checking ..................................... 8-45
Passenger handhold, Pre-operation check ................... 5-7
Pedal, lubrication ......................................................... 8-51
RRear knuckle upper and lower pivot, lubrication ......... 8-53
Reverse indicator light ................................................... 4-2SSafety information .......................................................... 2-1
Seat belt indicator light .................................................. 4-9
Seat belts ..................................................................... 4-28
Seat belts, Pre-operation check .................................... 5-7
Seats ............................................................................ 4-25
Shifting and reverse driving ........................................... 6-3
Shifting, drive select lever and shift paddle ................. 4-23
Shift timing indicator light .............................................. 4-4
Shock absorber assemblies, adjusting the front ......... 4-33
Shock absorber assemblies, adjusting the rear ........... 4-43
Spark arrester, cleaning ............................................... 8-42
Spark plugs, checking ................................................. 8-35
Specifications .............................................................. 10-1
Stabilizer bushes, checking ......................................... 8-51
Starting the engine ......................................................... 6-2
Steering, Pre-operation check ....................................... 5-7
Steering shaft, lubrication ............................................ 8-53
Steering wheel position ................................................ 4-27
Storage .......................................................................... 9-2
Storage compartments ................................................ 4-29TTail/brake light ............................................................. 8-64
UB577AE0.book Page 2 Wednesday, June 8, 2016 9:35 AM

12-3
12
Tire, replacing .............................................................. 8-55
Tires, Pre-operation check ............................................ 5-8
Transmission oil ........................................................... 8-26
Transmission, Pre-operation check ............................... 5-6
Troubleshooting ........................................................... 8-64
Troubleshooting charts ................................................ 8-66UUpper and lower arm pivot, lubrication ....................... 8-52VValve clearance ............................................................ 8-44
Vehicle identification number ...................................... 11-1WWheel installation ......................................................... 8-56
Wheel removal ............................................................. 8-54YYCC-S clutch ............................................................... 8-47
YCC-S clutch, Pre-operation check .............................. 5-8
YCC-S system ............................................................. 4-22
YCC-S system warning light .......................................... 4-7
UB577AE0.book Page 3 Wednesday, June 8, 2016 9:35 AM
