EBU33090Wheel installation1. Install the wheel and the nuts.
2. Lower the vehicle so that the wheel is onthe ground.
3. Tighten the wheel nuts in a crisscross pattern to the specified torque.
WARNING
EWB03400Do not reverse the rims on your Yamaha
YXZ1000R to widen the track width. In-
stalling wheels improperly increases the
risk of wheel failure and accidents.
EBU35232BatteryThis model is equipped with a 12–volt VRLA
(valve–regulated lead–acid) battery. There is
no need to check the electrolyte or to add dis-
tilled water. However, the battery lead con-
nections need to be checked and tightened,
and the battery terminals cleaned if corroded.
If the battery seems to have discharged, re-
charge it as soon as possible.
WARNING
EWB03410Avoid battery contact with skin, eyes, or
clothing. Shield eyes when working near
batteries. Keep out of reach of children.
You could be poisoned or severely burned
by the sulfuric acid in battery electrolyte. In
case of accidental contact with battery
electrolyte:
EXTERNAL: Flush with water.
Tightening torques:Front wheel nut:95 N·m (9.5 kgf·m, 70 lb·ft)
Rear wheel nut: 95 N·m (9.5 kgf·m, 70 lb·ft)
UB5J7BE0.book Page 58 Tuesday, June 18, 2019 10:07 AM

9-59
9
INTERNAL: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg, or vegetable oil. Get prompt
medical attention.
EYES: Flush with water for 15 minutes and
get prompt medical attention.
WARNING
EWB03420Batteries may produce explosive gases.
Ventilate when charging or using in a
closed space. Keep batteries away from
sparks, flames, cigarettes, or other sourc-
es of ignition. To remove the battery
1. Turn the key to “ ” (off).
2. Remove panel A. (See page 9-10.)
3. Remove the battery holding plate by re- moving the bolts. 4. Disconnect the negative battery lead first,
then the positive battery lead by remov-
ing their bolt. NOTICE: When removing
the battery, the main switch must be
off, and the negative lead must be dis-
connected before the positive lead.
[ECB01002]
1. Battery holding plate
2. Bolt
1 2
2
UB5J7BE0.book Page 59 Tuesday, June 18, 2019 10:07 AM

9-60
9
5. Pull the battery out of its compartment.
To charge the battery
 Remove it from vehicle and confirm the rec-
ommended charging rate as specified on
the battery itself.
 Select a suitable ch arger and follow the
manufacturer’s instructions, or have a
Yamaha dealer charge it for you. 
Keep in mind that the battery tends to dis-
charge more quickly if the vehicle is
equipped with optional electrical accesso-
ries.
NOTICEECB00933To charge a VRLA (valve-regulated lead-
acid) battery, a special battery charger is
required. Using a conventional battery
charger will damage the battery. To store the battery
If the vehicle will not be used for more than
one month, remove the battery, fully charge
it, and then place it in a cool, dry place.
 If the battery will be stored for more than
two months, check it at least once a month
and fully charge it if necessary.
1. Positive battery lead (red)
2. Negative battery lead (black)
3. Battery
1
2
3
UB5J7BE0.book Page 60 Tuesday, June 18, 2019 10:07 AM

9-61
9
NOTICEECB00942Always keep the battery charged. Stor-
ing the battery in a discharged state for
an extended period of time will cause
permanent battery damage.
 Do not store the battery in an excessive-
ly cold or warm place [below freezing or
above 30 °C (90 °F)]. To install the batteryTIPBe sure the battery is fully charged. 1. Place the battery in its compartment.
2. Connect the positive battery lead first,
then the negative battery lead by install-
ing their bolt. NOTICE: When installing
the battery, the main switch must be
off, and the positive lead must be con-
nected before the negative lead.
[ECB01111]
3. Install the battery holding plate by install-
ing the bolts.
4. Install the panel.TIP Make sure the battery leads are installed as
shown.

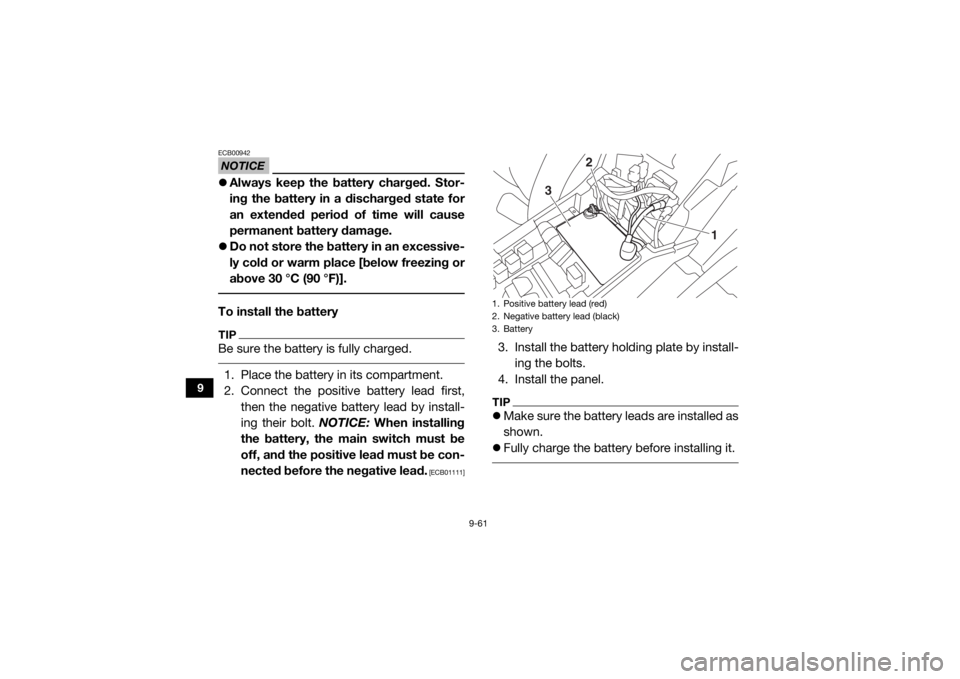

 Fully charge the battery before installing it. 1. Positive battery lead (red)
2. Negative battery lead (black)
3. Battery
1
2
3
UB5J7BE0.book Page 61 Tuesday, June 18, 2019 10:07 AM

9-62
9
EBU35244Jump-startingJump-starting the vehicle should be avoided.
The battery should be removed and charged
instead.
WARNING
EWB03430To avoid battery explosion and/or serious
damage to the electrical system:
Do not connect the negative lead of the
jumper cable to the negative terminal of
the battery.
 Do not touch the positive lead of the
jumper cable to the negative lead.
 Do not reverse the polarity of the jumper
cables when connecting to the batteries. However, if the vehicle must be jump-started,
proceed as follows.
1. Turn the key to “ ” (off).
2. Remove panel A. (See page 9-10.)
3. Remove the passenger seat cushion. (See page 5-21.) 4. Using a charged 12-volt battery, connect
the positive lead of the jumper cable to
the positive terminal of the battery in the
YXZ1000R and the other end of the pos-
itive lead to the positive terminal of the
charged battery.
5. Connect the negative lead of the jumper cable to the negative terminal of the
charged battery and the other end of the
negative lead to an unpainted metal sur-
face of the passenger seat frame near the
center console in the YXZ1000R.
1. Jumper cable positive lead
1
UB5J7BE0.book Page 62 Tuesday, June 18, 2019 10:07 AM

9-63
9
6. Start the engine. (See page 7-2.)
7. After the engine starts, disconnect thenegative lead of the jumper cable from
the seat frame and charged battery, and
then disconnect the positive lead of the
jumper cable from the charged battery
and the battery in the YXZ1000R.
8. Install the seat cushion and the panel.
EBU35255Fuse replacementThe main fuse, the fuel injection system fuse,
the EPS fuse, and the fuse box are located
under panel A. (See page 9-10.)
1. Jumper cable negative lead
1
1. Main fuse
2. EPS fuse
3. Fuse box
4. Fuel injection system fuse
5. Fuel injection system spare fuse
1 2
3
4
5
UB5J7BE0.book Page 63 Tuesday, June 18, 2019 10:07 AM

9-64
9
If a fuse is blown, replace it as follows.1. Turn the key to “ ” (off) and turn off the electrical circuit in question.
NOTICEECB00641To prevent accidental short-circuiting,
turn off the main switch when checking or
replacing a fuse. 2. Remove panel A. (See page 9-10.)
3. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the specified amperage. Never use any
material in place of the proper fuse.
Using an improper fuse can cause
damage to the electrical system and
may lead to a fire.
[EWB03440]
1. Headlight fuse “HEAD”
2. Signaling system fuse “SIGNAL”
3. Four-wheel-drive motor fuse “DIFF”
4. Ignition fuse “IGNITION”
5. Backup fuse “BACK UP” (for clock)
6. Radiator fan motor fuse “FAN”
7. Spare fuse
8. Accessory fuse “ACC”
9. Sub radiator fan motor fuse “FAN_2”
10.Auxiliary DC jack fuse “TERMINAL”
1 234
5
6
7
8
9
10
UB5J7BE0.book Page 64 Tuesday, June 18, 2019 10:07 AM

9-65
9
4. Turn the key to “ ” (on) and turn on theelectrical circuit in question to check if
the device operates. If the fuse blows
again immediately, have a Yamaha dealer
check the electrical system.
5. Install the panel.EBU35261HeadlightsThis model is equipped with LED headlights.
There are no user replaceable bulbs. If one or
more headlights do not come on, check for a
loose connection, check the headlight fuse,
and then have a Yamaha dealer check the ve-
hicle.TIP When the headlights are set to low beam,
only the top half of each lamp will illuminate.
 When the headlights are set to high beam,
both halves of each lamp will illuminate.
Specified fuses:
Main fuse:50.0 A
Fuel injection system fuse: 15.0 A
Headlight fuse: 15.0 A
Ignition fuse: 15.0 A
Auxiliary DC jack fuse: 10.0 A
Signaling system fuse: 10.0 A
Four-wheel-drive motor fuse: 10.0 A
Sub radiator fan motor fuse: 30.0 A
Radiator fan motor fuse: 30.0 A
Backup fuse: 10.0 A
EPS fuse: 40.0 A
Accessory fuse: 15.0 A
UB5J7BE0.book Page 65 Tuesday, June 18, 2019 10:07 AM

9-66
9
EBU32681Headlight beam adjustmentNOTICEECB00691It is advisable to have a Yamaha dealer
make this adjustment. To raise the beam, turn the headlight beam
adjusting screw in direction (a).
To lower the beam, turn the headlight beam
adjusting screw in direction (b).
EBU37910Brake/tail lightThis model is equipped with an LED brake/tail
light, there are no replaceable bulbs.
If the brake/tail light does not come on, check
for a loose connection, check the fuses, and
then have a Yamaha dealer check the vehicle.EBU32700TroubleshootingAlthough Yamaha vehicles receive an inspec-
tion before shipment from the factory, trouble
may occur during operation. Any problem in
1. Headlight beam adjusting screw
(a)
(b)
1
1. Headlight beam adjusting screw
(b)
(a)
1
UB5J7BE0.book Page 66 Tuesday, June 18, 2019 10:07 AM

9-67
9
the fuel, compression, or ignition systems can
cause poor starting and loss of power. The
troubleshooting chart describes a quick, easy
procedure for making checks. If your vehicle
requires any repair, take it to a Yamaha deal-
er.
The skilled technicians at a Yamaha dealer-
ship have the tools, experience, and know-
how to properly service your vehicle. Use only
genuine Yamaha parts on your vehicle. Imita-
tion parts may look like Yamaha parts, but
they are often inferior. Consequently, they
have a shorter service life and can lead to ex-
pensive repair bills.
