YAMAHA YXZ1000R 2021 Service Manual

5-10
5
Clock, hour meter, voltage display and
coolant temperature display
The clock displays time in 12-hour format.
The hour meter shows the total time the en-
gine has been running.
The voltage display shows the battery volt-
age.
The coolant temperature display shows the
temperature of the coolant.Push the “MODE” button to switch between
the clock “CLOCK”, the hour meter “HOUR”,
the voltage display “VOLTAGE”, and the
coolant temperature display in the following
order:
CLOCK
→ HOUR → VOLTAGE → coolant
temperature → CLOCK
To set the clock
1. Set the display to the clock.
2. Push both the “SELECT” button and “RESET” button until th e hour digits start
flashing.
3. Push the “RESET” button to set the
hours.
4. Push the “SELECT” button, and the mi- nute digits will start flashing.
5. Push the “RESET” button to set the minu- tes.
6. Push the “SELECT” button, and then re-
lease it to start the clock.

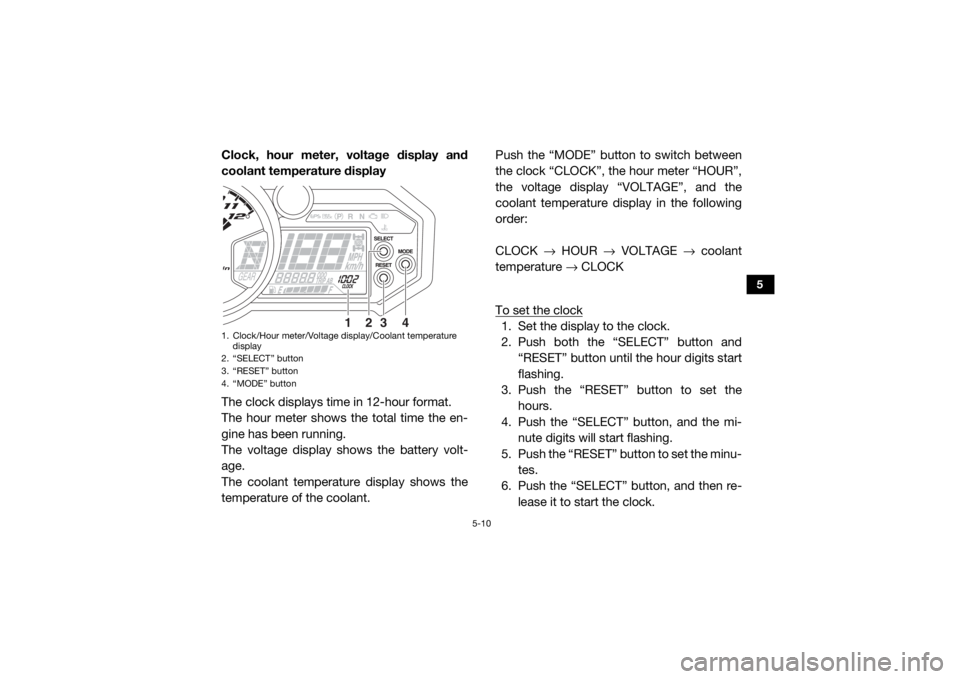

1. Clock/Hour meter/Voltage display/Coolant temperature display
2. “SELECT” button
3. “RESET” button
4. “MODE” button
23
4
1
UB5J7CE0.book Page 10 Thursday, November 26, 2020 1:37 PM

5-11
5
Voltage displayThis display shows “ ” and the battery volt-
age.
When the battery voltage is low, “LO” will be
displayed. When the battery voltage is high,
“HI” will be displayed.
NOTICEECB02050If the voltage display indicates “LO” or
“HI”, there may be trouble with the battery
charging circuit or the battery may be
faulty. If this occurs, have a Yamaha dealer
check or repair the vehicle. Coolant temperature displayWhen the coolant temperature is in the nor-
mal operating range, the temperature will be
displayed. When the coolant temperature is
1. Voltage display
1
1. Coolant temperature display
1
UB5J7CE0.book Page 11 Thursday, November 26, 2020 1:37 PM

5-12
5
low, “LO” will be displayed. When the coolant
temperature rises, the coolant temperature
display will begin to flash. If the coolant tem-
perature continues to rise, the message “HI”
will flash.TIPThe coolant temperature display can be set
to “°C” or “°F”. To switch the temperature
units, turn the key to “ ” (off), then hold
the “RESET” button pushed and turn the
key to “ ” (on).
 The radiator fans turn on and off automati-
cally according to the coolant temperature.
Fuel gauge
The fuel gauge indicates the amount of fuel in
the fuel tank. The display segments of the fuel
gauge disappear from “F” (full) towards “E”
(empty) as the fuel level decreases. When the
last segment on the left flashes, refuel as
soon as possible.1. Fuel gauge
1
UB5J7CE0.book Page 12 Thursday, November 26, 2020 1:37 PM

5-13
5
TIPThis fuel gauge is equipped with a self-diag-
nostic system. If a problem is detected in an
electrical circuit, all the display segments will
flash repeatedly. If this occurs, have a
Yamaha dealer check the electrical circuit. Transmission gear display
This display shows the selected gear. The
neutral position is indicated by “N” and by the
neutral indicator light “N”. Shift light control mode
The shift light has three settings which can be
adjusted.

Flashing pattern: this function allows you to
choose whether or not the light will come
on and whether it should flash or stay on
when activated.
 Activation point: this function allows you to
select the engine speed at which the light is
activated.1. Transmission gear display
2. Neutral indicator light “N”
1
2
1. Shift light
2. çRESETé button
3. çMODEé button
1
23
UB5J7CE0.book Page 13 Thursday, November 26, 2020 1:37 PM

5-14
5
Deactivation point: this function allows you
to select the engine speed at which the light
is deactivated.
To enter shift light control mode1. Turn the key to “ ” (off).
2. Push and hold the “MODE” button.
3. Turn the key to “ ” (on), and then re- lease the “MODE” button after five sec-
onds. After all segments of the display
disappear and the shift light comes on,
the shift light can be adjusted as follows.
To set the flashing pattern1. Push the “RESET” button to select one of the following flashing pattern settings:
On: the shift light stays on when acti-
vated. (The shift light will confirm this
setting by staying on.)
 Flash: the shift light flashes when acti-
vated. (The shift light will confirm this
setting by flashing four times per se-
cond.) 
Off: the shift light is deactivated; in oth-
er words, it does not come on or flash.
(The shift light will confirm this setting
by flashing once every two seconds.)
2. Push the “MODE” button to confirm the
selected flashing pattern. The control
mode then changes to the activation
point setting function. The shift light re-
mains on and the tachometer shows the
current setting r/min for the activation
point.
To set the activation point
TIP The shift light activation point can be set
between 7000 r/min and 12000 r/min. The
activation point can be set in increments of
500 r/min.
 The tachometer needle will start over at
7000 r/min after 12000 r/min.
UB5J7CE0.book Page 14 Thursday, November 26, 2020 1:37 PM

5-15
5
1. Push the “RESET” button to select thedesired engine speed for activating the
shift light.
2. Push the “MODE” button to confirm the selected engine speed. The shift light
flashes and the tachometer shows the
current setting r/min for the deactivation
point.
To set the deactivation pointTIP Be sure to set the deactivation point to a
higher engine speed than for the activation
point, otherwise the shift light will not come
on.
 The shift light deactivation point can be set
between 7000 r/min and 12000 r/min. The
deactivation point can be set in increments
of 500 r/min.
 The tachometer needle will start over at
7000 r/min after 12000 r/min.
1. Push the “RESET” button to select the
desired engine speed for deactivating the
shift light.
2. Push the “MODE” button to confirm the selected engine speed. The display exits
the shift light control mode and returns to
the standard multi-function display mo-
de.
Error code display
This model is equipped with a self-diagnostic
device for various electrical circuits.1. Error code display
2. Engine trouble warning light “ ”
12
UB5J7CE0.book Page 15 Thursday, November 26, 2020 1:37 PM

5-16
5
If a problem is detected in any of those cir-
cuits, the engine trouble warning light will
come on or flash, and the display will indicate
an error code.
If the display indicates an error code, note the
code number and have a Yamaha dealer
check the vehicle.NOTICEECB00812If the multi-function display indicates an
error code, the vehicle should be checked
as soon as possible in order to avoid en-
gine damage.
EBU35471Light switch “ / / ”Set the switch to “ ” to turn on the low
beam and the taillight.
Set the switch to “ ” to turn on the high
beam and the taillight.
Set the switch to “ ” to turn off the head-
lights and taillight.NOTICEECB02061Do not use the headlights with the engine
turned off for an extended period of time.
The battery may discharge to the point1. Light switch “ / / ”
L
H
1
L
HLH
UB5J7CE0.book Page 16 Thursday, November 26, 2020 1:37 PM

5-17
5
that the electric starter will not have
enough power to crank the engine. If this
should happen, remove the battery and re-
charge it. EBU39121On–Command drive knob
“2WD/4WD/DIFF. LOCK”Stop the vehicle and move the On–Command
drive knob to change the drive mode to two–
wheel drive, four–wheel drive, or four–wheeldrive with differential lock. Select the appro-
priate drive according to the terrain and driv-
ing conditions.

“2WD” (two–wheel drive): Power is sup-
plied to the rear wheels only.
 “4WD” (four–wheel drive): Power is sup-
plied to the front and rear wheels.
 “DIFF. LOCK” (four–wheel drive with the
differential gear locked): Power is supplied
to the front and rear wheels with the differ-
ential gear locked. Unlike standard four–
wheel drive, all wheels turn at the same
speed regardless of traction.
TIPMaximum vehicle speed is limited to approx-
imately 65 km/h (40 mi/h) when “DIFF. LOCK”
is selected.
1. On-Command drive knob “2WD/4WD/DIFF. LOCK”
1
UB5J7CE0.book Page 17 Thursday, November 26, 2020 1:37 PM

5-18
5
EBU31413Accelerator pedalPress the accelerator pedal to increase en-
gine speed and thus vehicle speed. Release
the accelator pedal and spring tension will re-
turn the pedal to idle position.
EBU34970Clutch pedalPress the clutch pedal to disengage the
clutch. To engage the clutch, release the
clutch pedal. The clutch pedal should be
pressed rapidly and released slowly for
smooth clutch operation.
1. Accelerator pedal
1
1. Clutch pedal
1
UB5J7CE0.book Page 18 Thursday, November 26, 2020 1:37 PM

5-19
5
EBU31421Brake pedalPress the brake pedal to slow or stop the ve-
hicle.
EBU35642Parking brake leverSetting the parking brake lever will help keep
the vehicle from moving while parked.
To engage the parking brake, pull the lever
firmly.
To release the parking brake, pull slightly on
the lever, press the release button, and then
push the lever to its original position.TIPSpring tension helps return the lever to its
original position.
1. Brake pedal
1
1. Release button
2. Parking brake lever
12
