To install the panelPlace the panel in the original position, and
then install the quick fastener screws.EBU35434Engine oil and oil filterCheck the engine oil level before each opera-
tion. In addition, change the oil and replace
the filter at the intervals specified in the gen-
eral maintenance and lubrication chart.
To check the engine oil level1. Park the vehicle on a level surface.
2. Remove panel C (page 8-10). 3. Start the engine and warm it up to a nor-
mal operating temperature (the engine oil
temperature should reach 60 °C [140 °F]),
then let the engine idle for a minimum of
ten seconds before turning the engine off.
TIPIf the engine is cold, take the vehicle for a
short drive or let it idle for approximately ten
minutes before checking the engine oil level. 4. Remove the engine oil tank filler cap and
wipe the dipstick with a clean rag.
5. Insert the dipstick back into the oil tank
(without screwing it in), and then remove
it again to check the oil level.TIPThe engine oil level should be between the tip
of the dipstick and the maximum level mark.
U2HC7ME0.book Page 15 Tuesday, April 19, 2016 10:33 AM

8-26
8
EBU35104Transmission oilCheck the oil level and change the transmis-
sion oil at the intervals specified in the general
maintenance and lubrication chart.
NOTICEECB02910When checking or changing the transmis-
sion oil, make sure that no foreign material
enters the transmission. If necessary,
clean the filler cap and surrounding area. To check the transmission oil level1. Park the vehicle on a level surface.
2. Remove panel B (page 8-10).
3. Remove the transmission oil filler cap, wipe the dipstick off with a clean rag, in-
sert it back into the transmission case
(without screwing it in), and then remove
it again to check the oil level.
1. Bolt BTightening torque:Bolt B:7 N·m (0.7 kgf·m, 5.1 lb·ft)
1
1
U2HC7ME0.book Page 26 Tuesday, April 19, 2016 10:33 AM

8-29
8
8. Start the engine and drive the vehicle fora few minutes to circulate the transmis-
sion oil.
9. Park the vehicle on a level surface, stop the engine, and then check the transmis-
sion case for oil leakage.TIPIf oil is leaking confirm that the transmission
oil filler cap is properly installed and then have
a Yamaha dealer check the transmission. 10. Check the transmission oil level and cor- rect if necessary.
11. Install the panel.EBU36050Final gear oilCheck the oil level and change the final gear
oil at the intervals specified in the general
maintenance and lubrication chart.
Checking the final gear oil level 1. Park the vehicle on a level surface. 2. Remove the final gear oil filler bolt and its
gasket, and then check the oil level in the
final gear case. The oil level should be at
the brim of the filler hole.
3. If the oil is below the brim of the filler hole, add sufficient oil of the recommended
type to raise it to the correct level.
NOTICE: Be sure no foreign material
enters the final gear case.
[ECB00422]
1. Final gear oil
2. Gasket
3. Final gear oil filler bolt
4. Correct oil level
24
3
1
U2HC7ME0.book Page 29 Tuesday, April 19, 2016 10:33 AM

8-31
8
TIPGL-4 is a quality and additive rating; GL-5
rated hypoid gear oils may also be used.
 If desired, an SAE 80W-90 hypoid gear oil
may be used instead. 6. Check the oil filler bolt gasket for dam-
age, and replace it if necessary.
7. Install the oil filler bolt and its gasket, and
then tighten the bolt to the specified
torque.
8. Check for oil leakage. If oil leakage is found, check for the cause.
EBU36060Differential gear oilCheck the oil level and change the differential
gear oil at the intervals specified in the gener-
al maintenance and lubrication chart.
Checking the differential gear oil level1. Park the vehicle on a level surface.
2. Remove the differential gear oil filler bolt and its gasket, and then check the oil lev-
el. It should be up to the brim of the filler
hole.
Recommended oil:SAE 80 API GL-4 Hypoid gear oil
Oil quantity: 0.47 L (0.50 US qt, 0.41 Imp.qt)
Tightening torque: Final gear oil filler bolt:23 N·m (2.3 kgf·m, 17 lb·ft)
U2HC7ME0.book Page 31 Tuesday, April 19, 2016 10:33 AM

8-35
8
TIPThe radiator fan automatically switches on
or off according to the temperature of the
coolant in the radiator.
 If the engine overheats, see page 8-67 for
instructions. EBU32400Axle bootsCheck the axle boots for holes or tears.
If any damage is found, have them replaced
by a Yamaha dealer.
EBU35121Checking the spark plugsThe spark plug is an important engine com-
ponent which should be periodically
checked, preferably by a Yamaha dealer.
Since heat and deposits will cause any spark
plug to slowly erode, the spark plugs should
be removed and checked in accordance with
the periodic maintenance chart for the emis-
sion control system. In addition, the condition
of the spark plugs can reveal the condition of
the engine.
1. Front axle boot
1
1
1. Rear axle boot
1
1
U2HC7ME0.book Page 35 Tuesday, April 19, 2016 10:33 AM

8-37
8
TIPIf a torque wrench is not available when in-
stalling the spark plug, a good estimate of the
correct torque is 1/4–1/2 turn past finger tight.
However, the spark plug should be tightened
to the specified torque as soon as possible. NOTICEECB02900Do not use any tools to remove or install
the spark plug cap, otherwise the ignition
coil coupler may be damaged. The spark
plug cap may be difficult to remove be-
cause the rubber seal on the end of the cap
fits tightly. To remove the spark plug cap,
simply twist it back and forth while pulling
it out; to install it, twist it back and forth
while pushing it in.
EBU35423Air filter maintenanceThis model is equipped with two air filter ele-
ments, a primary foam-type air filter and a
secondary paper-type air filter.
The primary air filter is easily accessed and
should be cleaned and oiled every 300–600
km (200–400 mi).
The secondary air filter is more difficult to ac-
cess, cannot be cleaned, and should be re-
placed by a Yamaha dealer every 2000–5000
km (1200–3000 mi).1. Primary air filter
2. Secondary air filter
1
2
U2HC7ME0.book Page 37 Tuesday, April 19, 2016 10:33 AM

8-38
8
TIPService the air filters more frequently when
operating in wet or dusy environments. Whenever air filter maintenance is performed:
check the air inlet for obstructions and the
air filter case for dirt and foreign matter.
 check the air filter case check hoses for dirt
or water and clean as necessary.
 check the air filter cas e joints and the rub-
ber joints to and from the throttle body for
proper fit and sealing.
 tighten all fittings securely to avoid the pos-
sibility of unfiltered air entering the engine.NOTICEECB02270Never operate the engine with the air filter
element removed. Doing so would allow
unfiltered air to enter, causing rapid en-
gine wear and possible engine damage. Additionally, the fuel injection system
would be affected, resulting in poor engine
performance and possible overheating.
Clean the primary air filter as follows.
1. Remove panel C (page 8-10).
2. Remove the air filter case cover by turn- ing the air filter case cover lock counter-
clockwise.TIPMake sure that the match mark on the cover
lock is aligned with the open match mark on
the air filter case cover.
U2HC7ME0.book Page 38 Tuesday, April 19, 2016 10:33 AM

8-46
8
TIPThe brake and clutch fluid reservoirs are lo-
cated under the hood (page 8-10).
 For an accurate reading, make sure the ve-
hicle is parked on a level surface.
WARNING
EWB03910Improper maintenance can result in loss of
braking ability or cl utch operation. Ob-
serve these precautions:
 Insufficient brake or clutch fluid may al-
low air to enter the brake or clutch sys-
tem, reducing braking or clutch
performance.
 Clean the filler caps before removing.
Use only DOT 4 brake fluid from a sealed
container.
 Use only the specified brake fluid; other-
wise, the rubber seals may deteriorate,
causing leakage.
 Refill with the same type of brake fluid.
Adding a brake fluid other than DOT 4
may result in a harmful chemical reac-
tion.

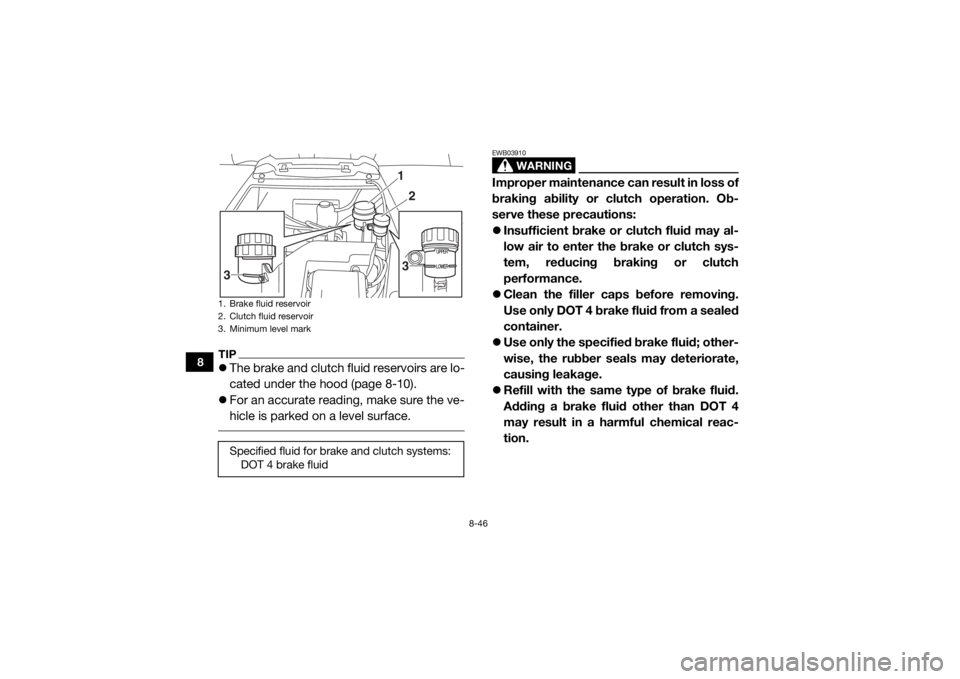

1. Brake fluid reservoir
2. Clutch fluid reservoir
3. Minimum level markSpecified fluid for brake and clutch systems:
DOT 4 brake fluid
3
3 12
U2HC7ME0.book Page 46 Tuesday, April 19, 2016 10:33 AM

8-47
8
Be careful that water or dust does not
enter the brake or clutch fluid reservoir
when refilling. Water will significantly
lower the boiling point of the fluid and
may result in vapor lock. NOTICEECB01161Brake fluid may damage painted surfaces
or plastic parts. Always clean up spilled
fluid immediately. As the brake pads wear, it is normal for the
brake fluid level to gradually go down. A low
brake fluid level may indicate worn brake
pads or brake system l eakage; therefore, be
sure to check the brake pads for wear and the
brake system for leakage. A low clutch fluid
level may indicate clutch system leakage;
therefore, be sure to check the clutch system
for leakage. If the brake or clutch fluid level
goes down suddenly, have a Yamaha dealer
check and repair the vehicle before any fur-
ther operation.
EBU35170Brake and clutch fluid replacementComplete fluid replacement should be done
only by trained Yamaha service personnel.
Have a Yamaha dealer replace the following
components during periodic maintenance or
when they are damaged or leaking.
 Replace the oil seals every two years.
 Replace the brake and clutch hoses every
four years.EBU35181Checking the clutch pedalThe clutch pedal should operate smoothly
and spring back to position when released.
When depressed, it should offer resistance
before reaching the floorboard. If the pedal
offers little resistance when depressed, or if
the transmission grinds gears when shifting,
have a Yamaha dealer check the vehicle.
U2HC7ME0.book Page 47 Tuesday, April 19, 2016 10:33 AM

8-52
8
EBU32582Checking the stabilizer bushesThe stabilizer bushes must be checked for
cracks or damage at the intervals specified in
the periodic maintenance and lubrication
chart.
Have a Yamaha dealer replace the stabilizer
bushes if necessary.

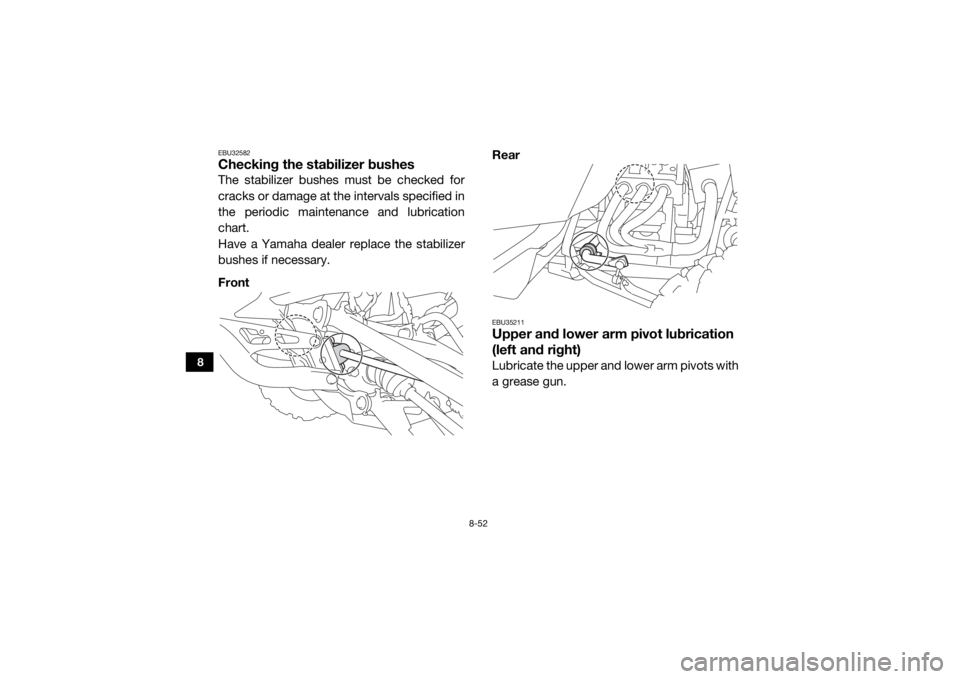

FrontRear
EBU35211Upper and lower arm pivot lubrication
(left and right)Lubricate the upper and lower arm pivots with
a grease gun.
