lock YAMAHA YXZ1000R SS 2017 Owner's Manual

4-40
4
YXZ10YMSHTIPA special wrench can be obtained at a
Yamaha dealer to make this adjustment.
 The spring preload setting is determined by
measuring distance A, shown in the illustra-
tion. The shorter distance A is, the higher
the spring preload; the longer distance A is,
the lower the spring preload. 1. Locknut
2. Spring preload adjusting nut
3. Special wrench
1
3
2
(a)
(b)
Spring preload setting:
Minimum (soft):Distance A = 496.8 mm (19.56 in)
(YXZ10YMXH)
619.1 mm (24.37 in) (YXZ10YMSH)
Standard: Distance A = 484.1 mm (19.06 in)
(YXZ10YMXH)
606.4 mm (23.87 in) (YXZ10YMSH)
Maximum (hard): Distance A = 471.4 mm (18.56 in)
(YXZ10YMXH)
593.7 mm (23.37 in) (YXZ10YMSH)
U2HC7ME0.book Page 40 Tuesday, April 19, 2016 10:33 AM

4-41
4
YXZ10YMXH
YXZ10YMSH3. Tighten the locknut to the specified
torque. NOTICE: Always tighten the
locknut against the adjusting nut, and
then tighten it to the specified torque.
[ECB00082]
Rebound damping force (YXZ10YMXH)
Turn the rebound damping force adjusting
screw in direction (a) to increase the rebound
damping force and thereby harden the damp-
ing, and in direction (b) to decrease the re-
bound damping force and thereby soften the
damping.
1. Distance A
1. Distance A
11
Tightening torque: Locknut:41 N·m (4.1 kgf·m, 30 lb·ft)
U2HC7ME0.book Page 41 Tuesday, April 19, 2016 10:33 AM

5-7
5
EBU36030Differential gearMake sure there is no oil leaking from the dif-
ferential gear case.EBU31790Accelerator pedalCheck to see that the accelerator pedal oper-
ates correctly. It must operate smoothly and
spring back to the idle position fully when re-
leased. Have a Yamaha dealer repair as nec-
essary for proper operation.EBU31800Seat beltsMake sure that the seat belts are not frayed,
torn, stretched, or damaged. The seat belts
must move smoothly when pulled out and re-
tract on its own when released. The seat belts
must also lock up when quickly pulled out.
The latch plate should click securely into the
buckle and release when the release button is
pushed firmly. Wash off any dirt or mud that
could affect operation. Have a Yamaha dealer
repair as necessary for proper operation. A crash can damage the restraint systems in
your vehicle. A damaged restraint system
may not properly protect the person using it,
resulting in serious injury or death in a crash.
To help make sure your restraint systems are
working properly after a crash, have them in-
spected and any necessary replacements
made as soon as possible.
EBU31810Passenger handholdCheck that the handhold bar and its supports
are in good condition. Confirm that the lock-
ing pins are securely fastened, and then push
and pull on the handhold to make sure that it
is not loose.EBU31820SteeringPark on level ground. Turn the steering wheel
right and left. Check for excessive free play,
abnormal noises, or a rough feeling. Have a
Yamaha dealer repair as necessary for proper operation.
U2HC7ME0.book Page 7 Tuesday, April 19, 2016 10:33 AM

6-5
6
can cause the tires to lose traction, reducing
control and increasing the possibility of an ac-
cident.
WARNING
EWB00712Make sure the engine has sufficiently
slowed before shifting to a lower gear. En-
gaging a lower gear when the engine
speed is too high could make the wheels
stop rotating and lose traction. This could
cause loss of control, an accident and inju-
ry. It could also cause engine or drivetrain
damage. Recommended shift points
The recommended shift points during accel-
eration and deceleration are shown in the ta-
ble below.To drive in reverse
WARNING
EWB03300Before you shift into reverse, make sure
there are no obstacles or people behind
you. When it is safe to proceed, go slowly.
Hitting an obstacle or
person could result
in serious inju ry or death. 1. Stop the vehicle and continue to apply
the brake pedal.
2. Check behind you.
3. Press the clutch pedal, and pull the re- verse gear lock lever.
4. Shift the transmission into reverse.Shift up points: 1st → 2nd: 19 km/h (12 mi/h)
2nd → 3rd: 33 km/h (21 mi/h)
3rd → 4th: 44 km/h (27 mi/h)
4th → 5th: 53 km/h (33 mi/h)
Shift down points: 5th → 4th: 30 km/h (19 mi/h)
4th → 3rd: 17 km/h (11 mi/h)
U2HC7ME0.book Page 5 Tuesday, April 19, 2016 10:33 AM

6-6
6
TIPWhen in reverse, the transmission gear dis-
play should show “R” and the reverse indica-
tor light should come on. 5. Release the reverse gear lock lever and the parking brake, if applied.
6. Check behind you and then release the brake pedal.
7. Press the accelerator pedal gradually and
release the clutch pedal slowly. Continue
to watch to the rear while driving in re-
verse.
1. Reverse gear lock lever “REV.”
1. Shift lever
2. Reverse gear
1
1
2
R 1
N 2
3
4
5
U2HC7ME0.book Page 6 Tuesday, April 19, 2016 10:33 AM

6-7
6
EBU35061Selecting the drive modeThe vehicle handles differently in each of the drive modes: “2WD”, “4WD” and “DIFF LOCK”. For
example, the vehicle requires more effort to turn in “DIFF LOCK” than in “2WD”. Always stop the
vehicle before changing the position of th e On-Command drive knob. The drive mode icon
changes according to the selected drive mode. The drive mode icon and the “DIFF LOCK” indi-
cator light come on as follows:
Knob position Indication Drive mode
(none)
“2WD” (two-wheel drive): Drive power is supplied to the rear
wheels only.
“4WD” (four-wheel drive): Drive power is supplied to the
front and rear wheels.
“DIFF LOCK” (four-wheel drive with the differential gear
locked): Drive power is supplied to the front and rear wheels
and the differential gear is locked.
Unlike in four-wheel drive, all wheels turn at the same
speed.
U2HC7ME0.book Page 7 Tuesday, April 19, 2016 10:33 AM

6-8
6
TIPWhen the knob is set to “DIFF LOCK” or “4WD ”, the drive mode icon and the indicator light
will flash until the differential gear is completely locked or unlocked.
 Turning the steering wheel back and forth will help the differential gear lock to engage or dis-
engage.
 To protect the drivetrain from damage, vehicle speed is limited until the differential gear lock
has properly transitioned. U2HC7ME0.book Page 8 Tuesday, April 19, 2016 10:33 AM

7-9
7

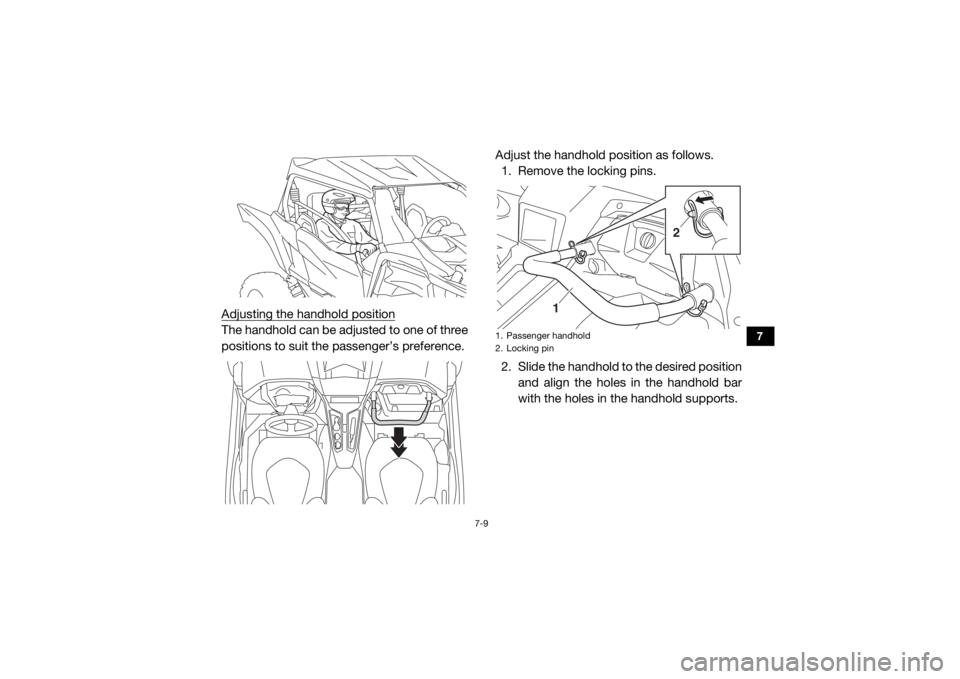

Adjusting the handhold positionThe handhold can be adjusted to one of three
positions to suit the passenger’s preference.Adjust the handhold position as follows.
1. Remove the locking pins.
2. Slide the handhold to the desired position
and align the holes in the handhold bar
with the holes in the handhold supports.
1. Passenger handhold
2. Locking pin
1
2
U2HC7ME0.book Page 9 Tuesday, April 19, 2016 10:33 AM

7-14
7
Become familiar with the way the vehicle han-
dles in the various drive modes. Start off with
two-wheel drive “2WD”, then four-wheel drive
“4WD”, and finally four-wheel drive with the
differential locked “DIFF LOCK”. Steering
may take more effort in four-wheel drive with
the differential locked “DIFF LOCK”. Also
practice driving in reverse.TIPTake the time to learn basic operation of the
vehicle before driving at higher speeds or at-
tempting more difficult maneuvers.
Getting ready to ride
Perform the pre-operation checks on page
5-1. Follow the instructions on page 6-2 when
starting the engine.
Turning
Use care in turns — turning the steering wheel
too far or too fast can result in loss of control
or a rollover. Slow down before entering
turns. When making tight turns from a stand-
still or at slow speeds, avoid sudden or hard
acceleration. Driving aggressively or making
abrupt maneuvers even on flat, open areas
can cause side rollovers. Avoid sideways slid-
ing, skidding, or back-wheel sliding, and nev-
er do donuts. If you feel the vehicle begin to
slide sideways or the back wheels slide dur-
ing a turn, steer into the direction of the slide,
if possible, and gradually let off the accelera-
tor pedal to regain directional control and
avoid rollover. For example, if you feel the
back of the vehicle start to slide to your right,
steer to the right.
U2HC7ME0.book Page 14 Tuesday, April 19, 2016 10:33 AM

7-16
7
Leaving the vehicle
Do not get out of the vehicle while the engine
is running. Take the key with when you leave
the vehicle. There is a serious risk of injury or
death because:
Children or other unauthorized persons
may attempt to operate the vehicle.
 Objects tossed into the vehicle may strike
the shift lever and accidently engage the
transmission.
 The parking brake may not keep the vehicle
from moving.
Parking on a flat area
Even when parking on a seemingly flat area, it
is good practice to leave the transmission in
gear to prevent the vehicle from rolling.
Therefore, shift into first or reverse gear, stop
the engine and always apply the parking
brake. Parking on a slope
The parking brake is loca
ted on the rear drive
shaft. When the drivetrain is in “2WD” mode,
only the rear wheels will be locked. Therefore,
switch the drive mode to “DIFF LOCK” before
stopping the engine to lock all four wheels
when parking. In addition to the parking
brake, leave the transmi ssion in gear to help
prevent the vehicle from rolling.
If you park on a hill that is too steep, the vehi-
cle may roll out of control. Never park on hills
that are so steep you cannot walk up them
easily. If you must park on an incline, follow
these instructions: 1. First, bring the vehicle to a stop and con- tinue to apply the brake pedal.
2. Switch the drive mode to “DIFF LOCK”
and shift into first gear when parking up-
hill, or reverse gear when parking down-
hill.U2HC7ME0.book Page 16 Tuesday, April 19, 2016 10:33 AM
