light YAMAHA YXZ1000R SS 2020 User Guide

5-6
5
started, the EPS system may not be working
correctly. When this occurs, have a Yamaha
dealer check the EPS system.
The electrical circuit of the warning light can
be checked by turning the key to “ ” (on). If
the warning light does not come on, have a
Yamaha dealer check the electrical circuit.TIPIf the steering load is too heavy (e.g., exces-
sive steering use at slow speed or when op-
erating in deep mud, sand, or snow), the
power assist is reduced to protect the EPS
motor from overheating. EBU36713Half clutch indicator light “ ”
This indicator light comes on to inform the
driver when the clutch is partially engaged.
Normal, temporary partial-engagement oc-
curs when starting off or when shifting gears.
The indicator light may also come on during
engine braking or in other situations. The electrical circuit of the indicator light can
be checked by turning the key to “ ” (on). If
the indicator light does not come on and then
go off, have a Yamaha dealer check the elec-
trical circuit.
TIPIf the indicator light stays on while driving, ei-
ther release the accelerator pedal or further
press down the accelerator pedal (release or
increase throttle) to fully engage or disengage
the clutch. NOTICEECB03351Do not use the throttle (accelerator pedal)
to hold the vehicle stationary when on an
incline or navigating obstacles. Continu-
ous operation while the indicator light is on
may lead to shortened clutch life.
UBAS7AE0.book Page 6 Wednesday, June 19, 2019 11:51 AM

5-7
5
EBU36643Launch system indicator light “ ”
This indicator light comes on when the launch
system is activated. If the indicator light is
flashing, either a user error or system restric-
tion has been detected. See “Launch system
operation” on page 7-7 for more information.
The electrical circuit of the indicator light can
be checked by turning the key to “ ” (on). If
the indicator light does not come on and then
go off, have a Yamaha dealer check the elec-
trical circuit.TIPIf the launch system indicator light is flashing,
release the accelerator pedal and shift pad-
dles to reset the system. When the engine
speed returns to idle, the indicator light will go
off. You can now start off as normal in first
gear, or retry activating the launch system.
EBU36743YCC-S system warning light “ ”
This warning light comes on when an error
has occurred or a malfunction has been de-
tected in the YCC-S system. Have a Yamaha
dealer check the YCC-S system.
The electrical circuit of the YCC-S system
warning light can be checked by turning the
key to “ ” (on). If the warning light does not
come on and then go off, have a Yamaha
dealer check the electrical circuit.
If the YCC-S system warning light flashes
when starting the engine, wait 3 seconds for
the light to stop flashing, and then retry start-
ing the engine. If an error in the YCC-S sys-
tem prevents the engine from starting, the
warning light will come and the display will in-
dicate an error code.TIPYCC-S system error codes are visible only
when the engine is stopped.
UBAS7AE0.book Page 7 Wednesday, June 19, 2019 11:51 AM

5-8
5
The engine may not start even though the
starter motor operates. If the YCC-S system stops working correctly
while driving, the YCC-S warning light will
come on. If this occurs, it may be impossible
to shift out of the gear you are in; and the
clutch may stay engaged, so a shuddering
sensation may be felt when you come to a
stop. Stop the vehicle on level ground safely
off the main trail, and have the YCC-S system
serviced by a Yamaha dealer before further
operation.TIPIf shifting into neutral is impossible using the
shift paddles and drive select lever, proceed
as follows if it is nece ssary to move the vehi-
cle after it has stopped. 1. Turn the key to “ ” (off).
2. Remove panel B (page 9-11). 3. While rocking the vehicle back and forth,
push the shift rod and shift arm pivot
downward (or upward if the transmission
was in reverse) until the transmission is in
neutral.
WARNING
EWB04171Turn the key to “ ” (off) before attempt-
ing to manipulate the shift rod. Other-
wise, the shift actuator may operate
unexpectedly and cause injury.1. Shift arm pivot
2. Shift rod
3. Neutral position
1
2
3
5 5
4
3
2
1
N
R 5
4
3
2
1
N
R
UBAS7AE0.book Page 8 Wednesday, June 19, 2019 11:51 AM

5-9
5
Do not shift the transmission into neutral
if the vehicle is stopped on an incline un-
less the parking brake is applied or vehi-
cle movement is secured by other
means. Otherwise, when the transmis-
sion is shifted into neutral, the vehicle
may roll downhill and possibly cause an
accident, serious injury or death. EBU31361Helmet reminder light “ ”
The reminder light comes on and stays on
while the key is turned to “ ” (on) to remind
the occupants to always wear a helmet. If the
reminder light does not come on when the
key is turned to “ ” (on), have a Yamaha
dealer check the electrical circuit.EBU31371Seat belt reminder light “ ”
The reminder light comes on when the key is
turned to “ ” (on) to remind the occupants
to fasten their seat belt. The reminder light
stays on until the driver seat belt is properly latched. If the reminder light does not come
on when the key is turned to “ ” (on), or if
the reminder light remains on after the driver
seat belt is properly latched, have a Yamaha
dealer check the electrical circuit.UBAS7AE0.book Page 9 Wednesday, June 19, 2019 11:51 AM

5-10
5
EBU36536Multi-function meter unitThe multi-function meter unit is equipped with
the following:
speedometer 
tachometer
 odometer
 two tripmeters
 clock
 hour meter
 voltage display
 coolant temperature display
 fuel gauge
 transmission gear display
 shift light control mode
 error code display1. Tachometer
2. Transmission gear display
3. Shift light
4. Speedometer
5. “SELECT” button
6. “MODE” button
7. “RESET” button
8. Clock/Hour meter/Voltage display/Coolant temperature
display
9. Fuel gauge
10.Odometer/Tripmeter A/Tripmeter B
123456
10 9 87
UBAS7AE0.book Page 10 Wednesday, June 19, 2019 11:51 AM

5-16
5
TIPThis fuel gauge is equipped with a self-diag-
nosis system. If a problem is detected in an
electrical circuit, the fuel gauge will flash re-
peatedly. If this occurs, have a Yamaha deal-
er check the electrical circuit. Transmission gear display
This display shows the selected gear. The
neutral position is indicated by “N” and by the
neutral indicator light “N”.Shift light control mode
The shift light has three settings which can be
adjusted.

Flashing pattern: this function allows you to
choose whether or not the light will come
on and whether it should flash or stay on
when activated.
 Activation point: this function allows you to
select the engine speed at which the light is
activated.1. Transmission gear display
2. Neutral indicator light “N”
1
2
1. Shift light
2. “MODE” button
3. “RESET” button
1
23
UBAS7AE0.book Page 16 Wednesday, June 19, 2019 11:51 AM

5-17
5
Deactivation point: this function allows you
to select the engine speed at which the light
is deactivated.
To enter the shift light control mode1. Turn the key to “ ” (off).
2. Push and hold the “MODE” button.
3. Turn the key to “ ” (on), and then re- lease the “MODE” button after all seg-
ments of the display disappear and the
shift light comes on. The shift light can be
adjusted as follows.
To set the flashing pattern1. Push the “RESET” button to select one of the following flashing pattern settings:
On: the shift light stays on when acti-
vated. (The shift light will confirm this
setting by staying on.)
 Flash: the shift light flashes when acti-
vated. (The shift light will confirm this
setting by flashing four times per se-
cond.) 
Off: the shift light is deactivated; in oth-
er words, it does not come on or flash.
(The shift light will confirm this setting
by flashing once every two seconds.)
2. Push the “MODE” button to confirm the
selected flashing pattern. The control
mode then changes to the activation
point setting function. The shift light re-
mains on and the tachometer shows the
current setting r/min for the activation
point.
To set the activation point
TIP The shift light activation point can be set
between 7000 r/min and 12000 r/min. The
activation point can be set in increments of
500 r/min.
 The tachometer needle will start over at
7000 r/min after 12000 r/min.
UBAS7AE0.book Page 17 Wednesday, June 19, 2019 11:51 AM

5-18
5
1. Push the “RESET” button to select thedesired engine speed for activating the
shift light.
2. Push the “MODE” button to confirm the selected engine speed. The shift light
flashes and the tachometer shows the
current setting r/min for the deactivation
point.
To set the deactivation pointTIP Be sure to set the deactivation point to a
higher engine speed than for the activation
point, otherwise the shift light will not come
on.
 The shift light deactivation point can be set
between 7000 r/min and 12000 r/min. The
deactivation point can be set in increments
of 500 r/min.
 The tachometer needle will start over at
7000 r/min after 12000 r/min.
1. Push the “RESET” button to select the
desired engine speed for deactivating the
shift light.
2. Push the “MODE” button to confirm the selected engine speed. The display exits
the shift light control mode and returns to
the standard multi-function display mo-
de.
Error code display1. Error code display
2. YCC-S system error code display
3. Engine trouble warning light “ ”
4. YCC-S system warning light “ ”
1
2
3
4
UBAS7AE0.book Page 18 Wednesday, June 19, 2019 11:51 AM

5-19
5
This model is equipped with a self-diagnosis
device for various electrical circuits.
If a problem is detected in any of those cir-
cuits, the engine trouble warning light and/or
the YCC-S system warning light will come on
or flash, and the display will indicate an error
code.TIPYCC-S system error codes are displayed
only when the engine is stopped.
 If the display indicates an error code, note
the code number and have a Yamaha deal-
er check the vehicle. NOTICEECB00812If the multi-function display indicates an
error code, the vehicle should be checked
as soon as possible in order to avoid en-
gine damage.
EBU35471Light switch “ / / ”Set the switch to “ ” to turn on the low
beam and the taillight.
Set the switch to “ ” to turn on the high
beam and the taillight.
Set the switch to “ ” to turn off the head-
lights and taillight.NOTICEECB02061Do not use the headlights with the engine
turned off for an extended period of time.
The battery may discharge to the point1. Light switch “ / / ”
L
H
1
L
HLH
UBAS7AE0.book Page 19 Wednesday, June 19, 2019 11:51 AM

5-20
5
that the electric starter will not have
enough power to crank the engine. If this
should happen, remove the battery and re-
charge it. EBU36942Interior light switch “ ” (equipped
models)Push the upper side (a) of the interior light
switch to turn on the interior lights and push
the lower side (b) of the switch to turn off the

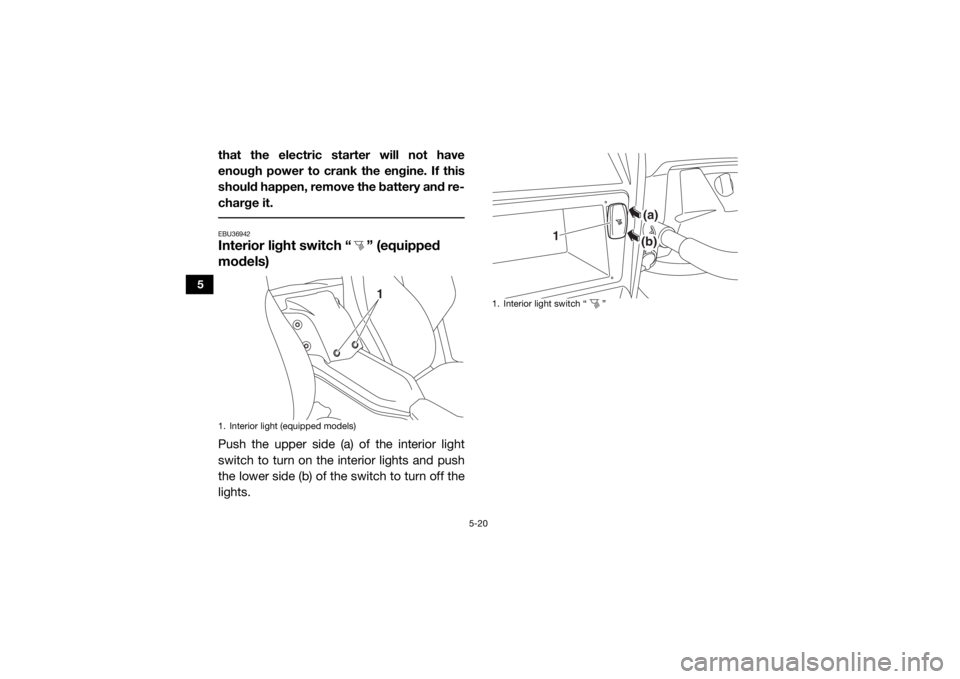

lights.1. Interior light (equipped models)
1
1. Interior light switch “ ”
(a)(b)
1
