warning YAMAHA YXZ1000R SS 2020 Owner's Manual

5-30
5
When storing any documents in the storage
compartments, be sure to wrap them in a
plastic bag so that they will not get wet. When
washing the vehicle, be careful not to let any
water enter the storage compartments. To
access the underseat storage compartment,
remove the seat cushion. (See page 5-25.)
NOTICEECB02241To protect from damage, do not put metal
items, like tools, or sharply edged items di-
rectly in the storage compartment. If these
items must be stored, wrap them in appro-
priate cushioning material. EBU31520Cup holdersBe sure to tightly close the cap of any plastic
bottle before placing it in a cup holder.
Some plastic bottles may not fit into the cup
holders depending on their size and shape.
WARNING
EWB03240 Never ride with any open or glass con-
tainers in the cup holders; otherwise, the
contents may spill and the glass contain-
ers may be thrown about and break, and
possibly injure people in the vehicle dur-
ing sudden braking or an accident.

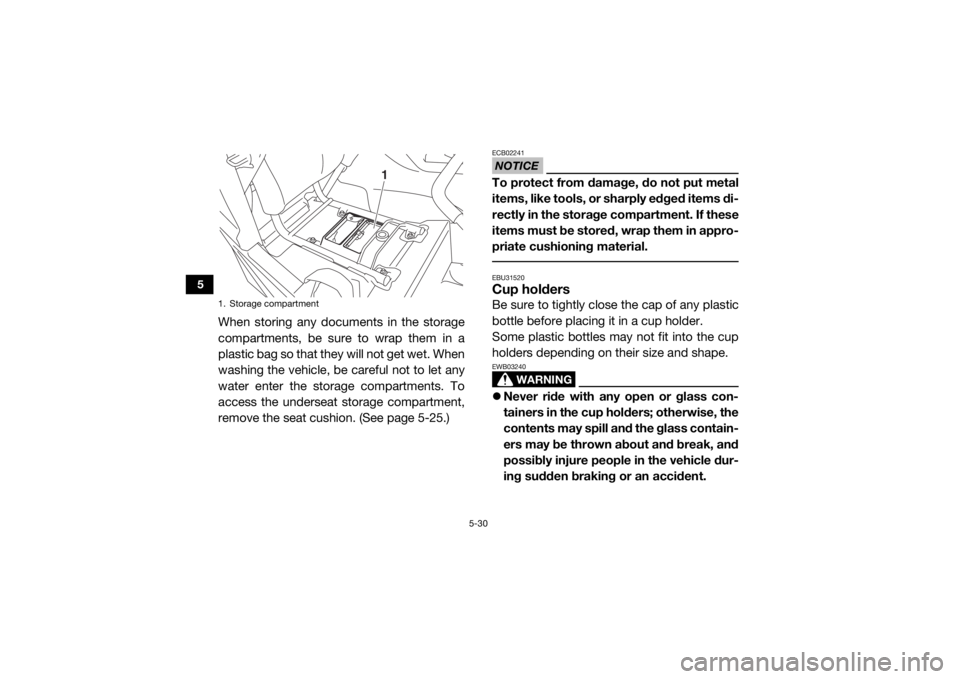

1. Storage compartment
1
UBAS7AE0.book Page 30 Wednesday, June 19, 2019 11:51 AM

5-31
5
Do not place any other items than seal-
able plastic containers in the cup hold-
ers; otherwise, they may be thrown
about and possibly injure people in the
vehicle during sudden braking or an ac-
cident. EBU35022Cargo bed
WARNING
EWB03250Never carry passengers in the cargo
bed. 
Do not exceed the specified maximum
load limits. Heavier cargo could cause
loss of control because of improper
weight balance.
There are four cargo hooks in the cargo bed.
For additional loading information, see page
7-12.
1. Cup holder
1
1. Cargo hookMaximum load limit: 136.0 kg (300 lb)
1
1
UBAS7AE0.book Page 31 Wednesday, June 19, 2019 11:51 AM

5-32
5
EBU35660Flag pole bracketThis model is equipped with a flag pole brack-
et.NOTICEECB03010Do not use the flag pole bracket as a cargo
hook. EBU38602Front shock absorbersThe shock absorber assemblies are equipped
with the following adjusters.BAS7:

Spring preload adjusting nut
 Rebound damping force adjusting screw
 High speed compression damping force
adjusting bolt
 Low speed compression damping force
adjusting screw
BAS5: Spring preload adjusting nut
 Rebound damping force adjusting screw
 High speed compression damping force
adjusting bolt
 Low speed compression damping force
adjusting screw
 Crossover adjusting nut
WARNING
EWB04140Suspension components become hot
during operation. Never touch the com-
pression damping force adjusting bolt
and screw, the rebound damping force
1. Flag pole bracket
1
1
UBAS7AE0.book Page 32 Wednesday, June 19, 2019 11:51 AM

5-40
5
Low speed compression damping forceTo increase the compression damping force
and thereby harden the low speed compres-
sion damping, turn the compression damping
force adjusting screw in direction (a). To de-
crease the compression damping force and
thereby soften the low speed compression
damping, turn the adjusting screw in direction
(b).
WARNING
EWB00411These shock absorber assemblies contain
highly pressurized nitrogen gas. Read and
understand the following information be-
fore handling the shock absorber assem-
blies.
Do not tamper with or attempt to open
the cylinder assemblies.
 Do not subject the shock absorber as-
semblies to an open flame or other high
heat source. This may cause the unit to
explode due to excessive gas pressure.
1. Low speed compression damping force adjusting screw
1
(a)
(b)
Low speed compression damping setting
Minimum (soft):4 turn(s) out from the fully turned in posi-
tion
Standard: 2 turn(s) out from the fully turned in posi-
tion
Maximum (hard): Adjusting screw fully turned in
UBAS7AE0.book Page 40 Wednesday, June 19, 2019 11:51 AM

5-41
5
Do not deform or damage the cylinders
in any way. Cylinder damage will result in
poor damping performance.
 Do not dispose of a damaged or worn
out shock absorber assembly yourself.
Take the shock absorber assembly to a
Yamaha dealer for any service. EBU38612Rear shock absorbersThe shock absorber assemblies are equipped
with the following adjusters.
BAS7: Spring preload adjusting nut
 Rebound damping force adjusting screw
 High speed compression damping force
adjusting bolt
 Low speed compression damping force
adjusting screw
BAS5: Spring preload adjusting nut 
Rebound damping force adjusting screw
 High speed compression damping force
adjusting bolt
 Low speed compression damping force
adjusting screw
 Crossover adjusting nut
WARNING
EWB04140Suspension components become hot
during operation. Never touch the com-
pression damping force adjusting bolt
and screw, the rebound damping force
adjusting bolt and screw, or the oil reser-
voir with your bare hand or skin until
suspension components have cooled.
 Always adjust the shock absorber as-
semblies on the left and right side to the
same setting. Uneven adjustment can
cause poor handling and loss of stability,
which could lead to an accident.
UBAS7AE0.book Page 41 Wednesday, June 19, 2019 11:51 AM

5-49
5
WARNING
EWB03500These shock absorber assemblies contain
highly pressurized nitrogen gas. Read and
understand the following information be-
fore handling the shock absorber assem-
blies.
Do not tamper with or attempt to open
the cylinder assemblies.
 Do not subject the shock absorber as-
sembly to an open flame or other high
heat source. This may cause the unit to
explode due to excessive gas pressure. 
Do not deform or damage the cylinders
in any way. Cylinder damage will result in
poor damping performance.
 Do not dispose of a damaged or worn
out shock absorber assembly yourself.
Take the shock absorber assembly to a
Yamaha dealer for any service.
EBU35056Auxiliary DC jack
Low speed compression damping setting Minimum (soft):4 turn(s) out from the fully turned in posi-
tion
Standard: 2 turn(s) out from the fully turned in posi-
tion
Maximum (hard): Adjusting screw fully turned in
1. Auxiliary DC jack cap
2. Auxiliary DC jack
2
1
UBAS7AE0.book Page 49 Wednesday, June 19, 2019 11:51 AM

6-1
6
EBU31574
FOR YOUR SAFETY – PRE-OPERATION CHECKS
EBU31585Before starting off, inspect the vehicle to make sure it is in safe operating condition. Use the fol-
lowing checklist and related information as a guide. Also, follow the service intervals in the peri-
odic maintenance chart to keep the vehicle in safe operating condition.
WARNING
EWB00482Failure to inspect or maintain the vehicle properly increases the possibility of an accident
or equipment damage. Do not operate the vehicle if you find any problem. If a problem can-
not be corrected by the procedures provided in this manual, have the vehicle inspected by
a Yamaha dealer. Pre-operation checklist
ITEM ROUTINE PAGE
Brakes • Check operation, free play, fluid level, and fluid leakage.
• Fill with DOT 4 brake fluid if necessary. 6-3, 9-47, 9-54
Parking brake • Check for proper operation, condition, and free play. 9-52
Fuel • Check fuel level.
• Fill with the recommended fuel if necessary. 6-3
Engine oil • Check oil level.
• Fill with oil to proper level if necessary. 6-5, 9-18
UBAS7AE0.book Page 1 Wednesday, June 19, 2019 11:51 AM

6-4
6
WARNING
EWB02522Gasoline and gasoline vapors are ex-
tremely flammable. To avoid fires and ex-
plosions and to reduce the risk of injury
when refueling, follow these instructions. 1. Before refueling, turn off the engine andbe sure that no one is sitting in the vehi-
cle.
Never refuel while smoking, or while in
the vicinity of sparks, open flames, or
other sources of ignition such as the pilot
lights of water heaters and clothes dry-
ers.
2. Do not overfill the fuel tank. Because fuel expands when it heats up, heat from the
engine or the sun can cause fuel to spill
out of the fuel tank.
3. Wipe up any spilled fuel immediately.
4. Be sure the fuel tank cap is closed se-
curely.
WARNING
EWB02532Gasoline is poisonous and can cause inju-
ry or death. Handle gasoline with care.
Never siphon gasoline by mouth. If you
should swallow some gasoline or inhale a
lot of gasoline vapor, or get some gasoline
in your eyes, see your doctor immediately.
If gasoline spills on your skin, wash with
soap and water. If gasoline spills on your
clothing, change your clothes. If knocking or pinging occurs, try a different
brand or higher octane gasoline. Unleaded
fuel will give you longer spark plug life and re-
duced maintenance cost. Gasoline contain-Recommended fuel:Regular unleaded gasoline (Gasohol [E10]
acceptable)
Fuel tank capacity: 34 L (9.0 US gal, 7.5 Imp.gal)
Fuel reserve amount: 8.5 L (2.24 US gal, 1.87 Imp.gal)
UBAS7AE0.book Page 4 Wednesday, June 19, 2019 11:51 AM

6-5
6
ing ethanol can be used if the ethanol content
does not exceed 10% (E10). Gasoline con-
taining methanol is not recommended be-
cause it can cause damage to the fuel system
or vehicle performance problems.TIPThis mark identifies the recommended fuel
for this vehicle as specified by European
regulation (EN228).
 Check that gasoline nozzle has the same
identifier when fueling.
Portable fuel containers
If you carry a portable fuel container in the
bed of your Yamaha YXZ1000R, be sure to
secure it with the cap tightened before driving
the vehicle.
Always place a portable fuel container on the
ground before filling it. Before removing the
container cap, touch the container with the
fuel dispenser nozzle. Keep fuel dispenser
nozzle in contact with container inlet when fill-
ing. WARNING! Never refill a fuel container
in the bed of any vehicle. Fire may result
from a build-up of static electricity. The
discharge of this build-up while refueling
can cause a spark and ignite the gasoline.[EWB03270]
EBU35680Engine oilMake sure the engine oil is at the specified
level. Add oil as necessary. (See page 9-18.)
E5
E10
UBAS7AE0.book Page 5 Wednesday, June 19, 2019 11:51 AM

6-8
6
EBU36672YCC-S clutchCheck the YCC-S clutch fluid level and cor-
rect if necessary. (See page 9-49.)
Check the operation of the drive select lever
and shift paddles at the start of each drive.TIPIf the YCC-S clutch fluid level was low, be
sure to check the clutch system for leak-
age.
 If any leakage is found, or if shifting is not
smooth, have a Yamaha dealer service the
vehicle. EBU35700Fittings and fastenersAlways check the tightness of chassis and
wheel fittings and fasteners before starting
off. Take the vehicle to a Yamaha dealer or re-
fer to the Service Manual for correct tighten-
ing torque.
EBU31840Instruments, lights and switchesCheck that all instruments, lights and switch-
es are working properly. Correct if necessary.EBU31851Control cablesWhen driving in cold weather, always make
sure all control cables work smoothly before
starting off. WARNING! Control cables can
freeze in cold weather and you could be
unable to control the vehicle.
[EWB03280]
EBU37893
TiresCheck and adjust the tire pressure before
each ride. Check tires for wear and damage.
UBAS7AE0.book Page 8 Wednesday, June 19, 2019 11:51 AM
