EBU31170
DESCRIPTION
EBU31180Left view
1 2,3 4 5 6
9
12
137
810
11
1. Front shock absorber
2. Brake fluid reservoir
3. YCC-S clutch fluid reservoir
4. Door
5. Shoulder bolster
6. Driver seat belt
7. Coolant reservoir 8. Air filter
9. Cargo bed
10.Muffler
11.Exhaust pipe
12.Engine
13.TransmissionUBAS7AE0.book Page 1 Wednesday, June 19, 2019 11:51 AM

4-2
4
EBU31190Right view
7
3
4,5,6
8
1
9
2
1. Rear shock absorber
2. Engine oil tank
3. Passenger seat belt
4. Battery
5. Fuses
6. Interior light (equipped models)
7. Auxiliary light (equipped models)
8. Headlight
9. Fuel tank capUBAS7AE0.book Page 2 Wednesday, June 19, 2019 11:51 AM

5-32
5
EBU35660Flag pole bracketThis model is equipped with a flag pole brack-
et.NOTICEECB03010Do not use the flag pole bracket as a cargo
hook. EBU38602Front shock absorbersThe shock absorber assemblies are equipped
with the following adjusters.BAS7:

Spring preload adjusting nut
 Rebound damping force adjusting screw
 High speed compression damping force
adjusting bolt
 Low speed compression damping force
adjusting screw
BAS5: Spring preload adjusting nut
 Rebound damping force adjusting screw
 High speed compression damping force
adjusting bolt
 Low speed compression damping force
adjusting screw
 Crossover adjusting nut
WARNING
EWB04140Suspension components become hot
during operation. Never touch the com-
pression damping force adjusting bolt
and screw, the rebound damping force
1. Flag pole bracket
1
1
UBAS7AE0.book Page 32 Wednesday, June 19, 2019 11:51 AM

5-33
5
adjusting bolt and screw, or the oil reser-
voir with your bare hand or skin until
suspension components have cooled.
 Always adjust the shock absorber as-
semblies on the left and right side to the
same setting. Uneven adjustment can
cause poor handling and loss of stability,
which could lead to an accident. Notes on adjusting the suspension
A special wrench and special tool can be
obtained at a Yamaha dealer to make the
spring preload or crossover setting adjust-
ment.
 When adjusting the damping force settings,
turn the adjuster in direction (a) until it
stops, and then count the turns or clicks in
direction (b).
 Although a damping force adjuster may
turn or click beyond the stated minimum
settings, such adjustments are ineffective
and may damage the suspension.
NOTICEECB00091Never turn an adjusting mechanism be-
yond the minimum and maximum settings. Spring preload
1. Elevate the vehicle and place a suitable stand under the frame.
2. Loosen the locknut.
3. Turn the spring preload adjusting nut in direction (a) to increase the spring pre-
load and thereby harden the suspension,
and in direction (b) to decrease the spring
preload and thereby soften the suspen-
sion.
UBAS7AE0.book Page 33 Wednesday, June 19, 2019 11:51 AM

5-36
5
4. Tighten the locknut to the specifiedtorque. NOTICE: Always tighten the
locknut against the adjusting nut, and
then tighten it to the specified torque.
[ECB00082]
Crossover setting (BAS5)
The crossover setting adjusts the timing when
the shock absorber transitions from the soft
spring to the hard spring.TIP It is recommended to adjust the crossover
setting a similar distance whenever the
spring preload is adjusted.
 The crossover setting is measured from the
bottom of the spring retainer to the top of
the crossover locknut.
1. Loosen the crossover locknut as shown.
Tightening torque:
Locknut:41 N·m (4.1 kgf·m, 30 lb·ft)
1. Distance B
2. Spring retainer
3. Crossover locknut
4. Crossover adjusting nut
3
4 12
UBAS7AE0.book Page 36 Wednesday, June 19, 2019 11:51 AM

5-40
5

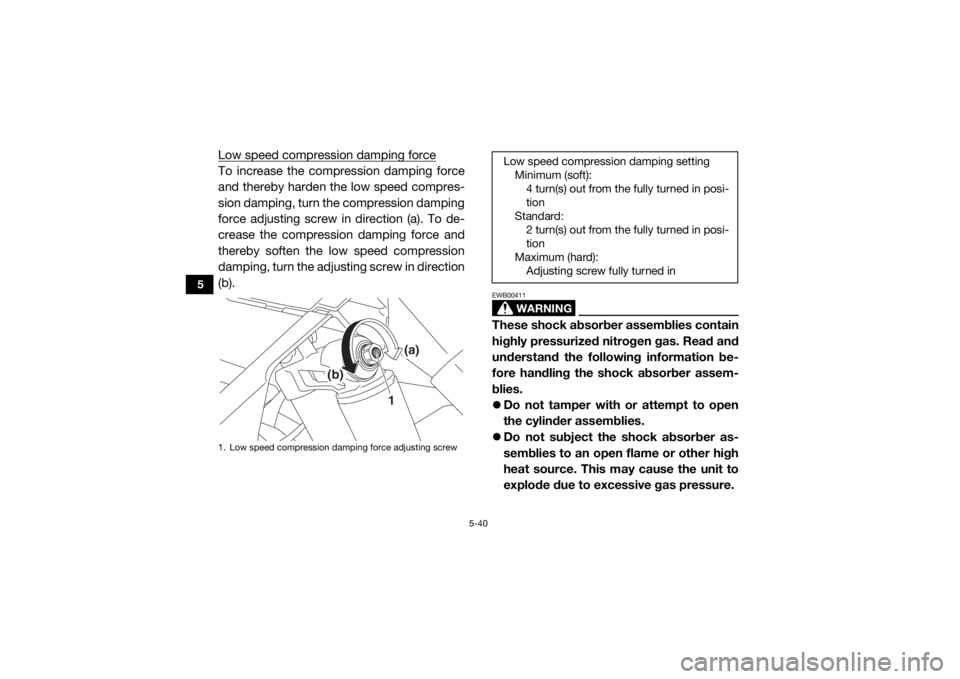

Low speed compression damping forceTo increase the compression damping force
and thereby harden the low speed compres-
sion damping, turn the compression damping
force adjusting screw in direction (a). To de-
crease the compression damping force and
thereby soften the low speed compression
damping, turn the adjusting screw in direction
(b).
WARNING
EWB00411These shock absorber assemblies contain
highly pressurized nitrogen gas. Read and
understand the following information be-
fore handling the shock absorber assem-
blies.
Do not tamper with or attempt to open
the cylinder assemblies.
 Do not subject the shock absorber as-
semblies to an open flame or other high
heat source. This may cause the unit to
explode due to excessive gas pressure.
1. Low speed compression damping force adjusting screw
1
(a)
(b)
Low speed compression damping setting
Minimum (soft):4 turn(s) out from the fully turned in posi-
tion
Standard: 2 turn(s) out from the fully turned in posi-
tion
Maximum (hard): Adjusting screw fully turned in
UBAS7AE0.book Page 40 Wednesday, June 19, 2019 11:51 AM

5-41
5
Do not deform or damage the cylinders
in any way. Cylinder damage will result in
poor damping performance.
 Do not dispose of a damaged or worn
out shock absorber assembly yourself.
Take the shock absorber assembly to a
Yamaha dealer for any service. EBU38612Rear shock absorbersThe shock absorber assemblies are equipped
with the following adjusters.
BAS7: Spring preload adjusting nut
 Rebound damping force adjusting screw
 High speed compression damping force
adjusting bolt
 Low speed compression damping force
adjusting screw
BAS5: Spring preload adjusting nut 
Rebound damping force adjusting screw
 High speed compression damping force
adjusting bolt
 Low speed compression damping force
adjusting screw
 Crossover adjusting nut
WARNING
EWB04140Suspension components become hot
during operation. Never touch the com-
pression damping force adjusting bolt
and screw, the rebound damping force
adjusting bolt and screw, or the oil reser-
voir with your bare hand or skin until
suspension components have cooled.
 Always adjust the shock absorber as-
semblies on the left and right side to the
same setting. Uneven adjustment can
cause poor handling and loss of stability,
which could lead to an accident.
UBAS7AE0.book Page 41 Wednesday, June 19, 2019 11:51 AM

5-44
5
BAS7
BAS54. Tighten the locknut to the specified
torque. NOTICE: Always tighten the
locknut against the adjusting nut, and
then tighten it to the specified torque.
[ECB00082]
Crossover setting (BAS5)
The crossover setting adjusts the timing when
the shock absorber transitions from the soft
spring to the hard spring.TIP It is recommended to adjust the crossover
setting a similar distance whenever the
spring preload is adjusted.
 The crossover setting is measured from the
bottom of the spring retainer to the top of
the crossover locknut.
1. Distance A
1. Distance A
11
Tightening torque:
Locknut:41 N·m (4.1 kgf·m, 30 lb·ft)
UBAS7AE0.book Page 44 Wednesday, June 19, 2019 11:51 AM

5-49
5
WARNING
EWB03500These shock absorber assemblies contain
highly pressurized nitrogen gas. Read and
understand the following information be-
fore handling the shock absorber assem-
blies.
Do not tamper with or attempt to open
the cylinder assemblies.
 Do not subject the shock absorber as-
sembly to an open flame or other high
heat source. This may cause the unit to
explode due to excessive gas pressure. 
Do not deform or damage the cylinders
in any way. Cylinder damage will result in
poor damping performance.
 Do not dispose of a damaged or worn
out shock absorber assembly yourself.
Take the shock absorber assembly to a
Yamaha dealer for any service.
EBU35056Auxiliary DC jack
Low speed compression damping setting Minimum (soft):4 turn(s) out from the fully turned in posi-
tion
Standard: 2 turn(s) out from the fully turned in posi-
tion
Maximum (hard): Adjusting screw fully turned in
1. Auxiliary DC jack cap
2. Auxiliary DC jack
