key YAMAHA YXZ1000R SS 2020 Owners Manual

EBU31080
IMPORTANT MANUAL INFORMATION
EBU31070FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERI-
OUS INJURY OR DEATH.
Particularly important information is distinguished in this manual by the following notations:
* Product and specifications are subject to change without notice.This is the safety alert symbol. It is used to alert you to poten-
tial personal injury hazards. Obey all safety messages that fol-
low this symbol to avoid possible injury or death.
A WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
A NOTICE indicates special precautions that must be taken to
avoid damage to the vehicle or other property.
A TIP provides key information to make procedures easier or clear-
er.
WARNING
NOTICETIPUBAS7AE0.book Page 1 Wednesday, June 19, 2019 11:51 AM

5-1
5
EBU3121BINSTRUMENT AND CONTROL FUNCTIONSEBU31221Main switchEBU31232On position “ ”
All electrical circuits are supplied with power.
The key cannot be removed.
TIPThe operation of the indicator and warning
lights, and the multi-function meter can be
confirmed at this time. EBU31241Off position “ ”
All electrical circuits are switched off. The key
can be removed.EBU31251Start position “ ”
The electric starter is engaged by turning and
holding the key in this position. Release the
key when the engine starts.
1. Main switch
2. Off position “ ”
3. On position “ ”
4. Start position “ ”
1
2
3
4
UBAS7AE0.book Page 1 Wednesday, June 19, 2019 11:51 AM

5-4
5
and/or turn the steering wheel back and
forth to help the differential to lock or un-
lock. EBU34932Shift light
This light can be set to come on and go off at
the desired engine speeds and is used to in-
form the driver when it is time to upshift.
The electrical circuit of the shift light can be
checked by turning the key to “ ” (on). If the
light does not come on initially when the key
is turned to “ ” (on), or if the light remains
on, have a Yamaha dealer check the electrical
circuit.TIPSee page 5-16 for an explanation of how to
set the shift light.
EBU35283Coolant temperature warning light “ ”
This warning light comes on when the coolant
temperature, and therefore the engine, is out-
side its normal operating temperature range.
The warning light comes on in blue to inform
the driver that the vehicle should be warmed
up. After the engine is started, warm it up until
the warning light goes off.
The vehicle can be operated normally when
the warning light is off.
The warning light comes on in red when the
engine is overheating. If the red light comes
on, stop the vehicle as soon as it is safe to do
so and allow the engine to idle for about 10
minutes. If the warning light does not go off,
stop the engine and allow it to cool. (See page
9-71.)TIPIf you continue to drive the vehicle while the
engine is overheating, a buzzer will sound.
UBAS7AE0.book Page 4 Wednesday, June 19, 2019 11:51 AM

5-5
5
The coolant temperature warning light can
be checked by turning the key to “ ” (on).
The warning light should come on in purple
briefly (which confirms that both the blue
and red indicators are okay) and then go
off. If the warning light does not come on at
all, comes on in red or blue, or if the warning
light remains on, have a Yamaha dealer
check the vehicle. NOTICEECB02040The engine may overheat if the vehicle is
overloaded. If this happens, reduce the
load to specification.
 After restarting, make sure that the
warning light is out. Continuous use
while this warning light is on may cause
damage to the engine.
EBU31341Engine trouble warning light “ ”
This warning light comes on or flashes if a
problem is detected in the electrical circuit
monitoring the engine. When this occurs, the
display will indicate an error code (see page
5-18). Have a Yamaha dealer check the self-
diagnosis system.
The electrical circuit of the warning light can
be checked by turning the key to “ ” (on). If
the warning light does not come on initially
when the key is turned to “ ” (on), or if the
warning light remains on, have a Yamaha
dealer check the vehicle.EBU33041Electric Power Steering warning light
“EPS”
This warning light comes on when the key is
turned to “ ” (on), and then goes off once
the engine is started. If the warning light re-
mains on or comes on after the engine is
UBAS7AE0.book Page 5 Wednesday, June 19, 2019 11:51 AM

5-6
5
started, the EPS system may not be working
correctly. When this occurs, have a Yamaha
dealer check the EPS system.
The electrical circuit of the warning light can
be checked by turning the key to “ ” (on). If
the warning light does not come on, have a
Yamaha dealer check the electrical circuit.TIPIf the steering load is too heavy (e.g., exces-
sive steering use at slow speed or when op-
erating in deep mud, sand, or snow), the
power assist is reduced to protect the EPS
motor from overheating. EBU36713Half clutch indicator light “ ”
This indicator light comes on to inform the
driver when the clutch is partially engaged.
Normal, temporary partial-engagement oc-
curs when starting off or when shifting gears.
The indicator light may also come on during
engine braking or in other situations. The electrical circuit of the indicator light can
be checked by turning the key to “ ” (on). If
the indicator light does not come on and then
go off, have a Yamaha dealer check the elec-
trical circuit.
TIPIf the indicator light stays on while driving, ei-
ther release the accelerator pedal or further
press down the accelerator pedal (release or
increase throttle) to fully engage or disengage
the clutch. NOTICEECB03351Do not use the throttle (accelerator pedal)
to hold the vehicle stationary when on an
incline or navigating obstacles. Continu-
ous operation while the indicator light is on
may lead to shortened clutch life.
UBAS7AE0.book Page 6 Wednesday, June 19, 2019 11:51 AM

5-7
5
EBU36643Launch system indicator light “ ”
This indicator light comes on when the launch
system is activated. If the indicator light is
flashing, either a user error or system restric-
tion has been detected. See “Launch system
operation” on page 7-7 for more information.
The electrical circuit of the indicator light can
be checked by turning the key to “ ” (on). If
the indicator light does not come on and then
go off, have a Yamaha dealer check the elec-
trical circuit.TIPIf the launch system indicator light is flashing,
release the accelerator pedal and shift pad-
dles to reset the system. When the engine
speed returns to idle, the indicator light will go
off. You can now start off as normal in first
gear, or retry activating the launch system.
EBU36743YCC-S system warning light “ ”
This warning light comes on when an error
has occurred or a malfunction has been de-
tected in the YCC-S system. Have a Yamaha
dealer check the YCC-S system.
The electrical circuit of the YCC-S system
warning light can be checked by turning the
key to “ ” (on). If the warning light does not
come on and then go off, have a Yamaha
dealer check the electrical circuit.
If the YCC-S system warning light flashes
when starting the engine, wait 3 seconds for
the light to stop flashing, and then retry start-
ing the engine. If an error in the YCC-S sys-
tem prevents the engine from starting, the
warning light will come and the display will in-
dicate an error code.TIPYCC-S system error codes are visible only
when the engine is stopped.
UBAS7AE0.book Page 7 Wednesday, June 19, 2019 11:51 AM

5-8
5
The engine may not start even though the
starter motor operates. If the YCC-S system stops working correctly
while driving, the YCC-S warning light will
come on. If this occurs, it may be impossible
to shift out of the gear you are in; and the
clutch may stay engaged, so a shuddering
sensation may be felt when you come to a
stop. Stop the vehicle on level ground safely
off the main trail, and have the YCC-S system
serviced by a Yamaha dealer before further
operation.TIPIf shifting into neutral is impossible using the
shift paddles and drive select lever, proceed
as follows if it is nece ssary to move the vehi-
cle after it has stopped. 1. Turn the key to “ ” (off).
2. Remove panel B (page 9-11). 3. While rocking the vehicle back and forth,
push the shift rod and shift arm pivot
downward (or upward if the transmission
was in reverse) until the transmission is in
neutral.
WARNING
EWB04171Turn the key to “ ” (off) before attempt-
ing to manipulate the shift rod. Other-
wise, the shift actuator may operate
unexpectedly and cause injury.1. Shift arm pivot
2. Shift rod
3. Neutral position
1
2
3
5 5
4
3
2
1
N
R 5
4
3
2
1
N
R
UBAS7AE0.book Page 8 Wednesday, June 19, 2019 11:51 AM

5-9
5
Do not shift the transmission into neutral
if the vehicle is stopped on an incline un-
less the parking brake is applied or vehi-
cle movement is secured by other
means. Otherwise, when the transmis-
sion is shifted into neutral, the vehicle
may roll downhill and possibly cause an
accident, serious injury or death. EBU31361Helmet reminder light “ ”
The reminder light comes on and stays on
while the key is turned to “ ” (on) to remind
the occupants to always wear a helmet. If the
reminder light does not come on when the
key is turned to “ ” (on), have a Yamaha
dealer check the electrical circuit.EBU31371Seat belt reminder light “ ”
The reminder light comes on when the key is
turned to “ ” (on) to remind the occupants
to fasten their seat belt. The reminder light
stays on until the driver seat belt is properly latched. If the reminder light does not come
on when the key is turned to “ ” (on), or if
the reminder light remains on after the driver
seat belt is properly latched, have a Yamaha
dealer check the electrical circuit.UBAS7AE0.book Page 9 Wednesday, June 19, 2019 11:51 AM

5-11
5

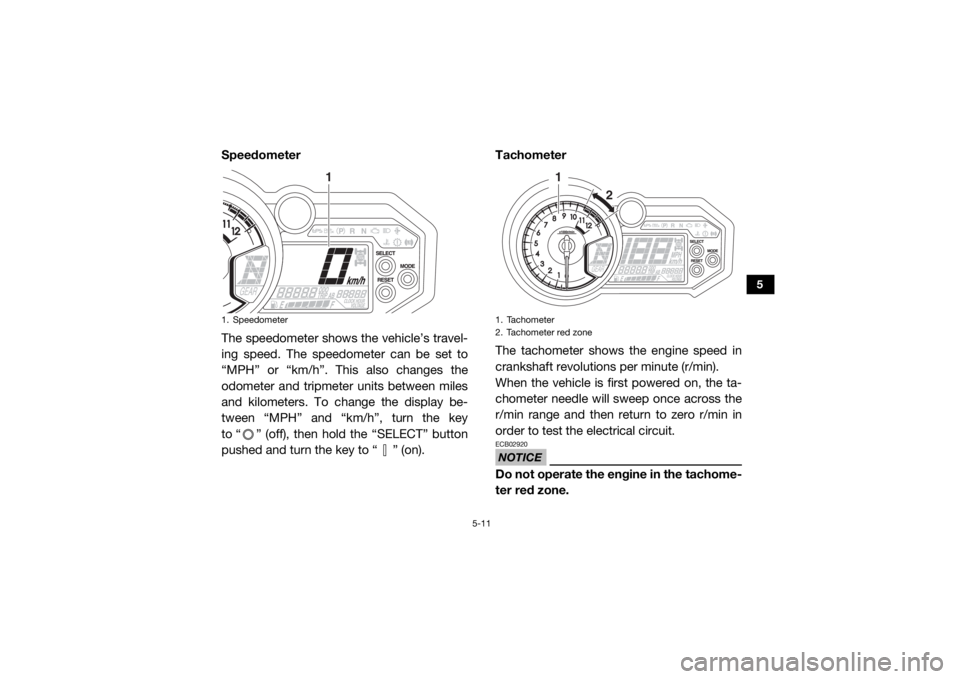

Speedometer
The speedometer shows the vehicle’s travel-
ing speed. The speedometer can be set to
“MPH” or “km/h”. This also changes the
odometer and tripmeter units between miles
and kilometers. To change the display be-
tween “MPH” and “km/h”, turn the key
to “ ” (off), then hold the “SELECT” button
pushed and turn the key to “ ” (on).Tachometer
The tachometer shows the engine speed in
crankshaft revolutions per minute (r/min).
When the vehicle is first powered on, the ta-
chometer needle will sweep once across the
r/min range and then return to zero r/min in
order to test the electrical circuit.
NOTICEECB02920Do not operate the engine in the tachome-
ter red zone.
1. Speedometer
1
1. Tachometer
2. Tachometer red zone
1
2
UBAS7AE0.book Page 11 Wednesday, June 19, 2019 11:51 AM

5-15
5
low, “LO” will be displayed. When the coolant
temperature rises, the coolant temperature
display will begin to flash. If the coolant tem-
perature continues to rise, the message “HI”
will flash.TIPThe coolant temperature display can be set
to “°C” or “°F”. To switch the temperature
units, turn the key to “ ” (off), then hold
the “RESET” button pushed and turn the
key to “ ” (on).
 The radiator fans turn on and off automati-
cally according to the coolant temperature.
Fuel gauge
The fuel gauge indicates the amount of fuel in
the fuel tank. The display segments of the fuel
gauge disappear from “F” (full) towards “E”
(empty) as the fuel level decreases. When the
last segment of the fuel gauge starts flashing,
refuel as soon as possible.1. Fuel gauge
1
UBAS7AE0.book Page 15 Wednesday, June 19, 2019 11:51 AM
