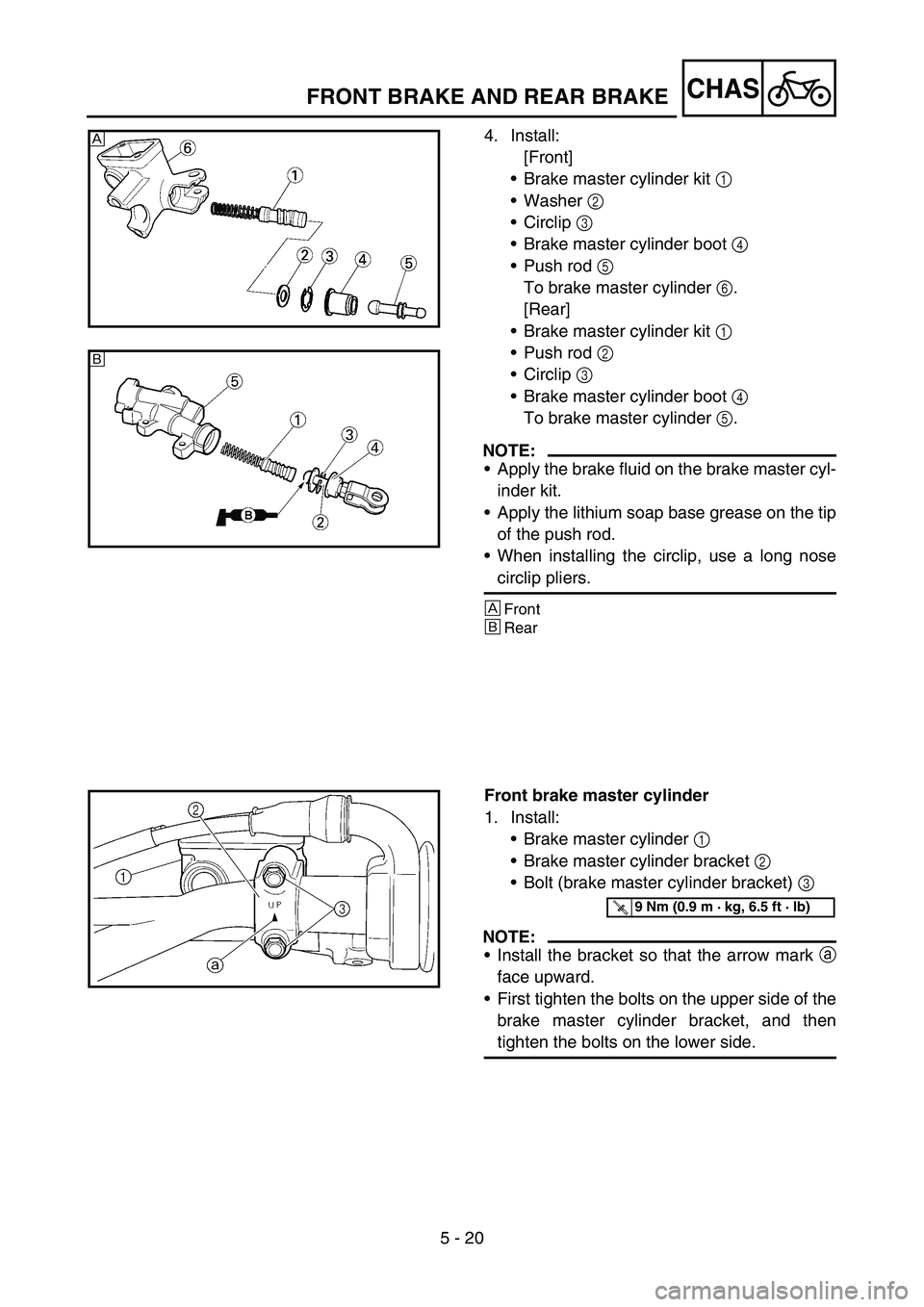

CHASFRONT BRAKE AND REAR BRAKE
4. Install:
[Front]
Brake master cylinder kit 1
Washer 2
Circlip 3
Brake master cylinder boot 4
Push rod 5
To brake master cylinder 6.
[Rear]
Brake master cylinder kit 1
Push rod 2
Circlip 3
Brake master cylinder boot 4
To brake master cylinder 5.
NOTE:
Apply the brake fluid on the brake master cyl-
inder kit.
Apply the lithium soap base grease on the tip
of the push rod.
When installing the circlip, use a long nose
circlip pliers.
È
Front
ÉRear
È
É
Front brake master cylinder
1. Install:
Brake master cylinder 1
Brake master cylinder bracket 2
Bolt (brake master cylinder bracket) 3
NOTE:
Install the bracket so that the arrow mark a
face upward.
First tighten the bolts on the upper side of the
brake master cylinder bracket, and then
tighten the bolts on the lower side.
T R..9 Nm (0.9 m · kg, 6.5 ft · lb)
