CRANKSHAFT ASSEMBLY AND BALANCER SHAFT
5-68
EAS1SM1287INSTALLING THE CRANKSHAFT ASSEM-
BLY
1. Install:
• Crankshaft assembly
TIP
Install the crankshaft assembly with the crank-
shaft installer pot “1”, crankshaft installer bolt
“2”, adapter (M12) “3” and spacer “4”.
ECA13970
NOTICE
• To avoid scratching the crankshaft and to
ease the installation procedure, lubricate
the oil seal lips with lithium-soap-based
grease.
• In order to prevent the crankshaft seizure,
apply molybdenum disulfide grease.
TIP
Hold the connecting rod at top dead center
(TDC) with one hand while turning the nut of the
crankshaft installer bolt with the other. Turn the
crankshaft installer bolt until the crankshaft as-
sembly bottoms against the bearing.
EAS1SM1288INSTALLING THE BALANCER SHAFT
1. Install:
• Balancer shaft “1”
TIP
Apply the molybdenum grease to the part “a”
where the balancer shaft fit into the bearing.
ECA13970
NOTICE
Do not apply the molybdenum grease to the
balancer shaft thread. Crankshaft installer pot
90890-01274
Installing pot
YU-90058
Crankshaft installer bolt
90890-01275
Bolts
YU-90060
Adapter (M12)
90890-01278
Adapter #3
YU-90063
Spacer (crankshaft installer)
90890-04081
Pot spacer
YM-91044
M
1
a

TRANSMISSION
5-69
EAS1SM1289
TRANSMISSION

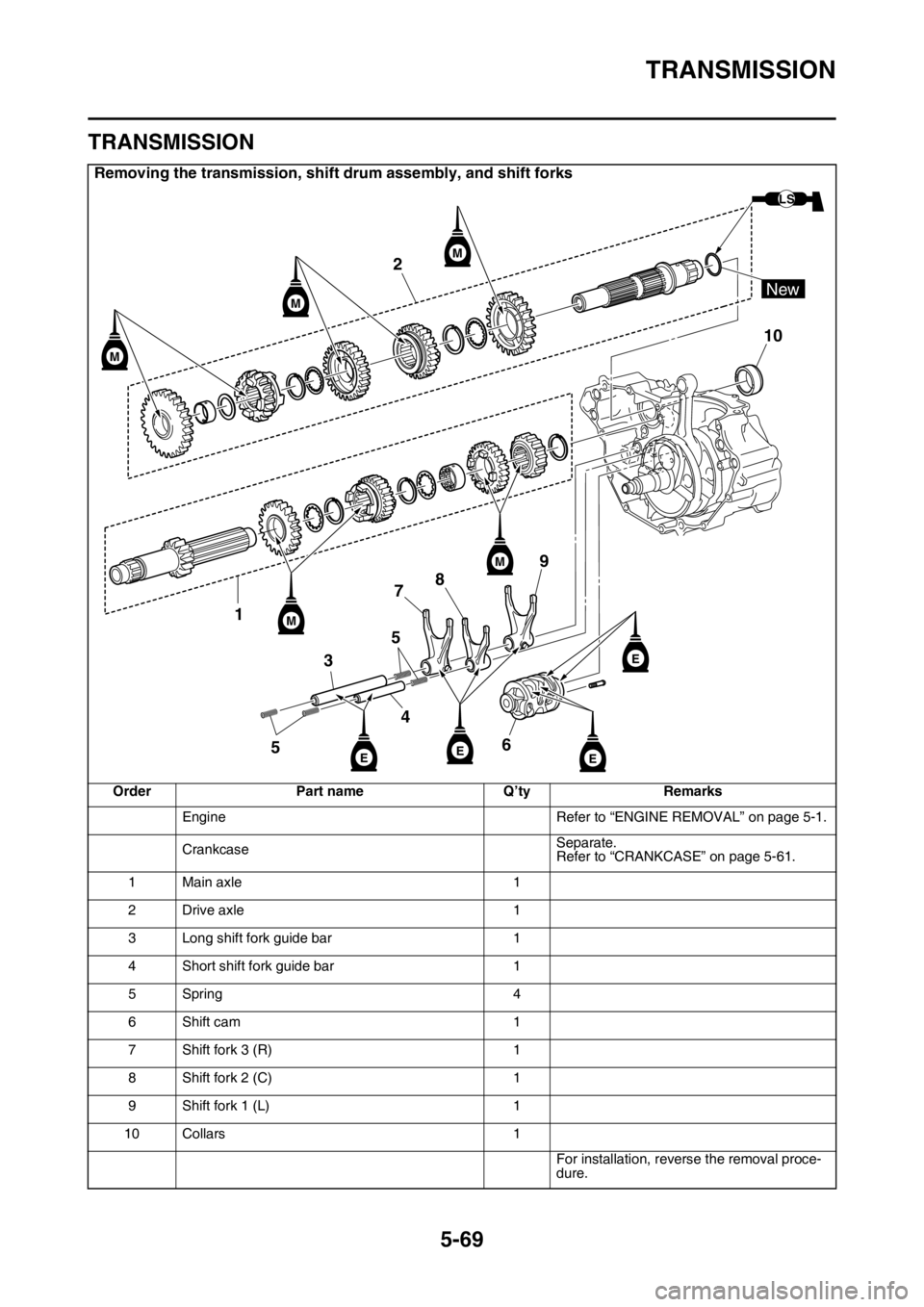

Removing the transmission, shift drum assembly, and shift forks
Order Part name Q’ty Remarks
Engine Refer to “ENGINE REMOVAL” on page 5-1.
CrankcaseSeparate.
Refer to “CRANKCASE” on page 5-61.
1 Main axle 1
2 Drive axle 1
3 Long shift fork guide bar 1
4 Short shift fork guide bar 1
5Spring 4
6 Shift cam 1
7 Shift fork 3 (R) 1
8 Shift fork 2 (C) 1
9 Shift fork 1 (L) 1
10 Collars 1
For installation, reverse the removal proce-
dure.
2
10
1
53
4 578
69
M
M
M
M
M
EE
E
E
LS
New

TRANSMISSION
5-70

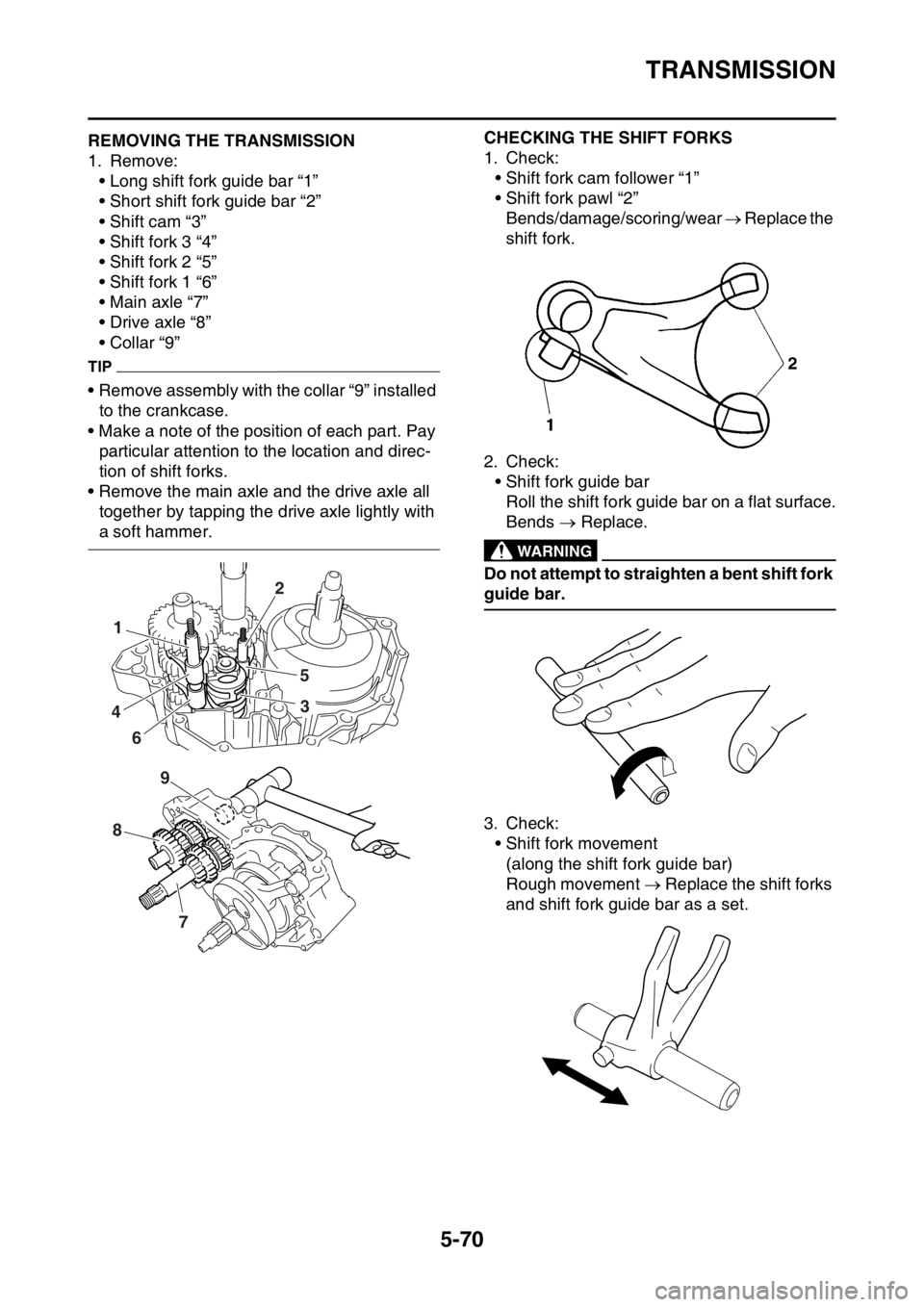

EAS1SM1290REMOVING THE TRANSMISSION
1. Remove:
• Long shift fork guide bar “1”
• Short shift fork guide bar “2”
• Shift cam “3”
• Shift fork 3 “4”
• Shift fork 2 “5”
• Shift fork 1 “6”
• Main axle “7”
• Drive axle “8”
• Collar “9”
TIP
• Remove assembly with the collar “9” installed
to the crankcase.
• Make a note of the position of each part. Pay
particular attention to the location and direc-
tion of shift forks.
• Remove the main axle and the drive axle all
together by tapping the drive axle lightly with
a soft hammer.
EAS1SM1291
CHECKING THE SHIFT FORKS
1. Check:
• Shift fork cam follower “1”
• Shift fork pawl “2”
Bends/damage/scoring/wear  Replace the
shift fork.
2. Check:
• Shift fork guide bar
Roll the shift fork guide bar on a flat surface.
Bends  Replace.
EWA12840
WARNING
Do not attempt to straighten a bent shift fork
guide bar.
3. Check:
• Shift fork movement
(along the shift fork guide bar)
Rough movement  Replace the shift forks
and shift fork guide bar as a set.
EAS1SM1292
1
4
62
5
3
8
7
9

TRANSMISSION
5-71

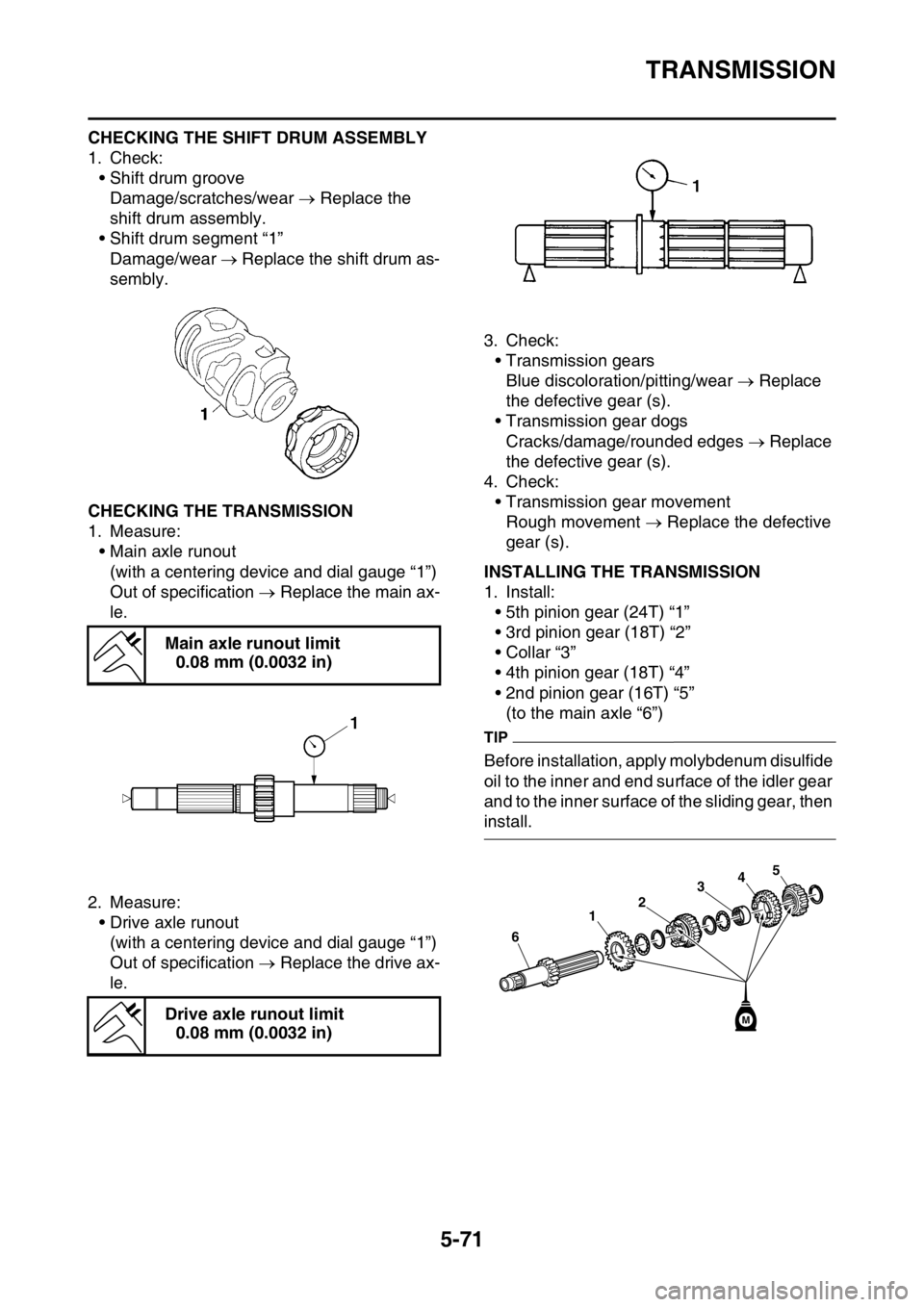

CHECKING THE SHIFT DRUM ASSEMBLY
1. Check:
• Shift drum groove
Damage/scratches/wear  Replace the
shift drum assembly.
• Shift drum segment “1”
Damage/wear  Replace the shift drum as-
sembly.
EAS1SM1293CHECKING THE TRANSMISSION
1. Measure:
• Main axle runout
(with a centering device and dial gauge “1”)
Out of specification  Replace the main ax-
le.
2. Measure:
• Drive axle runout
(with a centering device and dial gauge “1”)
Out of specification  Replace the drive ax-
le.3. Check:
• Transmission gears
Blue discoloration/pitting/wear  Replace
the defective gear (s).
• Transmission gear dogs
Cracks/damage/rounded edges  Replace
the defective gear (s).
4. Check:
• Transmission gear movement
Rough movement  Replace the defective
gear (s).
EAS1SM1294INSTALLING THE TRANSMISSION
1. Install:
• 5th pinion gear (24T) “1”
• 3rd pinion gear (18T) “2”
• Collar “3”
• 4th pinion gear (18T) “4”
• 2nd pinion gear (16T) “5”
(to the main axle “6”)
TIP
Before installation, apply molybdenum disulfide
oil to the inner and end surface of the idler gear
and to the inner surface of the sliding gear, then
install. Main axle runout limit
0.08 mm (0.0032 in)
Drive axle runout limit
0.08 mm (0.0032 in)
34
2
1
6
5
M

TRANSMISSION
5-72

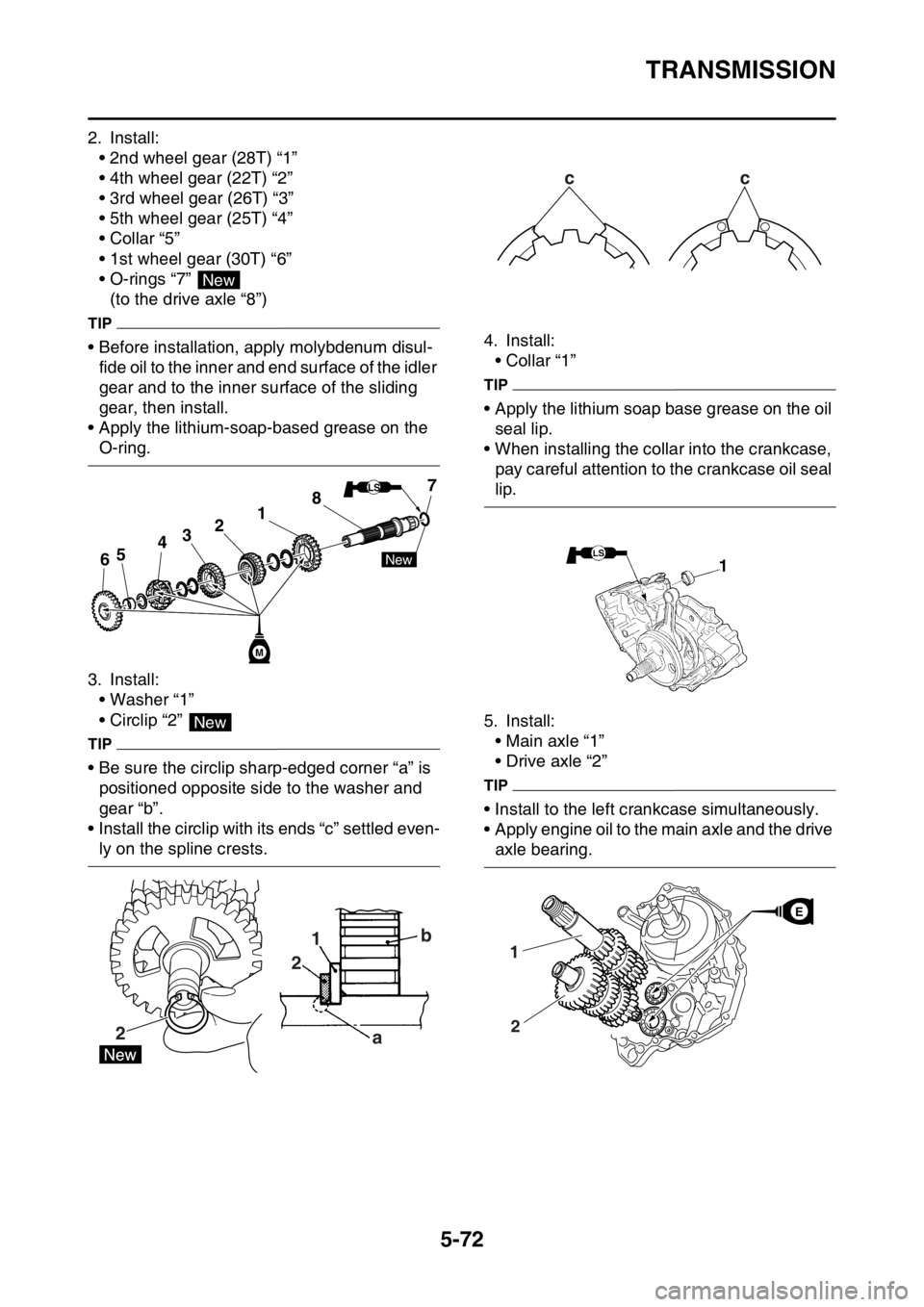

2. Install:
• 2nd wheel gear (28T) “1”
• 4th wheel gear (22T) “2”
• 3rd wheel gear (26T) “3”
• 5th wheel gear (25T) “4”
• Collar “5”
• 1st wheel gear (30T) “6”
• O-rings “7”
(to the drive axle “8”)
TIP
• Before installation, apply molybdenum disul-
fide oil to the inner and end surface of the idler
gear and to the inner surface of the sliding
gear, then install.
• Apply the lithium-soap-based grease on the
O-ring.
3. Install:
• Washer “1”
• Circlip “2”
TIP
• Be sure the circlip sharp-edged corner “a” is
positioned opposite side to the washer and
gear “b”.
• Install the circlip with its ends “c” settled even-
ly on the spline crests.4. Install:
• Collar “1”
TIP
• Apply the lithium soap base grease on the oil
seal lip.
• When installing the collar into the crankcase,
pay careful attention to the crankcase oil seal
lip.
5. Install:
• Main axle “1”
• Drive axle “2”
TIP
• Install to the left crankcase simultaneously.
• Apply engine oil to the main axle and the drive
axle bearing.
New
187
2
3
4
5
6
New
M
LS
New
21
2
ab
cc
1
2
EE

TRANSMISSION
5-73

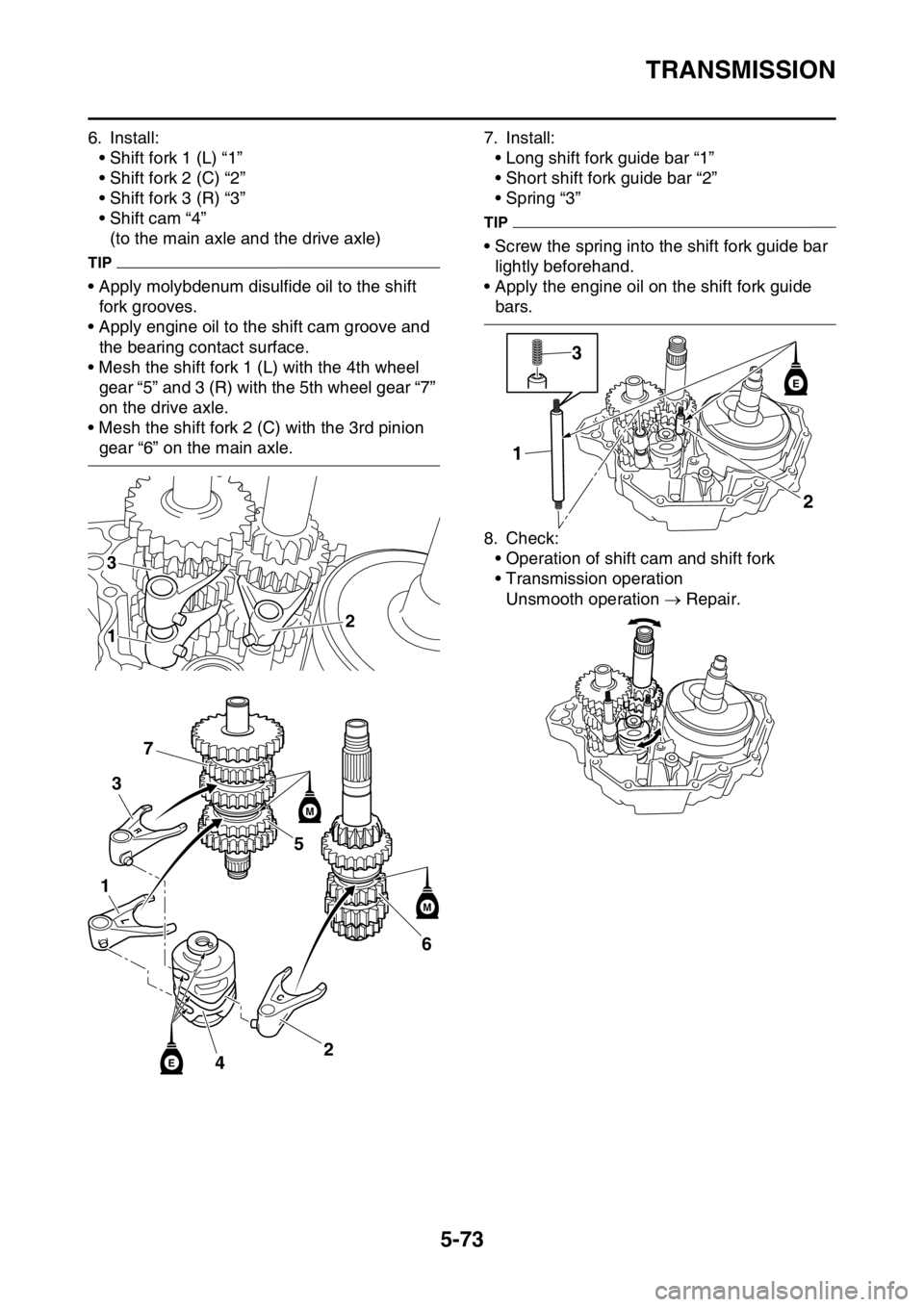

6. Install:
• Shift fork 1 (L) “1”
• Shift fork 2 (C) “2”
• Shift fork 3 (R) “3”
• Shift cam “4”
(to the main axle and the drive axle)
TIP
• Apply molybdenum disulfide oil to the shift
fork grooves.
• Apply engine oil to the shift cam groove and
the bearing contact surface.
• Mesh the shift fork 1 (L) with the 4th wheel
gear “5” and 3 (R) with the 5th wheel gear “7”
on the drive axle.
• Mesh the shift fork 2 (C) with the 3rd pinion
gear “6” on the main axle.7. Install:
• Long shift fork guide bar “1”
• Short shift fork guide bar “2”
• Spring “3”
TIP
• Screw the spring into the shift fork guide bar
lightly beforehand.
• Apply the engine oil on the shift fork guide
bars.
8. Check:
• Operation of shift cam and shift fork
• Transmission operation
Unsmooth operation  Repair.
3
12
6
24
5
3
7
1
M
M
E
2 13
E

6
COOLING SYSTEM
RADIATOR....................................................................................................... 6-1
HANDLING NOTE ...................................................................................... 6-3
CHECKING THE RADIATOR ..................................................................... 6-3
WATER PUMP.................................................................................................. 6-4
REMOVING THE OIL SEAL ....................................................................... 6-6
CHECKING THE WATER PUMP ............................................................... 6-6
CHECKING THE BEARING....................................................................... 6-6
INSTALLING THE OIL SEAL..................................................................... 6-6
ASSEMBLING THE WATER PUMP........................................................... 6-6

RADIATOR
6-1
EAS1SM1295
TIP
This section is intended for those who have basic knowledge and skill concerning the servicing of
Yamaha motorcycles (e.g., Yamaha dealers, service engineers, etc.). Those who have little knowl-
edge and skill concerning servicing are requested not to undertake inspection, adjustment, disas-
sembly, or reassembly only by reference to this manual. It may lead to servicing trouble and
mechanical damage.
EAS1SM1296RADIATOR

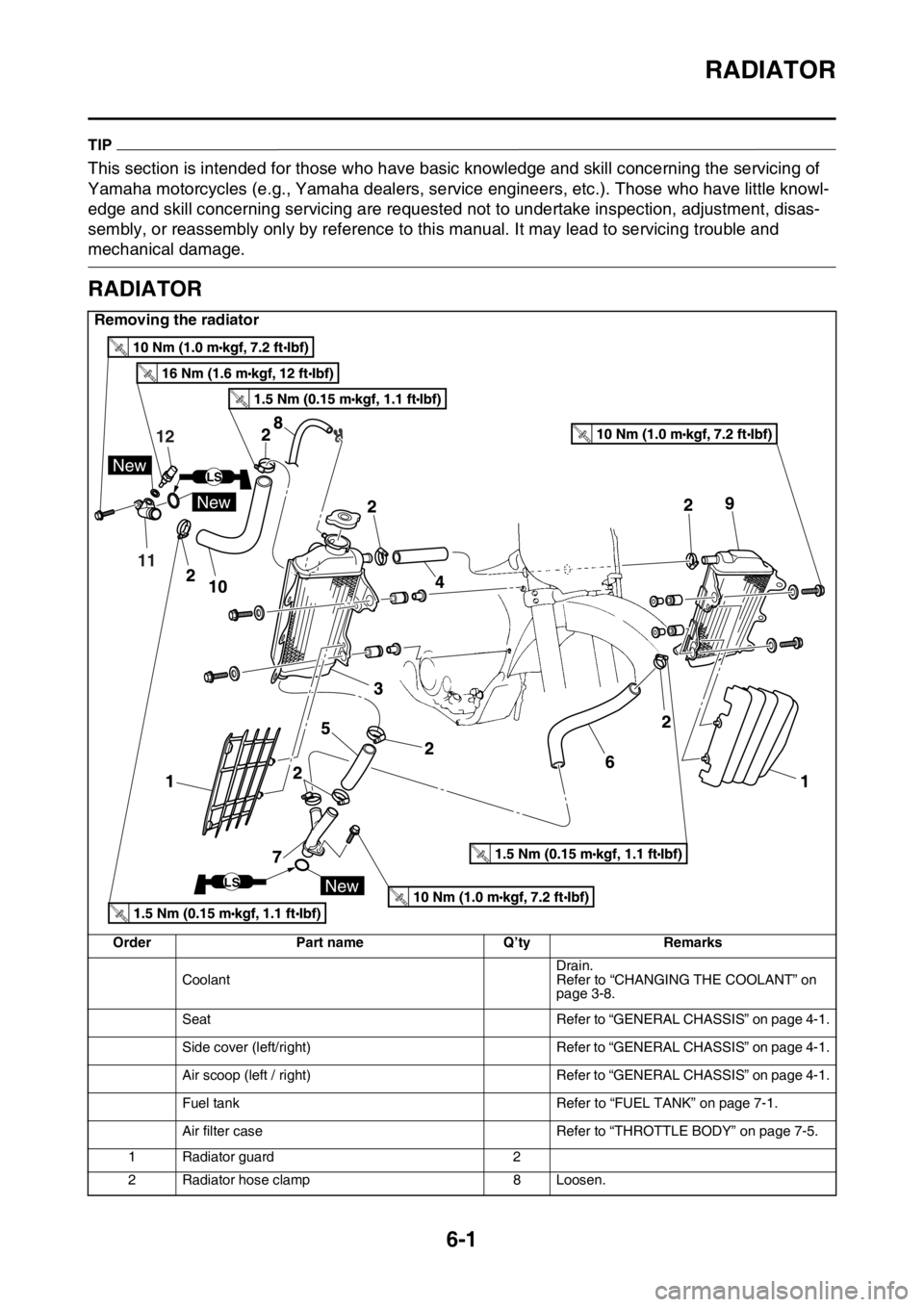

Removing the radiator
Order Part name Q’ty Remarks
CoolantDrain.
Refer to “CHANGING THE COOLANT” on
page 3-8.
Seat Refer to “GENERAL CHASSIS” on page 4-1.
Side cover (left/right) Refer to “GENERAL CHASSIS” on page 4-1.
Air scoop (left / right) Refer to “GENERAL CHASSIS” on page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case Refer to “THROTTLE BODY” on page 7-5.
1 Radiator guard 2
2 Radiator hose clamp 8 Loosen.
11
12
New
New
New
LS
LS

RADIATOR
6-2
3 Right radiator 1
4 Radiator hose 2 1
5 Radiator hose 3 1
6 Radiator hose 4 1
7 Radiator pipe 2 1
8 Radiator breather hose 1
9 Left radiator 1
10 Radiator hose 1 1
11 Radiator pipe 1 1
12 Coolant temperature sensor 1
For installation, reverse the removal proce-
dure.
Removing the radiator
Order Part name Q’ty Remarks
11
12
New
New
New
LS
LS

RADIATOR
6-3
EAS1SM1297HANDLING NOTEEWA1DX1007
WARNING
If coolant seems hot, do not remove the ra-
diator cap.

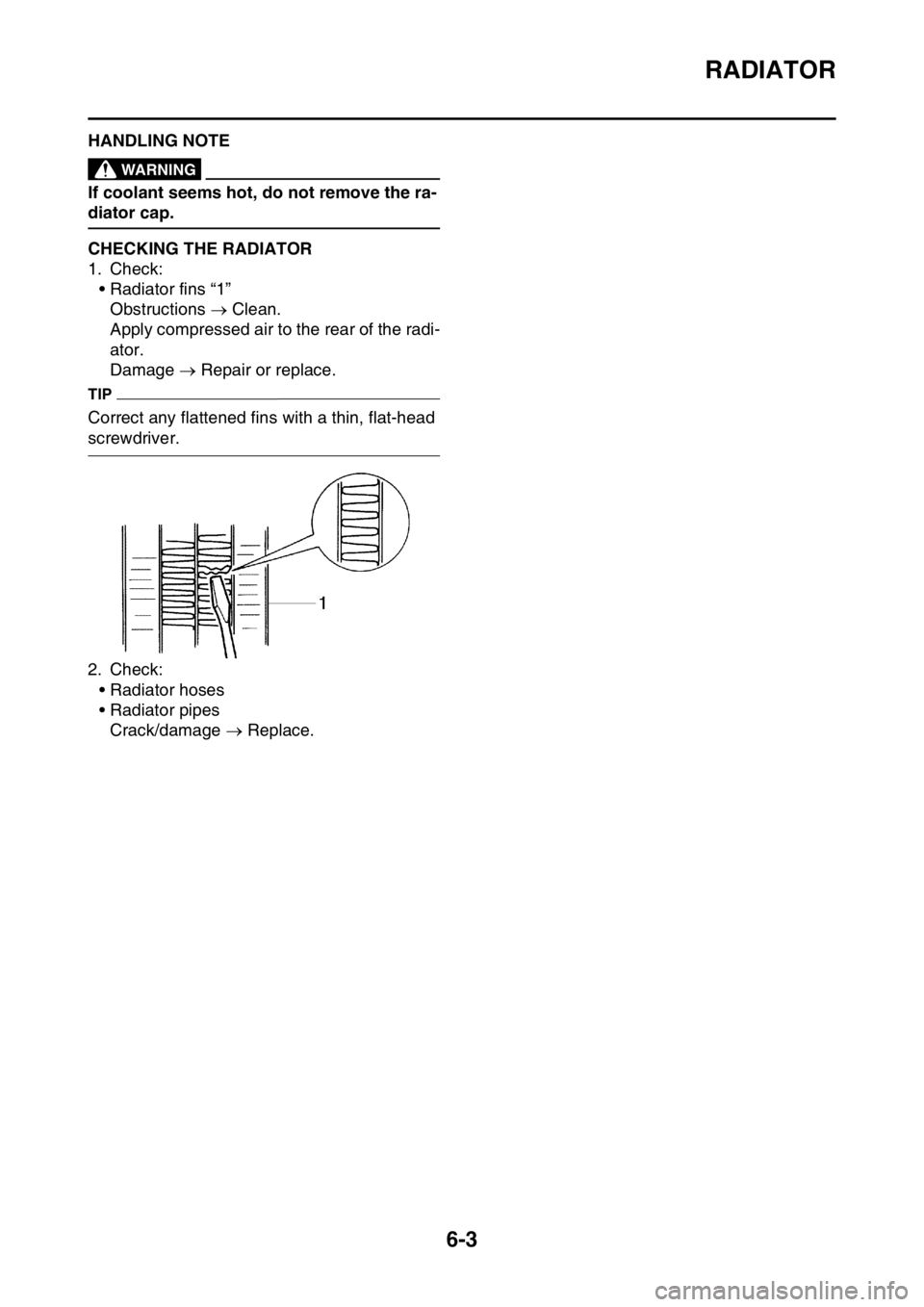

EAS1SM1298CHECKING THE RADIATOR
1. Check:
• Radiator fins “1”
Obstructions  Clean.
Apply compressed air to the rear of the radi-
ator.
Damage  Repair or replace.
TIP
Correct any flattened fins with a thin, flat-head
screwdriver.
2. Check:
• Radiator hoses
• Radiator pipes
Crack/damage  Replace.
