MAINTENANCE SPECIFICATIONSSPEC
Item Standard Limit
Clutch housing thrust clearance 0.17~0.23 mm (0.007~0.009 in) …
Clutch housing radial clearance 0.030~0.055 mm (0.001~0.002 in) …
Clutch release method Inner push, cam push …
Transmission:
Main axle deflection limit…
0.01 mm (0.0004 in)
Drive axle deflection limit…
0.01 mm (0.0004 in)
Shifter:
Shifting type Cam drum and guide bar…
Guide bar bending limit…
0.05 mm (0.0020 in)
Kick starter type: Kick and ratchet type…
Air filter oil grade (oiled filter): Foam-air-filter oil or equivalent oil…
Carburetor:USA, CDN EUROPEAUS, NZ, ZA
Type/Manufacturer PWK38S/←←…
KEIHIN
I.D. mark 1P85 30 1P86 40 1P87 50…
Main jet (M.J.) #178 #180 #178…
Main air jet (M.A.J) #200←←…
Jet needle-clip position (J.N.) N3EJ-2 N3EW-3 N3EW-2…
Main nozzle (N.J.) ø2.9←←…
Cutaway (C.A.) #7←←…
Pilot jet (P.J.) #50 #52 #50…
Pilot air screw (P.A.S.) 1 2-1/4 1-1/4…
(for reference only)
Valve seat size (V.S.) ø3.8 mm ←←…
(0.15 in)
Starter jet (G.S.) #85←←…
Power jet (P.W.J.) #50←←…
Float arm height (F.H.)
5.5~7.5 mm←←…
(0.22~030 in)
Reed valve:
Thickness* 0.42 mm (0.017 in)…
Valve stopper height 10.3~10.7 mm (0.406~0.421 in)…
Valve bending limit…
0.2 mm (0.008 in)
Cooling:
Radiator core size:
Width 107.8 mm (4.24 in)…
Height 240 mm (9.45 in)…
Thickness 32 mm (1.26 in)…
Radiator cap opening pressure 95~125 kPa…
(0.95~1.25 kg/cm
2, 13.5~17.8 psi)
Radiator capacity (total) 0.63 L (0.55 Imp qt, 0.67 US qt)…
Water pump:
Type Single-suction centrifugal pump…
1P8-9-31-2 5/19/05 10:30 AM Page 5

2-5
MAINTENANCE SPECIFICATIONSSPEC
Part to be tightened Thread size Q’tyT ightening torqueNm m•kg ft•lb
Spark plug
M14S×1.25 1 20 2.0 14
Cylinder head (nut) M 8 ×1.25 6 25 2.5 18
(stud) M 8 ×1.25 6 13 1.3 9.4
Cylinder (nut) M10 ×1.25 4 42 4.2 30
(stud) M10 ×1.25 4 13 1.3 9.4
Power valve :
Holder M 5 ×0.8 2 6 0.6 4.3
Link rod M 5 ×0.8 2 6 0.6 4.3
Push rod M 5 ×0.8 1 5 0.5 3.6
Thrust plate M 5 ×0.8 1 6 0.6 4.3
Side holder M 5 ×0.8 4 4 0.4 2.9
Link lever M 4 ×0.7 1 4 0.4 2.9
Pulley M 4 ×0.7 2 4 0.4 2.9
Cover M 5 ×0.8 4 4 0.4 2.9
Governor fork M 4 ×0.7 2 5 0.5 3.6
Housing M 5 ×0.8 4 5 0.5 3.6
Impeller M 8 ×1.25 1 14 1.4 10
Water pump housing cover M 6 ×1.0 4 10 1.0 7.2
Coolant drain bolt M 6 ×1.0 1 10 1.0 7.2
Radiator M 6 ×1.0 6 10 1.0 7.2
Radiator panel M 6 ×1.0 2 10 1.0 7.2
Radiator hose clamp M 6 ×1.0 8 2 0.2 1.4
Air filter element M 6 ×1.0 1 2 0.2 1.4
Carburetor joint M 6 ×1.0 5 10 1.0 7.2
Air filter case M 6 ×1.0 4 8 0.8 5.8
Air filter guide clamp M 5 ×0.8 1 1 0.1 0.7
Reed valve M 3 ×0.5 4 1 0.1 0.7
Throttle cable adjust bolt and locknut M 8 ×1.25 1 7 0.7 5.1
Throttle cable M 6 ×0.75 1 4 0.4 2.9
Exhaust pipe (front) M 6 ×1.0 1 14 1.4 10
Exhaust pipe (rear) M 6 ×1.0 1 12 1.2 8.7
Exhaust pipe stay (front) M 8 ×1.25 1 25 2.5 18
Exhaust pipe stay (rear) M 6 ×1.0 1 12 1.2 8.7
Silencer:
Silencer and fram M 6 ×1.0 2 12 1.2 8.7
Fiber (For USA and CDN) M 6 ×1.0 2 10 1.0 7.2
Fiber (Except for USA and CDN) M 6 ×1.0 4 10 1.0 7.2
Crankcase M 6 ×1.0 11 14 1.4 10
Crankcase cover (left) M 6 ×1.0 5 5 0.5 3.6
Chain cover M 6 ×1.0 2 5 0.5 3.6
Crankcase cover (right) M 6 ×1.0 9 10 1.0 7.2
Bearing plate cover (drive axle left) M 6 ×1.0 2 10 1.0 7.2
Bearing plate cover (main axle right) M 6 ×1.0 2 10 1.0 7.2
Holder M 6 ×1.0 2 10 1.0 7.2
Oil drain bolt M12 ×1.5 1 23 2.3 17
Oil check bolt M 6 ×1.0 1 10 1.0 7.2







1P8-9-31-2 5/19/05 10:30 AM Page 6

2-6
MAINTENANCE SPECIFICATIONSSPEC
Part to be tightened Thread size Q’tyT ightening torqueNm m•kg ft•lb
Neutral switch lead holder (Except for USA and CDN)M 6 ×1.0 1 14 1.4 10
Kick starter M 8 ×1.25 1 30 3.0 22
Ratchet wheel stopper M 6 ×1.0 2 10 1.0 7.2
Clutch cover M 6 ×1.0 6 10 1.0 7.2
Primary drive gear M10 ×1.25 1 55 5.5 40
Clutch boss M20 ×1.0 1 75 7.5 54
Clutch spring M 6 ×1.0 6 10 1.0 7.2
Clutch cable adjust bolt and locknut M 6 ×0.75 1 4 0.4 2.9
Push lever axle M 5 ×0.8 1 6 0.6 4.3
Drive sprocket M20 ×1.0 1 75 7.5 54
Shift guide M 6 ×1.0 2 10 1.0 7.2
Stopper lever M 6 ×1.0 1 10 1.0 7.2
Torsion spring (shift shaft) stopper bolt M 8 ×1.25 1 22 2.2 16
Segment M 8 ×1.25 1 30 3.0 22
Bearing plate cover (shift cam right) M 6 ×1.0 2 10 1.0 7.2
Shift pedal M 6 ×1.0 1 10 1.0 7.2
NOTE:
- marked portion shall be checked for torque tightening after break-in or before each race.
1P8-9-31-2 5/19/05 10:30 AM Page 7

2-7
MAINTENANCE SPECIFICATIONSSPEC
EC212201
CHASSIS
Item Standard Limit
Steering system:
Steering bearing type Taper roller bearing…
Front suspension: USA, CDN, ZA,
EUROPE
AUS, NZ
Front fork travel
300 mm (11.8 in)←…
Fork spring free length
454 mm (17.9 in)←449 mm (17.7 in)
Spring rate, STD K=4.2 N/mm←…
(0.428 kg/mm,
24.0 lb/in)
Optional spring Yes←…
Oil capacity 527 cm
3532 cm3…
(18.6 Imp oz, (18.7 Imp oz,
17.8 US oz) 18.0 US oz)
Oil grade Suspension oil ←…
“S1”
Inner tube outer diameter 48 mm (1.89 in)←…
Front fork top endZero mm (Zero in)←…
Rear suspension: USA, CDN, ZA,
EUROPE
AUS, NZ
Shock absorber travel
131.5 mm (5.18 in)←…
Spring free length
Approx. 265 mm←…
(10.43 in)
Fitting length
One I.D. paint mark One I.D. paint mark
255 mm (10.04 in) 252 mm (9.92 in)…
Two I.D. paint marks Two I.D. paint marks
261 mm (10.28 in) 258 mm (10.16 in)…
Three I.D. paint marks Three I.D. paint marks
252.5 mm (9.94 in)249.5 mm (9.82 in)…

One I.D. paint mark
245.5 ~ 263.5 mm←…
(9.67 ~ 10.37 in)
Two I.D. paint marks
251.5 ~ 269.5 mm←…
(9.90 ~ 10.61 in)
Three I.D. paint marks
243.0 ~ 261.0 mm←…
(9.57 ~ 10.28 in)
Spring rate, STDK=48.0 N/mm ←…
(4.90 kg/mm,
274.4 lb/in)
Optional spring Yes←…
Enclosed gas pressure 1,000 kPa ←…
(10 kg/cm
2,
142 psi)
Swingarm:
Swingarm free play limit
End…
1.0 mm (0.04 in)
Side clearance…
0.2~0.9 mm
(0.008~0.035 in)
1P8-9-31-2 5/19/05 10:30 AM Page 8

2-8
MAINTENANCE SPECIFICATIONSSPEC
Item Standard Limit
Wheel:
Front wheel type Spoke wheel…
Rear wheel type Spoke wheel…
Front rim size/Material 21 ×1.60/Aluminum…
Rear rim size/Material 19 ×2.15/Aluminum…
Rim runout limit:
Radial…
2.0 mm (0.08 in)
Lateral…
2.0 mm (0.08 in)
Drive chain
Type/Manufacturer DID520DMA2 SDH/DAIDO…
Number of links 113 links + joint…
Chain slack 48~58 mm (1.9~2.3 in)…
Chain length (15 links)…
242.9 mm (9.563 in)
Front disc brake:
Disc outside dia. ×Thickness 250 ×3.0 mm 250 ×2.5 mm
(9.84 ×0.12 in) (9.84 ×0.10 in)
Pad thickness 4.4 mm (0.17 in) 1.0 mm (0.04 in)
Master cylinder inside dia. 11.0 mm (0.433 in)…
Caliper cylinder inside dia. 27.0 mm (1.063 in) ×2…
Brake fluid type DOT #4…
Rear disc brake:
Disc outside dia. ×Thickness 245 ×4.0 mm 245 ×3.5 mm
(9.65 ×0.16 in) (9.65 ×0.14 in)
Deflection limit…
0.15 mm (0.006 in)
Pad thickness 6.4 mm (0.25 in) 1.0 mm (0.04 in)
Master cylinder inside dia. 11.0 mm (0.433 in)…
Caliper cylinder insdie dia. 25.4 mm (1.000 in)…
Brake fluid type DOT #4…
Brake lever & brake pedal:
Brake lever position 95 mm (3.74 in)…
Brake pedal height Zero mm (Zero in)…
(vertical height above footrest top)
Clutch lever free play (lever end) 8~13 mm (0.31~0.51 in)…
Throttle grip free play 3~5 mm (0.12~0.20 in)…
1P8-9-31-2 5/19/05 10:30 AM Page 9

2-9
MAINTENANCE SPECIFICATIONSSPEC
17
14
105
20
29
22
40
21
21
0.7
5.1
5.1
0.7
2.9
2.9
2.9
6.5
1.4
4.3
4.3
3.6
2.9
22
22
17
7.2
2.2
13
4.3
75
17
8.7
10
40
19
7.2M 8 × 1.25
M 8 × 1.25
M24 × 1.0
M 8 × 1.25
M12 × 1.25
M28 × 1.0
M51 × 1.5
M22 × 1.25
M42 × 1.5
M12 × 1.25
M 5 × 0.8
M 6 × 1.0
M 6 × 1.0
M 4 × 0.7
M 6 × 1.0
M 6 × 1.0
M 5 × 0.8
M 6 × 1.0
M 4 × 0.7
M 6 × 1.0
M 6 × 1.0
M 6 × 1.0
M 6 × 1.0
M10 × 1.25
M10 × 1.25
M 8 × 1.25
M 6 × 1.0
M10 × 1.0
M10 × 1.0
M 8 × 1.25
M16 × 1.5
M 8 × 1.25
M 6 × 1.0
M 6 × 1.0
M10 × 1.25
M 8 × 1.25
M 6 × 1.0 Handle crown and outer tube
Under bracket and outer tube
Handle crown and steering shaft
Handlebar holder (upper)
Handlebar holder (lower)
Steering ring nut
Front fork and damper assembly
Front fork and adjuster
Damper assembly and base valve
Adjuster and damper assembly
Bleed screw (front fork) and base valve
Front fork and protector
Protector and brake hose holder
Throttle cable cap
Grip cap upper and lower
Clutch lever (nut)
Clutch lever holder
Front brake master cylinder and bracket
Front brake master cylinder cap
Brake lever mounting (bolt)
Brake lever mounting (nut)
Brake lever position locknut
Cable guide (front brake hose) and under bracket
Front brake hose union bolt (master cylinder)
Front brake hose union bolt (caliper)
Front brake caliper and front fork
Front brake caliper and brake hose holder
Brake caliper (front and rear) and pad pin plug
Brake caliper (front and rear) and pad pin
Brake caliper (front and rear) and bleed screw
Front wheel axle and nut
Front wheel axle holder
Front brake disc and wheel hub
Rear brake disc and wheel hub
Footrest bracket and frame
Brake pedal mounting
Rear brake master cylinder and framePart to be tightened Thread size Q’tyTightening torque
Nm m•kg ft•lb
4
4
1
4
2
1
2
2
2
2
2
6
2
2
2
1
2
2
2
1
1
1
1
1
1
2
1
2
2
2
1
4
6
6
4
1
223
20
145
28
40
30
55
29
29
1
7
7
1
4
4
4
9
2
6
6
5
4
30
30
23
10
3
18
6
105
23
12
14
55
26
102.3
2.0
14.5
2.8
4.0
3.0
5.5
2.9
2.9
0.1
0.7
0.7
0.1
0.4
0.4
0.4
0.9
0.2
0.6
0.6
0.5
0.4
3.0
3.0
2.3
1.0
0.3
1.8
0.6
10.5
2.3
1.2
1.4
5.5
2.6
1.0
NOTE:
1. First, tighten the ring nut approximately 38 Nm (3.8 m•kg, 27 ft•lb) by using the ring nut wrench,
then loosen the ring nut one turn.
2. Retighten the ring nut 7 Nm (0.7 m•kg, 5.1 ft•lb).
Refer to NOTE.
1P8-9-31-2 5/19/05 10:30 AM Page 10

2-10
MAINTENANCE SPECIFICATIONSSPEC
M 4 × 0.7
M10 × 1.25
M10 × 1.25
M20 × 1.5
M 8 × 1.25
–
M 6 × 1.0
M 6 × 1.0
M 8 × 1.25
M 8 × 1.25
M10 × 1.25
M10 × 1.25
M10 × 1.25
M16 × 1.5
M14 × 1.5
M14 × 1.5
M14 × 1.5
M10 × 1.25
M10 × 1.25
M 8 × 1.25
M 8 × 1.25
M 5 ×0.8
M 4 ×0.7
M 8 × 1.25
M 6 × 1.0
M 5 ×0.8
M 5 ×0.8
M10 × 1.25
M 6 × 1.0
M 6 × 1.0
M 6 × 1.0
M 6 × 1.0
M 6 × 1.0
M 8 × 1.25
M 6 × 1.0
M 6 × 1.0
M 6 × 1.0
M 6 × 1.0
M 6 × 1.0
M 6 × 1.0
M 6 × 1.0 Rear brake master cylinder cap
Rear brake hose union bolt (caliper)
Rear brake hose union bolt (master cylinder)
Rear wheel axle and nut
Driven sprocket and wheel hub
Nipple (spoke)
Disc cover and rear brake caliper
Protector and rear brake caliper
Chain puller adjust bolt and locknut
Engine mounting:
Engine bracket and frame
Engine and frame (front)
Engine bracket and engine
Engine and frame (lower)
Pivot shaft and nut
Relay arm and swingarm
Relay arm and connecting rod
Connecting rod and frame
Rear shock absorber and frame
Rear shock absorber and relay arm
Rear frame and frame (upper)
Rear frame and frame (lower)
Swingarm and brake hose holder
Swingarm and patch
Drive chain tensioner mounting
Chain support and swingarm
Seal guard and swingarm
Cable guide and frame
Fuel tank mounting boss and frame
Fuel tank mounting
Fuel tank and fuel cock
Fuel tank and seat set bracket
Fuel tank and hooking screw (fitting band)
Fuel tank and fuel tank bracket
Seat mounting
Side cover mounting
Air scoop and fuel tank
Air scoop and panel
Front fender mounting
Rear fender mounting (front)
Rear fender mounting (rear)
Number platePart to be tightened Thread size Q’tyTightening torque
Nm m•kg ft•lb
2
1
1
1
6
72
2
2
2
2
1
1
1
1
1
1
1
1
1
1
2
4
4
2
3
4
2
2
2
2
1
1
4
2
2
4
2
4
2
2
12
30
30
125
42
3
10
7
16
34
64
64
64
85
70
80
80
56
53
32
29
2
2
16
7
6
4
20
10
7
7
7
7
19
7
7
6
7
7
12
70.2
3.0
3.0
12.5
4.2
0.3
1.0
0.7
1.6
3.4
6.4
6.4
6.4
8.5
7.0
8.0
8.0
5.6
5.3
3.2
2.9
0.2
0.2
1.6
0.7
0.6
0.4
2.0
1.0
0.7
0.7
0.7
0.7
1.9
0.7
0.7
0.6
0.7
0.7
1.2
0.71.4
22
22
90
30
2.2
7.2
5.1
11
24
46
46
46
61
50
58
58
40
38
23
21
1.4
1.4
11
5.1
4.3
2.9
14
7.2
5.1
5.1
5.1
5.1
13
5.1
5.1
4.3
5.1
5.1
8.7
5.1
NOTE:
- marked portion shall be checked for torque tightening after break-in or before each race.
1P8-9-31-2 5/19/05 10:30 AM Page 11

2-11
MAINTENANCE SPECIFICATIONSSPEC

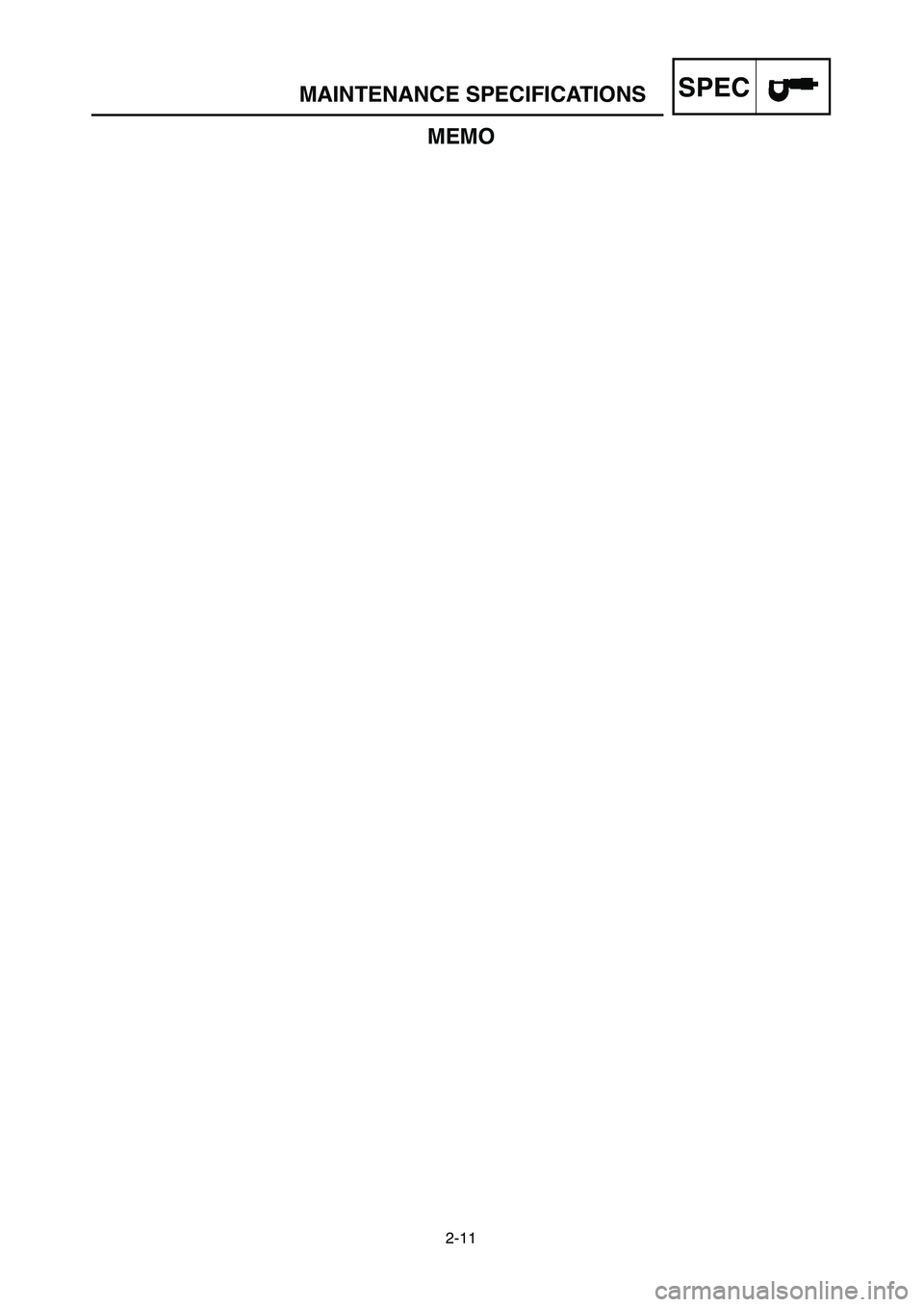

MEMO
1P8-9-31-2 5/19/05 10:30 AM Page 12

2-12
MAINTENANCE SPECIFICATIONSSPEC
EC212300

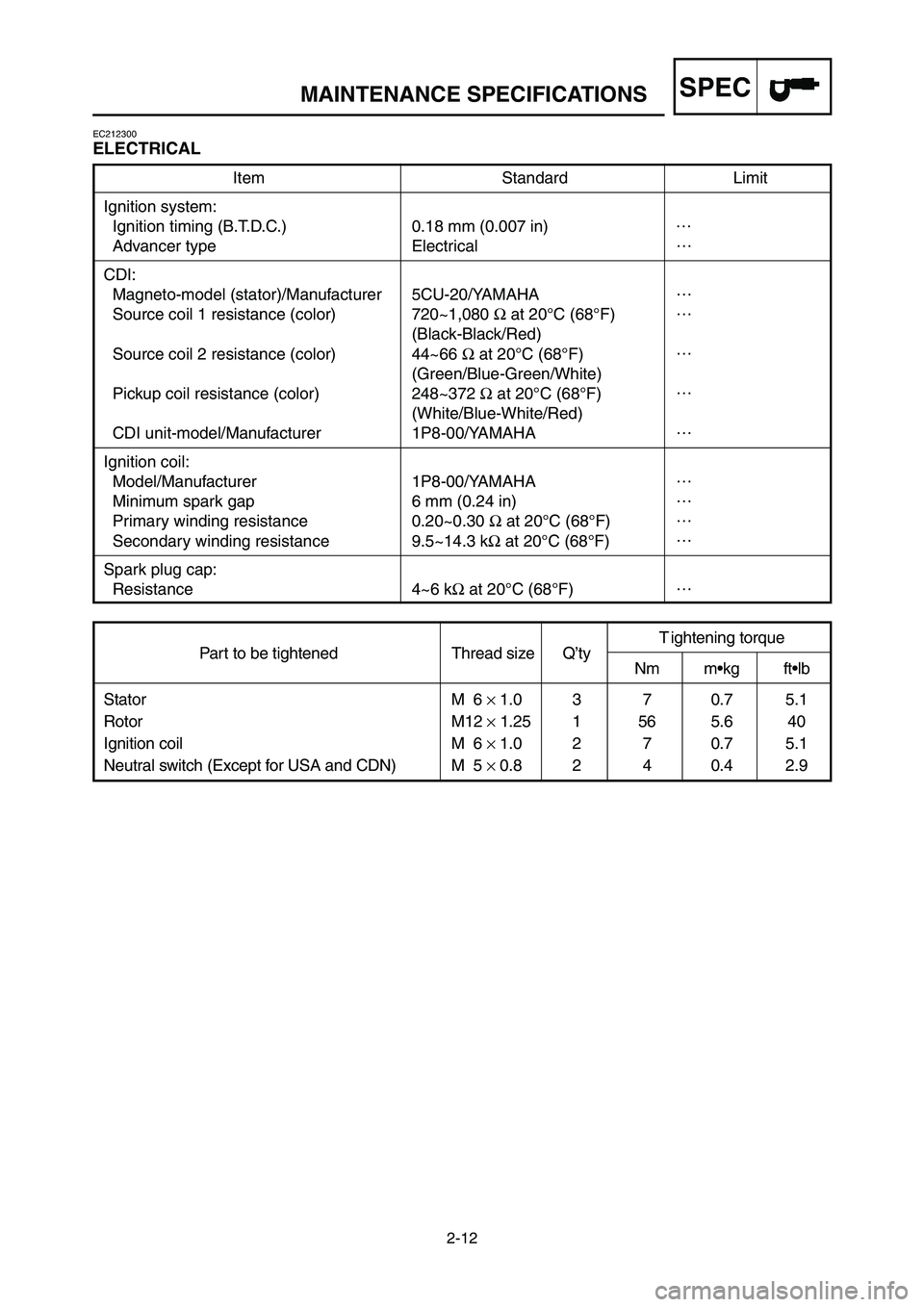

ELECTRICAL
Part to be tightened Thread size Q’tyT ightening torqueNm m•kg ft•lb
Stator M 6 ×1.0 3 7 0.7 5.1
Rotor M12 ×1.25 1 56 5.6 40
Ignition coil M 6 ×1.0 2 7 0.7 5.1
Neutral switch (Except for USA and CDN) M 5 ×0.8 2 4 0.4 2.9
Item Standard Limit
Ignition system:
Ignition timing (B.T.D.C.) 0.18 mm (0.007 in)…
Advancer type Electrical…
CDI:
Magneto-model (stator)/Manufacturer 5CU-20/YAMAHA…
Source coil 1 resistance (color) 720~1,080 Ωat 20°C (68°F)…
(Black-Black/Red)
Source coil 2 resistance (color) 44~66 Ωat 20°C (68°F)…
(Green/Blue-Green/White)
Pickup coil resistance (color) 248~372 Ωat 20°C (68°F)…
(White/Blue-White/Red)
CDI unit-model/Manufacturer 1P8-00/YAMAHA…
Ignition coil:
Model/Manufacturer 1P8-00/YAMAHA…
Minimum spark gap 6 mm (0.24 in)…
Primary winding resistance 0.20~0.30 Ωat 20°C (68°F)…
Secondary winding resistance 9.5~14.3 kΩat 20°C (68°F)…
Spark plug cap:
Resistance 4~6 kΩat 20°C (68°F)…
1P8-9-31-2 5/19/05 10:30 AM Page 13

2-13

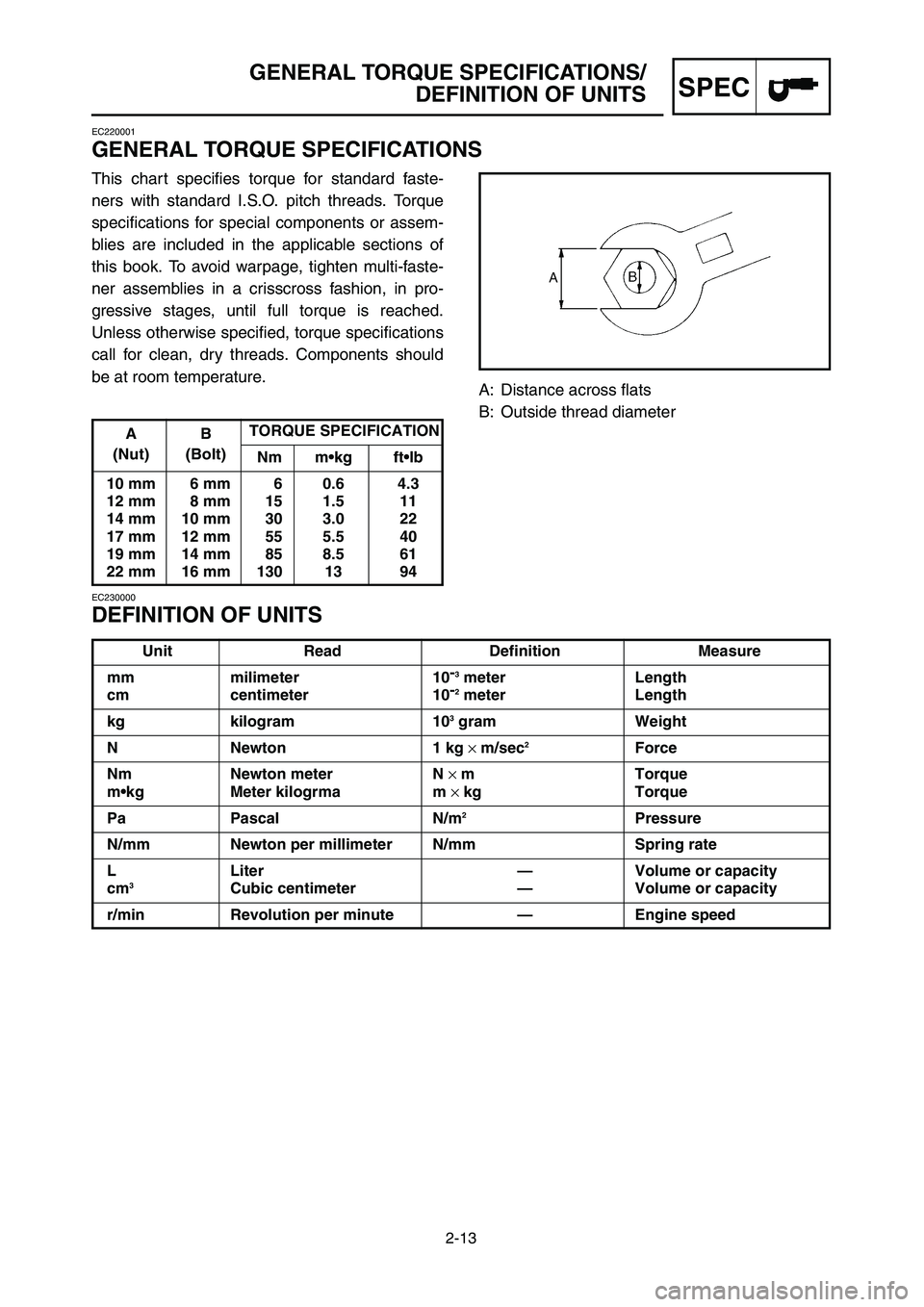

GENERAL TORQUE SPECIFICATIONS/
DEFINITION OF UNITS
SPEC
This chart specifies torque for standard faste-
ners with standard I.S.O. pitch threads. Torque
specifications for special components or assem-
blies are included in the applicable sections of
this book. To avoid warpage, tighten multi-faste-
ner assemblies in a crisscross fashion, in pro-
gressive stages, until full torque is reached.
Unless otherwise specified, torque specifications
call for clean, dry threads. Components should
be at room temperature.
A: Distance across flats
B: Outside thread diameter
EC230000
DEFINITION OF UNITS
EC220001
GENERAL TORQUE SPECIFICATIONS
ABTORQUE SPECIFICATION
(Nut) (Bolt)
Nm m•kg ft•lb
10 mm 6 mm 6 0.6 4.3
12 mm 8 mm 15 1.5 11
14 mm 10 mm 30 3.0 22
17 mm 12 mm 55 5.5 40
19 mm 14 mm 85 8.5 61
22 mm 16 mm 130 13 94
Unit Read Definition Measure
mm milimeter 10-
3meter Length
cm centimeter 10-2meter Length
kg kilogram 103gram Weight
N Newton 1 kg ×m/sec2Force
Nm Newton meter N ×m Torque
m•kg Meter kilogrma m ×kg Torque
Pa Pascal N/m2Pressure
N/mm Newton per millimeter N/mm Spring rate
L Liter — Volume or capacity
cm3Cubic centimeter — Volume or capacity
r/min Revolution per minute — Engine speed
1P8-9-31-2 5/19/05 10:30 AM Page 14
