GEN
INFO

DESCRIPTION
EC100000
GENERAL INFORMATION
EC110000
DESCRIPTION
1
Clutch lever
2
Decompression lever
3
Front brake lever
4
Throttle grip
5
Radiator cap
6
Fuel tank cap
7
Oil filler plug/dipstick
8
“ENGINE STOP” button
9
Kick starter
0
Fuel tank
A
Radiator
B
Coolant drain bolt
C
Rear brake pedal
D
Valve joint
E
Fuel cock
F
Cold starter knob
G
Hot starter knob (red)
H
Drive chain
I
Air cleaner
J
Shift pedal
K
Front fork
NOTE:

l
The machine you have purchased may differ
slightly from those shown in the following.
l
Designs and specifications are subject to
change without notice.
1
1

1 - 13
GEN
INFO
STARTING AND BREAK-IN
EC190000
STARTING AND BREAK-IN
WARNING
Never start or run the engine in a closed
area. The exhaust fumes are poisonous;
they can cause loss of consciousness and
death in a very short time. Always operate
the machine in a well-ventilated area.
CAUTION:
lThe carburetor on this motorcycle has a
built-in accelerator pump. Therefore,
when starting the engine, do not operate
the throttle or the spark plug will foul.
lUnlike a two-stroke engine, this engine
cannot be kick started when the throttle is
open because the kick starter may kick
back. Also, if the throttle is open the air/
fuel mixture may be too lean for the
engine to start.
lNever use the decompression lever after
the engine is started. The engine may be
damaged if you use the decompression
lever while it is running.
lBefore starting the machine, perform the
checks in the pre-operation check list.
EC191001
STARTING A COLD ENGINE
1. Inspect the coolant level.
2. Turn the fuel cock to “ON”.
3. Shift the transmission into neutral.
4. Fully open the cold starter knob.
5. Without pulling in the decompression
lever, slowly depress the kick starter until
the compression stroke is found. When
considerable resistance of the kick starter
is felt, the engine is on the compression
stroke. If the engine is on the exhaust
stroke, resistance will only be felt when
the kick starter is initially depressed, not
through the entire range of depression
(as when the engine is on the compres-
sion stroke); therefore, depress the kick
starter a few more times.

SPEC

2 - 1
GENERAL SPECIFICATIONS
EC200000
SPECIFICATIONS
EC211000
GENERAL SPECIFICATIONS
Model name: YZ426FLC (EUROPE)
YZ426FM (USA)
YZ426F(M) (CDN, AUS, NZ, ZA)
Model code number: 5JG1 (USA)
5JG2 (EUROPE)
5JG4 (CDN, AUS, NZ, ZA)
Dimensions:
Overall length 2,171 mm (85.5 in)
Overall width 827 mm (32.6 in)
Overall height 1,303 mm (51.3 in)
Seat height 998 mm (39.3 in)
Wheelbase 1,490 mm (58.7 in)
Minimum ground clearance 373 mm (14.7 in)
Basic weight:
With oil and full fuel tank 113.5 kg (250 lb)
Engine:
Engine type Liquid cooled 4-stroke, DOHC
Cylinder arrangement Single cylinder, forward inclined
Displacement 426 cm
3

(15.0 Imp oz, 14.4 US oz)
Bore

´

stroke 95.0
´
60.1 mm (3.74
´
2.37 in)
Compression ratio 12.5 : 1
Starting system Kick starter
Lubrication system: Dry sump
Oil type or grade:
Engine oil SAE 20W40 SH or SAE 10W30 SH
Oil capacity:
Engine oil
Periodic oil change 1.5 L (1.32 Imp qt, 1.59 US qt)
With oil filter replacement 1.6 L (1.41 Imp qt, 1.69 US qt)
Total amount 1.7 L (1.50 Imp qt, 1.80 US qt)
Coolant capacity (including all routes): 1.2 L (1.06 Imp qt, 1.27 US qt)
Air filter: Wet type element
-20
-4-10
140
3010
5020
6830
8640 50
104
122¡CTemp.
¡F
10W/30
10W/40
20W/40
20W/50

2

SPEC

2 - 11
MAINTENANCE SPECIFICATIONS
Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb
Spark plug M10
´
1.0 1 13 1.3 9.4
Camshaft cap M6
´
1.0 10 10 1.0 7.2
Cylinder head (stud bolt) M6
´
1.0 2 7 0.7 5.1
M8
´
1.25 3 15 1.5 11
(bolt) M10
´
1.25 4 44 4.4 32
(nut) M6
´
1.0 2 10 1.0 7.2
M8
´
1.25 2 20 2.0 14
Cylinder head cover M6
´
1.0 2 10 1.0 7.2
Cylinder M6
´
1.0 1 10 1.0 7.2
Timing chain tensioner M6
´
1.0 2 10 1.0 7.2
Tensioner cap bolt M6
´
1.0 1 7 0.7 5.1
Timing chain guide (rear) M6
´
1.0 2 10 1.0 7.2
Decompression shaft M6
´
1.0 1 7 0.7 5.1
Decompression cable guide M6
´
1.0 1 10 1.0 7.2
Exhaust pipe (nut) M8
´
1.25 1 24 2.4 17
(bolt) M8
´
1.25 1 24 2.4 17
Silencer M8
´
1.25 2 35 3.5 25
Silencer clamp M8
´
1.25 1 20 2.0 14
Exhaust pipe protector M6
´
1.0 3 10 1.0 7.2
Clamp (air cleaner joint) M5
´
0.8 1 3 0.3 2.2
Clamp (carburetor joint) M4
´
0.7 1 3 0.3 2.2
Air filter joint clamp M6
´
1.0 1 3 0.3 2.2
Throttle cable cover M5
´
0.8 1 4 0.4 2.9
Air filter element M6
´
1.0 1 2 0.2 1.4
Radiator panel (upper) M6
´
1.0 2 10 1.0 7.2
Radiator M6
´
1.0 6 10 1.0 7.2
Radiator hose clamp M6
´
1.0 8 2 0.2 1.4
Impeller M8 ´ 1.25 1 14 1.4 10
Water pump housing cover M6 ´ 1.0 3 10 1.0 7.2
Coolant drain bolt M6 ´ 1.0 1 10 1.0 7.2
Oil pump cover M5 ´ 0.8 1 4 0.4 2.9
Oil pump M6 ´ 1.0 3 10 1.0 7.2
Engine oil drain bolt (oil filter) M6 ´ 1.0 1 10 1.0 7.2
Oil filter cover M6 ´ 1.0 2 10 1.0 7.2
Oil delivery pipe 1 M10 ´ 1.25 1 20 2.0 14
M8 ´ 1.25 2 18 1.8 13
Oil hose clamp – 2 2 0.2 1.4
Clutch cover M6 ´ 1.0 7 10 1.0 7.2
Crankcase cover (right) M6 ´ 1.0 10 10 1.0 7.2
Crankcase cover (left) M6 ´ 1.0 8 10 1.0 7.2
Crankcase M6 ´ 1.0 12 12 1.2 8.7
Oil drain bolt (crankcase) M12 ´ 1.5 1 20 2.0 1.4
Oil drain bolt (frame) M8 ´ 1.25 1 23 2.3 17

3 - 2
INSP
ADJ

MAINTENANCE INTERVALS
SHIFT FORK, SHIFT CAM, GUIDE BAR
Inspect
c
Inspect wear
ROTOR NUT
Retighten
cc
MUFFLER
Inspect
Clean
Replace
cc
cc
* Whichever comes first
CRANK
Inspect and clean
cc
CARBURETOR
Inspect, adjust and clean
cc
When using a high-pres-
sure washer, make sure
that water does not enter
the accelerator pump.
SPARK PLUG
Inspect and clean
Replace
cc
c
DRIVE CHAIN
Lubricate, slack, alignment
Replace
cc
c
Use chain lube
Chain slack: 40~50 mm
(1.6~2.0 in)
COOLING SYSTEM
Check coolant level and leakage
Check radiator cap operation
Replace coolant
Inspect hoses
cc
cc
c
Every two years
OUTSIDE NUTS AND BOLTS
Retighten
cc
Refer to “STARTING AND
BREAK-IN” section in the
CHAPTER 1.
AIR FILTER
Clean and lubricate
Replace
cc
c
Use foam air-filter oil
OIL STRAINER (frame)
Clean
c
FRAME
Clean and inspect
cc
FUEL TANK, COCK
Clean and inspect
cc
BRAKES
Adjust lever position and pedal height
Lubricate pivot point
Check brake disc surface
Check fluid level and leakage
Retighten brake disc bolts, caliper
bolts, master cylinder bolts and union
bolts
Replace pads
Replace brake fluid
c
c
c
c
cc
c
c
c
c
c
c
Every one year
FRONT FORKS
Inspect and adjust
Replace oil
Replace oil seal
c
cc
c
c
Suspension oil “01” ItemAfter
break-inEvery
race
Every
third
(or
500 km)Every
fifth
(or
1,000 km)
As re-
quiredRemarks
3

3 - 4
INSP
ADJ

PRE-OPERATION INSPECTION AND MAINTENANCE
EC320000
PRE-OPERATION INSPECTION AND MAINTENANCE
Before riding for break-in operation, practice or a race, make sure the machine is in good operating
condition.
Before using this machine, check the following points.
EC321000
GENERAL INSPECTION AND MAINTENANCE
Item Routine Page
CoolantCheck that coolant is filled up to the radiator filler cap.
Check the cooling system for leakage.P.3-5 ~ 9
FuelCheck that a fresh gasoline is filled in the fuel tank. Check the
fuel line for leakage.P.1-12
Engine oilCheck that the oil level is correct. Check the crankcase and
frame oil line for leakage.P.3-13 ~ 17
Gear shifter and clutchCheck that gears can be shifted correctly in order and that the
clutch operates smoothly.P.3-9
Throttle grip/HousingCheck that the throttle grip operation and free play are correctly
adjusted. Lubricate the throttle grip and housing, if necessary.P.3-10 ~ 11
Brakes Check the play of front brake and effect of front and rear brake. P.3-24 ~ 30
ChainCheck chain slack and alignment. Check that the chain is lubri-
cated properly.P.3-31 ~ 33
WheelsCheck for excessive wear and tire pressure. Check for loose
spokes and have no excessive play.P.3-41 ~ 42
SteeringCheck that the handlebar can be turned smoothly and have no
excessive play.P.3-42 ~ 43
Front forks and rear shock
absorberCheck that they operate smoothly and there is no oil leakage. P.3-33 ~ 40
Cables (wires)Check that the clutch and throttle cables move smoothly. Check
that they are not caught when the handlebars are turned or
when the front forks travel up and down.—
Muffler Check that the muffler is tightly mounted and has no cracks. P.4-3
Sprocket Check that the driven sprocket tightening bolt is not loose. P.3-31
Lubrication Check for smooth operation. Lubricate if necessary. P.3-44
Bolts and nuts Check the chassis and engine for loose bolts and nuts. P.1-17
Lead connectorsCheck that the CDI magneto, CDI unit, and ignition coil are con-
nected tightly.P.1-5
SettingsIs the machine set suitably for the condition of the racing course
and weather or by taking into account the results of test runs
before racing? Are inspection and maintenance completely
done?P.7-1 ~ 21

3 - 5
INSP
ADJ

EC350000
ENGINE
EC351011
COOLANT LEVEL INSPECTION
WARNING

Do not remove the radiator cap
1
, drain
bolt and hoses when the engine and radia-
tor are hot. Scalding hot fluid and steam
may be blown out under pressure, which
could cause serious injury.
When the engine has cooled, place a thick
towel over the radiator cap, slowly rotate
the cap counterclockwise to the detent.
This procedure allows any residual pres-
sure to escape. When the hissing sound
has stopped, press down on the cap while
turning counterclockwise and remove it.
CAUTION:

Hard water or salt water is harmful to the
engine parts. You may use distilled water, if
you can’t get soft water.
1. Place the machine on a level place, and
hold it in an upright position.
2. Remove:
l
Radiator cap
3. Check:
l
Coolant level
a

Coolant level low
®
Add coolant.
1
Radiator
ENGINE/COOLANT LEVEL INSPECTION

3 - 6
INSP
ADJ

COOLANT REPLACEMENT
EC353011
COOLANT REPLACEMENT
WARNING

Do not remove the radiator cap when the
engine is hot.
CAUTION:

Take care so that coolant does not splash
on painted surfaces. If it splashes, wash it
away with water.
1. Place a container under the engine.
2. Remove:
l
Engine guard
1

l
Coolant drain bolt
2

3. Remove:
l
Radiator cap
Drain the coolant completely.
4. Clean:
l
Cooling system
Thoroughly flush the cooling system
with clean tap water.
5. Install:
l
Copper washer
l
Coolant drain bolt
l
Engine guard
New
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)

6. Fill:
l
Radiator
l
Engine
To specified level.
Recommended coolant:
High quality ethylene glycol
anti-freeze containing
anti-corrosion for
aluminum engine
Coolant
1
and water (soft water)
2
mixing ratio:
50 %/50 %
Coolant capacity:
1.2 L (1.06 Imp qt, 1.27 US qt)

3 - 7
INSP
ADJ

RADIATOR CAP INSPECTION
CAUTION:

l
Do not mix more than one type of ethyl-
ene glycol antifreeze containing corro-
sion inhibitors for aluminum engine.
l
Do not use water containing impurities or
oil.
7. Install:
l
Radiator cap
Start the engine and warm it up for a
several minutes.
8. Check:
lCoolant level
Coolant level low ® Add coolant. Handling notes of coolant:
The coolant is harmful so it should be han-
dled with special care.
WARNING
lWhen coolant splashes to your eye.
Thoroughly wash your eye with water
and see your doctor.
lWhen coolant splashes to your
clothes.
Quickly wash it away with water and
then with soap.
lWhen coolant is swallowed.
Quickly make him vomit and take him
to a doctor.
EC355000
RADIATOR CAP INSPECTION
1. Inspect:
lSeal (radiator cap) 1
lValve and valve seat 2
Crack/damage ® Replace.
Exist fur deposits 3 ® Clean or
replace.

3 - 8
INSP

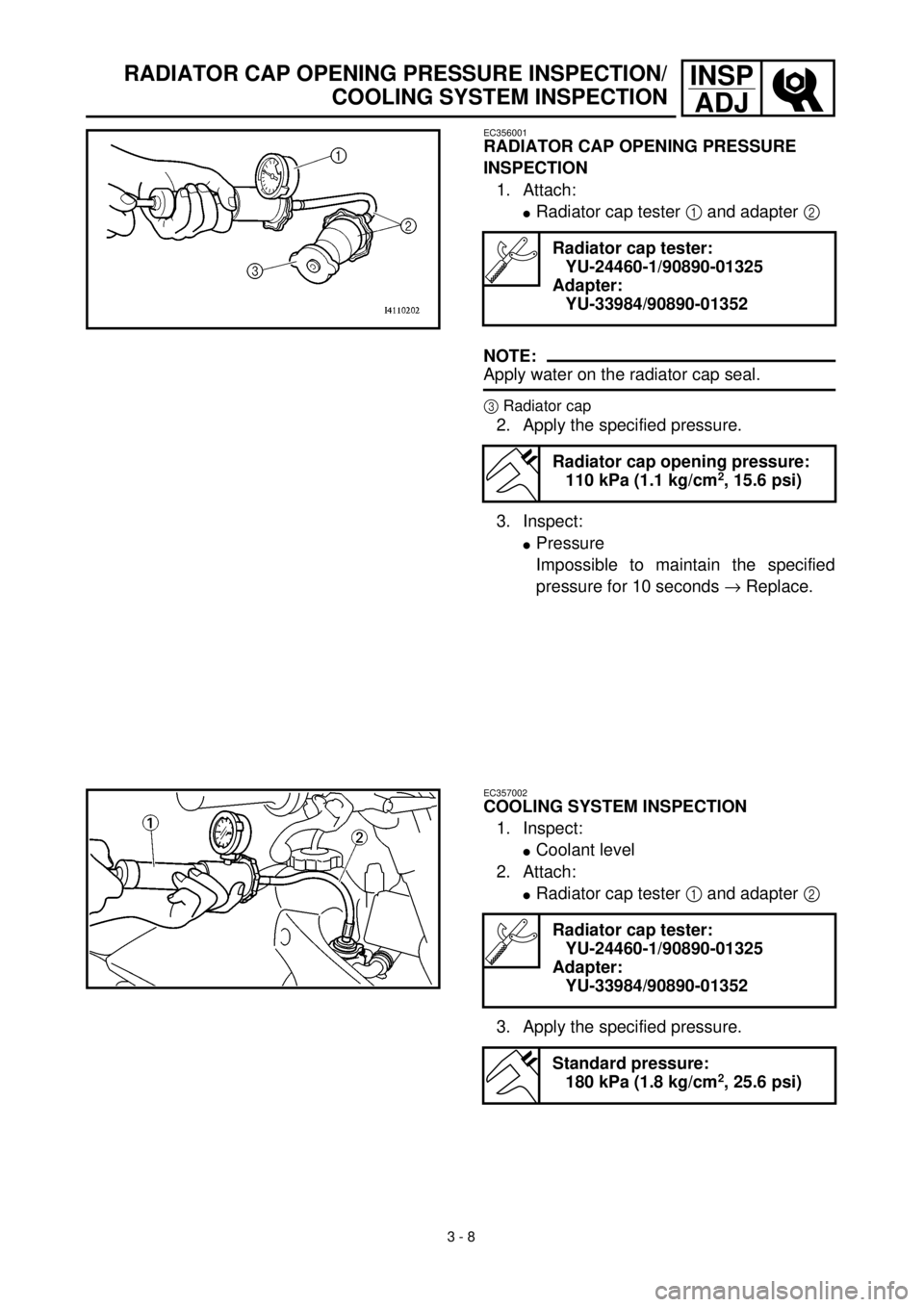

ADJRADIATOR CAP OPENING PRESSURE INSPECTION/
COOLING SYSTEM INSPECTION
EC356001
RADIATOR CAP OPENING PRESSURE
INSPECTION
1. Attach:
lRadiator cap tester 1 and adapter 2
NOTE:
Apply water on the radiator cap seal.
3Radiator cap
2. Apply the specified pressure.
3. Inspect:
lPressure
Impossible to maintain the specified
pressure for 10 seconds ® Replace.
Radiator cap tester:
YU-24460-1/90890-01325
Adapter:
YU-33984/90890-01352
Radiator cap opening pressure:
110 kPa (1.1 kg/cm2, 15.6 psi)
EC357002
COOLING SYSTEM INSPECTION
1. Inspect:
lCoolant level
2. Attach:
lRadiator cap tester 1 and adapter 2
3. Apply the specified pressure.
Radiator cap tester:
YU-24460-1/90890-01325
Adapter:
YU-33984/90890-01352
Standard pressure:
180 kPa (1.8 kg/cm2, 25.6 psi)
