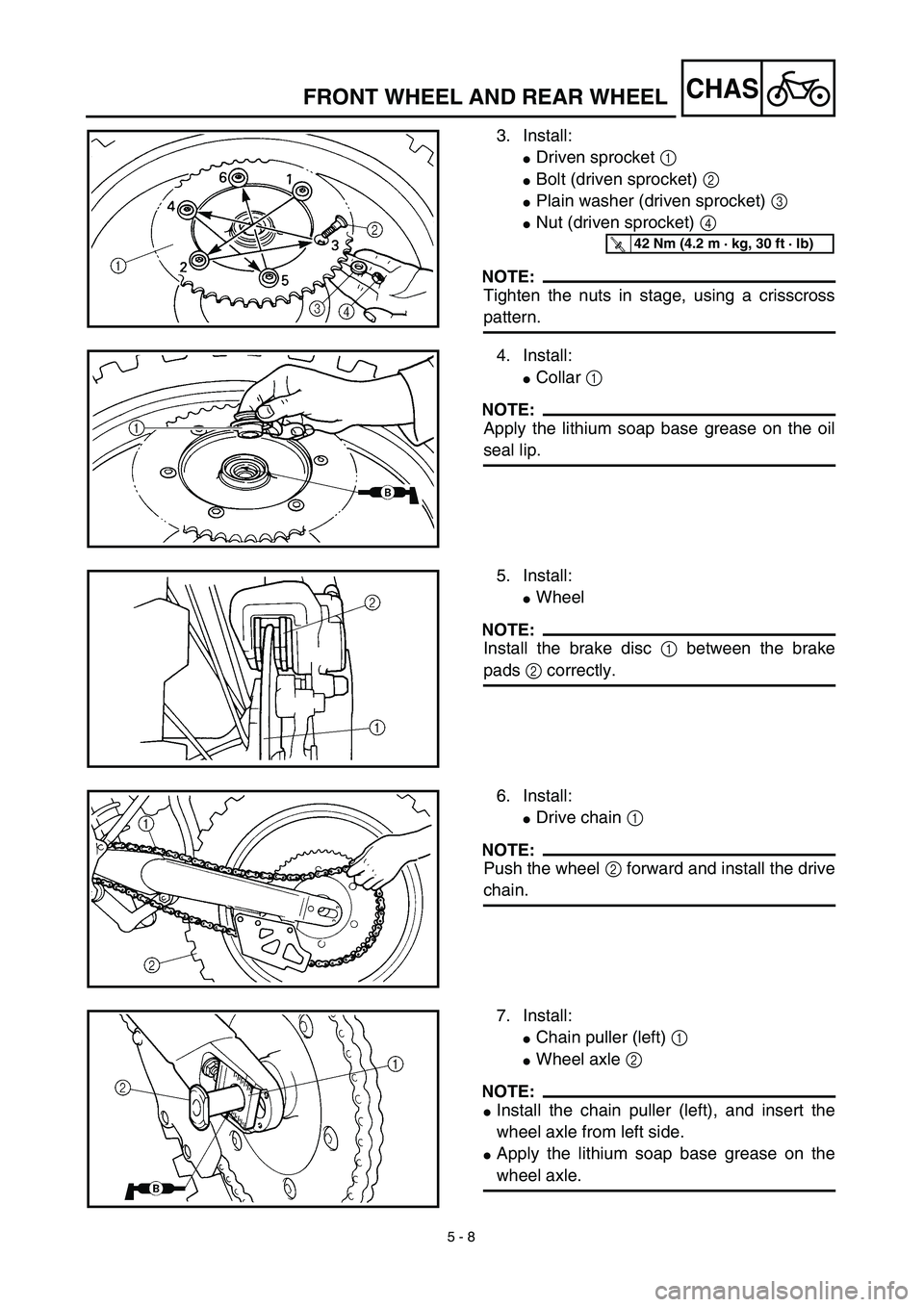

5 - 8
CHAS
3. Install:
Driven sprocket 1
Bolt (driven sprocket) 2
Plain washer (driven sprocket) 3
Nut (driven sprocket) 4
NOTE:
Tighten the nuts in stage, using a crisscross
pattern.
T R..42 Nm (4.2 m · kg, 30 ft · lb)
FRONT WHEEL AND REAR WHEEL
4. Install:
Collar 1
NOTE:
Apply the lithium soap base grease on the oil
seal lip.
5. Install:
Wheel
NOTE:
Install the brake disc 1 between the brake
pads 2 correctly.
6. Install:
Drive chain 1
NOTE:
Push the wheel 2 forward and install the drive
chain.
7. Install:
Chain puller (left) 1
Wheel axle 2
NOTE:
Install the chain puller (left), and insert the
wheel axle from left side.
Apply the lithium soap base grease on the
wheel axle.
