SPEC
2 - 6
MAINTENANCE SPECIFICATIONS
Valve spring:
Free length IN 37.03 mm (1.46 in) 36.03 mm
(1.42 in)
EX 37.68 mm (1.48 in) 36.68 mm
(1.44 in)
Set length (valve closed) IN 27.87 mm (1.10 in) ----
EX 27.38 mm (1.08 in) ----
Compressed force
(installed) IN 111.3 ~ 127.9 N at 27.87 mm
(11.3 ~ 13.0 kg at 27.87 mm,
24.91 ~ 28.66 lb at 1.10 in)----
EX 127.4 ~ 146.4 N at 27.38 mm
(13.0 ~ 14.9 kg at 27.38 mm,
28.66 ~ 32.85 lb at 1.08 in)----
Tilt limit IN ---- 2.5˚/ 1.61 mm
(2.5˚/0.063 in)
EX ---- 2.5˚/1.65 mm
(2.5˚/0.065 in)
Direction of winding
(top view) IN Clockwise ----
EX Clockwise ----
Piston:
Piston to cylinder clearance 0.040 ~ 0.065 mm
(0.0016 ~ 0.0026 in)0.1 mm
(0.004 in)
Piston size “D”94.945 ~ 94.960 mm
(3.738 ~ 3.739 in)----
Measuring point “H”8 mm (0.315 in) ----
Piston off-set 1 mm (0.0394 in) ----
Piston pin bore inside diameter 18.004 ~ 18.015 mm
(0.7088 ~ 0.7093 in)18.045 mm
(0.7104 in)
Piston pin outside diameter 17.991 ~ 18.000 mm
(0.7083 ~ 0.7087 in)17.971 mm
(0.7075 in) Item Standard Limit
*
H
D

3 - 22
INSP
ADJ
6. Install:
All removed parts
NOTE:
Install all removed parts in reversed order of
their removal.
Install the timing chain tensioner.
Refer to “CAMSHAFTS” section in the
CHAPTER 4.
NOTE:
Turn the crankshaft counterclockwise sev-
eral turns so that the installed parts settle
into the right position.
Recheck the valve clearance.
If the clearance is still incorrect, repeat all
the clearance adjustment steps until the
specified clearance is obtained.
VALVE CLEARANCE ADJUSTMENT

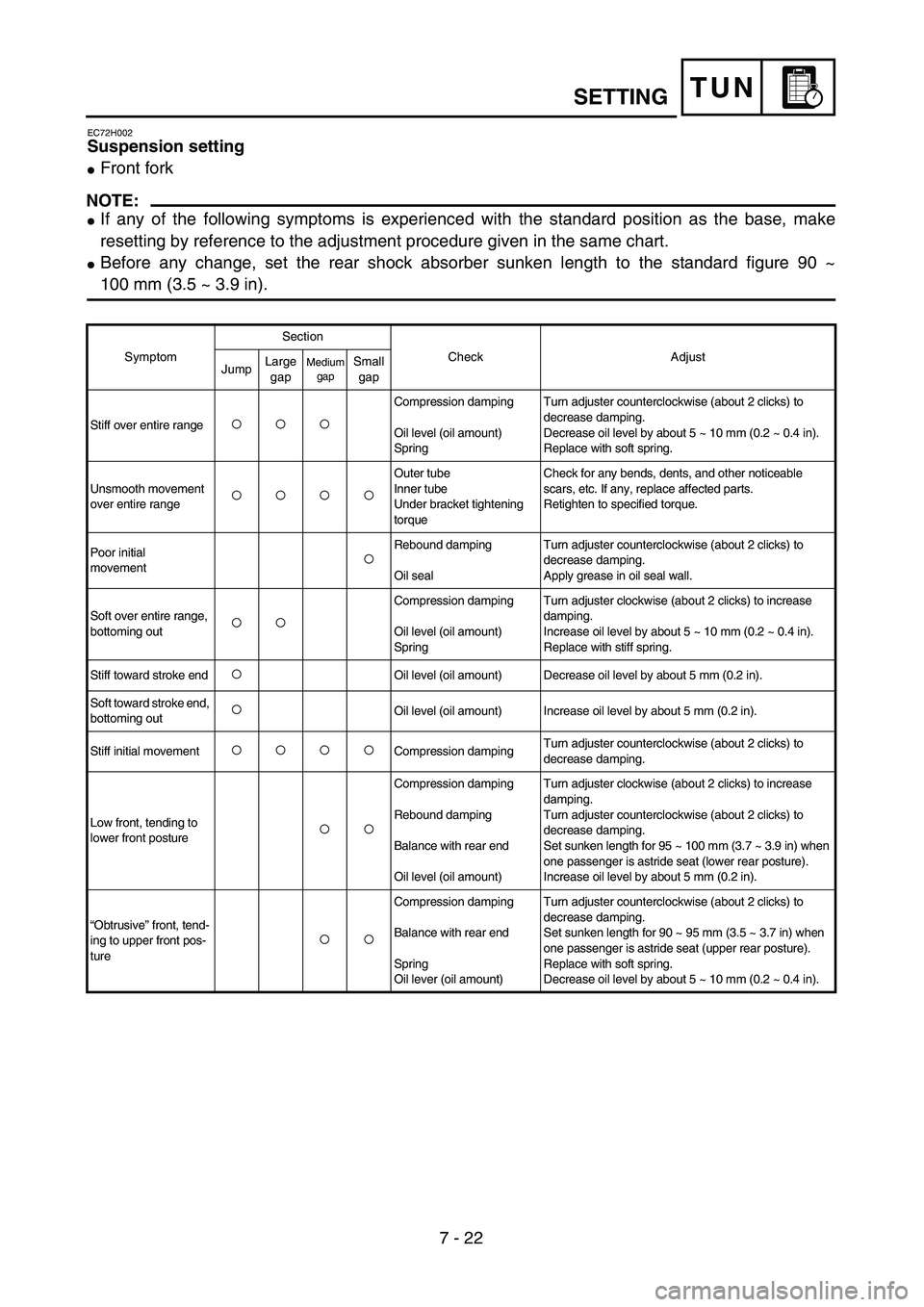

7 - 22
TUNSETTING
EC72H002
Suspension setting
Front fork
NOTE:
If any of the following symptoms is experienced with the standard position as the base, make
resetting by reference to the adjustment procedure given in the same chart.
Before any change, set the rear shock absorber sunken length to the standard figure 90 ~
100 mm (3.5 ~ 3.9 in).
SymptomSection
Check Adjust
JumpLarge
gapMedium
gapSmall
gap
Stiff over entire range

Compression damping
Oil level (oil amount)
SpringTurn adjuster counterclockwise (about 2 clicks) to
decrease damping.
Decrease oil level by about 5 ~ 10 mm (0.2 ~ 0.4 in).
Replace with soft spring.
Unsmooth movement
over entire range

Outer tube
Inner tube
Under bracket tightening
torqueCheck for any bends, dents, and other noticeable
scars, etc. If any, replace affected parts.
Retighten to specified torque.
Poor initial
movement

Rebound damping
Oil sealTurn adjuster counterclockwise (about 2 clicks) to
decrease damping.
Apply grease in oil seal wall.
Soft over entire range,
bottoming out

Compression damping
Oil level (oil amount)
SpringTurn adjuster clockwise (about 2 clicks) to increase
damping.
Increase oil level by about 5 ~ 10 mm (0.2 ~ 0.4 in).
Replace with stiff spring.
Stiff toward stroke end
Oil level (oil amount) Decrease oil level by about 5 mm (0.2 in).
Soft toward stroke end,
bottoming out
Oil level (oil amount) Increase oil level by about 5 mm (0.2 in).
Stiff initial movement
Compression dampingTurn adjuster counterclockwise (about 2 clicks) to
decrease damping.
Low front, tending to
lower front posture

Compression damping
Rebound damping
Balance with rear end
Oil level (oil amount)Turn adjuster clockwise (about 2 clicks) to increase
damping.
Turn adjuster counterclockwise (about 2 clicks) to
decrease damping.
Set sunken length for 95 ~ 100 mm (3.7 ~ 3.9 in) when
one passenger is astride seat (lower rear posture).
Increase oil level by about 5 mm (0.2 in).
“Obtrusive” front, tend-
ing to upper front pos-
ture

Compression damping
Balance with rear end
Spring
Oil lever (oil amount)Turn adjuster counterclockwise (about 2 clicks) to
decrease damping.
Set sunken length for 90 ~ 95 mm (3.5 ~ 3.7 in) when
one passenger is astride seat (upper rear posture).
Replace with soft spring.
Decrease oil level by about 5 ~ 10 mm (0.2 ~ 0.4 in).

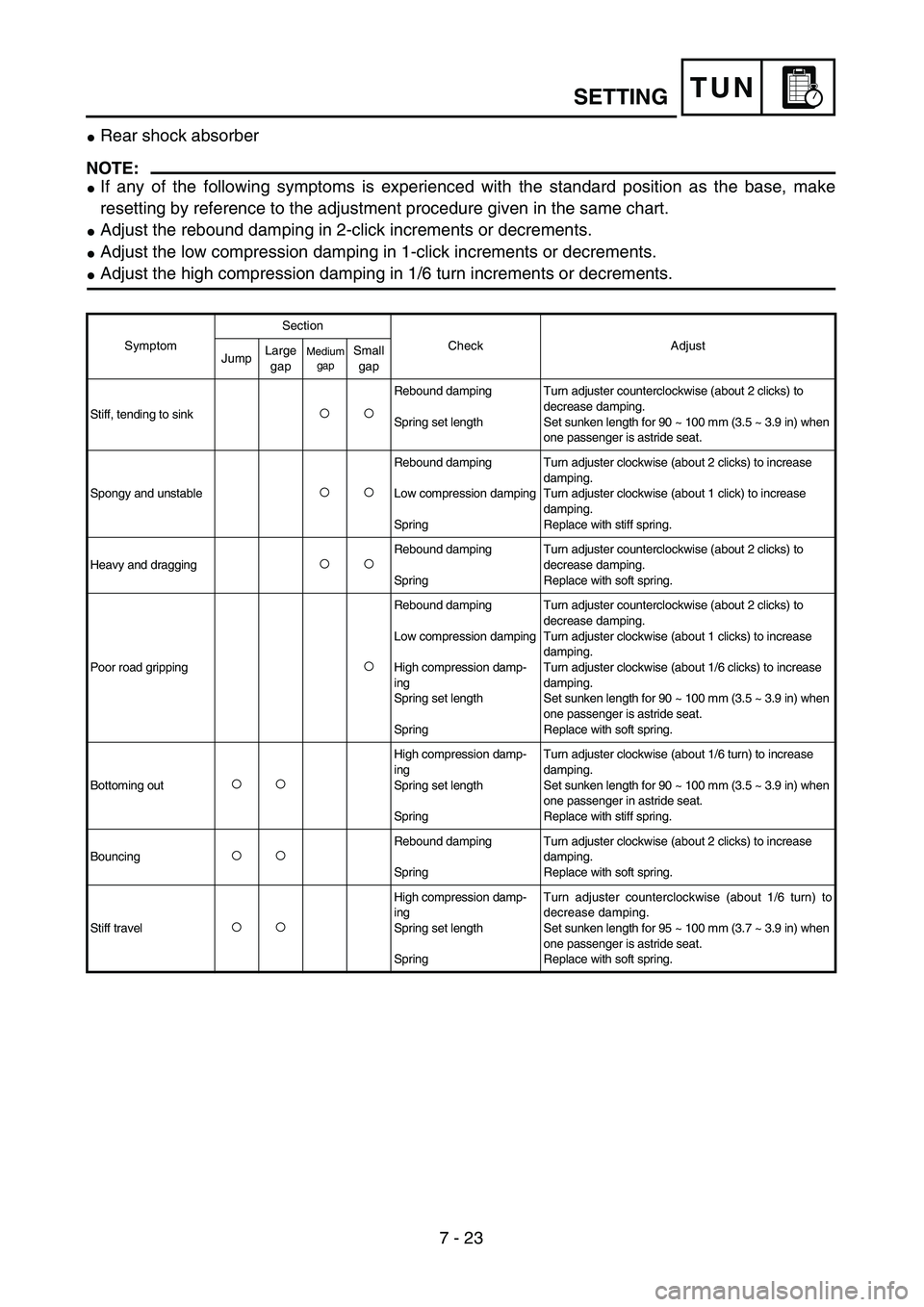

7 - 23
TUNSETTING
Rear shock absorber
NOTE:
If any of the following symptoms is experienced with the standard position as the base, make
resetting by reference to the adjustment procedure given in the same chart.
Adjust the rebound damping in 2-click increments or decrements.
Adjust the low compression damping in 1-click increments or decrements.
Adjust the high compression damping in 1/6 turn increments or decrements.
SymptomSection
Check Adjust
JumpLarge
gapMedium
gapSmall
gap
Stiff, tending to sink

Rebound damping
Spring set lengthTurn adjuster counterclockwise (about 2 clicks) to
decrease damping.
Set sunken length for 90 ~ 100 mm (3.5 ~ 3.9 in) when
one passenger is astride seat.
Spongy and unstable

Rebound damping
Low compression damping
SpringTurn adjuster clockwise (about 2 clicks) to increase
damping.
Turn adjuster clockwise (about 1 click) to increase
damping.
Replace with stiff spring.
Heavy and dragging

Rebound damping
SpringTurn adjuster counterclockwise (about 2 clicks) to
decrease damping.
Replace with soft spring.
Poor road gripping

Rebound damping
Low compression damping
High compression damp-
ing
Spring set length
SpringTurn adjuster counterclockwise (about 2 clicks) to
decrease damping.
Turn adjuster clockwise (about 1 clicks) to increase
damping.
Turn adjuster clockwise (about 1/6 clicks) to increase
damping.
Set sunken length for 90 ~ 100 mm (3.5 ~ 3.9 in) when
one passenger is astride seat.
Replace with soft spring.
Bottoming out

High compression damp-
ing
Spring set length
SpringTurn adjuster clockwise (about 1/6 turn) to increase
damping.
Set sunken length for 90 ~ 100 mm (3.5 ~ 3.9 in) when
one passenger in astride seat.
Replace with stiff spring.
Bouncing

Rebound damping
SpringTurn adjuster clockwise (about 2 clicks) to increase
damping.
Replace with soft spring.
Stiff travel

High compression damp-
ing
Spring set length
SpringTurn adjuster counterclockwise (about 1/6 turn) to
decrease damping.
Set sunken length for 95 ~ 100 mm (3.7 ~ 3.9 in) when
one passenger is astride seat.
Replace with soft spring.
