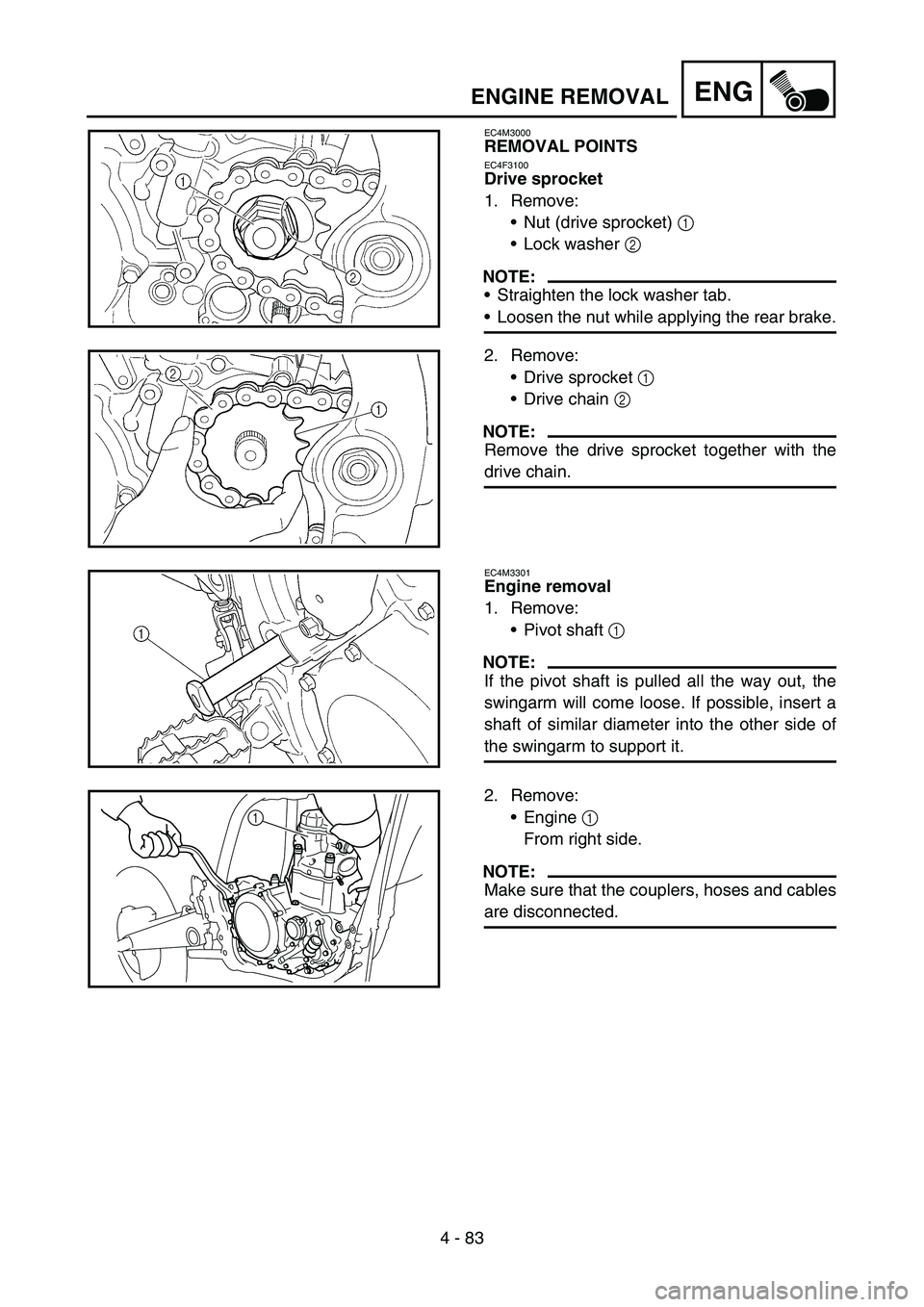

4 - 83
ENGENGINE REMOVAL
EC4M3000
REMOVAL POINTS
EC4F3100
Drive sprocket
1. Remove:
Nut (drive sprocket) 1
Lock washer 2
NOTE:
Straighten the lock washer tab.
Loosen the nut while applying the rear brake.
2. Remove:
Drive sprocket 1
Drive chain 2
NOTE:
Remove the drive sprocket together with the
drive chain.
EC4M3301
Engine removal
1. Remove:
Pivot shaft 1
NOTE:
If the pivot shaft is pulled all the way out, the
swingarm will come loose. If possible, insert a
shaft of similar diameter into the other side of
the swingarm to support it.
2. Remove:
Engine 1
From right side.
NOTE:
Make sure that the couplers, hoses and cables
are disconnected.
1

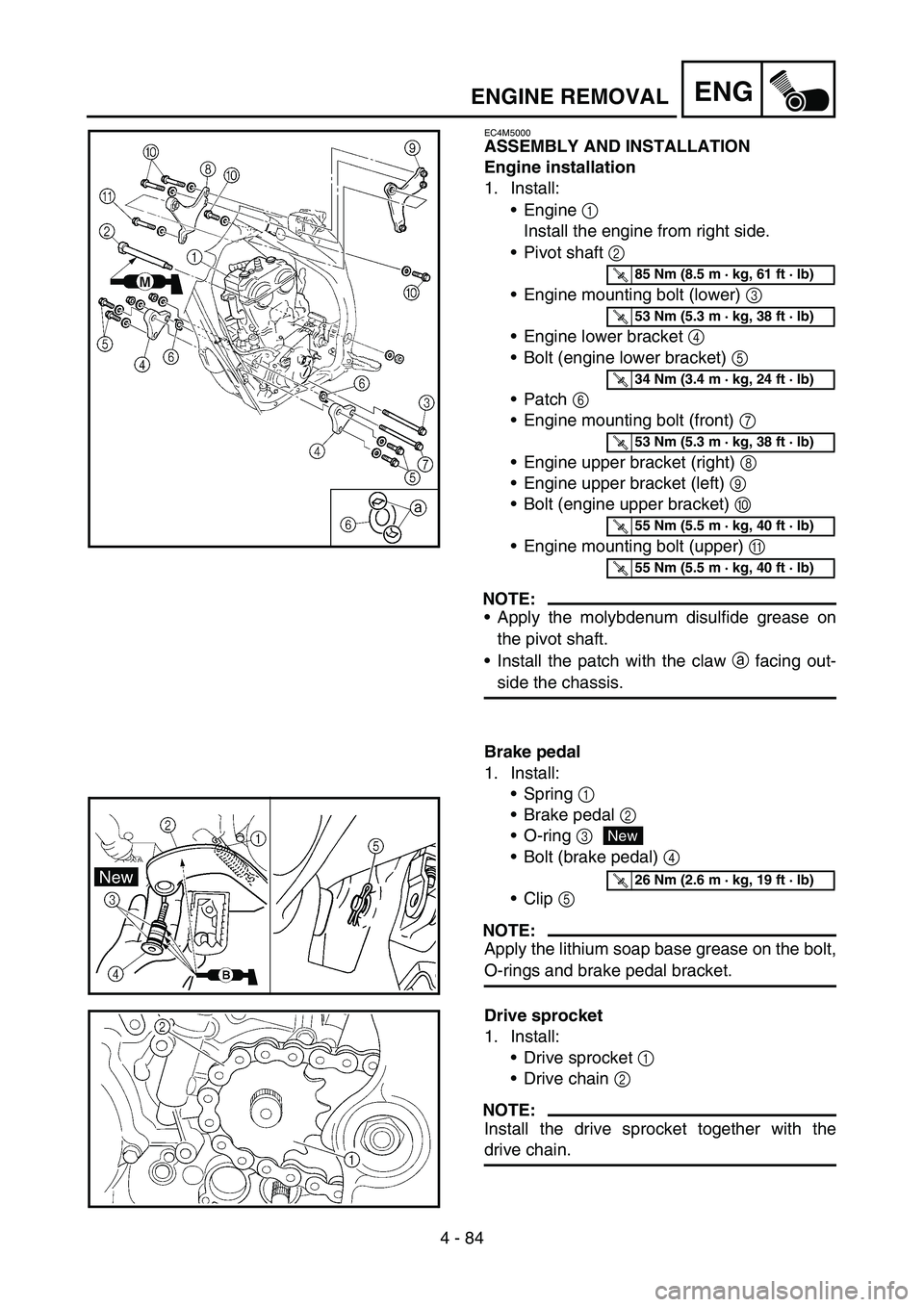

4 - 84
ENGENGINE REMOVAL
EC4M5000
ASSEMBLY AND INSTALLATION
Engine installation
1. Install:
Engine 1
Install the engine from right side.
Pivot shaft 2
Engine mounting bolt (lower) 3
Engine lower bracket 4
Bolt (engine lower bracket) 5
Patch 6
Engine mounting bolt (front) 7
Engine upper bracket (right) 8
Engine upper bracket (left) 9
Bolt (engine upper bracket) 0
Engine mounting bolt (upper) A
NOTE:
Apply the molybdenum disulfide grease on
the pivot shaft.
Install the patch with the claw a facing out-
side the chassis.
Brake pedal
1. Install:
Spring 1
Brake pedal 2
O-ring 3
Bolt (brake pedal) 4
Clip 5
NOTE:
Apply the lithium soap base grease on the bolt,
O-rings and brake pedal bracket.
T R..85 Nm (8.5 m · kg, 61 ft · lb)
T R..53 Nm (5.3 m · kg, 38 ft · lb)
T R..34 Nm (3.4 m · kg, 24 ft · lb)
T R..53 Nm (5.3 m · kg, 38 ft · lb)
T R..55 Nm (5.5 m · kg, 40 ft · lb)
T R..55 Nm (5.5 m · kg, 40 ft · lb)
New
T R..26 Nm (2.6 m · kg, 19 ft · lb)
Drive sprocket
1. Install:
Drive sprocket 1
Drive chain 2
NOTE:
Install the drive sprocket together with the
drive chain.

4 - 85
ENGENGINE REMOVAL
2. Install:
Lock washer 1
Nut (drive sprocket) 2
NOTE:
Tighten the nut while applying the rear brake.
New
T R..75 Nm (7.5 m · kg, 54 ft · lb)
3. Bend the lock washer tab to lock the nut.
4. Install:
Chain guide
Chain cover 1
Screw (chain cover) 2
21T R..8 Nm (0.8 m · kg, 5.8 ft · lb)
5. Install:
Spring 1
Pin 2
O-ring 3
Neutral switch 4
Screw (neutral switch) 5
NOTE:
Apply the lithium soap base grease on the O-
ring.
New
T R..4 Nm (0.4 m · kg, 2.9 ft · lb)

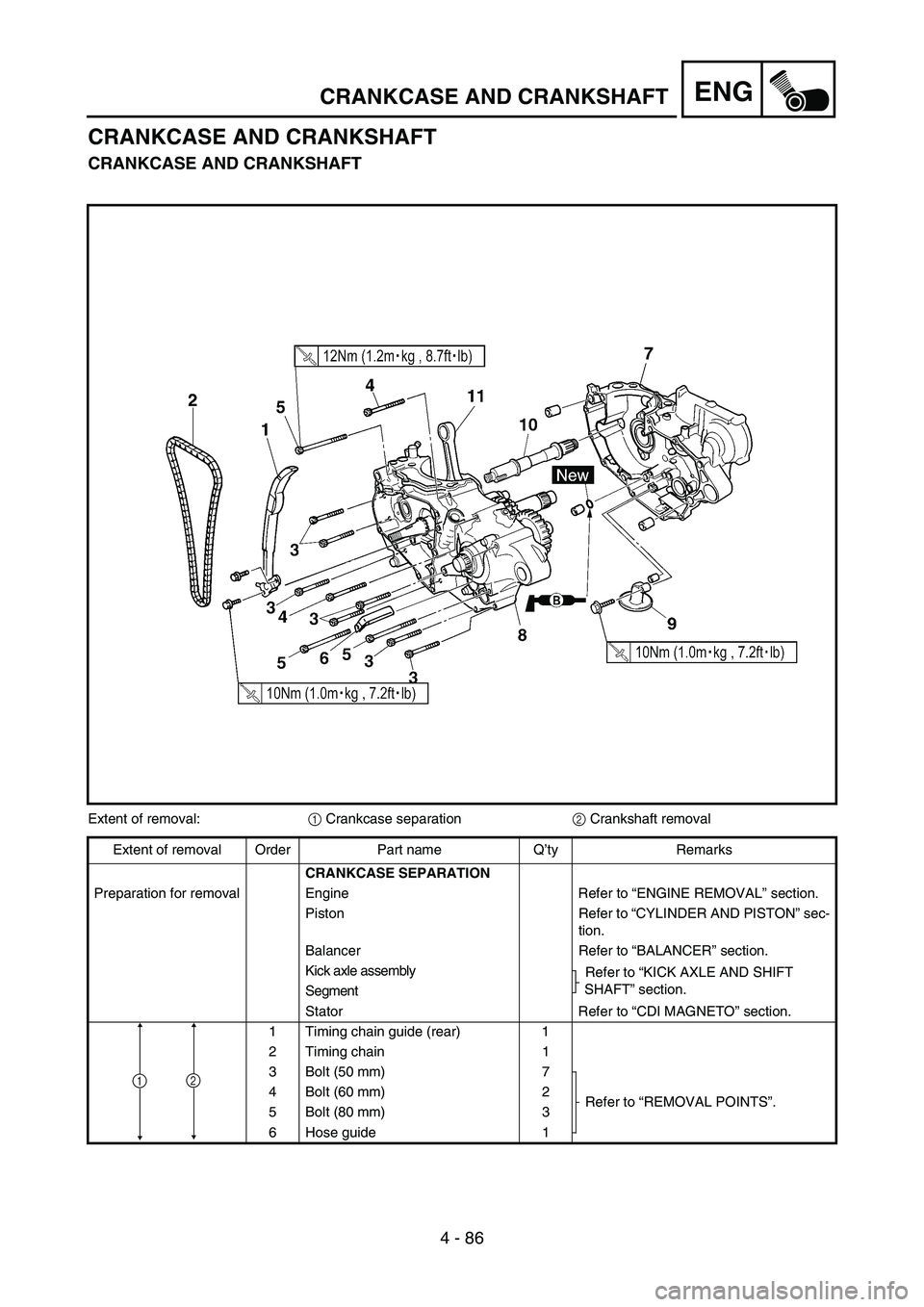

4 - 86
ENGCRANKCASE AND CRANKSHAFT
CRANKCASE AND CRANKSHAFT
CRANKCASE AND CRANKSHAFT
Extent of removal:
1 Crankcase separation
2 Crankshaft removal
Extent of removal Order Part name Q’ty Remarks
CRANKCASE SEPARATION
Preparation for removal Engine Refer to “ENGINE REMOVAL” section.
Piston Refer to “CYLINDER AND PISTON” sec-
tion.
Balancer Refer to “BALANCER” section.
Kick axle assembly
Refer to “KICK AXLE AND SHIFT
SHAFT” section.
Segment
Stator Refer to “CDI MAGNETO” section.
1 Timing chain guide (rear) 1
2 Timing chain 1
3 Bolt (50 mm) 7
Refer to “REMOVAL POINTS”. 4 Bolt (60 mm) 2
5 Bolt (80 mm) 3
6 Hose guide 1
21

4 - 89
ENGCRANKCASE AND CRANKSHAFT
REMOVAL POINTS
Crankcase
1. Separate:
Crankcase (right)
Crankcase (left)
Separation steps:
Remove the crankcase bolts, hose guide
and clutch cable holder.
NOTE:
Loosen each bolt 1/4 of a turn at a time and
after all the bolts are loosened, remove
them.
Remove the crankcase (right).
NOTE:
Place the crankcase with its left side
downward and split it by inserting a screw-
driver tip into the splitting slit a in the
crankcase.
Lift the crankcase (right) horizontally while
lightly patting the case splitting slit and
engine mounting boss using a soft ham-
mer, and leave the crankshaft and trans-
mission with the crankcase (left).
CAUTION:
Use soft hammer to tap on the case half.
Tap only on reinforced portions of case.
Do not tap on gasket mating surface.
Work slowly and carefully. Make sure the
case halves separate evenly. If the cases
do not separate, check for a remaining
case screw or fitting. Do not force.
Remove the dowel pins and O-ring.
a
Balancer shaft
1. Remove:
Balancer shaft 1
NOTE:
Remove the balancer shaft with its flat side a
facing the crankshaft.

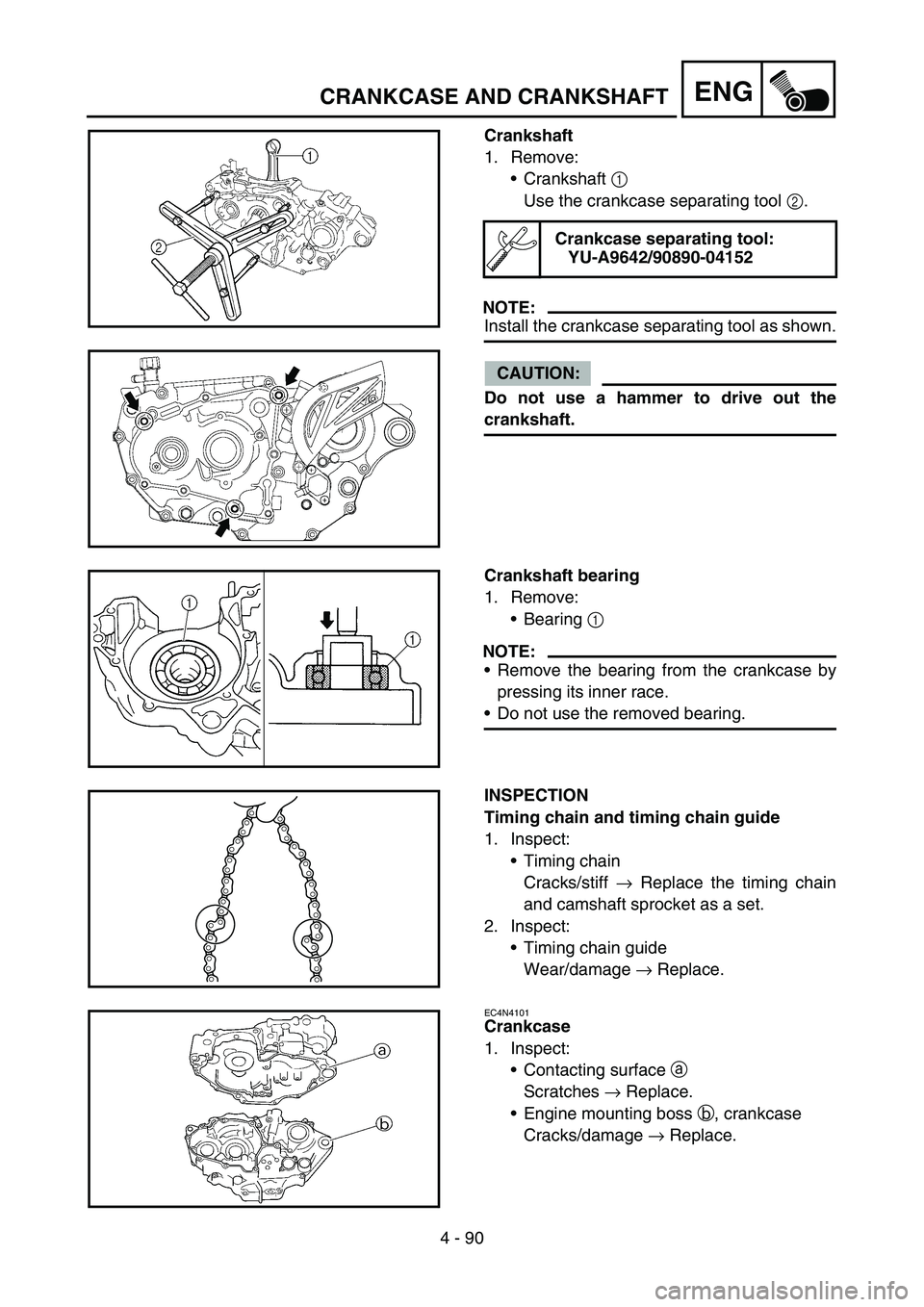

4 - 90
ENGCRANKCASE AND CRANKSHAFT
Crankshaft
1. Remove:
Crankshaft 1
Use the crankcase separating tool 2.
NOTE:
Install the crankcase separating tool as shown.
CAUTION:
Do not use a hammer to drive out the
crankshaft.
Crankcase separating tool:
YU-A9642/90890-04152
Crankshaft bearing
1. Remove:
Bearing 1
NOTE:
Remove the bearing from the crankcase by
pressing its inner race.
Do not use the removed bearing.
INSPECTION
Timing chain and timing chain guide
1. Inspect:
Timing chain
Cracks/stiff → Replace the timing chain
and camshaft sprocket as a set.
2. Inspect:
Timing chain guide
Wear/damage → Replace.
EC4N4101
Crankcase
1. Inspect:
Contacting surface a
Scratches → Replace.
Engine mounting boss b, crankcase
Cracks/damage → Replace.

4 - 94
ENGCRANKCASE AND CRANKSHAFT
5. Install:
Dowel pin 1
O-ring 2
Crankcase (right)
To crankcase (left).
NOTE:
Apply the lithium soap base grease on the O-
ring.
Fit the crankcase (right) onto the crankcase
(left). Tap lightly on the case with soft ham-
mer.
When installing the crankcase, the connect-
ing rod should be positioned at TDC (top
dead center).
New
6. Tighten:
Bolt (hose guide) 1
Bolt (crankcase)
NOTE:
Tighten the crankcase tightening bolts in
stage, using a crisscross pattern.
7. Install:
Timing chain
Timing chain guide (rear)
Bolt (timing chain guide)
8. Remove:
Sealant
Forced out on the cylinder mating sur-
face.
9. Apply:
Engine oil
To the crank pin, bearing and oil delivery
hole.
10. Check:
Crankshaft and transmission operation.
Unsmooth operation → Repair.
T R..12 Nm (1.2 m · kg, 8.7 ft · lb)
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)

4 - 95
ENGTRANSMISSION, SHIFT CAM AND SHIFT FORK
TRANSMISSION, SHIFT CAM AND SHIFT FORK
TRANSMISSION, SHIFT CAM AND SHIFT FORK
Extent of removal:
1 Shift fork, shift cam, main axle and drive axle removal
Extent of removal Order Part name Q’ty Remarks
TRANSMISSION, SHIFT CAM
AND SHIFT FORK REMOVAL
Preparation for removal Engine Refer to “ENGINE REMOVAL” section.
Separate the crankcase. Refer to “CRANKCASE AND CRANK-
SHAFT” section.
1 Main axle 1
Refer to “REMOVAL POINTS”. 2 Drive axle 1
3Shift cam 1
4 Shift fork 3 1
5 Shift fork 2 1
6 Shift fork 1 1
7 Collar 1
1

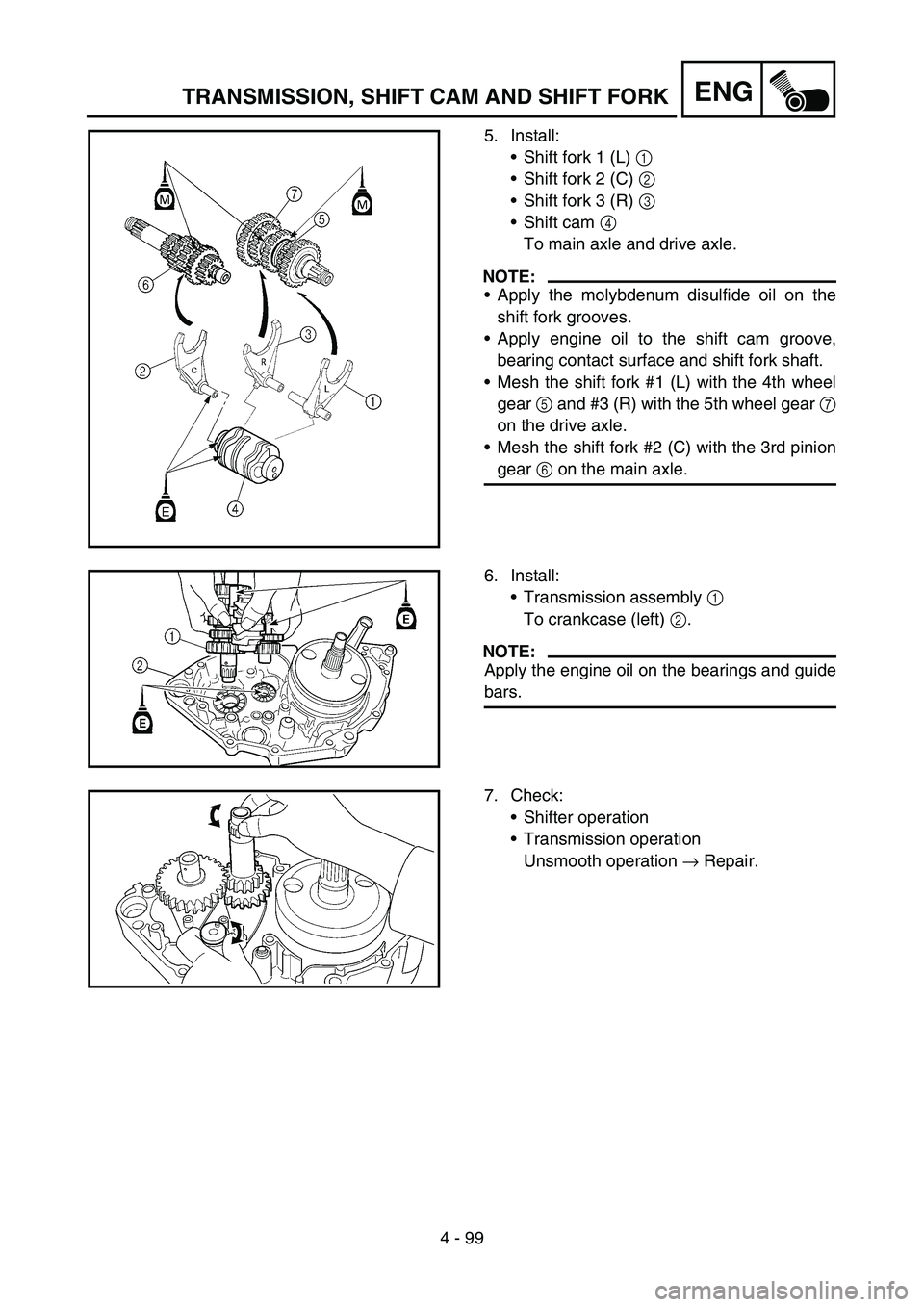

4 - 99
ENGTRANSMISSION, SHIFT CAM AND SHIFT FORK
5. Install:
Shift fork 1 (L) 1
Shift fork 2 (C) 2
Shift fork 3 (R) 3
Shift cam 4
To main axle and drive axle.
NOTE:
Apply the molybdenum disulfide oil on the
shift fork grooves.
Apply engine oil to the shift cam groove,
bearing contact surface and shift fork shaft.
Mesh the shift fork #1 (L) with the 4th wheel
gear 5 and #3 (R) with the 5th wheel gear 7
on the drive axle.
Mesh the shift fork #2 (C) with the 3rd pinion
gear 6 on the main axle.
6. Install:
Transmission assembly 1
To crankcase (left) 2.
NOTE:
Apply the engine oil on the bearings and guide
bars.
7. Check:
Shifter operation
Transmission operation
Unsmooth operation → Repair.

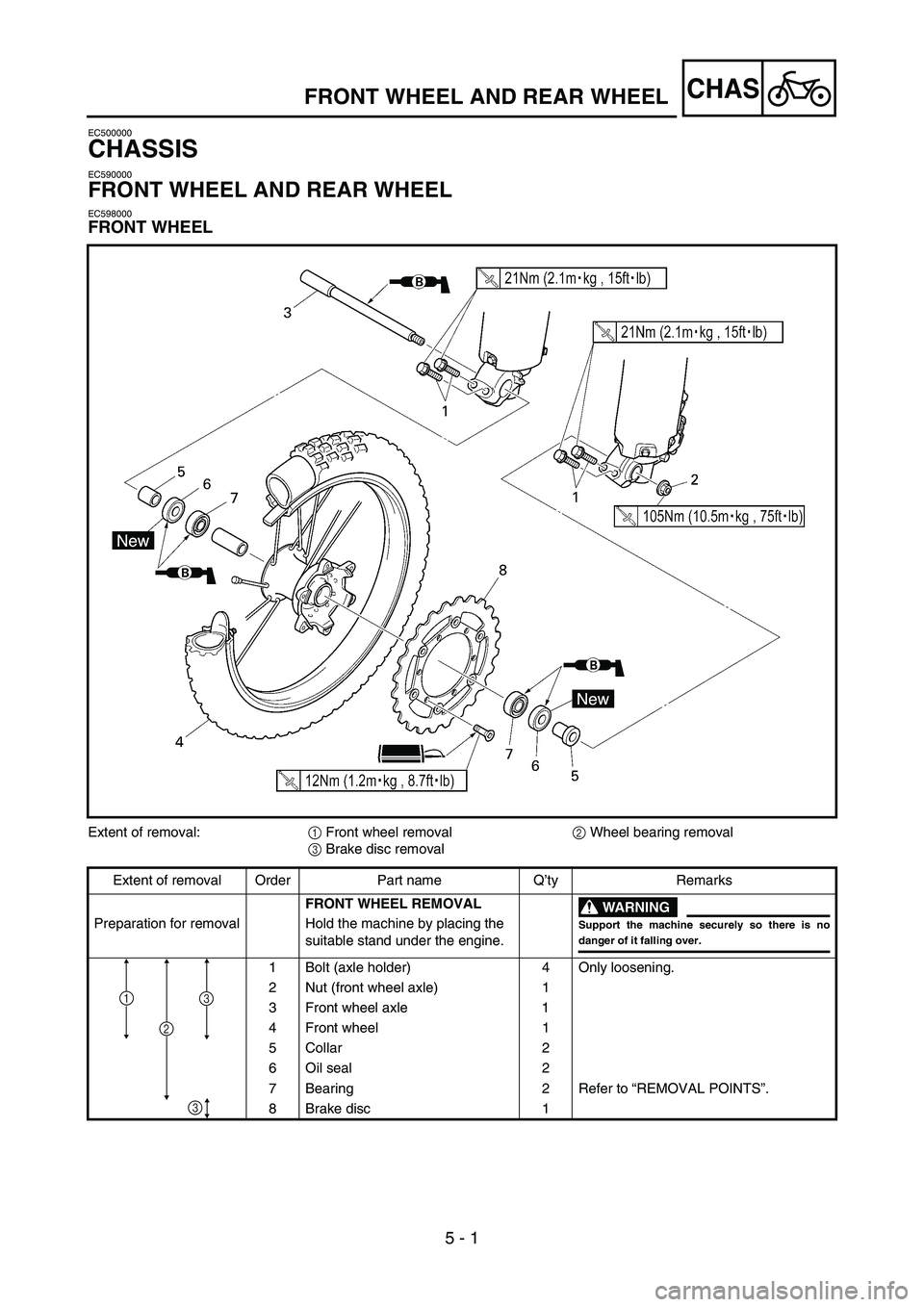

5 - 1
CHAS
EC500000
CHASSIS
EC590000
FRONT WHEEL AND REAR WHEEL
EC598000
FRONT WHEEL
FRONT WHEEL AND REAR WHEEL
Extent of removal:
1 Front wheel removal
2 Wheel bearing removal
3 Brake disc removal
Extent of removal Order Part name Q’ty Remarks
FRONT WHEEL REMOVAL
WARNING
Support the machine securely so there is no
danger of it falling over.
Preparation for removal Hold the machine by placing the
suitable stand under the engine.
1 Bolt (axle holder) 4 Only loosening.
2 Nut (front wheel axle) 1
3 Front wheel axle 1
4 Front wheel 1
5 Collar 2
6 Oil seal 2
7 Bearing 2 Refer to “REMOVAL POINTS”.
8 Brake disc 1
2
31
3
