YAMAHA YZ85 2007 Owner's Manual

DESCRIPTION
2-1
2
EAU10410

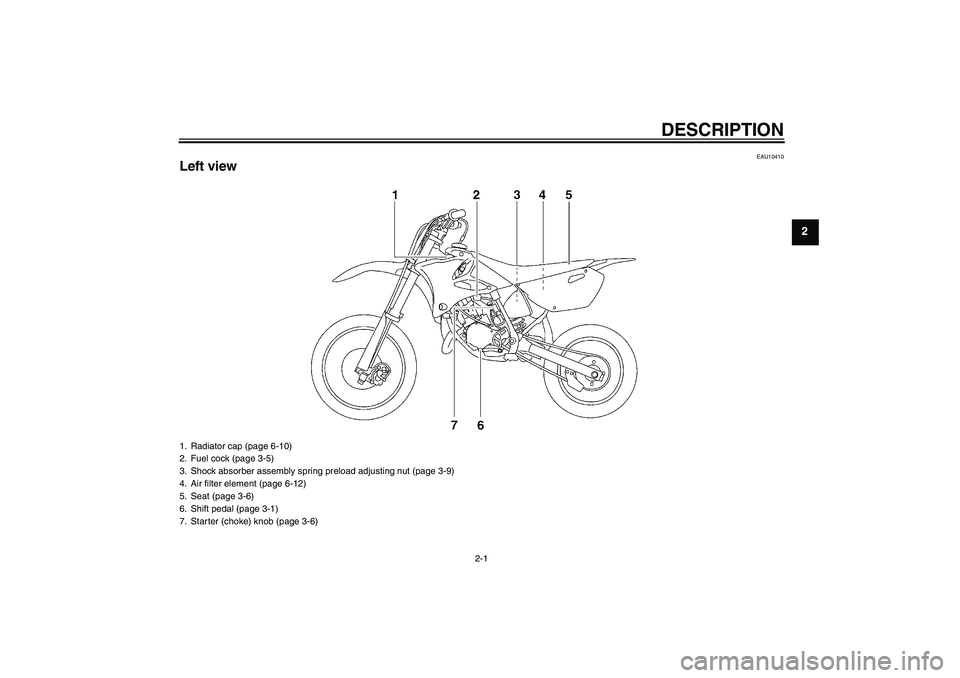

Left view1. Radiator cap (page 6-10)
2. Fuel cock (page 3-5)
3. Shock absorber assembly spring preload adjusting nut (page 3-9)
4. Air filter element (page 6-12)
5. Seat (page 3-6)
6. Shift pedal (page 3-1)
7. Starter (choke) knob (page 3-6)
U5PA85E0.book Page 1 Thursday, April 13, 2006 3:06 PM

DESCRIPTION
2-2
2
EAU10420

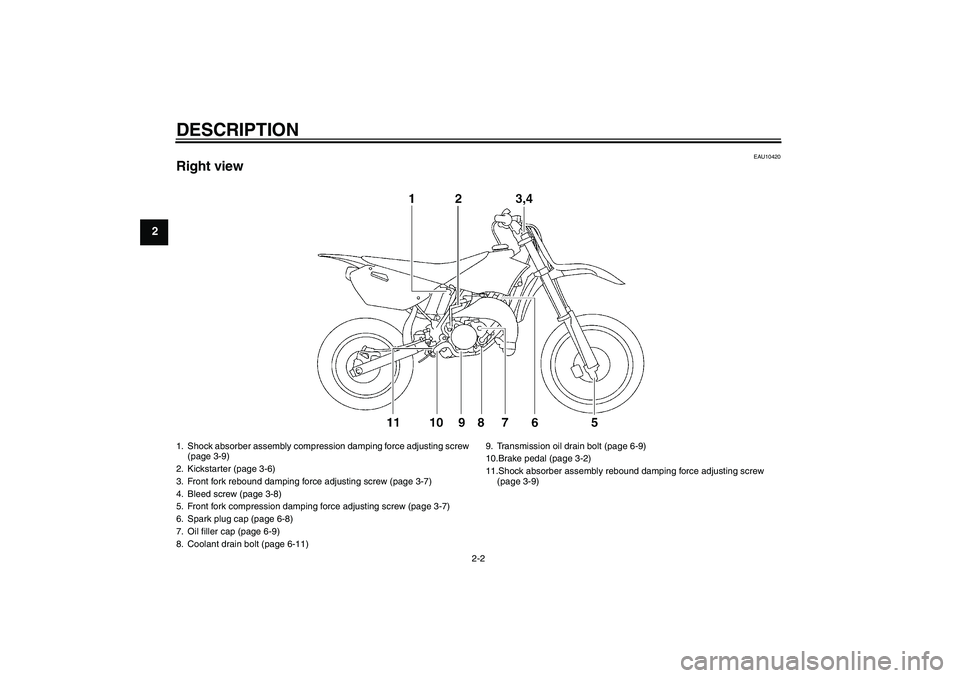

Right view1. Shock absorber assembly compression damping force adjusting screw
(page 3-9)
2. Kickstarter (page 3-6)
3. Front fork rebound damping force adjusting screw (page 3-7)
4. Bleed screw (page 3-8)
5. Front fork compression damping force adjusting screw (page 3-7)
6. Spark plug cap (page 6-8)
7. Oil filler cap (page 6-9)
8. Coolant drain bolt (page 6-11)9. Transmission oil drain bolt (page 6-9)
10.Brake pedal (page 3-2)
11.Shock absorber assembly rebound damping force adjusting screw
(page 3-9)U5PA85E0.book Page 2 Thursday, April 13, 2006 3:06 PM

DESCRIPTION
2-3
2
EAU10430

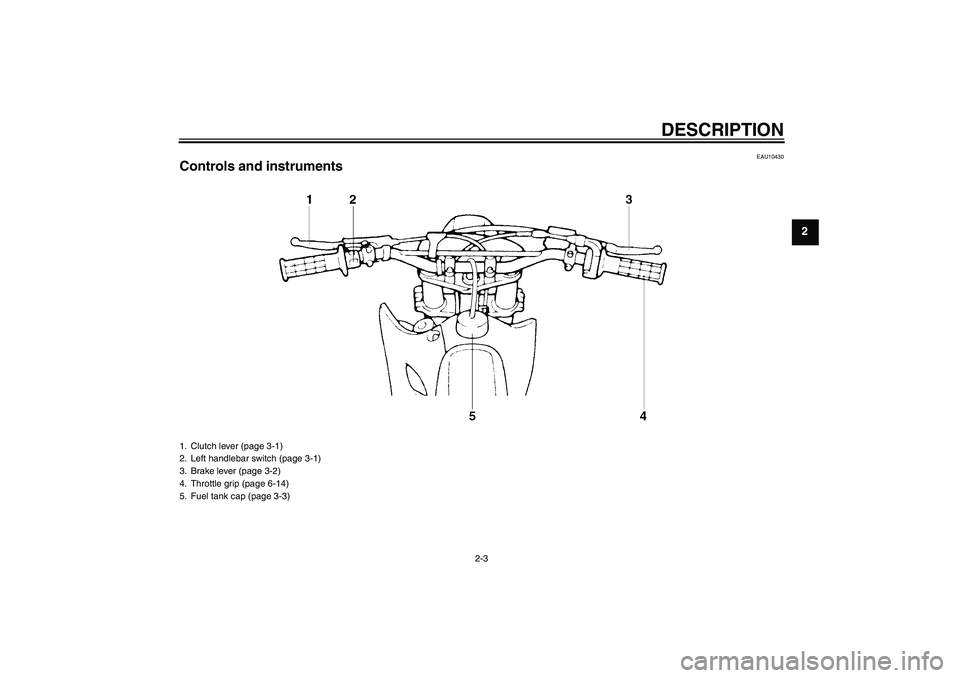

Controls and instruments1. Clutch lever (page 3-1)
2. Left handlebar switch (page 3-1)
3. Brake lever (page 3-2)
4. Throttle grip (page 6-14)
5. Fuel tank cap (page 3-3)
U5PA85E0.book Page 3 Thursday, April 13, 2006 3:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU40660

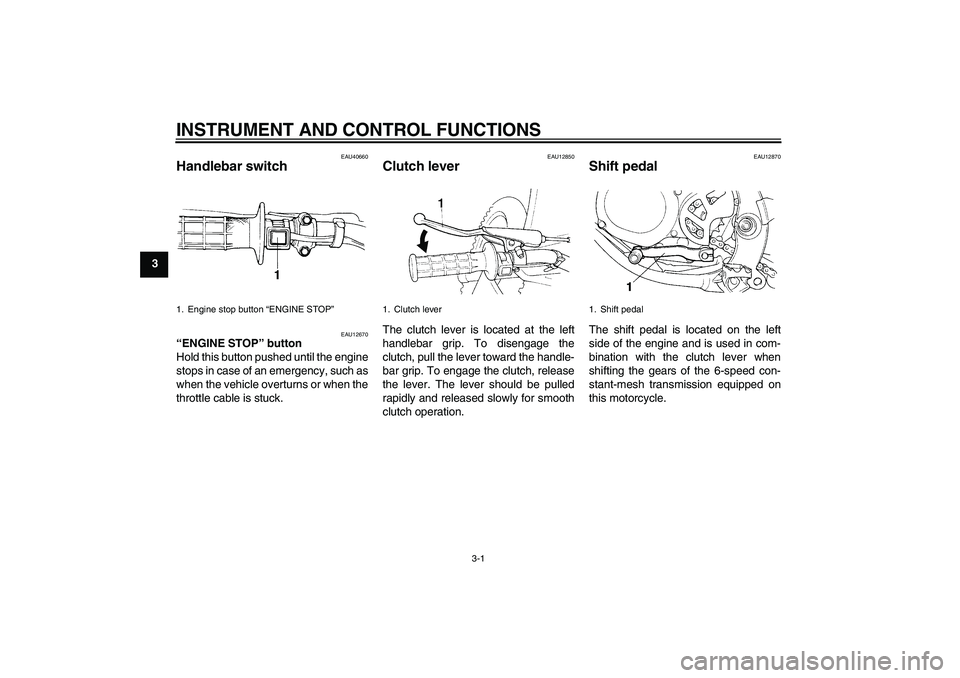

Handlebar switch
EAU12670
“ENGINE STOP” button
Hold this button pushed until the engine
stops in case of an emergency, such as
when the vehicle overturns or when the
throttle cable is stuck.
EAU12850
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
EAU12870
Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission equipped on
this motorcycle.
1. Engine stop button “ENGINE STOP”
1. Clutch lever
1. Shift pedal
U5PA85E0.book Page 1 Thursday, April 13, 2006 3:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU41261

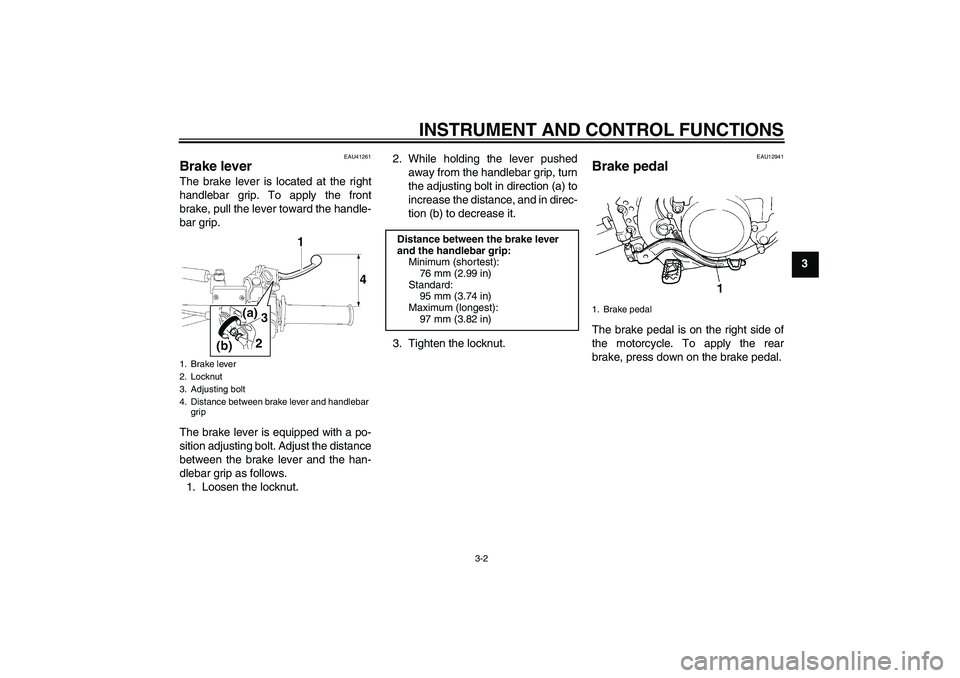

Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
The brake lever is equipped with a po-
sition adjusting bolt. Adjust the distance
between the brake lever and the han-
dlebar grip as follows.
1. Loosen the locknut.2. While holding the lever pushed
away from the handlebar grip, turn
the adjusting bolt in direction (a) to
increase the distance, and in direc-
tion (b) to decrease it.
3. Tighten the locknut.
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
1. Brake lever
2. Locknut
3. Adjusting bolt
4. Distance between brake lever and handlebar
grip
Distance between the brake lever
and the handlebar grip:
Minimum (shortest):
76 mm (2.99 in)
Standard:
95 mm (3.74 in)
Maximum (longest):
97 mm (3.82 in)
1. Brake pedal
U5PA85E0.book Page 2 Thursday, April 13, 2006 3:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU13180
Fuel tank cap To remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, insert it into
the tank opening, and then turn it clock-
wise.
WARNING
EWA11090
Make sure that the fuel tank cap isproperly closed before riding.
EAU41831
Fuel This motorcycle has been designed to
use a premixed fuel of gasoline and 2-
stroke engine oil. Always mix the gaso-
line and oil in a clean container before
filling the fuel tank.CAUTION:
ECA15601
Always use fresh gasoline, and fill
the fuel tank with a fresh mix just be-
fore riding. Do not use premixed fuelthat is more than a few hours old.
Mixing gasoline and 2-stroke engine
oil
Pour 2-stroke engine oil into a clean
container, and then add gasoline. To
mix the fuel thoroughly, shake the con-
tainer from side to side.
CAUTION:
ECA15590
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the piston rings as well as tothe exhaust system.
1. Fuel tank cap
1. 2-stroke engine oil
2. Gasoline
3. ContainerRecommended fuel:
Premium unleaded gasoline only
Recommended 2-stroke engine oil:
See page 8-1.
Fuel tank capacity:
5.0 L (1.32 US gal) (1.10 Imp.gal)
Mixing ratios (gasoline to oil):
Break-in period: 15:1
After break-in: 30:1
U5PA85E0.book Page 3 Thursday, April 13, 2006 3:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3 Your Yamaha engine has been de-
signed to use premium unleaded gaso-
line with a pump octane number
[(R+M)/2] of 91 or higher, or a research
octane number of 95 or higher. If
knocking (or pinging) occurs, use a
gasoline of a different brand.
If the recommended 2-stroke engine oil
is not available, use an equivalent oil.
CAUTION:
ECA15551
Never mix two brands of 2-stroke en-
gine oil in the same batch. Always
use the same type of oil to ensure
maximum engine performance.
Should it be necessary to use a dif-
ferent oil brand, be sure to drain the
fuel tank and the carburetor float

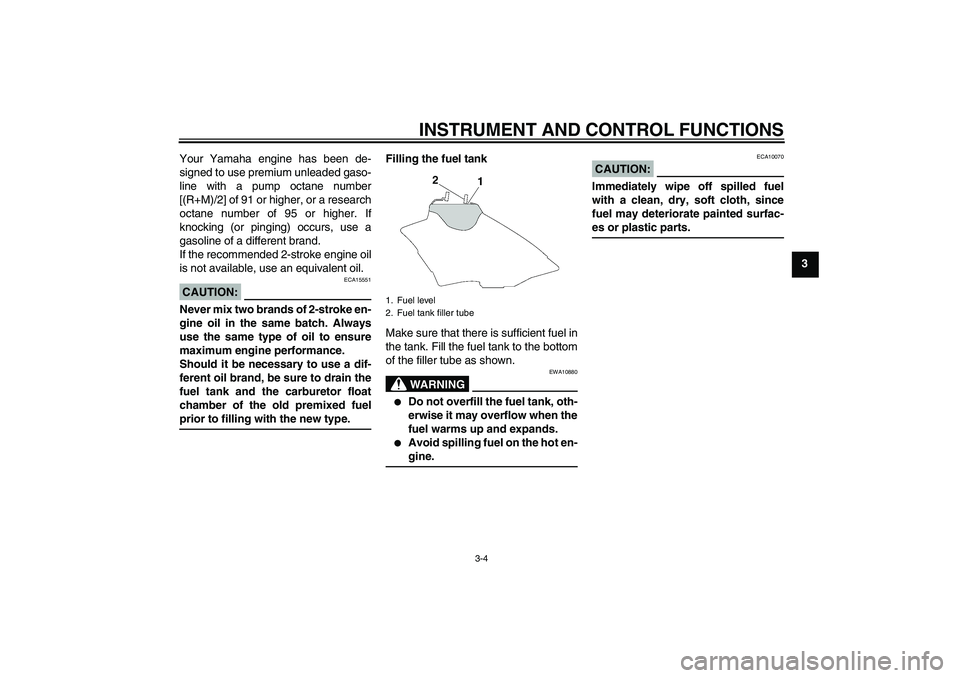

chamber of the old premixed fuelprior to filling with the new type.Filling the fuel tank
Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING
EWA10880


Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.


Avoid spilling fuel on the hot en-gine.
CAUTION:
ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-es or plastic parts.
1. Fuel level
2. Fuel tank filler tube
U5PA85E0.book Page 4 Thursday, April 13, 2006 3:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU41360
Fuel tank breather hose Before operating the motorcycle:

Check the fuel tank breather hose
connection.


Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.


Make sure that the end of the fuel
tank breather hose is not blocked,
and clean it if necessary.
NOTE:If the fuel tank breather hose falls out,
reinstall it on the fuel tank cap with the
arrow mark on the one-way valve point-ed downward as shown.

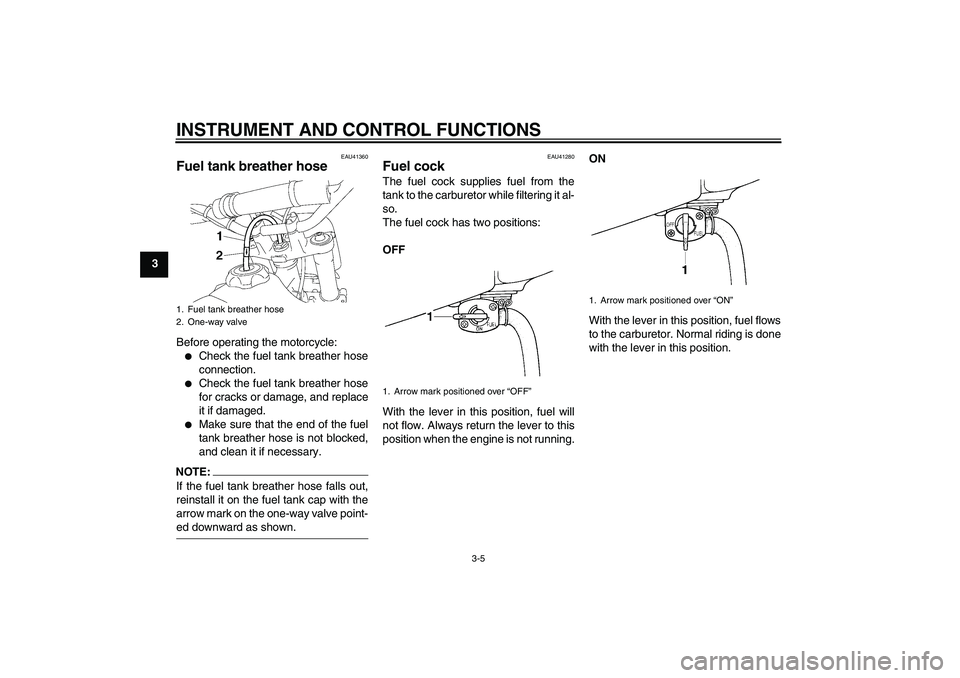

EAU41280
Fuel cock The fuel cock supplies fuel from the
tank to the carburetor while filtering it al-
so.
The fuel cock has two positions:
OFF
With the lever in this position, fuel will
not flow. Always return the lever to this
position when the engine is not running.ON
With the lever in this position, fuel flows
to the carburetor. Normal riding is done
with the lever in this position.
1. Fuel tank breather hose
2. One-way valve
1. Arrow mark positioned over “OFF”
1. Arrow mark positioned over “ON”
U5PA85E0.book Page 5 Thursday, April 13, 2006 3:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3

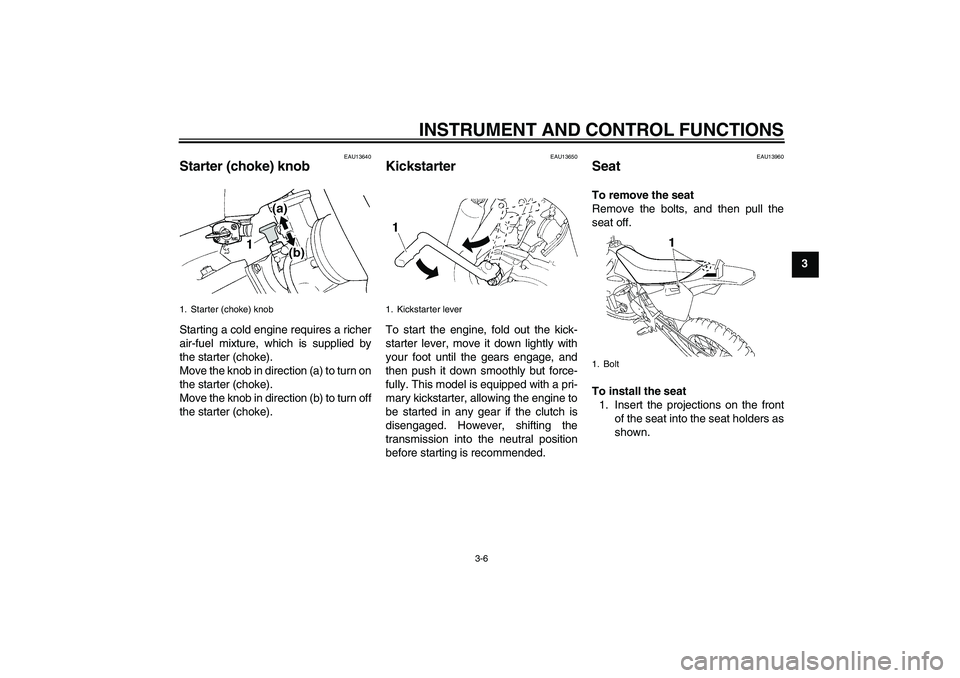

EAU13640
Starter (choke) knob Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the knob in direction (a) to turn on
the starter (choke).
Move the knob in direction (b) to turn off
the starter (choke).
EAU13650
Kickstarter To start the engine, fold out the kick-
starter lever, move it down lightly with
your foot until the gears engage, and
then push it down smoothly but force-
fully. This model is equipped with a pri-
mary kickstarter, allowing the engine to
be started in any gear if the clutch is
disengaged. However, shifting the
transmission into the neutral position
before starting is recommended.
EAU13960
Seat To remove the seat
Remove the bolts, and then pull the
seat off.
To install the seat
1. Insert the projections on the front
of the seat into the seat holders as
shown.
1. Starter (choke) knob
1. Kickstarter lever
1. Bolt
U5PA85E0.book Page 6 Thursday, April 13, 2006 3:06 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
2. Place the seat in the original posi-
tion, and then tighten the bolts.
NOTE:Make sure that the seat is properly se-cured before riding.
EAU41470

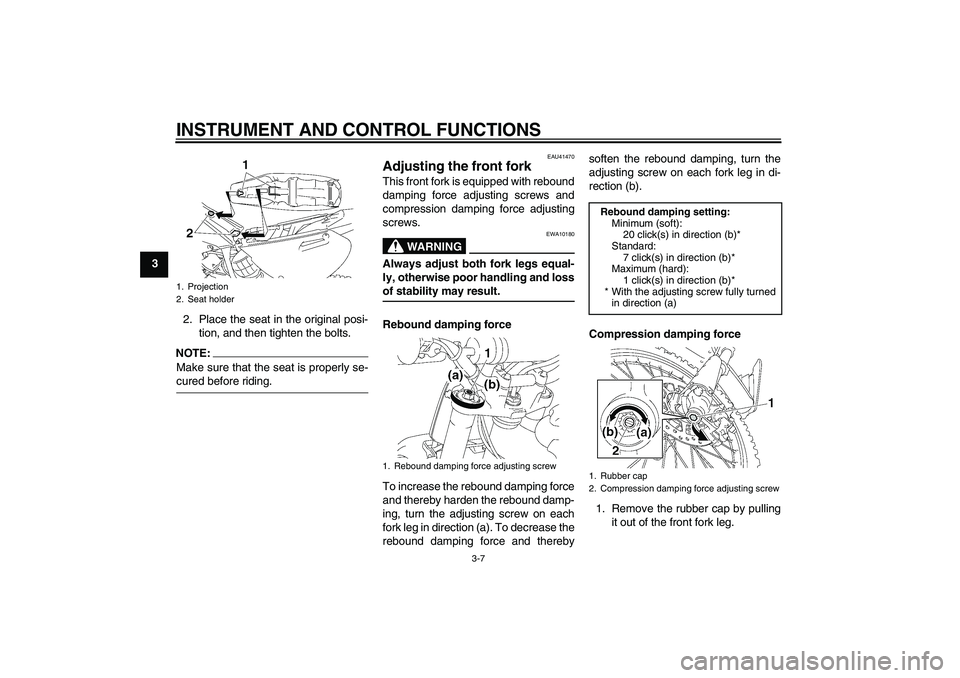

Adjusting the front fork This front fork is equipped with rebound
damping force adjusting screws and
compression damping force adjusting
screws.
WARNING
EWA10180
Always adjust both fork legs equal-
ly, otherwise poor handling and lossof stability may result.
Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
ing, turn the adjusting screw on each
fork leg in direction (a). To decrease the
rebound damping force and therebysoften the rebound damping, turn the
adjusting screw on each fork leg in di-
rection (b).
Compression damping force
1. Remove the rubber cap by pulling
it out of the front fork leg.
1. Projection
2. Seat holder
1. Rebound damping force adjusting screw
Rebound damping setting:
Minimum (soft):
20 click(s) in direction (b)*
Standard:
7 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)1. Rubber cap
2. Compression damping force adjusting screw
