PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
6 2. Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the
spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
NOTE:
If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.
4. Install the spark plug cap.
EAU41441

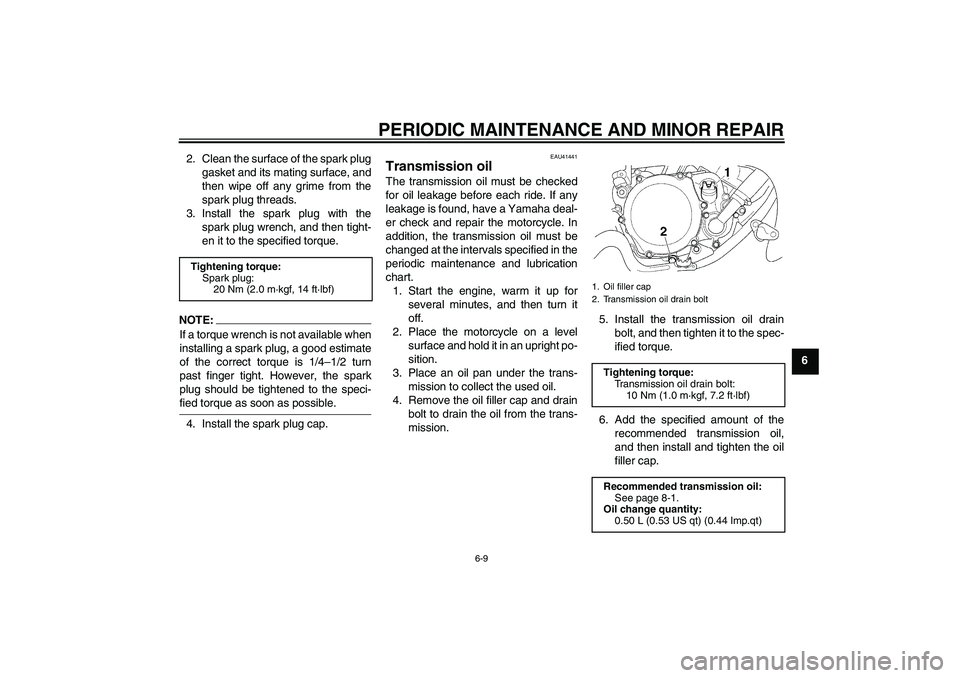

Transmission oil The transmission oil must be checked
for oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the motorcycle. In
addition, the transmission oil must be
changed at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place the motorcycle on a level
surface and hold it in an upright po-
sition.
3. Place an oil pan under the trans-
mission to collect the used oil.
4. Remove the oil filler cap and drain
bolt to drain the oil from the trans-
mission.5. Install the transmission oil drain
bolt, and then tighten it to the spec-
ified torque.
6. Add the specified amount of the
recommended transmission oil,
and then install and tighten the oil
filler cap.
Tightening torque:
Spark plug:
20 Nm (2.0 m·kgf, 14 ft·lbf)
1. Oil filler cap
2. Transmission oil drain bolt
Tightening torque:
Transmission oil drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Recommended transmission oil:
See page 8-1.
Oil change quantity:
0.50 L (0.53 US qt) (0.44 Imp.qt)
chapter6 Page 9 Tuesday, April 18, 2006 10:03 AM
Page 52 of 82

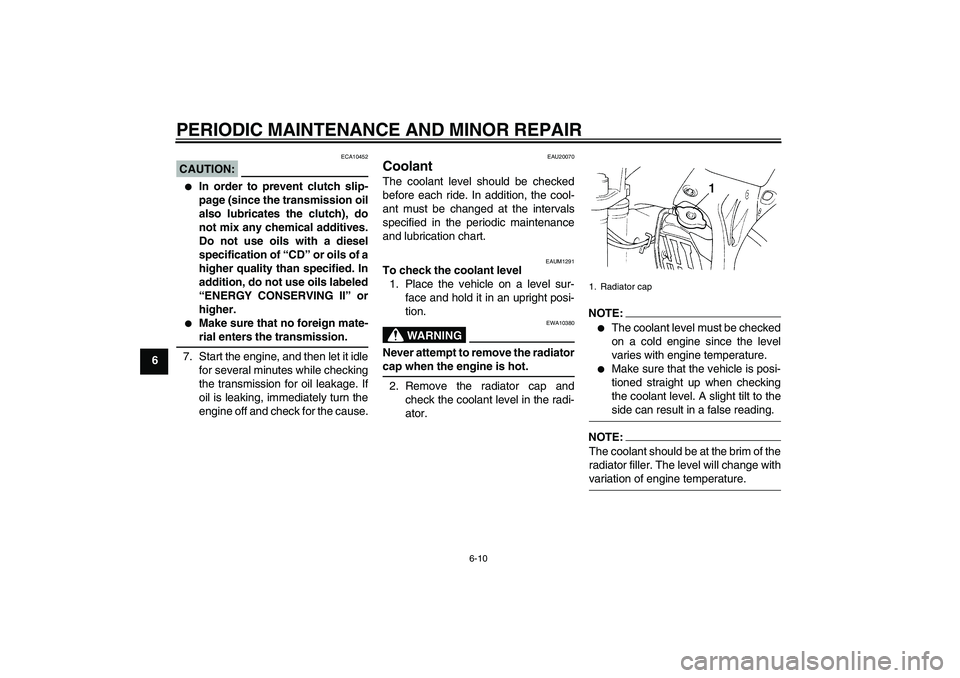

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6
CAUTION:
ECA10452
In order to prevent clutch slip-
page (since the transmission oil
also lubricates the clutch), do
not mix any chemical additives.
Do not use oils with a diesel
specification of “CD” or oils of a
higher quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
Make sure that no foreign mate-rial enters the transmission.
7. Start the engine, and then let it idle
for several minutes while checking
the transmission for oil leakage. If
oil is leaking, immediately turn the
engine off and check for the cause.
EAU20070
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUM1291
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
WARNING
EWA10380
Never attempt to remove the radiatorcap when the engine is hot.
2. Remove the radiator cap and
check the coolant level in the radi-
ator.
NOTE:
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.
Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
NOTE:The coolant should be at the brim of the
radiator filler. The level will change withvariation of engine temperature.1. Radiator cap
chapter6 Page 10 Tuesday, April 18, 2006 10:03 AM
Page 53 of 82
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6 3. If the coolant is below this level,
add coolant, and then install the
radiator cap.
NOTE:
If the engine overheats, see page 6-30for further instructions.
EAUM1311

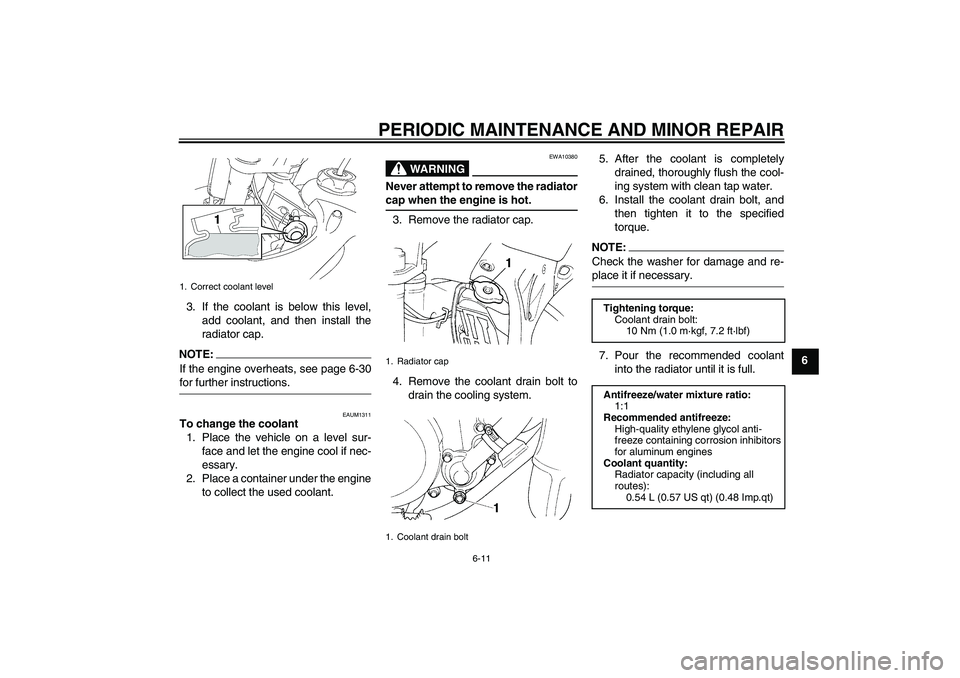

To change the coolant
1. Place the vehicle on a level sur-
face and let the engine cool if nec-
essary.
2. Place a container under the engine
to collect the used coolant.
WARNING
EWA10380
Never attempt to remove the radiatorcap when the engine is hot.
3. Remove the radiator cap.
4. Remove the coolant drain bolt to
drain the cooling system.5. After the coolant is completely
drained, thoroughly flush the cool-
ing system with clean tap water.
6. Install the coolant drain bolt, and
then tighten it to the specified
torque.
NOTE:Check the washer for damage and re-place it if necessary.
7. Pour the recommended coolant
into the radiator until it is full.
1. Correct coolant level
1. Radiator cap
1. Coolant drain bolt
Tightening torque:
Coolant drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol anti-
freeze containing corrosion inhibitors
for aluminum engines
Coolant quantity:
Radiator capacity (including all
routes):
0.54 L (0.57 US qt) (0.48 Imp.qt)
chapter6 Page 11 Tuesday, April 18, 2006 10:03 AM
Page 54 of 82
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6
CAUTION:
ECA10471
If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion.
If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,
otherwise the effectiveness ofthe coolant will be reduced.
8. Install the radiator cap, start the
engine, let it idle for several min-
utes, and then turn it off.
9. Remove the radiator cap to check
the coolant level in the radiator. If
necessary, add sufficient coolant
until it reaches the top of the radia-
tor, and then install the radiator
cap.10. Start the engine, and then check
the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.
EAU41431
Cleaning the air filter element The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.
1. Remove the seat. (See page 3-6.)

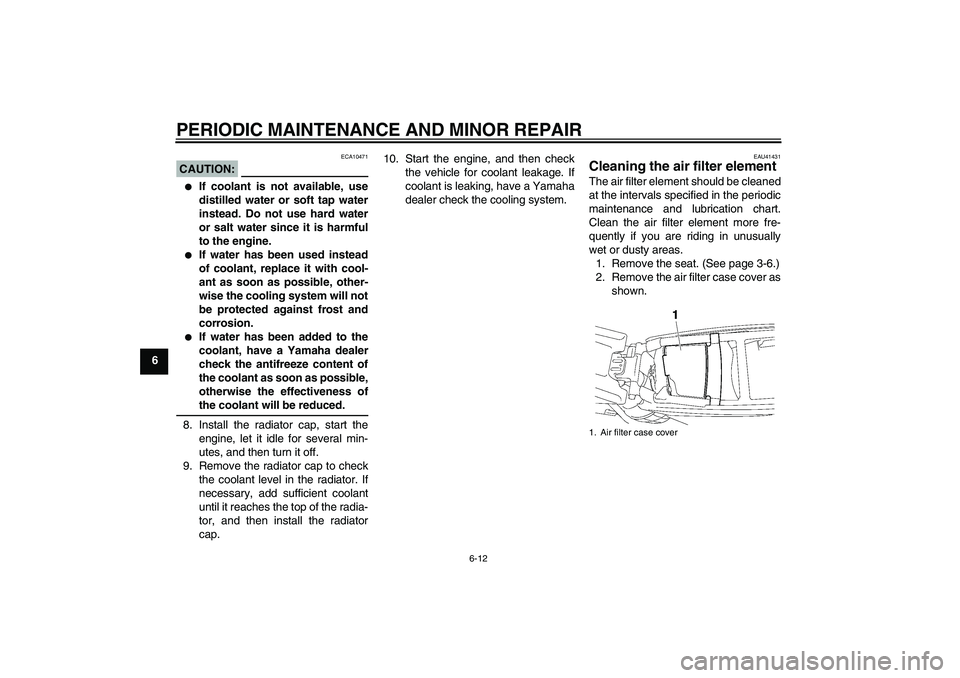

2. Remove the air filter case cover as
shown.1. Air filter case cover
chapter6 Page 12 Tuesday, April 18, 2006 10:03 AM
Page 55 of 82
PERIODIC MAINTENANCE AND MINOR REPAIR
6-13

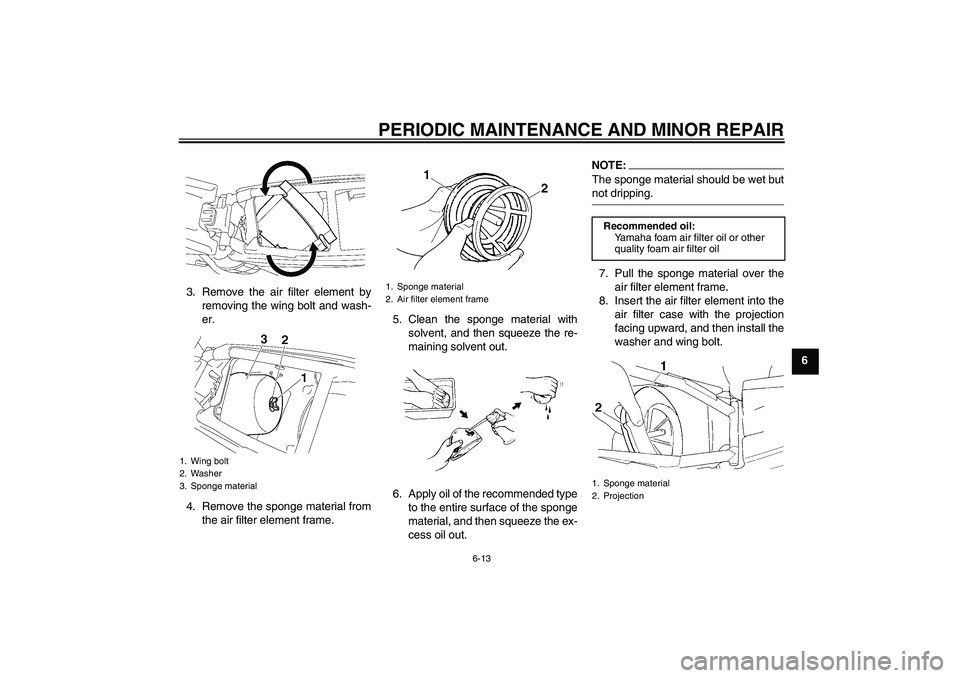

6 3. Remove the air filter element by
removing the wing bolt and wash-
er.
4. Remove the sponge material from
the air filter element frame.5. Clean the sponge material with
solvent, and then squeeze the re-
maining solvent out.
6. Apply oil of the recommended type
to the entire surface of the sponge
material, and then squeeze the ex-
cess oil out.
NOTE:The sponge material should be wet butnot dripping.
7. Pull the sponge material over the
air filter element frame.
8. Insert the air filter element into the
air filter case with the projection
facing upward, and then install the
washer and wing bolt.
1. Wing bolt
2. Washer
3. Sponge material
1. Sponge material
2. Air filter element frame
Recommended oil:
Yamaha foam air filter oil or other
quality foam air filter oil
1. Sponge material
2. Projection
U5PA85E0.book Page 13 Thursday, April 13, 2006 3:06 PM
Page 56 of 82
PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
6
CAUTION:
ECA10480
Make sure that the air filter ele-
ment is properly seated in the
air filter case.
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) maybecome excessively worn.

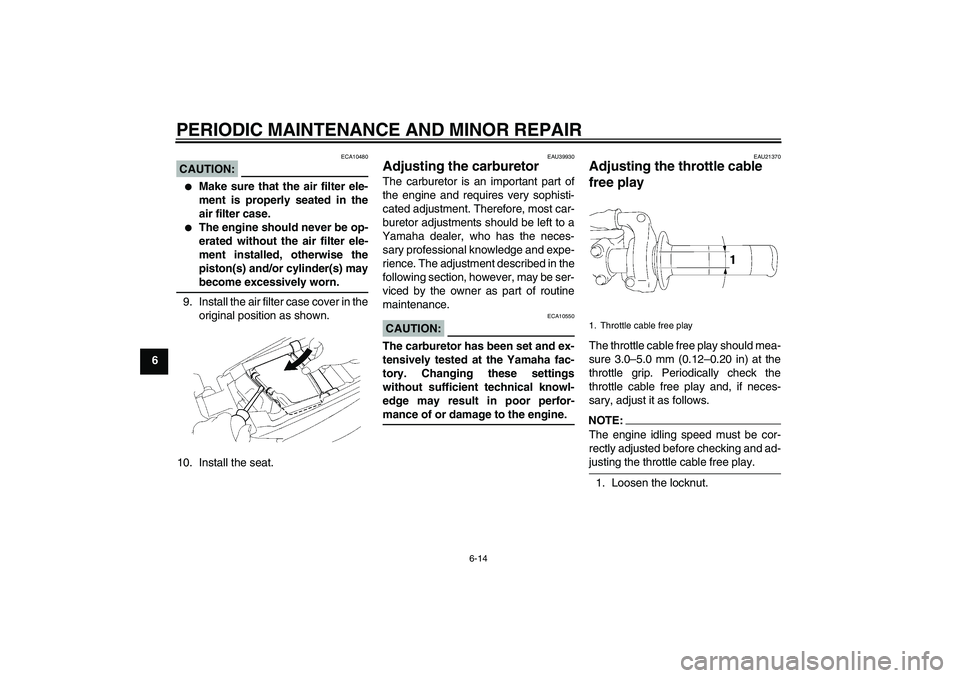

9. Install the air filter case cover in the
original position as shown.
10. Install the seat.
EAU39930
Adjusting the carburetor The carburetor is an important part of
the engine and requires very sophisti-
cated adjustment. Therefore, most car-
buretor adjustments should be left to a
Yamaha dealer, who has the neces-
sary professional knowledge and expe-
rience. The adjustment described in the
following section, however, may be ser-
viced by the owner as part of routine
maintenance.CAUTION:
ECA10550
The carburetor has been set and ex-
tensively tested at the Yamaha fac-
tory. Changing these settings
without sufficient technical knowl-
edge may result in poor perfor-mance of or damage to the engine.
EAU21370
Adjusting the throttle cable
free play The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, adjust it as follows.NOTE:The engine idling speed must be cor-
rectly adjusted before checking and ad-justing the throttle cable free play.
1. Loosen the locknut.1. Throttle cable free play
U5PA85E0.book Page 14 Thursday, April 13, 2006 3:06 PM
Page 57 of 82

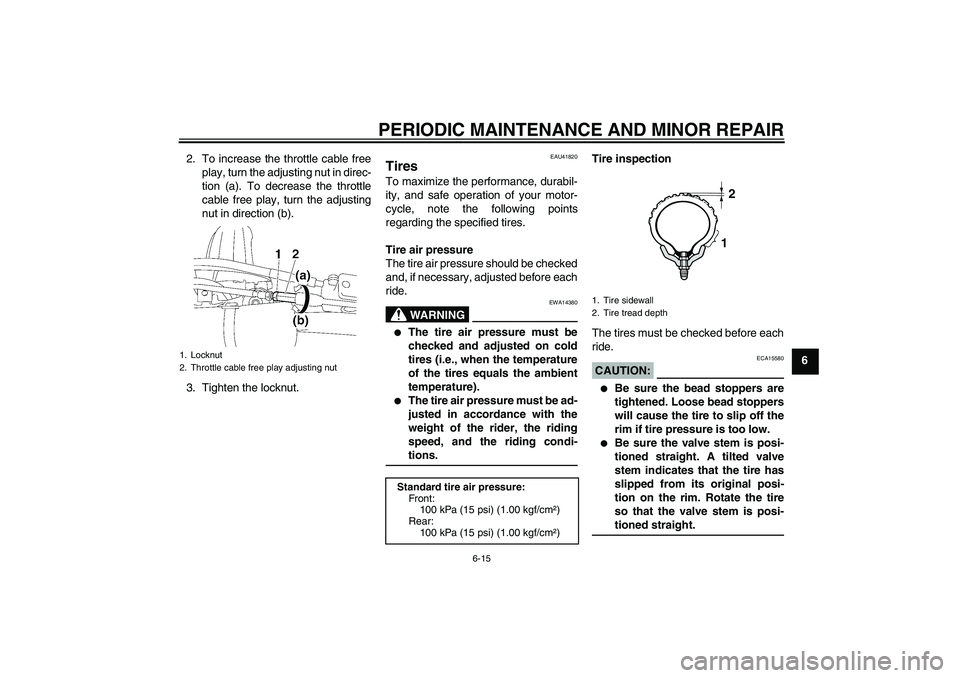

PERIODIC MAINTENANCE AND MINOR REPAIR
6-15
6 2. To increase the throttle cable free
play, turn the adjusting nut in direc-
tion (a). To decrease the throttle
cable free play, turn the adjusting
nut in direction (b).
3. Tighten the locknut.
EAU41820
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA14380
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be ad-
justed in accordance with the
weight of the rider, the riding
speed, and the riding condi-tions.Tire inspection
The tires must be checked before each
ride.
CAUTION:
ECA15580
Be sure the bead stoppers are
tightened. Loose bead stoppers
will cause the tire to slip off the
rim if tire pressure is too low.
Be sure the valve stem is posi-
tioned straight. A tilted valve
stem indicates that the tire has
slipped from its original posi-
tion on the rim. Rotate the tire
so that the valve stem is posi-tioned straight.
1. Locknut
2. Throttle cable free play adjusting nut
Standard tire air pressure:
Front:
100 kPa (15 psi) (1.00 kgf/cm²)
Rear:
100 kPa (15 psi) (1.00 kgf/cm²)
1. Tire sidewall
2. Tire tread depth
12
U5PA85E0.book Page 15 Friday, April 21, 2006 4:22 PM
Page 58 of 82
PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6If the center tread depth reaches the
specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.

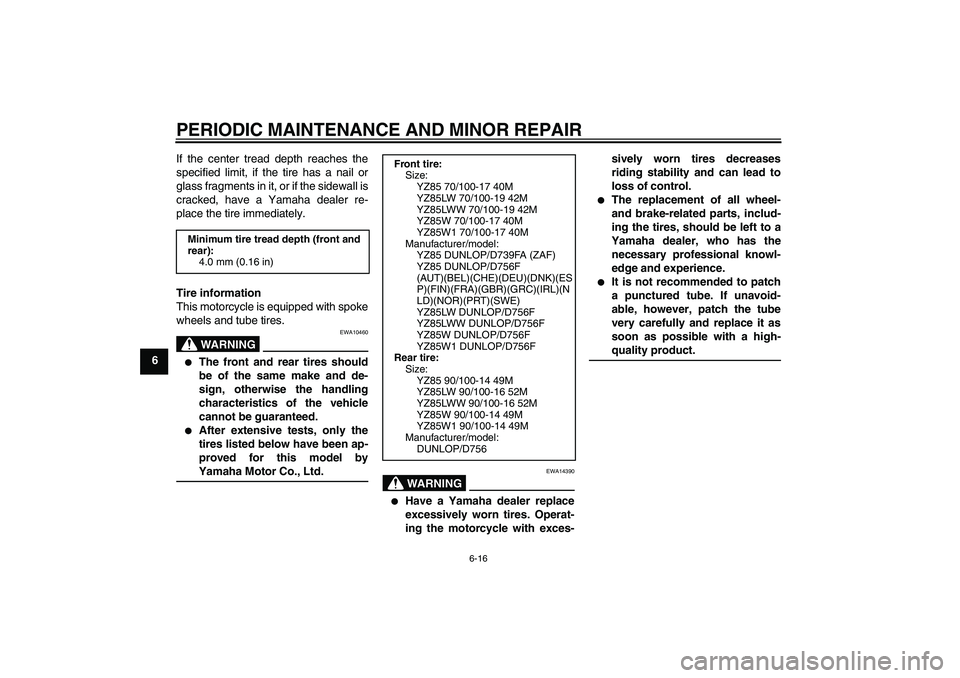

Tire information
This motorcycle is equipped with spoke
wheels and tube tires.
WARNING
EWA10460
The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the vehicle
cannot be guaranteed.
After extensive tests, only the
tires listed below have been ap-
proved for this model byYamaha Motor Co., Ltd.
WARNING
EWA14390
Have a Yamaha dealer replace
excessively worn tires. Operat-
ing the motorcycle with exces-sively worn tires decreases
riding stability and can lead to
loss of control.
The replacement of all wheel-
and brake-related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience.
It is not recommended to patch
a punctured tube. If unavoid-
able, however, patch the tube
very carefully and replace it as
soon as possible with a high-quality product.
Minimum tire tread depth (front and
rear):
4.0 mm (0.16 in)
Front tire:
Size:
YZ85 70/100-17 40M
YZ85LW 70/100-19 42M
YZ85LWW 70/100-19 42M
YZ85W 70/100-17 40M
YZ85W1 70/100-17 40M
Manufacturer/model:
YZ85 DUNLOP/D739FA (ZAF)
YZ85 DUNLOP/D756F
(AUT)(BEL)(CHE)(DEU)(DNK)(ES
P)(FIN)(FRA)(GBR)(GRC)(IRL)(N
LD)(NOR)(PRT)(SWE)
YZ85LW DUNLOP/D756F
YZ85LWW DUNLOP/D756F
YZ85W DUNLOP/D756F
YZ85W1 DUNLOP/D756F
Rear tire:
Size:
YZ85 90/100-14 49M
YZ85LW 90/100-16 52M
YZ85LWW 90/100-16 52M
YZ85W 90/100-14 49M
YZ85W1 90/100-14 49M
Manufacturer/model:
DUNLOP/D756
U5PA85E0.book Page 16 Thursday, April 13, 2006 3:06 PM
Page 59 of 82

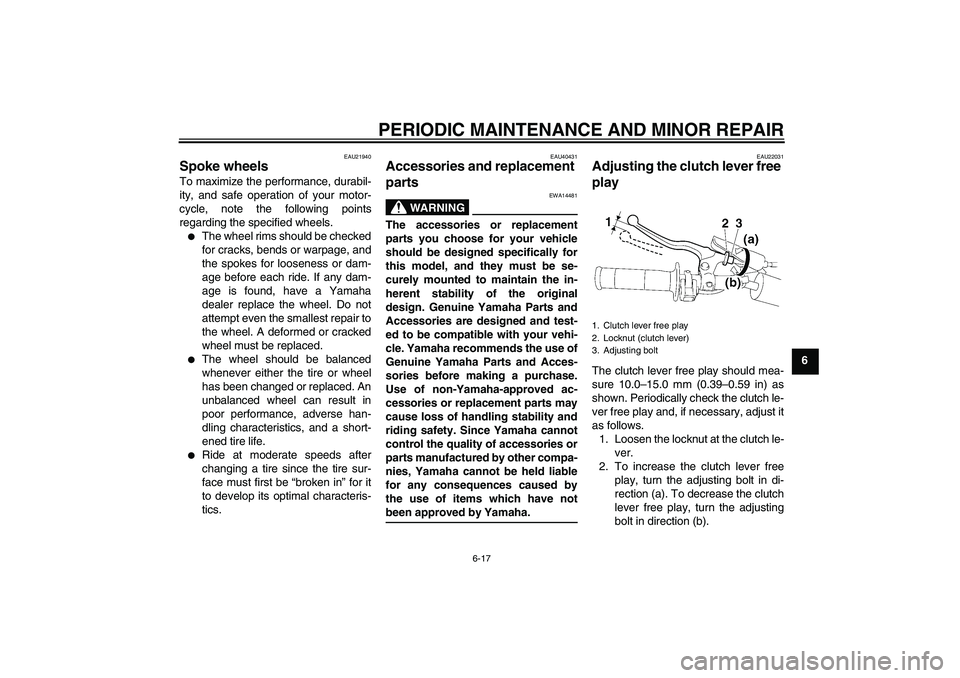

PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
EAU21940
Spoke wheels To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified wheels.
The wheel rims should be checked
for cracks, bends or warpage, and
the spokes for looseness or dam-
age before each ride. If any dam-
age is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
EAU40431
Accessories and replacement
parts
WARNING
EWA14481
The accessories or replacement
parts you choose for your vehicle
should be designed specifically for
this model, and they must be se-
curely mounted to maintain the in-
herent stability of the original
design. Genuine Yamaha Parts and
Accessories are designed and test-
ed to be compatible with your vehi-
cle. Yamaha recommends the use of
Genuine Yamaha Parts and Acces-
sories before making a purchase.
Use of non-Yamaha-approved ac-
cessories or replacement parts may
cause loss of handling stability and
riding safety. Since Yamaha cannot
control the quality of accessories or
parts manufactured by other compa-
nies, Yamaha cannot be held liable
for any consequences caused by
the use of items which have notbeen approved by Yamaha.
EAU22031
Adjusting the clutch lever free
play The clutch lever free play should mea-
sure 10.0–15.0 mm (0.39–0.59 in) as
shown. Periodically check the clutch le-
ver free play and, if necessary, adjust it
as follows.
1. Loosen the locknut at the clutch le-
ver.
2. To increase the clutch lever free
play, turn the adjusting bolt in di-
rection (a). To decrease the clutch
lever free play, turn the adjusting
bolt in direction (b).1. Clutch lever free play
2. Locknut (clutch lever)
3. Adjusting bolt
U5PA85E0.book Page 17 Thursday, April 13, 2006 3:06 PM
Page 60 of 82

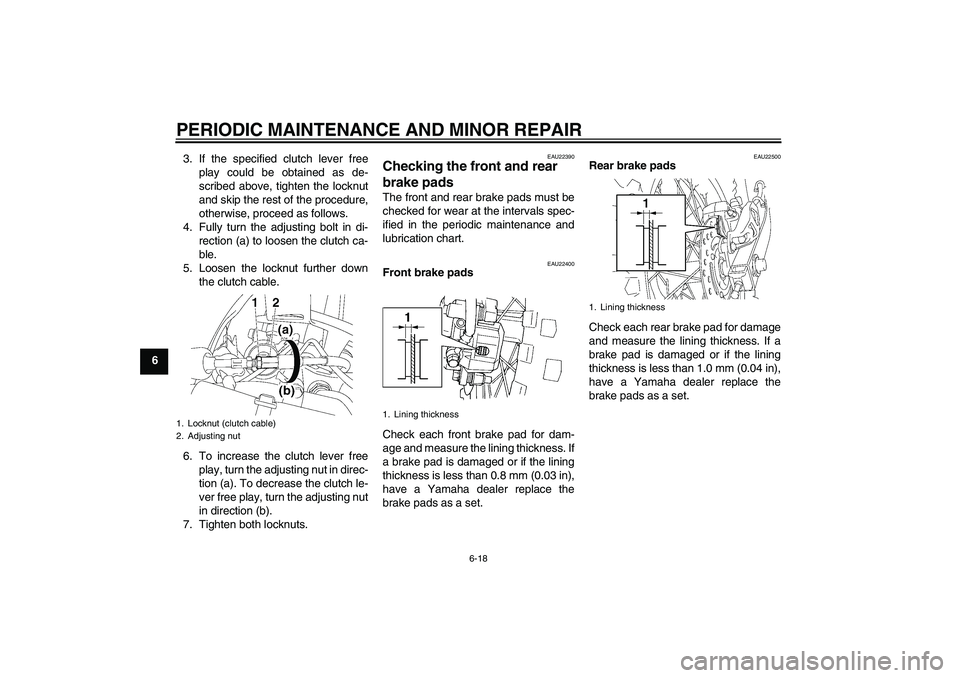

PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
63. If the specified clutch lever free
play could be obtained as de-
scribed above, tighten the locknut
and skip the rest of the procedure,
otherwise, proceed as follows.
4. Fully turn the adjusting bolt in di-
rection (a) to loosen the clutch ca-
ble.
5. Loosen the locknut further down
the clutch cable.
6. To increase the clutch lever free
play, turn the adjusting nut in direc-
tion (a). To decrease the clutch le-
ver free play, turn the adjusting nut
in direction (b).
7. Tighten both locknuts.
EAU22390
Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22400
Front brake pads
Check each front brake pad for dam-
age and measure the lining thickness. If
a brake pad is damaged or if the lining
thickness is less than 0.8 mm (0.03 in),
have a Yamaha dealer replace the
brake pads as a set.
EAU22500
Rear brake pads
Check each rear brake pad for damage
and measure the lining thickness. If a
brake pad is damaged or if the lining
thickness is less than 1.0 mm (0.04 in),
have a Yamaha dealer replace the
brake pads as a set.
1. Locknut (clutch cable)
2. Adjusting nut
1. Lining thickness
1. Lining thickness
U5PA85E0.book Page 18 Thursday, April 13, 2006 3:06 PM
