Periodic maintenance an d a djustment
7-24
7
EAU23115
Checkin g an d lu bricatin g the
throttle grip an d cab le
The operation of the throttle grip
should be checked before each ride. In
addition, the cable should be lubricat-
ed by a Yamaha dealer at the intervals
specified in the periodic maintenance
chart.
The throttle cable is equipped with a
rubber cover. Make sure that the cover
is securely installed. Even though the
cover is installed correctly, it does not
completely protect the cable from wa-
ter entry. Therefore, use care not to
pour water directly onto the cover or
cable when washing the vehicle. If the
cable or cover becomes dirty, wipe
clean with a moist cloth.
EAU23144
Checkin g an d lu bricatin g the
b rake an d clutch levers
The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
Brake lever
Clutch lever

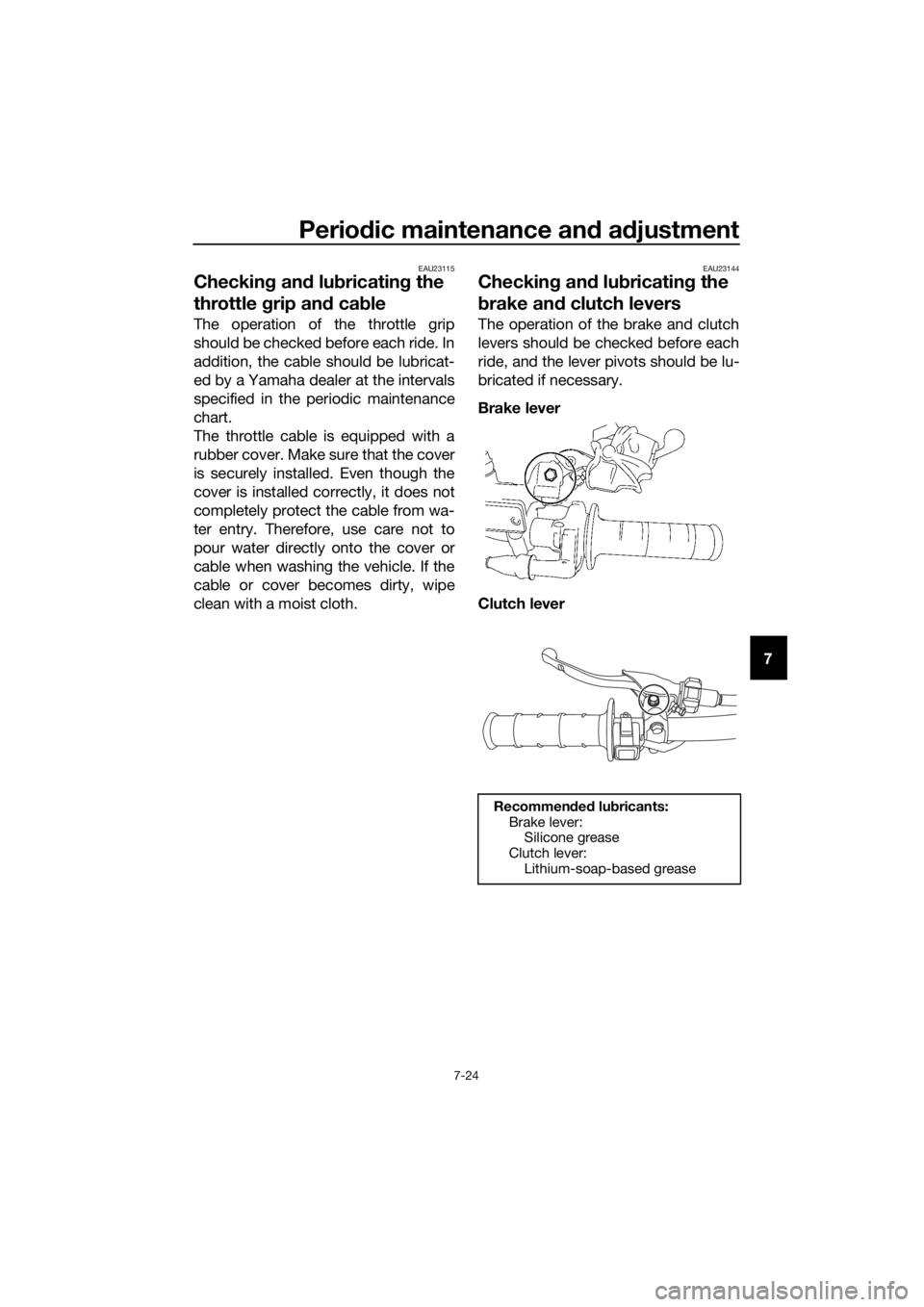

Recommen ded lu bricants:
Brake lever: Silicone grease
Clutch lever: Lithium-soap-based grease
UB4B80E0.book Page 24 Tuesday, March 27, 2018 1:39 PM

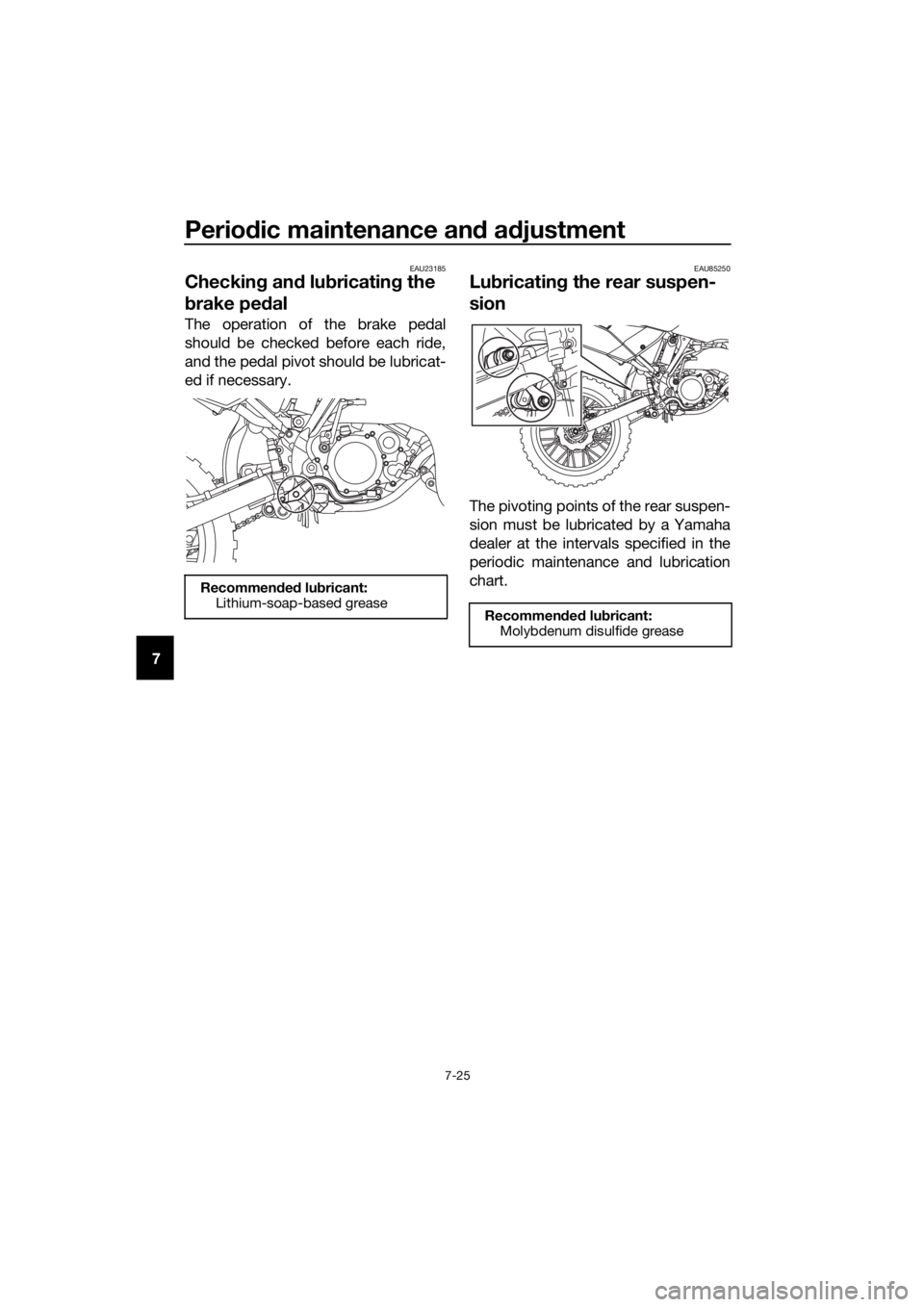

Periodic maintenance an d a djustment
7-25
7
EAU23185
Checkin g an d lu bricatin g the
b rake pe dal
The operation of the brake pedal
should be checked before each ride,
and the pedal pivot should be lubricat-
ed if necessary.
EAU85250
Lub ricatin g the rear suspen-
sion
The pivoting points of the rear suspen-
sion must be lubricated by a Yamaha
dealer at the intervals specified in the
periodic maintenance and lubrication
chart.
Recommen ded lu bricant:
Lithium-soap-based grease
Recommen ded lu bricant:
Molybdenum disulfide grease
UB4B80E0.book Page 25 Tuesday, March 27, 2018 1:39 PM

Periodic maintenance an d a djustment
7-26
7
EAUM2701
Lub ricatin g the swin garm piv-
ots
The swingarm pivots must be lubricat-
ed at the intervals specified in the peri-
odic maintenance and lubrication
chart.
EAU23273
Checkin g the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the periodic
maintenance and lubrication chart.
To check the con dition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation 1. Place the vehicle on a level surfa- ce and hold it in an upright posi-
tion. WARNING! To avoi d injury,
securely support the vehicle so
there is no dan ger of it fallin g
over.
[EWA10752]

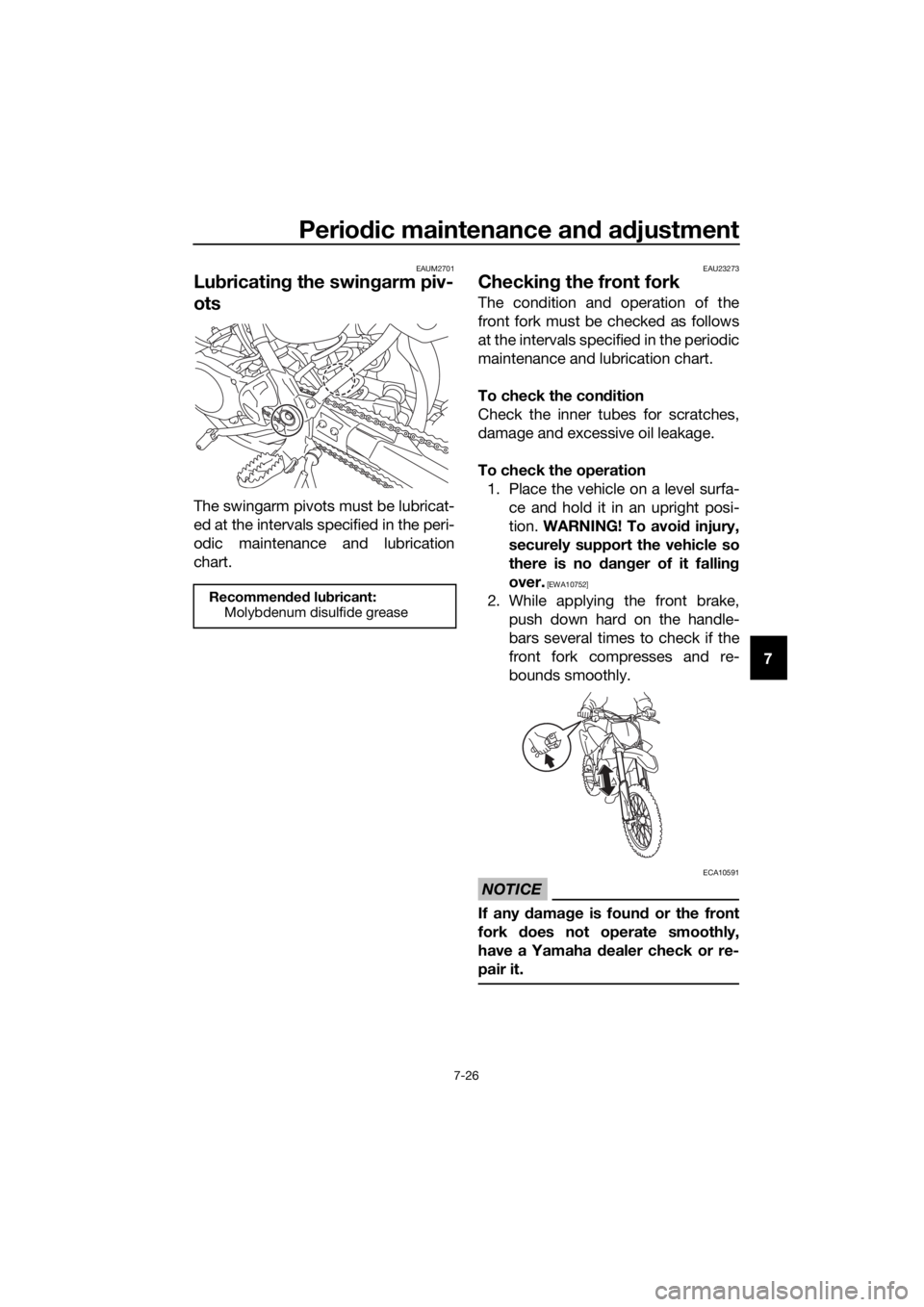

2. While applying the front brake, push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
NOTICE
ECA10591
If any damag e is foun d or the front
fork does not operate smoothly,
have a Yamaha d ealer check or re-
pair it.
Recommen ded lu bricant:
Molybdenum disulfide grease
UB4B80E0.book Page 26 Tuesday, March 27, 2018 1:39 PM

Periodic maintenance an d a djustment
7-27
7
EAU23285
Checkin g the steerin g
Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Raise the front wheel off the ground. (See page 7-28.)
WARNING! To avoi d injury, se-
curely support the vehicle so
there is no dan ger of it fallin g
over.
[EWA10752]
2. Hold the lower ends of the front fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steer-
ing.
EAU23292
Checkin g the wheel b earings
The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer
check the wheel bearings.
UB4B80E0.book Page 27 Tuesday, March 27, 2018 1:39 PM

Periodic maintenance an d a djustment
7-28
7
EAU75190
Supportin g the motorcycle
Since this model is not equipped with a
centerstand, use a maintenance stand
when removing the front or rear wheel,
adjusting the chain or washing the ve-
hicle, etc.
Check that the motorcycle is in a stable
and level position before starting any
maintenance.
TIP
If a suitable maintenance stand is not
available, a strong wooden box can be
used instead.
EAU24361
Front wheel
EAU56372
To remove the front wheel
WARNING
EWA10822
To avoi d injury, securely support the
vehicle so there is no dan ger of it
fallin g over.
1. Loosen the axle nut.
2. Place the motorcycle on a suitable
stand. (See page 7-28.)
3. Remove the axle nut and washer.

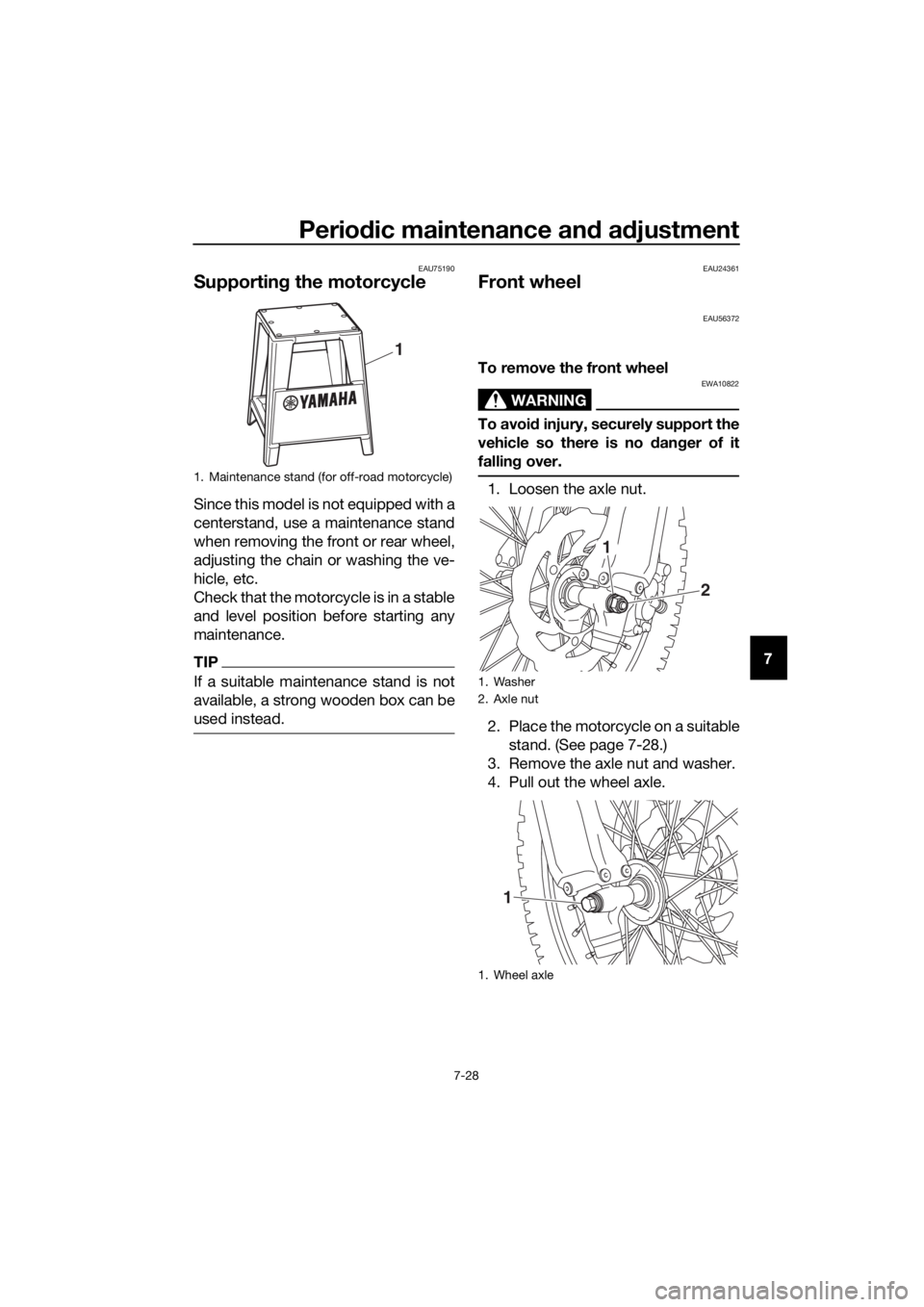

4. Pull out the wheel axle.1. Maintenance stand (for off-road motorcycle)
1
1. Washer
2. Axle nut
1. Wheel axle
2
1
1
UB4B80E0.book Page 28 Tuesday, March 27, 2018 1:39 PM

Periodic maintenance an d a djustment
7-29
7 5. Remove the wheel.
NOTICE: Do
not apply the b rake after the
wheel an d b rake disc have been
remove d, otherwise the brake
pa ds will be forced shut.
[ECA11073]
To install the front wheel
1. Make sure the brake pads have not been forced shut.
2. Lift up the wheel between the fork legs.
3. Insert the wheel axle from the right side.
4. Install the washer and axle nut.
5. Tighten the axle nut to the speci- fied torque.
EAU25081
Rear wheel
EAU84051
To remove the rear wheel
WARNING
EWA10822
To avoi d injury, securely support the
vehicle so there is no dan ger of it
fallin g over.
1. Loosen the axle nut.
2. Place the motorcycle on a suitable
stand. (See page 7-28.)
3. Loosen the locknut, and then turn the drive chain slack adjusting bolt
in direction (a). Repeat for the oth-
er side.
Tightenin g torque:
Axle nut: 70 N·m (7.0 kgf·m, 52 lb·ft)
1. Axle nut
2. Washer

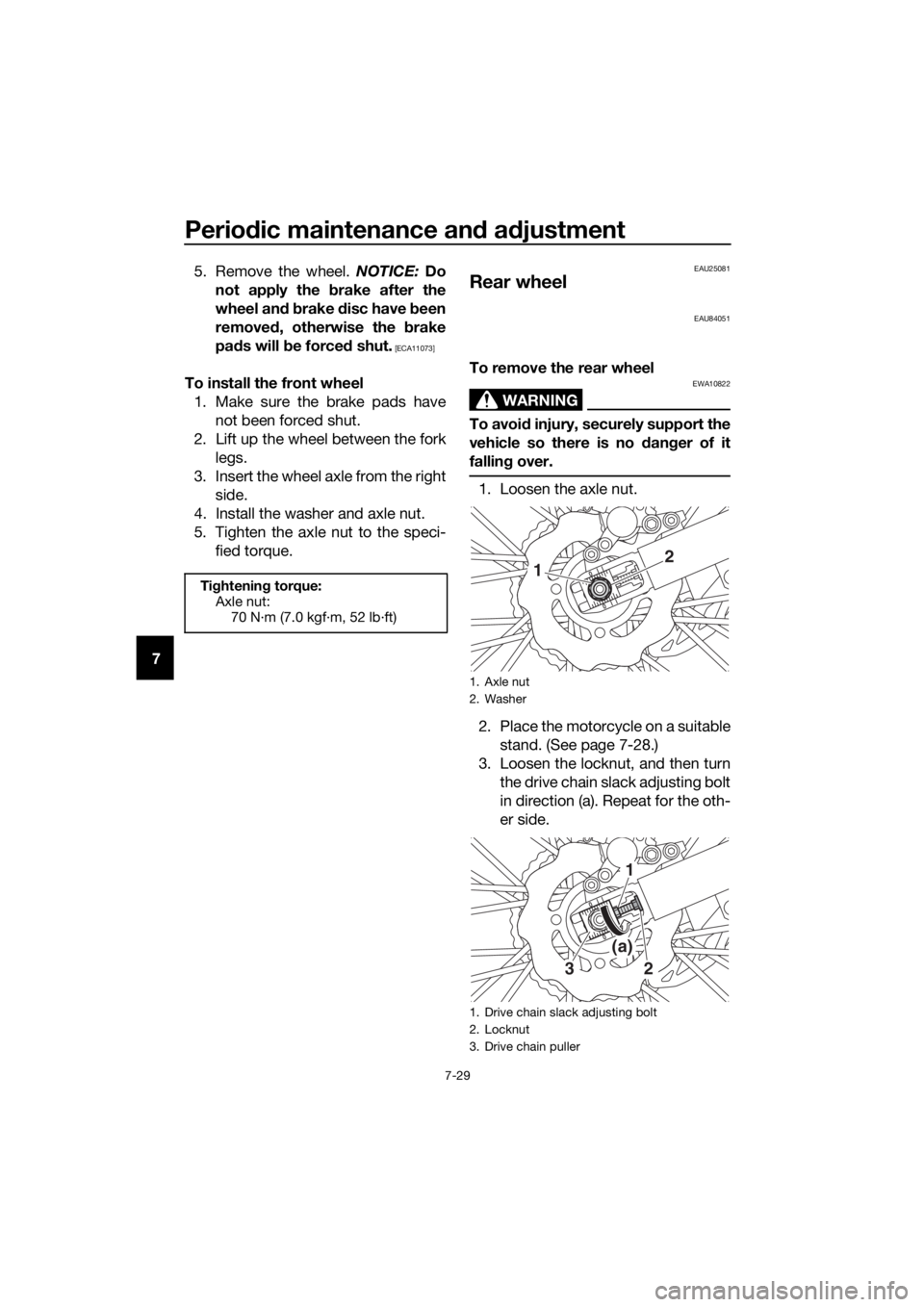

1. Drive chain slack adjusting bolt
2. Locknut
3. Drive chain puller
12
23
(a)1
UB4B80E0.book Page 29 Tuesday, March 27, 2018 1:39 PM

Periodic maintenance an d a djustment
7-30
7
4. Remove the axle nut and washer.
5. Push the wheel forward and re-
move the drive chain from the rear
sprocket.
6. While supporting the brake caliper bracket, pull out the wheel axle.
TIP
A rubber mallet may be useful to
tap the wheel axle out.
 The drive chain pullers may fall out
when removing the wheel axle.
7. Remove the wheel. NOTICE: Do
not apply the brake after the
wheel an d b rake disc have been
remove d, otherwise the brake
pa ds will b e forced shut.
[ECA11073]
TIP
If the drive chain is difficult to re-
move, remove the wheel axle first.
 For easy installation, rest the drive
chain on top of the swingarm.
To install the rear wheel
1. Make sure the brake pads have not been forced shut.
2. Install the wheel, the brake caliper bracket and drive chain pullers by
inserting the wheel axle from the
left side.
TIP
Make sure the slot in the brake caliper
bracket is fit over the retainer on the
swingarm.
3. Install the drive chain onto the rearsprocket.
4. Install the washer and axle nut.
5. Adjust the drive chain slack. (See page 7-21.)

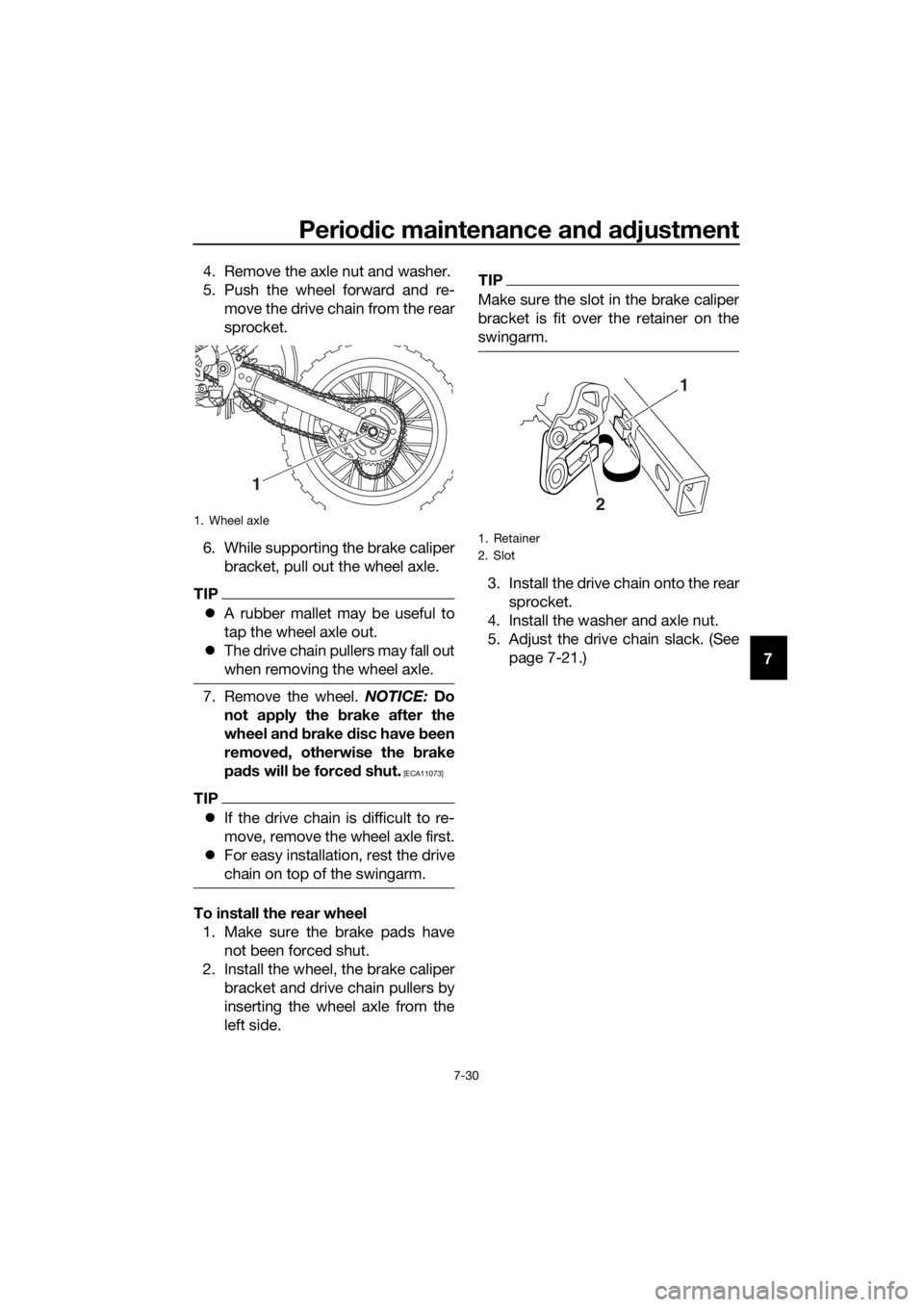

1. Wheel axle
1
1. Retainer
2. Slot
2 1
UB4B80E0.book Page 30 Tuesday, March 27, 2018 1:39 PM

Periodic maintenance an d a djustment
7-31
7
EAU25872
Trou bleshootin g
Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition systems,
for example, can cause poor starting
and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWA15142
When checkin g the fuel system, do
not smoke, an d make sure there are
no open flames or sparks in the ar-
ea, inclu din g pilot lig hts from water
heaters or furnaces. Gasoline or
g asoline vapors can i gnite or ex-
plod e, causin g severe injury or prop-
erty damag e.
UB4B80E0.book Page 31 Tuesday, March 27, 2018 1:39 PM

Periodic maintenance an d a djustment
7-32
7
EAU66360

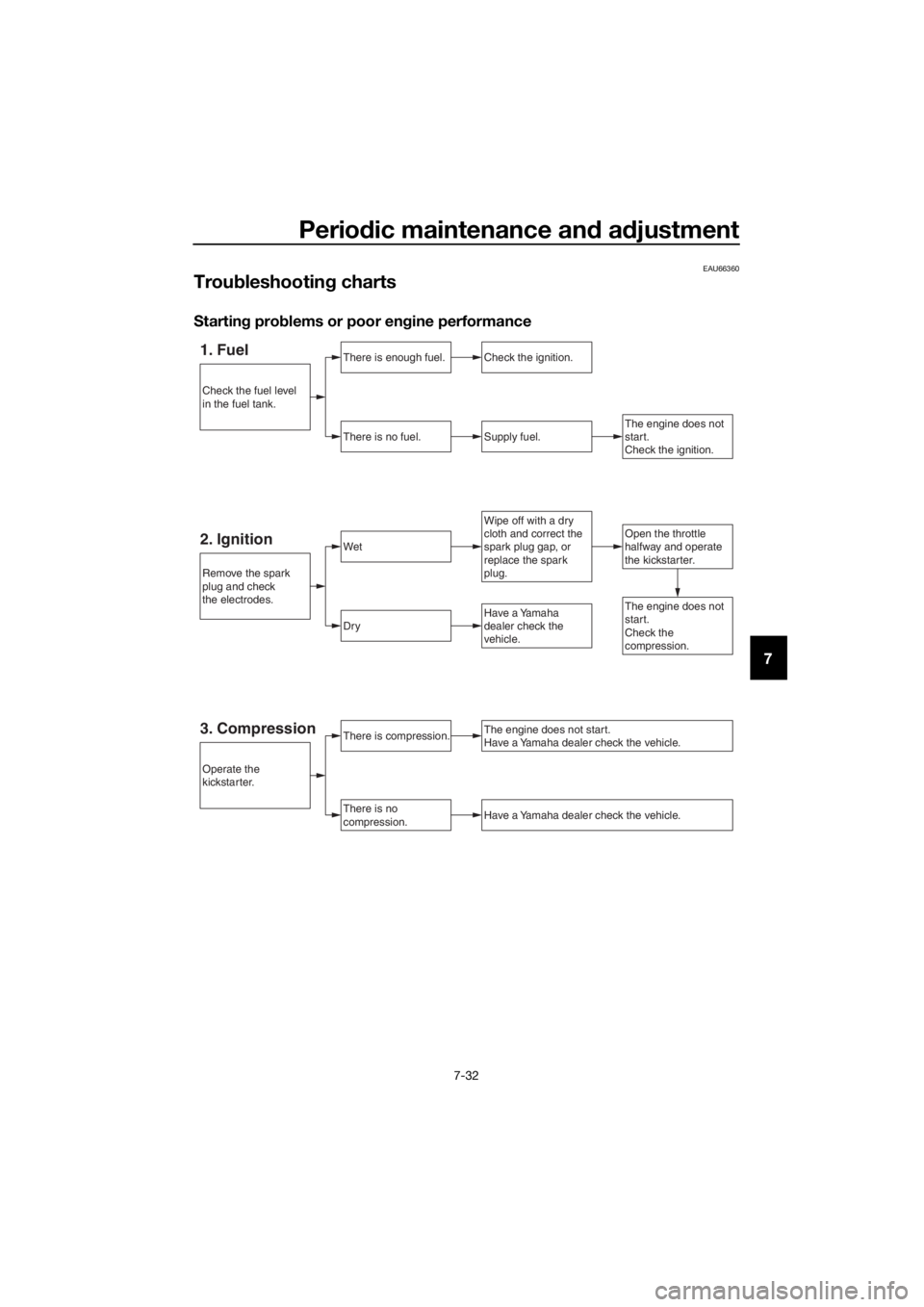

Trou bleshootin g charts
Startin g pro blems or poor en gine performance
1. FuelThere is enough fuel.
There is no fuel.
Check the ignition.
Supply fuel.The engine does not
start.
Check the ignition.
Open the throttle
halfw ay and operate
the kickstarter.Wipe off with a dry
cloth and correct the
spark plug gap, or
replace the spark
plug.
2. IgnitionW et
Dry
There is compression.
There is no
compression.
The engine does not start.
Ha ve a Yamaha dealer check the v ehicle.
Have a Yamaha dealer check the v ehicle.
The engine does not
start.
Check the
compression.Have a Yamaha
dealer check the
v ehicle.
Remo ve the spark
plug and check
the electrodes.
Operate the
kickstarter.
Check the fuel le vel
in the fuel tank.
3. Compression
UB4B80E0.book Page 32 Tuesday, March 27, 2018 1:39 PM

Periodic maintenance an d a djustment
7-33
7 En
gine overheatin g
WARNING
EWAT1041
Do not remove the ra diator cap when the en gine an d ra diator are hot.
Scal din g hot flui d an d steam may b e blown out un der pressure, which
coul d cause serious injury. Be sure to wait until the eng ine has cooled.
 Place a thick ra g, like a towel, over the ra diator cap, an d then slowly ro-
tate the cap counterclockwise to the detent to allow any resi dual pres-
sure to escape. When the hissin g soun d has stopped , press down on the
cap while turnin g it counterclockwise, an d then remove the cap.
TIP
If coolant is not available, tap water can be temporarily used instead, provided
that it is changed to the recommended coolant as soon as possible.
W ait until the engine
has cooled.
Add coolant.
(See TIP.)
The coolant le vel is
OK.
Check the coolant
le vel in the radiator.There is no leakage.
There is leakage.
The coolant le vel is
lo w.
Check the cooling
system for leakage.
Ha ve a Yamaha
dealer check and
repair the cooling
system.
Start the engine. If the engine o verheats again,
ha ve a Yamaha dealer check and repair the cooling
system.
UB4B80E0.book Page 33 Tuesday, March 27, 2018 1:39 PM
