Fuel tank breather hose
Before operating the motorcycle:
 Check the fuel tank breather hose
connection.
 Check the fuel tank breather hose
for cracks or damage, and replace
it if necessary.
 Make sure that the end of the fuel
tank breather hose is not blocked,
and clean it if necessary.
TIP
If the fuel tank breather hose falls out,
reinstall it on the fuel tank cap with the
arrow mark on the one-way valve
pointed downward as shown.
1. Fuel tank breather hose
2. One-way valve
2
1
UB4B81E0.book Page 6 Friday, March 1, 2019 2:54 PM

Instrument and control functions
4-7
4
EAU41281
Fuel cock
The fuel cock supplies fuel from the
tank to the carburetor while filtering it
also.
The fuel cock has two positions:
OFF
With the lever in this position, fuel will
not flow. Always return the lever to this
position when the engine is not run-
ning.
ON
With the lever in this position, fuel flows
to the carburetor. Normal riding is done
with the lever in this position.
EAU13641
Starter (choke) knob
Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the knob in direction (a) to turn
on the starter (choke).
Move the knob in direction (b) to turn
off the starter (choke).
1. Arrow mark positioned over “OFF”
1. Arrow mark positioned over “ON”
1
1
1. Starter (choke) knob
1
(b)
(a)
UB4B81E0.book Page 7 Friday, March 1, 2019 2:54 PM

Instrument and control functions
4-8
4
EAU13651
Kickstarter
To start the engine, fold out the kick-
starter lever, move it down lightly with
your foot until the gears engage, and
then push it down smoothly but force-
fully. This model is equipped with a pri-
mary kickstarter, allowing the engine to
be started in any gear if the clutch is
disengaged. However, shifting the
transmission into the neutral position
before starting is recommended.
EAU46283
Seat
To remove the seat
Remove the bolts, and then slide the
seat to the rear and pull upward.
To install the seat
1. Fit the slot in the seat onto the pro- jection on the fuel tank, and insert
the projection on the seat into the
seat holder as shown.
2. Place the seat in the original posi- tion, and then tighten the bolts.
TIP
Make sure that the seat is properly se-
cured before riding.
1. Kickstarter lever
1
1. Bolt
1. Slot
2. Projection
3. Seat holder
1
1
2
3
2
UB4B81E0.book Page 8 Friday, March 1, 2019 2:54 PM

Instrument and control functions
4-9
4
EAU84382

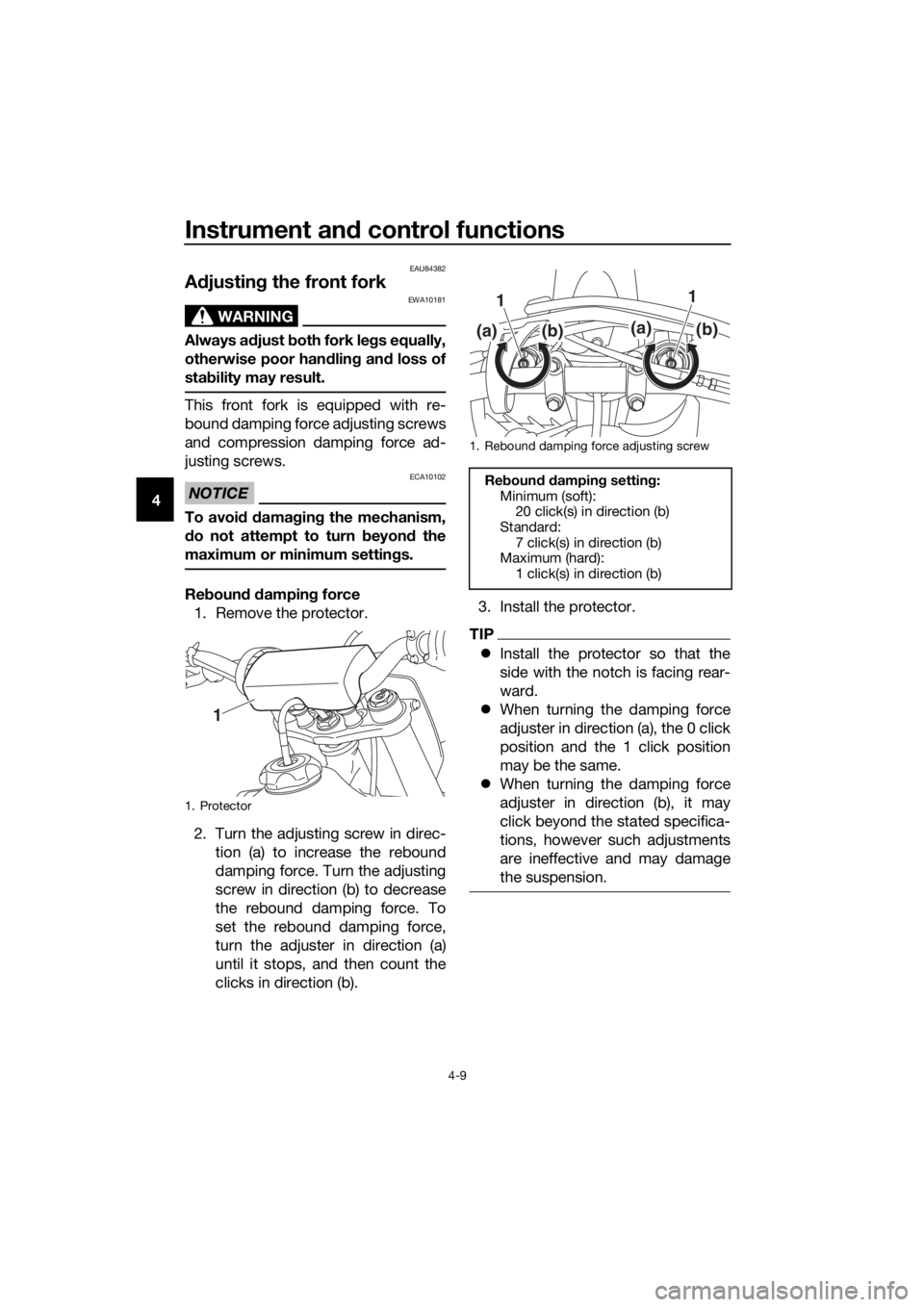

A djustin g the front fork
WARNING
EWA10181
Always a djust both fork le gs equally,
otherwise poor han dlin g an d loss of
sta bility may result.
This front fork is equipped with re-
bound damping force adjusting screws
and compression damping force ad-
justing screws.
NOTICE
ECA10102
To avoi d d amag ing the mechanism,
d o not attempt to turn b eyond the
maximum or minimum settin gs.
Re boun d d ampin g force
1. Remove the protector.
2. Turn the adjusting screw in direc- tion (a) to increase the rebound
damping force. Turn the adjusting
screw in direction (b) to decrease
the rebound damping force. To
set the rebound damping force,
turn the adjuster in direction (a)
until it stops, and then count the
clicks in direction (b). 3. Install the protector.
TIP

Install the protector so that the
side with the notch is facing rear-
ward.
 When turning the damping force
adjuster in direction (a), the 0 click
position and the 1 click position
may be the same.
 When turning the damping force
adjuster in direction (b), it may
click beyond the stated specifica-
tions, however such adjustments
are ineffective and may damage
the suspension.
1. Protector
1
1. Rebound damping force adjusting screw
Reboun d d ampin g settin g:
Minimum (soft): 20 click(s) in direction (b)
Standard: 7 click(s) in direction (b)
Maximum (hard):
1 click(s) in direction (b)
1 1
(a)
(b)(a)(b)
UB4B81E0.book Page 9 Friday, March 1, 2019 2:54 PM

Instrument and control functions
4-10
4

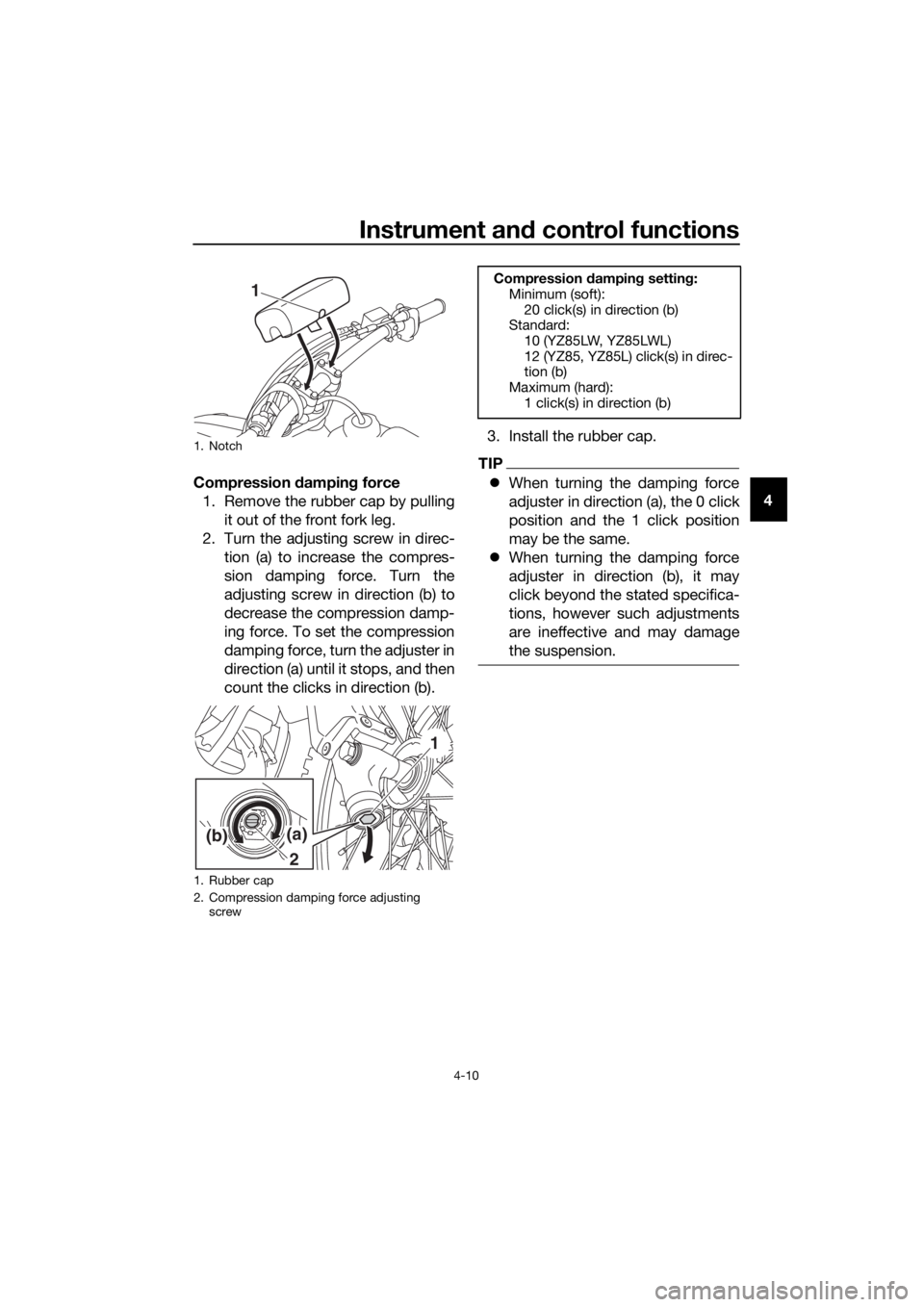

Compression
dampin g force
1. Remove the rubber cap by pulling it out of the front fork leg.
2. Turn the adjusting screw in direc- tion (a) to increase the compres-
sion damping force. Turn the
adjusting screw in direction (b) to
decrease the compression damp-
ing force. To set the compression
damping force, turn the adjuster in
direction (a) until it stops, and then
count the clicks in direction (b). 3. Install the rubber cap.
TIP

When turning the damping force
adjuster in direction (a), the 0 click
position and the 1 click position
may be the same.
 When turning the damping force
adjuster in direction (b), it may
click beyond the stated specifica-
tions, however such adjustments
are ineffective and may damage
the suspension.
1. Notch
1. Rubber cap
2. Compression damping force adjusting
screw
1
2
1
(a)(b)
Compression dampin g settin g:
Minimum (soft): 20 click(s) in direction (b)
Standard:
10 (YZ85LW, YZ85LWL)
12 (YZ85, YZ85L) click(s) in direc-
tion (b)
Maximum (hard): 1 click(s) in direction (b)
UB4B81E0.book Page 10 Friday, March 1, 2019 2:54 PM

Instrument and control functions
4-11
4
EAU84390

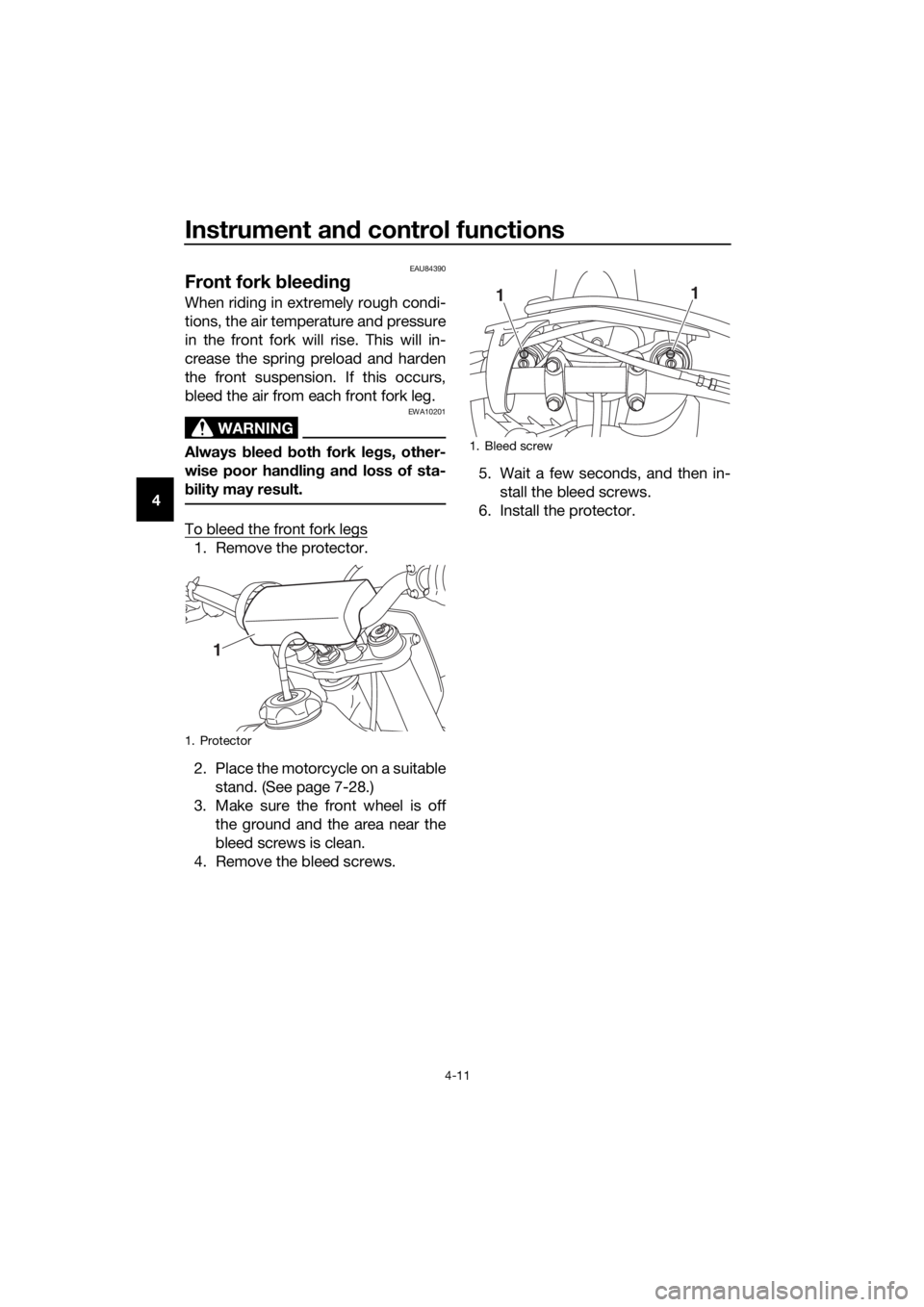

Front fork blee din g
When riding in extremely rough condi-
tions, the air temperature and pressure
in the front fork will rise. This will in-
crease the spring preload and harden
the front suspension. If this occurs,
bleed the air from each front fork leg.
WARNING
EWA10201
Always blee d b oth fork le gs, other-
wise poor han dlin g an d loss of sta-
b ility may result.
To bleed the front fork legs
1. Remove the protector.
2. Place the motorcycle on a suitable
stand. (See page 7-28.)
3. Make sure the front wheel is off the ground and the area near the
bleed screws is clean.
4. Remove the bleed screws. 5. Wait a few seconds, and then in-
stall the bleed screws.
6. Install the protector.
1. Protector
1
1. Bleed screw
1 1
UB4B81E0.book Page 11 Friday, March 1, 2019 2:54 PM

Instrument and control functions
4-12
4
EAU41339
A djustin g the shock a bsor ber
assem bly
This shock absorber assembly is
equipped with a spring preload adjust-
ing nut, a rebound damping force ad-
justing screw and a compression
damping force adjusting screw.
NOTICE
ECA10102
To avoi d d amag ing the mechanism,
d o not attempt to turn beyon d the
maximum or minimum settin gs.
Sprin g preloa d
Adjust the spring preload as follows. 1. Remove the seat. (See page 4-8.)
2. Remove the bolt, and then take the left side panel off.
3. Loosen the clamp bolt and clamp screw, and then remove the air fil-
ter joint. 4. Loosen the locknut.
5. Turn the adjusting nut in direction
(a) to increase the spring preload.
Turn the adjusting nut in direction
(b) to decrease the spring preload.
 A special wrench can be ob-
tained at a Yamaha dealer to
make this adjustment.
 The spring preload setting is
determined by measuring
distance A, shown in the illus-
tration. The longer distance A
is, the lower the spring pre-
load; the shorter distance A
is, the higher the spring pre-
load. With each complete
1. Bolt
2. Left side panel
1
2
1. Clamp bolt
2. Clamp screw
3. Air filter joint
1. Locknut
2. Spring preload adjusting nut
1 2
3
1 2
(a)
(b)
UB4B81E0.book Page 12 Friday, March 1, 2019 2:54 PM

Instrument and control functions
4-13
4 turn of the adjusting nut, dis-
tance A is changed by 1.5
mm (0.06 in).
6. Tighten the locknut to the speci- fied torque. NOTICE: Always
ti g hten the locknut ag ainst the
a d justin g nut, and then tighten
the locknut to the specified
torque.
[ECA10122]
7. Install the air filter joint in its origi- nal position, and then tighten the
clamp screw and clamp bolt.
TIP
Align the projection on the air filter joint
with the projection on the frame guide.
8. Place the left side panel in its orig-inal position, and then install the
bolt.
9. Install the seat.

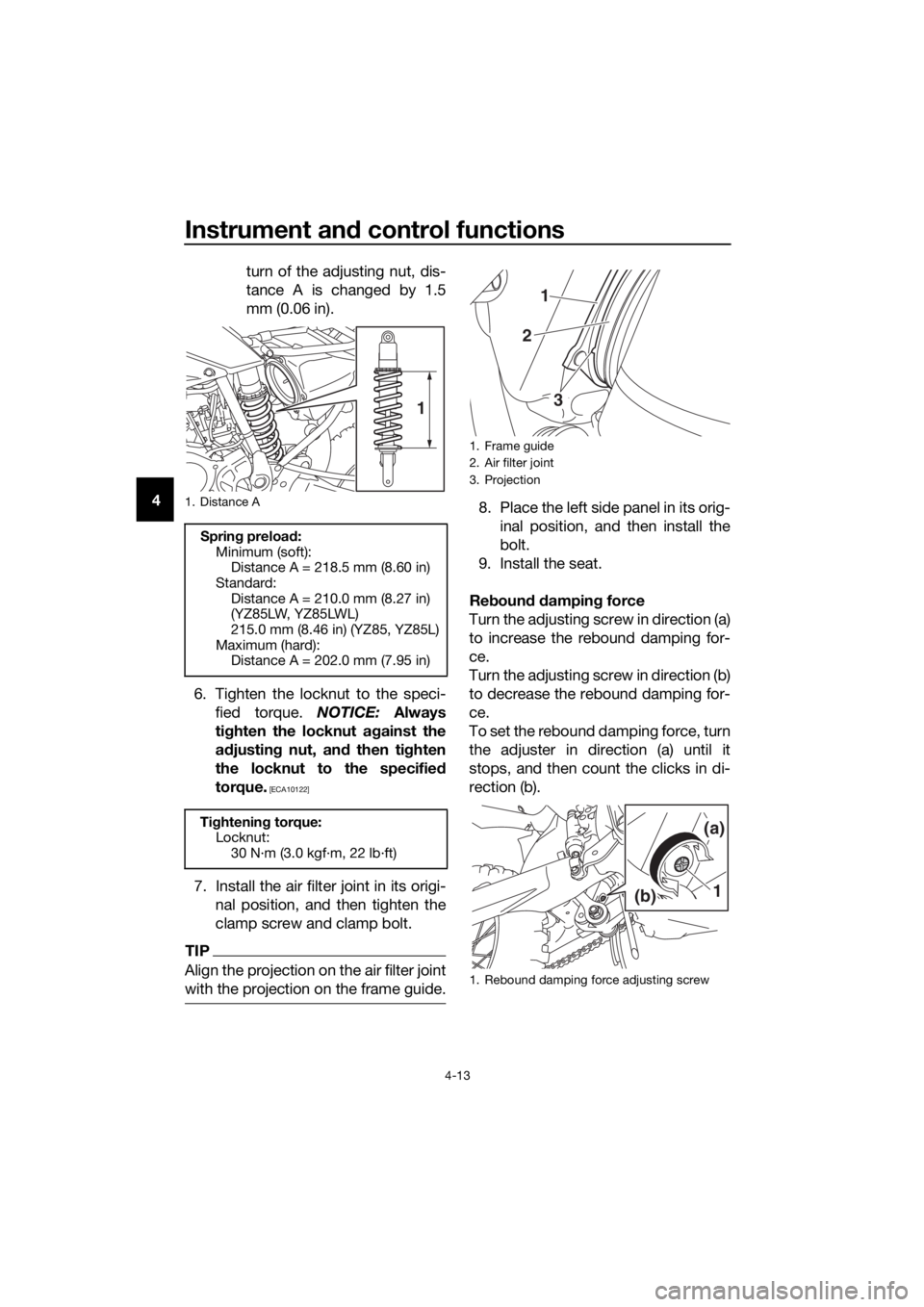

Re boun d d ampin g force
Turn the adjusting screw in direction (a)
to increase the rebound damping for-
ce.
Turn the adjusting screw in direction (b)
to decrease the rebound damping for-
ce.
To set the rebound damping force, turn
the adjuster in direction (a) until it
stops, and then count the clicks in di-
rection (b).1. Distance A
Sprin g preloa d:
Minimum (soft): Distance A = 218.5 mm (8.60 in)
Standard: Distance A = 210.0 mm (8.27 in)
(YZ85LW, YZ85LWL)
215.0 mm (8.46 in) (YZ85, YZ85L)
Maximum (hard): Distance A = 202.0 mm (7.95 in)
Ti ghtenin g torque:
Locknut:
30 N·m (3.0 kgf·m, 22 lb·ft)
1
1. Frame guide
2. Air filter joint
3. Projection
1. Rebound damping force adjusting screw
1
3
2
1
(a)
(b)
UB4B81E0.book Page 13 Friday, March 1, 2019 2:54 PM

Instrument and control functions
4-14
4
TIP
 When turning the damping force
adjuster in direction (a), the 0 click
position and the 1 click position
may be the same.
 When turning the damping force
adjuster in direction (b), it may
click beyond the stated specifica-
tions, however such adjustments
are ineffective and may damage
the suspension.

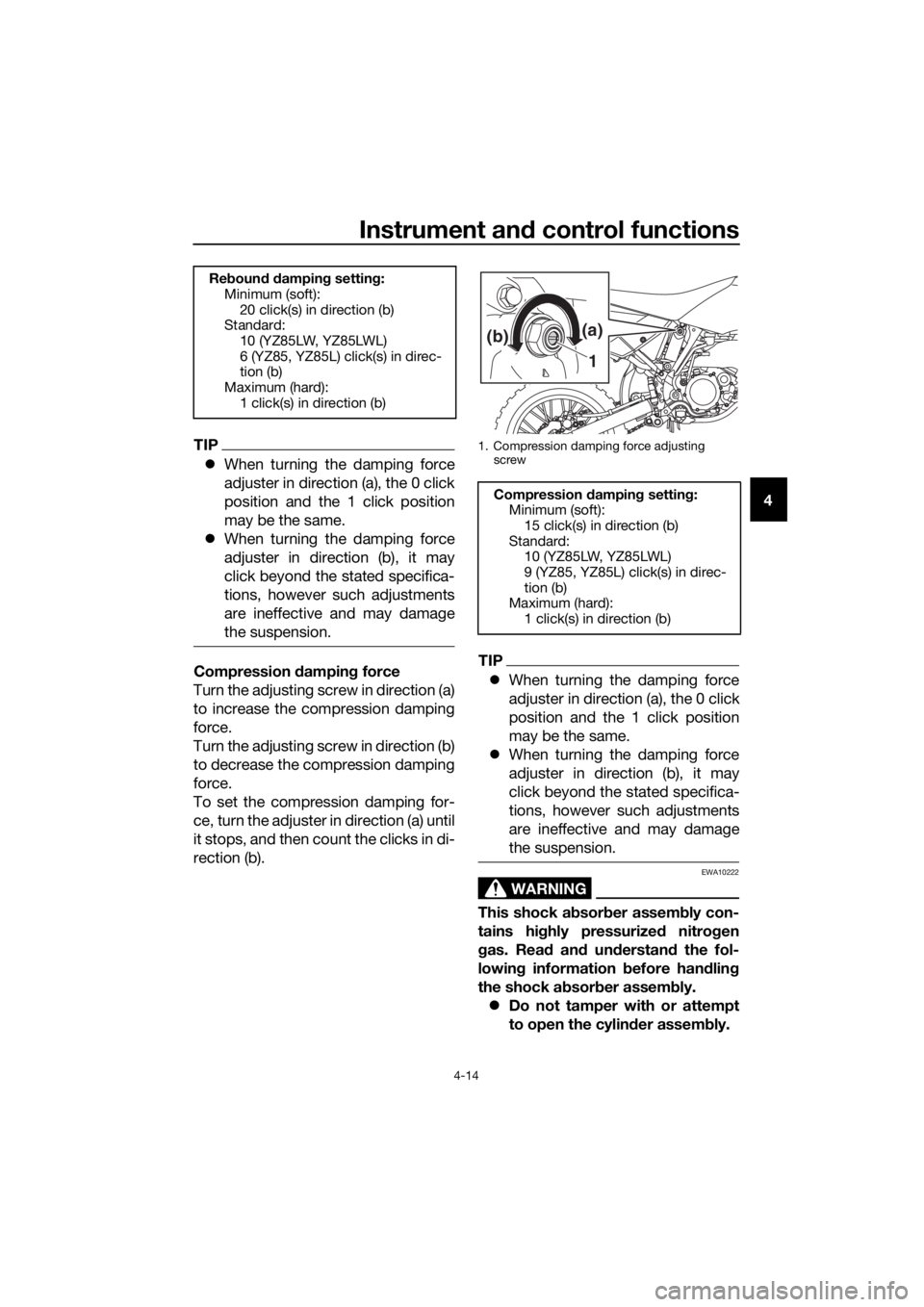

Compression dampin g force
Turn the adjusting screw in direction (a)
to increase the compression damping
force.
Turn the adjusting screw in direction (b)
to decrease the compression damping
force.
To set the compression damping for-
ce, turn the adjuster in direction (a) until
it stops, and then count the clicks in di-
rection (b).TIP
 When turning the damping force
adjuster in direction (a), the 0 click
position and the 1 click position
may be the same.
 When turning the damping force
adjuster in direction (b), it may
click beyond the stated specifica-
tions, however such adjustments
are ineffective and may damage
the suspension.
WARNING
EWA10222
This shock ab sorber assem bly con-
tains hig hly pressurize d nitro gen
g as. Rea d an d un derstan d the fol-
lowin g information before han dlin g
the shock a bsor ber assem bly.
 Do not tamper with or attempt
to open the cylind er assembly.
Re boun d d ampin g settin g:
Minimum (soft): 20 click(s) in direction (b)
Standard:
10 (YZ85LW, YZ85LWL)
6 (YZ85, YZ85L) click(s) in direc-
tion (b)
Maximum (hard): 1 click(s) in direction (b)
1. Compression damping force adjusting
screw
Compression dampin g settin g:
Minimum (soft): 15 click(s) in direction (b)
Standard: 10 (YZ85LW, YZ85LWL)
9 (YZ85, YZ85L) click(s) in direc-
tion (b)
Maximum (hard): 1 click(s) in direction (b)
(b)(a)
1
UB4B81E0.book Page 14 Friday, March 1, 2019 2:54 PM

Instrument and control functions
4-15
4 
Do not su bject the shock a b-
sor ber assem bly to an open
flame or other hi gh heat source.
This may cause the unit to ex-
plo de due to excessive g as
pressure.
 Do not deform or damag e the
cylin der in any way. Cylin der
d amag e will result in poor
d ampin g performance.
 Do not dispose of a damag ed or
worn-out shock a bsor ber as-
sem bly yourself. Take the shock
a b sor ber assem bly to a Yamaha
d ealer for any service.
EAU41382
Remova ble si destan d
This motorcycle is equipped with a re-
movable sidestand.
TIP
Make sure that the sidestand is proper-
ly secured when the motorcycle is be-
ing supported or is being transported.
WARNING
EWA14602
Never apply force on the motor-
cycle while it is on the si de-
stan d.
 Always remove the si destan d
b efore startin g out.
1. Sidestand
1
UB4B81E0.book Page 15 Friday, March 1, 2019 2:54 PM
