DESCRIPTION
2-2
2
Right view13. Luggage strap holders (page 3-23)
14. Helmet holders (page 3-18)
15. Main fuse (page 6-35)
16. Electronic fuel injection fuse (page 6-35)
17. Battery (page 6-33)
18. Rear brake fluid reservoir (page 6-26)19. Air filter element (page 6-16)
20. Radiator cap (page 6-13)
21. Coolant reservoir (page 6-12)
22. Engine oil level check window (page 6-9)
23. Engine oil filler cap (page 6-9)
U5PWE0.book Page 2 Friday, December 7, 2001 5:14 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU04492
(Parking)
The steering is locked, and the taillight,
license plate light and auxiliary lights
are on, but all other electrical systems
are off. The key can be removed.
The steering must be locked before the
key can be turned to “”.
ECA00043
CAUTION:_ Do not use the parking position for
an extended length of time, other-
wise the battery may discharge. _
EAU03034
Indicator and warning lights
EAU04121
Turn signal indicator lights “”
and “”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU04303
Fuel level warning light “”
This warning light comes on when the
fuel level drops below approximately
3.3 L. When this occurs, refuel as soon
as possible.
The electrical circuit of the warning light
can be checked according to the fol-
lowing procedure.
1. Turn the key to “ON”.
2. If the warning light does not come
on for a few seconds, then go off,
have a Yamaha dealer check the
electrical circuit.
1. Right turn signal indicator light “”
2. Fuel level warning light “”
3. Oil level warning light “”
4. Neutral indicator light “”
5. Engine trouble warning light “”
6. High beam indicator light “”
7. Left turn signal indicator light “”
U5PWE0.book Page 2 Friday, December 7, 2001 5:14 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU04301
Oil level warning light “”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked according to the fol-
lowing procedure.
1. Turn the key to “ON”.
2. If the warning light does not come
on for a few seconds, then go off,
have a Yamaha dealer check the
electrical circuit.
NOTE:_ Even if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-
function. _
EAU00061
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU04514
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring
the engine is defective. When this oc-
curs, have a Yamaha dealer check the
self-diagnosis system.NOTE:_ This warning light comes on for a few
seconds, then goes off when the key is
turned to “ON”, but this does not indi-
cate a malfunction. _
EAU00063
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
1. Right turn signal indicator light “”
2. Fuel level warning light “”
3. Oil level warning light “”
4. Neutral indicator light “”
5. Engine trouble warning light “”
6. High beam indicator light “”
7. Left turn signal indicator light “”U5PWE0.book Page 3 Friday, December 7, 2001 5:14 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU04559
Engine speed indicator light
The electrical circuit of the indicator
light can be checked according to the
following procedure.
1. Turn the key to “ON”.
2. If the indicator light does not come
on for a few seconds, then go off,
have a Yamaha dealer check the
electrical circuit. (See pages 3-8–
3-10 for a detailed explanation of
the function of this indicator light
and on how to set it.)
EAU04515
Coolant temperature warning light
“”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
the engine to cool.
The electrical circuit of the warning light
can be checked according to the fol-
lowing procedure.
1. Turn the key to “ON”.
2. If the warning light does not come
on for a few seconds, then go off,
have a Yamaha dealer check the
electrical circuit.
EC000002
CAUTION:_ Do not operate the engine if it is
overheated. _
1. Engine speed indicator light
2. Coolant temperature warning light “”
3. Coolant temperature display
U5PWE0.book Page 4 Friday, December 7, 2001 5:14 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second. If you do not reset the fuel
reserve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km.
Clock mode
Turn the key to “ON”.
To change the display to the clock
mode, push the “SELECT” button for at
least one second.
To change the display back to the prior
mode, push the “SELECT” button.
To set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set
the hours.3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.
Self-diagnosis device
This model is equipped with a self-di-
agnosis device for various electrical cir-
cuits.
If any of those circuits are defective,
the engine trouble warning light will
come on, and then the multi-function
display will indicate a two-digit error
code (e.g., 11, 12, 13).
If the multi-function display indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the motorcycle.
ECA00127
CAUTION:_ If the display indicates an error
code, the motorcycle should be
checked as soon as possible in or-
der to avoid engine damage. _
U5PWE0.book Page 7 Friday, December 7, 2001 5:14 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
EAU02955
Fuel tank breather hose Before operating the motorcycle:

Check the fuel tank breather hose
connection.


Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.


Make sure that the end of the fuel
tank breather hose is not blocked,
and clean it if necessary.
EAU03098*
Catalytic converter This motorcycle is equipped with a cat-
alytic converter in the muffler.
EW000128
WARNING
_ The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-
ing any maintenance work. _
EC000114
CAUTION:_ The following precautions must be
observed to prevent a fire hazard or
other damages.

Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.


Never park the motorcycle near
possible fire hazards such as
grass or other materials that
easily burn.


Do not allow the engine to idle
too long.
_

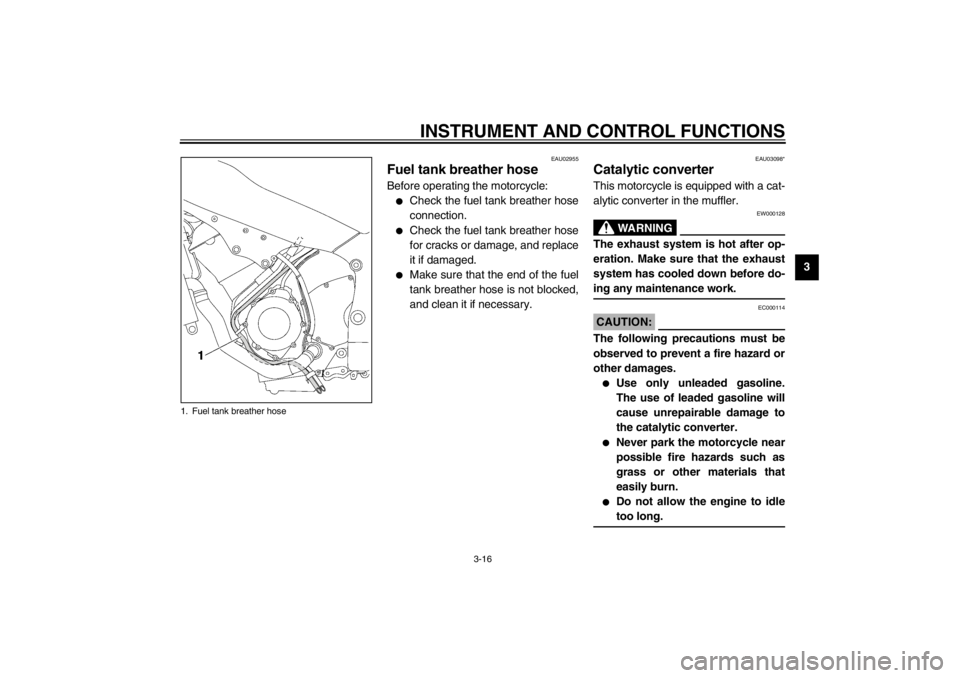

1. Fuel tank breather hose
U5PWE0.book Page 16 Friday, December 7, 2001 5:14 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-24
3
EAU01571
EXUP system This motorcycle is equipped with
Yamaha’s EXUP (EXhaust Ultimate
Power valve) system. This system
boosts engine power by means of a
valve that regulates the diameter of the
exhaust pipe. The EXUP system valve
is constantly adjusted in accordance
with the engine speed by a computer-
controlled servomotor.
EC000027
CAUTION:_

The EXUP system has been set
and extensively tested at the
Yamaha factory. Changing
these settings without sufficient
technical knowledge may result
in poor performance of or dam-
age to the engine.


If the EXUP system does not op-
erate, have a Yamaha dealer
check it.
_
EAU00330
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
motorcycle upright.NOTE:_ The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation of
the ignition circuit cut-off system.) _
EW000044
WARNING
_ The motorcycle must not be ridden
with the sidestand down, or if the
sidestand cannot be properly
moved up (or does not stay up), oth-
erwise the sidestand could contact
the ground and distract the opera-
tor, resulting in a possible loss of
control. Yamaha’s ignition circuit
cut-off system has been designed to
assist the operator in fulfilling the
responsibility of raising the side-
stand before starting off. Therefore,
check this system regularly as de-
scribed below and have a Yamaha
dealer repair it if it does not function
properly. _
U5PWE0.book Page 24 Friday, December 7, 2001 5:14 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-25
3
EAU03720
Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.

It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.


It prevents starting when the trans-
mission is in gear and the clutch
lever is pulled, but the sidestand is
still down.


It cuts the running engine when
the transmission is in gear and the
sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
EW000045
WARNING
_ If a malfunction is noted, have a
Yamaha dealer check the system
before riding. _U5PWE0.book Page 25 Friday, December 7, 2001 5:14 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-26
3
CD-01E
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “”.
3. Turn the key to “ON”.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
NO
NOTE:This check is most reliable if performed with
a warmed-up engine.
YESYES NO
The system is OK.
The motorcycle can be ridden.
YES NO
U5PWE0.book Page 26 Friday, December 7, 2001 5:14 PM

4-1
4
EAU01114
4-PRE-OPERATION CHECKSThe condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-
tion, to check the following points before each ride.
EAU03439
Pre-operation check list
CO-01E
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-15
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-9
CoolantCheck coolant level in reservoir.
If necessary, add recommended coolant to specified level.
Check cooling system for leakage.6-12–6-13
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-25–6-27
Rear brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-24–6-27
ClutchCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-23
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-19, 6-30
U5PWE0.book Page 1 Friday, December 7, 2001 5:14 PM
