PERIODIC MAINTENANCE AND MINOR REPAIR
6-38
6
EC000104
CAUTION:_ Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosi-
ty of the bulb, and the bulb life
will be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the head-
light lens.
Do not use a headlight bulb of
a wattage higher than speci-
fied.
_4. Install the headlight bulb cover,
and then connect the coupler.
5. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU03730
Tail/brake light This motorcycle is equipped with an
LED type of tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
U5PWE1.book Page 38 Monday, July 8, 2002 10:28 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-39
6
EAU03497
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.
ECA00065
CAUTION:_ Do not overtighten the screw, other-
wise the lens may break. _
EAU04574
Replacing the license plate
light bulb 1. Remove the license plate light unit
by removing the screws.
1. Screw
1. Screw (× 2)
U5PWE1.book Page 39 Monday, July 8, 2002 10:28 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-40
6 2. Remove the socket (together with
the bulb) by pulling it out.
3. Remove the defective bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
EAU01579
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other mainte-
nance requiring the motorcycle to
stand upright. Check that the motor-
cycle is in a stable and level position
before starting any maintenance. A
strong wooden box can be placed un-
der the engine for added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
1. License plate light bulb
2. License plate light unit
U5PWE1.book Page 40 Monday, July 8, 2002 10:28 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-41
6
EAU04532

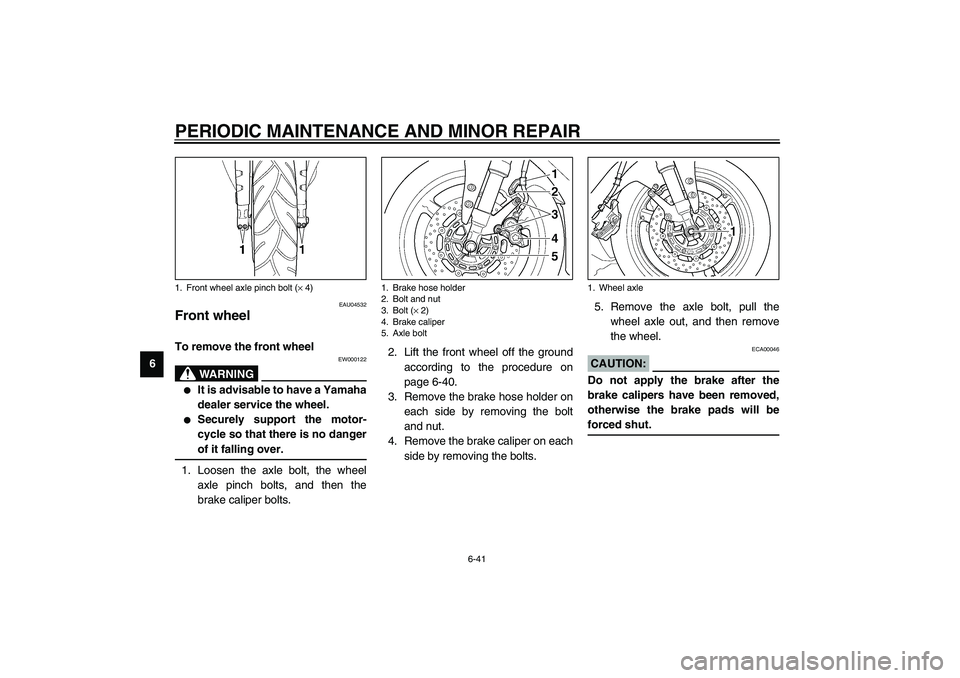

Front wheel To remove the front wheel
EW000122
WARNING
_

It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no danger
of it falling over.
_1. Loosen the axle bolt, the wheel
axle pinch bolts, and then the
brake caliper bolts.2. Lift the front wheel off the ground
according to the procedure on
page 6-40.
3. Remove the brake hose holder on
each side by removing the bolt
and nut.
4. Remove the brake caliper on each
side by removing the bolts.5. Remove the axle bolt, pull the
wheel axle out, and then remove
the wheel.
ECA00046
CAUTION:_ Do not apply the brake after the
brake calipers have been removed,
otherwise the brake pads will be
forced shut. _
1. Front wheel axle pinch bolt (× 4)
1. Brake hose holder
2. Bolt and nut
3. Bolt (× 2)
4. Brake caliper
5. Axle bolt
1. Wheel axle
U5PWE1.book Page 41 Monday, July 8, 2002 10:28 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-42
6
EAU04661
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle.
3. Lower the front wheel so that it is
on the ground.
4. Install the brake calipers by install-
ing the bolts, and then tightening
them to the specified torque.NOTE:_ Make sure that there is enough space
between the brake pads before install-
ing the brake calipers onto the brake
discs. _5. Install the brake hose holders by
installing the bolts and nuts.6. Secure the wheel axle by installing
the axle bolt, and then tightening it
to the specified torque.
NOTE:_ While tightening the axle bolt, hold the
wheel axle with a 19-mm hexagon
wrench to keep it from turning. _7. Tighten wheel axle pinch bolts A
and B to the specified torque.8. Tap the outer side of the right fork
leg with a rubber mallet to align it
with the end of the wheel axle.
9. Tighten wheel axle pinch bolts C
and D to the specified torque.
10. While applying the front brake,
push down hard on the handlebar
several times to check for proper
fork operation. Tightening torque:
Brake caliper bolt:
40 Nm (4.0 m·kgf)1. Front wheel axle pinch bolt A
2. Front wheel axle pinch bolt B
3. Front wheel axle pinch bolt C
4. Front wheel axle pinch bolt DTightening torque:
Axle bolt:
91 Nm (9.1 m·kgf)
Tightening torque:
Wheel axle pinch bolt:
18 Nm (1.8 m·kgf)
Tightening torque:
Wheel axle pinch bolt:
18 Nm (1.8 m·kgf)
U5PWE1.book Page 42 Monday, July 8, 2002 10:28 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-43
6
EAU04915

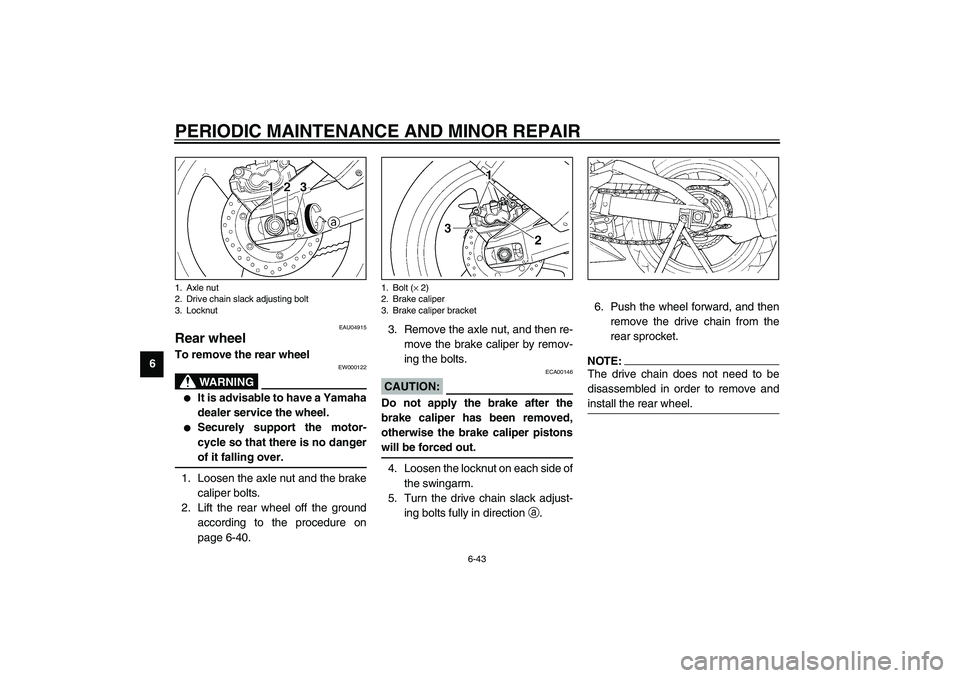

Rear wheel To remove the rear wheel
EW000122
WARNING
_

It is advisable to have a Yamaha
dealer service the wheel.


Securely support the motor-
cycle so that there is no danger
of it falling over.
_1. Loosen the axle nut and the brake
caliper bolts.
2. Lift the rear wheel off the ground
according to the procedure on
page 6-40.3. Remove the axle nut, and then re-
move the brake caliper by remov-
ing the bolts.
ECA00146
CAUTION:_ Do not apply the brake after the
brake caliper has been removed,
otherwise the brake caliper pistons
will be forced out. _4. Loosen the locknut on each side of
the swingarm.
5. Turn the drive chain slack adjust-
ing bolts fully in direction
a.6. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
NOTE:_ The drive chain does not need to be
disassembled in order to remove and
install the rear wheel. _
1. Axle nut
2. Drive chain slack adjusting bolt
3. Locknut
1. Bolt (× 2)
2. Brake caliper
3. Brake caliper bracket
U5PWE1.book Page 43 Monday, July 8, 2002 10:28 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-44
6 7. While supporting the brake caliper
bracket, pull the wheel axle out.
8. Remove the wheel.
EAU04921
To install the rear wheel
1. Install the wheel and the brake cal-
iper bracket by inserting the wheel
axle from the left-hand side.
2. Install the drive chain onto the rear
sprocket, and then adjust the drive
chain slack. (See page 6-29 for
drive chain slack adjustment pro-
cedures.)
3. Install the axle nut, and then lower
the rear wheel so that it is on the
ground.
4. Install the brake caliper by install-
ing the bolts.NOTE:_ Make sure that there is enough space
between the brake caliper pistons and
brake caliper pad before installing the
brake caliper. _5. Tighten the axle nut and the brake
caliper bolts to the specified
torques.
1. Wheel axle
Tightening torques:
Axle nut:
150 Nm (15.0 m·kgf)
Brake caliper bolt:
27 Nm (2.7 m·kgf)
U5PWE1.book Page 44 Monday, July 8, 2002 10:28 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-45
6
EAU03087
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills. U5PWE1.book Page 45 Monday, July 8, 2002 10:28 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-46
6
EAU02990
Troubleshooting charts Starting problems or poor engine performance
EW000125
WARNING
_ Keep away open flames and do not smoke while checking or working on the fuel system. _CT-1AE
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Open the throttle halfway and operate
the electric starter.
U5PWE1.book Page 46 Monday, July 8, 2002 10:28 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-47
6Engine overheating
EW000070
WARNING
_

Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.


After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hiss-
ing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
_CT-2AENOTE:_ If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant
as soon as possible. _
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See NOTE.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
