MOTORCYCLE CARE AND STORAGE
7
Care .................................................................................................. 7-1
Storage .............................................................................................. 7-4
U5PWE1.book Page 1 Monday, July 8, 2002 10:28 AM

7-1
7
EAU04525
7-MOTORCYCLE CARE AND STORAGECare While the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a
motorcycle. Frequent and proper care
does not only comply with the terms of
the warranty, but it will also keep your
motorcycle looking good, extend its life
and optimize its performance.Before cleaning
1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers
as well as all electrical couplers
and connectors, including the
spark plug caps, are tightly in-
stalled.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod-
ucts onto seals, gaskets, sprock-
ets, the drive chain and wheel
axles. Always rinse the dirt and
degreaser off with water.Cleaning
ECA00056
CAUTION:_

Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af-
fected area any longer than in-
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a
corrosion protection spray.


Improper cleaning can damage
windshields, cowlings, panels,
other plastic parts, and the muf-
fler. Use only a soft, clean cloth
or sponge with mild detergent
and water to clean plastic. How-
ever, if the muffler cannot be
thoroughly cleaned with mild
detergent, alkaline products
and a soft brush may be used.
U5PWE1.book Page 1 Monday, July 8, 2002 10:28 AM

MOTORCYCLE CARE AND STORAGE
7-2
7


Do not use any harsh chemical
products on plastic parts or the
muffler. Be sure to avoid using
cloths or sponges which have
been in contact with strong or
abrasive cleaning products, sol-
vent or thinner, fuel (gasoline),
rust removers or inhibitors,
brake fluid, antifreeze or elec-
trolyte.


Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
storage compartments, electric
components (couplers, connec-
tors, instruments, switches and
lights), breather hoses and
vents.


For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning
compounds for plastic may
leave scratches on the wind-
shield. Test the product on a
small hidden part of the wind-
shield to make sure that it does
not leave any marks. If the wind-
shield is scratched, use a quali-
ty plastic polishing compound
after washing.
_After normal useRemove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.After riding in the rain, near the sea or
on salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.NOTE:_ Salt sprayed on roads in the winter may
remain well into spring. _1. Clean the motorcycle with cold
water and a mild detergent, after
the engine has cooled down.
ECA00012
CAUTION:_ Do not use warm water since it in-
creases the corrosive action of the
salt. _2. After drying the motorcycle, apply
a corrosion protection spray on all
metal, including chrome- and nick-
el-plated, surfaces (except the tita-
nium muffler) to prevent corrosion.
U5PWE1.book Page 2 Monday, July 8, 2002 10:28 AM

MOTORCYCLE CARE AND STORAGE
7-3
7Cleaning the titanium muffler
This model is equipped with a titanium
muffler, which requires the following
special care.

Use only a soft, clean cloth or
sponge with mild detergent and
water to clean the titanium muffler.
However, if the muffler cannot be
thoroughly cleaned with mild de-
tergent, alkaline products and a
soft brush may be used.


Never use compounds or other
special treatments to clean the ti-
tanium muffler, as they will remove
the finish on the outer surface of
the muffler.


Even the smallest amounts of oil,
such as from oily towels or finger-
prints, will leave stains on the tita-
nium muffler, which can be
removed with a mild detergent.


Note that the thermally induced
discoloring of the portion of the ex-
haust pipe leading into the titani-
um muffler is normal and cannot
be removed.After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts.
4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely
before storing or covering it.
EWA00031
WARNING
_

Make sure that there is no oil or
wax on the brakes or tires.


If necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent. Before riding at higher
speeds, test the motorcycle’s
braking performance and cor-
nering behavior.
_
U5PWE1.book Page 3 Monday, July 8, 2002 10:28 AM

MOTORCYCLE CARE AND STORAGE
7-4
7

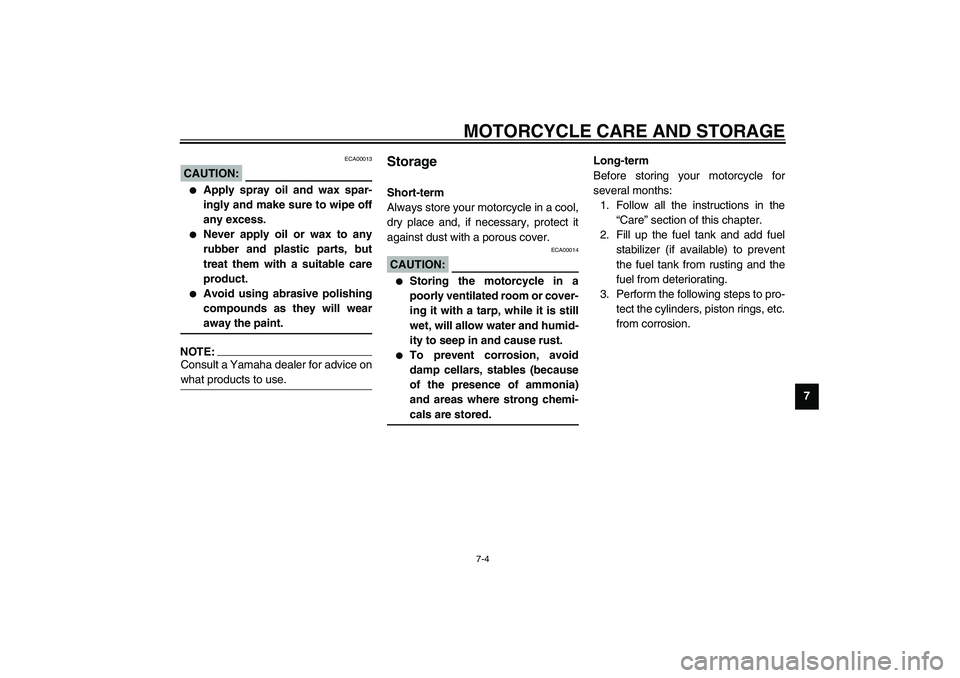

ECA00013
CAUTION:_

Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.


Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.


Avoid using abrasive polishing
compounds as they will wear
away the paint.
_NOTE:_ Consult a Yamaha dealer for advice on
what products to use. _
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
ECA00014
CAUTION:_

Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
_
Long-term
Before storing your motorcycle for
several months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
U5PWE1.book Page 4 Monday, July 8, 2002 10:28 AM

MOTORCYCLE CARE AND STORAGE
7-5
7a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine
oil into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
EWA00003
WARNING
_ To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turning
the engine over. _
4. Lubricate all control cables and
the pivoting points of all levers and
pedals as well as of the sidestand/
centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place (less
than 0 °C or more than 30 °C). For
more information on storing the
battery, see page 6-35.
NOTE:_ Make any necessary repairs before
storing the motorcycle. _
U5PWE1.book Page 5 Monday, July 8, 2002 10:28 AM

SPECIFICATIONS
8
Specifications .................................................................................... 8-1
Conversion table ............................................................................... 8-5
U5PWE1.book Page 1 Monday, July 8, 2002 10:28 AM

8-1
8
EAU01038
8-SPECIFICATIONSSpecifications CS-01E
Model YZF-R1
Dimensions
Overall length 2,040 mm
Overall width 705 mm
Overall height 1,105 mm
Seat height 820 mm
Wheelbase 1,395 mm
Ground clearance 140 mm
Minimum turning radius 3,900 mm
Basic weight (with oil and full
fuel tank)
193 kg
Engine
Engine type Liquid-cooled 4-stroke, DOHC
Cylinder arrangement Forward-inclined parallel
4-cylinder
Displacement 998 cm
3
Bore × stroke 74 × 58 mm
Compression ratio 11.8:1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG or
higher
Quantity
Without oil filter cartridge
replacement 2.9 L
With oil filter car tridge
replacement 3.1 L
Total amount (dry engine) 3.8 L
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
CAUTION:In order to prevent clutch slippage (since the engine oil also
lubricates the clutch), do not mix any chemical additives. Do
not use oils with a diesel specification of “CD” or oils of a
higher quality than specified. In addition, do not use oils la-
beled “ENERGY CONSERVING II” or higher.
U5PWE1.book Page 1 Monday, July 8, 2002 10:28 AM

SPECIFICATIONS
8-2
8
Cooling system capacity
(total amount)
2.45 L
Air filterOil-coated paper element
Fuel
Type PREMIUM UNLEADED
GASOLINE ONLY
Fuel tank capacity 17 L
Amount remaining when the fuel
level warning light comes on 3.3 L
Electronic fuel injection
ModelINP-731/4
Manufacturer NIPPON INJECTOR
Spark plug
Manufacturer/model NGK / CR9EIA 9 or
DENSO / IU27D
Gap 0.8–0.9 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 1.581
Secondary reduction system Chain drive
Secondary reduction ratio 2.688
Number of drive chain
sprocket teeth (front/rear) 16/43
Transmission type Constant-mesh 6-speed
Operation Left footGear ratio
1st 2.500
2nd 1.842
3rd 1.500
4th 1.333
5th 1.200
6th 1.115
Chassis
Frame type Diamond
Caster angle 24°
Trail 103 mm
Tires
Front
Model Tubeless tire
Size 120/70 ZR17 M/C (58W)
Manufacturer/
model Michelin / Pilot SPORT E
Dunlop / D208FL
Rear
Model Tubeless tire
Size 190/50 ZR17 M/C (73W)
Manufacturer/
model Michelin / Pilot SPORT
Dunlop / D208L
U5PWE1.book Page 2 Monday, July 8, 2002 10:28 AM

SPECIFICATIONS
8-3
8
Maximum load* 202 kg
Tire air pressure
(measured on cold tires)
Up to 90 kg*
Front 250 kPa (2.50 kgf/cm
2, 2.50 bar)
Rear 250 kPa (2.50 kgf/cm2, 2.50 bar)
90 kg–maximum*
Front 250 kPa (2.50 kgf/cm2, 2.50 bar)
Rear 290 kPa (2.90 kgf/cm2, 2.90 bar)
High-speed riding
Front 250 kPa (2.50 kgf/cm2, 2.50 bar)
Rear 250 kPa (2.50 kgf/cm2, 2.50 bar)
* Total weight of rider, passenger, cargo and accessories
Wheels
Front
Type Cast wheel
Size 17 M/C × MT 3.50
Rear
Type Cast wheel
Size 17 M/C × MT 6.00Brakes
Fr o n t
Type Dual disc brake
Operation Right hand
Fluid DOT 4
Rear
Type Single disc brake
Operation Right foot
Fluid DOT 4
Suspension
Front Telescopic fork
Rear Swingarm (link suspension)
Spring/shock absorber
Front Coil spring / oil damper
Rear Coil spring / gas-oil damper
Wheel travel
Front 120 mm
Rear 130 mm
Electrical system
Ignition system T.C.I. (digital)
Charging system
Type A.C. magneto
Standard output 14 V, 32 A@ 5,000 r/min
U5PWE1.book Page 3 Monday, July 8, 2002 10:28 AM
