YAMAHA YZF-R1 2011 Owners Manual

MOTORCYCLE CARE AND STORAGE
7-2
7 off any detergent residue using
plenty of water, as it is harmful
to plastic parts.


Do not use any harsh chemical
products on plastic parts or the
mufflers. Be sure to avoid using
cloths or sponges which have
been in contact with strong or
abrasive cleaning products, sol-
vent or thinner, fuel (gasoline),
rust removers or inhibitors,
brake fluid, antifreeze or electro-
lyte.


Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
storage compartments, electric
components (couplers, connec-
tors, instruments, switches and
lights), breather hoses and
vents.


For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.
After normal useRemove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.
TIPSalt sprayed on roads in the winter may
remain well into spring.1. Clean the motorcycle with cold wa-
ter and a mild detergent, after the
engine has cooled down.
NOTICE: Do not use warm water
since it increases the corrosive
action of the salt.
[ECA10791]
2. After drying the motorcycle, apply
a corrosion protection spray on all
metal, including chrome- and nick-
el-plated, surfaces (except the tita-
nium mufflers) to prevent
corrosion.
Cleaning the titanium mufflersThis model is equipped with titanium
mufflers, which require the following
special care.

Use only a soft, clean cloth or
sponge with mild detergent and
water to clean the titanium muf-
flers. However, if the mufflers can-
not be thoroughly cleaned with
mild detergent, alkaline products
and a soft brush may be used.
U14BE2E0.book Page 2 Friday, June 18, 2010 8:47 AM

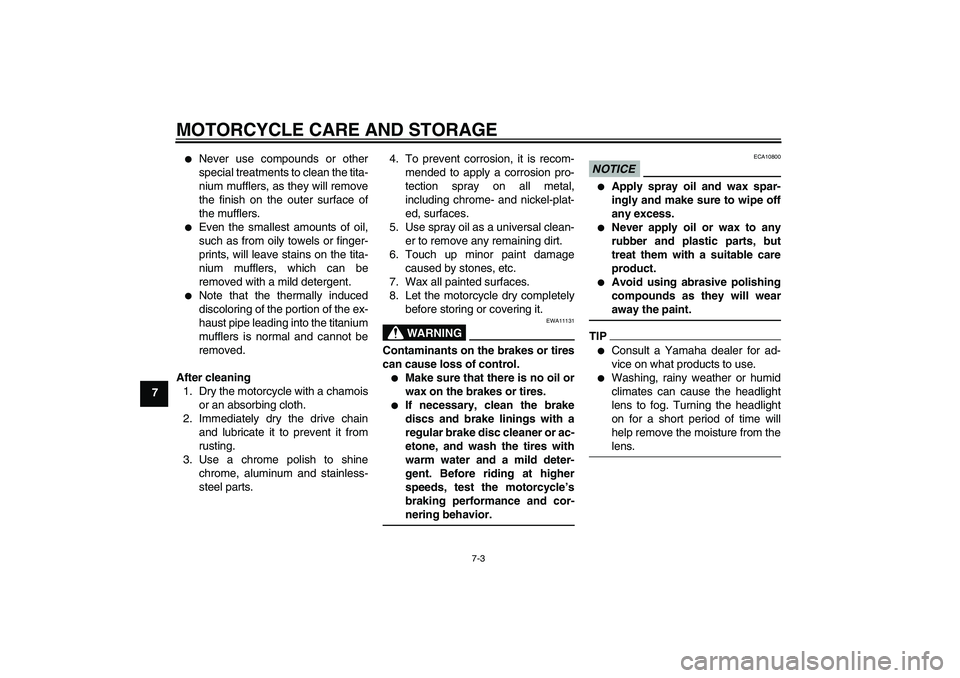

MOTORCYCLE CARE AND STORAGE
7-3
7


Never use compounds or other
special treatments to clean the tita-
nium mufflers, as they will remove
the finish on the outer surface of
the mufflers.


Even the smallest amounts of oil,
such as from oily towels or finger-
prints, will leave stains on the tita-
nium mufflers, which can be
removed with a mild detergent.


Note that the thermally induced
discoloring of the portion of the ex-
haust pipe leading into the titanium
mufflers is normal and cannot be
removed.
After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts.4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely
before storing or covering it.
WARNING
EWA11131
Contaminants on the brakes or tires
can cause loss of control.

Make sure that there is no oil or
wax on the brakes or tires.


If necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent. Before riding at higher
speeds, test the motorcycle’s
braking performance and cor-
nering behavior.
NOTICE
ECA10800


Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.


Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.


Avoid using abrasive polishing
compounds as they will wear
away the paint.
TIP

Consult a Yamaha dealer for ad-
vice on what products to use.


Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from the
lens.
U14BE2E0.book Page 3 Friday, June 18, 2010 8:47 AM

MOTORCYCLE CARE AND STORAGE
7-4
7
EAU26203
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust sys-
tem are cool before covering the motor-
cycle.NOTICE
ECA10810


Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
WARNING! To prevent dam-
age or injury from sparking,
make sure to ground the
spark plug electrodes while
turning the engine over.
[EWA10951]
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlets with plas-
tic bags to prevent moisture from
entering them.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-31.
U14BE2E0.book Page 4 Friday, June 18, 2010 8:47 AM

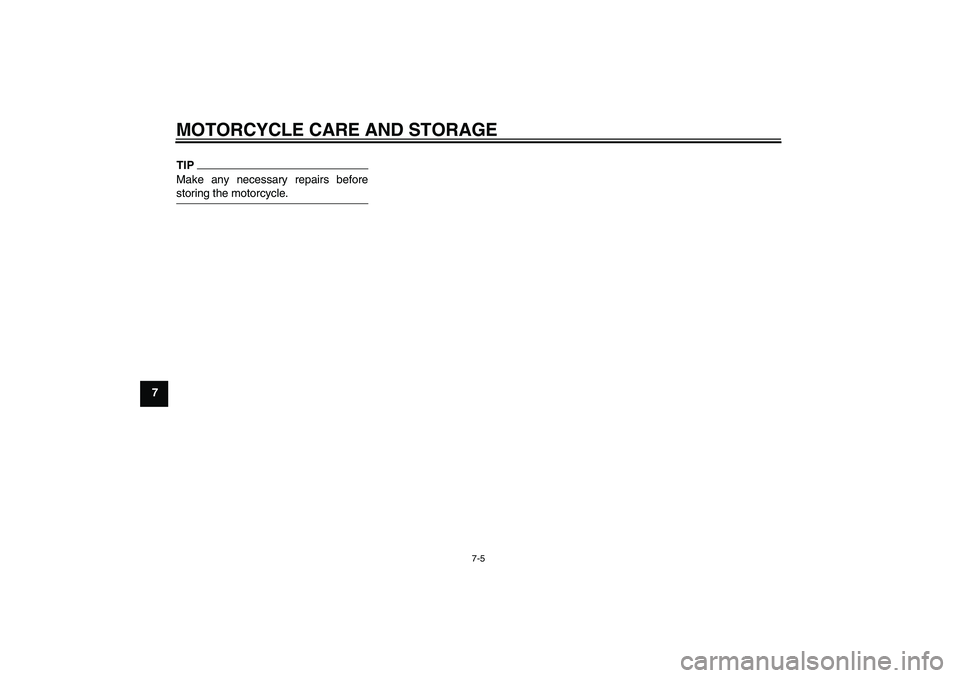

MOTORCYCLE CARE AND STORAGE
7-5
7
TIPMake any necessary repairs before
storing the motorcycle.U14BE2E0.book Page 5 Friday, June 18, 2010 8:47 AM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2070 mm (81.5 in)
Overall width:
715 mm (28.1 in)
Overall height:
1130 mm (44.5 in)
Seat height:
835 mm (32.9 in)
Wheelbase:
1415 mm (55.7 in)
Ground clearance:
135 mm (5.31 in)
Minimum turning radius:
3500 mm (137.8 in)Weight:Curb weight:
206 kg (454 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Inline 4-cylinder
Displacement:
998 cm³
Bore × stroke:
78.0 × 52.2 mm (3.07 × 2.06 in)
Compression ratio:
12.70 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Recommended brand:
YAMALUBE
Type:
SAE 10W-40, 10W-50, 15W-40, 20W-40 or
20W-50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
3.73 L (3.94 US qt, 3.28 Imp.qt)
With oil filter cartridge replacement:
3.93 L (4.15 US qt, 3.46 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes):
2.73 L (2.89 US qt, 2.40 Imp.qt)Air filter:Air filter element:
Oil-coated paper element
Fuel:Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
18.0 L (4.76 US gal, 3.96 Imp.gal)
Fuel reserve amount:
3.1 L (0.82 US gal, 0.68 Imp.gal)Fuel injection:Throttle body:
ID mark:
14B1 00Spark plug(s):Manufacturer/model:
NGK/LMAR9E-J
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction ratio:
65/43 (1.512)
Final drive:
Chain
Secondary reduction ratio:
47/17 (2.765)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
Gear ratio:
1st:
38/15 (2.533)
–20 –10 0
1020 30 40 50 C 10 30 50 70 90 110 0 130 F
SAE 20W-50SAE 20W-40SAE 15W-40SAE 10W-40SAE 10W-50
U14BE2E0.book Page 1 Friday, June 18, 2010 8:47 AM

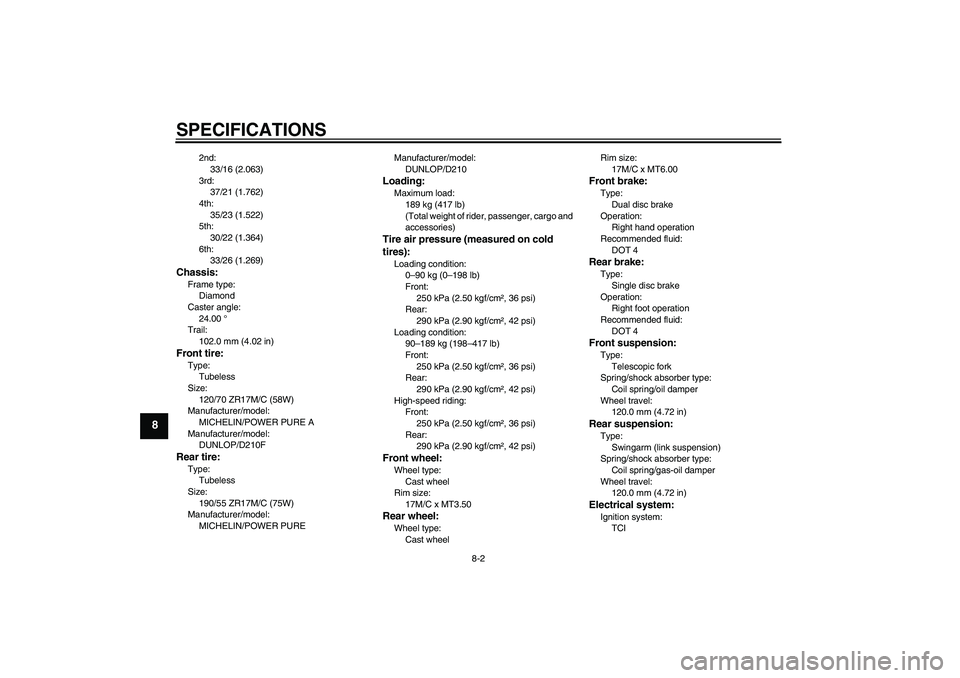

SPECIFICATIONS
8-2
8
2nd:
33/16 (2.063)
3rd:
37/21 (1.762)
4th:
35/23 (1.522)
5th:
30/22 (1.364)
6th:
33/26 (1.269)
Chassis:Frame type:
Diamond
Caster angle:
24.00 °
Trail:
102.0 mm (4.02 in)Front tire:Type:
Tubeless
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
MICHELIN/POWER PURE A
Manufacturer/model:
DUNLOP/D210FRear tire:Type:
Tubeless
Size:
190/55 ZR17M/C (75W)
Manufacturer/model:
MICHELIN/POWER PUREManufacturer/model:
DUNLOP/D210
Loading:Maximum load:
189 kg (417 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
Loading condition:
90–189 kg (198–417 lb)
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
High-speed riding:
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)Front wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT3.50Rear wheel:Wheel type:
Cast wheelRim size:
17M/C x MT6.00
Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
120.0 mm (4.72 in)Electrical system:Ignition system:
TCI
U14BE2E0.book Page 2 Friday, June 18, 2010 8:47 AM

SPECIFICATIONS
8-3
8
Charging system:
AC magnetoBattery:Model:
YTZ10S
Voltage, capacity:
12 V, 8.6 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 55 W × 2
Tail/brake light:
LED
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LEDFuel level warning light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
Steering damper warning light:
LED
Immobilizer system indicator light:
LED
Shift timing indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
15.0 A
Radiator fan fuse:
15.0 A × 2
Turn signal light fuse:
7.5 A
Fuel injection system fuse:
15.0 A
Steering damper fuse:
7.5 A
Backup fuse:
7.5 A
Electronic throttle valve fuse:
7.5 A
U14BE2E0.book Page 3 Friday, June 18, 2010 8:47 AM

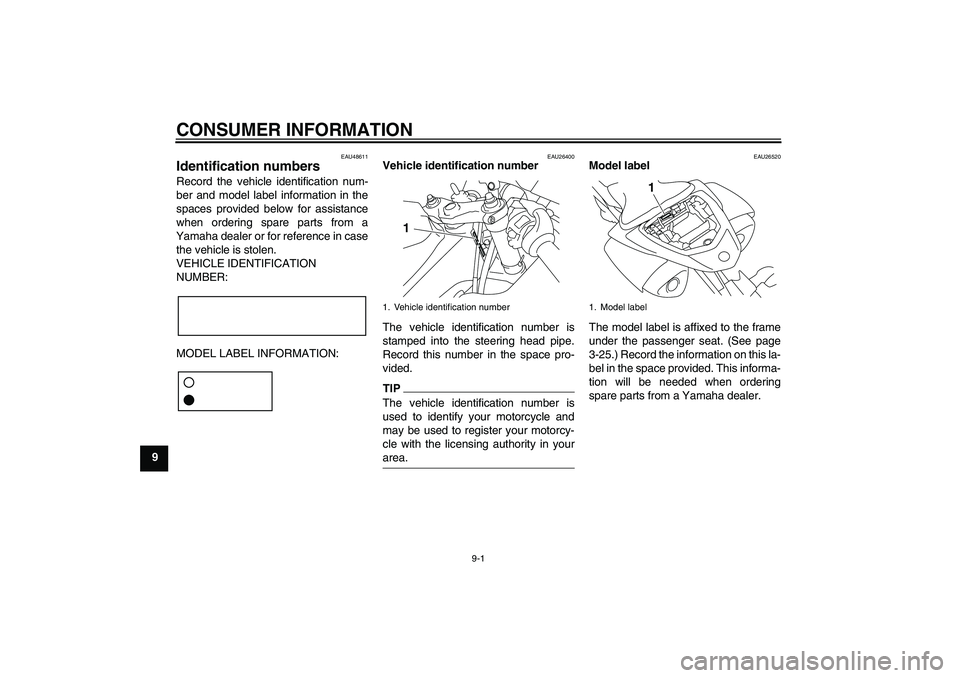

CONSUMER INFORMATION
9-1
9
EAU48611
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26520
Model label
The model label is affixed to the frame
under the passenger seat. (See page
3-25.) Record the information on this la-
bel in the space provided. This informa-
tion will be needed when ordering
spare parts from a Yamaha dealer.
1. Vehicle identification number
1
1. Model label
1
U14BE2E0.book Page 1 Friday, June 18, 2010 8:47 AM

INDEX
AAir filter element.................................... 6-17
Anti-theft alarm (optional) ..................... 3-18
Auxiliary light bulb, replacing ................ 6-36BBattery .................................................. 6-31
Brake and clutch levers, checking and
lubricating ........................................... 6-29
Brake and shift pedals, checking and
lubricating ........................................... 6-28
Brake fluid, changing ............................ 6-25
Brake fluid level, checking .................... 6-24
Brake lever ........................................... 3-21
Brake lever free play, checking ............ 6-22
Brake light switches .............................. 6-23
Brake pedal .......................................... 3-21CCables, checking and lubricating .......... 6-27
Care ........................................................ 7-1
Catalytic converter ................................ 3-24
Clutch lever........................................... 3-20
Clutch lever free play, adjusting ........... 6-21
Coolant ................................................. 6-14
Coolant temperature warning light.......... 3-5
Cowlings and panels, removing and
installing ............................................... 6-8DDimmer switch ...................................... 3-19
D-mode (drive mode).............................. 3-1
Drive chain, cleaning and lubricating .... 6-27
Drive chain slack .................................. 6-25EEngine break-in ...................................... 5-3
Engine idling speed, checking .............. 6-18Engine oil and oil filter cartridge ............ 6-12
Engine stop switch ................................ 3-19
Engine trouble warning light .................... 3-8
FFront and rear brake pads, checking .... 6-23
Front fork, adjusting .............................. 3-28
Front fork, checking...............................6-30
Fuel ....................................................... 3-22
Fuel consumption, tips for reducing ........ 5-3
Fuel level warning light............................ 3-5
Fuel tank breather/overflow hose .......... 3-24
Fuel tank cap......................................... 3-22
Fuses, replacing .................................... 6-33HHandlebar switches ............................... 3-18
Hazard switch........................................ 3-19
Headlight bulb, replacing....................... 6-34
Helmet holder ........................................ 3-26
High beam indicator light......................... 3-5
Horn switch ........................................... 3-19IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-33
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-8
Indicator lights and warning lights ........... 3-4LLicense plate light bulb, replacing ......... 6-36
Luggage strap holders .......................... 3-32MMain switch/steering lock ........................ 3-3
Maintenance and lubrication, periodic..... 6-4
Maintenance, emission control system ... 6-3
Matte color, caution .................................7-1Model label ............................................. 9-1
Multi-function meter unit ......................... 3-9
NNeutral indicator light .............................. 3-5OOil level warning light .............................. 3-5PParking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-19RRear view mirrors.................................. 3-28
Rider footrest position, adjusting .......... 3-27SSafety information ................................... 1-1
Seats..................................................... 3-25
Shifting .................................................... 5-2
Shift pedal ............................................. 3-20
Shift timing indicator light ........................ 3-8
Shock absorber assembly, adjusting .... 3-30
Sidestand .............................................. 3-33
Sidestand, checking and lubricating ..... 6-29
Spark plugs, checking........................... 6-11
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ........................................... 3-19
Steering, checking ................................ 6-31
Steering damper warning light ................ 3-8
Storage ................................................... 7-4
Storage compartment ........................... 3-27
Supporting the motorcycle .................... 6-37
Swingarm pivots, lubricating ................. 6-30TTail/brake light ...................................... 6-35
U14BE2E0.book Page 1 Friday, June 18, 2010 8:47 AM

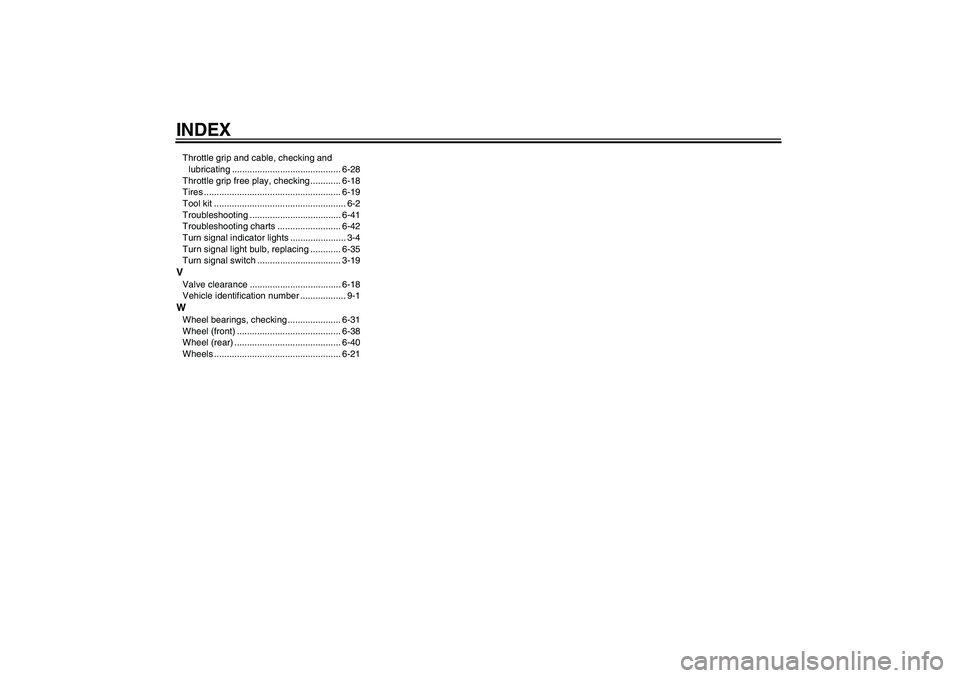

INDEXThrottle grip and cable, checking and
lubricating ........................................... 6-28
Throttle grip free play, checking ............ 6-18
Tires ...................................................... 6-19
Tool kit .................................................... 6-2
Troubleshooting .................................... 6-41
Troubleshooting charts ......................... 6-42
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-35
Turn signal switch ................................. 3-19VValve clearance .................................... 6-18
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-31
Wheel (front) ......................................... 6-38
Wheel (rear) .......................................... 6-40
Wheels .................................................. 6-21
U14BE2E0.book Page 2 Friday, June 18, 2010 8:47 AM
