PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
6 3. If the coolant is at or below the
minimum level mark, remove the
coolant reservoir cover by remov-
ing the bolts, remove the coolant
reservoir cap, and then add cool-
ant to the maximum level mark.
WARNING! Remove only the
coolant reservoir cap. Never at-
tempt to remove the radiator
cap when the engine is hot.
[EWA15161]
NOTICE: If coolant is not
available, use distilled water or
soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used insteadof coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10472]
4. Install the reservoir cap, and then
install the coolant reservoir cover
by installing the bolts.
EAU47302
To change the coolant
1. Place the vehicle on a level sur-
face and let the engine cool if nec-
essary.
2. Remove cowlings B and C. (See
page 6-8.)
3. Place a container under the engine
to collect the used coolant.
1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
1
3 2
1. Coolant reservoir cover
2. Bolt
1
2
1. Coolant reservoir cap
Coolant reservoir capacity (up to
the maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
1
U14BE2E0.book Page 15 Friday, June 18, 2010 8:47 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
64. Remove the radiator cap.
WARNING! Never attempt to re-
move the radiator cap when the
engine is hot.
[EWA10381]
5. Remove the coolant drain bolt and
its gasket to drain the cooling sys-
tem.6. Remove the coolant reservoir cov-
er by removing the bolts, and then
remove the coolant reservoir cap.
7. Remove the coolant reservoir by
removing the bolts, and then turn
the reservoir upside down to emp-
ty it.8. After the coolant is completely
drained, thoroughly flush the cool-
ing system with clean tap water.
9. Install the coolant reservoir by in-
stalling the bolts.
10. Install the coolant drain bolt and its
new gasket, and then tighten the
bolt to the specified torque.
11. Pour the recommended coolant
into the reservoir to the maximum
level mark, and then install the
coolant reservoir cap.1. Radiator cap
1. Coolant drain bolt
2. Gasket
1
12
1. Coolant reservoir cover
2. Bolt
1
2
1. Coolant reservoir
2. Coolant reservoir cap
3. BoltTightening torque:
Coolant drain bolt:
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
12
3
U14BE2E0.book Page 16 Friday, June 18, 2010 8:47 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
6 12. Pour the recommended coolant
into the radiator until it is full.
13. Install the radiator cap, start the
engine, let it idle for several min-
utes, and then turn it off.
14. Remove the radiator cap to check
the coolant level in the radiator. If
necessary, add sufficient coolant
until it reaches the top of the radia-
tor, and then install the radiator
cap.
15. Start the engine, and then check
the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.16. Install the coolant reservoir cover
by installing the bolts.
17. Install the cowlings.
EAU36764
Air filter element The air filter element must be replaced
at the intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer replace the air
filter element.
Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol anti-
freeze containing corrosion inhibi-
tors for aluminum engines
Coolant quantity:
Radiator capacity (including all
routes):
2.73 L (2.89 US qt, 2.40 Imp.qt)
Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
U14BE2E0.book Page 17 Friday, June 18, 2010 8:47 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-18
6
EAU44734
Checking the engine idling
speed Check the engine idling speed and, if
necessary, have it corrected by a
Yamaha dealer.
EAU21384
Checking the throttle grip free
play The throttle grip free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
inner edge of the throttle grip. Periodi-
cally check the throttle grip free play
and, if necessary, have a Yamaha deal-
er adjust it.
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
Engine idling speed:
1150–1250 r/min
1. Throttle grip free play
1
U14BE2E0.book Page 18 Friday, June 18, 2010 8:47 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-19
6
EAU21774

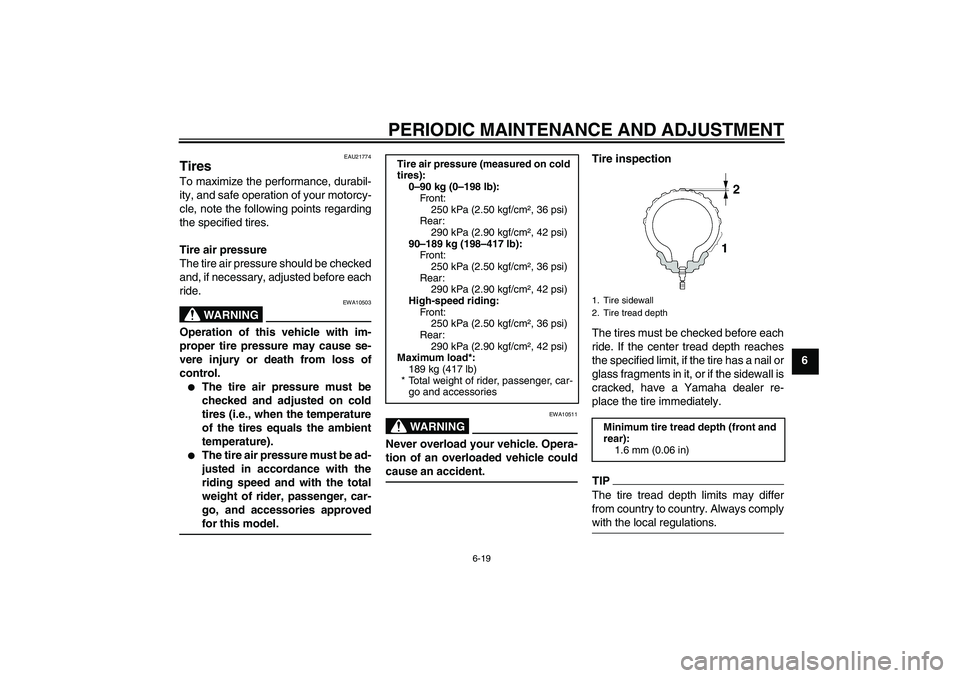

Tires To maximize the performance, durabil-
ity, and safe operation of your motorcy-
cle, note the following points regarding
the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10503
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or death from loss of
control.

The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).


The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approved
for this model.
WARNING
EWA10511
Never overload your vehicle. Opera-
tion of an overloaded vehicle could
cause an accident.
Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.TIPThe tire tread depth limits may differ
from country to country. Always comply
with the local regulations.
Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):
Fr o nt :
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
90–189 kg (198–417 lb):
Fr o nt :
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
High-speed riding:
Fr o nt :
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
Maximum load*:
189 kg (417 lb)
* Total weight of rider, passenger, car-
go and accessories
1. Tire sidewall
2. Tire tread depth
Minimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
U14BE2E0.book Page 19 Friday, June 18, 2010 8:47 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-20
6

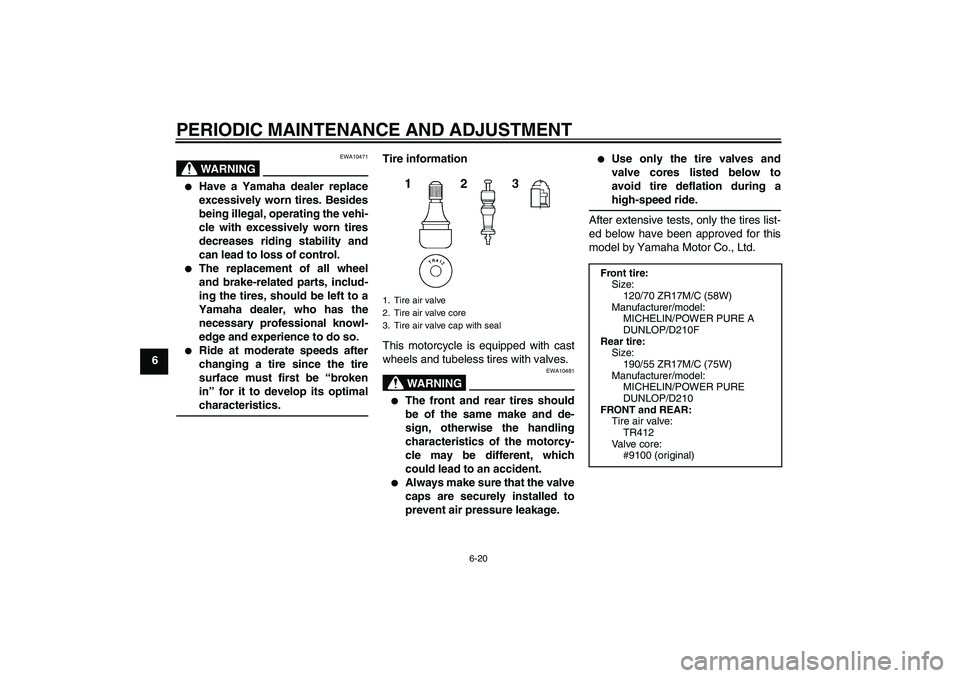

WARNING
EWA10471


Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-
cle with excessively worn tires
decreases riding stability and
can lead to loss of control.


The replacement of all wheel
and brake-related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience to do so.


Ride at moderate speeds after
changing a tire since the tire
surface must first be “broken
in” for it to develop its optimal
characteristics.
Tire information
This motorcycle is equipped with cast
wheels and tubeless tires with valves.
WARNING
EWA10481


The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the motorcy-
cle may be different, which
could lead to an accident.


Always make sure that the valve
caps are securely installed to
prevent air pressure leakage.


Use only the tire valves and
valve cores listed below to
avoid tire deflation during a
high-speed ride.
After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha Motor Co., Ltd.
1. Tire air valve
2. Tire air valve core
3. Tire air valve cap with seal
Front tire:
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
MICHELIN/POWER PURE A
DUNLOP/D210F
Rear tire:
Size:
190/55 ZR17M/C (75W)
Manufacturer/model:
MICHELIN/POWER PURE
DUNLOP/D210
FRONT and REAR:
Tire air valve:
TR412
Va l ve c o r e :
#9100 (original)
U14BE2E0.book Page 20 Friday, June 18, 2010 8:47 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-21
6

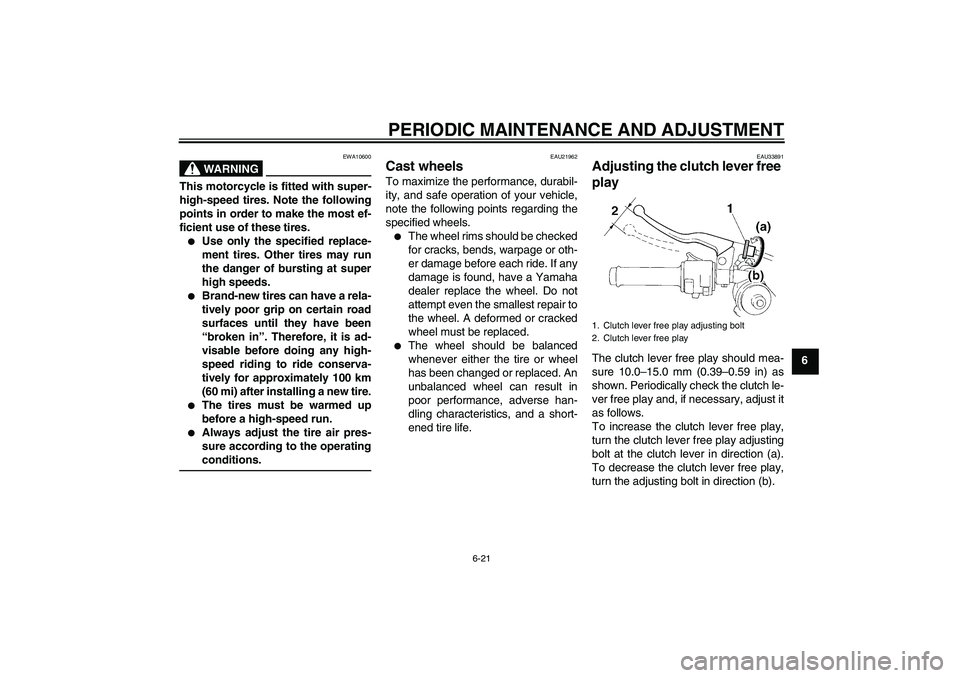

WARNING
EWA10600
This motorcycle is fitted with super-
high-speed tires. Note the following
points in order to make the most ef-
ficient use of these tires.

Use only the specified replace-
ment tires. Other tires may run
the danger of bursting at super
high speeds.


Brand-new tires can have a rela-
tively poor grip on certain road
surfaces until they have been
“broken in”. Therefore, it is ad-
visable before doing any high-
speed riding to ride conserva-
tively for approximately 100 km
(60 mi) after installing a new tire.


The tires must be warmed up
before a high-speed run.


Always adjust the tire air pres-
sure according to the operating
conditions.
EAU21962
Cast wheels To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.

The wheel rims should be checked
for cracks, bends, warpage or oth-
er damage before each ride. If any
damage is found, have a Yamaha
dealer replace the wheel. Do not
attempt even the smallest repair to
the wheel. A deformed or cracked
wheel must be replaced.


The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
EAU33891
Adjusting the clutch lever free
play The clutch lever free play should mea-
sure 10.0–15.0 mm (0.39–0.59 in) as
shown. Periodically check the clutch le-
ver free play and, if necessary, adjust it
as follows.
To increase the clutch lever free play,
turn the clutch lever free play adjusting
bolt at the clutch lever in direction (a).
To decrease the clutch lever free play,
turn the adjusting bolt in direction (b).1. Clutch lever free play adjusting bolt
2. Clutch lever free play
U14BE2E0.book Page 21 Friday, June 18, 2010 8:47 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-22
6

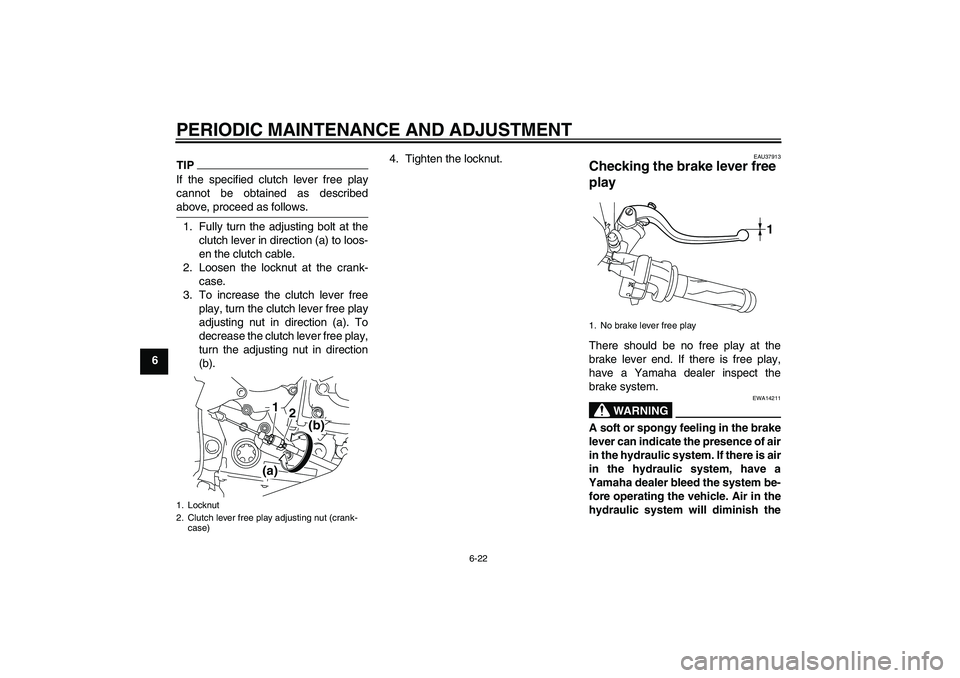

TIPIf the specified clutch lever free play
cannot be obtained as described
above, proceed as follows.1. Fully turn the adjusting bolt at the
clutch lever in direction (a) to loos-
en the clutch cable.
2. Loosen the locknut at the crank-
case.
3. To increase the clutch lever free
play, turn the clutch lever free play
adjusting nut in direction (a). To
decrease the clutch lever free play,
turn the adjusting nut in direction
(b).4. Tighten the locknut.
EAU37913
Checking the brake lever free
play There should be no free play at the
brake lever end. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14211
A soft or spongy feeling in the brake
lever can indicate the presence of air
in the hydraulic system. If there is air
in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the vehicle. Air in the
hydraulic system will diminish the
1. Locknut
2. Clutch lever free play adjusting nut (crank-
case)
1
2
(a)(b)
1. No brake lever free play
1
U14BE2E0.book Page 22 Friday, June 18, 2010 8:47 AM

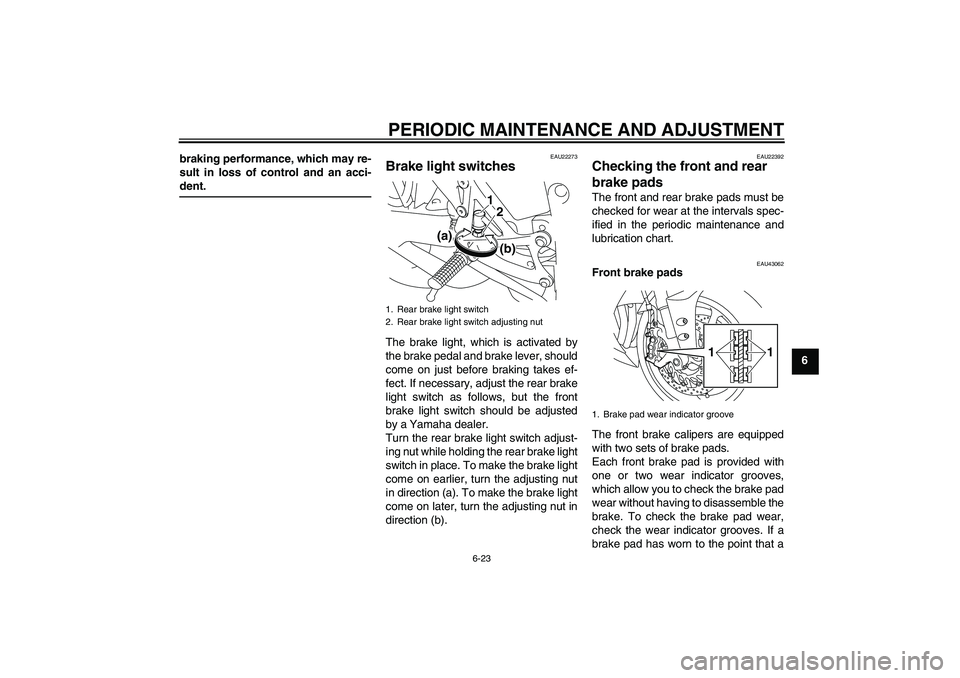

PERIODIC MAINTENANCE AND ADJUSTMENT
6-23
6 braking performance, which may re-
sult in loss of control and an acci-
dent.
EAU22273
Brake light switches The brake light, which is activated by
the brake pedal and brake lever, should
come on just before braking takes ef-
fect. If necessary, adjust the rear brake
light switch as follows, but the front
brake light switch should be adjusted
by a Yamaha dealer.
Turn the rear brake light switch adjust-
ing nut while holding the rear brake light
switch in place. To make the brake light
come on earlier, turn the adjusting nut
in direction (a). To make the brake light
come on later, turn the adjusting nut in
direction (b).
EAU22392
Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU43062
Front brake pads
The front brake calipers are equipped
with two sets of brake pads.
Each front brake pad is provided with
one or two wear indicator grooves,
which allow you to check the brake pad
wear without having to disassemble the
brake. To check the brake pad wear,
check the wear indicator grooves. If a
brake pad has worn to the point that a
1. Rear brake light switch
2. Rear brake light switch adjusting nut
1
(a)
(b) 2
1. Brake pad wear indicator groove
1
1
U14BE2E0.book Page 23 Friday, June 18, 2010 8:47 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-24
6wear indicator groove almost appears,
have a Yamaha dealer replace the
brake pads as a set.
EAU46291
Rear brake pads
Each rear brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that a wear
indicator groove almost appears, have
a Yamaha dealer replace the brake
pads as a set.
EAU22580
Checking the brake fluid level Front brake
Rear brake
Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.
Observe these precautions:


When checking the fluid level,
make sure that the top of the brake
fluid reservoir is level.


Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.


Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.
1. Brake pad wear indicator groove
1
1
1. Minimum level mark
1. Minimum level mark
11
Recommended brake fluid:
DOT 4
U14BE2E0.book Page 24 Friday, June 18, 2010 8:47 AM
