YAMAHA YZF-R1 2016 Owners Manual

Specifications
9-2
1
2
3
4
5
6
7
8910
11
12
3rd:1.842 (35/19)
4th:
1.579 (30/19)
5th: 1.381 (29/21)
6th: 1.250 (30/24)
Chassis:Frame type: Diamond
Caster angle: 24.0 
Trail:
102 mm (4.0 in)Front tire:Type:Tubeless
Size:
120/70 ZR17MC (58W)
Manufacturer/model: BRIDGESTONE/BATTLAX RACING
STREET RS10F
Manufacturer/model: PIRELLI/DIABLO SUPERCORSA SP
(YZF-R1)Rear tire:Type:
Tubeless
Size:
190/55 ZR17M/C (75W) (YZF-R1)
200/55 ZR17M/C (78W) (YZF-R1M) Manufacturer/model:
BRIDGESTONE/BATTLAX RACING
STREET RS10R
Manufacturer/model: PIRELLI/DIABLO SUPERCORSA SP
(YZF-R1)
Loading:Maximum load:188 kg (414 lb)
* (Total weight of rider, passenger, cargo and accessories)Tire air pressure (measured on cold
tires):
Front:250 kPa (2.50 kgf/cm
2, 36 psi)
Rear: 290 kPa (2.90 kgf/cm2, 42 psi)
Front wheel:Wheel type: Cast wheel
Rim size: 17 M/C x MT3.50Rear wheel:Wheel type:Cast wheel
Rim size: 17 M/C x MT6.00Unified brake system:Operation:Activated by front brakeFront brake:Type:
Hydraulic dual disc brake Specified brake fluid:
DOT 4
Rear brake:Type:Hydraulic single disc brake
Specified brake fluid: DOT 4Front suspension:Type:Telescopic fork
Spring: Coil spring
Shock absorber:
Hydraulic damper
Wheel travel: 120 mm (4.7 in)Rear suspension:Type:
Swingarm (link suspension)
Spring: Coil spring
Shock absorber: Gas-hydraulic damper
Wheel travel:
120 mm (4.7 in)Electrical system:System voltage:12 V
Ignition system:
TCI
Charging system: AC magneto
2CR-9-E1.book 2 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Specifications
9-3
1
2
3
4
5
6
7
89
10
11
12
Battery:Model: YTZ7S(F)
Voltage, capacity: 12 V, 6.0 Ah (10 HR)Bulb wattage  quantity:Headlight:
LED
Brake/tail light: LED
Front turn signal light: LED
Rear turn signal light:
LED
Auxiliary light: LED
License plate light: LED
Meter lighting:
LED
Neutral indicator light: LED
High beam indicator light: LED
Turn signal indicator light:
LED
Stability control indicator light: LED
Engine trouble and system warning light: LED
Oil pressure and coolant temperature warning
light:
LED Fuel level warning light:
LED
ABS warning light:
LED
Immobilizer system indicator light: LED
Shift timing indicator light: LED
Fuse(s):Main fuse:50.0 A
Terminal fuse 1: 2.0 A
Headlight fuse:
7.5 A
Signaling system fuse: 7.5 A
Ignition fuse: 15.0 A
Radiator fan motor fuse:
15.0 A
Sub radiator fan motor fuse: 10.0 A
Hazard fuse: 7.5 A
ABS ECU fuse:
7.5 A
Fuel injection system fuse: 15.0 A
SCU fuse: 7.5 A (YZF-R1M)
ABS motor fuse:
30.0 A ABS solenoid fuse:
15.0 A
Backup fuse:
7.5 A
Electronic throttle valve fuse: 7.5 A
2CR-9-E1.book 3 ページ ２０１５年８月２０日　木曜日　午後４時４６分

10-1
1
2
3
4
5
6
7
8
91011
12

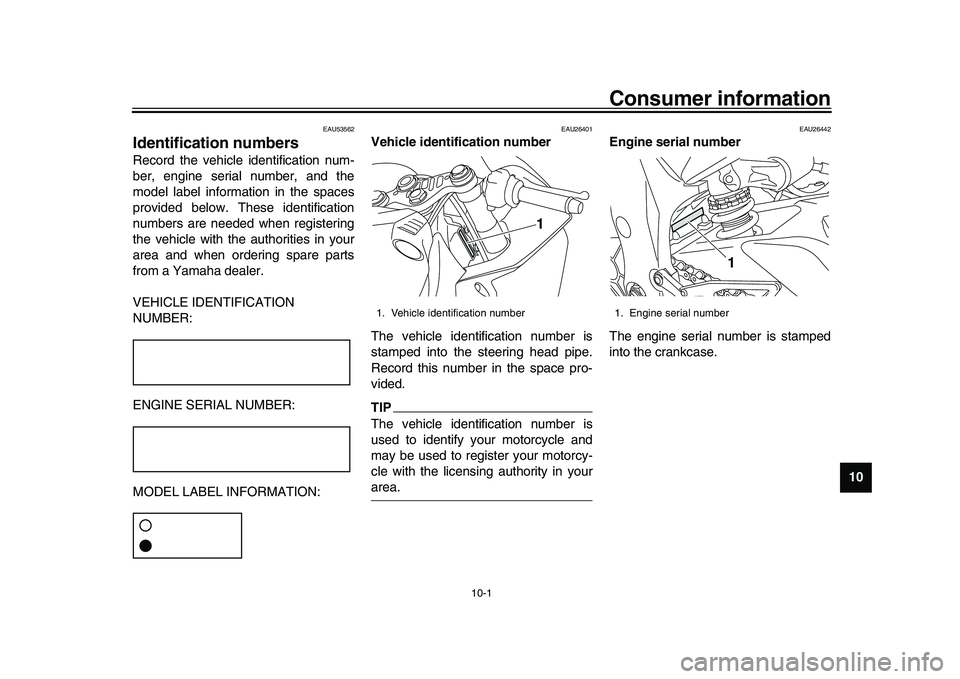

Consumer information
EAU53562
Identification numbersRecord the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION
NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in yourarea.
EAU26442
Engine serial number
The engine serial number is stamped
into the crankcase.
1. Vehicle identification number
1
1. Engine serial number
1
2CR-9-E1.book 1 ページ ２０１５年８月２０日　木曜日　午後４時４６分

Consumer information
10-2
1
2
3
4
5
6
7
8
910
11
12
EAU26521

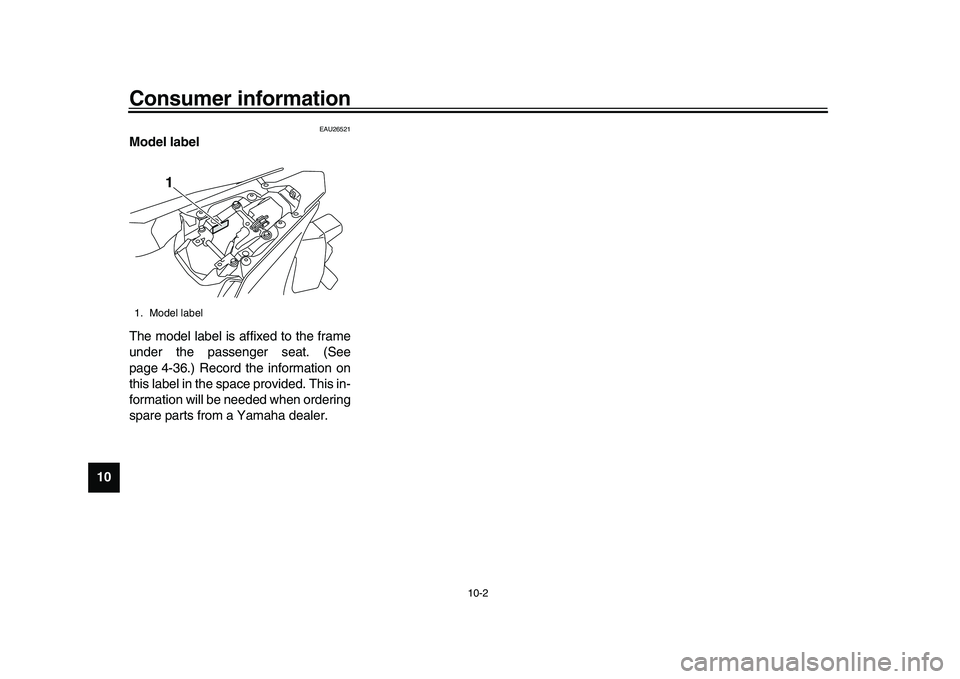

Model label
The model label is affixed to the frame
under the passenger seat. (See
page 4-36.) Record the information on
this label in the space provided. This in-
formation will be needed when ordering
spare parts from a Yamaha dealer.1. Model label
1
2CR-9-E1.book 2 ページ ２０１５年８月２０日　木曜日　午後４時４６分

11-1
1
2
3
4
5
6
7
8
9
101112
Index
AABS warning light ...................................... 4-7
Air filter element....................................... 7-17
Auxiliary DC connector ............................ 4-46BBattery ..................................................... 7-31
Brake and clutch levers, checking and lubricating .............................................. 7-29
Brake and shift pedals, checking and lubricating .............................................. 7-28
Brake fluid, changing ............................... 7-25
Brake fluid level, checking ....................... 7-24
Brake lever .............................................. 4-31
Brake lever free play, checking ............... 7-22
Brake light switches ................................. 7-23
Brake pedal ............................................. 4-31
Brake system ........................................... 4-32CCables, checking and lubricating ............. 7-27
Care ........................................................... 8-1
Catalytic converter ................................... 4-36
CCU ......................................................... 4-38
Clutch lever.............................................. 4-30
Clutch lever free play, adjusting .............. 7-22
Coolant .................................................... 7-14
Cowlings and panels, removing and installing .................................................. 7-8DDimmer switch ........................................... 4-4
Display, main screen ................................. 4-8
Display, menu screen .............................. 4-15
Document storage ................................... 4-39
Drive chain, cleaning and lubricating ....... 7-27
Drive chain slack ..................................... 7-25
EEngine break-in ......................................... 6-4
Engine idling speed, checking................. 7-17
Engine oil and oil filter cartridge .............. 7-12
Engine serial number .............................. 10-1
Engine trouble and system warning light ......................................................... 4-8
EXUP system .......................................... 4-45FFront and rear brake pads, checking ...... 7-23
Front fork, adjusting ................................ 4-40
Front fork, checking................................. 7-30
Fuel ......................................................... 4-34
Fuel consumption, tips for reducing .......... 6-4
Fuel level warning light .............................. 4-6
Fuel tank breather hose and overflow
hose ...................................................... 4-35
Fuel tank cap........................................... 4-33
Fuses, replacing ...................................... 7-33GGlossary .................................................... 3-3HHandlebar switches ................................... 4-4
Hazard switch............................................ 4-5
High beam indicator light ........................... 4-6
Horn switch ............................................... 4-4IIdentification numbers ............................. 10-1
Ignition circuit cut-off system ................... 4-47
Immobilizer system ................................... 4-1
Immobilizer system indicator light ............. 4-7
Indicator lights and warning lights ............. 4-6MMain switch/steering lock .......................... 4-2 Maintenance and lubrication, periodic .......7-4
Maintenance, emission control system ......7-3
Matte color, caution ...................................8-1
Model label ..............................................10-2
NNeutral indicator light .................................4-6OOil pressure and coolant temperature
warning light ............................................4-8PParking.......................................................6-5
Part locations .............................................2-1
Pass/LAP switch ........................................4-4RRear view mirrors..................................... 4-39SSafety information ......................................1-1
Seats........................................................ 4-36
Shifting .......................................................6-2
Shift pedal ................................................4-30
Shift timing indicator light ...........................4-7
Shock absorber assembly, adjusting .......4-42
Sidestand .................................................4-46
Sidestand, checking and lubricating ........7-29
Spark plugs, checking ..............................7-11
Special features .........................................3-1
Specifications.............................................9-1
Stability control indicator light ....................4-7
Starting the engine.....................................6-1
Steering, checking ................................... 7-31
Stop/Run/Start switch ................................4-4
Storage ......................................................8-4
Supporting the motorcycle .......................7-36
Swingarm pivots, lubricating .................... 7-30
2CR-9-E1.book 1 ページ ２０１５年８月２０日　木曜日　午後４時４６分

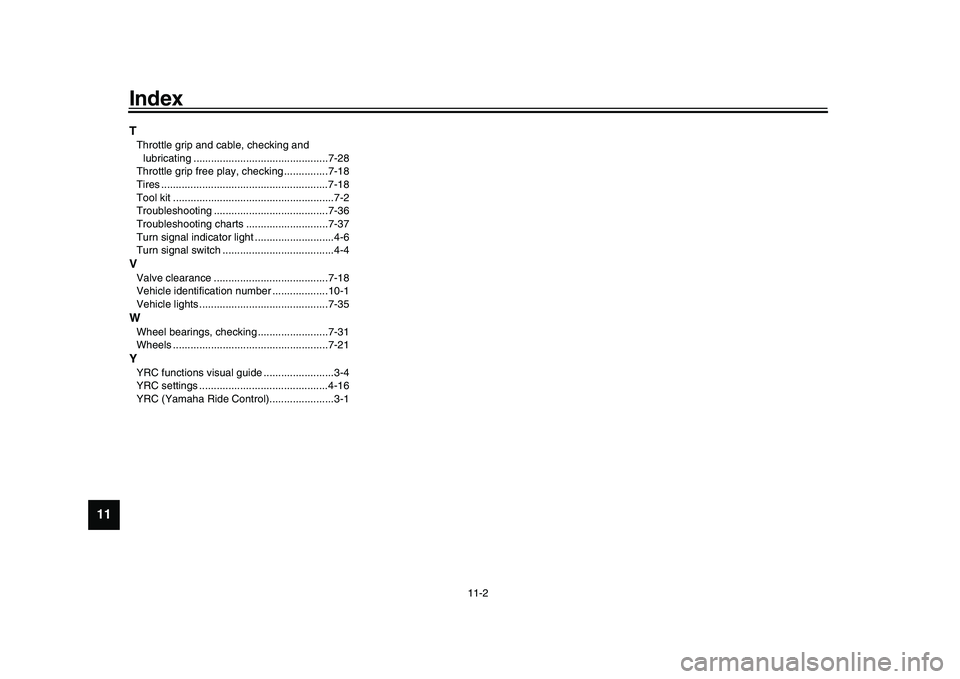

Index
11-2
1
2
3
4
5
6
7
8
9
1011
12
TThrottle grip and cable, checking and lubricating ..............................................7-28
Throttle grip free play, checking ...............7-18
Tires .........................................................7-18
Tool kit .......................................................7-2
Troubleshooting .......................................7-36
Troubleshooting charts ............................7-37
Turn signal indicator light ...........................4-6
Turn signal switch ......................................4-4VValve clearance .......................................7-18
Vehicle identificat ion number ...................10-1
Vehicle lights ............................................7-35WWheel bearings, ch ecking ........................7-31
Wheels .....................................................7-21YYRC functions visual guide ........................3-4
YRC settings ............................................4-16
YRC (Yamaha Ride Control)......................3-1
2CR-9-E1.book 2 ページ ２０１５年８月２０日　木曜日　午後４時４６分
