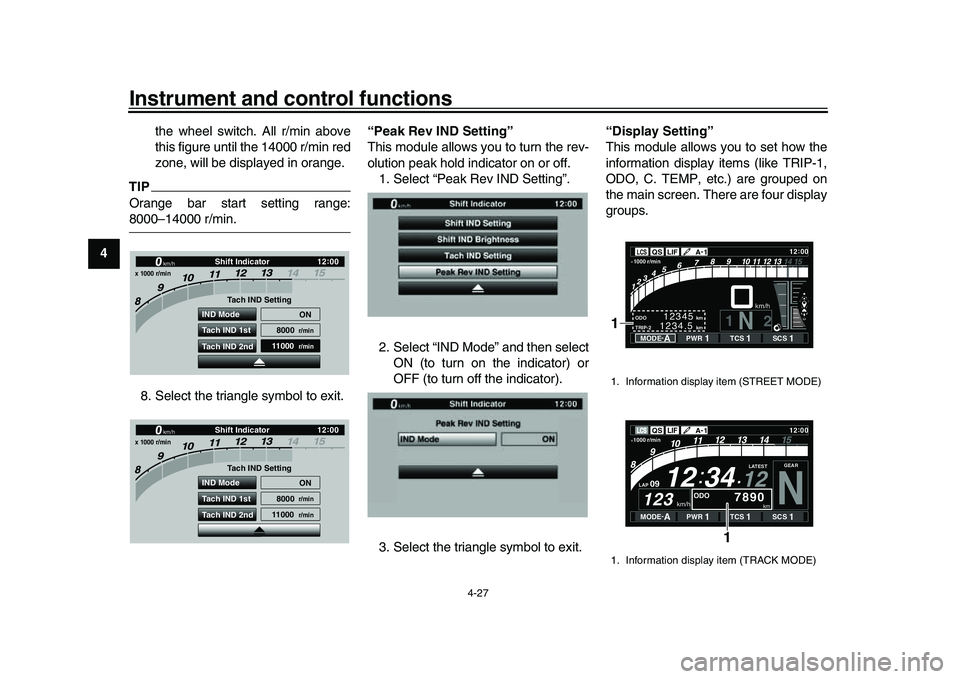

Instrument and control functions
4-27
1
2
34
5
6
7
8
9
10
11
12 the wheel switch. All r/min above
this figure until the 14000 r/min red
zone, will be displayed in orange.
TIPOrange bar start setting range:8000–14000 r/min.
8. Select the triangle symbol to exit. “Peak Rev IND Setting”
This module allows you to turn the rev-
olution peak hold indicator on or off.
1. Select “Peak Rev IND Setting”.
2. Select “IND Mode” and then select ON (to turn on the indicator) or
OFF (to turn off the indicator).
3. Select the triangle symbol to exit. “Display Setting”
This module allows you to set how the
information display items (like TRIP-1,
ODO, C. TEMP, etc.) are grouped on
the main screen. There are four display
groups.
Shift Indicator
km/h
x 1000 r/min
GPS
12
:
00
Tach IND Setting
IND Mode ON
8000
r/min
11000
r/min
Tach IND 1st
Tach IND 2ndShift Indicator
km/h
x 1000 r/min
GPS
12 :
00
Tach IND Setting
IND Mode ON
8000
r/min
11000
r/min
Tach IND 1st
Tach IND 2nd
1. Information display item (STREET MODE)
1. Information display item (TRACK MODE)
ODO
12345
km
TRIP-2
1234.5
km
1
Ny 2 km/h
·1000 r/minMODE -
A
TCS
1
SCS
1
A
-
1
LCS
QS
LIF
GPS
12 :
00
PWR
1
1
MODE -
A
PWR
1
TCS
1
SCS
1
km/h
123
ODO
km
7890
GEARN
LAP 09
LATEST12
12 34
·1000 r/min
A
-
1
LC LCS
QS
LIF
GPS
12 :
00
1
2CR-9-E1.book 27 ページ 2015年8月20日 木曜日 午後4時46分
Page 49 of 128

Instrument and control functions
4-28
1
2
345
6
7
8
9
10
11
12
To set the display groups
1. Select “Display Setting”.
2. DISPLAY-1, DISPLAY-2, DIS-
PLAY-3 and DISPLAY-4 are dis-
played.
3. For example, let’s select DIS- PLAY-1. STREET MODE 1-1,
STREET MODE 1-2, and TRACK
MODE are displayed. 4. Select STREET MODE 1-1.
5. Select the desired information dis-
play item with the wheel switch.
TIPThe information display items which
can be selected are:
A.TEMP: air temperature
C.TEMP: coolant temperature
TRIP-1: tripmeter 1 TRIP-2: tripmeter 2
ODO: odometer
FUEL CON: the amount of fuel con-
sumed
FUEL AVG: average fuel consumption
CRNT FUEL: current fuel consumption
6. Select STREET MODE 1-2 or TRACK MODE to set the remain-
ing DISPLAY-1 group items.
7. Select the triangle symbol to exit. To set the other display groups, re-
peat from step 3.
“Brightness”
This function allows you to adjust the
general brightness level of the display
screen.
2CR-9-E1.book 28 ページ 2015年8月20日 木曜日 午後4時46分
Page 73 of 128

6-1
1
2
3
4
567
8
9
10
11
12
Operation and important riding points
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accidentor injury.
EAU68220
TIPThis model is equipped with:
an inertial measurement unit (IMU)
that will stop the engine in case of
a turnover. In this case, the display
will indicate error code 30, but this
is not a malfunction. Turn the key
to “OFF” and then to “ON” to clear
the error code. Failing to do so will
prevent the engine from starting
even though the engine will crank
when pushing the start switch.
an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. If the engine
stops, simply push the start switchto restart the engine.
EAU67072
Starting the engineIn order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
The transmission is in the neutral
position.
The transmission is in gear with
the clutch lever pulled and the sid-
estand up. (See page 4-47.)
1. Turn the key to “ON” and make sure that the engine stop switch is
set to “ ”.
The following warning lights and
indicator lights should come on for
a few seconds, then go off.
Fuel level warning light
Shift timing indicator light
Engine trouble and system
warning light
Stability control indicator light
Immobilizer system indicator
light
The ABS warning light should
come on when the key is turned to
“ON” and stay on until the vehicle
reaches a traveling speed of 10
km/h (6 mi/h).
The oil pressure and coolant tem-
2CR-9-E1.book 1 ページ 2015年8月20日 木曜日 午後4時46分
Page 116 of 128

8-1
1
2
3
4
5
6
78
9
10
11
12

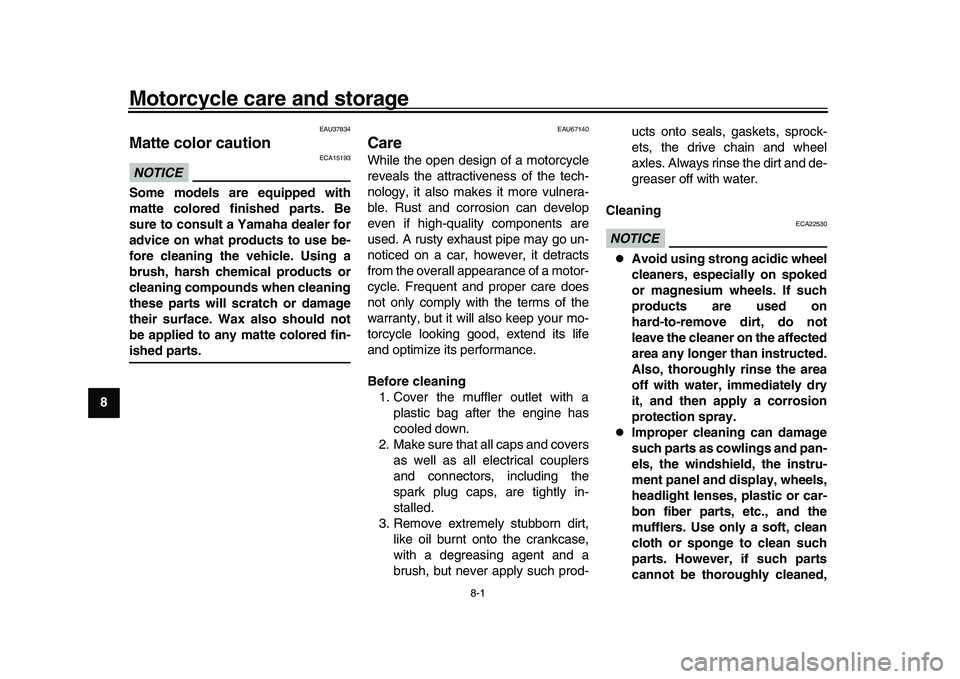

Motorcycle care and storage
EAU37834
Matte color cautionNOTICE
ECA15193
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
advice on what products to use be-
fore cleaning the vehicle. Using a
brush, harsh chemical products or
cleaning compounds when cleaning
these parts will scratch or damage
their surface. Wax also should not
be applied to any matte colored fin-ished parts.
EAU67140
CareWhile the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a motor-
cycle. Frequent and proper care does
not only comply with the terms of the
warranty, but it will also keep your mo-
torcycle looking good, extend its life
and optimize its performance.
Before cleaning 1. Cover the muffler outlet with a plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers as well as all electrical couplers
and connectors, including the
spark plug caps, are tightly in-
stalled.
3. Remove extremely stubborn dirt, like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod- ucts onto seals, gaskets, sprock-
ets, the drive chain and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
NOTICE
ECA22530
Avoid using strong acidic wheel
cleaners, especially on spoked
or magnesium wheels. If such
products are used on
hard-to-remove dirt, do not
leave the cleaner on the affected
area any longer than instructed.
Also, thoroughly rinse the area
off with water, immediately dry
it, and then apply a corrosion
protection spray.
Improper cleaning can damage
such parts as cowlings and pan-
els, the windshield, the instru-
ment panel and display, wheels,
headlight lenses, plastic or car-
bon fiber parts, etc., and the
mufflers. Use only a soft, clean
cloth or sponge to clean such
parts. However, if such parts
cannot be thoroughly cleaned,
2CR-9-E1.book 1 ページ 2015年8月20日 木曜日 午後4時46分
Page 125 of 128

11-1
1
2
3
4
5
6
7
8
9
101112
Index
AABS warning light ...................................... 4-7
Air filter element....................................... 7-17
Auxiliary DC connector ............................ 4-46BBattery ..................................................... 7-31
Brake and clutch levers, checking and lubricating .............................................. 7-29
Brake and shift pedals, checking and lubricating .............................................. 7-28
Brake fluid, changing ............................... 7-25
Brake fluid level, checking ....................... 7-24
Brake lever .............................................. 4-31
Brake lever free play, checking ............... 7-22
Brake light switches ................................. 7-23
Brake pedal ............................................. 4-31
Brake system ........................................... 4-32CCables, checking and lubricating ............. 7-27
Care ........................................................... 8-1
Catalytic converter ................................... 4-36
CCU ......................................................... 4-38
Clutch lever.............................................. 4-30
Clutch lever free play, adjusting .............. 7-22
Coolant .................................................... 7-14
Cowlings and panels, removing and installing .................................................. 7-8DDimmer switch ........................................... 4-4
Display, main screen ................................. 4-8
Display, menu screen .............................. 4-15
Document storage ................................... 4-39
Drive chain, cleaning and lubricating ....... 7-27
Drive chain slack ..................................... 7-25
EEngine break-in ......................................... 6-4
Engine idling speed, checking................. 7-17
Engine oil and oil filter cartridge .............. 7-12
Engine serial number .............................. 10-1
Engine trouble and system warning light ......................................................... 4-8
EXUP system .......................................... 4-45FFront and rear brake pads, checking ...... 7-23
Front fork, adjusting ................................ 4-40
Front fork, checking................................. 7-30
Fuel ......................................................... 4-34
Fuel consumption, tips for reducing .......... 6-4
Fuel level warning light .............................. 4-6
Fuel tank breather hose and overflow
hose ...................................................... 4-35
Fuel tank cap........................................... 4-33
Fuses, replacing ...................................... 7-33GGlossary .................................................... 3-3HHandlebar switches ................................... 4-4
Hazard switch............................................ 4-5
High beam indicator light ........................... 4-6
Horn switch ............................................... 4-4IIdentification numbers ............................. 10-1
Ignition circuit cut-off system ................... 4-47
Immobilizer system ................................... 4-1
Immobilizer system indicator light ............. 4-7
Indicator lights and warning lights ............. 4-6MMain switch/steering lock .......................... 4-2 Maintenance and lubrication, periodic .......7-4
Maintenance, emission control system ......7-3
Matte color, caution ...................................8-1
Model label ..............................................10-2
NNeutral indicator light .................................4-6OOil pressure and coolant temperature
warning light ............................................4-8PParking.......................................................6-5
Part locations .............................................2-1
Pass/LAP switch ........................................4-4RRear view mirrors..................................... 4-39SSafety information ......................................1-1
Seats........................................................ 4-36
Shifting .......................................................6-2
Shift pedal ................................................4-30
Shift timing indicator light ...........................4-7
Shock absorber assembly, adjusting .......4-42
Sidestand .................................................4-46
Sidestand, checking and lubricating ........7-29
Spark plugs, checking ..............................7-11
Special features .........................................3-1
Specifications.............................................9-1
Stability control indicator light ....................4-7
Starting the engine.....................................6-1
Steering, checking ................................... 7-31
Stop/Run/Start switch ................................4-4
Storage ......................................................8-4
Supporting the motorcycle .......................7-36
Swingarm pivots, lubricating .................... 7-30
2CR-9-E1.book 1 ページ 2015年8月20日 木曜日 午後4時46分
