Periodic maintenance and adjustment
7-15
1
2
3
4
5
67
8
9
10
11
12 3. If the coolant is at or below the
minimum level mark, remove cowl-
ing B. (See page 7-8.)
4. Remove the coolant reservoir cap, add coolant to the maximum level
mark, and then install the reservoir
cap. WARNING! Remove only
the coolant reservoir cap. Never
attempt to remove the radiator
cap when the engine is
hot.
[EWA15162]
NOTICE: If coolant is
not available, use distilled water
or soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used instead of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10473]
5. Install the cowling.
EAU66520
To change the coolant
1. Place the vehicle on a level sur- face and let the engine cool if nec-
essary.
2. Remove cowling B and panel D. (See page 7-8.)
3. Place a container under the engine to collect the used coolant.
4. Remove the radiator cap.
WARNING! Never attempt to re-
move the radiator cap when the
engine is hot.
[EWA10382]
5. Remove the coolant drain bolt andits gasket to drain the cooling sys-
tem.
1. Maximum level mark
2. Minimum level mark1
2
1. Coolant reservoir capCoolant reservoir capacity (up to the
maximum level mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
1
1. Radiator cap
1
2CR-9-E1.book 15 ページ ２０１５年８月２０日　木曜日　午後４時４６分

9-1
1
2
3
4
5
6
7
89
10
11
12
Specifications
EAU70620
Dimensions:Overall length: 2055 mm (80.9 in)
Overall width: 690 mm (27.2 in)
Overall height: 1150 mm (45.3 in)
Seat height:
855 mm (33.7 in) (YZF-R1)
860 mm (33.9 in) (YZF-R1M)
Wheelbase:
1405 mm (55.3 in)
Ground clearance: 130 mm (5.12 in)
Minimum turning radius: 3.3 m (10.83 ft)Weight:Curb weight:199 kg (439 lb) (YZF-R1)
200 kg (441 lb) (YZF-R1M)Engine:Combustion cycle:
4-stroke
Cooling system:
Liquid cooled
Valve train: DOHC
Cylinder arrangement: Inline
Number of cylinders:
4-cylinder
Displacement: 998 cm
3
Bore  stroke:
79.0  50.9 mm (3.11  2.00 in)
Compression ratio:
13.0 : 1
Starting system: Electric starter
Lubrication system: Wet sumpEngine oil:Recommended brand:YAMALUBE
Type: Full synthetic
SAE viscosity grades:
10W-40, 15W-50
Recommended engine oil grade: API service SG type or higher, JASO stan-
dard MA
Engine oil quantity: Oil change:
3.90 L (4.12 US qt, 3.43 Imp.qt)
With oil filter removal: 4.10 L (4.33 US qt, 3.61 Imp.qt)Coolant quantity:Coolant reservoir (up to the maximum level
mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes):
2.25 L (2.38 US qt, 1.98 Imp.qt)Air filter:Air filter element:Oil-coated paper element
Fuel:Recommended fuel:Premium unleaded gasoline (Gasohol
[E10] acceptable)
Fuel tank capacity:
17 L (4.5 US gal, 3.7 Imp.gal)
Fuel reserve amount: 3.0 L (0.79 US gal, 0.66 Imp.gal)Fuel injection:Throttle body:
ID mark: 2CR1Spark plug(s):Manufacturer/model:NGK/LMAR9E-J
Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:Wet, multiple-discDrivetrain:Primary reduction ratio:
1.634 (67/41)
Final drive: Chain
Secondary reduction ratio: 2.563 (41/16)
Transmission type:
Constant mesh 6-speed
Gear ratio: 1st:
2.600 (39/15)
2nd: 2.176 (37/17)
2CR-9-E1.book 1 ページ ２０１５年８月２０日　木曜日　午後４時４６分

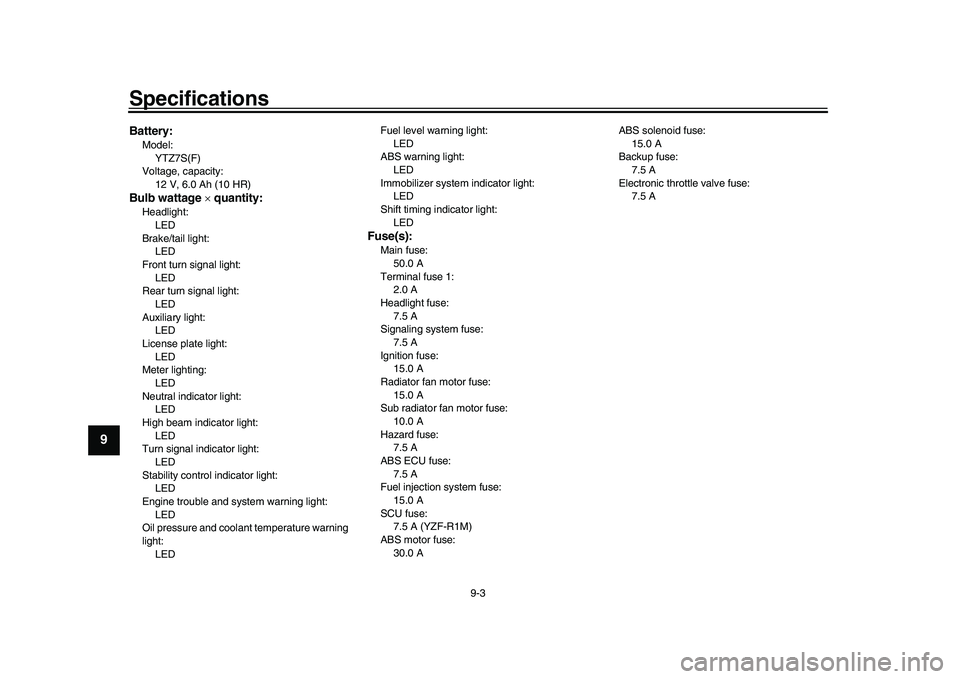

Specifications
9-3
1
2
3
4
5
6
7
89
10
11
12
Battery:Model: YTZ7S(F)
Voltage, capacity: 12 V, 6.0 Ah (10 HR)Bulb wattage  quantity:Headlight:
LED
Brake/tail light: LED
Front turn signal light: LED
Rear turn signal light:
LED
Auxiliary light: LED
License plate light: LED
Meter lighting:
LED
Neutral indicator light: LED
High beam indicator light: LED
Turn signal indicator light:
LED
Stability control indicator light: LED
Engine trouble and system warning light: LED
Oil pressure and coolant temperature warning
light:
LED Fuel level warning light:
LED
ABS warning light:
LED
Immobilizer system indicator light: LED
Shift timing indicator light: LED
Fuse(s):Main fuse:50.0 A
Terminal fuse 1: 2.0 A
Headlight fuse:
7.5 A
Signaling system fuse: 7.5 A
Ignition fuse: 15.0 A
Radiator fan motor fuse:
15.0 A
Sub radiator fan motor fuse: 10.0 A
Hazard fuse: 7.5 A
ABS ECU fuse:
7.5 A
Fuel injection system fuse: 15.0 A
SCU fuse: 7.5 A (YZF-R1M)
ABS motor fuse:
30.0 A ABS solenoid fuse:
15.0 A
Backup fuse:
7.5 A
Electronic throttle valve fuse: 7.5 A
