Page 11 of 111
2-1
2
EAU00026

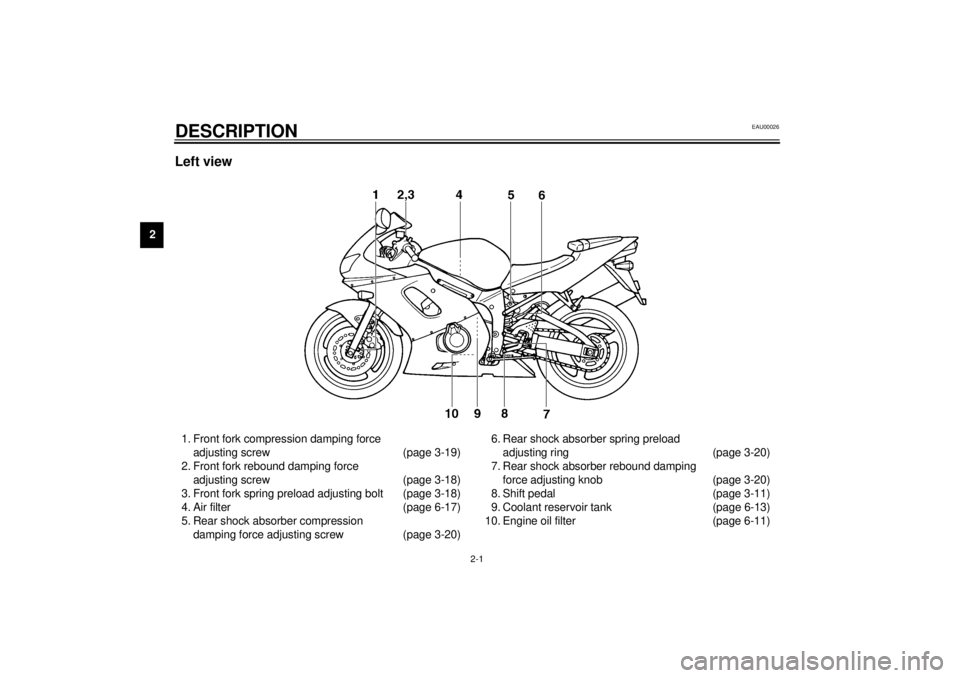

2-DESCRIPTIONLeft view1. Front fork compression damping force
adjusting screw (page 3-19)
2. Front fork rebound damping force
adjusting screw (page 3-18)
3. Front fork spring preload adjusting bolt (page 3-18)
4. Air filter (page 6-17)
5. Rear shock absorber compression
damping force adjusting screw (page 3-20)6. Rear shock absorber spring preload
adjusting ring (page 3-20)
7. Rear shock absorber rebound damping
force adjusting knob (page 3-20)
8. Shift pedal (page 3-11)
9. Coolant reservoir tank (page 6-13)
10. Engine oil filter (page 6-11)
E_5eb_Description.fm Page 1 Thursday, November 18, 1999 4:02 PM
Page 50 of 111
6
PERIODIC MAINTENANCE AND MINOR REPAIR
Tool kit................................................................... 6-1
Periodic maintenance and lubrication ................... 6-3
Cowling and panel removal and installation.......... 6-6
Cowlings A and B ................................................. 6-6
Panel C ................................................................. 6-8
Spark plug inspection ........................................... 6-9
Engine oil ............................................................ 6-10
Cooling system ................................................... 6-13
Changing the coolant .......................................... 6-14
Air filter ............................................................... 6-17
Air intake duct ..................................................... 6-19
Carburetor adjustment ........................................ 6-20
Idle speed adjustment ........................................ 6-20
Throttle cable free play inspection ...................... 6-21
Valve clearance adjustment ................................ 6-21
Tires .................................................................... 6-21
Wheels ................................................................ 6-24
Clutch lever free play adjustment........................ 6-25
Brake light switch adjustment ............................. 6-25
Checking the front and rear brake pads.............. 6-26
Inspecting the brake fluid level............................ 6-27
Brake fluid replacement ...................................... 6-28
Drive chain slack check ...................................... 6-28Drive chain slack adjustment ............................. 6-29
Drive chain lubrication........................................ 6-29
Cable inspection and lubrication ........................ 6-30
Throttle cable and grip lubrication ...................... 6-30
Brake pedal lubrication....................................... 6-30
Brake and clutch lever lubrication ...................... 6-31
Sidestand lubrication.......................................... 6-31
Rear suspension lubrication............................... 6-31
Front fork inspection ........................................... 6-32
Steering inspection ............................................ 6-32
Wheel bearings .................................................. 6-33
Battery................................................................ 6-33
Fuse replacement .............................................. 6-34
Headlight bulb replacement ............................... 6-35
Tail/brake light bulb replacement ........................ 6-36
Turn signal light bulb replacement...................... 6-36
Supporting the motorcycle ................................. 6-37
Front wheel removal ........................................... 6-37
Front wheel installation ...................................... 6-38
Rear wheel removal ........................................... 6-39
Rear wheel installation ....................................... 6-40
Troubleshooting .................................................. 6-40
Troubleshooting chart ......................................... 6-41
E_5eb_PeriodicTOC.fm Page 1 Thursday, November 18, 1999 4:06 PM
Page 55 of 111
PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
* Since these items require special tools, data and technical skills, they should be serviced by a Yamaha dealer.
EAU02970*
NOTE:@ l
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
l
Hydraulic brake system
• When disassembling the master cylinder or caliper cylinder, always replace the brake fluid. Check the brake fluid level
regularly and fill as required.
• Replace the oil seals on the inner parts of the master cylinder and caliper cylinder every two years.
• Replace the brake hoses every four years or if cracked or damaged.
@20
*Rear suspension relay
arm and connecting arm
pivoting points• Check operation.
• Correct if necessary.ÖÖ
21*Carburetors• Check engine idling speed, synchronization and starter operation.
• Adjust if necessary.ÖÖÖ
22 Engine oil• Check oil level and vehicle for oil leakage.
• Correct if necessary.
• Change. (Warm engine before draining.)ÖÖÖ
23 Engine oil filter cartridge•Replace.ÖÖ
24*Cooling system• Check coolant level and vehicle for coolant leakage.
• Correct if necessary.
• Change coolant every 24,000 km or 24 months (whichever comes
first).ÖÖ NO. ITEM CHECKS AND MAINTENANCE JOBSINITIAL
(1,000 km)EVERY
6,000 km
or
6 months
(whichever
comes first)12,000 km
or
12 months
(whichever
comes first)
E_5eb_Periodic.fm Page 5 Thursday, November 18, 1999 4:06 PM
Page 61 of 111
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6Engine oil and oil filter cartridge re-
placement
1. Remove cowling B. (See page 6-6
for removal and installation proce-
dures.)
2. Warm up the engine for several
minutes.
3. Stop the engine. Place an oil pan
under the engine and remove the
engine oil filler cap.4. Remove the drain bolt and drain
the oil.
5. Remove the oil filter by using an oil
filter wrench.
NOTE:@ An oil filter wrench is available at a
nearby Yamaha dealer. @6. Reinstall the drain bolt and tighten
it to the specified torque.
1. Engine oil filler cap
1. Engine oil drain bolt
1. Oil filter wrench
2. Oil filter cartridge
Tightening torque:
Drain bolt:
43 Nm (4.3 m·kg)
E_5eb_Periodic.fm Page 11 Thursday, November 18, 1999 4:06 PM
Page 62 of 111
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6 7. Apply a light coat of engine oil to
the O-ring of the new oil filter.
NOTE:@ Make sure the O-ring is seated proper-
ly. @
8. Install the oil filter and tighten it to
the specified torque with an oil fil-
ter wrench.9. Fill the engine with sufficient oil to
reach the specified level. Install
the engine oil filler cap and tighten
it.
EC000066
CAUTION:@ l
Do not put in any chemical addi-
tives. Engine oil also lubricates
the clutch and additives could
cause clutch slippage.
l
Be sure no foreign material en-
ters the crankcase.
@
1. O-ring
1. Torque wrenchTightening torque:
Oil filter:
17 Nm (1.7 m·kg)
Recommended oil:
See page 8-1.
Oil quantity:
Total amount:
3.5 L
Periodic oil change:
2.5 L
With oil filter replacement:
2.7 L
E_5eb_Periodic.fm Page 12 Thursday, November 18, 1999 4:06 PM
Page 101 of 111
8-1
8
EAU01038
8-SPECIFICATIONSSpecifications01E
Model YZF-R6
Dimensions
Overall length 2,025 mm (except for N, S, SF)
2,075 mm (for N, S, SF)
Overall width 690 mm
Overall height 1,105 mm
Seat height 820 mm
Wheelbase 1,380 mm
Ground clearance 135 mm
Minimum turning radius 3,400 mm
Basic weight (with oil and full
fuel tank)
188 kg
Engine
Engine type Liquid-cooled 4-stroke, DOHC
Cylinder arrangement Forward-inclined parallel
4-cylinder
Displacement 600 cm
3
Bore ´ Stroke 65.5 ´ 44.5 mm
Compression ratio 12.4:1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG type or
higher
Quantity
Periodic oil change 2.5 L
With oil filter replacement 2.7 L
Total amount 3.5 L
-20˚ -10˚ 0˚
10˚20˚ 30˚
40˚50˚C
SAE 10W/30
SAE 15W/40SAE 20W/40SAE 20W/50
SAE 10W/40
CAUTION:Be sure to use motor oils that do not contain anti-fric-
tion modifiers. Passenger car motor oils (often labeled
“Energy Conserving”) contain anti-friction additives
which will cause clutch and/or starter clutch slippage,
resulting in reduced component life and poor engine
performance.
E_5eb_Spec.fm Page 1 Thursday, November 18, 1999 4:08 PM
Page 109 of 111
10-INDEXAAir filter .................................................. 6-17
Air intake duct ........................................ 6-19
Antitheft alarm (optional) ........................ 3-12BBattery ................................................... 6-33
Brake and clutch lever lubrication........... 6-31
Brake fluid replacement ......................... 6-28
Brake light switch adjustment ................. 6-25
Brake pedal lubrication........................... 6-30CCable inspection and lubrication ............ 6-30
Carburetor adjustment ........................... 6-20
Care.........................................................7-1
Changing the coolant ............................. 6-14
Checking the front and rear brake
pads .................................................... 6-26
Clutch lever ............................................ 3-11
Clutch lever free play adjustment ........... 6-25
Controls/Instruments ................................2-3
Cooling system ...................................... 6-13
Cowling and panel removal and
installation .............................................6-6
Cowlings A and B ....................................6-6DDiagnosis device......................................3-9
Digital speedometer .................................3-7
Dimmer switch .........................................3-9
Drive chain lubrication ............................ 6-29
Drive chain slack adjustment.................. 6-29
Drive chain slack check.......................... 6-28
EEngine break-in ....................................... 5-5
Engine oil .............................................. 6-10
Engine stop switch................................. 3-10FFront brake lever ................................... 3-11
Front fork adjustment............................. 3-17
Front fork inspection .............................. 6-32
Front wheel installation .......................... 6-38
Front wheel removal .............................. 6-37
Fuel ....................................................... 3-13
Fuel indicator light ................................... 3-2
Fuel indicator light circuit check ............... 3-6
Fuel tank breather hose ......................... 3-14
Fuel tank cap ......................................... 3-13
Fuse replacement.................................. 6-34GGive safety the right of way ..................... 1-1HHandlebar switches ................................. 3-9
Dimmer switch ................................... 3-9
Engine stop switch ........................... 3-10
Horn switch ...................................... 3-10
Light switch ...................................... 3-10
Pass switch ........................................ 3-9
Start switch ...................................... 3-10
Turn signal switch ............................ 3-10
Headlight bulb replacement ................... 6-35
Helmet holder ........................................ 3-17
High beam indicator light ......................... 3-2
Horn switch ........................................... 3-10
IIdentification number records ...................9-1
Idle speed adjustment ............................6-20
Indicator lights ..........................................3-2
Fuel indicator light...............................3-2
High beam indicator light ....................3-2
Neutral indicator light ..........................3-2
Oil level/coolant temperature
indicator light....................................3-3
Turn indicator light ..............................3-2
Inspecting the brake fluid level ...............6-27KKey identification number .........................9-1LLeft view...................................................2-1
Light switch ............................................3-10
Luggage strap holders ...........................3-23MMain switch/Steering lock .........................3-1
Model label ..............................................9-2NNeutral indicator light ...............................3-2OOil level/coolant temperature indicator
light ........................................................3-3
Oil level / coolant temperature indicator
light circuit check ...................................3-5PPanel C ....................................................6-8
Parking.....................................................5-5
E_5ebIX.fm Page 1 Thursday, November 18, 1999 4:09 PM
