TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-3
Multi-function meter unit .................3-7
Anti-theft alarm (optional) .............3-13
Handlebar switches ......................3-13
Clutch lever ...................................3-15
Shift pedal .....................................3-15
Brake lever ...................................3-15
Brake pedal ..................................3-16
Fuel tank cap ................................3-16
Fuel ...............................................3-17
Fuel tank breather/overflow
hose ..........................................3-18
Catalytic converter ........................3-18
Seats ............................................3-19
Helmet holding cable ....................3-20
Adjusting the front fork ..................3-21
Adjusting the shock absorber
assembly ...................................3-23
Luggage strap holders ..................3-25
EXUP system ...............................3-26Sidestand ..................................... 3-26
Ignition circuit cut-off system ........ 3-27
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing cowlings
and panels .................................. 6-6
Checking the spark plugs ............. 6-10
Engine oil and oil filter cartridge ... 6-11
Coolant ......................................... 6-14
Air filter element ........................... 6-17
Checking the throttle cable free
play ........................................... 6-18
Valve clearance ............................ 6-18
Tires ............................................. 6-18
Cast wheels .................................. 6-21Adjusting the clutch lever free
play ........................................... 6-21
Adjusting the rear brake light
switch ....................................... 6-22
Checking the front and rear brake
pads .......................................... 6-22
Checking the brake fluid level ...... 6-23
Changing the brake fluid .............. 6-24
Drive chain slack .......................... 6-24
Cleaning and lubricating the
drive chain ................................ 6-26
Checking and lubricating the
cables ....................................... 6-26
Checking and lubricating the
throttle grip and cable ............... 6-27
Checking and lubricating the
brake and shift pedals .............. 6-27
Checking and lubricating the
brake and clutch levers ............ 6-28
Checking and lubricating the
sidestand .................................. 6-28
Lubricating the swingarm
pivots ........................................ 6-29
Checking the front fork ................. 6-29
Checking the steering .................. 6-30
Checking the wheel bearings ....... 6-30
Battery ......................................... 6-31
Replacing the fuses ..................... 6-32
Replacing a headlight bulb .......... 6-33
Tail/brake light ............................. 6-35U2C0E1E0.book Page 1 Friday, July 7, 2006 11:14 AM

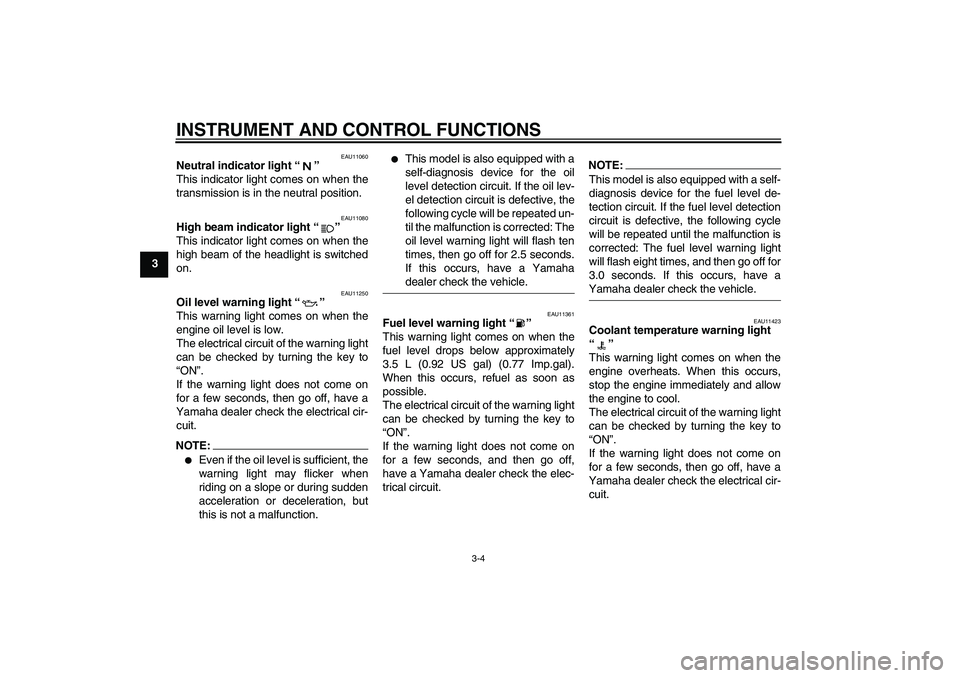

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11250
Oil level warning light “”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.NOTE:

Even if the oil level is sufficient, the
warning light may flicker when
riding on a slope or during sudden
acceleration or deceleration, but
this is not a malfunction.


This model is also equipped with a
self-diagnosis device for the oil
level detection circuit. If the oil lev-
el detection circuit is defective, the
following cycle will be repeated un-
til the malfunction is corrected: The
oil level warning light will flash ten
times, then go off for 2.5 seconds.
If this occurs, have a Yamahadealer check the vehicle.
EAU11361
Fuel level warning light “”
This warning light comes on when the
fuel level drops below approximately
3.5 L (0.92 US gal) (0.77 Imp.gal).
When this occurs, refuel as soon as
possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, and then go off,
have a Yamaha dealer check the elec-
trical circuit.
NOTE:This model is also equipped with a self-
diagnosis device for the fuel level de-
tection circuit. If the fuel level detection
circuit is defective, the following cycle
will be repeated until the malfunction is
corrected: The fuel level warning light
will flash eight times, and then go off for
3.0 seconds. If this occurs, have aYamaha dealer check the vehicle.
EAU11423
Coolant temperature warning light
“”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
the engine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
U2C0E1E0.book Page 4 Friday, July 7, 2006 11:14 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU11530
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring the
engine is defective. When this occurs,
have a Yamaha dealer check the self-
diagnosis system. (See page 3-7 for an
explanation of the self-diagnosis de-
vice.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU11571
Shift timing indicator light
This indicator light can be set to come
on and go off at the desired engine
speeds and is used to inform the rider
when it is time to shift to the next higher
gear.
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-cuit. (See page 3-7 for a detailed expla-
nation of the function of this indicator
light and on how to set it.)
EAU38620
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
This model is also equipped with a self-
diagnosis device for the immobilizer
system. (See page 3-7 for an explana-
tion of the self-diagnosis device.)
EAU39041
Multi-function meter unit
WARNING
EWA12421
Be sure to stop the vehicle before
making any setting changes to themulti-function meter unit.
The multi-function meter unit is
equipped with the following:1. Clock
2. Speedometer
3.“SELECT” button
4.“RESET” button
5. Tachometer
6. Coolant temperature display/air intake tem-
perature display
7. Odometer/tripmeters/fuel reserve tripme-
ter/stopwatch
8. Shift timing indicator light
U2C0E1E0.book Page 7 Friday, July 7, 2006 11:14 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3 1. Use the code re-registering key to
start the engine.
NOTE:Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the enginefrom starting.
2. If the engine starts, turn it off and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the right display indicates any error
codes, note the code number, and then
have a Yamaha dealer check the vehi-
cle.
CAUTION:
ECA11590
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoidengine damage.
Display brightness and shift timing
indicator light control mode
This mode cycles through five control
functions, allowing you to make the fol-
lowing settings in the order listed be-
low.


Display brightness:
This function allows you to adjust
the brightness of the displays and
tachometer to suit the outside
lighting conditions.


Shift timing indicator light activity:
This function allows you to choose
whether or not the indicator light
should be activated and whether it
should flash or stay on when acti-
vated.


Shift timing indicator light activa-
tion:
This function allows you to select
the engine speed at which the indi-
cator light will be activated.


Shift timing indicator light deactiva-
tion:
This function allows you to select
the engine speed at which the indi-
cator light will be deactivated.


Shift timing indicator light bright-
ness:
This function allows you to adjust
the brightness of the indicator light
to suit your preference.
1. Display brightness
2. Shift timing indicator light activation/deacti-
va tion
3. Shift timing indicator light
U2C0E1E0.book Page 11 Friday, July 7, 2006 11:14 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-18
3curs, use a gasoline of a different
brand. Use of unleaded fuel will extend
spark plug life and reduce maintenance
costs.
EAU39450
Fuel tank breather/overflow
hose Before operating the motorcycle:

Check the fuel tank breather/over-
flow hose connection.


Check the fuel tank breather/over-
flow hose for cracks or damage,
and replace it if damaged.


Make sure that the end of the fuel
tank breather/overflow hose is not
blocked, and clean it if necessary.
EAU13441
Catalytic converter This vehicle is equipped with catalytic
converters in the exhaust system.
WARNING
EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-ing any maintenance work.CAUTION:
ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.

Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.


Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.


Do not allow the engine to idletoo long.
1. Fuel tank breather/overflow hose
U2C0E1E0.book Page 18 Friday, July 7, 2006 11:14 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-26
3on the passenger seat, remove the
passenger seat, unhook the straps
from the hooks, and then install the
seat with the straps hanging out from
under the passenger seat. (See page
3-19.)
EAU41940
EXUP system This model is equipped with Yamaha’s
EXUP (EXhaust Ultimate Power valve)
system. This system boosts engine
power by means of a valve that regu-
lates the diameter of the exhaust pipe.
The EXUP system valve is constantly
adjusted in accordance with the engine
speed by a computer-controlled servo-
motor.CAUTION:
ECA15610
The EXUP system has been set and
extensively tested at the Yamaha
factory. Changing these settings
without sufficient technical knowl-
edge may result in poor perfor-mance of or damage to the engine.
EAU15301
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.NOTE:The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation ofthe ignition circuit cut-off system.)
WARNING
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as described
U2C0E1E0.book Page 26 Friday, July 7, 2006 11:14 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-27
3 below and have a Yamaha dealer re-
pair it if it does not function proper-
ly.
EAU15311
Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.

It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.


It prevents starting when the trans-
mission is in gear and the clutch le-
ver is pulled, but the sidestand is
still down.


It cuts the running engine when the
transmission is in gear and the sid-
estand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.WARNING
EWA10250
If a malfunction is noted, have a
Yamaha dealer check the system be-fore riding.
U2C0E1E0.book Page 27 Friday, July 7, 2006 11:14 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-28
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.
This check is most reliable if performed with
a warmed-up engine.The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NONOTE:
U2C0E1E0.book Page 28 Friday, July 7, 2006 11:14 AM

PRE-OPERATION CHECKS
4-2
4
EAU15605
Pre-operation check list
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-17
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-11
CoolantCheck coolant level in reservoir.
If necessary, add recommended coolant to specified level.
Check cooling system for leakage.6-14
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-22, 6-23
Rear brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-22, 6-23
ClutchCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-21
U2C0E1E0.book Page 2 Friday, July 7, 2006 11:14 AM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15950
WARNING
EWA10270


Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.


Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.


Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible lossof control.
EAU33010
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the sid-
estand up.WARNING
EWA10290


Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-27.


Never ride with the sidestanddown.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
CAUTION:
ECA11730
The following warning lights and in-
dicator light should come on for a
few seconds, then go off.

Oil level warning light


Fuel level warning light


Coolant temperature warning
light


Shift timing indicator light


Engine trouble warning light


Immobilizer system indicator
light
If a warning or indicator light does
not go off, see page 3-3 for the corre-
sponding warning and indicator
light circuit check.
2. Shift the transmission into the neu-
tral position.NOTE:When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical cir-cuit.
3. Start the engine by pushing the
start switch.NOTE:If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
U2C0E1E0.book Page 1 Friday, July 7, 2006 11:14 AM
