PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6
EAU23705
Replacing the fuses The main fuse, the fuel injection system
fuse, and fuse box 1 are located under
the rider seat. (See page 3-20.)
Fuse box 2 is located under panel A.
(See page 6-7.)If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Main fuse
2. Fuel injection system spare fuse
3. Fuel injection system fuse
4. Fuse box 1
5. Backup fuse (for odometer, clock and immo-
bilizer system)
6. ETV (Electronic Throttle Valve) fuse
7. Spare fuse
1. Fuse box 2
2. Left radiator fan fuse
3. Right radiator fan fuse
4. Signaling system fuse
5. Ignition fuse
6. Taillight fuse
7. Headlight fuse
8. Spare fuse
Specified fuses:
Main fuse:
50.0 A
Fuel injection system fuse:
15.0 A
Electronic throttle valve fuse:
7.5 A
Backup fuse:
7.5 A
Radiator fan fuse:
15.0 A × 2
Ignition fuse:
15.0 A
Signaling system fuse:
10.0 A
Taillight fuse:
7.5 A
Headlight fuse:
15.0 A
U13SE1E0.book Page 33 Monday, July 7, 2008 1:43 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-35
6 6. Install the headlight bulb cover by
turning it clockwise.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24181
Tail/brake light This model is equipped with an LED-
type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU24204
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.1. Screw
U13SE1E0.book Page 35 Monday, July 7, 2008 1:43 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
63. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11191]EAU24312
Replacing the license plate
light bulb 1. Remove the license plate light unit
by removing the screws.
2. Remove the socket (together with
the bulb) by pulling it out.3. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
1. Turn signal light bulb
1. Screw
1. License plate light bulb
2. License plate light unit
U13SE1E0.book Page 36 Monday, July 7, 2008 1:43 PM

SPECIFICATIONS
8-3
8
Bulb voltage, wattage × quantity:Headlight:
12 V, 55.0 W × 2
Tail/brake light:
LED
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
LED
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LED
Fuel level warning light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LED
Shift timing indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
15.0 A
Taillight fuse:
7.5 A
Signaling system fuse:
10.0 A
Ignition fuse:
15.0 A
Radiator fan fuse:
15.0 A × 2
Fuel injection system fuse:
15.0 A
Backup fuse:
7.5 A
Electronic throttle valve fuse:
7.5 A
U13SE1E0.book Page 3 Monday, July 7, 2008 1:43 PM

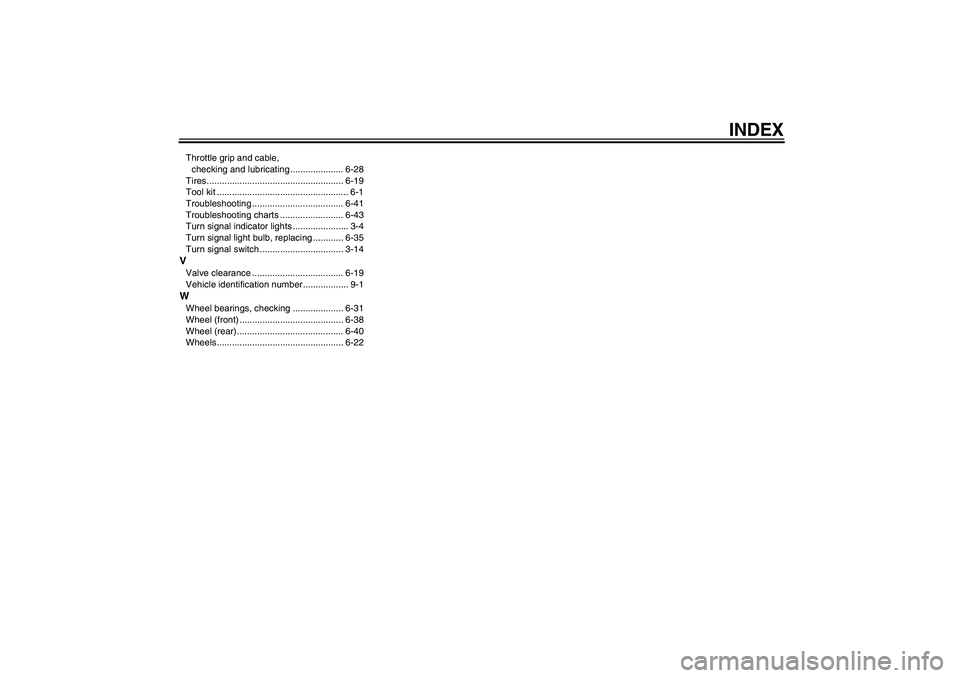

INDEX
Throttle grip and cable,
checking and lubricating ..................... 6-28
Tires...................................................... 6-19
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-41
Troubleshooting charts ......................... 6-43
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-35
Turn signal switch ................................. 3-14VValve clearance .................................... 6-19
Vehicle identification number.................. 9-1WWheel bearings, checking .................... 6-31
Wheel (front) ......................................... 6-38
Wheel (rear).......................................... 6-40
Wheels.................................................. 6-22
