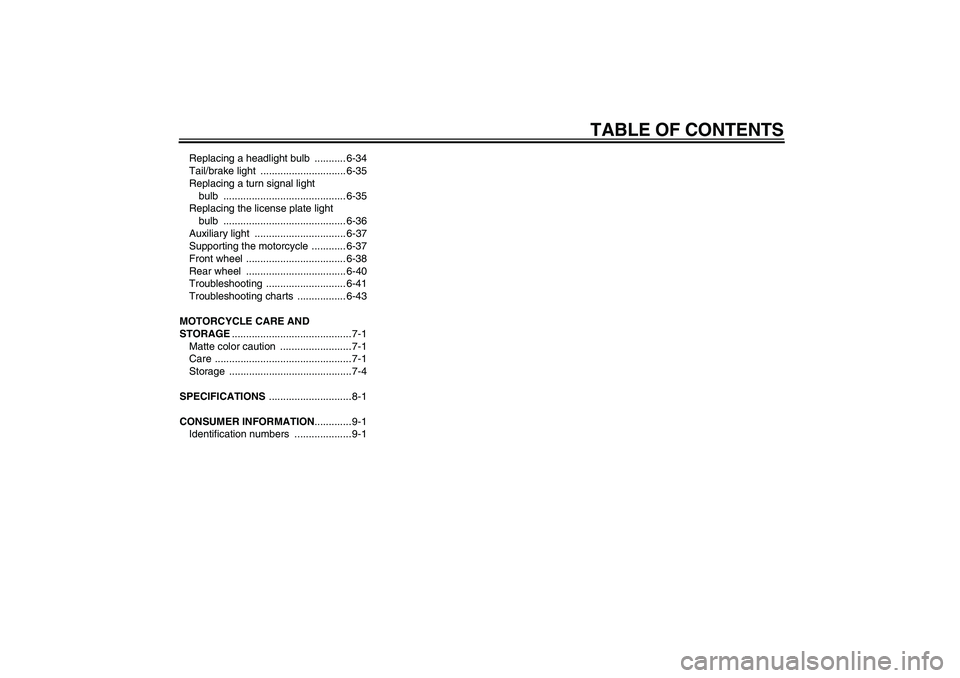

TABLE OF CONTENTS
Replacing a headlight bulb ........... 6-34
Tail/brake light .............................. 6-35
Replacing a turn signal light
bulb ........................................... 6-35
Replacing the license plate light
bulb ........................................... 6-36
Auxiliary light ................................ 6-37
Supporting the motorcycle ............ 6-37
Front wheel ................................... 6-38
Rear wheel ................................... 6-40
Troubleshooting ............................ 6-41
Troubleshooting charts ................. 6-43
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Matte color caution ......................... 7-1
Care ................................................ 7-1
Storage ...........................................7-4
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U13SE1E0.book Page 2 Monday, July 7, 2008 1:43 PM

SAFETY INFORMATION
1-2
1 due to excessive speed or under-
cornering (insufficient lean angle
for the speed).
Always obey the speed limit and
never travel faster than warrant-
ed by road and traffic conditions.
Always signal before turning or
changing lanes. Make sure that
other motorists can see you.


The posture of the operator and
passenger is important for proper
control.
The operator should keep both
hands on the handlebar and
both feet on the operator foot-
rests during operation to main-
tain control of the motorcycle.
The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger footrests.
Never carry a passenger unless
he or she can firmly place both
feet on the passenger footrests.


Never ride under the influence of
alcohol or other drugs.


This motorcycle is designed for on-
road use only. It is not suitable for
off-road use.
Protective apparel
The majority of fatalities from motor-
cycle accidents are the result of head
injuries. The use of a safety helmet is
the single most critical factor in the pre-
vention or reduction of head injuries.


Always wear an approved helmet.


Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision that could delay seeing a
hazard.


The use of a jacket, heavy boots,
trousers, gloves, etc., is effective in
preventing or reducing abrasions
or lacerations.


Never wear loose-fitting clothes,
otherwise they could catch on the
control levers, footrests, or wheels
and cause injury or an accident.


Always wear protective clothing
that covers your legs, ankles, and
feet. The engine or exhaust sys-
tem become very hot during or af-
ter operation and can cause burns.


A passenger should also observe
the above precautions.
Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon
monoxide, a deadly gas. Breathing car-
bon monoxide can cause headaches,
dizziness, drowsiness, nausea, confu-
sion, and eventually death.
Carbon Monoxide is a colorless, odor-
less, tasteless gas which may be
present even if you do not see or smell
any engine exhaust. Deadly levels of
carbon monoxide can collect rapidly
and you can quickly be overcome and
unable to save yourself. Also, deadly
levels of carbon monoxide can linger
for hours or days in enclosed or poorly
ventilated areas. If you experience any
symptoms of carbon monoxide poison-
ing, leave the area immediately, get
fresh air, and SEEK MEDICAL TREAT-
MENT.


Do not run engine indoors. Even if
you try to ventilate engine exhaust
with fans or open windows and
doors, carbon monoxide can rap-
idly reach dangerous levels.
U13SE1E0.book Page 2 Monday, July 7, 2008 1:43 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3


Keep other immobilizer system
keys away from the main switch
as they may cause signal inter-ference.
EAU10471
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering.TIPBe sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code re-
registering key (red bow), keep it in a
safe place and only use it for code re-registering.
EAU38530
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, li-
cense plate light and auxiliary light
come on, and the engine can be start-
ed. The key cannot be removed.TIPThe headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”, even ifthe engine stalls.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10061
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result inloss of control or an accident.
U13SE1E0.book Page 2 Monday, July 7, 2008 1:43 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU10681
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
EAU34341
(Parking)
The steering is locked, and the taillight,
license plate light and auxiliary light are
on. The hazard lights and turn signal
lights can be turned on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to“”.
NOTICE
ECA11020
Do not use the parking position for
an extended length of time, other-wise the battery may discharge.
1. Push.
2. Turn.
1. Push.
2. Turn.
U13SE1E0.book Page 3 Monday, July 7, 2008 1:43 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU11003
Indicator and warning lights
EAU11030
Turn signal indicator lights“”
and“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light“”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11252
Oil level warning light“”
This warning light comes on if the en-
gine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.TIP

Even if the oil level is sufficient, the
warning light may flicker when
riding on a slope or during sudden
acceleration or deceleration, but
this is not a malfunction.


This model is also equipped with a
self-diagnosis device for the oil
level detection circuit. If a problem
is detected in the oil level detection
circuit, the following cycle will be
repeated until the malfunction is
corrected: The oil level warning
light will flash ten times, then go off
for 2.5 seconds. If this occurs,
have a Yamaha dealer check thevehicle.
EAU11363
Fuel level warning light“”
This warning light comes on when the
fuel level drops below approximately
3.5 L (0.92 US gal, 0.77 Imp.gal). When
this occurs, refuel as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, and then go off,
have a Yamaha dealer check the elec-
trical circuit.
1. Left turn signal indicator light“”
2. Neutral indicator light“”
3. High beam indicator light“”
4. Right turn signal indicator light“”
5. Fuel level warning light“”
6. Oil level warning light“”
7. Coolant temperature warning light“”
8. Shift timing indicator light
9. Engine trouble warning light“”
10.Immobilizer system indicator light
km/h
TRIP A
˚C
12 34 5
6
7
8
9 10
U13SE1E0.book Page 4 Monday, July 7, 2008 1:43 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3 If a problem is detected in the immobi-
lizer system circuits, the immobilizer
system indicator light will flash and the
right display will indicate a two-digit er-
ror code.
TIPIf the right display indicates error code
52, this could be caused by transpon-
der interference. If this error code ap-pears, try the following.
1. Use the code re-registering key to
start the engine.TIPMake sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the enginefrom starting.
2. If the engine starts, turn it off and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registeringkey and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the right display indicates any error
codes, note the code number, and then
have a Yamaha dealer check the vehi-
cle.
NOTICE
ECA11590
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoidengine damage.Display brightness and shift timing
indicator light control mode
This mode cycles through five control
functions, allowing you to make the fol-
lowing settings in the order listed be-
low.


Display brightness:
This function allows you to adjust
the brightness of the displays and
tachometer to suit the outside
lighting conditions.
1. Display brightness
2. Shift timing indicator light activation/deacti-
vation
3. Shift timing indicator light
4. Brightness level
km/h
2
1
4
3
1
U13SE1E0.book Page 11 Monday, July 7, 2008 1:43 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
EAU12347
Handlebar switches LeftRight
EAU12350
Pass switch“”
Press this switch to flash the headlight.
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch“”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
1. Pass switch“”
2. Dimmer switch“/”
3. Turn signal switch“/”
4. Horn switch“”
5. Hazard switch“”
1. Engine stop switch“/”
2. Start switch“”
U13SE1E0.book Page 14 Monday, July 7, 2008 1:43 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
EAU12733
Hazard switch“”
With the key in the “ON” or“” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-tery may discharge.
EAU12820
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-28.)
EAU12870
Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission equipped on
this motorcycle.
1. Clutch lever
1. Shift pedal
U13SE1E0.book Page 15 Monday, July 7, 2008 1:43 PM

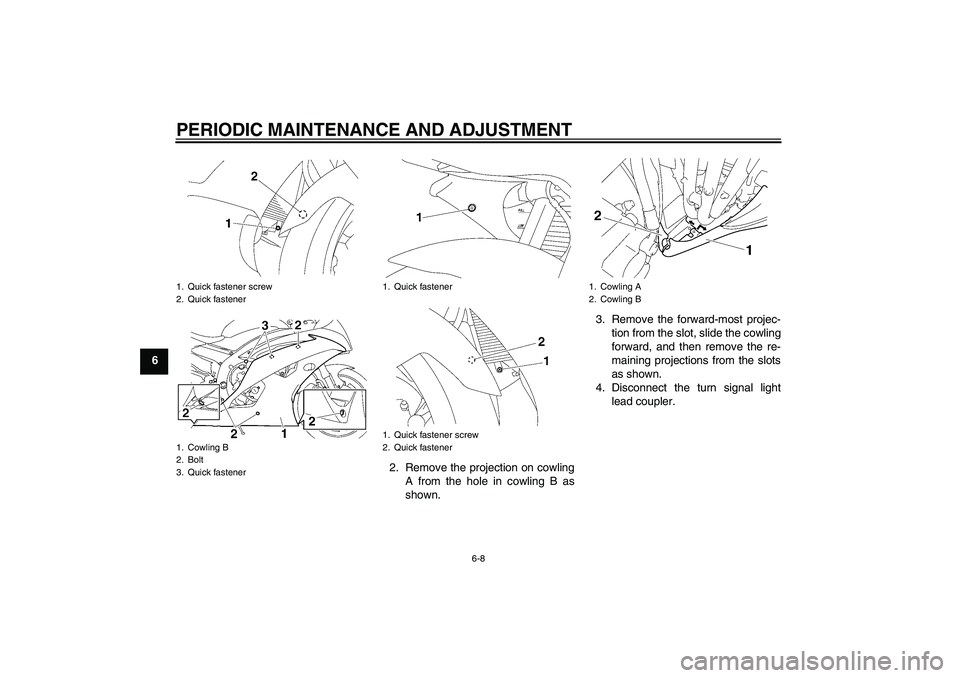

PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6
2. Remove the projection on cowling
A from the hole in cowling B as
shown.3. Remove the forward-most projec-
tion from the slot, slide the cowling
forward, and then remove the re-
maining projections from the slots
as shown.
4. Disconnect the turn signal light
lead coupler.
1. Quick fastener screw
2. Quick fastener
1. Cowling B
2. Bolt
3. Quick fastener
1. Quick fastener
1. Quick fastener screw
2. Quick fastener
1. Cowling A
2. Cowling B
U13SE1E0.book Page 8 Monday, July 7, 2008 1:43 PM

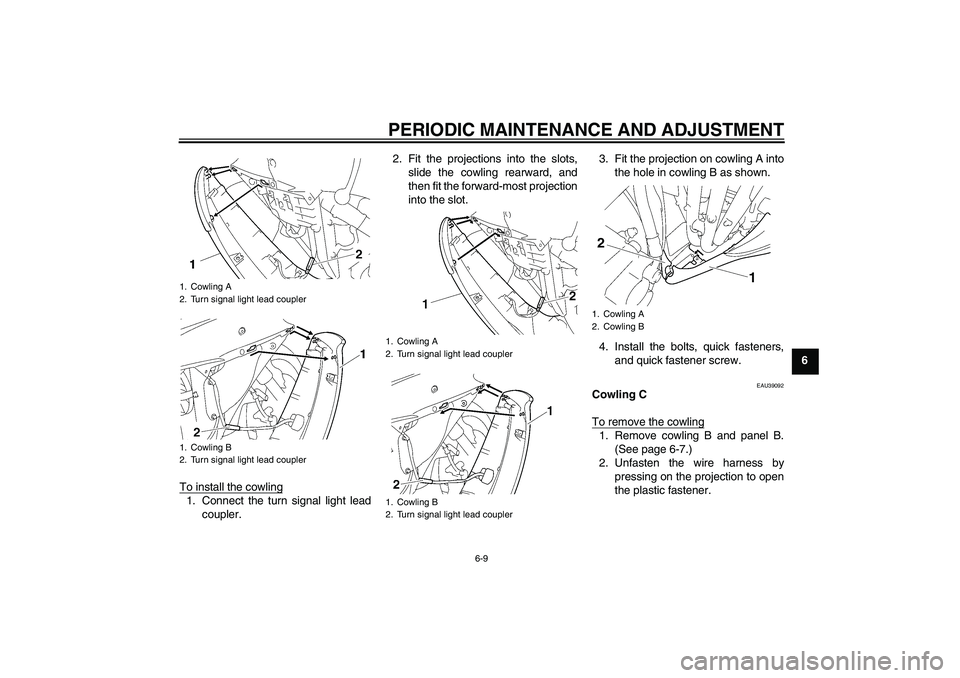

PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6
To install the cowling
1. Connect the turn signal light lead
coupler.2. Fit the projections into the slots,
slide the cowling rearward, and
then fit the forward-most projection
into the slot.3. Fit the projection on cowling A into
the hole in cowling B as shown.
4. Install the bolts, quick fasteners,
and quick fastener screw.
EAU39092
Cowling C
To remove the cowling1. Remove cowling B and panel B.
(See page 6-7.)
2. Unfasten the wire harness by
pressing on the projection to open
the plastic fastener.
1. Cowling A
2. Turn signal light lead coupler
1. Cowling B
2. Turn signal light lead coupler
1. Cowling A
2. Turn signal light lead coupler
1. Cowling B
2. Turn signal light lead coupler
1. Cowling A
2. Cowling B
U13SE1E0.book Page 9 Monday, July 7, 2008 1:43 PM
