YAMAHA YZF-R7 2022 Owner's Guide

Instrument and control functions
3-16
3
EAU13077
Fuel tank capTo open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key, and then turn it 1/4 turn
clockwise. The lock will be released
and the fuel tank cap can be opened.
To close the fuel tank cap
With the key still inserted, push down
the fuel tank cap. Turn the key 1/4 turn
counterclockwise, remove it, and then
close the lock cover.
TIPThe fuel tank cap cannot be closed un-
less the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly closed and locked.
WARNING
EWA11092
Make sure that the fuel tank cap is
properly closed after filling fuel.
Leaking fuel is a fire hazard.
1. Front wheel sensor
2. Front wheel sensor rotor
1. Rear wheel sensor
2. Rear wheel sensor rotor
1 1 12 2
1 1 1
2 2
1. Fuel tank cap lock cover
2. Unlock.
1 1 1
2 2
UBEBE0E0.book Page 16 Monday, July 5, 2021 2:26 PM

Instrument and control functions
3-17
3
EAU13222
FuelMake sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.1. Before refueling, turn off the en-gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank. 3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately
wipe off spilled fuel with a clean,
dry, soft cloth, since fuel may
deteriorate painted surfaces or
plastic parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gasoline
by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in
your eyes, see your doctor immedi- ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU86072
Your Yamaha engine was designed to
use unleaded gasoline with a research
octane number of 90 or higher. If en-
gine knocking or pinging occurs, use a
gasoline of a different brand or higher
octane rating.
1. Fuel tank filler tube
2. Maximum fuel level
2
1
Recommended fuel:
Unleaded gasoline (E10 acceptable)
Octane number (RON): 90
Fuel tank capacity: 13 L (3.4 US gal, 2.9 Imp.gal)
Fuel tank reserve:
2.5 L (0.66 US gal, 0.55 Imp.gal)
UBEBE0E0.book Page 17 Monday, July 5, 2021 2:26 PM

Instrument and control functions
3-18
3
TIPThis mark identifies the recom-
mended fuel for this vehicle as
specified by European regulation
(EN228).
 Confirm the gasoline pump nozzle
has the same fuel identification
mark.Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that con-
taining methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
NOTICE
ECA11401
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
EAU86160
Fuel tank overflow hoseThe overflow hose drains excess gaso-
line and directs it safely away from the
vehicle.
Before operating the vehicle:
 Check the fuel tank overflow hose
connection.
 Check the fuel tank overflow hose
for cracks or damage, and replace
it if necessary.
 Make sure that the fuel tank over-
flow hose is not blocked, and
clean it if necessary.
 Make sure that the fuel tank over-
flow hose is positioned as shown.
E5
E10
1. Fuel tank overflow hose
2. Clamp
1 1 1
2 2
UBEBE0E0.book Page 18 Monday, July 5, 2021 2:26 PM

Instrument and control functions
3-19
3
TIPSee page 6-11 for canister information.
EAU13435
Catalytic converterThe exhaust system contains catalytic
converter(s) to reduce harmful exhaust
emissions.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns: Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
 Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
 Make sure that the exhaust sys-
tem has cooled down before
doing any maintenance work.
 Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
EAU93101
SeatsPassenger seat
To remove the passenger seat1. Insert the key into the seat lock,
and then turn it clockwise.
2. Lift the front of the passenger seat and pull it forward.
To install the passenger seat1. Insert the projection on the rear of the passenger seat as shown.1. Seat lock
2. Unlock.
111
22
UBEBE0E0.book Page 19 Monday, July 5, 2021 2:26 PM

Instrument and control functions
3-20
3
2. Insert the key into the seat lock, and then turn it clockwise. While
holding the key turned in the
clockwise position, push the front
of the seat down to lock it in place.
3. Remove the key.
Rider seat
To remove the rider seat
1. Remove the passenger seat, and then remove the cover by remov-
ing the quick fasteners. 2. Remove the hexagon wrench.
3. Remove the bolts with the hexa-
gon wrench. 4. Lift the seat rearward and up to re-
move it.
To install the rider seat
1. Fit the slot in the seat onto the pro- jection on the frame cross mem-
ber as shown, and then place the
seat in the original position.
1. Projection
2. Seat holder
1
2 2 2
1. Cover
2. Quick fastener
1. Hexagon wrench
1 1 1 2 2
1 1 1
1. Bolt
1 1 1
UBEBE0E0.book Page 20 Monday, July 5, 2021 2:26 PM

Instrument and control functions
3-21
32. Install the bolts with the hexagonwrench.
3. Insert the hexagon wrench back into the original position.
4. Place the cover in the original po- sition, and then install the quick
fasteners. 5. Install the passenger seat.
TIPMake sure that the seats are properly
secured before riding.
EAU39672
Rear view mirrorsThe rear view mirrors of this vehicle
can be folded forward or backward for
parking in narrow spaces. Fold the mir-
rors back to their original position be-
fore riding.
WARNING
EWA14372
Be sure to fold the rear view mirrors
back to their original position before
riding.
1. Slot
2. Projection
1 1 1
2 2
1. Riding position
2. Parking position1
1
2 2 22 2
UBEBE0E0.book Page 21 Monday, July 5, 2021 2:26 PM

Instrument and control functions
3-22
3
EAU76345
Adjusting the front fork
WARNING
EWA14671
Always adjust the spring preload on
both fork legs equally, otherwise
poor handling and loss of stability
may result.Each front fork leg is equipped with a
spring preload adjusting bolt, the right
front fork leg is equipped with a re-
bound damping force adjusting screw
and the left front fork leg with a com-
pression damping force adjusting
screw.NOTICE
ECA10102
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.Spring preload
Turn the adjusting bolt in direction (a)
to increase the spring preload.
Turn the adjusting bolt in direction (b)
to decrease the spring preload.The spring preload setting is deter-
mined by measuring distance A,
shown in the illustration. The shorter
distance A is, the higher the spring pre-
load; the longer distance A is, the lower
the spring preload.
Rebound damping force
The rebound damping force is adjust-
ed on the right fork leg only.
Turn the adjusting screw in direction (a)
to increase the rebound damping
force.
Turn the adjusting screw in direction (b)
to decrease the rebound damping
force.
To set the rebound damping force, turn
the adjuster in direction (a) until it
stops, and then count the clicks in di-
rection (b).
TIPBe sure to perform this adjustment on
the right fork leg.
1. Spring preload adjusting bolt
1. Distance A
(a) (a)
(b) (b)
(a) (b) 1 1
1
Spring preload setting:
Minimum (soft):
Distance A = 19.0 mm (0.75 in)
Standard:
Distance A = 14.0 mm (0.55 in)
Maximum (hard): Distance A = 4.0 mm (0.16 in)
UBEBE0E0.book Page 22 Monday, July 5, 2021 2:26 PM

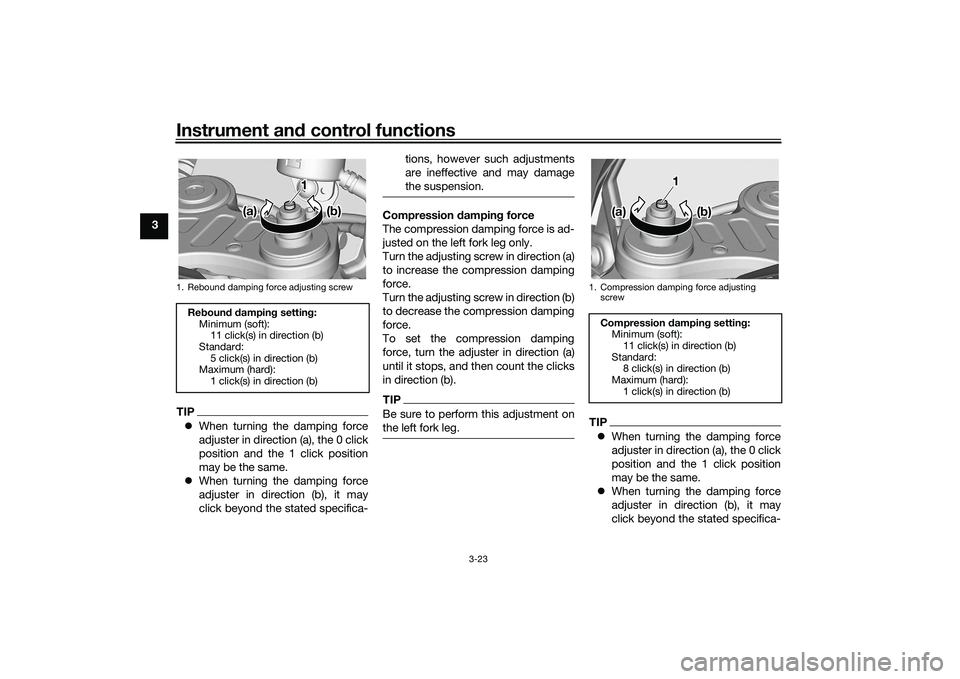

Instrument and control functions
3-23
3
TIPWhen turning the damping force
adjuster in direction (a), the 0 click
position and the 1 click position
may be the same.
 When turning the damping force
adjuster in direction (b), it may
click beyond the stated specifica- tions, however such adjustments
are ineffective and may damage
the suspension.
Compression damping force
The compression damping force is ad-
justed on the left fork leg only.
Turn the adjusting screw in direction (a)
to increase the compression damping
force.
Turn the adjusting screw in direction (b)
to decrease the compression damping
force.
To set the compression damping
force, turn the adjuster in direction (a)
until it stops, and then count the clicks
in direction (b).TIPBe sure to perform this adjustment on
the left fork leg.
TIP
When turning the damping force
adjuster in direction (a), the 0 click
position and the 1 click position
may be the same.
 When turning the damping force
adjuster in direction (b), it may
click beyond the stated specifica-
1. Rebound damping force adjusting screwRebound damping setting:
Minimum (soft):11 click(s) in direction (b)
Standard: 5 click(s) in direction (b)
Maximum (hard):
1 click(s) in direction (b)
(a) (a) (b) (b)
(a) (b)
1 1
1. Compression damping force adjusting
screwCompression damping setting:Minimum (soft):11 click(s) in direction (b)
Standard: 8 click(s) in direction (b)
Maximum (hard):
1 click(s) in direction (b)
1 1 1
(a) (a) (b) (b)
(a) (b)
UBEBE0E0.book Page 23 Monday, July 5, 2021 2:26 PM

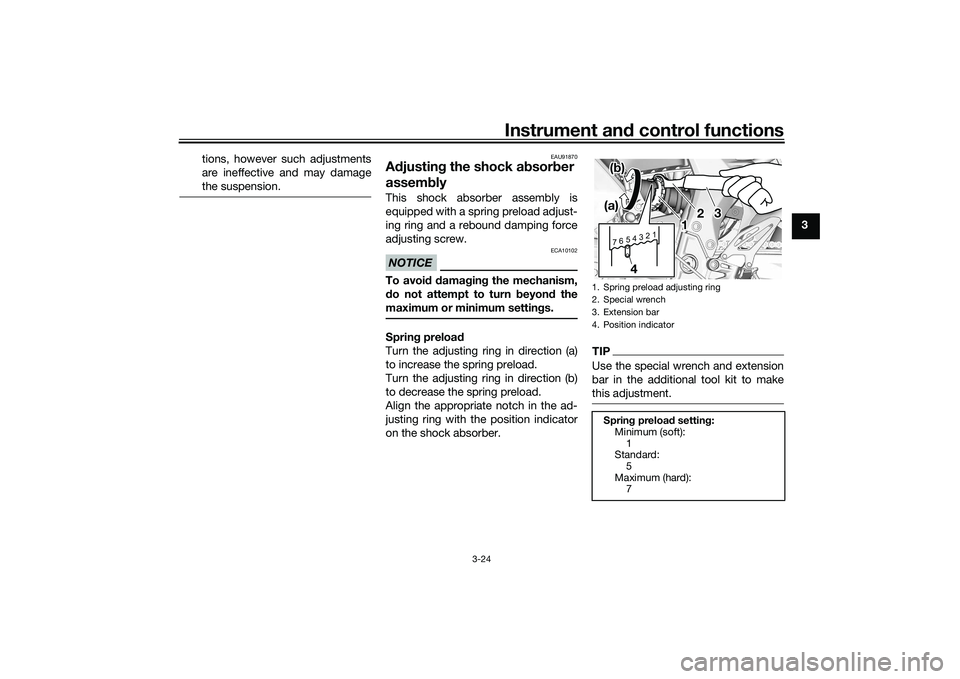

Instrument and control functions
3-24
3
tions, however such adjustments
are ineffective and may damage
the suspension.
EAU91870
Adjusting the shock absorber
assemblyThis shock absorber assembly is
equipped with a spring preload adjust-
ing ring and a rebound damping force
adjusting screw.NOTICE
ECA10102
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.Spring preload
Turn the adjusting ring in direction (a)
to increase the spring preload.
Turn the adjusting ring in direction (b)
to decrease the spring preload.
Align the appropriate notch in the ad-
justing ring with the position indicator
on the shock absorber.
TIPUse the special wrench and extension
bar in the additional tool kit to make
this adjustment.1. Spring preload adjusting ring
2. Special wrench
3. Extension bar
4. Position indicator
Spring preload setting:
Minimum (soft): 1
Standard:
5
Maximum (hard): 776
54321
33
2
13
2
1
4
(b)(b)(a)(a)(b)
(a)
UBEBE0E0.book Page 24 Monday, July 5, 2021 2:26 PM

Instrument and control functions
3-25
3Rebound damping force
Turn the adjusting screw in direction (a)
to increase the rebound damping
force.
Turn the adjusting screw in direction (b)
to decrease the rebound damping
force.
To set the rebound damping force, turn
the adjuster in direction (a) until it
stops, and then count the turns in di-
rection (b).
TIPWhen turning the damping force ad-
juster in direction (b), it may turn be-
yond the stated specifications,
however such adjustments are ineffec-
tive and may damage the suspension.
WARNING
EWA10222
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.
 Do not tamper with or attempt
to open the cylinder assembly.
 Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.
 Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance. 
Do not dispose of a damaged or
worn-out shock absorber as-
sembly yourself. Take the shock
absorber assembly to a Yamaha
dealer for any service.
1. Rebound damping force adjusting screwRebound damping setting:
Minimum (soft):2+1/2 turn(s) in direction (b)
Standard: 1+1/2 turn(s) in direction (b)
Maximum (hard):
0 turn(s) in direction (b)
1(a)(b)
UBEBE0E0.book Page 25 Monday, July 5, 2021 2:26 PM
