YAMAHA YZF600 2001 Owners Manual

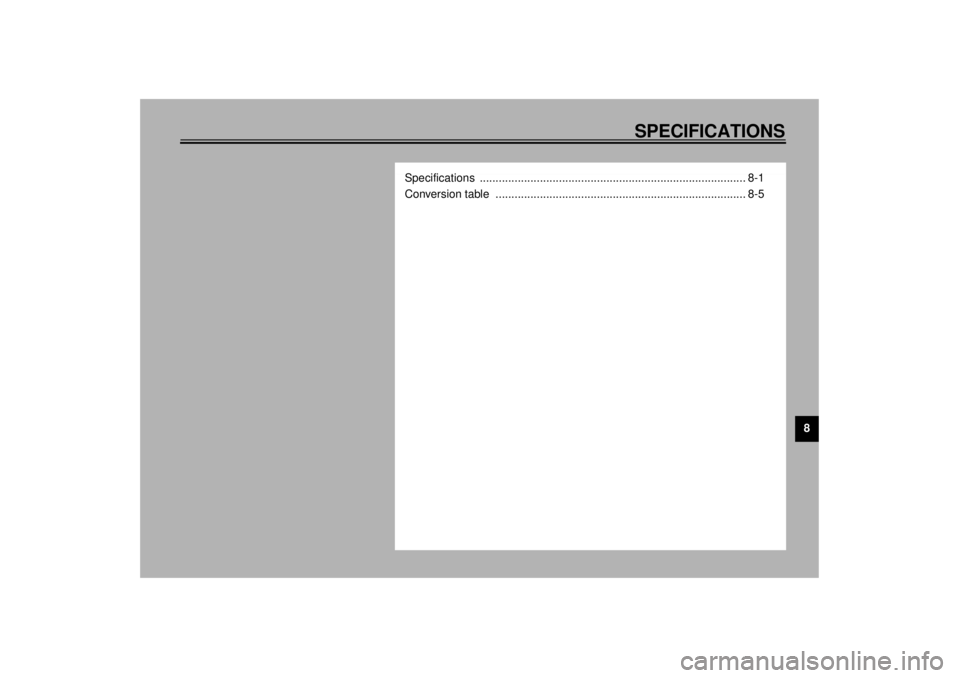

SPECIFICATIONS
8
Specifications .................................................................................... 8-1
Conversion table ............................................................................... 8-5
E_4tv.book Page 1 Wednesday, October 4, 2000 2:15 PM

8-1
8
EAU01038
8-SPECIFICATIONSSpecifications CS-01E
Model YZF600R
Dimensions
Overall length 2,145 mm
(except for F, E, I, GR)
2,060 mm (for F, E, I, GR)
Overall width 725 mm
Overall height 1,190 mm
Seat height 805 mm
Wheelbase 1,415 mm
Ground clearance 135 mm
Minimum turning radius 3,200 mm
Basic weight (with oil and full
fuel tank)
212 kg (except for A, CH, S)
214 kg (for A, CH, S)
Engine
Engine type Liquid-cooled 4-stroke, DOHC
Cylinder arrangement Forward-inclined parallel
4-cylinder
Displacement 599 cm
3
Bore ´ stroke 62.0 ´ 49.6 mm
Compression ratio 12:1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG type or
higher
Quantity
Without oil filter cartridge
replacement 2.6 L
With oil filter car tridge
replacement 2.9 L
Total amount (dry engine) 3.5 L

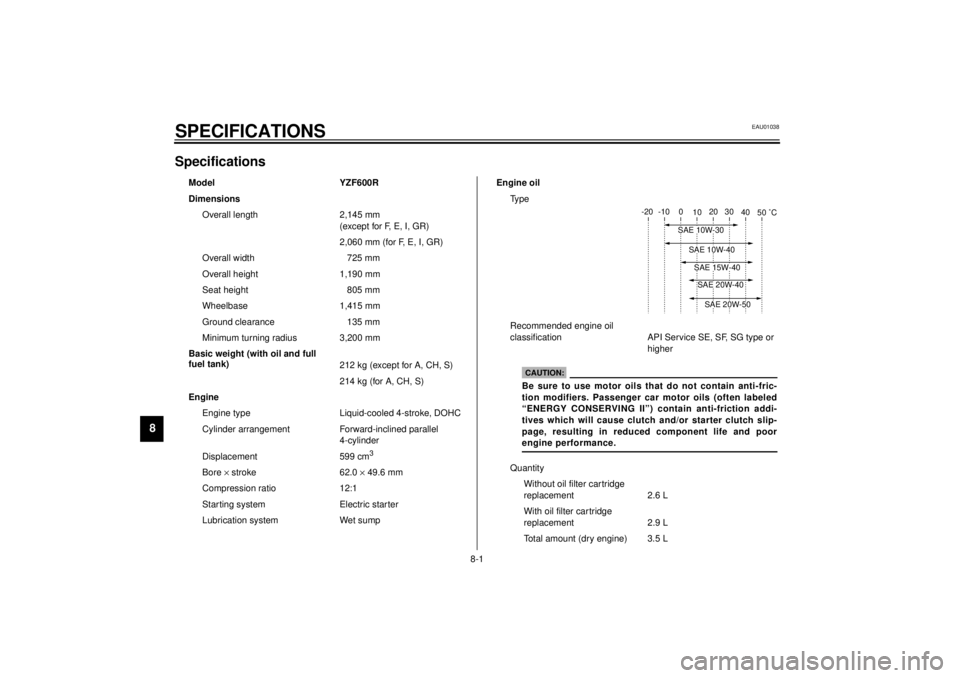

-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
CAUTION:Be sure to use motor oils that do not contain anti-fric-
tion modifiers. Passenger car motor oils (often labeled
“ENERGY CONSERVING II”) contain anti-friction addi-
tives which will cause clutch and/or starter clutch slip-
page, resulting in reduced component life and poor
engine performance.
E_4tv.book Page 1 Wednesday, October 4, 2000 2:15 PM

SPECIFICATIONS
8-2
8
Cooling system capacity
(total amount)
1.95 L
Air filterWet type element
Fuel
Type Regular unleaded gasoline
Fuel tank capacity 19 L
Reserve amount 3.1 L
Carburetor
Manufacturer KEIHIN
Model ´ quantity CVKD36 ´ 4
Spark plug
Manufacturer/model NGK / CR9E or
DENSO / U27ESR-N
Gap 0.7–0.8 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 1.708
Secondary reduction system Chain drive
Secondary reduction ratio 3.133
Number of drive chain
sprocket teeth (front/rear) 15/47
Transmission type Constant-mesh 6-speed
Operation Left footGear ratio
1st 2.846
2nd 1.947
3rd 1.545
4th 1.333
5th 1.190
6th 1.074
Chassis
Frame type Diamond
Caster angle 25°
Trail 97 mm
Tires
Front
Type Tubeless tire
Size 120/60 ZR17 (55W)
Manufacturer/model Bridgestone / BT57F
Dunlop / D204F
Metzeler / MEZ1
Michelin / MACADAM 90X
E_4tv.book Page 2 Wednesday, October 4, 2000 2:15 PM

SPECIFICATIONS
8-3
8
Rear
Type Tubeless tire
Size 160/60 ZR17 (69W)
Manufacturer/model Bridgestone / BT57
Dunlop / D204
Metzeler / MEZ1
Michelin / MACADAM 90X
Maximum load* 180 kg (except for A, CH, S)
178 kg (for A, CH, S)
Tire air pressure
(measured on cold tires)
Up to 90 kg*
Front 225 kPa (2.25 kg/cm
2, 2.25 bar)
Rear 250 kPa (2.50 kg/cm2, 2.50 bar)
90 kg–maximum*
Front 250 kPa (2.50 kg/cm2, 2.50 bar)
Rear 290 kPa (2.90 kg/cm2, 2.90 bar)
High-speed riding
Front 250 kPa (2.50 kg/cm2, 2.50 bar)
Rear 290 kPa (2.90 kg/cm2, 2.90 bar)
* Total weight of rider, passenger, cargo and accessoriesWheels
Fr o n t
Type Cast wheel
Size 17 ´ MT 3.50
Rear
Type Cast wheel
Size 17 ´ MT 5.00
Brakes
Fr o n t
Type Dual disc brake
Operation Right hand
Fluid DOT 4
Rear
Type Single disc brake
Operation Right foot
Fluid DOT 4
Suspension
Front Telescopic fork
Rear Swingarm (link suspention)
Spring/shock absorber
Front Coil spring / oil damper
Rear Coil spring / gas-oil damper
E_4tv.book Page 3 Wednesday, October 4, 2000 2:15 PM

SPECIFICATIONS
8-4
8
Wheel travel
Front 130 mm
Rear 120 mm
Electrical system
Ignition system T.C.I. (digital)
Charging system
Type A.C. magneto
Standard output 14 V, 18.5 A @ 5,000 r/min
Battery
Model YTX12-BS
Voltage, capacity 12 V, 10 Ah
Headlight typeQuar tz bulb (halogen)
Bulb voltage, wattage ´ quantity
Headlight 12 V, 60/55 W ´ 1
Tail/brake light 12 V, 5/21 W ´ 1
Turn signal light 12 V, 21 W ´ 4
Auxiliary light 12 V, 4 W ´ 1
Meter lighting 12 V, 1.7 W ´ 4
Neutral indicator light 12 V, 3.4 W ´ 1
High beam indicator light 12 V, 3.4 W ´ 1
Oil level warning light 12 V, 3.4 W ´ 1
Turn signal indicator light 12 V, 3.4 W ´ 1
Fuel level warning light 12 V, 3.4 W ´ 1Fuses
Main fuse 30 A
Headlight fuse 20 A
Signaling system fuse 15 A
Radiator fan fuse 7.5 A
Ignition fuse 7.5 A
E_4tv.book Page 4 Wednesday, October 4, 2000 2:15 PM

SPECIFICATIONS
8-5
8
EAU01064
Conversion table CS-02EAll specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit data to IMPERIAL
unit data.
ExampleMETRIC MULTIPLIER IMPERIAL
** mm´ 0.03937 = ** in
2 mm´ 0.03937 = 0.08 in
Conversion tableMETRIC TO IMPERIAL
Metric unit Multiplier Imperial unit
Torquem·kg
m·kg
cm·kg
cm·kg7.233
86.794
0.0723
0.8679ft·lb
in·lb
ft·lb
in·lb
Weightkg
g2.205
0.03527lb
oz
Speed km/h 0.6214 mi/h
Distancekm
m
m
cm
mm0.6214
3.281
1.094
0.3937
0.03937mi
ft
yd
in
in
Volume,
Capacitycc (cm3)
cc (cm3)
L (liter)
L (liter)0.03527
0.06102
0.8799
0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Miscellaneouskg/mm
kg/cm2
Centigrade (°
C)55.997
14.2234
9/5 + 32 lb/in
psi (lb/in
2)
Fahrenheit (°
F)
E_4tv.book Page 5 Wednesday, October 4, 2000 2:15 PM

CONSUMER INFORMATION
9
Identification numbers ....................................................................... 9-1
Key identification number .................................................................. 9-1
Vehicle identification number ............................................................. 9-1
Model label ........................................................................................ 9-2
E_4tv.book Page 1 Wednesday, October 4, 2000 2:15 PM

9-1
9
EAU01039
9-CONSUMER INFORMATION
EAU02944
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification number The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU01043
Vehicle identification number The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:_ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your area. _
1. Key identification number
1. Vehicle identification number
E_4tv.book Page 1 Wednesday, October 4, 2000 2:15 PM

CONSUMER INFORMATION
9-2
9
EAU01050
Model label The model label is affixed to the frame
under the seat. (See page 3-11 for seat
removal and installation procedures.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model label
E_4tv.book Page 2 Wednesday, October 4, 2000 2:15 PM

INDEXAAir filter element, cleaning ...................... 6-17
Air intake duct ........................................ 6-19
Air vent hose, checking .......................... 6-18
Anti-theft alarm ........................................3-5BBattery ................................................... 6-35
Brake and clutch levers, checking and
lubricating ............................................ 6-32
Brake and shift pedals, checking and
lubricating ............................................ 6-32
Brake fluid, changing ............................. 6-28
Brake fluid level, checking...................... 6-27
Brake lever...............................................3-7
Brake light switch (rear), adjusting ......... 6-26
Brake pads, checking............................. 6-27
Brake pedal..............................................3-8
Brake pedal position, adjusting .............. 6-25CCables, checking and lubricating............ 6-31
Carburetors, adjusting............................ 6-19
Care.........................................................7-1
Clutch lever ..............................................3-7
Clutch lever free play, adjusting ............. 6-25
Conversion table ......................................8-5
Coolant .................................................. 6-13
Changing .......................................... 6-14
Checking .......................................... 6-13
Coolant temperature gauge .....................3-5
Cowlings, removing and installing ............6-5
DDimmer switch ......................................... 3-5
Drive chain, lubricating .......................... 6-30
Drive chain slack ................................... 6-29
Checking .......................................... 6-29
Adjusting .......................................... 6-29EEngine break-in ....................................... 5-5
Engine oil and oil filter cartridge ............. 6-10
Engine stop switch................................... 3-6FFront and rear suspension settings ........ 3-17
Front fork, adjusting ............................... 3-12
Front fork, checking ............................... 6-33
Fuel ......................................................... 3-9
Fuel consumption, tips for reducing ......... 5-4
Fuel level warning light ............................ 3-3
Fuel tank breather hose
(Germany only) ..................................... 3-9
Fuel tank cap ........................................... 3-8
Fuses, replacing .................................... 6-36HHandlebar switches ................................. 3-5
Headlight bulb, replacing ....................... 6-37
Helmet holder ........................................ 3-11
High beam indicator light ......................... 3-3
Horn switch ............................................. 3-6
IIdentification numbers ..............................9-1
Idling speed, adjusting ...........................6-19
Ignition circuit cut-off system ..................3-19
Indicator and warning lights......................3-2KKey identification number .........................9-1LLight switch ..............................................3-6
Luggage strap holders ...........................3-18MMain switch/steering lock .........................3-1
Model label ..............................................9-2NNeutral indicator light ...............................3-2OOil level warning light ...............................3-2PParking.....................................................5-6
Part locations ...........................................2-1
Pass switch ..............................................3-5
Periodic maintenance and lubrication
chart ......................................................6-2
Pre-operation check list ............................4-1
