6
PERIODIC MAINTENANCE AND MINOR REPAIR
Owner’s tool kit .................................................... 6-1
Periodic maintenance and lubrication chart ......... 6-2
Removing and installing cowlings ........................ 6-5
Checking the spark plugs .................................... 6-8
Engine oil and oil filter cartridge ........................ 6-10
Coolant .............................................................. 6-13
Cleaning the air filter element ............................ 6-17
Checking the air vent hose ................................ 6-18
Air intake duct .................................................... 6-19
Adjusting the carburetors ................................... 6-19
Adjusting the engine idling speed ...................... 6-19
Adjusting the throttle cable free play .................. 6-20
Adjusting the valve clearance ............................ 6-20
Tires ................................................................... 6-21
Cast wheels ....................................................... 6-24
Adjusting the clutch lever free play .................... 6-25
Adjusting the brake pedal position ..................... 6-25
Adjusting the rear brake light switch .................. 6-26
Checking the front and rear brake pads ............. 6-27
Checking the brake fluid level ............................ 6-27
Changing the brake fluid .................................... 6-28
Drive chain slack ................................................ 6-29
Lubricating the drive chain ................................. 6-30Checking and lubricating the cables ................. 6-31
Checking and lubricating the throttle grip and
cable ............................................................... 6-31
Checking and lubricating the brake and shift
pedals ............................................................. 6-31
Checking and lubricating the brake and clutch
levers ............................................................... 6-32
Checking and lubricating the sidestand ............ 6-32
Lubricating the rear suspension ........................ 6-32
Checking the front fork ...................................... 6-33
Checking the steering ....................................... 6-33
Checking the wheel bearings ............................ 6-34
Battery ............................................................... 6-35
Replacing the fuses .......................................... 6-36
Replacing the headlight bulb ............................. 6-37
Replacing the tail/brake light bulb ..................... 6-38
Replacing a turn signal light bulb ...................... 6-39
Supporting the motorcycle ................................ 6-39
Front wheel ....................................................... 6-40
Rear wheel ........................................................ 6-41
Troubleshooting ................................................. 6-43
Troubleshooting charts ...................................... 6-44
U4TVE6.book Page 1 Saturday, August 4, 2001 12:14 PM
Page 51 of 114
PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU03685
Periodic maintenance and lubrication chart
NOTE:_
The annual checks must be performed every year, except if a kilometer-based maintenance is performed instead.
From 50,000 km, repeat the maintenance intervals starting from 10,000 km.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and techni-
cal skills.
_
CP-03ENO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×1,000 km)
ANNUAL
CHECK
1 10203040
1
*Fuel lineCheck fuel hoses for cracks or damage.√√√√ √
2*Fuel filterCheck condition.√√
3 Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
4*ValvesCheck valve clearance.
Adjust.Every 40,000 km
5 Air filter elementClean.√√
Replace.√√
6ClutchCheck operation.
Adjust.√√√√√
7*Front brakeCheck operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-4.)√√ √ √ √ √
Replace brake pads. Whenever worn to the limit
8*Rear brakeCheck operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-4.)√√ √ √ √ √
Replace brake pads. Whenever worn to the limit
U4TVE6.book Page 2 Saturday, August 4, 2001 12:14 PM
Page 53 of 114
PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU03884
NOTE:_
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.
Replace the brake hoses every four years and if cracked or damaged.
_23 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √
24 Engine oil filter cartridgeReplace.√√√
25
*Cooling systemCheck coolant level and vehicle for coolant leakage.√√√√ √
Change. Every 3 years
26*Front and rear brake
switchesCheck operation.√√√√√ √
27 Moving parts and cablesLubricate.√√√√ √
28*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×1,000 km)
ANNUAL
CHECK
1 10203040
U4TVE6.book Page 4 Saturday, August 4, 2001 12:14 PM
Page 59 of 114
PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6
EAU04279
Engine oil and oil filter
cartridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the motorcycle on a level
surface and hold it in an upright
position.NOTE:_ Make sure that the motorcycle is posi-
tioned straight up when checking the oil
level. A slight tilt to the side can result in
a false reading. _
2. Start the engine, warm it up for sev-
eral minutes, and then turn it off.
3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-right side of the
crankcase.NOTE:_ The engine oil should be between the
minimum and maximum level marks. _4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Remove cowling A. (See page 6-5
for cowling removal and installa-
tion procedures.)
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Place an oil pan under the engine
to collect the used oil.1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
1. Engine oil filler cap
U4TVE6.book Page 10 Saturday, August 4, 2001 12:14 PM
Page 60 of 114
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
64. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
NOTE:_ Skip steps 5–7 if the oil filter cartridge is
not being replaced. _
5. Remove the oil filter cartridge with
an oil filter wrench.NOTE:_ An oil filter wrench is available at a
Yamaha dealer. _
6. Apply a thin coat of engine oil to
the O-ring of the new oil filter car-
tridge.NOTE:_ Make sure that the O-ring is properly
seated. _7. Install the new oil filter cartridge,
and then tighten it to the specified
torque with a torque wrench.
1. Engine oil drain boltLeft side
1. Oil filter cartridge
2. Oil filter wrench
1. O-ring
Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf)
U4TVE6.book Page 11 Saturday, August 4, 2001 12:14 PM
Page 61 of 114
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6 8. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
9. Add the specified amount of the
recommended engine oil, and
then install and tighten the oil filler
cap.
ECA00105
CAUTION:_
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives with
the oil or use oils of grade “CD”
or higher. In addition, do not
use oils labeled “ENERGY CON-
SERVING II” or higher.
Make sure that no foreign mate-
rial enters the crankcase.
_
10. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.NOTE:_ After the engine is started, the engine
oil level warning light should go off if the
oil level is sufficient. _
EC000067
CAUTION:_ If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha deal-
er check the vehicle. _11. Turn the engine off, and then
check the oil level and correct it if
necessary.
12. Install the cowling. Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge
replacement:
2.6 L
With oil filter cartridge
replacement:
2.9 L
Total amount (dry engine):
3.5 L
U4TVE6.book Page 12 Saturday, August 4, 2001 12:14 PM
Page 66 of 114
PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
EAU04281*
Cleaning the air filter element The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.
1. Remove the seat. (See page 3-11
for seat removal and installation
procedures.)
2. Remove the fuel tank bolts.
3. Lift the fuel tank to position it away
from the air filter case. (Do not dis-
connect the fuel hoses!)
EW000071
WARNING
_
Make sure that the fuel tank is
well supported.
Do not tilt or pull the fuel tank
too much, otherwise the fuel
hoses may come loose, which
could cause fuel leakage.
_4. Remove the air filter case cover by
removing the screws.5. Pull the air filter element out.
6. Clean the air filter element with
solvent, and then squeeze the re-
maining solvent out.

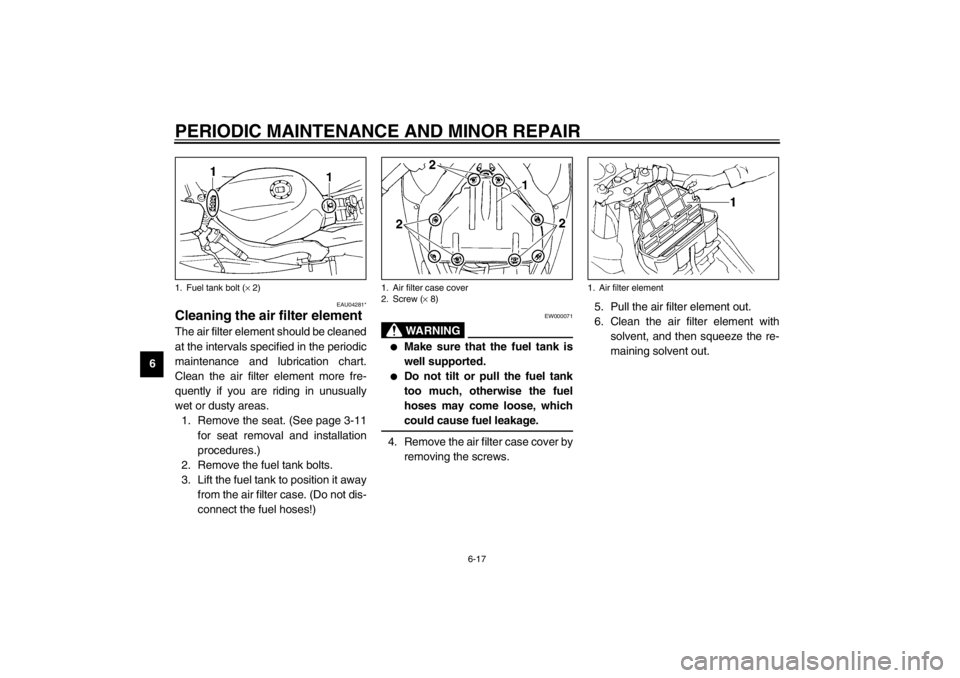

1. Fuel tank bolt (× 2)
1. Air filter case cover
2. Screw (× 8)
1. Air filter element
U4TVE6.book Page 17 Saturday, August 4, 2001 12:14 PM
Page 67 of 114
PERIODIC MAINTENANCE AND MINOR REPAIR
6-18

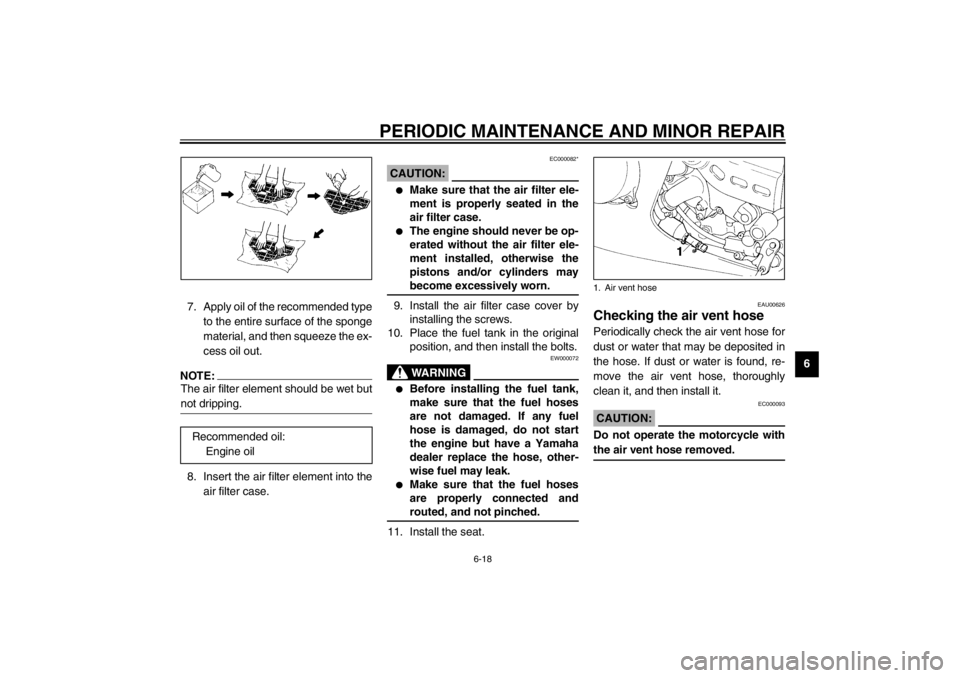

6 7. Apply oil of the recommended type
to the entire surface of the sponge
material, and then squeeze the ex-
cess oil out.
NOTE:_ The air filter element should be wet but
not dripping. _8. Insert the air filter element into the
air filter case.
EC000082*
CAUTION:_
Make sure that the air filter ele-
ment is properly seated in the
air filter case.
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
pistons and/or cylinders may
become excessively worn.
_9. Install the air filter case cover by
installing the screws.
10. Place the fuel tank in the original
position, and then install the bolts.
EW000072
WARNING
_
Before installing the fuel tank,
make sure that the fuel hoses
are not damaged. If any fuel
hose is damaged, do not start
the engine but have a Yamaha
dealer replace the hose, other-
wise fuel may leak.
Make sure that the fuel hoses
are properly connected and
routed, and not pinched.
_11. Install the seat.
EAU00626
Checking the air vent hose Periodically check the air vent hose for
dust or water that may be deposited in
the hose. If dust or water is found, re-
move the air vent hose, thoroughly
clean it, and then install it.
EC000093
CAUTION:_ Do not operate the motorcycle with
the air vent hose removed. _
Recommended oil:
Engine oil
1. Air vent hose
U4TVE6.book Page 18 Saturday, August 4, 2001 12:14 PM
Page 103 of 114
SPECIFICATIONS
8-2
8
Cooling system capacity
(total amount)
1.95 L
Air filterWet element
Fuel
Type REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity 19 L
Reserve amount 3.1 L
Carburetor
Manufacturer KEIHIN
Model × quantity CVKD36 × 4
Spark plug
Manufacturer/model NGK / CR9E or
DENSO / U27ESR-N
Gap 0.7–0.8 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 1.708
Secondary reduction system Chain drive
Secondary reduction ratio 3.133
Number of drive chain
sprocket teeth (front/rear) 15/47
Transmission type Constant-mesh 6-speed
Operation Left footGear ratio
1st 2.846
2nd 1.947
3rd 1.545
4th 1.333
5th 1.190
6th 1.074
Chassis
Frame type Diamond
Caster angle 25°
Trail 97 mm
Tires
Front
Type Tubeless tire
Size 120/60 ZR17 (55W)
120/60 ZR17 M/C (55W)
Manufacturer/model Bridgestone / BT57F
Dunlop / D204F
Metzeler / MEZ1 FRONT
Michelin / MACADAM 90X
U4TVE6.book Page 2 Saturday, August 4, 2001 12:14 PM
Page 110 of 114
INDEXAAir filter element, cleaning ...................... 6-17
Air intake duct ........................................ 6-19
Air vent hose, checking .......................... 6-18
Anti-theft alarm ........................................3-5BBattery ................................................... 6-35
Brake and clutch levers, checking and
lubricating ............................................ 6-32
Brake and shift pedals, checking and
lubricating ............................................ 6-31
Brake fluid, changing ............................. 6-28
Brake fluid level, checking...................... 6-27
Brake lever...............................................3-7
Brake light switch (rear), adjusting ......... 6-26
Brake pads, checking............................. 6-27
Brake pedal..............................................3-8
Brake pedal position, adjusting .............. 6-25CCables, checking and lubricating............ 6-31
Carburetors, adjusting............................ 6-19
Care.........................................................7-1
Clutch lever ..............................................3-7
Clutch lever free play, adjusting ............. 6-25
Conversion table ......................................8-5
Coolant .................................................. 6-13
Changing .......................................... 6-14
Checking .......................................... 6-13
Coolant temperature gauge .....................3-5
Cowlings, removing and installing ............6-5
DDimmer switch ......................................... 3-5
Drive chain, lubricating .......................... 6-30
Drive chain slack ................................... 6-29
Adjusting .......................................... 6-29
Checking .......................................... 6-29EEngine break-in ....................................... 5-5
Engine oil and oil filter cartridge ............. 6-10
Engine stop switch................................... 3-6FFront and rear suspension settings ........ 3-17
Front fork, adjusting ............................... 3-13
Front fork, checking ............................... 6-33
Fuel ......................................................... 3-9
Fuel consumption, tips for reducing ......... 5-4
Fuel level warning light ............................ 3-3
Fuel tank breather hose
(Germany only) ................................... 3-10
Fuel tank cap ........................................... 3-8
Fuses, replacing .................................... 6-36HHandlebar switches ................................. 3-5
Headlight bulb, replacing ....................... 6-37
Helmet holder ........................................ 3-12
High beam indicator light ......................... 3-3
Horn switch ............................................. 3-6
IIdentification numbers ..............................9-1
Idling speed, adjusting ...........................6-19
Ignition circuit cut-off system ..................3-19
Indicator and warning lights......................3-2KKey identification number .........................9-1LLight switch ..............................................3-6
Luggage strap holders ...........................3-18MMain switch/steering lock .........................3-1
Model label ..............................................9-2NNeutral indicator light ...............................3-2OOil level warning light ...............................3-2PParking.....................................................5-6
Part locations ...........................................2-1
Pass switch ..............................................3-5
Periodic maintenance and lubrication
chart ......................................................6-2
Pre-operation check list ............................4-1SSafety information ....................................1-1
Seat .......................................................3-11
Self-diagnosis device ...............................3-4
U4TVE6.book Page 1 Saturday, August 4, 2001 12:14 PM
