❒after refuelling, remove the adapter
and close the flap, then reintroduce the
adapter in its casing and put it back
in the luggage compartment.
LPG versions

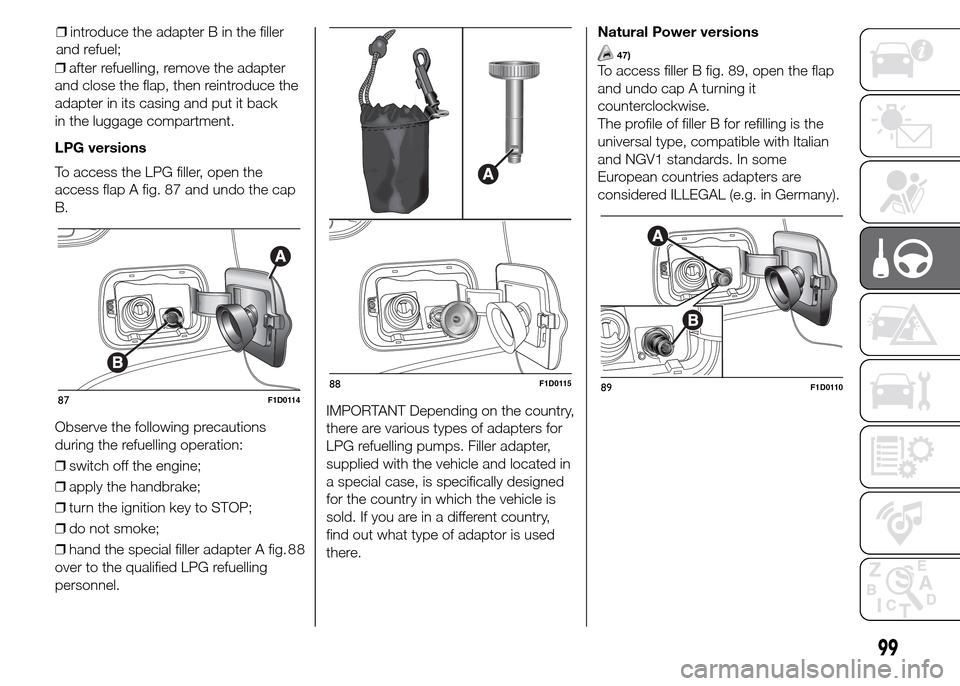

To access the LPG filler, open the
access flap A fig. 87 and undo the cap
B.
Observe the following precautions
during the refuelling operation:
❒switch off the engine;
❒apply the handbrake;
❒turn the ignition key to STOP;
❒do not smoke;
❒hand the special filler adapter A fig.
over to the qualified LPG refuelling
personnel.IMPORTANT Depending on the country,
there are various types of adapters for
LPG refuelling pumps. Filler adapter,
supplied with the vehicle and located in
a special case, is specifically designed
for the country in which the vehicle is
sold. If you are in a different country,
find out what type of adaptor is used
there.Natural Power versions47)
To access filler B fig. 89, open the flap
and undo cap A turning it
counterclockwise.
The profile of filler B for refilling is the
universal type, compatible with Italian
and NGV1 standards. In some
European countries adapters are
considered ILLEGAL (e.g. in Germany).
87F1D011488F1D011589F1D0110
99
❒introduce the adapter B in the filler
and refuel;
88
Page 102 of 196

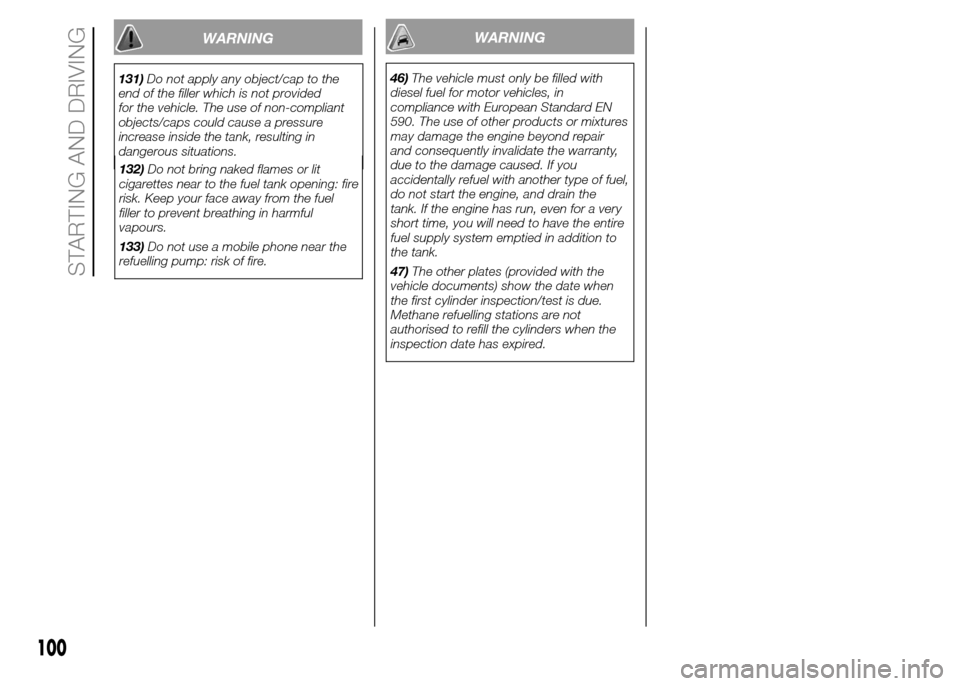

132)Do not bring naked flames or lit
cigarettes near to the fuel tank opening: fire
risk. Keep your face away from the fuel
filler to prevent breathing in harmful
vapours.
133)Do not use a mobile phone near the
refuelling pump: risk of fire.
WARNING
46)The vehicle must only be filled with
diesel fuel for motor vehicles, in
compliance with European Standard EN
590. The use of other products or mixtures
may damage the engine beyond repair
and consequently invalidate the warranty,
due to the damage caused. If you
accidentally refuel with another type of fuel,
do not start the engine, and drain the
tank. If the engine has run, even for a very
short time, you will need to have the entire
fuel supply system emptied in addition to
the tank.
47)The other plates (provided with the
vehicle documents) show the date when
the first cylinder inspection/test is due.
Methane refuelling stations are not
authorised to refill the cylinders when the
inspection date has expired.
100
STARTING AND DRIVING
WARNING
131)Do not apply any object/cap to the
end of the filler which is not provided
for the vehicle. The use of non-compliant
objects/caps could cause a pressure
increase inside the tank, resulting in
dangerous situations.
Page 103 of 196
IN AN EMERGENCY
A punctured tyre or a burnt-out bulb?
At times, a problem may interfere
with our journey.
The pages on emergencies can help
you to deal with critical situations
independently and with calm.
In an emergency we recommend that
you call the freephone number found in
the Warranty Booklet.
It is also possible to call the national or
international universal freephone
number to search for the nearest
Dealership.HAZARD WARNING LIGHTS...........102
REPLACING A BULB ......................102
REPLACING FUSES........................108
CHANGING A WHEEL ....................111
"FIX&GO AUTOMATIC" KIT .............114
JUMP STARTING ............................116
FUEL CUT-OFF SYSTEM ................118
TOWING THE VEHICLE ..................118
101
Page 104 of 196
HAZARD WARNING
LIGHTS
Press button A fig. 90 to switch the
lights on/off. Warning lights
andin
the instrument panel are lit up when
the lights are ON.
IMPORTANT The use of hazard warning
lights is governed by the highway
code of the country you are driving in:
comply with legal requirements.
Emergency braking
In the event of emergency braking the
hazard warning lights switch on
automatically as well as the
and
warning lights in the instrument
panel. The lights switch off
automatically when emergency braking
ceases.
REPLACING A BULB
134) 135)48) 49)
GENERAL
INSTRUCTIONS
❒Before changing a bulb check the
contacts for oxidation;
❒burnt bulbs must be replaced by
others of the same type and power;
❒after replacing a headlight bulb,
always check its alignment;
❒when a light is not working, check
that the corresponding fuse is intact
before changing a bulb. For the location
of fuses, refer to the paragraph “If a
fuse blows” in this section;IMPORTANT When the weather is cold
or damp or after heavy rain or washing,
the surface of headlights or rear lights,
may steam up and/or form drops of
condensation on the inside. This is
a natural phenomenon due to the
difference in temperature and humidity
between the inside and the outside
of the glass which does not indicate a
fault and does not compromise the
normal operation of lighting devices.
The mist disappears quickly when the
lights are turned on, starting from
the centre of the diffuser, extending
progressively towards the edges.
90F1D0023
102
IN AN EMERGENCY
Page 105 of 196
Bulbs Type Power
Dipped/main beam headlights H4 55 W
Front side lights/Day lights (DRL) P21/5W 21 W
Rear side lights P21/5W 5 W
Front direction indicators PY21W 21 W
Side direction indicators W5W 5 W
Rear direction indicators PY21W 21 W
Brake lights P21/5W 21 W
Third brake light LED -
Fog lights H11 55 W
Reverse W16W 16 W
Rear fog light W16W 16 W
Number plate C5W 5 W
103
Page 106 of 196
FRONT LIGHT CLUSTERS
(except Panda Cross versions)
The bulbs are arranged inside the front
light cluster fig. 91 as follows:
A - Dipped beam/main beam
headlights/direction indicators;
B - Daytime running lights (DRL);
C - Fog lights.
FRONT LIGHT CLUSTERS
(Panda Cross versions)
On the Panda Cross versions, the bulbs
are arranged inside the front light
cluster fig. 92 as follows:
A - Dipped beam/main beam
headlights/direction indicators;
B - Fog lights;
C - Daytime Running Lights (DRL).DIPPED/MAIN BEAM
HEADLIGHTS
To replace the bulb, proceed as follows:
❒remove cover A fig. 93;
❒push the connector + bulb holder
unit B fig. 94 downwards;
❒remove the bulb C from connector D
and replace it;❒refit the new bulb on the connector
making sure that it is locked correctly,
then reinsert the connector unit and the
bulb holder B in its housing;
❒then refit the cover A.
DIRECTION INDICATORS
Front
To replace the bulb, proceed as follows:
❒remove cover B fig. 93;
❒turn the bulb holder anticlockwise,
extract the bulb and replace it;
❒refit the new bulb on the connector
making sure that it is locked correctly,
then reinsert the connector in its
housing rotating it clockwise;
Side
To replace the bulb, proceed as follows:
❒adjust the lens A fig. 95 to compress
in the clip B, then pull the cluster
outwards;
91F1D0134
92F1D0117
93F1D0079
94F1D0080
104
IN AN EMERGENCY
Page 107 of 196
❒turn the bulb holder C anticlockwise,
extract the bulb and replace it;
❒refit the bulb holder C in the lens and
turn it clockwise;
❒refit the unit making sure that the
internal clip B clicks into position.
FOG LIGHTS
(for versions/markets, where provided -
except Panda Cross versions)
To replace the bulb, proceed as follows:
❒steer the wheel completely inwards,
adjust the screws A fig. 96 and remove
the flap B;
❒adjust the clip C fig. 97 and
disconnect the electrical connector D;
❒rotate and remove the bulb holder
E, release and replace the bulb;
❒refit the new lamp and carry out the
procedure described previously in
reverse.FOG LIGHTS
(Panda Cross versions)
To change the fog light bulb, proceed
as follows:
❒steer both the wheels completely,
loosen the screws A fig. 98 and remove
the guard flap B;
❒locate the fog light unit, rotate it
anticlockwise by a quarter of a turn and
remove it;❒lift the lever A fig. 99 and disconnect
the connector B from the bulb-bulb
holder assembly C;
❒replace the bulb-bulb holder
assembly C;
❒reconnect the assembly to connector
B, reposition assembly C in its housing
by rotating it clockwise by a quarter of a
turn, until it clicks into the correct
position;
95F1D0081
96F1D0082
97F1D0083
98F1D0118
99F1D0119
105
Page 108 of 196
❒reposition the guard door B fig. 98,
taking care that the tabs are positioned
in their housings and tighten the fixing
screws A.
SIDE LIGHTS/DAYTIME
RUNNING LIGHTS (DRL)
(for versions/markets, where provided -
except Panda Cross versions)
To replace the bulb, proceed as follows:
❒steer the wheel completely, adjust
the screws A fig. 96 and remove the
flap B;
❒adjust the clip C fig. 100 and
disconnect the electrical connector D;
❒rotate and remove the bulb holder
E, release and replace the bulb;
❒refit the new lamp and carry out the
procedure described previously in
reverse.DAYTIME RUNNING
LIGHTS (DRL)
(Panda Cross versions)
IMPORTANT To change LED DRLs
contact a Fiat Dealership.
REAR LIGHT CLUSTERS
These contain the bulbs for the side
lights, brake lights and direction
indicators.
To replace the bulb proceed as follows:
❒undo the two screws A fig. 101
from their seats, pull gently outwards
until releasing the whole headlight from
the two clips (press-fitted D fig. 102 )
and release the connector;
❒undo the five screws B from their
seats and remove the bulb holder C;
❒remove the bulbs, pushing them
slightly and turning them anti-
clockwise;❒refit the new lamp and carry out the
procedure described previously in
reverse.
REVERSING LIGHT/REAR
FOG LIGHT
136)
The reversing lights and rear fog lights
are located in the rear bumper.
To replace the bulb, proceed as follows:
❒adjust the tabs A and remove the
flap B fig. 103
100F1D0084
102F1D0086
101F1D0085
106
IN AN EMERGENCY
Page 109 of 196
❒adjust the clip C fig. 104 and
disconnect the electrical connector D;
❒turn the bulb holder E and remove
it, extract the bulb and replace it;
❒refit the new lamp and carry out the
procedure described previously in
reverse.THIRD BRAKE LIGHTS
These are located in the tailgate and
are LED lights. For replacement,
contact a Fiat Dealership.
NUMBER PLATE LIGHTS

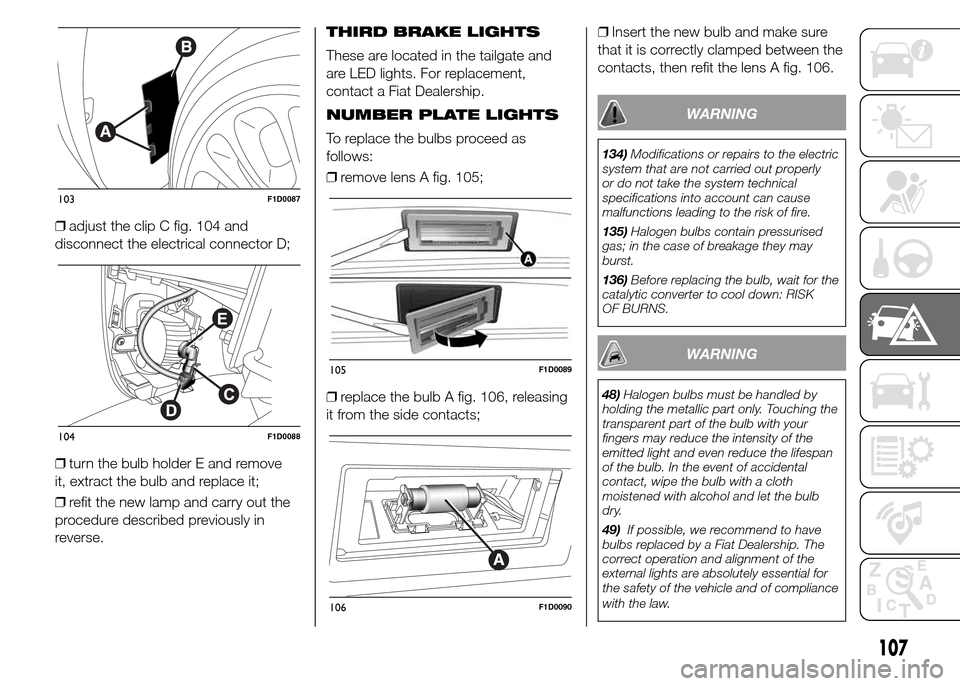

To replace the bulbs proceed as
follows:
❒remove lens A fig. 105;
❒replace the bulb A fig. 106, releasing
it from the side contacts;❒Insert the new bulb and make sure
that it is correctly clamped between the
contacts, then refit the lens A fig. 106.
WARNING
134)Modifications or repairs to the electric
system that are not carried out properly
or do not take the system technical
specifications into account can cause
malfunctions leading to the risk of fire.
135)Halogen bulbs contain pressurised
gas; in the case of breakage they may
burst.
136)Before replacing the bulb, wait for the
catalytic converter to cool down: RISK
OF BURNS.
WARNING
48)Halogen bulbs must be handled by
holding the metallic part only. Touching the
transparent part of the bulb with your
fingers may reduce the intensity of the
emitted light and even reduce the lifespan
of the bulb. In the event of accidental
contact, wipe the bulb with a cloth
moistened with alcohol and let the bulb
dry.
49)If possible, we recommend to have
bulbs replaced by a Fiat Dealership. The
correct operation and alignment of the
external lights are absolutely essential for
the safety of the vehicle and of compliance
with the law.
103F1D0087
104F1D0088
105F1D0089
106F1D0090
107
Page 110 of 196
REPLACING FUSES
137) 138) 139) 140) 141) 142)
50)
INTRODUCTION
To facilitate fuse replacement, use the
pliers hooked inside the fuse box lid on
the dashboard left-hand side.
ENGINE COMPARTMENT
FUSE BOX
The fuse box is located next to the
battery: to access the fuses, undo
screw A fig. 107 and lift cover B
upwards.
The number identifying the electrical
component corresponding to each fuse
is shown on the cover. After replacing
the fuse, make sure you close cover
B on the junction unit.DASHBOARD FUSE BOX
The fuse box fig. 108 is located near
the left side of the steering column and
the fuses can be accessed easily from
the lower part of the dashboard.
107F1D0091
108F1D0093
108
IN AN EMERGENCY
