FIAT PANDA 2015 319 / 3.G Owners Manual
Manufacturer: FIAT, Model Year: 2015, Model line: PANDA, Model: FIAT PANDA 2015 319 / 3.GPages: 196, PDF Size: 19.49 MB
Page 141 of 196

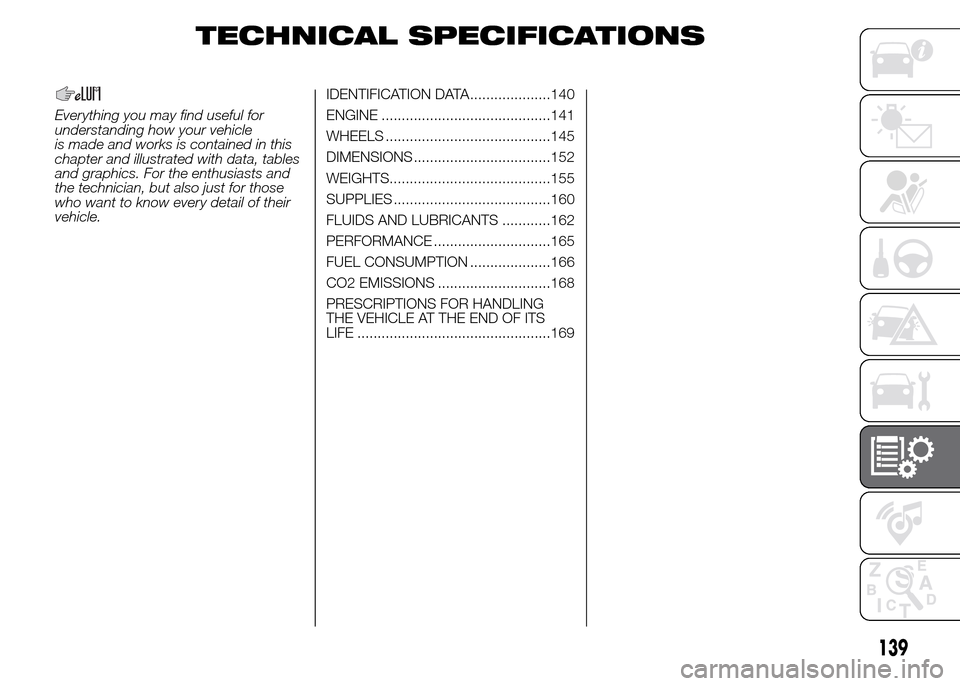

TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your vehicle
is made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.IDENTIFICATION DATA....................140
ENGINE ..........................................141
WHEELS .........................................145
DIMENSIONS ..................................152
WEIGHTS........................................155
SUPPLIES .......................................160
FLUIDS AND LUBRICANTS ............162
PERFORMANCE .............................165
FUEL CONSUMPTION ....................166
CO2 EMISSIONS ............................168
PRESCRIPTIONS FOR HANDLING
THE VEHICLE AT THE END OF ITS
LIFE ................................................169
139
Page 142 of 196

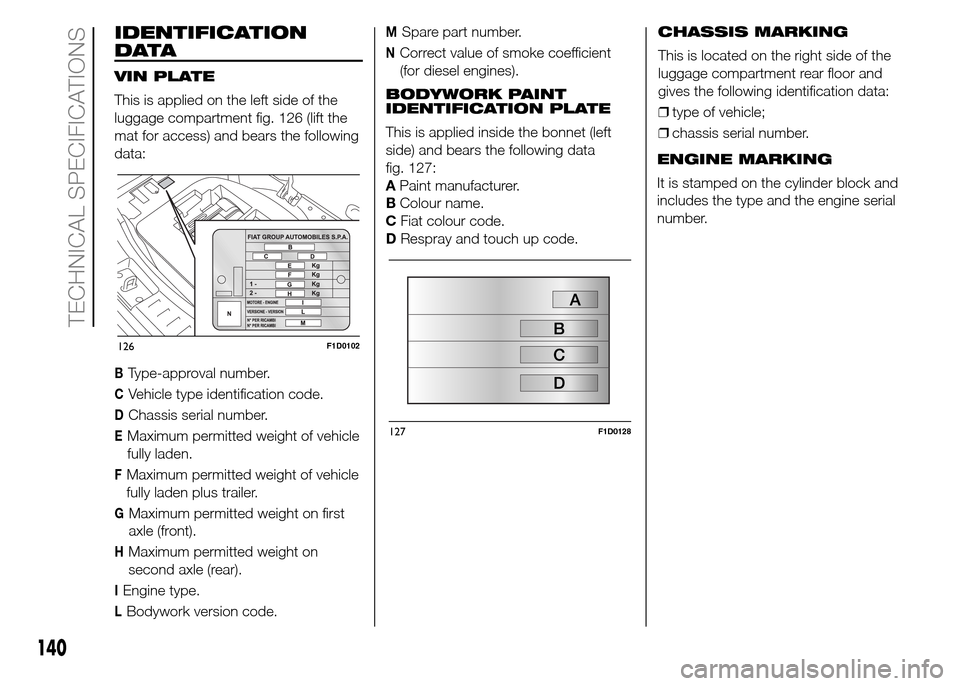

IDENTIFICATION
DATA
VIN PLATE
This is applied on the left side of the
luggage compartment fig. 126 (lift the
mat for access) and bears the following
data:
BType-approval number.
CVehicle type identification code.
DChassis serial number.
EMaximum permitted weight of vehicle
fully laden.
FMaximum permitted weight of vehicle
fully laden plus trailer.
GMaximum permitted weight on first
axle (front).
HMaximum permitted weight on
second axle (rear).
IEngine type.
LBodywork version code.
MSpare part number.
NCorrect value of smoke coefficient
(for diesel engines).
BODYWORK PAINT
IDENTIFICATION PLATE
This is applied inside the bonnet (left
side) and bears the following data
fig. 127:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.CHASSIS MARKING
This is located on the right side of the
luggage compartment rear floor and
gives the following identification data:
❒type of vehicle;
❒chassis serial number.
ENGINE MARKING
It is stamped on the cylinder block and
includes the type and the engine serial
number.
126F1D0102
127F1D0128
140
TECHNICAL SPECIFICATIONS
Page 143 of 196

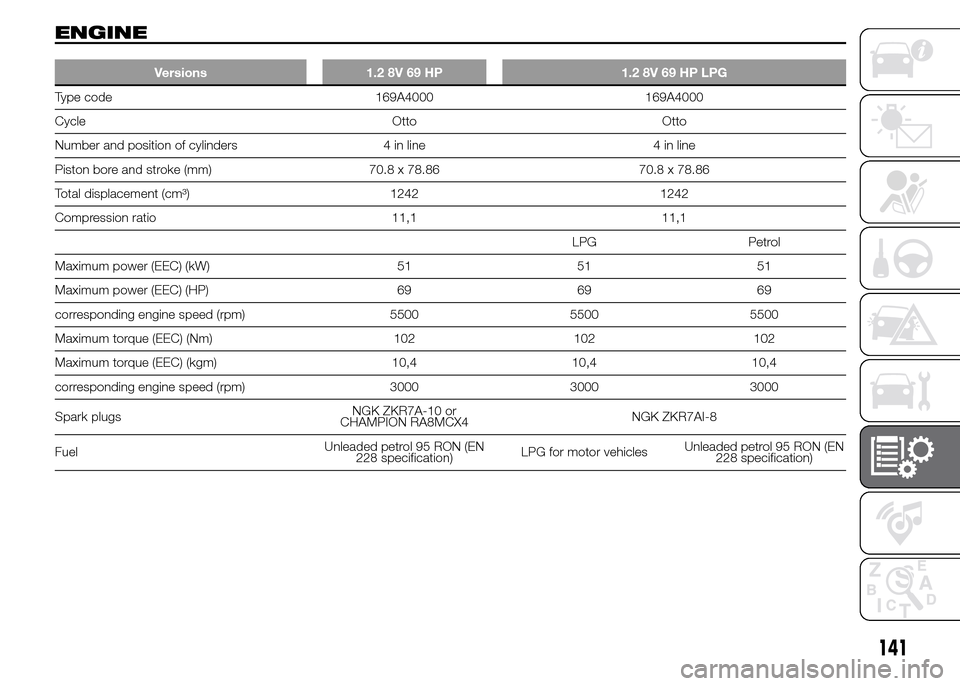

ENGINE
Versions 1.2 8V 69 HP 1.2 8V 69 HP LPG
Type code 169A4000 169A4000
Cycle Otto Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 70.8 x 78.86 70.8 x 78.86
Total displacement (cm³) 1242 1242
Compression ratio 11,1 11,1
LPG Petrol
Maximum power (EEC) (kW) 51 51 51
Maximum power (EEC) (HP) 69 69 69
corresponding engine speed (rpm) 5500 5500 5500
Maximum torque (EEC) (Nm) 102 102 102
Maximum torque (EEC) (kgm) 10,4 10,4 10,4
corresponding engine speed (rpm) 3000 3000 3000
Spark plugsNGK ZKR7A-10 or
CHAMPION RA8MCX4NGK ZKR7AI-8
FuelUnleaded petrol 95 RON (EN
228 specification)LPG for motor vehiclesUnleaded petrol 95 RON (EN
228 specification)
141

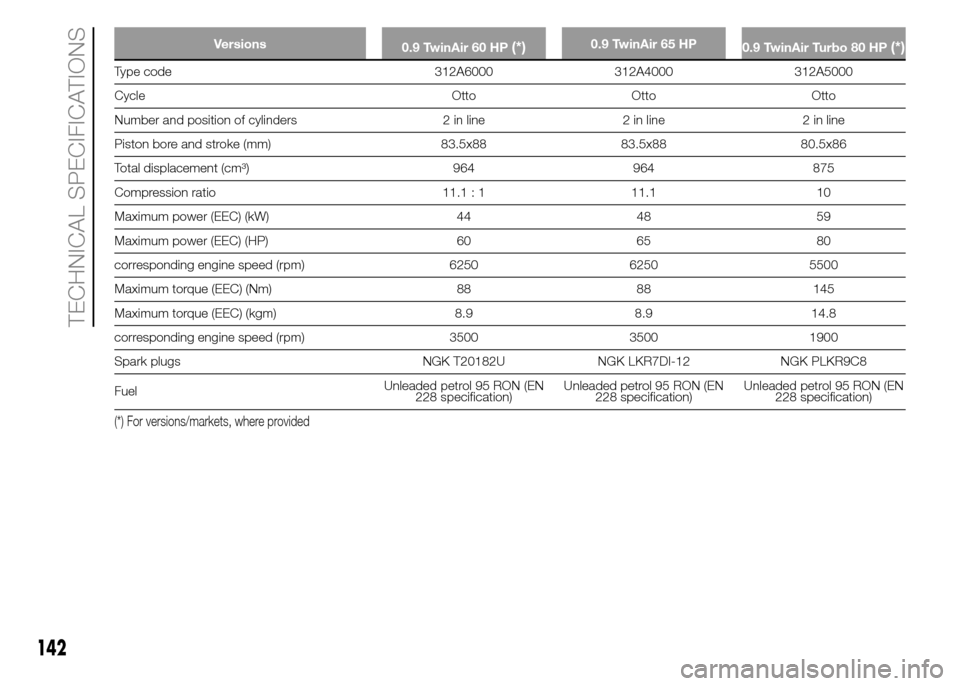

Page 144 of 196
Versions
0.9 TwinAir 60 HP(*)0.9 TwinAir 65 HP
0.9 TwinAir Turbo 80 HP(*)
Type code 312A6000 312A4000 312A5000
Cycle Otto Otto Otto
Number and position of cylinders 2 in line 2 in line 2 in line
Piston bore and stroke (mm) 83.5x88 83.5x88 80.5x86
Total displacement (cm³) 964 964 875
Compression ratio 11.1 : 1 11.1 10
Maximum power (EEC) (kW) 44 48 59
Maximum power (EEC) (HP) 60 65 80
corresponding engine speed (rpm) 6250 6250 5500
Maximum torque (EEC) (Nm) 88 88 145
Maximum torque (EEC) (kgm) 8.9 8.9 14.8
corresponding engine speed (rpm) 3500 3500 1900
Spark plugs NGK T20182U NGK LKR7DI-12 NGK PLKR9C8
FuelUnleaded petrol 95 RON (EN
228 specification)Unleaded petrol 95 RON (EN
228 specification)Unleaded petrol 95 RON (EN
228 specification)
(*) For versions/markets, where provided
142
TECHNICAL SPECIFICATIONS
Page 145 of 196

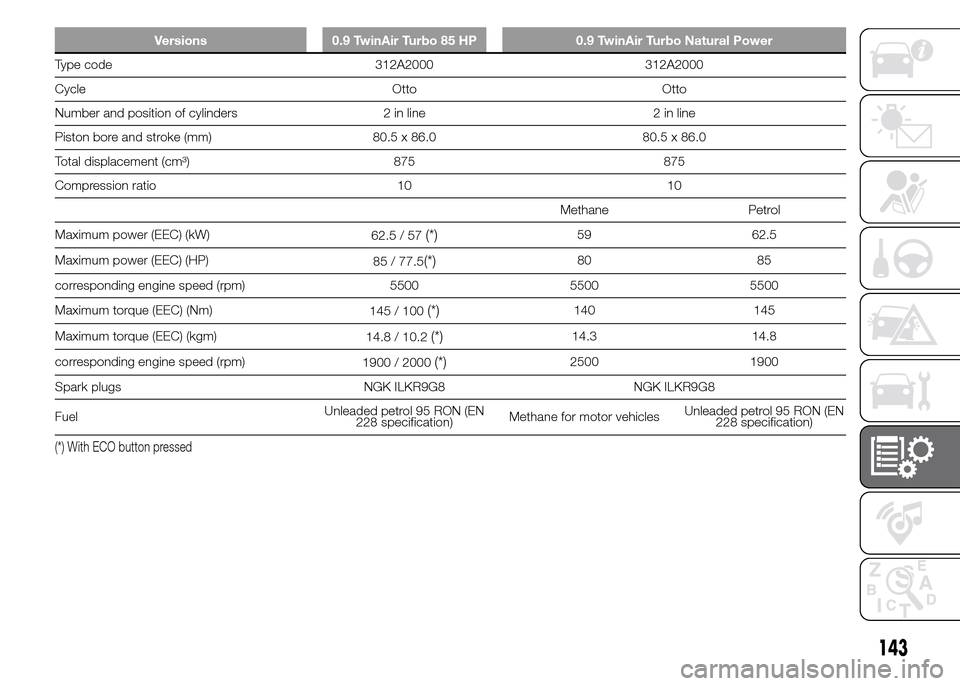

Versions 0.9 TwinAir Turbo 85 HP 0.9 TwinAir Turbo Natural Power
Type code 312A2000 312A2000
Cycle Otto Otto
Number and position of cylinders 2 in line 2 in line
Piston bore and stroke (mm) 80.5 x 86.0 80.5 x 86.0
Total displacement (cm³) 875 875
Compression ratio 10 10
Methane Petrol
Maximum power (EEC) (kW)
62.5 / 57
(*)59 62.5
Maximum power (EEC) (HP)
85 / 77.5
(*)80 85
corresponding engine speed (rpm) 5500 5500 5500
Maximum torque (EEC) (Nm)
145 / 100
(*)140 145
Maximum torque (EEC) (kgm)
14.8 / 10.2
(*)14.3 14.8
corresponding engine speed (rpm)
1900 / 2000
(*)2500 1900
Spark plugs NGK ILKR9G8 NGK ILKR9G8
FuelUnleaded petrol 95 RON (EN
228 specification)Methane for motor vehiclesUnleaded petrol 95 RON (EN
228 specification)
(*) With ECO button pressed
143
Page 146 of 196

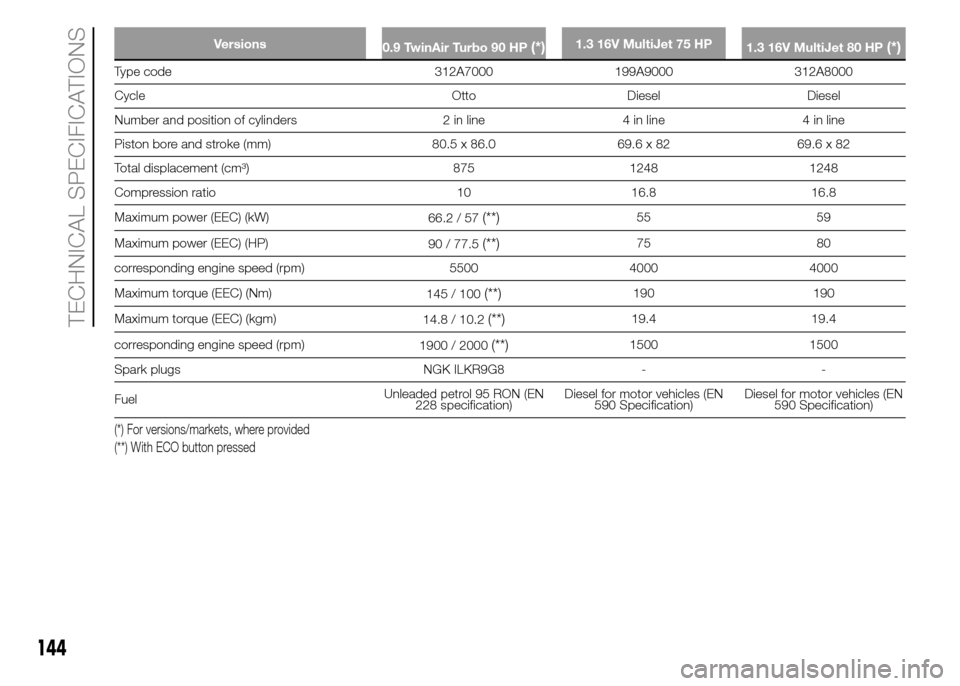

Versions
0.9 TwinAir Turbo 90 HP(*)1.3 16V MultiJet 75 HP
1.3 16V MultiJet 80 HP(*)
Type code 312A7000 199A9000 312A8000
Cycle Otto Diesel Diesel
Number and position of cylinders 2 in line 4 in line 4 in line
Piston bore and stroke (mm) 80.5 x 86.0 69.6 x 82 69.6 x 82
Total displacement (cm³) 875 1248 1248
Compression ratio 10 16.8 16.8
Maximum power (EEC) (kW)
66.2 / 57
(**)55 59
Maximum power (EEC) (HP)
90 / 77.5
(**)75 80
corresponding engine speed (rpm) 5500 4000 4000
Maximum torque (EEC) (Nm)
145 / 100
(**)190 190
Maximum torque (EEC) (kgm)
14.8 / 10.2
(**)19.4 19.4
corresponding engine speed (rpm)
1900 / 2000
(**)1500 1500
Spark plugs NGK ILKR9G8 - -
FuelUnleaded petrol 95 RON (EN
228 specification)Diesel for motor vehicles (EN
590 Specification)Diesel for motor vehicles (EN
590 Specification)
(*) For versions/markets, where provided
(**) With ECO button pressed
144
TECHNICAL SPECIFICATIONS
Page 147 of 196

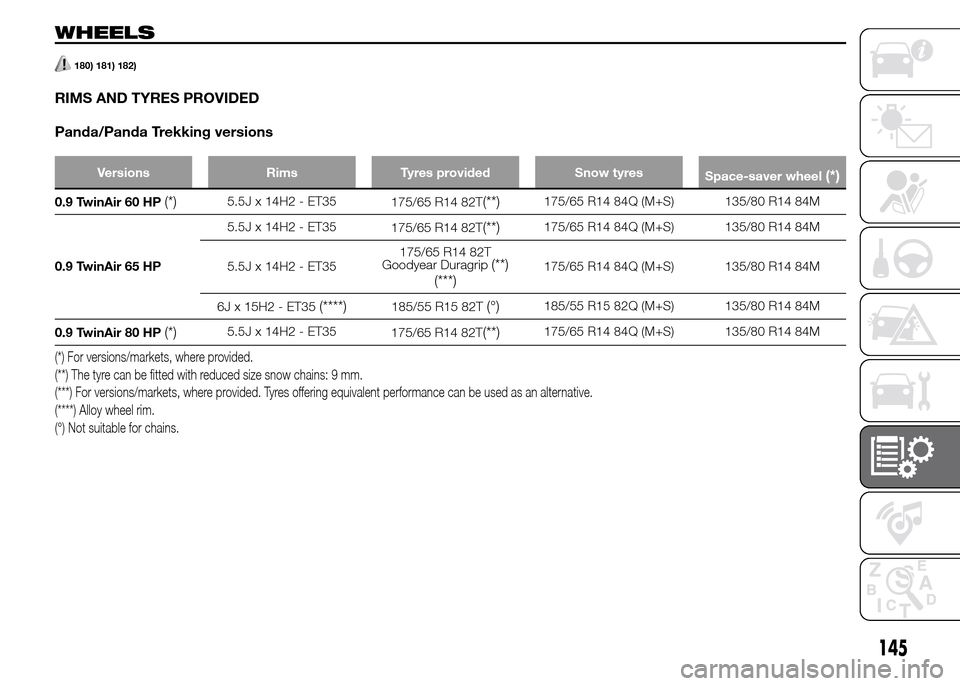

WHEELS
180) 181) 182)
RIMS AND TYRES PROVIDED
Panda/Panda Trekking versions
Versions Rims Tyres provided Snow tyres
Space-saver wheel(*)
0.9 TwinAir 60 HP(*)5.5J x 14H2 - ET35
175/65 R14 82T(**)175/65 R14 84Q (M+S) 135/80 R14 84M
0.9 TwinAir 65 HP5.5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35175/65 R14 82T
Goodyear Duragrip
(**)
(***)175/65 R14 84Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(****)185/55 R15 82T(°)185/55 R15 82Q (M+S) 135/80 R14 84M
0.9 TwinAir 80 HP
(*)5.5J x 14H2 - ET35
175/65 R14 82T(**)175/65 R14 84Q (M+S) 135/80 R14 84M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with reduced size snow chains: 9 mm.
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(****) Alloy wheel rim.
(°) Not suitable for chains.
145
Page 148 of 196

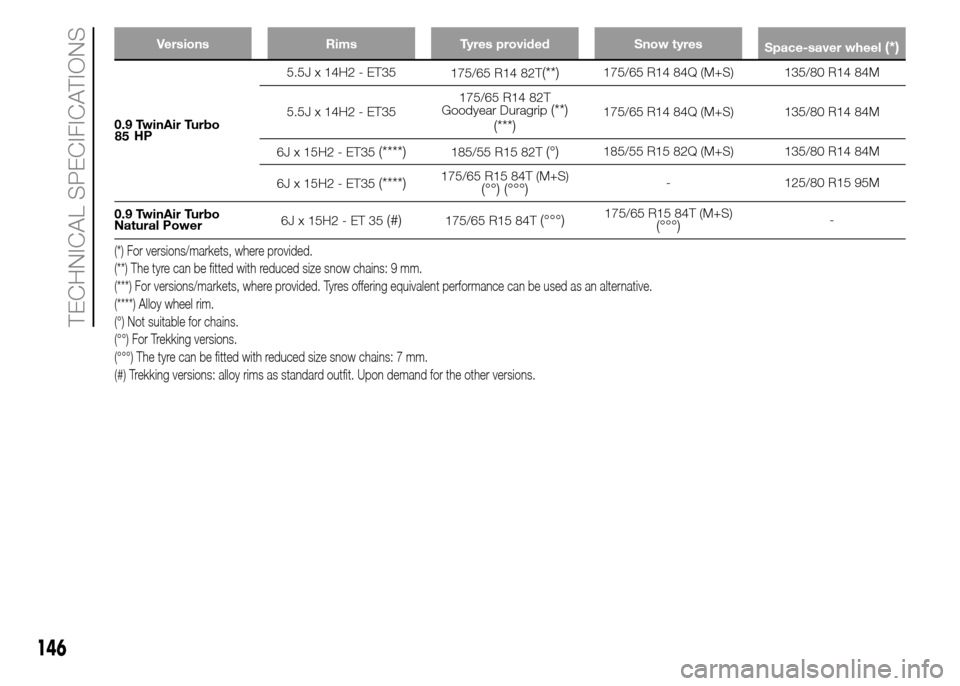

Versions Rims Tyres provided Snow tyres
Space-saver wheel(*)
0.9 TwinAir Turbo
HP5.5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35175/65 R14 82T
Goodyear Duragrip
(**)
(***)175/65 R14 84Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(****)185/55 R15 82T(°)185/55 R15 82Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(****)175/65 R15 84T (M+S)(°°) (°°°)- 125/80 R15 95M
0.9 TwinAir Turbo
Natural Power6Jx15H2-ET35
(#)175/65 R15 84T(°°°)175/65 R15 84T (M+S)(°°°)-
(*) For versions/markets, where provided.
(**) The tyre can be fitted with reduced size snow chains: 9 mm.
(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(****) Alloy wheel rim.
(°) Not suitable for chains.
(°°) For Trekking versions.
(°°°) The tyre can be fitted with reduced size snow chains: 7 mm.
(#) Trekking versions: alloy rims as standard outfit. Upon demand for the other versions.
146
TECHNICAL SPECIFICATIONS
85
Page 149 of 196

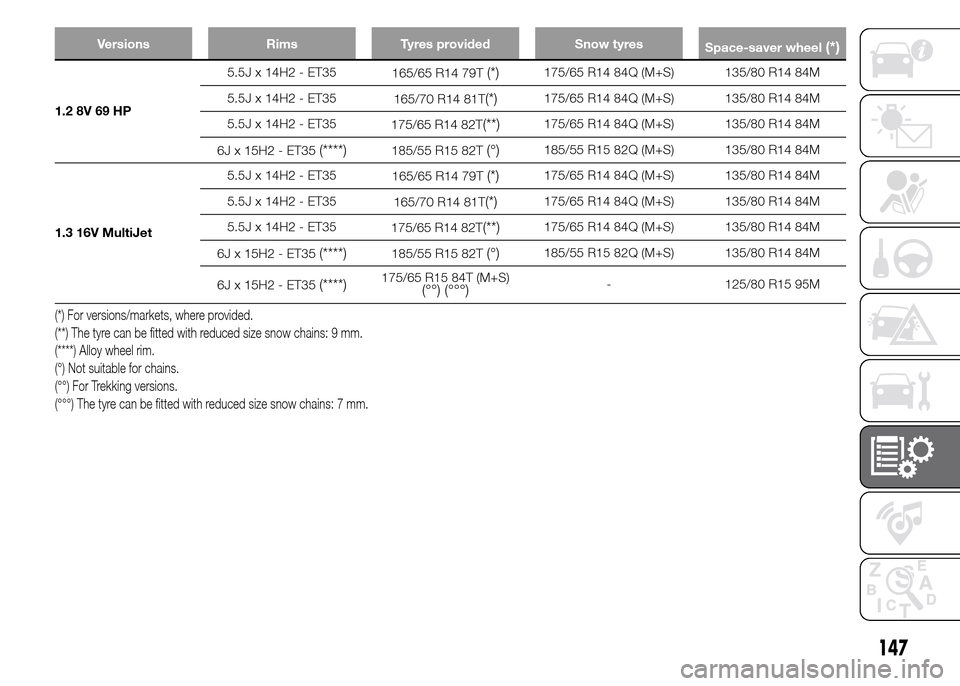

Versions Rims Tyres provided Snow tyres
Space-saver wheel(*)
1.2 8V 69 HP5.5J x 14H2 - ET35
165/65 R14 79T
(*)175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35
165/70 R14 81T
(*)175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 84Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(****)185/55 R15 82T(°)185/55 R15 82Q (M+S) 135/80 R14 84M
1.3 16V MultiJet5.5J x 14H2 - ET35
165/65 R14 79T
(*)175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35
165/70 R14 81T
(*)175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35
175/65 R14 82T
(**)175/65 R14 84Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(****)185/55 R15 82T(°)185/55 R15 82Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(****)175/65 R15 84T (M+S)(°°) (°°°)- 125/80 R15 95M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with reduced size snow chains: 9 mm.
(****) Alloy wheel rim.
(°) Not suitable for chains.
(°°) For Trekking versions.
(°°°) The tyre can be fitted with reduced size snow chains: 7 mm.
147
Page 150 of 196

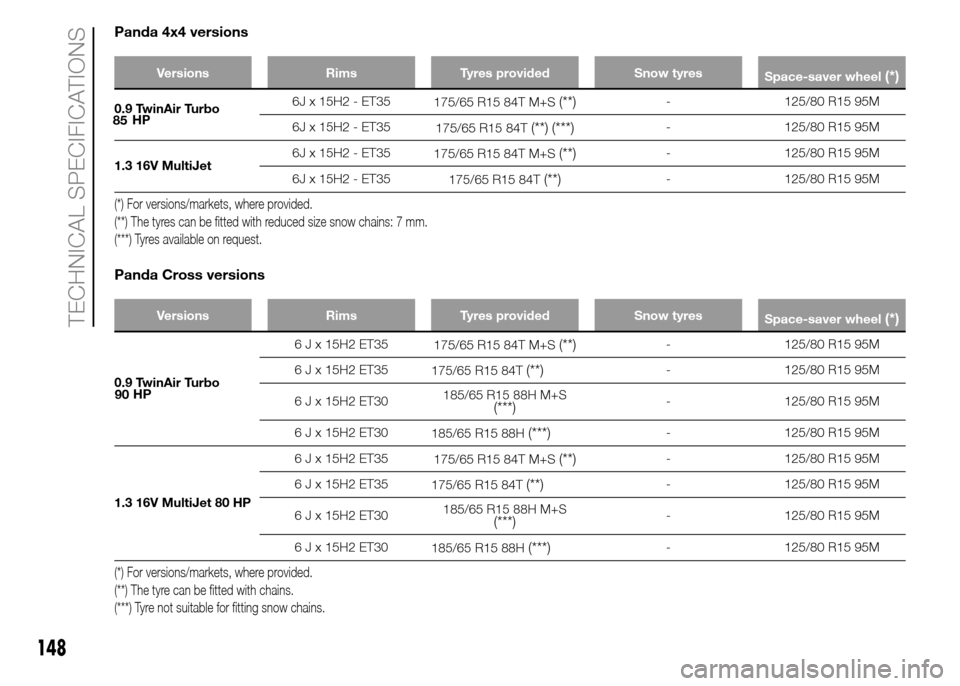

Panda 4x4 versions
Versions Rims Tyres provided Snow tyres
Space-saver wheel(*)
0.9 TwinAir Turbo
HP6J x 15H2 - ET35
175/65 R15 84T M+S(**)- 125/80 R15 95M
6J x 15H2 - ET35
175/65 R15 84T
(**) (***)- 125/80 R15 95M
1.3 16V MultiJet6J x 15H2 - ET35
175/65 R15 84T M+S
(**)- 125/80 R15 95M
6J x 15H2 - ET35
175/65 R15 84T
(**)- 125/80 R15 95M
(*) For versions/markets, where provided.
(**) The tyres can be fitted with reduced size snow chains: 7 mm.
(***) Tyres available on request.
Panda Cross versions
Versions Rims Tyres provided Snow tyres
Space-saver wheel(*)
0.9 TwinAir Turbo
HP6 J x 15H2 ET35
175/65 R15 84T M+S
(**)- 125/80 R15 95M
6 J x 15H2 ET35
175/65 R15 84T
(**)- 125/80 R15 95M
6 J x 15H2 ET30185/65 R15 88H M+S
(***)- 125/80 R15 95M
6 J x 15H2 ET30
185/65 R15 88H
(***)- 125/80 R15 95M
1.3 16V MultiJet 80 HP6 J x 15H2 ET35
175/65 R15 84T M+S
(**)- 125/80 R15 95M
6 J x 15H2 ET35
175/65 R15 84T
(**)- 125/80 R15 95M
6 J x 15H2 ET30185/65 R15 88H M+S
(***)- 125/80 R15 95M
6 J x 15H2 ET30
185/65 R15 88H
(***)- 125/80 R15 95M
(*) For versions/markets, where provided.
(**) The tyre can be fitted with chains.
(***) Tyre not suitable for fitting snow chains.
148
