Versions with Dualogic gearbox
Make sure that the gearbox is in neutral
(N) (checking that the vehicle moves
when pushed) and proceed in the same
way as for towing a normal vehicle
with a manual gearbox. If the gearbox
cannot be put in neutral, do not tow the
vehicle and contact a Fiat Dealership.
Panda Cross and Panda 4x4
versions
The vehicle can only be towed in one of
the following ways (and always with
the engine off, gear set to neutral and
handbrake released):
❒with all the wheels on the road
surface;
❒with the front (or rear) wheels raised
or resting on an emergency vehicle and
the rear (or front) wheels resting on a
specific trolley;❒loaded on the flatbed of the rescue
vehicle with all the wheels on the
flatbed.
IMPORTANT For Panda Cross versions,
the tow hooks A fig. 118 the vehicle is
equipped with can only be used for
towing it in an emergency.
WARNING
160)Before starting towing operations,
turn the ignition key to MAR and then
to STOP, without extracting it. The steering
column will automatically lock when the
key is removed and the wheels cannot be
steered.
161)Before tightening the ring clean the
threaded housing thoroughly. Make sure
that the ring is fully fastened in the housing
before towing the vehicle.162)Whilst towing, remember that as the
assistance of the brake servo and the
electric power steering is not available,
greater force needs to be exerted on the
brake pedal and more effort is required on
the steering wheel. Do not use flexible
cables when towing and avoid jerky
movements. While towing, make sure that
the trailer hitch does not damage any
components it is touching. When towing
the vehicle, you must comply with all
specific traffic regulations, both in terms of
the towing device and behaviour on the
road. Do not start the engine while towing
the vehicle.
163)The front and rear tow hooks should
be used only for emergencies on the road.
You are allowed to tow the vehicle for
short distances using an appropriate
device in accordance with the highway
code (a rigid bar), to move the vehicle on
the road in readiness for towing or
transporting via a breakdown vehicle. Tow
rings MUST NOT be used to tow vehicles
off the road or where there are obstacles
and/or for towing operations using cables
or other non-rigid devices. In compliance
with the above conditions, towing must
take place with the two vehicles (one
towing, the other towed) aligned as much
as possible along the same centre line.
164)Do not use tow hooks for securing the
vehicle on ships.
117F1D0095
118F1D0120
119

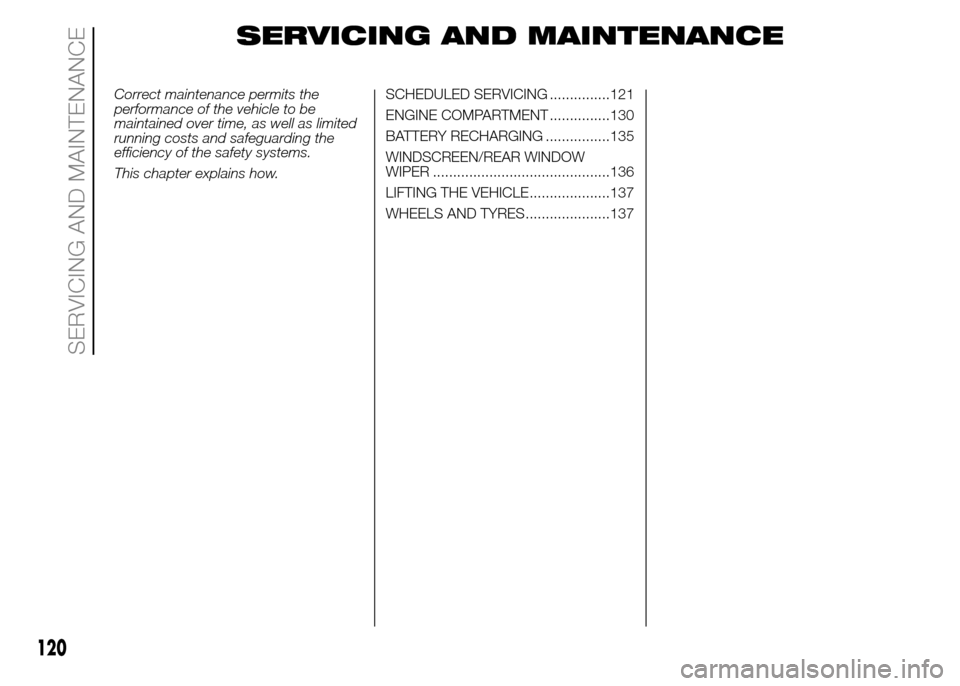

Page 122 of 196
SERVICING AND MAINTENANCE
Correct maintenance permits the
performance of the vehicle to be
maintained over time, as well as limited
running costs and safeguarding the
efficiency of the safety systems.
This chapter explains how.SCHEDULED SERVICING ...............121
ENGINE COMPARTMENT ...............130
BATTERY RECHARGING ................135
WINDSCREEN/REAR WINDOW
WIPER ............................................136
LIFTING THE VEHICLE....................137
WHEELS AND TYRES.....................137
120
SERVICING AND MAINTENANCE
Page 123 of 196
SCHEDULED
SERVICING
Correct servicing is crucial for
guaranteeing a long life for the vehicle
under the best conditions. For this
reason, Fiat has planned a series of
checks and services at fixed distance
intervals and, where provided, at fixed
time intervals, as described in the
Scheduled Servicing Plan.
Before each service, it is always
necessary to carefully follow the
instructions in the Scheduled Servicing
Plan (e.g. periodically check level of
fluids, tyre pressure, etc.).
Scheduled Servicing is offered by all
Fiat Dealerships according to a set time
schedule. If, during each operation, in
addition to the ones scheduled, the
need arises for further replacements or
repairs, these may be carried out with
your explicit agreement only. If your
vehicle is used frequently for towing,
the interval between one service
operation and the next should be
reduced.IMPORTANT Scheduled Servicing
interventions are set out by the
Manufacturer. Failure to have them
carried out may invalidate the warranty.
It is advisable to inform a Fiat
Dealership of any small operating
irregularities without waiting for the next
service.
PERIODIC CHECKS
Every1,000km or before long
journeys, check and if necessary, top
up: engine coolant level; brake fluid
level; screen washer fluid level; tyre
inflation pressure and condition; lighting
system operation (headlights, direction
indicators, hazard warning lights, etc.);
screen washer/wiper system operation
and positioning/wear of windscreen/
rear window wiper blades.
Every3,000km, check and top up if
required: engine oil level.HEAVY-DUTY USE OF THE
VEHICLE
If the vehicle is used under one of the
following conditions: towing a trailer
or motorhome; dusty roads; short (less
than 7-8 km) and repeated journeys
with sub-zero outside temperatures;
engine often idling or driving long
distances at low speed or long periods
of inactivity, the following checks must
be carried out more often than
indicated in the Scheduled Servicing
Plan:
❒check front disc brake pad condition
and wear;
❒check cleanliness of bonnet and
luggage compartment locks,
cleanliness and lubrication of linkage;
❒visually inspect conditions of: engine,
gearbox, transmission, pipes and
hoses (exhaust/fuel system/brakes) and
rubber elements (gaiters/sleeves/
bushes, etc.);
❒check battery charge and battery
fluid level (electrolyte);
❒visually inspect conditions of the
auxiliary drive belts;
❒check and, if necessary, change
engine oil and replace oil filter / pollen
filter / air cleaner.
121
Page 124 of 196
SCHEDULED SERVICING PLAN (petrol versions)
The checks listed in the Scheduled Servicing Plan, after reaching 120,000 km/8 years, must be cyclically repeated starting from
the first interval, thus following the same intervals as before.
Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres 15 30 45 60 75 90 105 120 135 150
Years12345678910
Check tyre condition/wear and adjust pressure, if
necessary; check “Fix&Go Automatic” kit recharge expiry
date (for versions/markets, where provided)●●●●●●●●●●
Check operation of lighting system (headlights, direction
indicators, hazard warning lights, luggage compartment,
passenger compartment, glove compartment, instrument
panel warning lights, etc.)●●●●●●●●●●
Check and, if necessary, top up fluid levels (engine
coolant, hydraulic clutch/brakes, windscreen washer,
battery, etc.)●●●●●●●●●●
Check exhaust emissions/smokiness●●●●●●●●●●
Use the diagnosis socket to check supply/engine
management systems operation, emissions and, for
versions/markets, where provided, engine oil degradation●●●●●●●●●●
Visually inspect conditions of: exterior bodywork,
underbody protection, pipes and hoses (exhaust, fuel
system, brakes), rubber elements (gaiters, sleeves,
bushes, etc.)●●●●●
Check windscreen/rear window wiper blade position/wear●●●●●
122
SERVICING AND MAINTENANCE

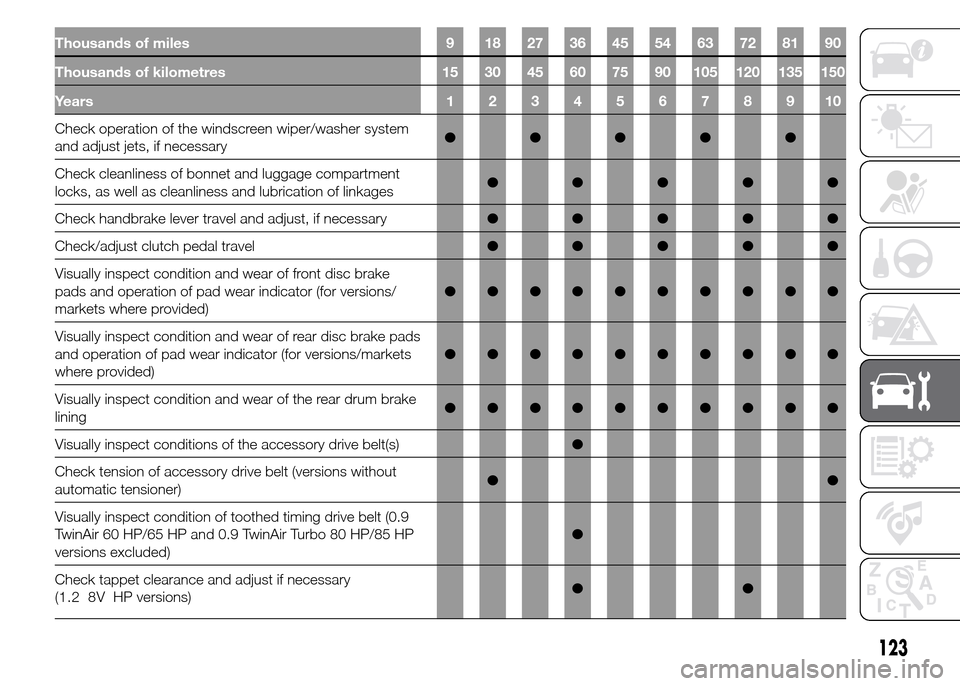

Page 125 of 196
Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres 15 30 45 60 75 90 105 120 135 150
Years12345678910
Check operation of the windscreen wiper/washer system
and adjust jets, if necessary●●●●●
Check cleanliness of bonnet and luggage compartment
locks, as well as cleanliness and lubrication of linkages●●●●●
Check handbrake lever travel and adjust, if necessary●●●●●
Check/adjust clutch pedal travel●●●●●
Visually inspect condition and wear of front disc brake
pads and operation of pad wear indicator (for versions/
markets where provided)●●●●●●●●●●
Visually inspect condition and wear of rear disc brake pads
and operation of pad wear indicator (for versions/markets
where provided)●●●●●●●●●●
Visually inspect condition and wear of the rear drum brake
lining●●●●●●●●●●
Visually inspect conditions of the accessory drive belt(s)●
Check tension of accessory drive belt (versions without
automatic tensioner)●●
Visually inspect condition of toothed timing drive belt (0.9
TwinAir 60 HP/65 HP and 0.9 TwinAir Turbo 80 HP/85 HP
versions excluded)●
Check tappet clearance and adjust if necessary
●●
123
(1.2 8V HPversions)
Page 126 of 196
Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres 15 30 45 60 75 90 105 120 135 150
Years12345678910
Check manual gearbox oil level●●
Check and, if necessary, top-up the Dualogic gearbox oil
level (1)●●●●●
Check manual gearbox with drive transmission idler unit
(PTU) oil level (Panda Cross and Panda 4x4 versions only)●●
Check rear differential oil level (Panda Cross and Panda
4x4 versions only)●●
Visually inspect condition of: LPG pipes and connectors,
LPG tank fixing (LPG versions only)●●●●●
Check fuel system operation and parameters using the
diagnosis socket (LPG versions only)●●●●●
Visually inspect condition of: methane pipes and
connectors and methane cylinder fastening, restore if
necessary (Natural Power versions only) (2)●●●●●
Check pressure regulator and replace internal filter, if
necessary (Natural Power versions only) (2)●●●●●
Check fuel system operation and parameters using self-
diagnosis socket (Natural Power versions only)●●●●●
Check torque tightening of cylinder fastening bands
(Natural Power versions only)●●
(1) Check to be carried out every year for vehicles on the road in countries with particularly severe climates (cold countries).
(2) Or every year.
124
SERVICING AND MAINTENANCE
Page 127 of 196
Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres 15 30 45 60 75 90 105 120 135 150
Years12345678910
Check pressure regulator heating pipes sealing (Natural
Power versions only)●●●●●
Check correct fitting of injectors (positioning, clip retention)
(Natural Power versions only)●●●●●
Change engine oil and replace oil filter (3)●●●●●
Replace spark plugs (1.2 8V 69 HP and 0.9 TwinAir Turbo
80 HP/85 HP versions) (2)●●●●●
Replace spark plugs (0.9 TwinAir 60 HP/65 HP)●●
Replace accessory drive belt(s) (4)●
(3) If the vehicle is used mainly on urban routes or the annual distance travelled is less than 10,000 km, the engine oil and engine oil filter must be changed every
year.
(2) Or every year
(4) Areas that are not dusty: recommended maximum mileage 120,000 km. Regardless of the mileage, the belt must be replaced every 6 years.
Dusty areas and/or demanding use of the vehicle (cold climates, town use, long periods of idling): advised maximum mileage 60,000 km. Regardless of the
mileage, the belt must be replaced every 4 years.
125

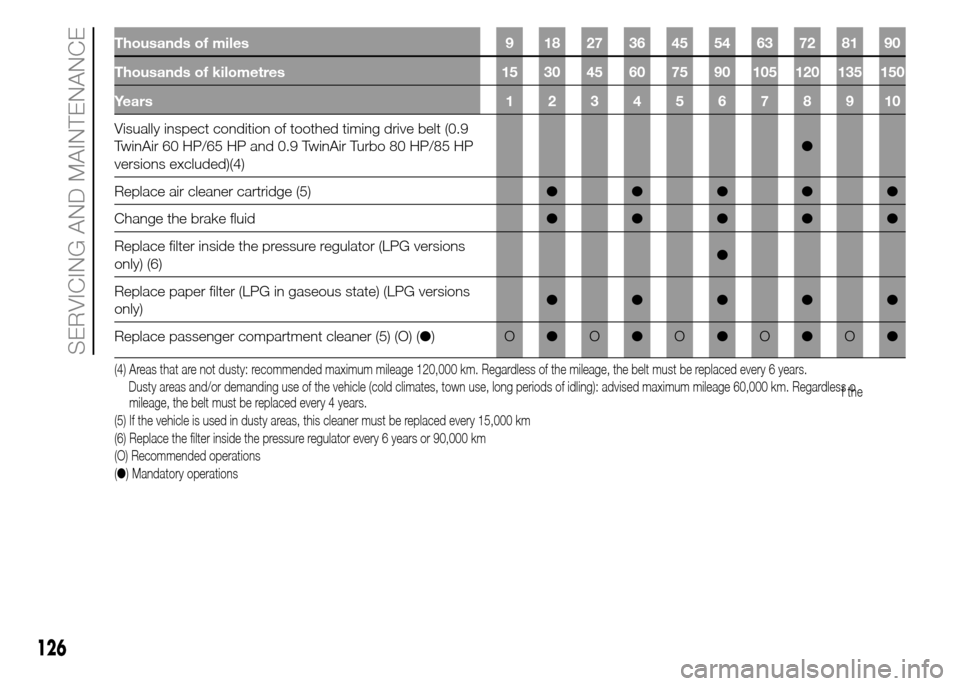

Page 128 of 196
Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres 15 30 45 60 75 90 105 120 135 150
Years12345678910
Visually inspect condition of toothed timing drive belt (0.9
TwinAir 60 HP/65 HP and 0.9 TwinAir Turbo 80 HP/85 HP
versions excluded)(4)●
Replace air cleaner cartridge (5)●●●●●
Change the brake fluid●●●●●
Replace filter inside the pressure regulator (LPG versions
only) (6)●
Replace paper filter (LPG in gaseous state) (LPG versions
only)●●●●●
Replace passenger compartment cleaner (5) (O) (●)O●O●O●O●O●
(4) Areas that are not dusty: recommended maximum mileage 120,000 km. Regardless of the mileage, the belt must be replaced every 6 years.
Dusty areas and/or demanding use of the vehicle (cold climates, town use, long periods of idling): advised maximum mileage 60,000 km. Regardless o
f the
mileage, the belt must be replaced every 4 years.
(5) If the vehicle is used in dusty areas, this cleaner must be replaced every 15,000 km
(6) Replace the filter inside the pressure regulator every 6 years or 90,000 km
(O) Recommended operations
(●) Mandatory operations
126
SERVICING AND MAINTENANCE
Page 129 of 196
DIESEL VERSIONS
The checks listed in the Scheduled Servicing Plan, after reaching 120,000 km/6 years, must be cyclically repeated starting from
the first interval, thus following the same intervals as before.
Thousands of miles 12 24 36 48 60 72 84 96 108 120
Thousands of kilometres 20 40 60 80 100 120 140 160 180 200
Years12345678910
Check tyre condition/wear and adjust pressure, if
necessary; check “Fix&Go Automatic” kit recharge expiry
date (for versions/markets, where provided)●●●●●●●●●●
Check operation of lighting system (headlights, direction
indicators, hazard warning lights, luggage compartment,
passenger compartment, glove compartment, instrument
panel warning lights, etc.)●●●●●●●●●●
Check and, if necessary, top up fluid levels (engine
coolant, hydraulic clutch/brakes, windscreen washer,
battery, etc.)●●●●●●●●●●
Check exhaust emissions/smokiness●●●●●●●●●●
Use the diagnosis socket to check supply/engine
management systems operation, emissions and, for
versions/markets, where provided, engine oil degradation●●●●●●●●●●
Visually inspect conditions of: exterior bodywork,
underbody protection, pipes and hoses (exhaust, fuel
system, brakes), rubber elements (gaiters, sleeves,
bushes, etc.)●●●●●
Check windscreen/rear window wiper blade position/wear●●●●●
127
Page 130 of 196
Thousands of miles 12 24 36 48 60 72 84 96 108 120
Thousands of kilometres 20 40 60 80 100 120 140 160 180 200
Years12345678910
Check operation of the windscreen wiper/washer system
and adjust jets, if necessary●●●●●
Check cleanliness of bonnet and luggage compartment
locks, as well as cleanliness and lubrication of linkages●●●●●
Check handbrake lever travel and adjust, if necessary●●●●●
Visually inspect condition and wear of front disc brake
pads and operation of pad wear indicator (for versions/
markets where provided)●●●●●●●●●●
Visually inspect condition and wear of rear disc brake pads
and operation of pad wear indicator (for versions/markets
where provided)●●●●●●●●●●
Visually inspect condition and wear of the rear drum brake
lining●●●●●●●●●●
Visually inspect conditions of the accessory drive belt(s)●●
Check manual gearbox oil level●●●
Check drive transmission idler unit (PTU) oil level (Panda
Cross and Panda 4x4 versions only)●●●
Check rear differential oil level (Panda Cross and Panda
4x4 versions only)●●●
128
SERVICING AND MAINTENANCE
