GETTING TO KNOW YOUR VEHICLE
In-depth knowledge of your new vehicle
starts here.
The handbook that you are reading
simply and directly explains how it is
made and how it works.
That’s why we advise you to read it
seated comfortably on board, so that
you can see immediately what is
described here for yourself.DASHBOARD................8
KEYS.....................9
IGNITION SWITCH............11
ADVANCED KEYLESS ENTRY
SYSTEM..................14
VEHICLE SECURITY ALARM.....14
DOORS...................16
SEATS....................19
HEAD RESTRAINTS...........21
STEERING WHEEL............21
MIRRORS..................22
EXTERIOR LIGHTS............24
WINDSCREEN WIPERS / WASHER .28
CLIMATE CONTROL SYSTEM.....30
POWER WINDOWS...........36
INTERNAL EQUIPMENT........37
BOOTLID..................38
BONNET ..................40
CONVERTIBLE TOP (SOFT TOP) . . .42
7

If the engine does not start with the
correct key, and the
warning light
remains illuminated or flashing, try the
following:
make sure the key is within the
operational range for signal
transmission;
switch the ignition off, and then
restart the engine. If the engine does
not start after 3 or more tries, contact
an Abarth Dealership.
If the
warning light flashes
continuously while you are driving, do
not shut off the engine. Contact an
Abarth Dealership and have it checked.
If the engine is shut off while the
warning light is flashing, you will not be
able to restart it.
THEFT DETERRENT
SYSTEM
(where provided)
Intrusion sensor
(where provided)
The intrusion sensor fig. 6 uses
ultrasonic waves to detect movement
inside the vehicle and to raise an alert of
an intrusion into the vehicle.
The intrusion sensor detects certain
kinds of movement inside the vehicle,
however, it may also respond to
phenomenon outside the vehicle such
as vibrations, loud noise, wind, and air
currents.In order for the intrusion sensor to
operate appropriately, be aware of the
following:
do not hang clothing or objects from
a head restraint;
return the sunvisors to their original
positions;
do not blind the intrusion sensor by
covering it or placing objects over it;
do not allow the intrusion sensor to
get soiled or wipe it with a liquid;
do not shock or cause an impact to
the intrusion sensor or the intrusion
sensor bezel;
do not install seats or seat covers
that are not FCA genuine products;
to prevent obstruction of intrusion
sensor, do not place objects or cargo
near the intrusion sensor that are higher
than the head restraints.How to arm the system
Proceed as follows:
close the windows and the
convertible top securely, switch the
ignition OFF and make sure the bonnet,
convertible top, the doors, and the boot
lid are closed;
press the lock button on the
transmitter or lock the driver's door
from the outside with the auxiliary key.
The hazard warning lights will flash
once.With the advanced keyless
function: press a request switch. The
warning light in the instrument
panel flashes twice per second for
20 seconds. After 20 seconds, the
system is fully armed.
With the intrusion sensor:the
intrusion sensor function can be armed
only when the convertible top is closed.
Even with a window open, the system
can be armed, however, leaving the
windows even partially open can invite
theft, and wind blowing into the vehicle
could trigger the alarm. The intrusion
sensor function can also be cancelled.
604080300-12A-001
15

SEATS
MANUAL ADJUSTMENT
15) 16) 17) 18) 19) 20) 21) 22) 24) 25) 26) 27) 28)
7)
Forward / Rearward
To move a seat forward or backward,
raise the lever 1 fig. 10 and slide the
seat to the desired position and release
the lever.
Make sure the lever returns to its
original position and the seat is locked
in place by attempting to push it
forward and backward.
Height
To adjust the height for front edge of
the seat bottom, rotate the dial 2 to the
desired position.Seat recline
To change the seatback angle, lean
forward slightly while raising the lever 3.
Then lean back to the desired position
and release the lever.
Make sure the lever returns to its
original position and the seatback is
locked in place by attempting to push it
forward and backward.
HEATED SEATS(where provided)
29) 30) 31) 32)
The seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch fig. 11 to
illuminate the indicator light while the
ignition is switched ON.
The mode changes as follows each
time the seat warmer switch is pressed.
IMPORTANT Do not use organic
solvents to clean the seat. It may
damage the seat surface and the
heater.
NoteIf the ignition is switched off while the
seat warmer is operating (High, Mid or
Low) and then switched ON again, the
seat warmer will automatically operate
at the temperature set before switching
off the ignition.
Use the seat warmer when the
engine is running. Leaving the seat
warmer on for long periods with the
engine not running could cause the
battery power to be depleted.
The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.
WARNING
15)Make sure the adjustable components
of a seat are locked in place. Adjustable
seats and seatbacks that are not securely
locked are dangerous. In a sudden stop or
collision, the seat or seatback could move,
causing injury. Make sure the adjustable
components of the seat are locked in place
by attempting to slide the seat forward and
backward and rocking the seatback.1003010202-12A-003AB
1103010203-L12-002
19

16)Never allow children to adjust a seat.
Allowing children to adjust a seat is
dangerous as it could result in serious
injury if a child's hands or feet become
caught in the seat.
17)Do not drive with the seatback
unlocked. All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback unlocked is
dangerous as it can allow passengers to
be ejected or thrown around and baggage
to strike occupants in a sudden stop or
collision, resulting in severe injury. After
adjusting the seatback at any time, even
when there are no other passengers, rock
the seatback to make sure it is locked in
place.
18)Adjust the driver's seat only when the
vehicle is stopped. Adjusting the driver's
seat while the vehicle is moving is
dangerous. The driver could lose control of
the vehicle and have an accident.
19)Do not modify or replace the seats.
Modifying or replacing the seats such as
replacing the upholstery or loosening any
bolts is dangerous. The seats contain air
bag components essential to the
supplementary restraint system. Such
modifications could damage the
supplementary restraint system and result
in serious injury. Consult Abarth Dealership ifthere is any need to remove or reinstall the
seats.20)Do not drive with damaged seats.
Driving with damaged seats, such as seat
cushions torn or damaged down to the
urethane, is dangerous. A collision, even
one not strong enough to inflate the air
bags, could damage the seats which
contain essential air bag components. If
there was a subsequent collision, an air
bag may not deploy which could lead to
injuries. Always have a Abarth Dealership
inspect the seats, seat belt pretensioners
and air bags after a collision.
21)Do not drive with either seats reclined.
Sitting in a reclined position while the
vehicle is moving is dangerous because
you do not get the full protection from seat
belts. During sudden braking or a collision,
you can slide under the lap belt and suffer
serious internal injuries. For maximum
protection, sit well back and upright.
22)Do not place an object such as a
cushion between the seatback and your
back. Putting an object such as a cushion
between the seatback and your back is
dangerous because you will be unable to
maintain a safe driving posture and the
seat belt cannot function at its full capacity
in a collision, which could result in a
serious accident, injury or death.
23)Do not place objects under the seat.
The object could get stuck and cause the
seat to not be fixed securely, and result in
an accident.
24)Do not stack cargo higher than the
seatbacks. Stacking luggage or other
cargo higher than the seatbacks is
dangerous. During sudden braking or a
collision, objects can fly around and
become projectiles that may hit and injure
passengers.25)Make sure luggage and cargo is
secured before driving. Not securing cargo
while driving is dangerous as it could move
or be crushed during sudden braking or a
collision and cause injury.
26)Always leave your vehicle locked and
keep the car keys safely away from
children. Leaving your car unlocked or the
keys in reach of children is dangerous.
Children who find their way into the boot
through an open boot can become
accidentally locked in the boot. This could
result in death or brain damage from heat
prostration, particularly in the summer.
Always lock the doors and the boot.
27)When operating a seat, be careful not
to put your hands or fingers near the
moving parts of the seat or on the side trim
to prevent injury.
28)When moving the seats, make sure
there is no cargo in the surrounding area. If
the cargo gets caught it could damage the
cargo. When moving the seats forward and
rearward or returning a rear-reclined
seatback to its upright position, make sure
you hold onto the seatback with your hand
while operating. If the seatback is not held,
the seat will move suddenly and could
cause injury.
29)Be careful when using the seat warmer.
The heat from the seat warmer may be too
hot for some people, as indicated below,
and could cause a low temperature burn.
Infants, small babies, elderly people, and
physically challenged people, people with
delicate skin, people who are excessively
fatigued, people who are intoxicated,
people who have taken sleep-inducing
medicine such as sleeping pills or cold
medicine.
20
GETTING TO KNOW YOUR VEHICLE

30)Do not use the seat warmer with
anything having high moisture retention
ability such as a blanket or cushion on the
seat. The seat may be heated excessively
and cause a low-temperature burn.
31)Do not place objects on the seat or on
the backrest that may isolate the heat,
such as a cover or a pillow. It may cause
the seat heating device to overheat. Sitting
on an overheated seat may cause severe
burns due to the increase in temperature of
the seat surface.
32)Do not place heavy objects with sharp
projections on the seat, or insert needles or
pins into it. This could cause the seat to
become excessively heated and result in
injury from a minor burn.
IMPORTANT
7)The fabric upholstery for the seats has
been designed to withstand long-term wear
deriving from normal use of the vehicle.
Nevertheless, some precautions are
required. Avoid prolonged and/or excessive
rubbing involving clothing accessories such
as metal buckles, bosses, Velcro strips and
the like, which, by applying a high pressure
on the fabric in a limited area, could cause
it to break, thereby damaging the
upholstery.
HEAD RESTRAINTS
33)
Non-Adjustable Head Restraints
Your vehicle is equipped with non
adjustable head restraints on the
driver's and passenger's seatbacks.
The non adjustable head restraints
consist of a trimmed foam covering
over the upper structure of the
seatbacks and are intended to help
protect you and the passenger from
neck injury.
Adjust the seatbacks to their upright,
on-road positions so that the head
restraint is positioned as close as
possible to the back of your head.
WARNING
33)Make sure the seatbacks are properly
adjusted to their upright, on-road positions
before the vehicle is driven. Driving with the
seatbacks not adjusted properly is
dangerous. With no support behind your
head, your neck could be seriously injured
in a collision.
STEERING WHEEL
STEERING WHEEL
ADJUSTMENT
34) 35) 36)
To change the angle of the steering
wheel:
stop the vehicle, and then pull down
the lock release lever 1 fig. 12 under the
steering column;
tilt the steering wheel to the desired
positions, then push the lever up to lock
the column;
attempt to push the steering wheel
up and down to make sure it's locked
before driving.
1204050101-12A-001AB
21

SEAT BELTS
SEAT BELT
PRECAUTIONS
79) 80)
Seat belts help to decrease the
possibility of severe injury during
accidents and sudden stops. FCA
recommends that the driver and
passengers always wear seat belts.
All the seats have lap/shoulder belts.
These belts have retractors with inertia
locks that keep them out of the way
when not in use.
The locks allow the belts to remain
comfortable on users, but they will lock
in position during a collision.
Belt retraction may become difficult if
the belts and seat belt guides
fig. 59 are soiled, so try to keep them
clean.Pregnant women and persons with
serious medical conditions
Pregnant women should always wear
seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY
AND AS LOW AS POSSIBLE OVER
THE HIPS. The shoulder belt should be
worn across your shoulder properly, but
never across the stomach area fig. 60.
Persons with serious medical
conditions also should wear seat belts.
Check with your doctor for any special
instructions regarding specific medical
conditions.
Emergency locking mode
When the seat belt is fastened, it will
always be in the emergency locking
mode.
In the emergency locking mode, the
belt remains comfortable on theoccupant and the retractor will lock in
position during a collision.
If the belt is locked and cannot be
pulled out, retract the belt once, and
then try pulling it out slowly. If this fails,
pull the belt strongly one time and
loosen, then pull it out again slowly.
USING THE SEAT BELTS
81) 82) 83) 84) 85) 86) 87)
Fastening the seat belt
1: seat belt tongue fig. 61;
2: seat belt buckle.
Position the lap belt as low as possible
1 fig. 62, not on the abdominal area 2,
then adjust the shoulder belt 3 so that it
fits snugly against your body.
5903020100-12A-001AB
6006050100-CHD-003
6103020201-121-001AB
77

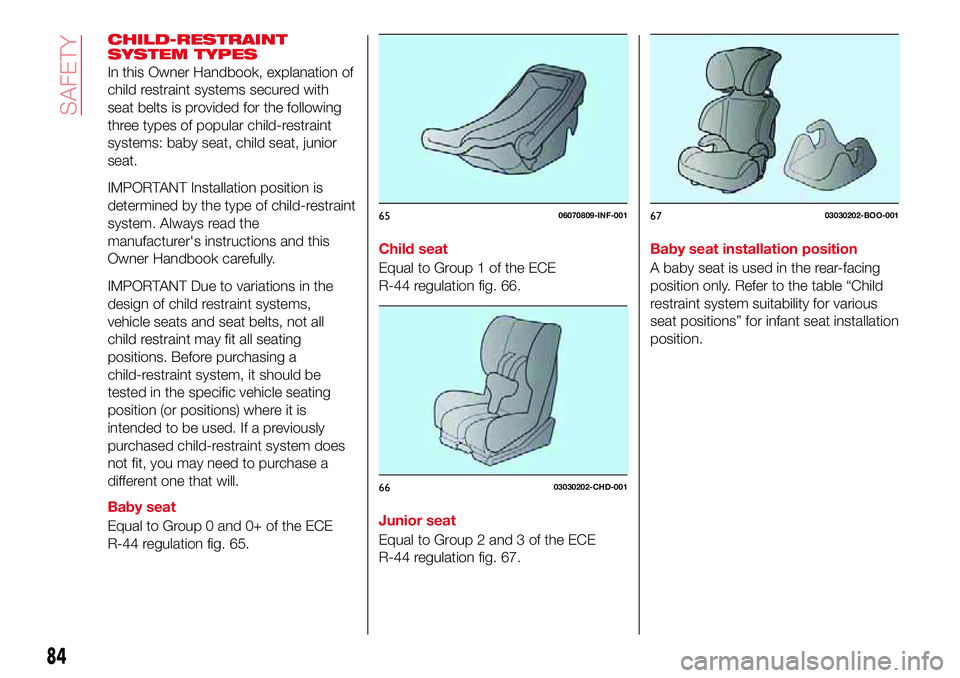

CHILD-RESTRAINT
SYSTEM TYPES
In this Owner Handbook, explanation of
child restraint systems secured with
seat belts is provided for the following
three types of popular child-restraint
systems: baby seat, child seat, junior
seat.
IMPORTANT Installation position is
determined by the type of child-restraint
system. Always read the
manufacturer's instructions and this
Owner Handbook carefully.
IMPORTANT Due to variations in the
design of child restraint systems,
vehicle seats and seat belts, not all
child restraint may fit all seating
positions. Before purchasing a
child-restraint system, it should be
tested in the specific vehicle seating
position (or positions) where it is
intended to be used. If a previously
purchased child-restraint system does
not fit, you may need to purchase a
different one that will.
Baby seat
Equal to Group 0 and 0+ of the ECE
R-44 regulation fig. 65.Child seat
Equal to Group 1 of the ECE
R-44 regulation fig. 66.
Junior seat
Equal to Group 2 and 3 of the ECE
R-44 regulation fig. 67.Baby seat installation position
A baby seat is used in the rear-facing
position only. Refer to the table “Child
restraint system suitability for various
seat positions” for infant seat installation
position.
6506070809-INF-001
6603030202-CHD-001
6703030202-BOO-001
84
SAFETY

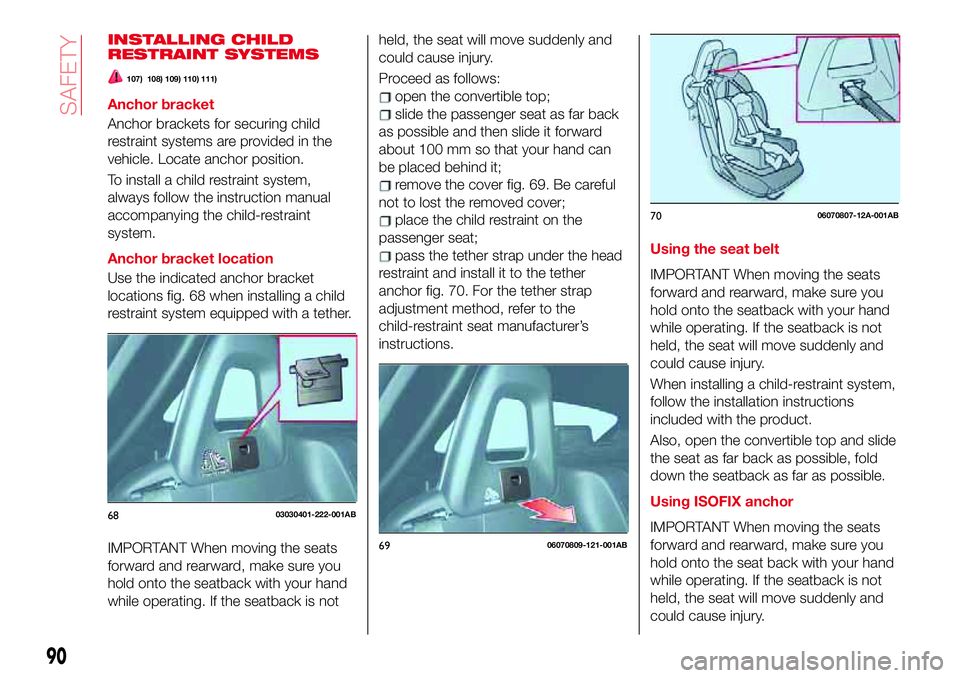

INSTALLING CHILD
RESTRAINT SYSTEMS
107) 108) 109) 110) 111)
Anchor bracket
Anchor brackets for securing child
restraint systems are provided in the
vehicle. Locate anchor position.
To install a child restraint system,
always follow the instruction manual
accompanying the child-restraint
system.
Anchor bracket location
Use the indicated anchor bracket
locations fig. 68 when installing a child
restraint system equipped with a tether.
IMPORTANT When moving the seats
forward and rearward, make sure you
hold onto the seatback with your hand
while operating. If the seatback is notheld, the seat will move suddenly and
could cause injury.
Proceed as follows:
open the convertible top;
slide the passenger seat as far back
as possible and then slide it forward
about 100 mm so that your hand can
be placed behind it;
remove the cover fig. 69. Be careful
not to lost the removed cover;
place the child restraint on the
passenger seat;
pass the tether strap under the head
restraint and install it to the tether
anchor fig. 70. For the tether strap
adjustment method, refer to the
child-restraint seat manufacturer’s
instructions.Using the seat belt
IMPORTANT When moving the seats
forward and rearward, make sure you
hold onto the seatback with your hand
while operating. If the seatback is not
held, the seat will move suddenly and
could cause injury.
When installing a child-restraint system,
follow the installation instructions
included with the product.
Also, open the convertible top and slide
the seat as far back as possible, fold
down the seatback as far as possible.
Using ISOFIX anchor
IMPORTANT When moving the seats
forward and rearward, make sure you
hold onto the seat back with your hand
while operating. If the seatback is not
held, the seat will move suddenly and
could cause injury.6803030401-222-001AB
6906070809-121-001AB
7006070807-12A-001AB
90
SAFETY

WARNING
112)Seat belts must be worn in air bag
equipped vehicles. Depending only on the
air bags for protection during an accident
is dangerous. Alone, air bags may not
prevent serious injuries. The appropriate air
bags can be expected to inflate only in the
first accident, such as frontal, near frontal
or side collisions that are at least
moderate. Vehicle occupants should
always wear seat belts.
113)Always make sure the passenger air
bag deactivation OFF indicator light is
illuminated when using a child restraint
system. Seating a child in a child-restraint
system that is installed on the passenger
seat with the passenger air bag
deactivation OFF indicator light not
illuminated is extremely dangerous. In an
accident, an air bag could inflate and
cause serious injuries or even death to the
child seated in the child restraint system.
Always make sure the passenger air bag
deactivation OFF indicator light is
illuminated.114)EXTREME HAZARD! Never use a
rear-facing child-restraint system on the
passenger seat with an air bag that could
deploy. NEVER use a rearward facing child
restraint on a seat protected by an ACTIVE
AIR BAG in front of it, DEATH or SERIOUS
INJURY to the CHILD can occur. Even in a
moderate collision, the child-restraint
system can be hit by a deploying air bag
and moved violently backward resulting in
serious injury or death to the child. If your
vehicle is equipped with on passenger
occupant classification system, always
make sure the passenger air bag
deactivation OFF indicator light is
illuminated.
115)Do not sit too close to the driver and
passenger air bags. Sitting too close to the
driver and passenger air bag modules or
placing hands or feet on them is extremely
dangerous. The driver and passenger air
bags inflate with great force and speed.
Serious injuries could occur if someone is
too close. The driver should always hold
onto only the rim of the steering wheel. The
passenger should keep both feet on the
floor. Seat occupants should adjust their
seats as far back as possible and always
sit upright against the seat backs with seat
belts worn properly.116)Do not sit too close to a door or lean
against doors in vehicles with side air bags.
Sitting too close to the side air bag
modules or placing hands on them is
extremely dangerous. A side air bag
inflates with great force and speed directly
out of the outer shoulder of the seat and
expands along the door on the side the car
is hit. Serious injury could occur if someone
is sitting too close to the door or leaning
against a window in the seats.
Furthermore, sleeping up against the door
or hanging out the driver-side window while
driving could block the side air bag and
eliminate the advantages of supplementary
protection. Give the side air bags room to
work by sitting in the center of the seat
while the vehicle is moving with seat belts
worn properly.
117)Sit in the center of the seat and wear
seat belts properly. Sitting too close to the
side air bag modules or placing hands on
them, or sleeping up against the door or
hanging out the windows is extremely
dangerous. The side air bags inflate with
great force and speed directly expanding
along the door on the side the car is hit.
Serious injury could occur if someone is
sitting too close to the door. Give the side
air bags room to work by sitting in the
center of the seat while the vehicle is
moving with seat belts worn properly.
118)Do not attach objects on or around
the area where driver and passenger air
bags deploy. Attaching an object to the
driver and passenger air bag modules or
placing something in front of them is
dangerous. In an accident, an object could
interfere with air bag inflation and injure the
occupants.
104
SAFETY

119)Do not attach objects on or around
the area where a side air bag deploys.
Attaching objects to the seat in such a way
as to cover the outboard side of the seat in
any way is dangerous. In an accident the
object could interfere with the side air bag,
which inflates from the outboard side of the
seats, impeding the added protection of
the side air bag system or redirecting the
air bag in a way that is dangerous.
Furthermore, the bag could be cut open
releasing the gas. Do not hang net bags,
map pouches or backpacks with side
straps on the seats. Never use seat covers
on the seats. Always keep the side air bag
modules in your seats free to deploy in the
event of a side collision.
120)Do not touch the components of the
supplementary restraint system after the air
bags have inflated. Touching the
components of the supplementary restraint
system after the air bags have inflated is
dangerous. Immediately after inflation, they
are very hot. You could get burned.
121)Never install any front-end equipment
to your vehicle. Installation of front-end
equipment, such as frontal protection bar
(kangaroo bar, bull bar, push bar, or other
similar devices), snowplow, or winches, is
dangerous. The air bag crash sensor
system could be affected. This could cause
air bags to inflate unexpectedly, or it could
prevent the air bags from inflating during an
accident. Occupants could be seriously
injured.122)Do not modify the suspension.
Modifying the vehicle suspension is
dangerous. If the vehicle's height or the
suspension is modified, the vehicle will be
unable to accurately detect a collision
resulting in incorrect or unexpected air bag
deployment and the possibility of serious
injuries.
123)Do not modify a door or leave any
damage unrepaired. Always have an expert
repairer, we recommend an Abarth
Dealership inspect a damaged door.
Modifying a door or leaving any damage
unrepaired is dangerous. Each door has a
side crash sensor as a component of the
supplementary restraint system. If holes
are drilled in a door, a door speaker is left
removed, or a damaged door is left
unrepaired, the sensor could be adversely
affected causing it to not detect the
pressure of an impact correctly during a
side collision. If a sensor does not detect a
side impact correctly, the side air bags and
the seat belt pretensioner may not operate
normally which could result in serious injury
to occupants.124)Do not modify the supplementary
restraint system. Modifying the
components or wiring of the
supplementary restraint system is
dangerous. You could accidentally activate
it or make it inoperable. Do not make any
modifications to the supplementary
restraint system. This includes installing
trim, badges, or anything else over the air
bag modules. It also includes installing
extra electrical equipment on or near
system components or wiring. An expert
repairer, we recommend an Abarth
Dealership can provide the special care
needed in the removal and installation of
seats. It is important to protect the air bag
wiring and connections to assure that the
bags do not accidentally deploy, and that
the passenger occupant classification
system and the seats retain an undamaged
air bag connection.
125)Do not place luggage or other objects
under the seats. Placing luggage or other
objects under the seats is dangerous. The
components essential to the
supplementary restraint system could be
damaged, and in the event of a side
collision, the appropriate air bags may not
deploy, which could result in death or
serious injury. To prevent damage to the
components essential to the
supplementary restraint system, do not
place luggage or other objects under the
seats.
105
