fog light Abarth Punto 2018 Owner handbook (in English)

CONTENTS TECHNICAL
SPECIFICATIONS
MAINTENANCE
AND CARE
IN AN
EMERGENCY WARNING LIGHTS
AND MESSAGES STARTING
AND DRIVING SAFETY
KNOWING
YOUR VEHICLE
21
TRIP B ACTIVATION/DATA
(Trip B enablement)
This function can be used to activate (On) or deactivate
(Off) the Trip B display (partial trip).
For further information see “Trip computer”.
Proceed as follows to switch the function on and off:
– briefly press MENU ESC: On or Off will flash on the
display (depending on previous setting);
– press the button +or –to select;
– briefly press the MENU ESC button to go back to the
menu screen or hold the button down to go back to the
standard screen without saving. CORNERING LIGHTS
(activation/deactivation of Cornering lights
– Fog lights with cornering function)
This function activates/deactivates the corner lights. To
activate/deactivate (ON/OFF) the lights, proceed as
follows:
– press the MENU ESC button briefly, the display will
show “On” or “Off” flashing depending on the previous
setting;
– press + or – to change the setting;
– briefly press the MENU ESC button to go back to the
menu screen or hold the button down to go back to the
standard screen without saving.
RAIN SENSOR
(Adjusting sensitivity)
(for versions/markets where provided)
This function allows you to adjust the rain sensor
sensitivity to 4 levels.
To set the required sensitivity level, proceed as follows:
– briefly press MENU ESC: the previously set sensitivity
level will flash on the display;
– press the button +or –for setting;
– briefly press the MENU ESC button to go back to the
menu screen or hold the button down to go back to the
standard screen without saving.
001-028 PUNTO Abarth GB 1ed 17-07-2012 12:04 Pagina 21

51
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U038Abfig. 38
WINDOW WASHING
The right-hand lever fig. 38 controls windscreen
wiper/washer and heated rear window wiper/washer
operation.
WINDSCREEN WASHER/WIPER
This operates only with the ignition key turned to MAR.
The twist switch on the right stalk can be moved to four
different positions:
Owindscreen wiper off;
≤intermittent operation;
≥slow operation;
¥fast operation.
Move the stalk to position A (unstable) to limit
operation to the time for which the stalk is held in this
position. When the stalk is moved, the light
3on the
instrument panel will light up and the corresponding
message will appear in the display (see “Warning lights
and messages”) as long as the function is on. The
warning light comes on when the lever is operated and
stays on until the function is automatically deactivated.
Each movement of the lever only increases the amount
of time the lights stay on.
Deactivation
Keep the lever pulled towards the steering wheel for
more than 2 seconds.
FRONT FOG LIGHTS WITH CORNERING
LIGHTS FUNCTION
When the dipped headlamps are on and the speed is
below 40 km/h, if the steering wheel rotation angle is
large or the direction indicators are on, a light
(incorporated in the fog light) will come on on the
relevant side to improve visibility at nightime. This
function can be activated/deactivated via the display
menu (see “Display functions” in this section).
029-068 PUNTO Abarth GB 1ed 17-07-2012 12:06 Pagina 51

58
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U043Abfig. 43F0U044Abfig. 44
PARKING LIGHTS
These lights can be turned on only with the ignition key
at STOP or removed, by moving the left stalk twist
switch first to
Oand then to 6or 2.
The warning light 3on the instrument panel comes on.
FOG LIGHTS fig. 44
(for versions/markets where provided)
To turn the front fog lights on, press the button 5with
the side lights on.
The warning light 5in the instrument panel will come on.
Press the button again to turn the lights off.
The use of fog lights is governed by the highway code of
the country in which you are driving. Comply with legal
requirements.
CONTROLS
HAZARD WARNING LIGHTS fig. 43
They are turned on by pressing switch A, regardless of
the position of the ignition key.
With the device on, warning lights Îand ¥light up in
the instrument panel. Press the switch again to turn the
lights off. The use of hazard warning lights is governed
by the highway code of the country you are in. Comply
with legal requirements.
Emergency braking
During emergency braking, the hazard warning lights
come on automatically and warning lights Îand ¥in the
panel come on at the same time. The function switches
off automatically when the nature of the braking changes.
This function complies with the relevant legal regulations
currently in force.
029-068 PUNTO Abarth GB 1ed 17-07-2012 12:06 Pagina 58

59
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U046Abfig. 46
F0U045Abfig. 45
DOOR LOCK fig. 47
To lock all doors at the same time, press button A,
located on the centre console control panel, regardless
of the position of the ignition key. REAR FOG LIGHT fig. 45
These lights come on, with the dipped headlights on or
with the side lights and fog lights on (for versions/
markets where provided) by pressing the button 4.
The warning light 4in the instrument panel will come on.
Press the button again to turn the lights off, or turn off
the dipped beams and/or the front fog lights (where
provided).
The use of rear fog lamps is governed by the Highway
Code of the country you are in. Comply with legal
requirements.
HEATED REAR WINDOW fig. 46
Press button A to turn this function on.
With the heated rear windscreen on, this function will
turn off automatically after about 20 minutes.
F0U047Abfig. 47
029-068 PUNTO Abarth GB 1ed 17-07-2012 12:06 Pagina 59

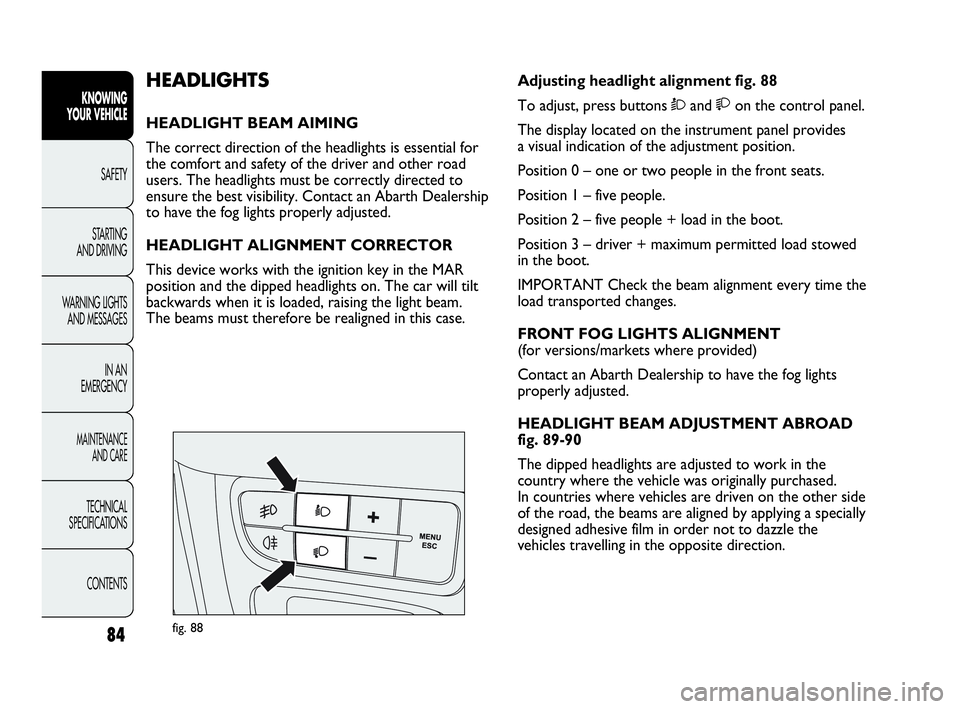

84
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
fig. 88
Adjusting headlight alignment fig. 88
To adjust, press buttons Òand on the control panel.
The display located on the instrument panel provides
a visual indication of the adjustment position.
Position 0 – one or two people in the front seats.
Position 1 – five people.
Position 2 – five people + load in the boot.
Position 3 – driver + maximum permitted load stowed
in the boot.
IMPORTANT Check the beam alignment every time the
load transported changes.
FRONT FOG LIGHTS ALIGNMENT
(for versions/markets where provided)
Contact an Abarth Dealership to have the fog lights
properly adjusted.
HEADLIGHT BEAM ADJUSTMENT ABROAD
fig. 89-90
The dipped headlights are adjusted to work in the
country where the vehicle was originally purchased.
In countries where vehicles are driven on the other side
of the road, the beams are aligned by applying a specially
designed adhesive film in order not to dazzle the
vehicles travelling in the opposite direction. HEADLIGHTS
HEADLIGHT BEAM AIMING
The correct direction of the headlights is essential for
the comfort and safety of the driver and other road
users. The headlights must be correctly directed to
ensure the best visibility. Contact an Abarth Dealership
to have the fog lights properly adjusted.
HEADLIGHT ALIGNMENT CORRECTOR
This device works with the ignition key in the MAR
position and the dipped headlights on. The car will tilt
backwards when it is loaded, raising the light beam.
The beams must therefore be realigned in this case.
069-108 PUNTO Abarth GB 1ed 17-07-2012 12:07 Pagina 84

146
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
FUEL RESERVE (amber)
When the key is turned to the MAR position
the warning light comes on but should go out
after a few seconds.
The warning light turns on when about 7 litres of fuel
are left in the tank.
IMPORTANT The warning light will flash to indicate a
system failure. If this is the case, contact an Abarth
Dealership to have the system checked.
ç
FRONT FOG LIGHTS (green)
The light comes on when the front fog lights
are turned on.
5
SIDE/TAIL LIGHTS
AND LOW BEAMS (green)
FOLLOW ME HOME (green)
Side/tail lights and low beams
The warning light comes on when side/tail lights or low
beams are turned on.
Follow me home
The warning light will turn on when this device is active
(see “Follow me home” in section “Knowing your car”).
The display will show a dedicated message.
3
RIGHT-HAND DIRECTION
INDICATOR (green – blinking)
The warning light turns on when the direction
indicator control lever is moved upwards or,
together with the left indicator, when the hazard light
button is pressed.
D
LEFT-HAND DIRECTION
INDICATOR (green – blinking)
The warning light turns on when the direction
indicator control lever is moved downwards or,
together with the right indicator, when the hazard
warning light button is pressed.
F
141-150 PUNTO Abarth GB 1ed 17-07-2012 13:21 Pagina 146

147
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
CRUISE CONTROL (green)
(for versions/markets where provided)
When the key is turned to the MAR position
the warning light comes on but should go out
after a few seconds.
The warning light switches on by rotating the Cruise
Control twist switch to ON.
The display will show a dedicated message.
Ü
MAIN BEAM HEADLIGHTS (blue)
The warning light comes on when the main
beams are turned on.
1
REAR FOG LIGHTS (amber)
The warning light comes on when the rear fog
lights are turned on.
4
INCOMPLETE DOOR LOCKING (red)
The symbol is shown on the display when one
or more doors or the tailgate are not perfectly
closed.
The display shows the dedicated message.
An acoustic signal is emitted with the doors open and
the car moving.
´
ENGINE OIL LEVEL LOW (red)
The symbol is shown on the display when the
engine oil level falls below the minimum
recommended value. Restore the correct engine
oil level (see “Checking fluid levels” in the “Servicing and
maintenance” section).
The display shows the dedicated message.
k
GENERIC WARNING
(amber)
Engine oil pressure sensor failure
The symbol is shown on the display when a fault in the
engine oil pressure sensor is detected. Contact an Abarth
Dealership to have the fault fixed as soon as possible.
è
ELECTRIC STEERING FAILURE
(red)
When the symbol is shown on the display, you
will not benefit from the electric power steering and the
effort needed to turn the wheel will be greatly
increased, although it will still be possible to steer the
car. Contact an Abarth Dealership.
The display shows the dedicated message.
g
141-150 PUNTO Abarth GB 1ed 17-07-2012 13:21 Pagina 147

148
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
FIAT CODE VEHICLE PROTECTION
SYSTEM FAILURE
(amber)
(for versions/markets where provided)
The symbol (together with a dedicated message) may be
shown on the display to indicate that there is a fault in
the Fiat Code system or, if applicable, the alarm system.
In this case, contact an Abarth Dealership as soon as
possible.
Y
WORN BRAKE PADS
(amber)
The symbol is shown on the display if the front
brake pads are worn; in this case, have them changed as
soon as possible.
The display will show a dedicated message.
d
EXTERIOR LIGHTS FAILURE
(amber)
(for versions/markets where provided)
The symbol is shown on the display when a
failure with one of the following lights is detected:
– side lights
– brake lights
– rear fog lights
– direction indicators
– number plate lights
– DRL lights
The display will show a dedicated message.
The failure relating to these lights could be one or more
blown bulbs, a blown protection fuse or a break in the
electrical connection.
W
FUEL CUT-OFF SYSTEM (amber)
The symbol is shown on the display when the
fuel cut-off system has intervened.
The display shows the dedicated message.
For the procedure to restore the system see “Fuel cut-
off system” in the “Knowing your car” section.
sSPORT MODE
The symbol is shown on the display when
“Sport” driving mode is engaged and remains off when
“Normal” mode is activated (see “Manettino Abarth car
dynamic control system” in the “Knowing your car”
section).S
141-150 PUNTO Abarth GB 1ed 17-07-2012 13:21 Pagina 148

Bulbs Figure ref. Type Power
Dipped/main beam headlights
Daytime running lights
Front side lights
Front fog lights (for versions/markets where available)
Front direction indicators
Side direction indicators
Rear direction indicators
Rear side lights
Brake lights
Third brake light (additional brake light)
Reversing lights
Rear fog lights
Number plate lights
Front courtesy light with spot lights
Boot light
Courtesy lightH4
W21W
W5W
H11
PY21W
WY5W
PY21W
LED
P21W
W2.3W
W16W
W16W
W5W
C10W
W5W
C5W D
A
A
–
B
A
B
–
B
B
–
–
A
C
A
C55 W/60 W
21 W
5 W
55 W
21 W
5 W
21 W
–
21 W
2.3 W
16 W
16 W
5 W
10 W
5 W
5 W
160
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
151-182 PUNTO Abarth GB 1ed 17-07-2012 13:24 Pagina 160

164
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
C
AC
B
C
F0U147Abfig. 144
❒loosen the fixing screws C and remove the
headlamp;
❒remove the bulb A-fig.145 by rotating it
anticlockwise and disconnect the electrical
connector.
F0U145Abfig. 143
Side fig. 143
To change the bulb, proceed as follows:
❒slide the lens A towards the front of the car to
compress the internal clip B, then pull the unit
outwards;
❒turn the bulb holder C anticlockwise,
extract the pressure-fit bulb D and replace it;
❒refit the bulb holder C into the lens by turning it
clockwise;
❒refit the unit making sure that the internal clip B
clicks into place.
FRONT FOG LIGHTS
(for versions/markets, where provided)
To replace the bulb:
❒loosen the screw A-fig.144 and remove the
protection template B;
A
F0U146Abfig. 145
151-182 PUNTO Abarth GB 1ed 17-07-2012 13:24 Pagina 164
