tailgate Abarth Punto Evo 2010 Owner handbook (in English)

7
F0U006Abfig. 5F0U007Abfig. 6
Replacing the battery of the key with remote
control fig. 6
To replace the battery, proceed as follows:
❒press button A and bring the metal insert B to the
open position;
❒turn the screw C to :using a fine bit screwdriver;
❒take out the battery case D and replace the battery
E, respecting its polarity;
❒refit the battery case D inside the key and lock it by
turning the screw C to
Á. LED indications on the dashboard fig. 5
When locking the doors, the LED on the button A
switches on for about 3 seconds and than starts flashing
(deterrence function).
Once doors are locked, if one or more doors or the
tailgate are not closed correctly, the LED and direction
indicators start flashing quickly.
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
001-028 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:26 Pagina 7

10
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The main functions that can be activated with the keys (with or without remote control) are the following:
Type of key
Key without remote control
Key with remote control
Visual indication
Direction indicators flashing
(only for key with remote
control)
Deterrence led
Unlocking the doors
Turn key anticlockwise
(driver’s side)
Turn key anticlockwise
(driver’s side)
Briefly press
Ëbutton
blinks twice
OffDoor closing
from the outside
Turn key clockwise
(driver’s side)
Turn key clockwise
(driver’s side)
Briefly press Ábutton
blinks once
On with a fixed light for
about 3 seconds
followed by deterrence
led flashing
Dead lock (*)
–
–
Double pressing
Á
button
3 blinks
Double flashing, followed
by deterrence led
flashingTailgate
opening
–
–
Briefly press
R
button
blinks twice
Deterrent blinking
(*) For versions/markets, where provided.
001-028 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:26 Pagina 10

57
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
TIMED OPERATION FOR GETTING OUT OF THE VEHICLE
After removing the key from the ignition, the courtesy
lights switch on according to the following modes:
❒within 2 minutes from turning the engine off for
about 10 seconds;
❒when opening one of the side doors for about
3 minutes;
❒when one of the doors is closed for a period of
about 10 seconds.
The timed delay period ends automatically when the
doors are locked.
F0U041Abfig. 41
LUGGAGE COMPARTMENT LIGHT fig. 41
For versions fitted with boot light, the light comes on
automatically when opening the tailgate and it will go
off when closing.
029-068 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:33 Pagina 57

76
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U074Abfig. 72F0U075Abfig. 73
BOOT
OPENING THE BOOT
The boot can be opened by pressing button A-fig. 72.
It can also be opened by pressing button Ron the
remote control fig. 73.
The direction indicators will blink twice when the
tailgate is opened using the remote control.
When using the boot, never exceed the
maximum admissible loads (see the
“Technical specifications” section). Make sure
that the objects are well arranged in the boot so
that they will not be projected forwards
following sudden braking, causing injury to
passengers.
WARNING
Putting additional objects onto the parcel
shelf or rear door (speakers, spoiler, etc.),
except when approved by the
manufacturer, can affect the correct operation of
the side gas shock absorbers of the rear door
itself.
069-108 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:36 Pagina 76

77
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

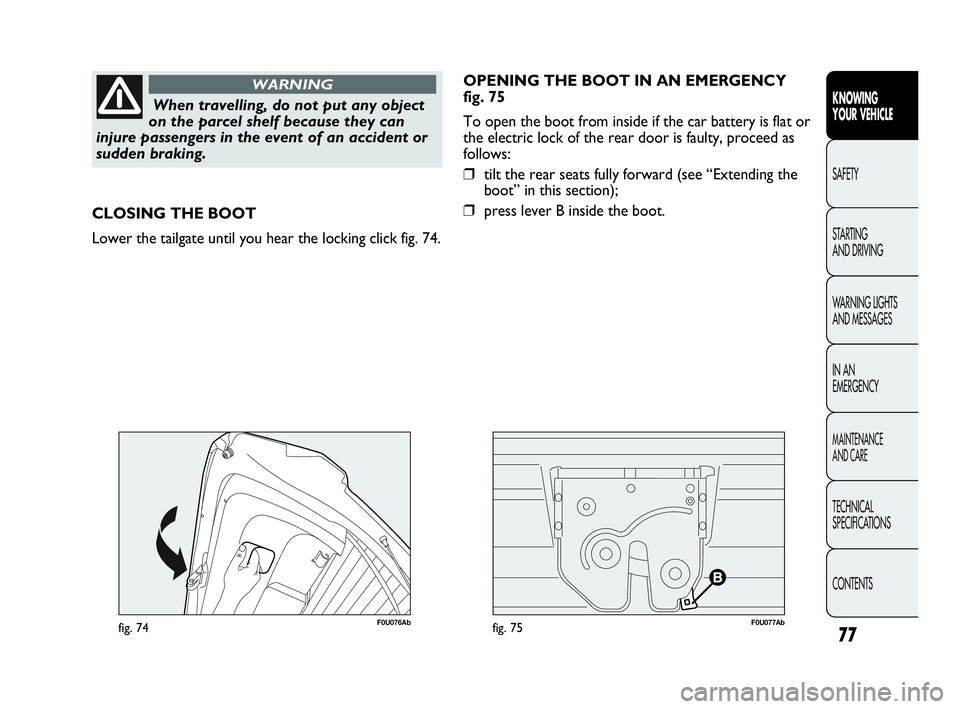

When travelling, do not put any object
on the parcel shelf because they can
injure passengers in the event of an accident or
sudden braking.
WARNING
F0U076Abfig. 74
CLOSING THE BOOT
Lower the tailgate until you hear the locking click fig. 74.OPENING THE BOOT IN AN EMERGENCY
fig. 75
To open the boot from inside if the car battery is flat or
the electric lock of the rear door is faulty, proceed as
follows:
❒tilt the rear seats fully forward (see “Extending the
boot” in this section);
❒press lever B inside the boot.
F0U077Abfig. 75
069-108 GPUNTO EVO Abarth GB 2ed 23-04-2010 13:36 Pagina 77

147
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
CRUISE CONTROL (green)
(for versions/markets where provided)
When the key is turned to the MAR position
the warning light comes on but should go out
after a few seconds.
The warning light switches on by rotating the Cruise
Control twist switch to ON.
The display will show a dedicated message.
Ü
MAIN BEAM HEADLIGHTS (blue)
The warning light comes on when the main
beams are turned on.
1
REAR FOG LIGHTS (amber)
The warning light comes on when the rear fog
lights are turned on.
4
INCOMPLETE DOOR LOCKING (red)
The symbol is shown on the display when one
or more doors or the tailgate are not perfectly
closed.
The display shows the dedicated message.
An acoustic signal is emitted with the doors open and
the car moving.
´
ENGINE OIL LEVEL LOW (red)
The symbol is shown on the display when the
engine oil level falls below the minimum
recommended value. Restore the correct engine
oil level (see “Checking fluid levels” in the “Servicing and
maintenance” section).
The display shows the dedicated message.
k
GENERIC WARNING
(amber)
Engine oil pressure sensor failure
The symbol is shown on the display when a fault in the
engine oil pressure sensor is detected. Contact an Abarth
Dealership to have the fault fixed as soon as possible.
è
ELECTRIC STEERING FAILURE
(red)
When the symbol is shown on the display, you
will not benefit from the electric power steering and the
effort needed to turn the wheel will be greatly
increased, although it will still be possible to steer the
car. Contact an Abarth Dealership.
The display shows the dedicated message.
g
141-150 GPUNTO EVO Abarth GB 2ed 23-04-2010 14:04 Pagina 147

194
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Batteries contain substances that can be
very dangerous for the environment. It is
advisable to have the battery changed by
an Abarth Dealership, where it will be disposed
of correctly and in accordance with nature and
the law.
If the vehicle must remain unused for a
long time at very low temperatures,
remove the battery and take it to a warm place
to avoid freezing.
WARNING
If you have to perform any operation on
the battery or near it, always protect
your eyes with special goggles.
WARNING
USEFUL ADVICE FOR EXTENDING
THE LIFE OF YOUR BATTERY
To avoid draining your battery and make it last longer,
observe the following instructions:
❒when you park the car, ensure that the doors,
tailgate and flaps are closed properly, to prevent any
light from switching on inside the passenger’s
compartment;
❒the courtesy lights must be off. The car is however
provided with an automatic system for switching off
internal lights;
❒do not keep accessories (e.g. sound system, hazard
warning lights, etc...) switched on for a long time
when the engine is not running;
❒before performing any operation on the electric
system, disconnect the negative battery cable;
❒make sure that the battery terminals are fully
tightened.
183-204 GPUNTO EVO Abarth GB 2ed 23-04-2010 14:28 Pagina 194

206
F0U181Abfig. 177F0U182Abfig. 178
CHASSIS MARKING fig. 178
This is printed on the passenger compartment floor,
near the front right seat.
❒vehicle model;
❒chassis serial number.
ENGINE MARKING
This is stamped onto the cylinder block and shows the
type and the manufacture serial number. BODYWORK PAINT IDENTIFICATION
PLATE fig. 177
The plate is applied on the external tailgate post (left
side) and it bears the following data:
A Paint manufacturer
B Colour name
C Colour code
D Respray and touch-up colour code
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
205-220 GPUNTO EVO Abarth GB 2ed 23-04-2010 14:26 Pagina 206

259
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
– maintenance ............................. 193
– recharging ................................. 177
– replacement ............................. 193
– tips for extending
battery life .................................... 194
Bi-zone automatic climate
control system ............................ 44
Body
– body version codes ................ 207
– cleaning, care and
maintenance ................................ 200
– maintenance ............................. 202
Bodywork codes ........................... 207
Bodywork paint
identification plate ...................... 206
Bodywork versions ...................... 207
Bonnet
– opening/closing ........................ 81
Boot ................................................. 76
– closing the tailgate ................... 77
– expanding the boot ................ 78– opening the boot in
an emergency .............................. 77
– removing the parcel shelf ...... 80
– tailgate opening ....................... 76
Boot courtesy light ....................... 57
– bulb replacement .................... 169
Boot
– closing the tailgate .................. 77
– expanding the boot ................ 78
– opening the tailgate ................ 76
– opening the tailgate in
an emergency .............................. 77
– removing the parcel shelf ...... 80
Brake Assist (system) .................. 87
Brake Assist system ..................... 87
Brake fluid
– checking levels and
topping up .................................... 191
– specifications ............................ 218
Brake lights
– bulb replacement .................... 165ABS ................................................. 85
– Brake Assist ............................. 87
ABS system .................................... 85
– Brake Assist ............................. 87
Accessories purchased by
the owner .................................... 105
Additional brake light
(third brake light)
– bulb replacement .................... 166
Air filter .......................................... 192
Air recirculation ........................43-46
Air vents ......................................... 38
Airbag deactivation ....................... 126
Alarm .............................................. 9
Ashtray ............................................. 65
ASR (system).................................. 89
Battery
– checking the charge and
the electrolyte level ................... 193
– jump starting ............................ 151
CONTENTS
259-268 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:45 Pagina 259

265
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Raising the car ............................... 178
Rear fog lights ................................ 59
– bulb replacement .................... 166
Rear light clusters
– bulb replacement .................... 165
Rear seats ....................................... 32
– cleaning ..................................... 203
– headrests .................................. 33
Rear window washer
– activating ................................... 53
– checking levels
and topping up ............................ 190
– nozzles ...................................... 199
Rear window wiper
– blade replacement .................. 198
– nozzles ...................................... 199
– operation .................................. 53
Reconfigurable multifunction
display ........................................... 16
– control buttons ....................... 17
– display functions ...................... 20
– setup menu .............................. 18
– standard screen ....................... 16Refuelling
– fuel ............................................. 107
– technical specifications
(fluid quantity and type) ............ 216
Regular checks .............................. 186
Remote control ............................ 6
– additional remote controls .... 8
– battery replacement ............... 7
– remote door opening/
closing............................................ 6
– tailgate opening ....................... 6
Rev counter ................................... 14
Reverse lights
– bulb replacement .................... 166
Reverse lights
– bulb replacement .................... 166
Right hand drive version ............. 257
Roof bar attachments................... 83
Roof rack/ski rack (setup) .......... 83
Roof rack/ski rack bars
(capability)..................................... 83
Rubber tubes (maintenance) ...... 197Safety .............................................. 109
Saving fuel ....................................... 135
SBR system...................................... 111
Scheduled servicing plan ...... 184-185
Scrappage ....................................... 255
Seat belt pretensioners ............... 111
– load limiters ............................. 112
Seat belts......................................... 109
– carrying children safely
(child seats) ................................. 115
– general warnings ..................... 112
– load limiters ............................. 112
– maintenance ............................. 114
– pretensioners .......................... 111
– SBR system................................ 111
– using the seat belts ................. 109
Servicing and care ......................... 183
– checking fluid levels ................ 187
– heavy-duty use of the car ..... 186
– regular checks ......................... 186
– scheduled servicing ................ 183
– scheduled servicing
plan ........................................184-185
259-268 GPUNTO EVO Abarth GB 2ed 30-04-2010 16:46 Pagina 265
