The ¥or Îlights will blink on the instrument panel.
The indicators switch off automatically when the
steering wheel is straightened.
Lane change function
If you wish to signal a lane change, place the left lever in
the unstable position for less than half a second. The
direction indicator on the selected side flashes three
times and then switches off automatically.
“FOLLOW ME HOME” DEVICE
This allows the space surrounding the car to be lit up
for a certain period of time.
Activation
With the key turned to STOP or removed, pull the left-
hand stalk towards the steering wheel within 2 minutes
from when the engine is turned off.
At each single movement of the stalk, the lights will
remain on for an extra 30 seconds up to a maximum of
210 seconds; then the lights are switched off
automatically.
fig. 37F0U037Ab

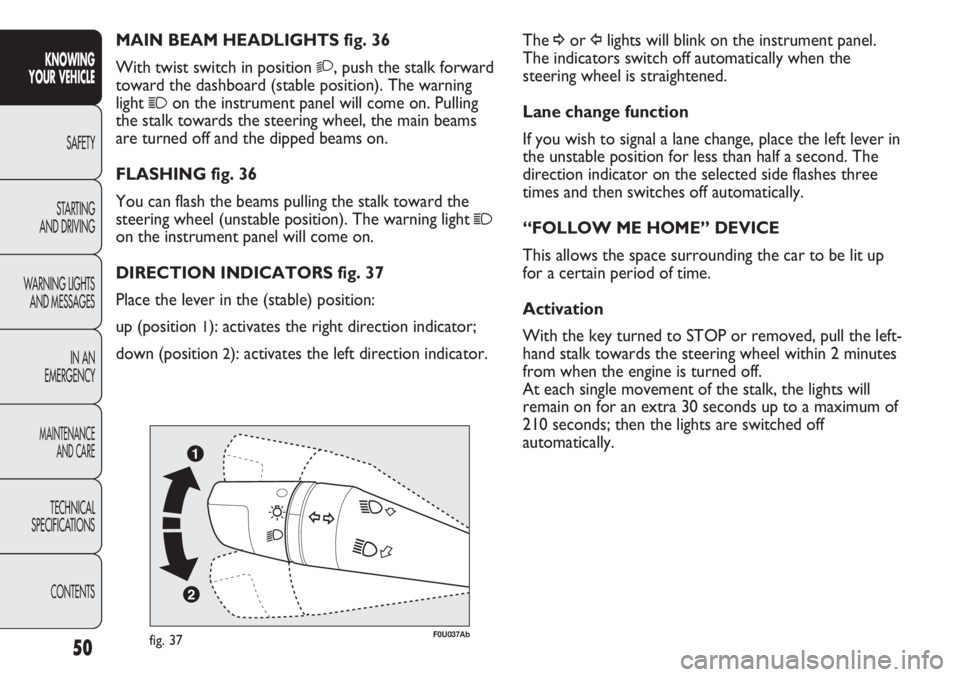

MAIN BEAM HEADLIGHTS fig. 36
With twist switch in position
2, push the stalk forward
toward the dashboard (stable position). The warning
light
1on the instrument panel will come on. Pulling
the stalk towards the steering wheel, the main beams
are turned off and the dipped beams on.
FLASHING fig. 36
You can flash the beams pulling the stalk toward the
steering wheel (unstable position). The warning light
1
on the instrument panel will come on.
DIRECTION INDICATORS fig. 37
Place the lever in the (stable) position:
up (position
1): activates the right direction indicator;
down (position
2): activates the left direction indicator.

51
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U038Abfig. 38
WINDOW WASHING
The right-hand lever fig. 38 controls windscreen
wiper/washer and heated rear window wiper/washer
operation.
WINDSCREEN WASHER/WIPER
This operates only with the ignition key turned to MAR.
The twist switch on the right stalk can be moved to four
different positions:
Owindscreen wiper off;
≤intermittent operation;
≥slow operation;
¥fast operation.
Move the stalk to position A (unstable) to limit
operation to the time for which the stalk is held in this
position. When the stalk is moved, the light
3on the
instrument panel will light up and the corresponding
message will appear in the display (see “Warning lights
and messages”) as long as the function is on. The
warning light comes on when the lever is operated and
stays on until the function is automatically deactivated.
Each movement of the lever only increases the amount
of time the lights stay on.
Deactivation
Keep the lever pulled towards the steering wheel for
more than 2 seconds.
FRONT FOG LIGHTS WITH CORNERING
LIGHTS FUNCTION
When the dipped headlamps are on and the speed is
below 40 km/h, if the steering wheel rotation angle is
large or the direction indicators are on, a light
(incorporated in the fog light) will come on on the
relevant side to improve visibility at nightime. This
function can be activated/deactivated via the display
menu (see “Display functions” in this section).

52
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The wiper stops working three strokes after the stalk is
released. A further stroke 6 seconds later completes
the wiping operation.
RAIN SENSOR
(for versions/markets where provided)
The rain sensor is located behind the rear view mirror
in contact with the windscreen and has the purpose of
automatically adjusting the frequency of the windscreen
wiper strokes depending on the intensity of the rain
during intermittent operation.
IMPORTANT Keep the glass in the sensor area clean.
Activation
Move the twist switch on the right-hand stalk to
≤fig.
38. The activation of the sensor is signalled by a wiper
stroke. Through the setup menu it is possible to
increase the sensitivity of the rain sensor. The increasing
of the rain sensor sensitivity is signalled by a “stroke” to
show the command has been acquired. If the
windscreen washer is used with the rain sensor
activated, the normal washing cycle is performed, after
which the rain sensor resumes its normal automatic
operation.
Never use the windscreen wipers to
remove layers of snow or ice from the
windscreen. In such conditions, the
windscreen wipers may be subjected to excessive
stress and the motor protection which prevents
operation for a few seconds may intervene. If
operation is not restored, even after turning the
key and restarting the engine, go to an Abarth
Dealership.
When released, the stalk returns to its default position
and the wipers automatically switch off.
With the twist switch at
≤, the windscreen wiper will
automatically adapt to the speed of the car.
IMPORTANT Replace the wiper blades as specified in
the “Maintenance and care” section.
“Smart washing” function
Pull the stalk towards the steering wheel (unstable
position) to operate the windscreen washer.
Keeping the lever pulled for more than half a second,
with just one movement it is possible to operate the
washer jet and the wiper at the same time.

53
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Do not use the rear window wiper to
remove layers of snow or ice. In such
conditions, the rear window wiper may be
subjected to excessive stress, prompting
intervention from the motor protection which
prevents operation for a few seconds. If
operation is not restored, even after turning the
key and restarting the engine, go to an Abarth
Dealership.
Deactivation
Move the stalk twist switch away from the position
≤fig. 38 or turn the ignition key to STOP. When the
engine is next started (key at MAR), the sensor will not
be reactivated even if the twist switch is still at
≤fig.
38. To activate the rain sensor, you have to move the
twist switch from
≤to another position and then back
to
≤. Rain sensor activation will be indicated by at
least one wiper “stroke” even if the windscreen is dry.
REAR WINDOW WASHER/ WIPER
This operates only with the ignition key turned to MAR.
The function stops when the stalk is released. Turning
the twist switch from Oto
'will operate the rear
window wiper as follows:
❒in intermittent mode if the windscreen wiper is off;
❒synchronised operation (but with half-stroke
frequency) when the windscreen wiper is on;
❒continuous operation with reverse engaged and
function on.The rear window wiper will operate in continuous
mode when the windscreen wiper is on and reverse
gear is engaged.
Pushing the stalk towards the dashboard (unstable
position) the rear window washer jet will activate.
Keep the stalk pushed for more than half a second to
activate the rear window wiper as well.
Releasing the stalk will activate the smart washing
function, as described for the windscreen wiper.

54
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
❒move the stalk upwards (+) for at least one second,
then release it. The car speed is now memorised and
you can therefore release the accelerator pedal.
If needed (when overtaking for instance), you can
accelerate simply by pressing the accelerator pedal;
when you release the pedal, the car will return to the
speed memorised previously.
RESTORING THE MEMORISED SPEED
If the device has been switched off, for example by
depressing the brake or clutch pedal, the memorised
speed can be restored as follows:
❒accelerate gradually until reaching a speed
approaching the memorised speed;
❒engage the gear selected at the time of speed
memorisation;
❒press button RES B-fig. 39.CRUISE CONTROL
(for versions/markets where provided)
This is an electronically controlled device which allows
the vehicle to be driven at a chosen speed above 30
km/h on long stretches of dry, straight roads with few
variations (e.g. motorways), without having to depress
the accelerator pedal. It is therefore not recommended
to use this device on extra-urban roads with traffic. Do
not use it in town.
TURING THE DEVICE ON
Turn twist switch A-fig. 39 to ON.
The cruise control cannot be engaged in 1st or reverse
gear. It is advisable to engage it in 4th gear or higher.
When travelling downhill with the device engaged, the
vehicle speed may slightly exceed the preset one.
When the device is activated the warning light
Ücomes
on together with the relevant message on the
instrument panel.
SETTING VEHICLE SPEED
Proceed as follows:
❒turn twist switch A-fig. 39 to ON and press the
accelerator pedal until you reach the required speed;
F0U039Abfig. 39

55
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
INCREASING THE MEMORISED SPEED
This can be done in two ways:
❒by pressing the accelerator and then memorising the
new speed reached;
or
❒moving the stalk upwards (+).
Each operation of the lever will correspond to a slight
increase in speed of about 1 km/h, while keeping the
lever upwards will increase the speed continuously.
REDUCING THE MEMORISED SPEED
This can be done in two ways:
❒by turning the device off and then storing a new
speed;
or
❒by moving the stalk downwards (–) until reaching the
new speed which will be memorised automatically.
Each movement of the lever will correspond to a slight
reduction in speed of about 1 km/h, while keeping the
lever held downwards will decrease the speed
continuously.
TURNING THE DEVICE OFF
The device can be switched off by the driver in the
following ways:
❒turning twist switch A to OFF;
❒switching off the engine;
❒pressing the brake pedal;❒pressing the clutch pedal;
❒pressing the accelerator pedal; in this case, the
system is not really switched off but the request for
acceleration takes priority. The cruise control is,
however, active and you do not need to press
button RES B-fig. 39 to restore the previous
conditions when you have finished accelerating.
The device is automatically switched off in the following
cases:
❒if the ABS or ESP systems cut in;
❒if the car speed drops below the preset limit;
❒if there is a system failure.
While travelling with the device engaged, do
not put the gear lever into neutral.
WARNING
In the event of malfunction or if the device
fails, turn twist switch A to OFF and contact an
Abarth Dealership.
WARNING

56
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U040Abfig. 40
CEILING LIGHTS
FRONT COURTESY LIGHT WITH SPOT
LIGHTS fig. 40
Switch A is used to switch on/off courtesy lights.
With the switch A in the middle position, the lights C
and D go on/off when front doors are opened/closed.
With switch A pressed to the left, the lights C and D
are always off.
With switch A pressed to the right, the lights C and D
are always on.
Lights switch on/off progressively.The switch B is a spot light; when the ceiling light is off,
it switches the following on individually:
❒light C if pressed on the left side;
❒light D if pressed on the right side.
CAUTION Before getting out of the car, make sure
both switches are in the middle position; when the
doors are closed, lights switch off preventing a possible
discharge of the battery.
In any case, if the switch is left in on position, the
courtesy light switches off automatically 15 minutes
after the engine switching off.
Courtesy light timing
On certain versions, to facilitate getting in/out of the car
at night or in poorly-lit areas, two timed modes have
been provided.
TIMED OPERATION FOR GETTING INTO THE VEHICLE
The courtesy lights switch on according to the following
modes:
❒for about 10 seconds when unlocking the front
doors;
❒for about 3 minutes when opening one of the side
doors;
❒for about 10 seconds when closing the doors.
The timed period is interrupted when the ignition is
turned to “MAR – ON”.

57
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
TIMED OPERATION FOR GETTING OUT OF THE VEHICLE
After removing the key from the ignition, the courtesy
lights switch on according to the following modes:
❒within 2 minutes from turning the engine off for
about 10 seconds;
❒when opening one of the side doors for about
3 minutes;
❒when one of the doors is closed for a period of
about 10 seconds.
The timed delay period ends automatically when the
doors are locked.
F0U041Abfig. 41
LUGGAGE COMPARTMENT LIGHT fig. 41
For versions fitted with boot light, the light comes on
automatically when opening the tailgate and it will go
off when closing.

58
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U043Abfig. 43F0U044Abfig. 44
PARKING LIGHTS
These lights can be turned on only with the ignition key
at STOP or removed, by moving the left stalk twist
switch first to
Oand then to 6or 2.
The warning light 3on the instrument panel comes on.
FOG LIGHTS fig. 44
(for versions/markets where provided)
To turn the front fog lights on, press the button 5with
the side lights on.
The warning light 5in the instrument panel will come on.
Press the button again to turn the lights off.
The use of fog lights is governed by the highway code of
the country in which you are driving. Comply with legal
requirements.
CONTROLS
HAZARD WARNING LIGHTS fig. 43
They are turned on by pressing switch A, regardless of
the position of the ignition key.
With the device on, warning lights Îand ¥light up in
the instrument panel. Press the switch again to turn the
lights off. The use of hazard warning lights is governed
by the highway code of the country you are in. Comply
with legal requirements.
Emergency braking
During emergency braking, the hazard warning lights
come on automatically and warning lights Îand ¥in the
panel come on at the same time. The function switches
off automatically when the nature of the braking changes.
This function complies with the relevant legal regulations
currently in force.

59
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U046Abfig. 46
F0U045Abfig. 45
DOOR LOCK fig. 47
To lock all doors at the same time, press button A,
located on the centre console control panel, regardless
of the position of the ignition key. REAR FOG LIGHT fig. 45
These lights come on, with the dipped headlights on or
with the side lights and fog lights on (for versions/
markets where provided) by pressing the button 4.
The warning light 4in the instrument panel will come on.
Press the button again to turn the lights off, or turn off
the dipped beams and/or the front fog lights (where
provided).
The use of rear fog lamps is governed by the Highway
Code of the country you are in. Comply with legal
requirements.
HEATED REAR WINDOW fig. 46
Press button A to turn this function on.
With the heated rear windscreen on, this function will
turn off automatically after about 20 minutes.
F0U047Abfig. 47
