ACURA CSX 2006 Service Repair Manual

ÎÎ
µ
µ µ
µ
YES
NO
YES
NO
14-85
ATPR (WHT)
GND (BLK)
TRANSMISSION RANGE
SWITCH CONNECTOR
PCM CONNECTOR B (44P)
ATPR (WHT)

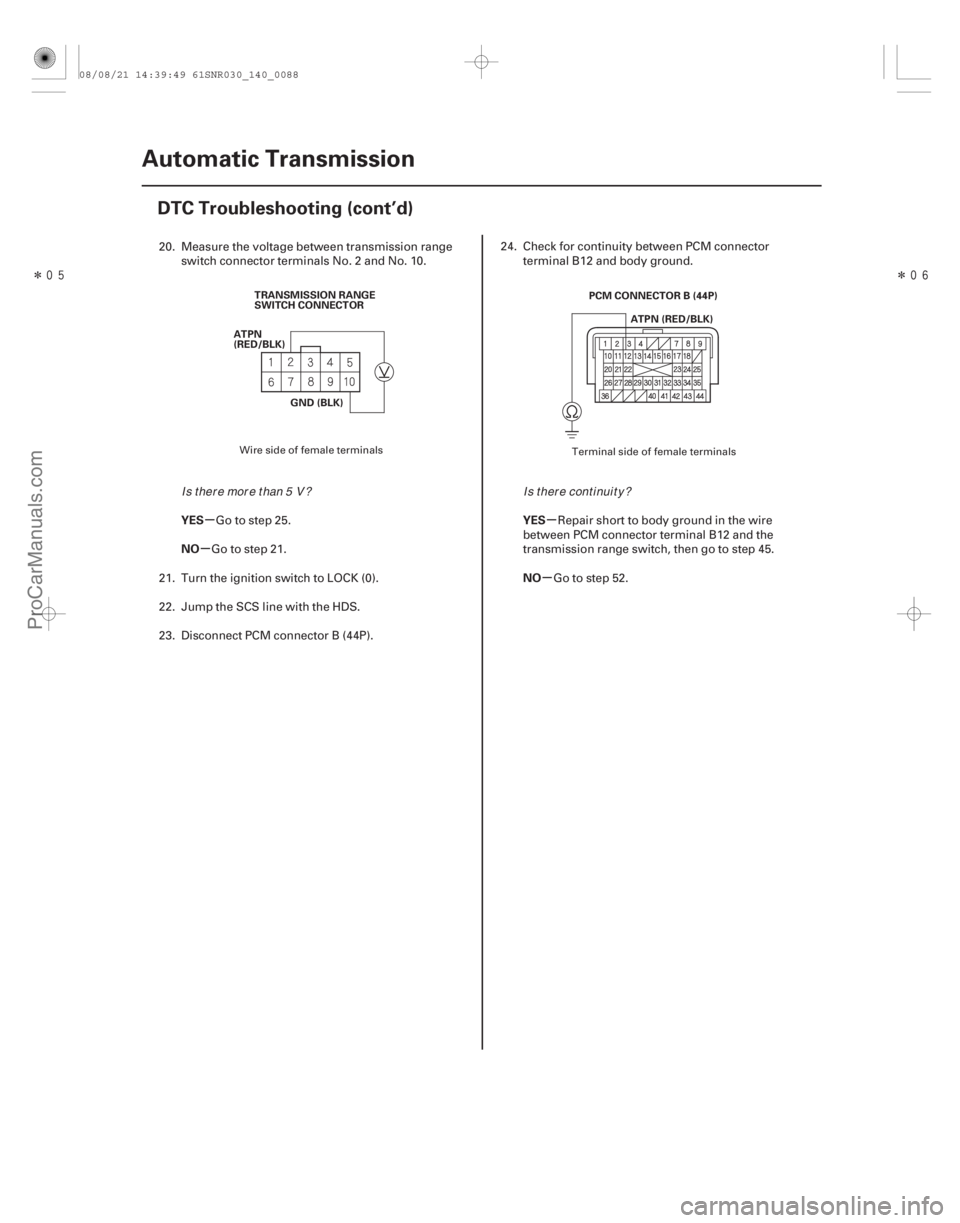

15. Measure the voltage between transmission rangeswitch connector terminals No. 7 and No. 10.
Go to step 20.
Go to step 16.
16. Turn the ignition switch to LOCK (0).
17. Jump the SCS line with the HDS.
18. Disconnect PCM connector B (44P). 19. Check for continuity between PCM connector
terminal B14 and body ground.
Repair short to body ground in the wire

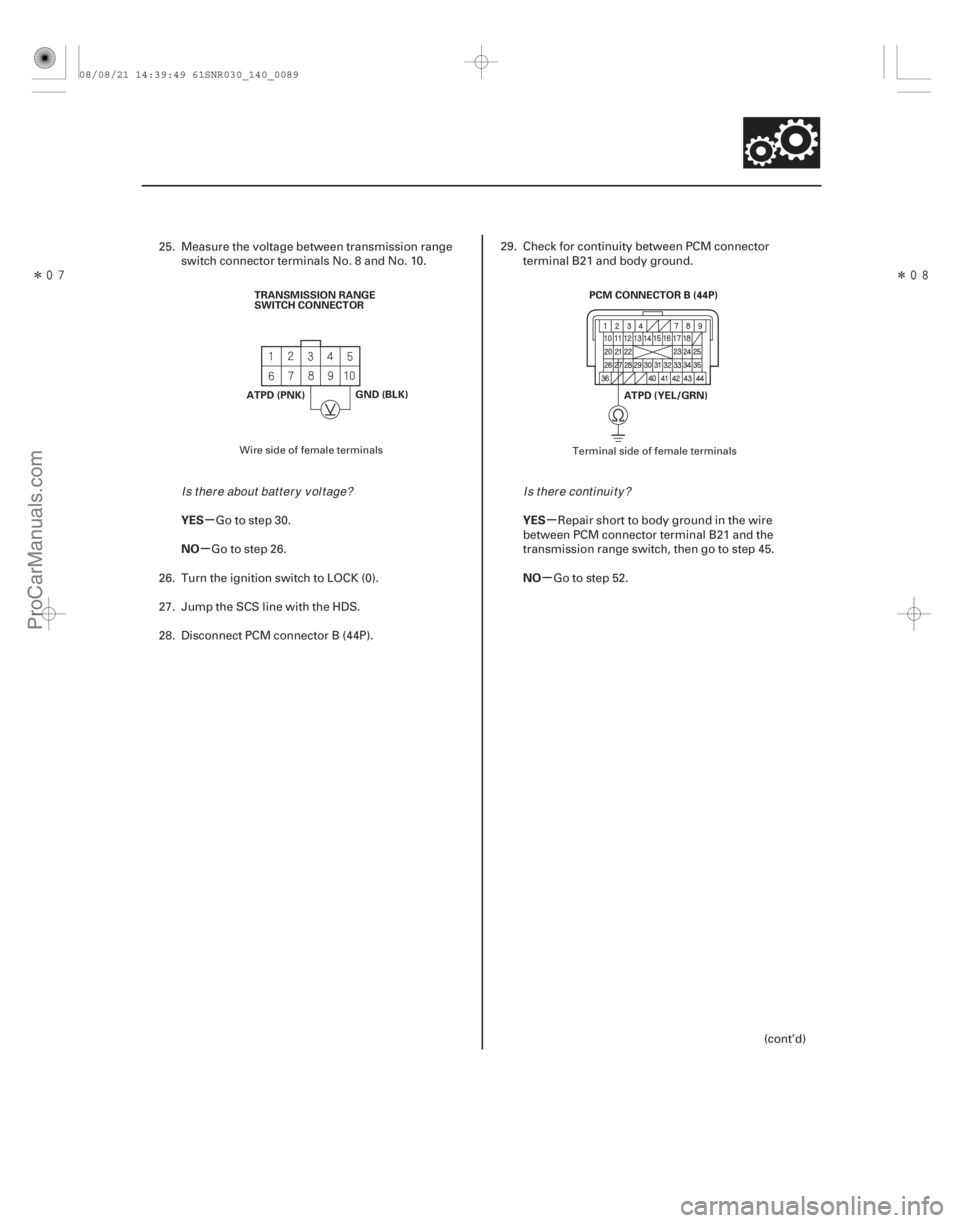

between PCM connector terminal B14 and the
transmission range switch, then go to step 45.
Go to step 52.
(cont’d)
Wire side of female terminals Terminal side of female terminals
I s t her e mor e t han 5 V ?I s t her e cont i nui t y ?
08/08/21 14:39:49 61SNR030_140_0087
ProCarManuals.com
DYNOMITE -2009-

ÎÎ
µ
µ µ
µ
YES
NO
YES
NO
14-86Automatic Transmission
DTC Troubleshooting (cont’d)
GND (BLK)
TRANSMISSION RANGE
SWITCH CONNECTOR
ATPN
(RED/BLK) PCM CONNECTOR B (44P)
ATPN (RED/BLK)
20. Measure the voltage between transmission rangeswitch connector terminals No. 2 and No. 10.
Go to step 25.
Go to step 21.
21. Turn the ignition switch to LOCK (0).
22. Jump the SCS line with the HDS.
23. Disconnect PCM connector B (44P). 24. Check for continuity between PCM connector
terminal B12 and body ground.
Repair short to body ground in the wire
between PCM connector terminal B12 and the
transmission range switch, then go to step 45.
Go to step 52.
Wire side of female terminals Terminal side of female terminals
I s t her e mor e t han 5 V ?I s t her e cont i nui t y ?
08/08/21 14:39:49 61SNR030_140_0088
ProCarManuals.com
DYNOMITE -2009-

ÎÎ
µ
µ µ
µ
YES
NO
YES
NO
14-87
ATPD (PNK)TRANSMISSION RANGE
SWITCH CONNECTOR
GND (BLK) PCM CONNECTOR B (44P)
ATPD (YEL/GRN)

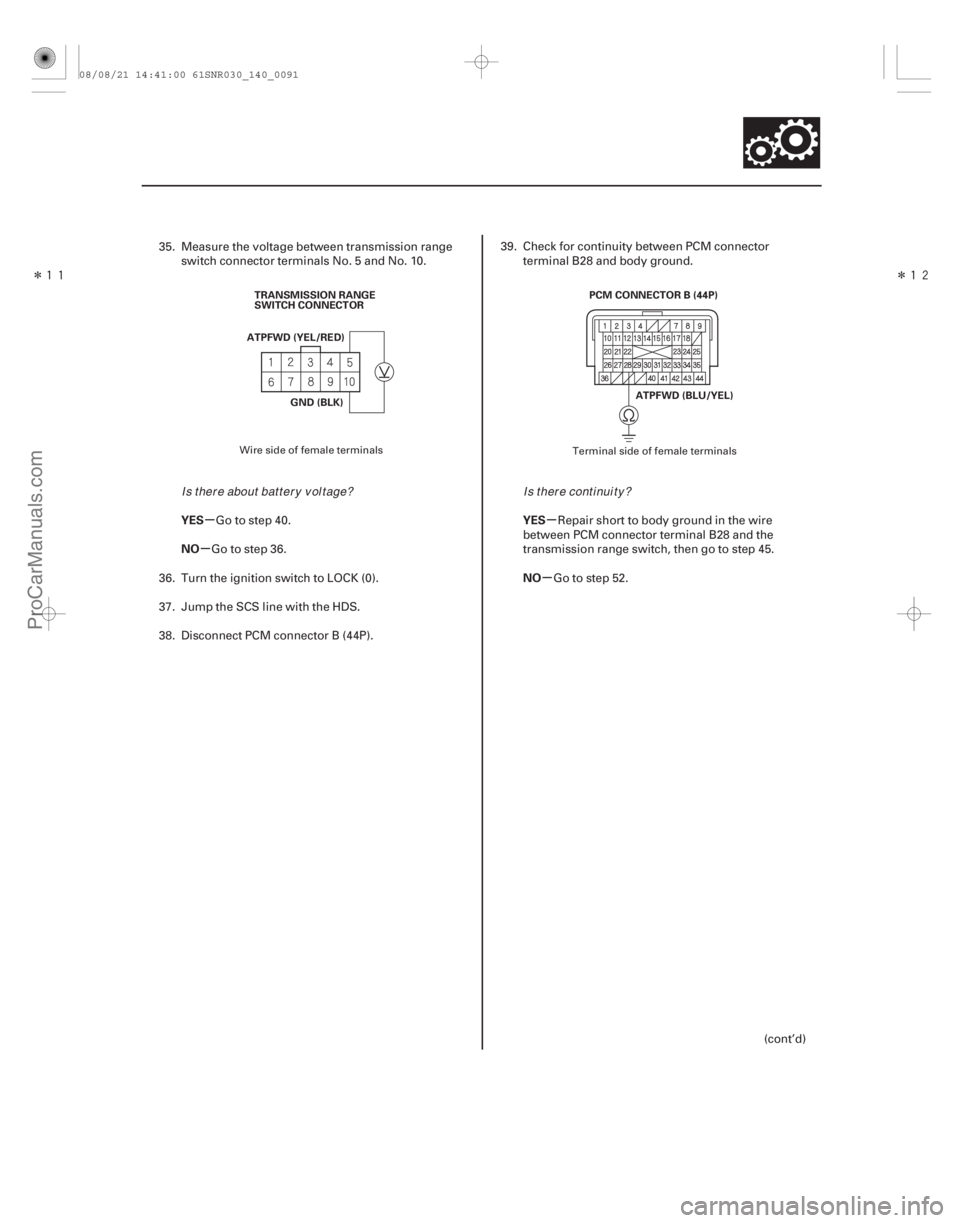

25. Measure the voltage between transmission rangeswitch connector terminals No. 8 and No. 10.
Go to step 30.
Go to step 26.
26. Turn the ignition switch to LOCK (0).
27. Jump the SCS line with the HDS.
28. Disconnect PCM connector B (44P). 29. Check for continuity between PCM connector
terminal B21 and body ground.
Repair short to body ground in the wire
between PCM connector terminal B21 and the
transmission range switch, then go to step 45.
Go to step 52.
(cont’d)
Wire side of female terminals Terminal side of female terminals
Is t her e about bat t er y v ol t age?Is t her e cont i nui t y ?
08/08/21 14:39:49 61SNR030_140_0089
ProCarManuals.com
DYNOMITE -2009-

ÎÎ

µ
µ µ
µ
YES
NO
YES
NO
14-88Automatic Transmission
DTC Troubleshooting (cont’d)
ATPS (BLU)
GND (BLK)
TRANSMISSION RANGE
SWITCH CONNECTOR
PCM CONNECTOR B (44P)
ATPS (RED)
30. Measure the voltage between transmission range switch connector terminals No. 3 and No. 10.
Go to step 35.
Go to step 31.
31. Turn the ignition switch to LOCK (0).
32. Jump the SCS line with the HDS.
33. Disconnect PCM connector B (44P). 34. Check for continuity between PCM connector
terminal B15 and body ground.
Repair short to body ground in the wire
between PCM connector terminal B15 and the
transmission range switch, then go to step 45.
Go to step 52.
Wire side of female terminals Terminal side of female terminals
Is t her e about bat t er y v ol t age?Is t her e cont i nui t y ?
08/08/21 14:39:50 61SNR030_140_0090
ProCarManuals.com
DYNOMITE -2009-

Î

Î

µ
µ µ
µ
YES
NO
YES
NO
14-89
ATPFWD (YEL/RED)
GND (BLK)
TRANSMISSION RANGE
SWITCH CONNECTOR
PCM CONNECTOR B (44P)
ATPFWD (BLU/YEL)
35. Measure the voltage between transmission rangeswitch connector terminals No. 5 and No. 10.
Go to step 40.
Go to step 36.
36. Turn the ignition switch to LOCK (0).
37. Jump the SCS line with the HDS.
38. Disconnect PCM connector B (44P). 39. Check for continuity between PCM connector
terminal B28 and body ground.
Repair short to body ground in the wire
between PCM connector terminal B28 and the
transmission range switch, then go to step 45.
Go to step 52.
(cont’d)
Wire side of female terminals Terminal side of female terminals
Is t her e about bat t er y v ol t age?Is t her e cont i nui t y ?
08/08/21 14:41:00 61SNR030_140_0091
ProCarManuals.com
DYNOMITE -2009-

Î
Î

µ
µ µ
µ
YES
NO
YES
NO
14-90Automatic Transmission
DTC Troubleshooting (cont’d)
TRANSMISSION RANGE
SWITCH CONNECTOR
ATPRVS
(WHT/RED)
GND (BLK) PCM CONNECTOR B (44P)
ATPRVS (RED/WHT)
40. Measure the voltage between transmission rangeswitch connector terminals No. 1 and No. 10.
Go to step 52.
Go to step 41.
41. Turn the ignition switch to LOCK (0).
42. Jump the SCS line with the HDS.
43. Disconnect PCM connector B (44P). 44. Check for continuity between PCM connector
terminal B22 and body ground.
Repair short to body ground in the wire
between PCM connector terminal B22 and the
transmission range switch, then go to step 45.
Go to step 52.
Wire side of female terminals Terminal side of female terminals
Is t her e about bat t er y v ol t age?Is t her e cont i nui t y ?
08/08/21 14:41:00 61SNR030_140_0092
ProCarManuals.com
DYNOMITE -2009-

µ
µ
µ
µ µ
µ
µ
µ
YES
NO
YES
NO YES
NO
YES
NO
14-91

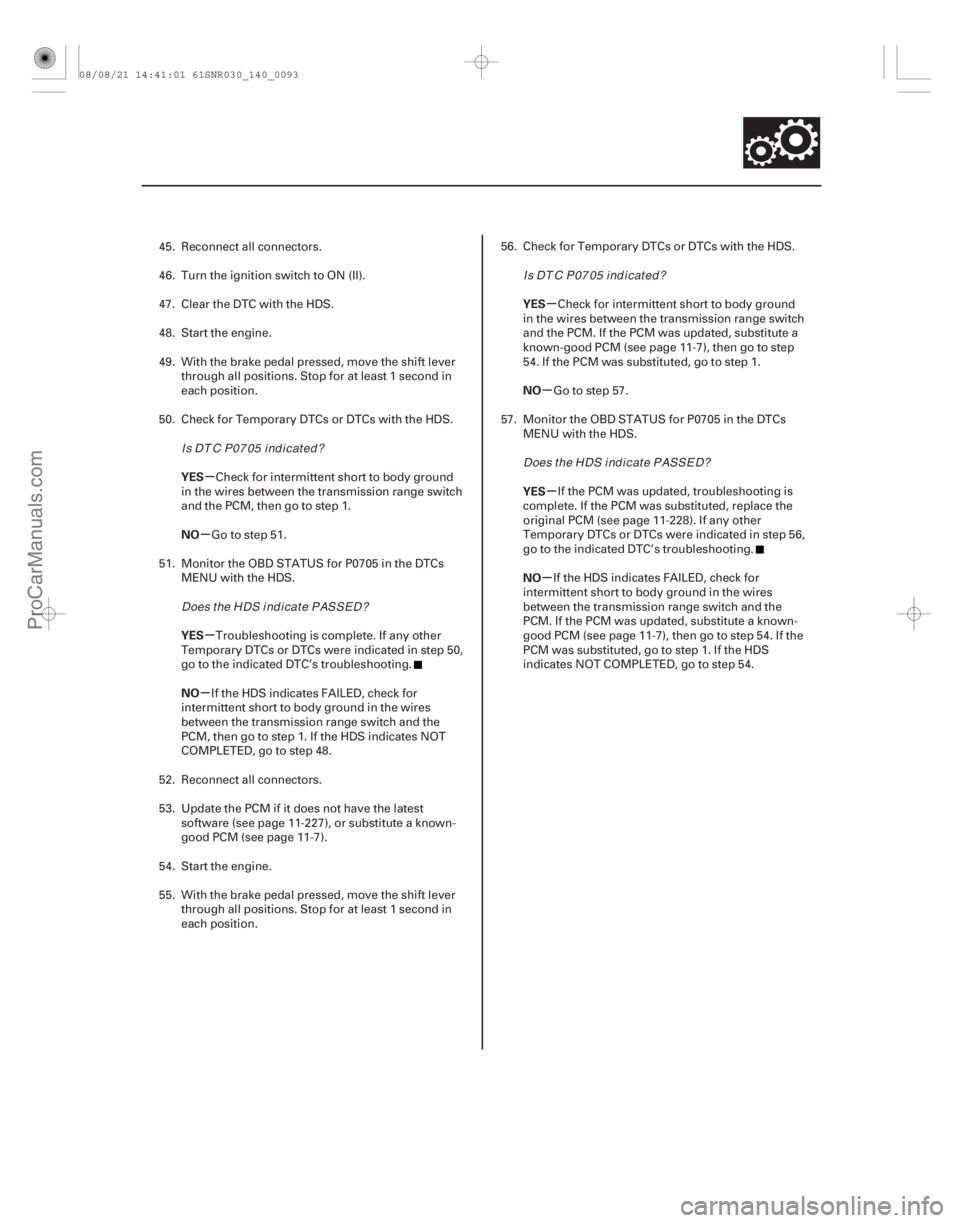

45. Reconnect all connectors.
46. Turn the ignition switch to ON (II).
47. Clear the DTC with the HDS.
48. Start the engine.
49. With the brake pedal pressed, move the shift lever
through all positions. Stop for at least 1 second in
each position.
50. Check for Temporary DTCs or DTCs with the HDS.
Check for intermittent short to body ground
in the wires between the transmission range switch
and the PCM, then go to step 1.
Go to step 51.
51. Monitor the OBD STATUS for P0705 in the DTCs MENU with the HDS.
Troubleshooting is complete. If any other
Temporary DTCs or DTCs were indicated in step 50,
go to the indicated DTC’s troubleshooting.
If the HDS indicates FAILED, check for
intermittent short to body ground in the wires
between the transmission range switch and the
PCM, then go to step 1. If the HDS indicates NOT
COMPLETED, go to step 48.
52. Reconnect all connectors.
53. Update the PCM if it does not have the latest software (see page 11-227), or substitute a known-
good PCM (see page 11-7).
54. Start the engine.
55. With the brake pedal pressed, move the shift lever through all positions. Stop for at least 1 second in
each position. 56. Check for Temporary DTCs or DTCs with the HDS.
Check for intermittent short to body ground
in the wires between the transmission range switch
and the PCM. If the PCM was updated, substitute a
known-good PCM (see page 11-7), then go to step
54. If the PCM was substituted, go to step 1.
Go to step 57.
57. Monitor the OBD STATUS for P0705 in the DTCs MENU with the HDS.
If the PCM was updated, troubleshooting is
complete. If the PCM was substituted, replace the
original PCM (see page 11-228). If any other
Temporary DTCs or DTCs were indicated in step 56,
go to the indicated DTC’s troubleshooting.
If the HDS indicates FAILED, check for
intermittent short to body ground in the wires
between the transmission range switch and the
PCM. If the PCM was updated, substitute a known-
good PCM (see page 11-7), then go to step 54. If the
PCM was substituted, go to step 1. If the HDS
indicates NOT COMPLETED, go to step 54.
Is DT C P07 05 ind icated ?
Does the HDS ind icate PASSED? Is DT C P07 05 ind icated ?
Does the HDS ind icate PASSED?
08/08/21 14:41:01 61SNR030_140_0093
ProCarManuals.com
DYNOMITE -2009-

(#'

)
µ
µ
µ
µ µ
µ
µ
µ
µ
µ
DTC P0706:
YES
NO
YES
NO YES
NO
YES
NO
YES
NO
14-92
Automatic Transmission
DTC Troubleshooting (cont’d)
Open in Transmission Range
Switch Circuit
NOTE:
 Before you troubleshoot, record all freeze data and any on-board snapshot with the HDS, and review
General Troubleshooting Information (see page 14-3).
 This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the
transmission.
1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Block the rear wheels and raise the front of the vehicle, make sure it is securely supported, and
allow the front wheels to rotate freely, or raise the
vehicle on a lift.
4. Start the engine, disable the VSA by pressing the VSA OFF switch (if equipped), run the vehicle with
the shift lever in D until the vehicle speed reaches
40 km/h (25 mph), then slow down and stop the
wheels.
5. Monitor the OBD STATUS for P0706 in the DTCs MENU with the HDS.
Go to step 6.
If the HDS indicates PASSED, intermittent
failure, the system is OK at this time. Check for
poor connections or loose terminals between the
transmission range switch and the PCM. If the HDS
indicates NOT COMPLETED, go to step 4.
6. Turn the ignition switch to LOCK (0).
7. Inspect the transmission range switch (see page 14-265).
Go to step 8.
Replace the transmission range switch
(see page 14-267), then go to step 25.
8. Adjust the shift cable (see page 14-259). 9. Turn the ignition switch to ON (II).
10. Clear the DTC with the HDS.
11. Start the engine, disable the VSA by pressing the VSA OFF switch (if equipped), run the vehicle with
the shift lever in D until the vehicle speed reaches
40 km/h (25 mph), then slow down and stop the
wheels.
12. Monitor the OBD STATUS for P0706 in the DTCs MENU with the HDS.
Go to step 13.
If the HDS indicates PASSED, troubleshooting
is complete. If the HDS indicates NOT COMPLETED,
go to step 11.
13. Shift to D, and check the Forward Switch (ATPFWD) andA/TDSwitchintheDATALISTwiththeHDS.
Go to step 14.
Go to step 18.
14. Shift to S, and check the Forward Switch (ATPFWD) andA/TSSwitchintheDATALISTwiththeHDS.
Go to step 15.
Go to step 18.
Does the HDS ind icate F AILED?
Is the switch OK ? Does the HDS ind icate F AILED?
Ar e F or w ar d Sw i t ch ( AT PF W D) and A/ T D Sw i t chON?
Ar e F or w ar d Sw i t ch ( AT PF W D) and A/ T S Sw i t chON?
08/08/21 14:41:01 61SNR030_140_0094
ProCarManuals.com
DYNOMITE -2009-


µ
µ
µ
µ
YES
NO
YES
NO
14-93
TRANSMISSION RANGE
SWITCH CONNECTOR
GND (BLK)
15. Clear the DTC with the HDS.
16. Start the engine, disable the VSA by pressing theVSA OFF switch (if equipped), run the vehicle with
the shift lever in D until the vehicle speed reaches
40 km/h (25 mph), then slow down and stop the
wheels.
17. Monitor the OBD STATUS for P0706 in the DTCs MENU with the HDS.
Go to step 18.
If the HDS indicates PASSED, intermittent
failure, the system is OK at this time. Check for
poor connections or loose terminals between the
transmission range switch and the PCM. If the HDS
indicates NOT COMPLETED, go to step 16.
18. Turn the ignition switch to LOCK (0).
19. Disconnect the transmission range switch connector. 20. Check for continuity between transmission range
switch connector terminal No. 10 and body ground.
Go to step 21.
Repair open in the wire between the
transmission range switch and body ground (G 101)
(see page 22-16), or repair poor body ground
(G101), then go to step 25.
21. Turn the ignition switch to ON (II).
(cont’d)
Wire side of female terminals
Does the HDS ind icate F AILED? Is there continuity?
08/08/21 14:41:01 61SNR030_140_0095
ProCarManuals.com
DYNOMITE -2009-

Î
ÎÎ
µ
µ
µ
µ µ
µ
YES
NO
YES
NO YES
NO
14-94Automatic Transmission
DTC Troubleshooting (cont’d)
ATPFWD (YEL/RED)
GND (BLK)
TRANSMISSION RANGE
SWITCH CONNECTOR
GND (BLK)
TRANSMISSION RANGE
SWITCH CONNECTOR
ATPD (PNK) GND (BLK)
ATPS (BLU)
TRANSMISSION RANGE
SWITCH CONNECTOR
22. Measure the voltage between transmission range
switch connector terminals No. 5 and No. 10.
Go to step 23.
Repair open in the wire between the
transmission range switch and PCM connector
terminal B28, then go to step 25.
23. Measure the voltage between transmission range switch connector terminals No. 8 and No. 10.
Go to step 24.
Repair open in the wire between the
transmission range switch and PCM connector
terminal B21, then go to step 25. 24. Measure the voltage between transmission range
switch connector terminals No. 3 and No. 10.
Go to step 31.
Repair open in the wire between the
transmission range switch and PCM connector
terminal B15, then go to step 25.
25. Reconnect all connectors.
26. Turn the ignition switch to ON (II).
27. Clear the DTC with the HDS.
28. Start the engine, disable the VSA by pressing the VSA OFF switch (if equipped), run the vehicle with
the shift lever in D until the vehicle speed reaches
48 km/h (30 mph), then slow down and stop the
wheels.
Wire side of female terminals
Wire side of female terminals Wire side of female terminals
Is t her e about bat t er y v ol t age?
Is t her e about bat t er y v ol t age? Is t her e about bat t er y v ol t age?
08/08/21 14:41:02 61SNR030_140_0096
ProCarManuals.com
DYNOMITE -2009-
