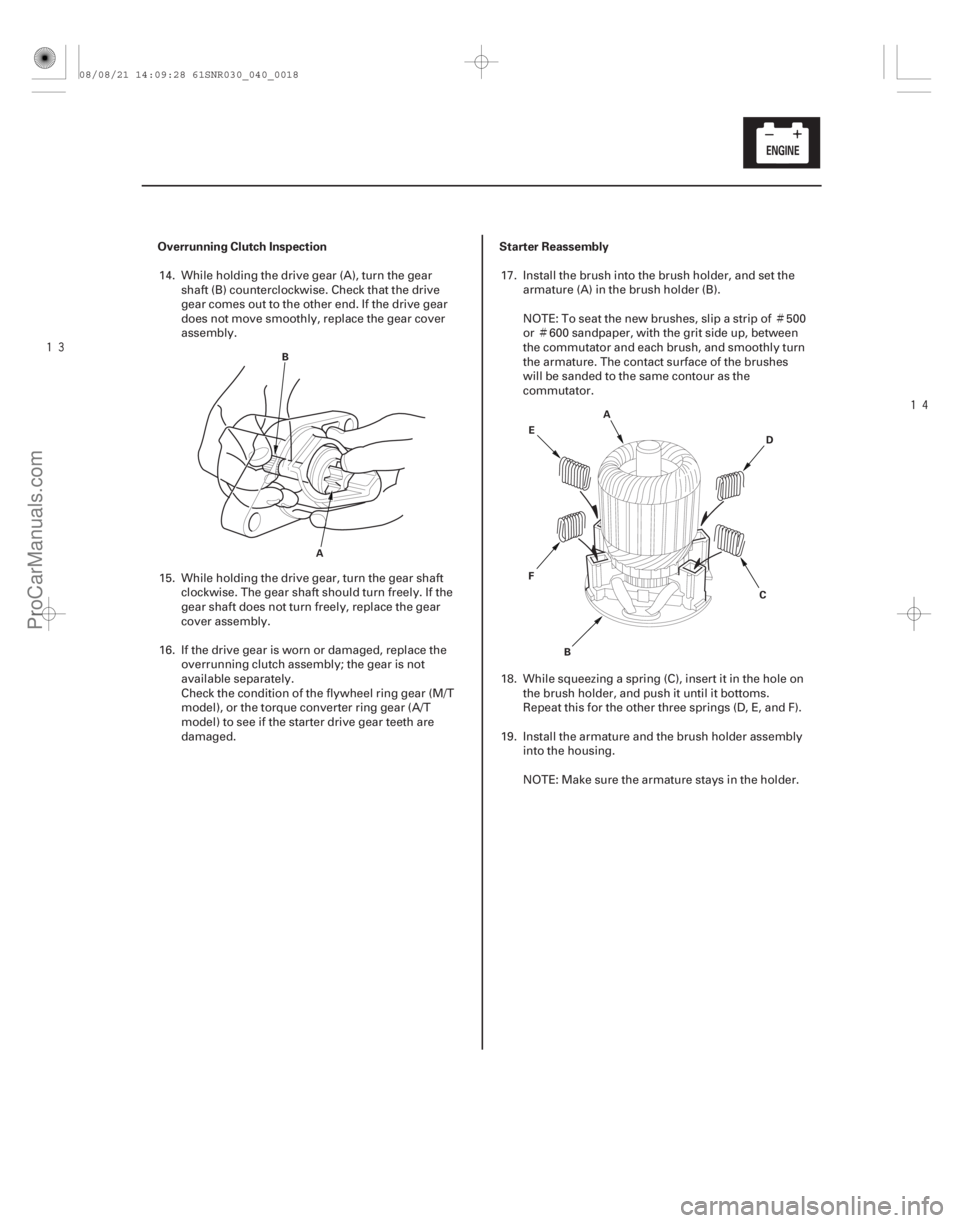

Overrunning Clutch Inspection Starter Reassembly
4-17
B
A A
B CD
E
F
14. While holding the drive gear (A), turn the gear shaft (B) counterclockwise. Check that the drive
gear comes out to the other end. If the drive gear
does not move smoothly, replace the gear cover
assembly.
15. While holding the drive gear, turn the gear shaft clockwise. The gear shaft should turn freely. If the
gear shaft does not turn freely, replace the gear
cover assembly.
16. If the drive gear is worn or damaged, replace the overrunning clutch assembly; the gear is not
available separately.
Check the condition of the flywheel ring gear (M/T
model), or the torque converter ring gear (A/T
model) to see if the starter drive gear teeth are
damaged. 17. Install the brush into the brush holder, and set the
armature (A) in the brush holder (B).
NOTE: To seat the new brushes, slip a strip of 500
or 600 sandpaper, with the grit side up, between
the commutator and each brush, and smoothly turn
the armature. The contact surface of the brushes
will be sanded to the same contour as the
commutator.
18. While squeezing a spring (C), insert it in the hole on the brush holder, and push it until it bottoms.
Repeat this for the other three springs (D, E, and F).
19. Install the armature and the brush holder assembly into the housing.
NOTE: Make sure the armature stays in the holder.
08/08/21 14:09:28 61SNR030_040_0018
ProCarManuals.com
DYNOMITE -2009-



(#'



)
Special Tools Required
Specified Air Pressure:
290 kPa (3.0 kgf/cm , 42 psi)
K20Z2 engine
2
6-8Cylinder Head
VTEC Rocker Arm Test
B
A D
07ZAJ-PNAA300
A
B
07ZAJ-PNAA200 C
07ZAJ-PNAA101
E
07AAJ-PNAA101
 VTEC air stopper 07ZAJ-PNAA200
 VTEC air adapter 07ZAJ-PNAA101
 Air joint adapter 07ZAJ-PNAA300
 Air pressure regulator 07AAJ-PNAA101
1. Start the engine, and let it run for 5 minutes, then turn the ignition switch to LOCK (0).
2. Remove the cylinder head cover (see page 6-36).
3. Set the No. 1 piston at top dead center (TDC) (see step 5 on page 6-18).
4. Move the intake primary rocker arm (A) for the No. 1 cylinder. The primary rocker arm should
move independently of the intake secondary rocker
arm (B).
 If the intake primary rocker arm moves freely, go to step 5.
 If the intake primary rocker arm do not move independently, remove the primary and
secondary rocker arms as an assembly and check
that the pistons in the secondary and primary
rocker arms move smoothly. If any rocker arm
needs replacing, replace the primary and
secondary rocker arms as an assembly, then
retest. 5. Repeat step 4 on the remaining intake primary
rockerarmswitheachpistonatTDC.Whenallthe
primary rocker arms pass the test, go to step 6.
6. Check that the air pressure on the shop air compressor gauge indicates over 400 kPa
(4 kgf/cm , 57 psi).
7. Inspect the valve clearance (see page 6-12).
8. Remove the sealing bolt (A) from the relief hole, and install the VTEC air stopper (B).
9. Remove the No. 2 and No. 3 camshaft holder bolts, and install the VTEC air adapters (C) finger-tight.
10. Connect the air joint adapter (D) and the air pressure regulator (E).
11. Loosen the valve on the air pressure regulator, and apply the specified air pressure.
NOTE: If the rocker arm piston does not move after
applying air pressure, move the primary or
secondary rocker arm up and down manually by
rotating the crankshaft clockwise.
2
08/08/21 14:26:27 61SNR030_060_0008
ProCarManuals.com
DYNOMITE -2009-



(#'

")
6-11
VTC Actuator Inspection
A B
1. Remove the cam chain (see page 6-18).
2. Loosen the rocker arm adjusting screws: K20Z2 engine (see step 2 on page 6-43)
 K20Z3 engine (see step 2 on page 6-44)
3. Remove the camshaft holder:  K20Z2 engine (see step 3 on page 6-43)
 K20Z3 engine (see step 3 on page 6-44)
4. Remove the intake camshaft.
5. Check that the variable valve timing control (VTC) actuator is locked by turning the VTC actuator
counterclockwise. If not locked, turn the VTC
actuator clockwise until it stops, then recheck it. If it
is still not locked, replace the VTC actuator.
6. Seal the advance holes (A) and the retard holes (B) in the No. 1 camshaft journal with tape.
7. Punch a hole in the tape over one of the advance holes.
8. Apply air to the advance hole to release the lock. 9. Check that the VTC actuator moves smoothly. If the
VTC actuator does not move smoothly, replace the
VTC actuator.
10. Remove the tape and adhesive residue from the No. 1 camshaft journal.
11. Make sure the punch marks on the VTC actuator and the exhaust camshaft sprocket are facing up,
then set the camshafts in the rocker shaft holder:
 K20Z2 engine (see step 6 on page 6-61)
 K20Z3 engine (see step 6 on page 6-62)
12. Set the camshaft holders and cam chain guide B in place:
 K20Z2 engine (see step 7 on page 6-61)
 K20Z3 engine (see step 7 on page 6-62)
13. Tighten the camshaft holder bolts to the specified torque:
 K20Z2 engine (see step 8 on page 6-61)
 K20Z3 engine (see step 8 on page 6-62)
14. Hold the camshaft, and turn the VTC actuator clockwise until you hear it click. Make sure to lock
the VTC actuator by turning it.
15. Install the cam chain (see page 6-21).
16. Adjust the valve clearance:  K20Z2 engine (see page 6-12)
 K20Z3 engine (see page 6-14)
08/08/21 14:26:29 61SNR030_060_0011
ProCarManuals.com
DYNOMITE -2009-


(#'
")
Special Tools Required
K20Z3 engine
6-146-14 Cylinder Head
Valve Clearance Adjustment (cont’d)
B
A
C
11. Rotate the crankshaft 180 ° clockwise (camshaft pulley turns 90 °).
12. Check and, if necessary, adjust the valve clearance on the No. 2 cylinder.
13. Install the cylinder head cover (see page 6-37).  Locknut wrench 07MAA-PR70120
 Adjuster 07MAA-PR70110
NOTE: Connect the Honda Diagnostic System (HDS) to
the data link connector (DLC) (see step 2 on page 11-3),
and monitor the engine coolant temperature (ECT)
sensor 1 with the HDS. Adjust the valve clearance only
when the engine coolant temperature is less than 38 °C
(100 °F).
1. Remove the cylinder head cover (see page 6-36).
2. Set the No. 1 piston at top dead center (TDC). The punch mark (A) on the variable valve timing control
(VTC) actuator and the punch mark (B) on the
exhaust camshaft sprocket should be at the top.
Align the TDC marks (C) on the VTC actuator and
the exhaust camshaft sprocket.
08/08/21 14:26:31 61SNR030_060_0014
ProCarManuals.com
DYNOMITE -2009-





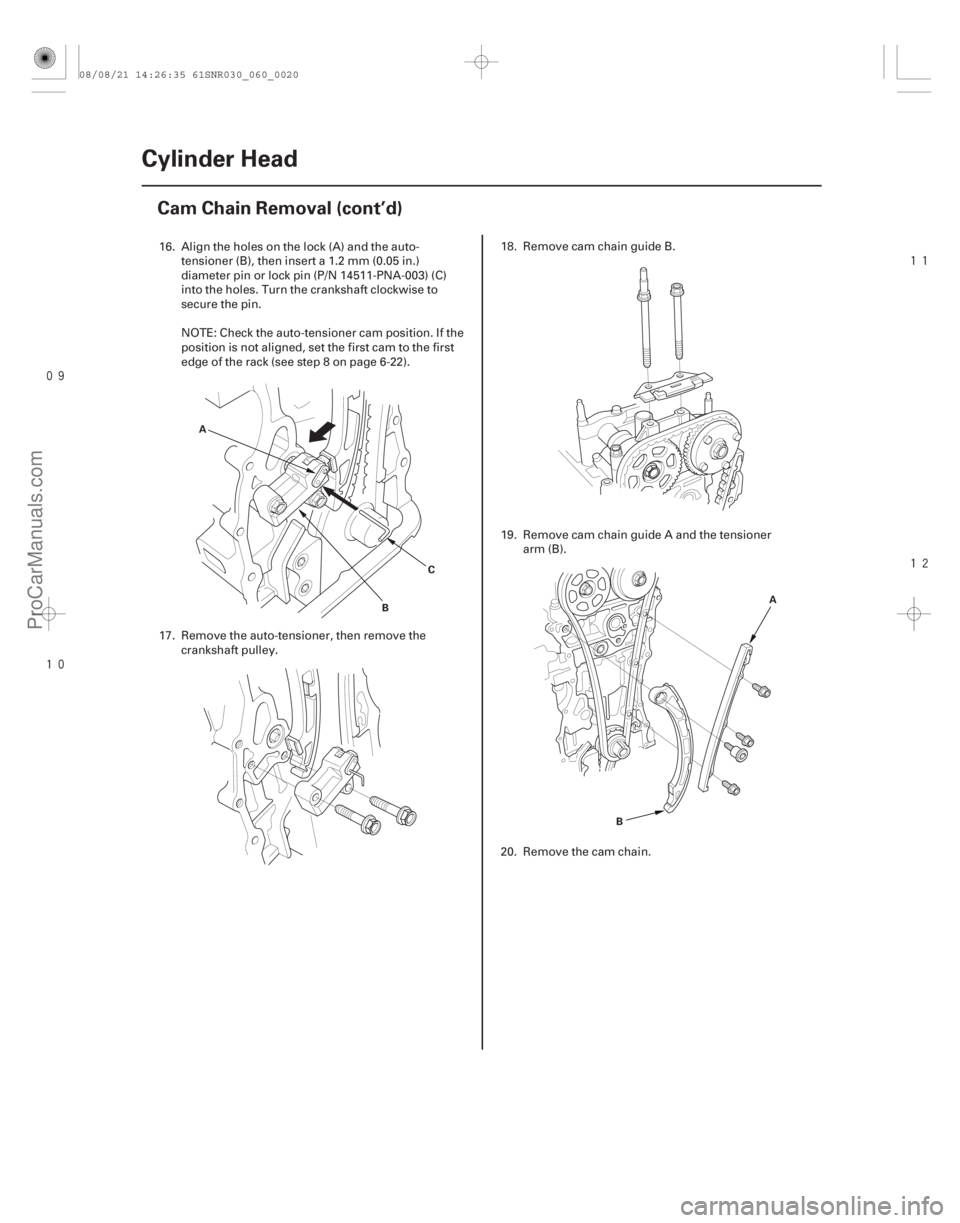

6-20Cylinder Head
Cam Chain Removal (cont’d)
A
BC
A
B
16. Align the holes on the lock (A) and the auto- tensioner (B), then insert a 1.2 mm (0.05 in.)
diameter pin or lock pin (P/N 14511-PNA-003) (C)
into the holes. Turn the crankshaft clockwise to
secure the pin.
NOTE: Check the auto-tensioner cam position. If the
position is not aligned, set the first cam to the first
edge of the rack (see step 8 on page 6-22).
17. Remove the auto-tensioner, then remove the crankshaft pulley. 18. Remove cam chain guide B.
19. Remove cam chain guide A and the tensioner
arm (B).
20. Remove the cam chain.
08/08/21 14:26:35 61SNR030_060_0020
ProCarManuals.com
DYNOMITE -2009-




(#'
 )

Special Tools Required
6-21

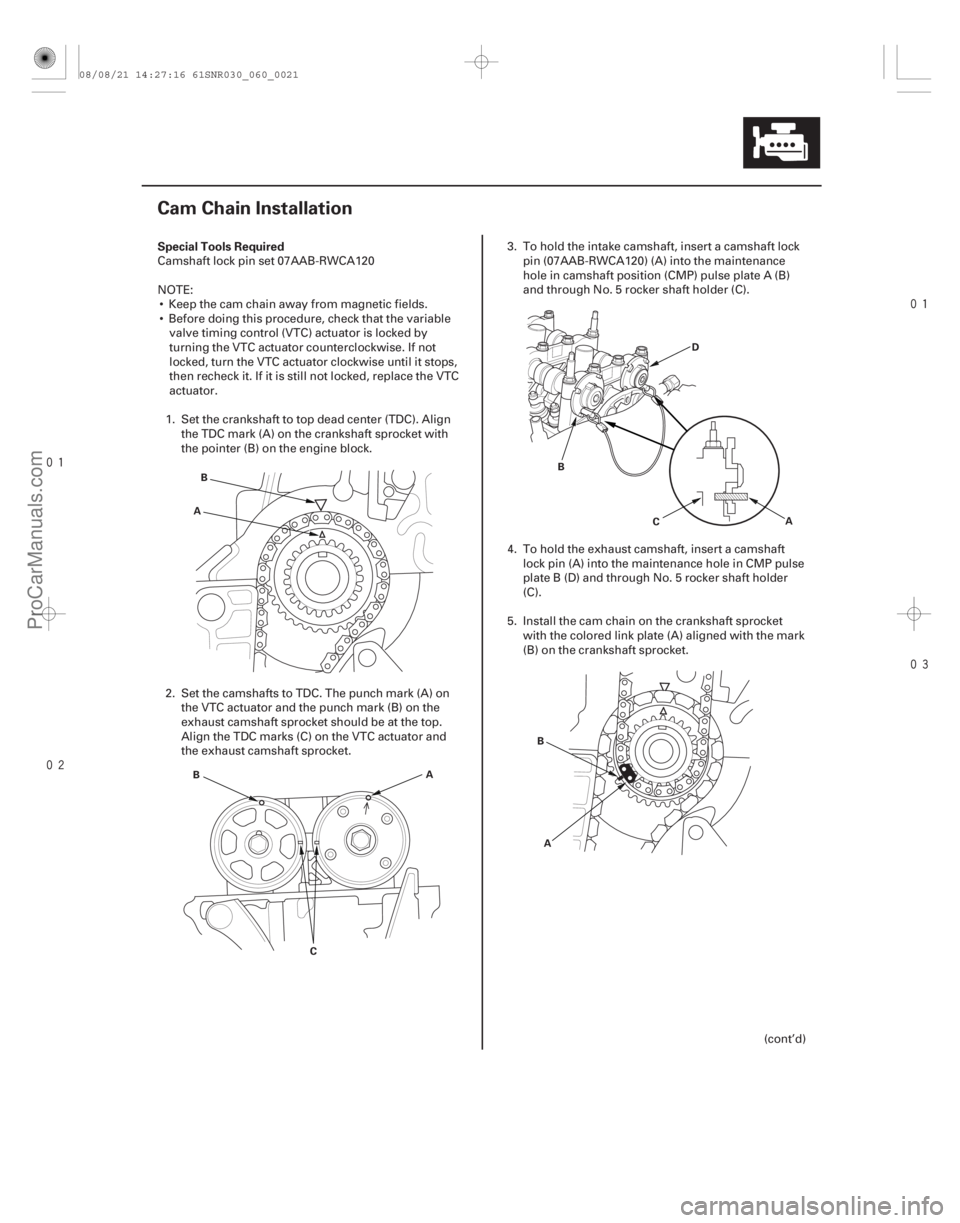

Cam Chain Installation
A
B
C A
B B
D
C A
B A
Camshaft lock pin set 07AAB-RWCA120
NOTE: Keep the cam chain away from magnetic fields.
 Before doing this procedure, check that the variable valve timing control (VTC) actuator is locked by
turning the VTC actuator counterclockwise. If not
locked, turn the VTC actuator clockwise until it stops,
then recheck it. If it is still not locked, replace the VTC
actuator.
1. Set the crankshaft to top dead center (TDC). Align the TDC mark (A) on the crankshaft sprocket with
the pointer (B) on the engine block.
2. Set the camshafts to TDC. The punch mark (A) on the VTC actuator and the punch mark (B) on the
exhaust camshaft sprocket should be at the top.
Align the TDC marks (C) on the VTC actuator and
the exhaust camshaft sprocket. 3. To hold the intake camshaft, insert a camshaft lock
pin (07AAB-RWCA120) (A) into the maintenance
hole in camshaft position (CMP) pulse plate A (B)
and through No. 5 rocker shaft holder (C).
4. To hold the exhaust camshaft, insert a camshaft lock pin (A) into the maintenance hole in CMP pulse
plate B (D) and through No. 5 rocker shaft holder
(C).
5. Install the cam chain on the crankshaft sprocket with the colored link plate (A) aligned with the mark
(B) on the crankshaft sprocket.
(cont’d)
08/08/21 14:27:16 61SNR030_060_0021
ProCarManuals.com
DYNOMITE -2009-


Î


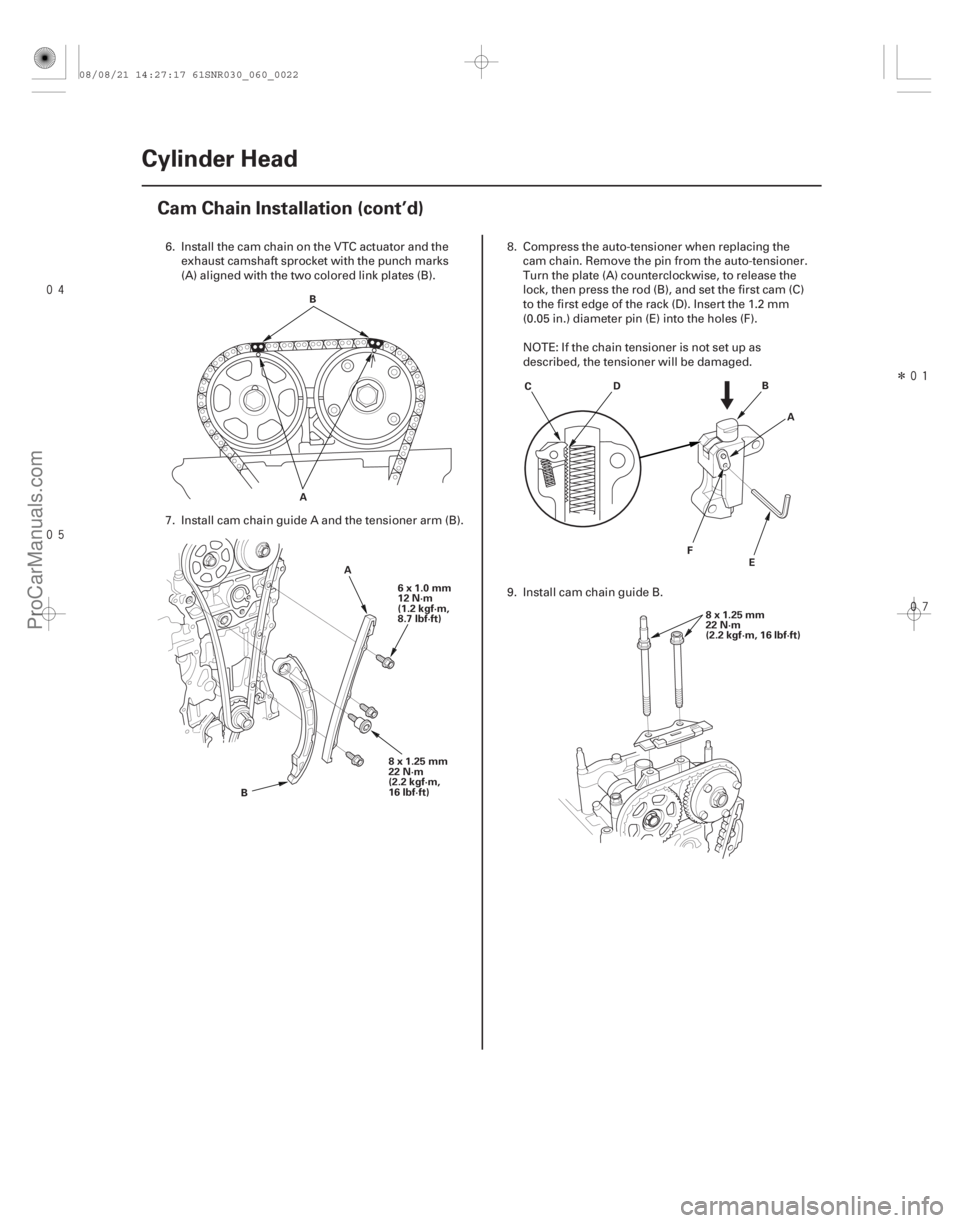

6-22Cylinder Head
Cam Chain Installation (cont’d)
B
A A
B 6x1.0mm
12 N·m
(1.2 kgf·m,
8.7 lbf·ft)
8x1.25mm
22 N·m
(2.2 kgf·m,
16 lbf·ft) C
D B
A
E
F
8x1.25mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)
6. Install the cam chain on the VTC actuator and theexhaust camshaft sprocket with the punch marks
(A) aligned with the two colored link plates (B).
7. Install cam chain guide A and the tensioner arm (B). 8. Compress the auto-tensioner when replacing the
cam chain. Remove the pin from the auto-tensioner.
Turn the plate (A) counterclockwise, to release the
lock, then press the rod (B), and set the first cam (C)
to the first edge of the rack (D). Insert the 1.2 mm
(0.05 in.) diameter pin (E) into the holes (F).
NOTE: If the chain tensioner is not set up as
described, the tensioner will be damaged.
9. Install cam chain guide B.
08/08/21 14:27:17 61SNR030_060_0022
ProCarManuals.com
DYNOMITE -2009-




(#'
 )

Removal
6-29

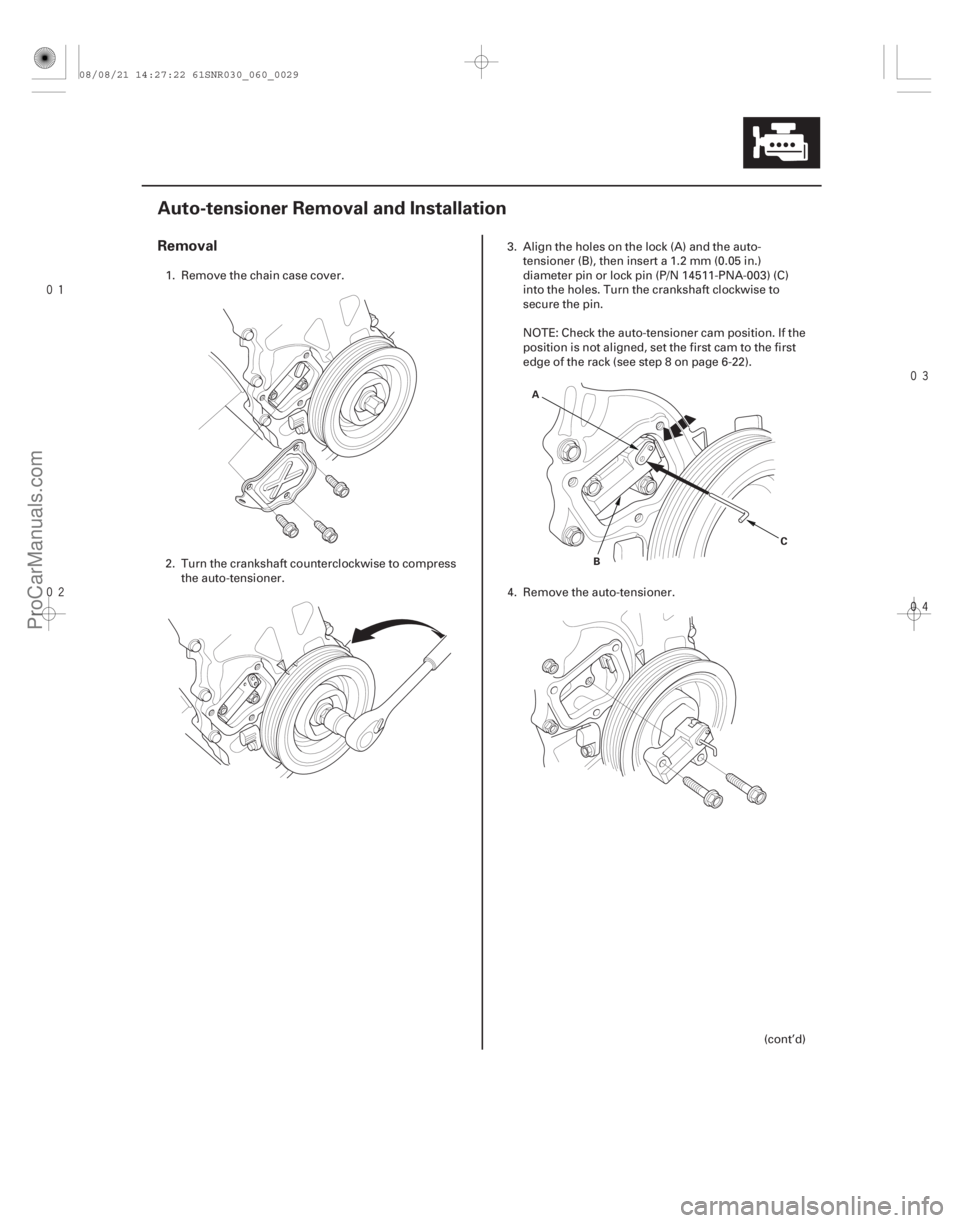

Auto-tensioner Removal and Installation
C
B
A
1. Remove the chain case cover.
2. Turn the crankshaft counterclockwise to compress
the auto-tensioner. 3. Align the holes on the lock (A) and the auto-
tensioner (B), then insert a 1.2 mm (0.05 in.)
diameter pin or lock pin (P/N 14511-PNA-003) (C)
into the holes. Turn the crankshaft clockwise to
secure the pin.
NOTE: Check the auto-tensioner cam position. If the
position is not aligned, set the first cam to the first
edge of the rack (see step 8 on page 6-22).
4. Remove the auto-tensioner.
(cont’d)
08/08/21 14:27:22 61SNR030_060_0029
ProCarManuals.com
DYNOMITE -2009-



(#'
 )
 Special Tools Required
Tighten: 3/4 Turn Clockwise
Tightening Torque: 12 N·m (1.2 kgf·m, 8.7 lbf·ft)
8-118-11
Engine Oil Filter Replacement
A
B
07HAA-PJ70101
5. Run the engine for more than 3 minutes, then checkfor oil leakage.
6. Turn the ignition switch to LOCK (0).
7. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (see step 2 on page 11-3).
8. Turn the ignition switch to ON (II).
9. Make sure the HDS communicates with the vehicle and the engine control module (ECM)/powertrain
control module (PCM). If it does not communicate,
troubleshoot the DLC circuit (see page 11- 204).
10. Select GAUGES in the BODY ELECTRICAL menu with the HDS.
11. Select ADJUSTMENT in the GAUGES menu with the HDS.
12. Select SERVICE REMINDER in the ADJUSTMENT menu with the HDS.
13. Select RESET in the SERVICE REMINDER menu with the HDS.
14. Select RESETTING THE ENGINE OIL LIFE with the HDS.
NOTE: If you changed the automatic transmission
fluid (ATF) at the same time with the engine oil,
select RESETTING THE ENGINE OIL LIFE AND ATF
with the HDS instead. Oil filter wrench 07HAA-PJ70101
1. Remove the oil filter with the oil filter wrench.
2. Inspect the filter to make sure the rubber seal is not stuck to the oil filter seating surface of the engine.
3. Inspect the threads (A) and rubber seal (B) on the new filter. Clean the seat on the engine block, then
apply a light coat of new engine oil to the filter
rubber seal. Use only filters with a built-in bypass
system.
4. Install the oil filter by hand.
5. After the rubber seal seats, tighten the oil filter clockwise with the oil filter wrench.
(cont’d)
08/08/21 14:36:43 61SNR030_080_0011
ProCarManuals.com
DYNOMITE -2009-



(#'
 )
 Special Tools Required
Tighten: 3/4 Turn Clockwise
Tightening Torque: 12 N·m (1.2 kgf·m, 8.7 lbf·ft)
8-118-11
Engine Oil Filter Replacement
A
B
07HAA-PJ70101
5. Run the engine for more than 3 minutes, then checkfor oil leakage.
6. Turn the ignition switch to LOCK (0).
7. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (see step 2 on page 11-3).
8. Turn the ignition switch to ON (II).
9. Make sure the HDS communicates with the vehicle and the engine control module (ECM)/powertrain
control module (PCM). If it does not communicate,
troubleshoot the DLC circuit (see page 11- 204).
10. Select GAUGES in the BODY ELECTRICAL menu with the HDS.
11. Select ADJUSTMENT in the GAUGES menu with the HDS.
12. Select SERVICE REMINDER in the ADJUSTMENT menu with the HDS.
13. Select RESET in the SERVICE REMINDER menu with the HDS.
14. Select RESETTING THE ENGINE OIL LIFE with the HDS.
NOTE: If you changed the automatic transmission
fluid (ATF) at the same time with the engine oil,
select RESETTING THE ENGINE OIL LIFE AND ATF
with the HDS instead. Oil filter wrench 07HAA-PJ70101
1. Remove the oil filter with the oil filter wrench.
2. Inspect the filter to make sure the rubber seal is not stuck to the oil filter seating surface of the engine.
3. Inspect the threads (A) and rubber seal (B) on the new filter. Clean the seat on the engine block, then
apply a light coat of new engine oil to the filter
rubber seal. Use only filters with a built-in bypass
system.
4. Install the oil filter by hand.
5. After the rubber seal seats, tighten the oil filter clockwise with the oil filter wrench.
(cont’d)
08/08/21 14:36:43 61SNR030_080_0011
ProCarManuals.com
DYNOMITE -2009-
