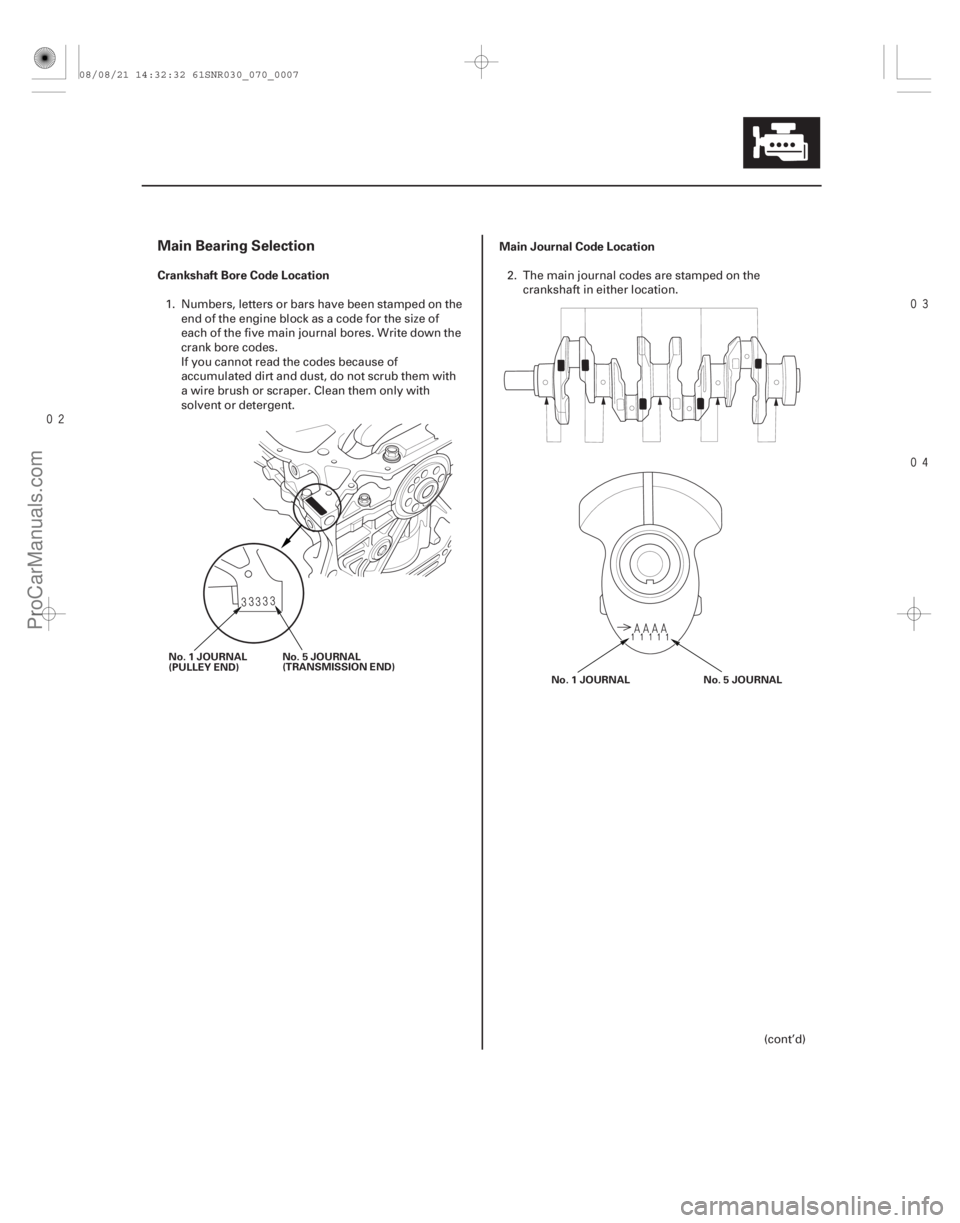

Main Bearing Selection
Crankshaft Bore Code Location
Main Journal Code Location
7-7
No. 1 JOURNAL
(PULLEY END)
No. 5 JOURNAL
(TRANSMISSION END)
No. 1 JOURNAL No. 5 JOURNAL
1. Numbers, letters or bars have been stamped on theend of the engine block as a code for the size of
each of the five main journal bores. Write down the
crank bore codes.
If you cannot read the codes because of
accumulated dirt and dust, do not scrub them with
a wire brush or scraper. Clean them only with
solvent or detergent. 2. The main journal codes are stamped on the
crankshaft in either location.
(cont’d)
08/08/21 14:32:32 61SNR030_070_0007
ProCarManuals.com
DYNOMITE -2009-

´´

(#'




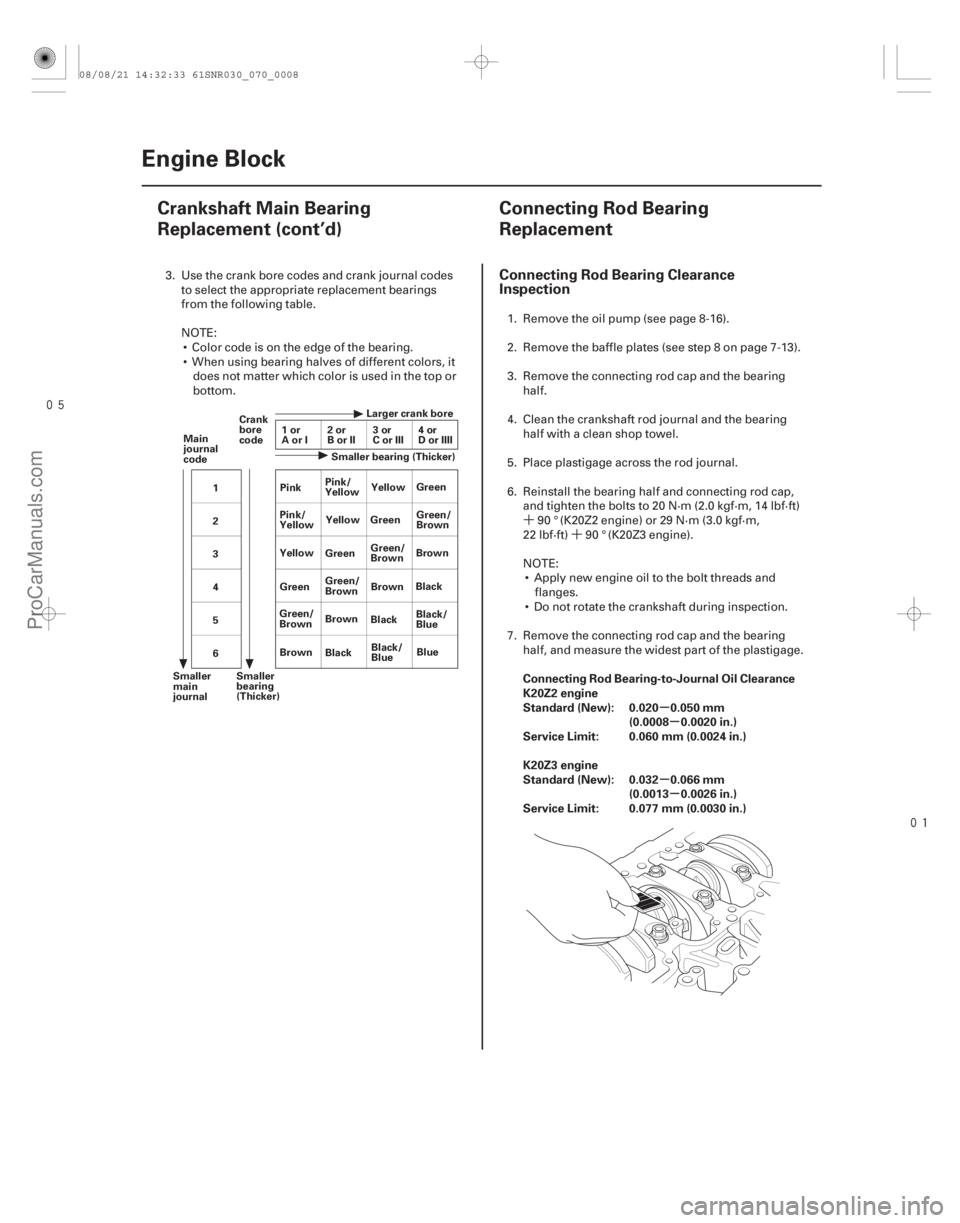

 ) µ
µ
µ µ
Connecting Rod Bearing Clearance
Inspection
Connecting Rod Bearing-to-Journal Oil Clearance
K20Z2 engine
Standard (New): 0.020 0.050 mm (0.0008 0.0020 in.)
Service Limit: 0.060 mm (0.0024 in.)
K20Z3 engine
Standard (New): 0.032 0.066 mm (0.0013 0.0026 in.)
Service Limit: 0.077 mm (0.0030 in.)
7-87-8 Engine Block
Crankshaft Main Bearing
Replacement (cont’d)
Connecting Rod Bearing
Replacement
Larger crank bore
1or
AorI 2or
BorII 3or
C or III4or
D or IIII
Smaller bearing (Thicker)
Blue
Pink
Yellow Green
Green/
Brown
Brown Green
Green/
Brown
Brown Green
Green/
Brown
Brown Green
Green/
Brown
Brown
Black Black/
Blue
Crank
bore
code
Pink/
YellowYellow
Yellow
Pink/
Yellow
Black
Black Black/
Blue
Main
journal
code
1
2
3
4
5
6
Smaller
main
journal Smaller
bearing
(Thicker)
3. Use the crank bore codes and crank journal codes
to select the appropriate replacement bearings
from the following table.
NOTE: Color code is on the edge of the bearing.
 When using bearing halves of different colors, it does not matter which color is used in the top or
bottom. 1. Remove the oil pump (see page 8-16).
2. Remove the baffle plates (see step 8 on page 7-13).
3. Remove the connecting rod cap and the bearing
half.
4. Clean the crankshaft rod journal and the bearing half with a clean shop towel.
5. Place plastigage across the rod journal.
6. Reinstall the bearing half and connecting rod cap, and tighten the bolts to 20 N·m (2.0 kgf·m, 14 lbf·ft)90 ° (K20Z2 engine) or 29 N·m (3.0 kgf·m,
22 lbf·ft) 90 ° (K20Z3 engine).
NOTE:  Apply new engine oil to the bolt threads and flanges.
 Do not rotate the crankshaft during inspection.
7. Remove the connecting rod cap and the bearing half, and measure the widest part of the plastigage.
08/08/21 14:32:33 61SNR030_070_0008
ProCarManuals.com
DYNOMITE -2009-



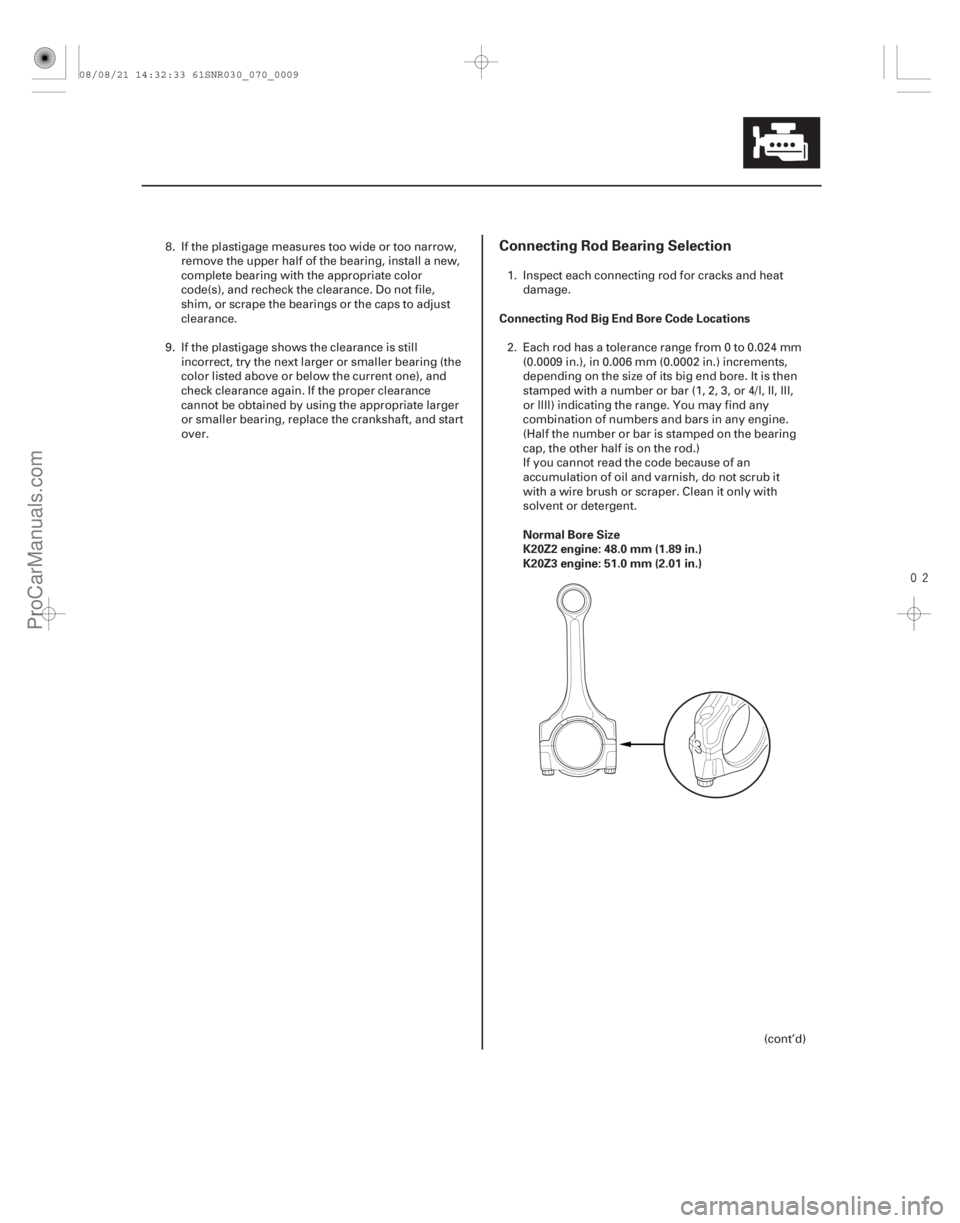

Connecting Rod Bearing Selection
Connecting Rod Big End Bore Code LocationsNormal Bore Size
K20Z2 engine: 48.0 mm (1.89 in.)
K20Z3 engine: 51.0 mm (2.01 in.)
7-9
8. If the plastigage measures too wide or too narrow,remove the upper half of the bearing, install a new,
complete bearing with the appropriate color
code(s), and recheck the clearance. Do not file,
shim, or scrape the bearings or the caps to adjust
clearance.
9. If the plastigage shows the clearance is still incorrect, try the next larger or smaller bearing (the
color listed above or below the current one), and
check clearance again. If the proper clearance
cannot be obtained by using the appropriate larger
or smaller bearing, replace the crankshaft, and start
over. 1. Inspect each connecting rod for cracks and heat
damage.
2. Each rod has a tolerance range from 0 to 0.024 mm (0.0009 in.), in 0.006 mm (0.0002 in.) increments,
depending on the size of its big end bore. It is then
stamped with a number or bar (1, 2, 3, or 4/l, ll, lll,
or llll) indicating the range. You may find any
combination of numbers and bars in any engine.
(Half the number or bar is stamped on the bearing
cap, the other half is on the rod.)
If you cannot read the code because of an
accumulation of oil and varnish, do not scrub it
with a wire brush or scraper. Clean it only with
solvent or detergent.
(cont’d)
08/08/21 14:32:33 61SNR030_070_0009
ProCarManuals.com
DYNOMITE -2009-




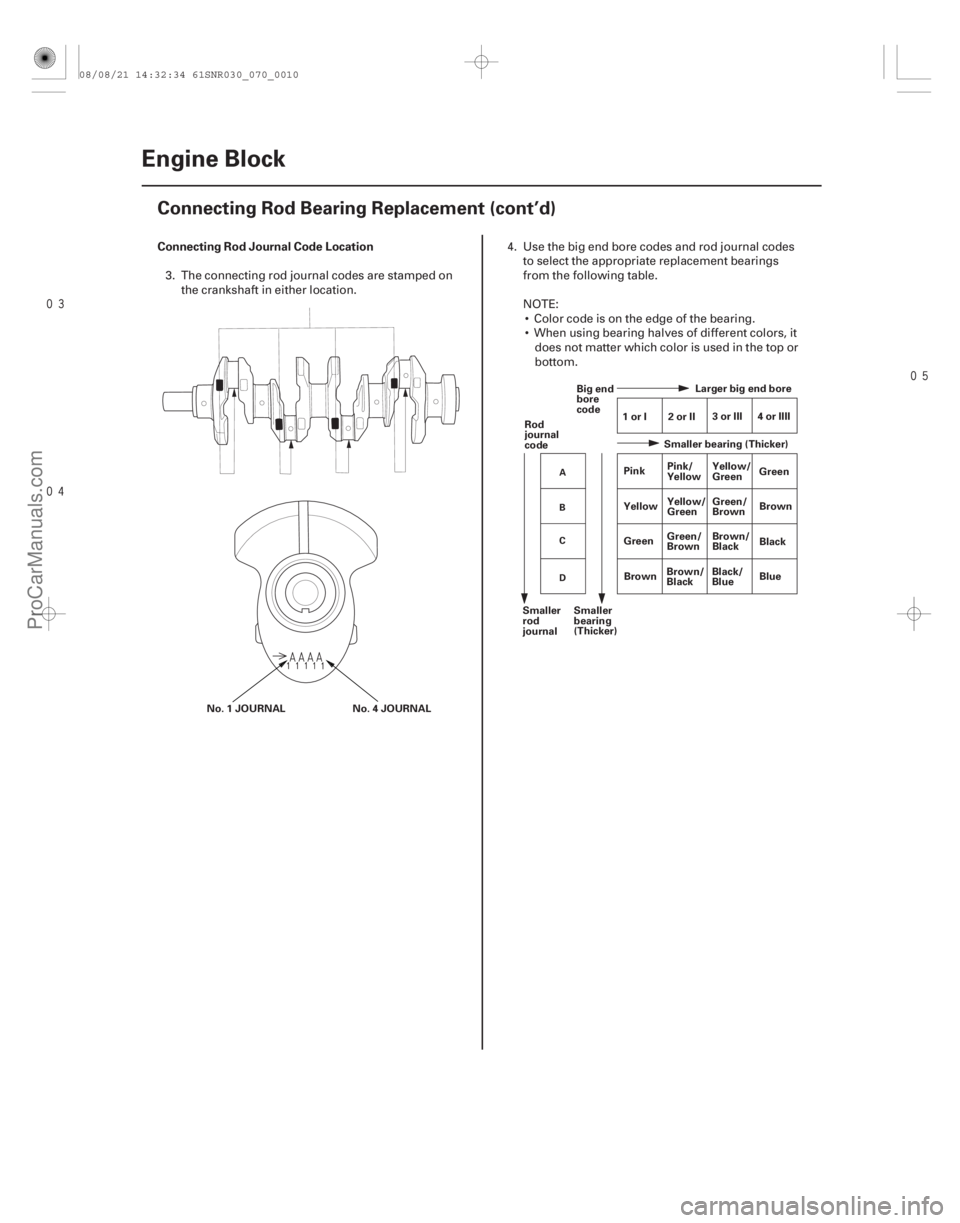

Connecting Rod Journal Code Location
7-10 Engine Block
Connecting Rod Bearing Replacement (cont’d)
No. 1 JOURNAL
No. 4 JOURNAL Larger big end bore
Smaller bearing (Thicker)
1orI 2orII
3orIII 4orIIII
Big end
bore
code
Smaller
rod
journal Smaller
bearing
(Thicker)
Rod
journal
code
Green/
BrownBlack
Yellow/
Green
Brown
Pink/
Yellow
Green
Brown Blue
Yellow Pink
Green Brown/
Black Brown/
Black
Green/
Brown
Yellow/
Green
Black/
Blue
A
B
C
D
3. The connecting rod journal codes are stamped on the crankshaft in either location. 4. Use the big end bore codes and rod journal codes
to select the appropriate replacement bearings
from the following table.
NOTE: Color code is on the edge of the bearing.
 When using bearing halves of different colors, it does not matter which color is used in the top or
bottom.
08/08/21 14:32:34 61SNR030_070_0010
ProCarManuals.com
DYNOMITE -2009-



(#'

 )

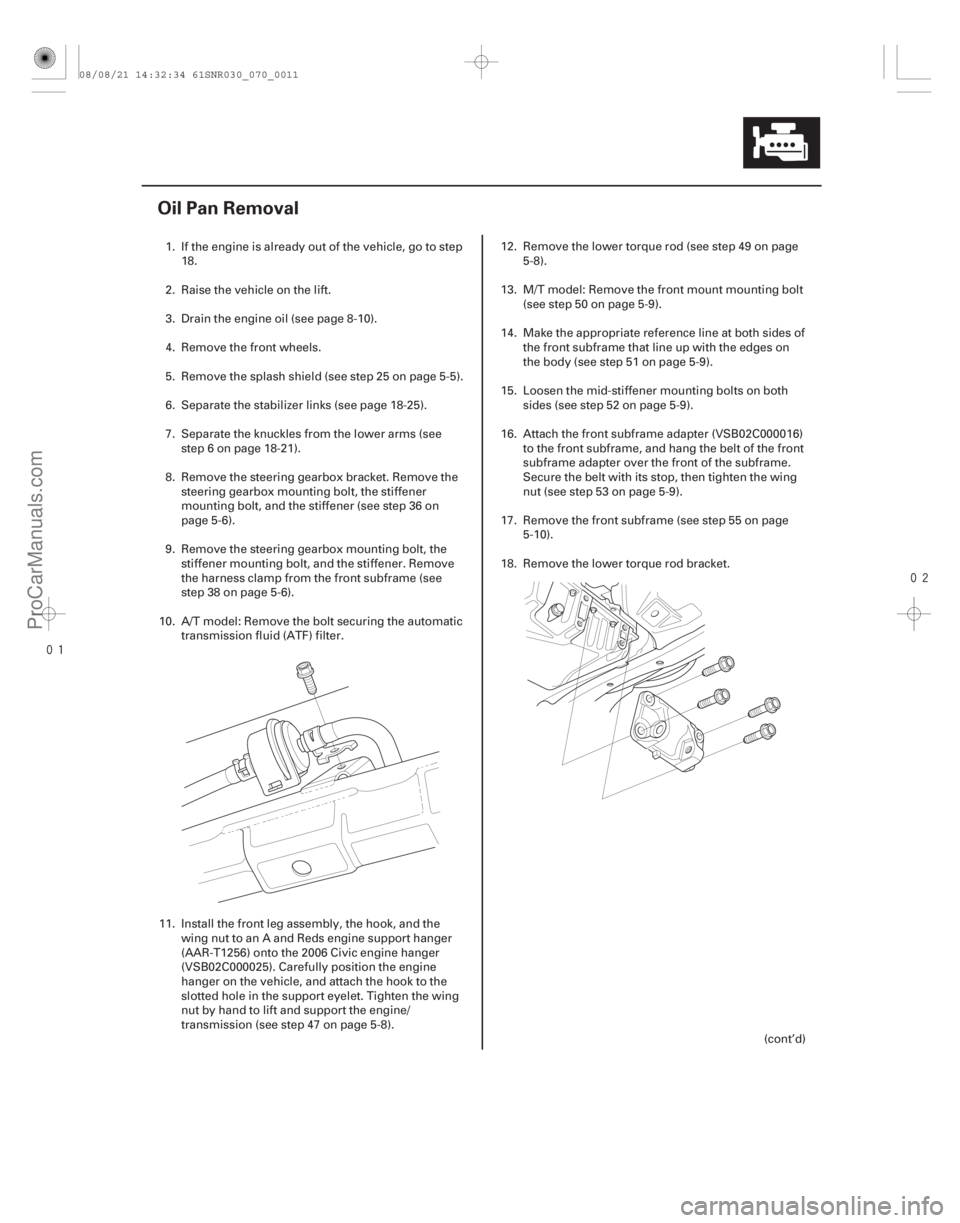

7-11
Oil Pan Removal
1. If the engine is already out of the vehicle, go to step 18.
2. Raise the vehicle on the lift.
3. Drain the engine oil (see page 8-10).
4. Remove the front wheels.
5. Remove the splash shield (see step 25 on page 5-5).
6. Separate the stabilizer links (see page 18-25).
7. Separate the knuckles from the lower arms (see step 6 on page 18-21).
8. Remove the steering gearbox bracket. Remove the steering gearbox mounting bolt, the stiffener
mounting bolt, and the stiffener (see step 36 on
page 5-6).
9. Remove the steering gearbox mounting bolt, the stiffener mounting bolt, and the stiffener. Remove
the harness clamp from the front subframe (see
step 38 on page 5-6).
10. A/T model: Remove the bolt securing the automatic transmission fluid (ATF) filter.
11. Install the front leg assembly, the hook, and the wing nut to an A and Reds engine support hanger
(AAR-T1256) onto the 2006 Civic engine hanger
(VSB02C000025). Carefully position the engine
hanger on the vehicle, and attach the hook to the
slotted hole in the support eyelet. Tighten the wing
nut by hand to lift and support the engine/
transmission (see step 47 on page 5-8). 12. Remove the lower torque rod (see step 49 on page
5-8).
13. M/T model: Remove the front mount mounting bolt (see step 50 on page 5-9).
14. Make the appropriate reference line at both sides of the front subframe that line up with the edges on
the body (see step 51 on page 5-9).
15. Loosen the mid-stiffener mounting bolts on both sides(seestep52onpage5-9).
16. Attach the front subframe adapter (VSB02C000016) to the front subframe, and hang the belt of the front
subframe adapter over the front of the subframe.
Secure the belt with its stop, then tighten the wing
nut (see step 53 on page 5-9).
17. Remove the front subframe (see step 55 on page 5-10).
18. Remove the lower torque rod bracket.
(cont’d)
08/08/21 14:32:34 61SNR030_070_0011
ProCarManuals.com
DYNOMITE -2009-




7-12Engine Block
Oil Pan Removal (cont’d)
B
A
19. A/T model: Remove the shift cable cover.
